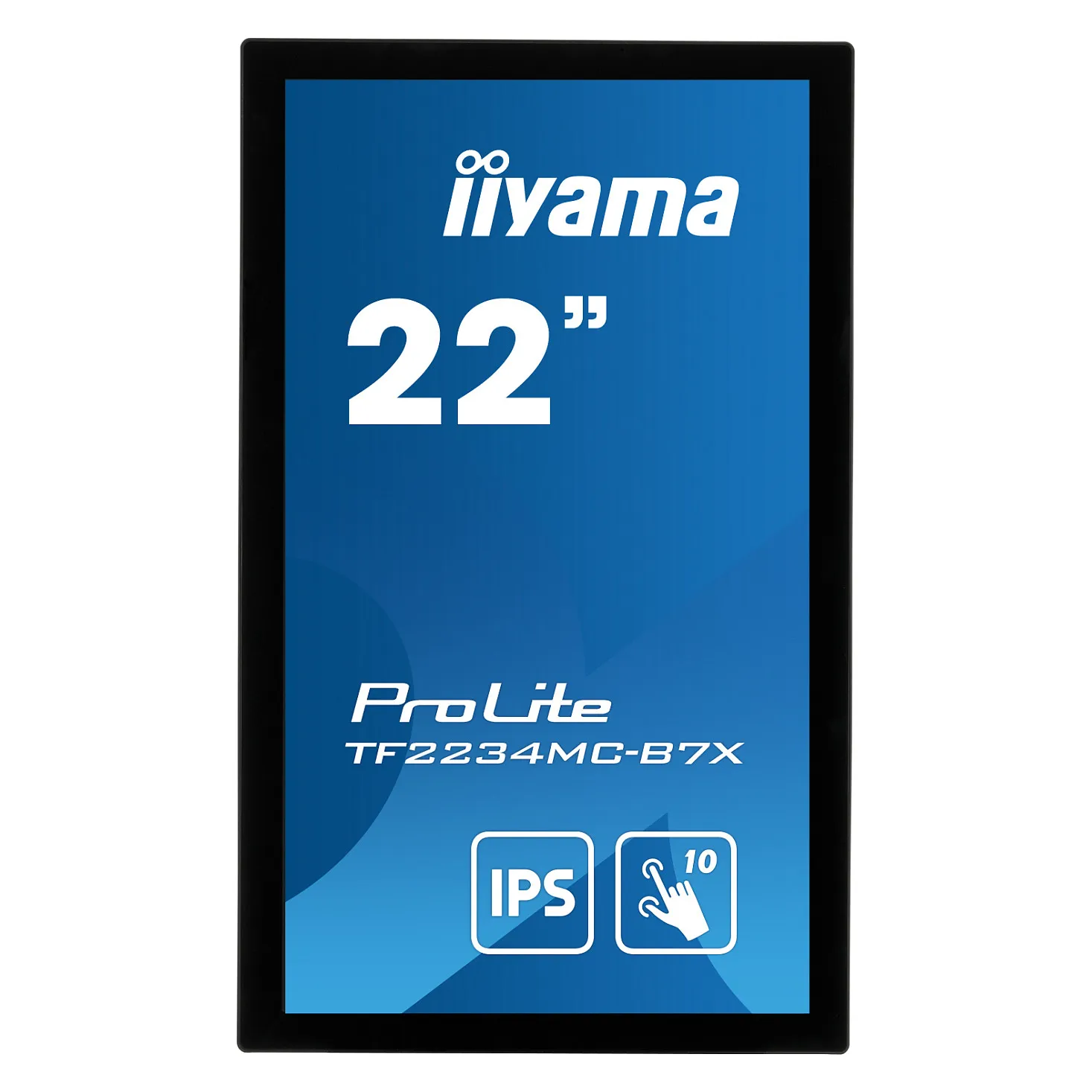

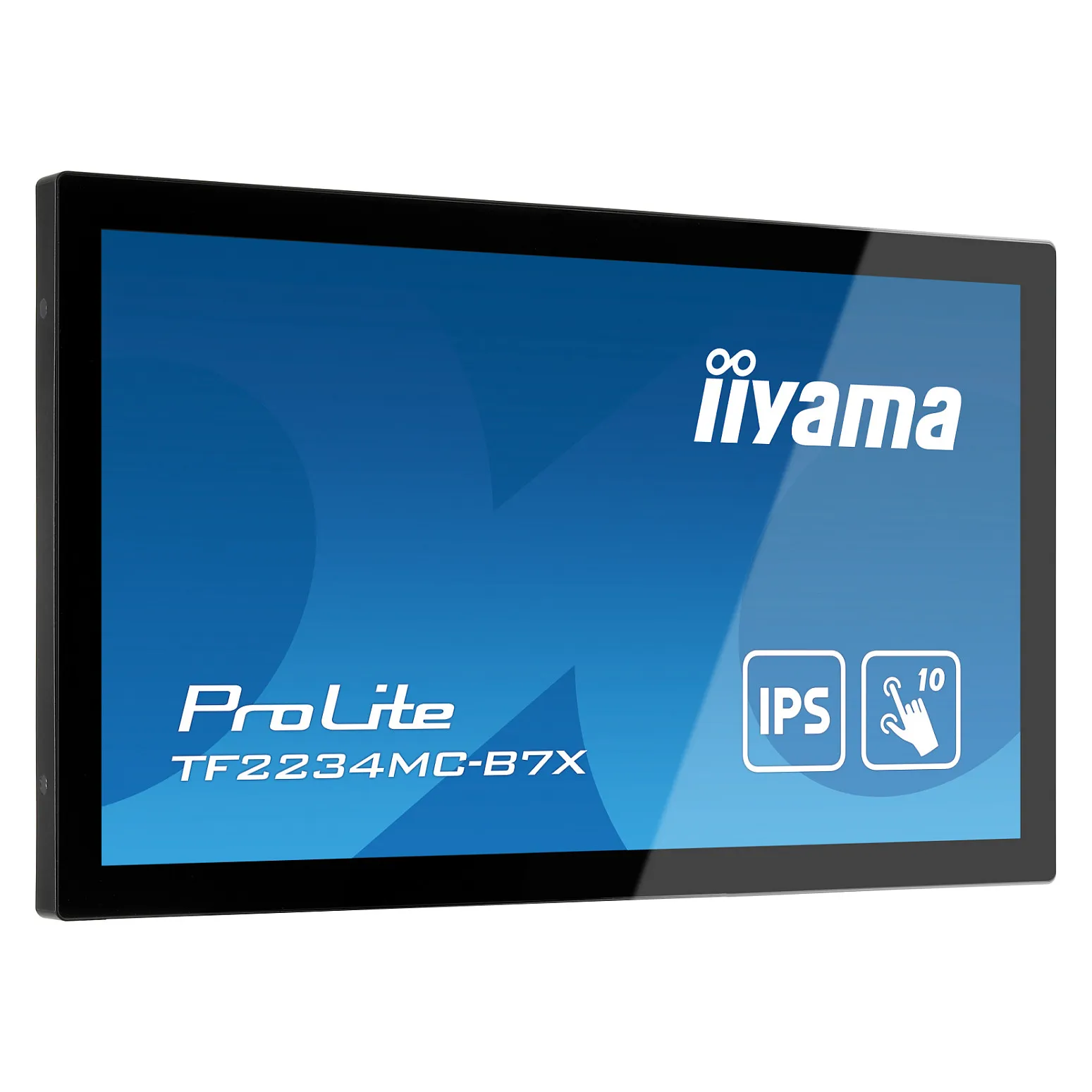

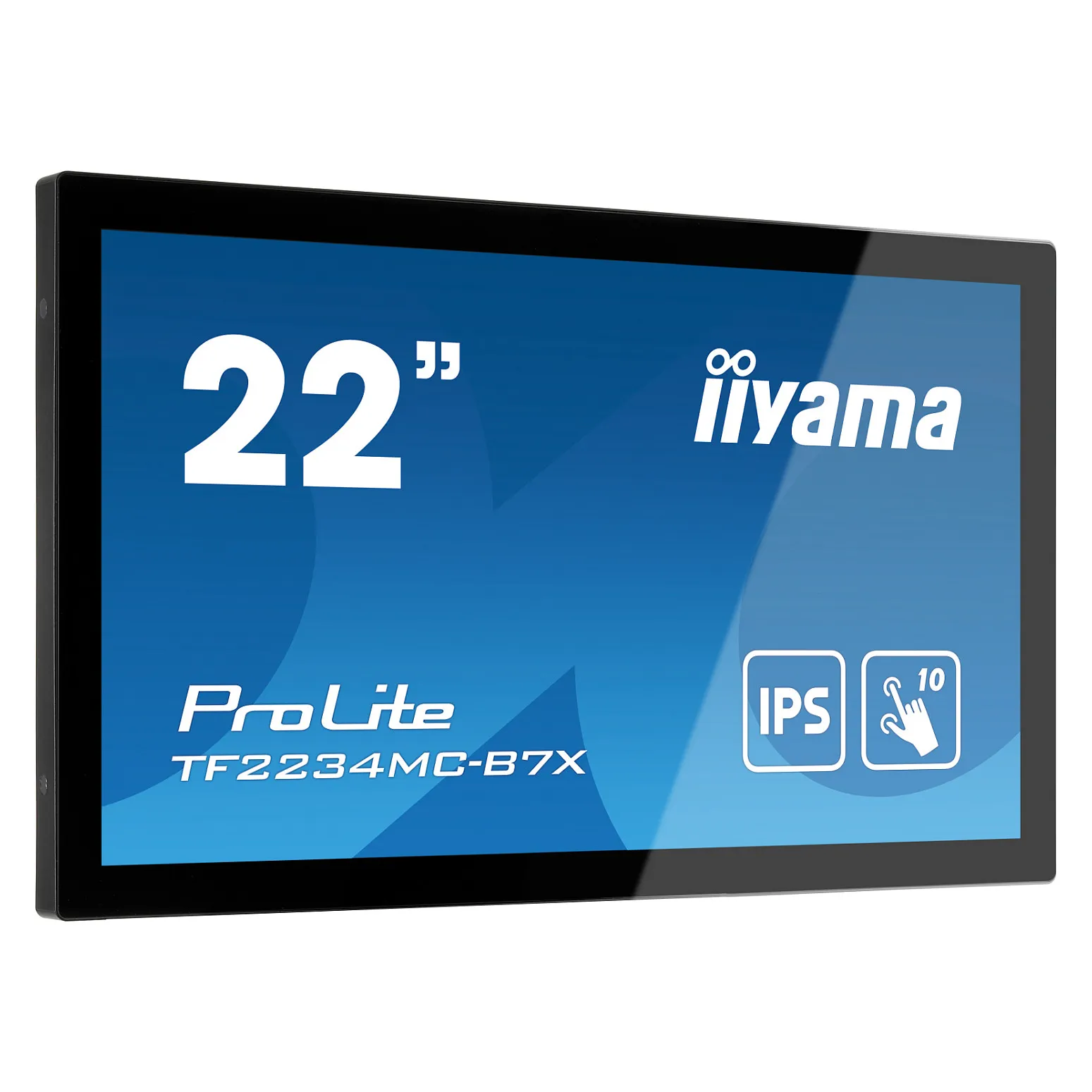

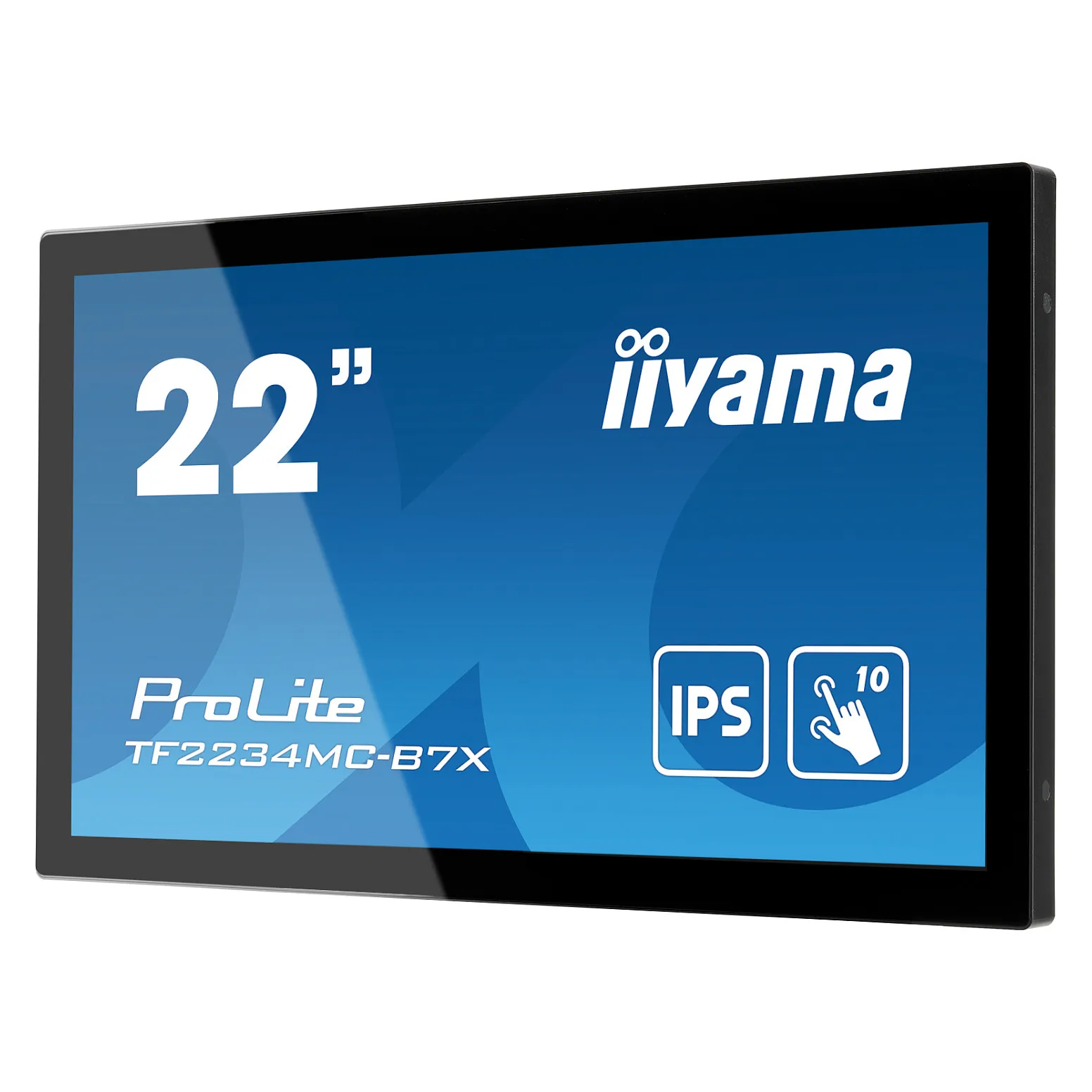

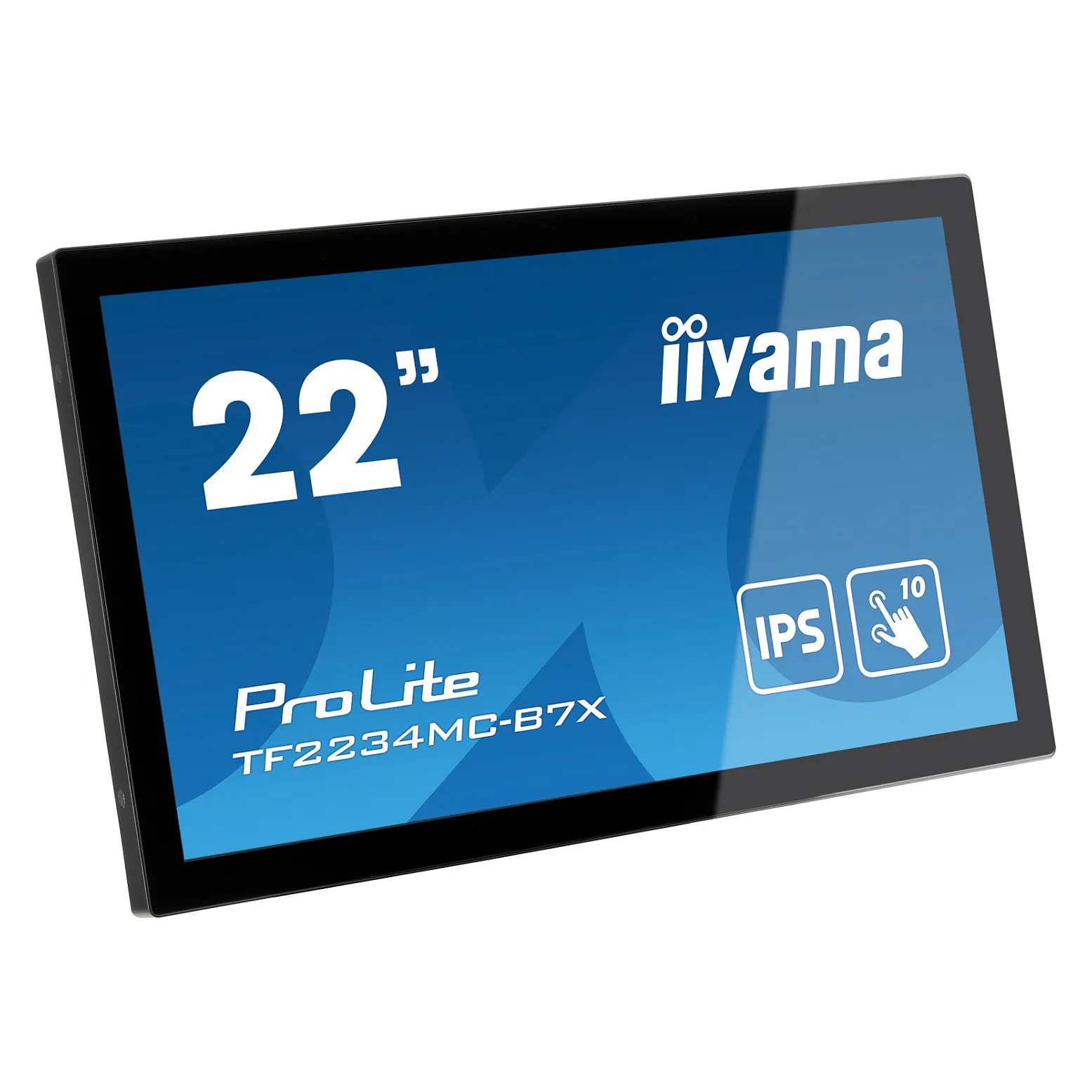

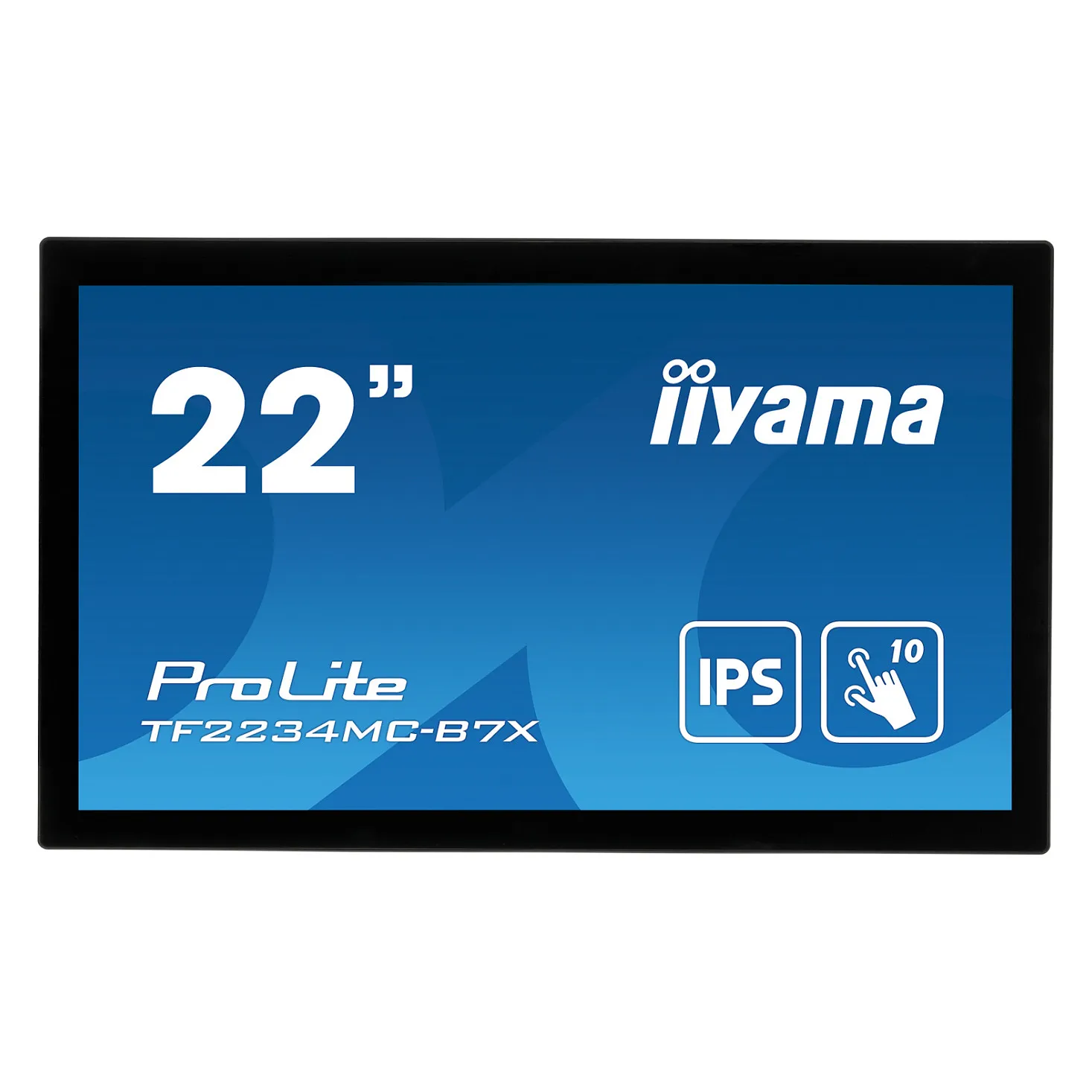

iiyama ProLite TF2234MC-B7X. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black
The ProLite TF2234MC-B7X uses 10 pt Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS technology, it offers exceptional colour performance and wide viewing angles, making it a perfect display for Interactive Digital Signage, kiosk integrators, Instore Retail, Gaming and Interactive Presentations. In addition to the superb image quality, the monitor comes with IP65 rating, which means it is dust and water resistant and with Touch-Through-Glass technology delivering seamless and accurate touch response for true kiosk integration or behind-glass-retail. For ease of integration, this monitor can be equipped with optional external mounting brackets ( OMK1-1 ).
Display
Display diagonal: 54.6 cm (21.5″)
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: IPS
Feature: Touchscreen
Touchscreen type: Multi-user
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (typical): 350 cd/m²
Display brightness: 305 cd/m²
Response time: 8 ms
Response time measurement type: GTG (Gray to Gray)
Screen shape: Flat
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.247 x 0.247 mm
Horizontal scan range: 30 – 84 kHz
Viewable size, vertical: 26.8 cm
Display diagonal (metric): 54.6 cm
Surface hardness: 7H
Performance
Feature: Palm rejection
Design
Product colour: Black
Front bezel colour: Black
Glass thickness: 1.5 mm
Ports & interfaces
Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: HDCP
Ergonomics

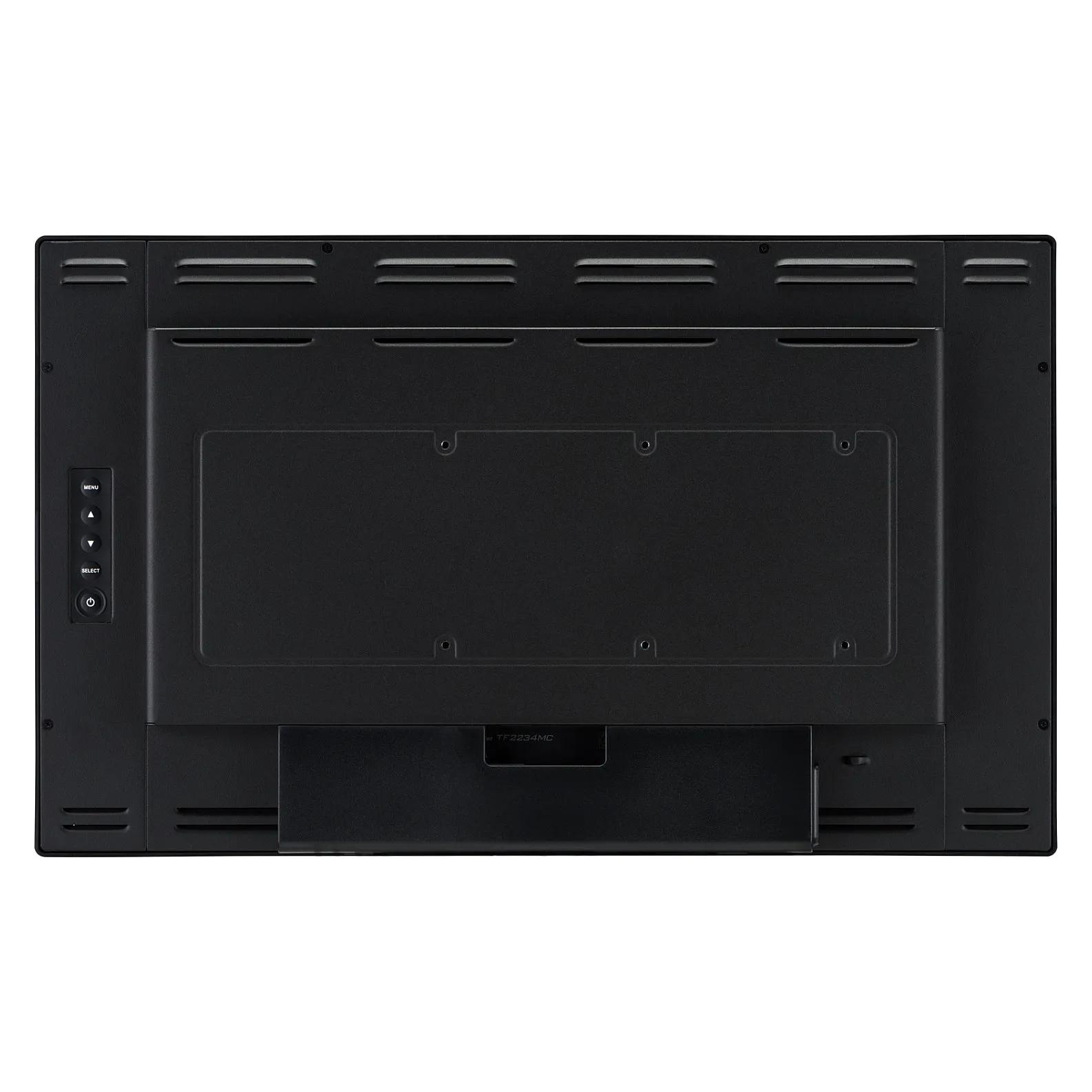

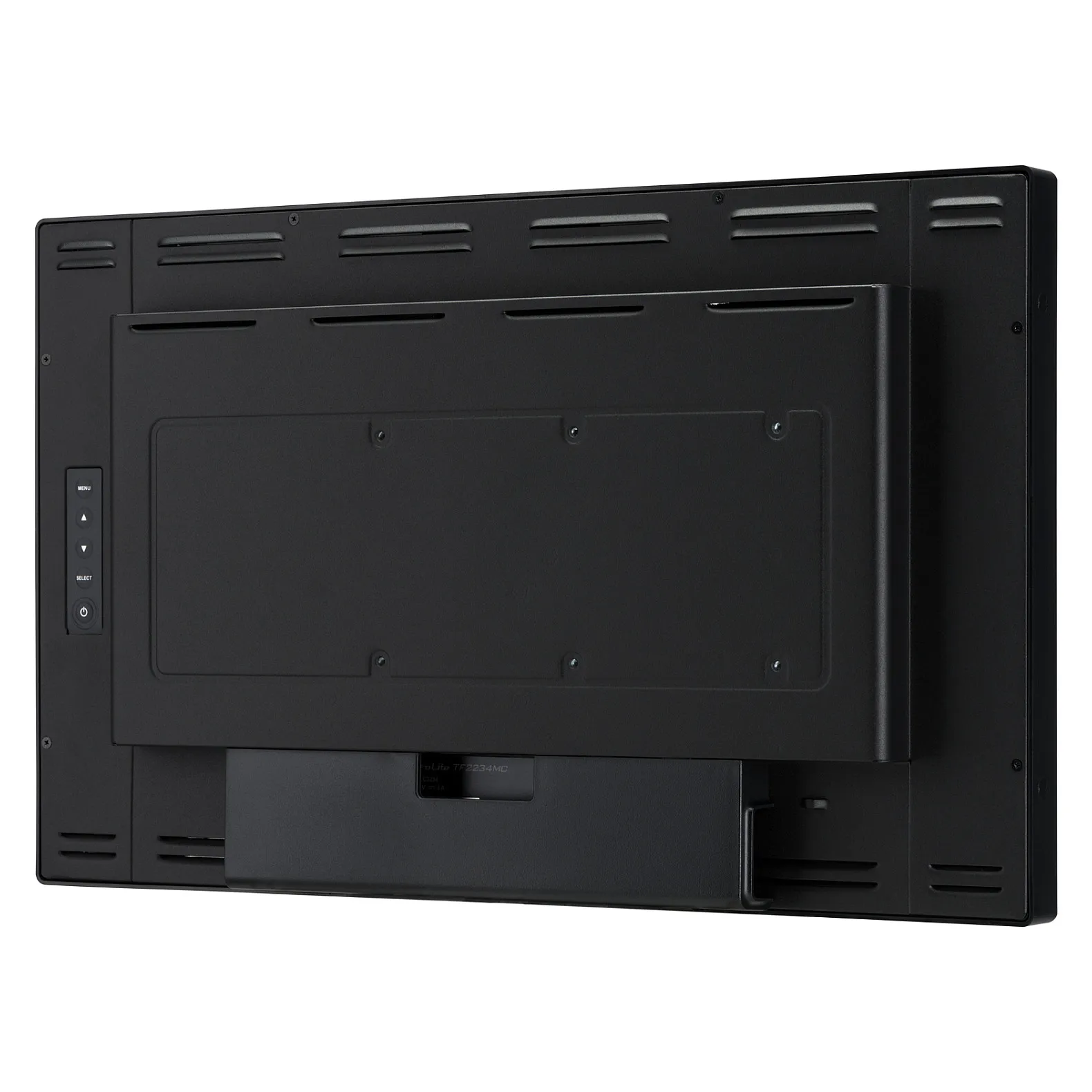

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Wall mountable
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Czech, German, English, Spanish, French, Italian, Japanese, Polish, Russian
Number of OSD languages: 8
Power
Energy efficiency class (SDR): E
Energy consumption (SDR) per 1000 hours: 19 kWh
Power consumption (typical): 18 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G
Weight & dimensions
Width (with stand): 517.5 mm
Depth (with stand): 46 mm
Height (with stand): 313.5 mm
Weight (with stand): 4.4 kg
Width (without stand): 517.5 mm
Depth (without stand): 46 mm
Height (without stand): 313.5 mm
Weight (without stand): 4.4 kg
Packaging data
Package width: 610 mm
Package depth: 160 mm
Package height: 405 mm
Package weight: 6.8 kg
Packaging content

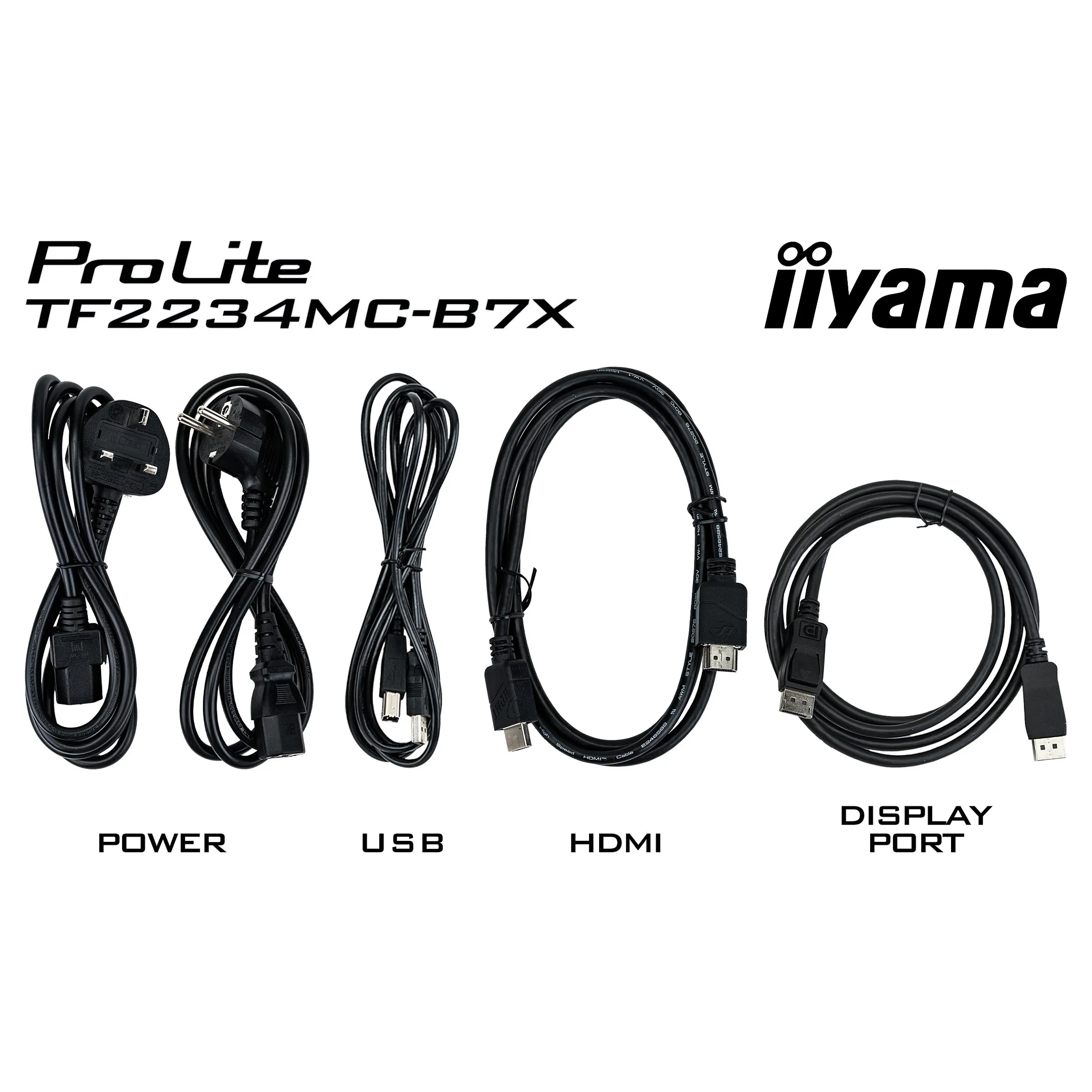

Cables included: AC, USB, HDMI, DisplayPort
Feature: Quick start guide
Sustainability
Sustainability certificates: ErP
Other features
International Protection (IP) code: IP65
Feature: AC adapter included
Display viewable area (HxV): 476 x 267.7 mm

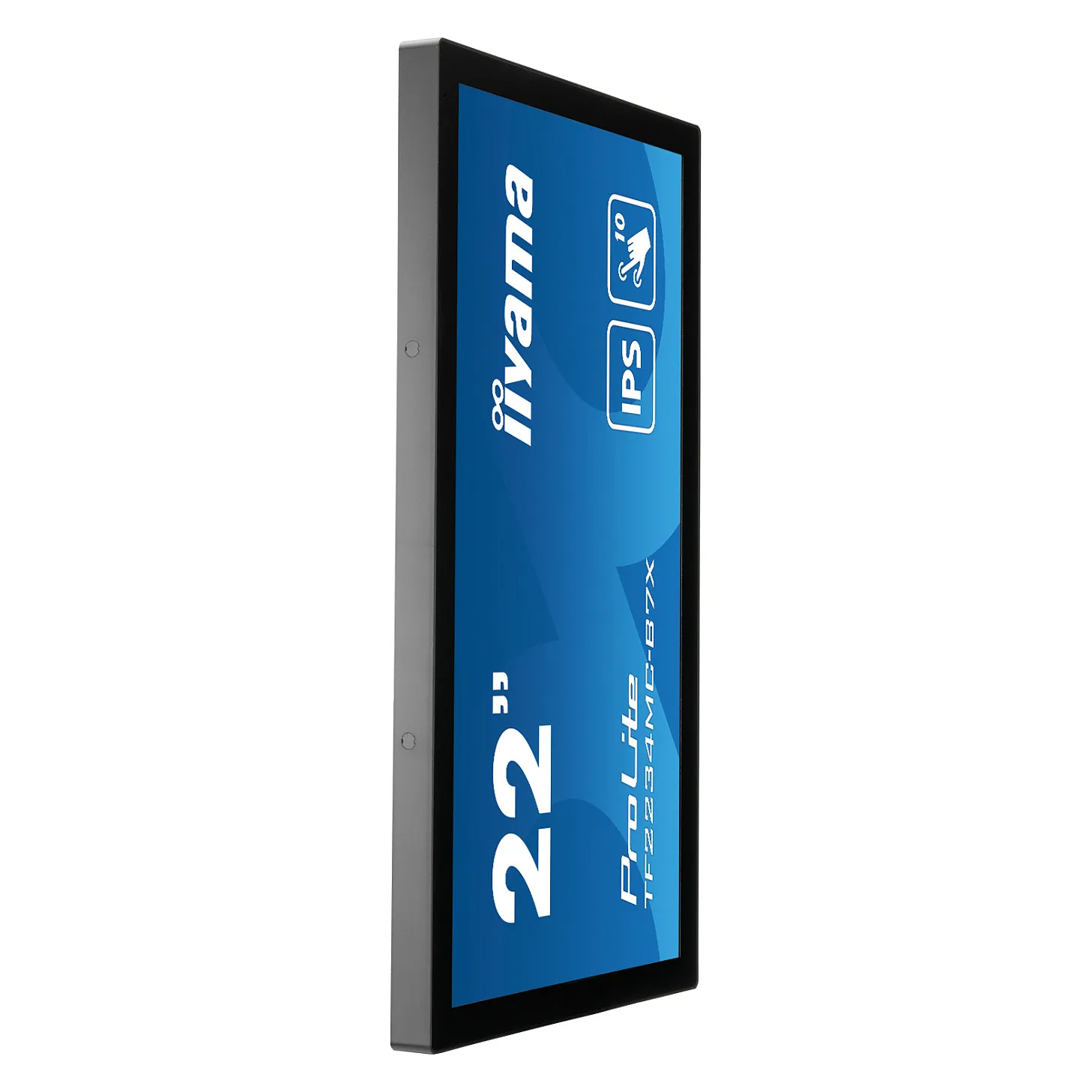

Placement supported: Horizontal/Vertical
Brightness: 305 cd/m²
Packaging content: AC adapter
Touch method: stylus, finger, glove (latex)
Weight: 4.4 kg
Height: 313.5 mm
Width: 517.5 mm
Depth: 46 mm

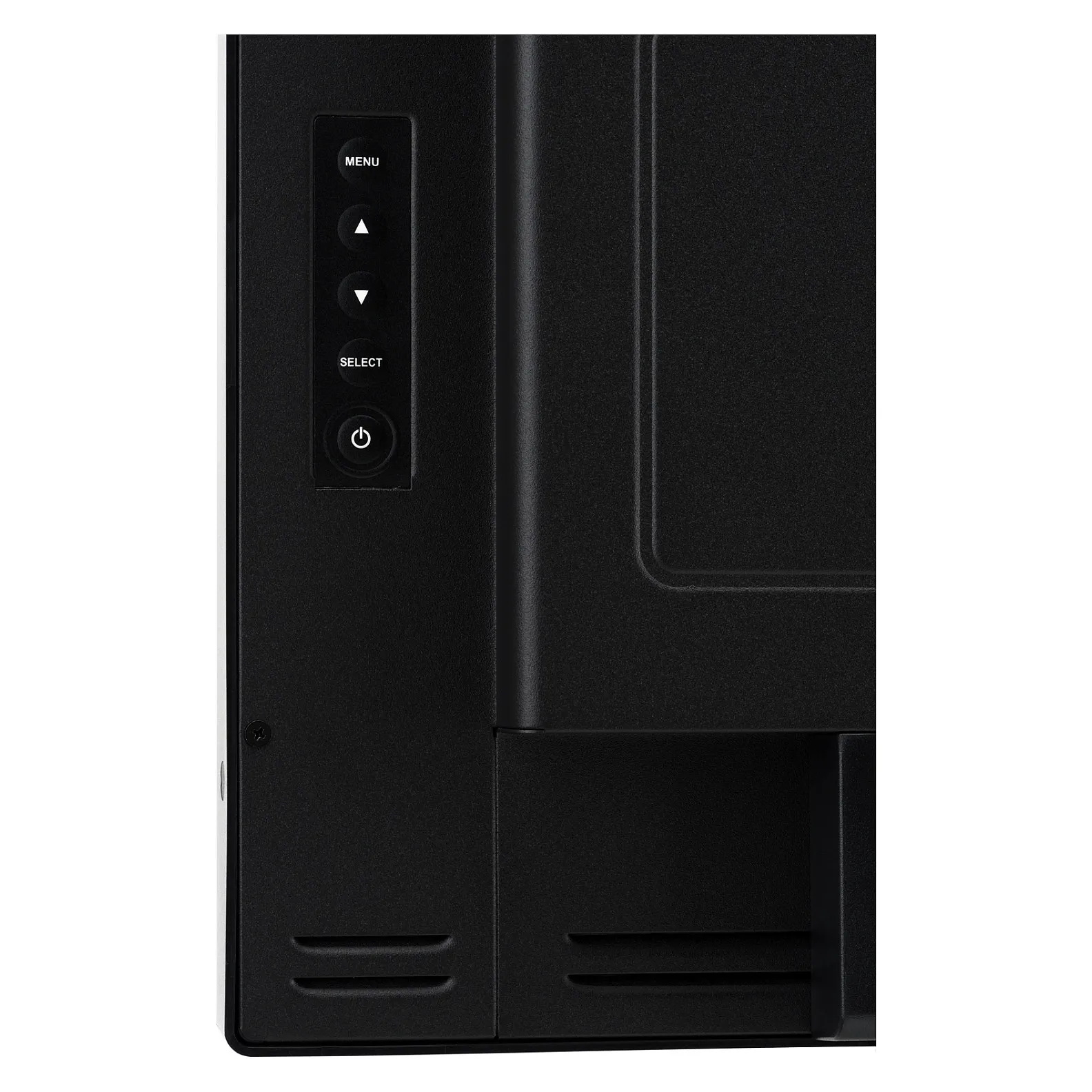

Control panel: Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, WEEE
Certification: CE, EAC, RoHS, ErP, WEEE, cULus, REACH
Logistics data
Products per pallet: 48 pc(s)
Pallet net width: 109 cm
Pallet net length: 192.7 cm
Pallet net height: 109 cm
Harmonized System (HS) code: 85285210
Display diagonal: 54.6 cm (21.5″)
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: IPS
Feature: Touchscreen
Touchscreen type: Multi-user
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (typical): 350 cd/m²
Display brightness: 305 cd/m²
Response time: 8 ms
Response time measurement type: GTG (Gray to Gray)
Screen shape: Flat
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.247 x 0.247 mm
Horizontal scan range: 30 – 84 kHz
Viewable size, vertical: 26.8 cm
Display diagonal (metric): 54.6 cm
Surface hardness: 7H
Performance
Feature: Palm rejection
Design
Product colour: Black
Front bezel colour: Black
Glass thickness: 1.5 mm
Ports & interfaces
Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: HDCP
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Wall mountable
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Czech, German, English, Spanish, French, Italian, Japanese, Polish, Russian
Number of OSD languages: 8
Power
Energy efficiency class (SDR): E
Energy consumption (SDR) per 1000 hours: 19 kWh
Power consumption (typical): 18 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G
Weight & dimensions
Width (with stand): 517.5 mm
Depth (with stand): 46 mm
Height (with stand): 313.5 mm
Weight (with stand): 4.4 kg
Width (without stand): 517.5 mm
Depth (without stand): 46 mm
Height (without stand): 313.5 mm
Weight (without stand): 4.4 kg
Packaging data
Package width: 610 mm
Package depth: 160 mm
Package height: 405 mm
Package weight: 6.8 kg
Packaging content
Cables included: AC, USB, HDMI, DisplayPort
Feature: Quick start guide
Sustainability
Sustainability certificates: ErP
Other features
International Protection (IP) code: IP65
Feature: AC adapter included
Display viewable area (HxV): 476 x 267.7 mm
Placement supported: Horizontal/Vertical
Brightness: 305 cd/m²
Packaging content: AC adapter
Touch method: stylus, finger, glove (latex)
Weight: 4.4 kg
Height: 313.5 mm
Width: 517.5 mm
Depth: 46 mm
Control panel: Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, WEEE
Certification: CE, EAC, RoHS, ErP, WEEE, cULus, REACH
Logistics data
Products per pallet: 48 pc(s)
Pallet net width: 109 cm
Pallet net length: 192.7 cm
Pallet net height: 109 cm
Harmonized System (HS) code: 85285210
