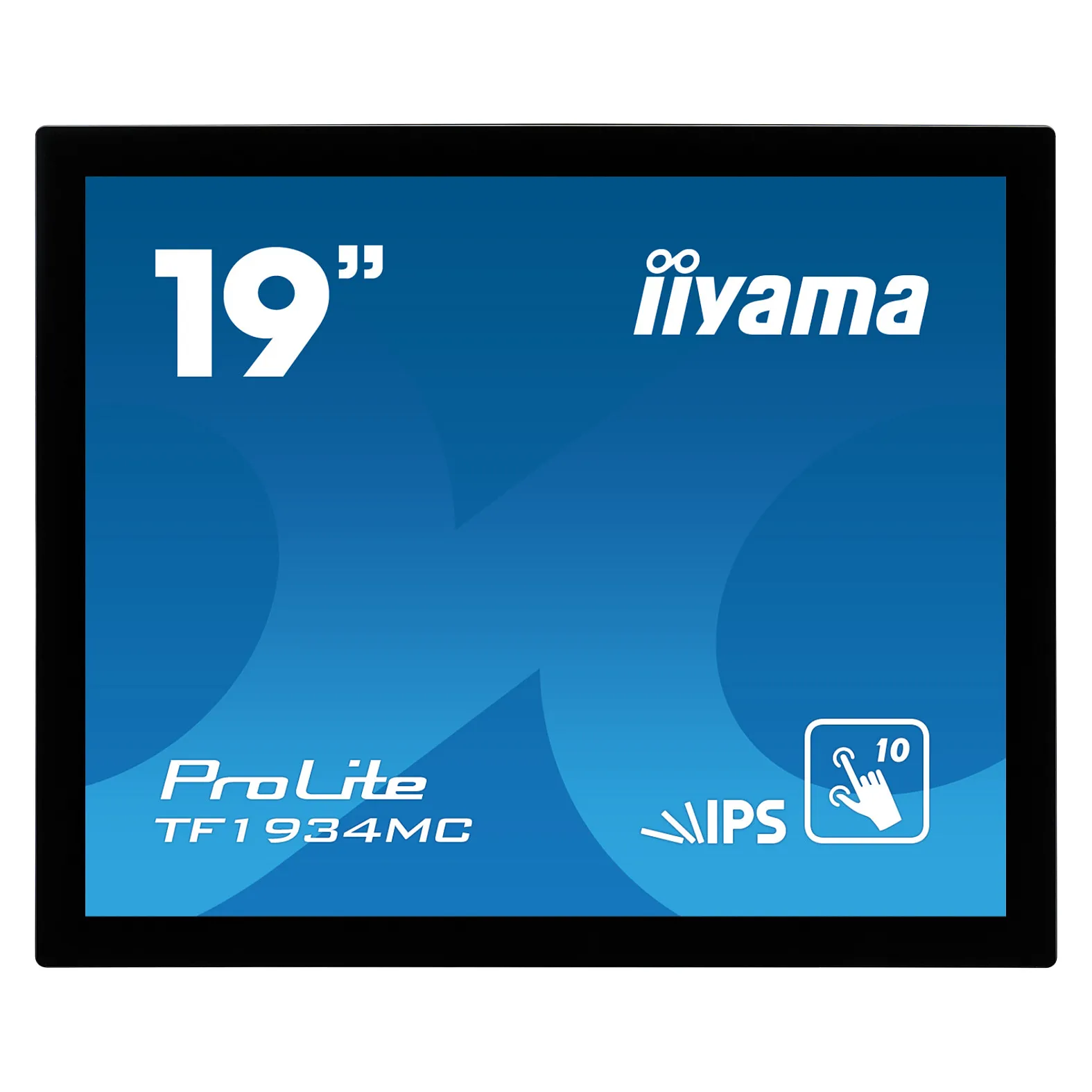

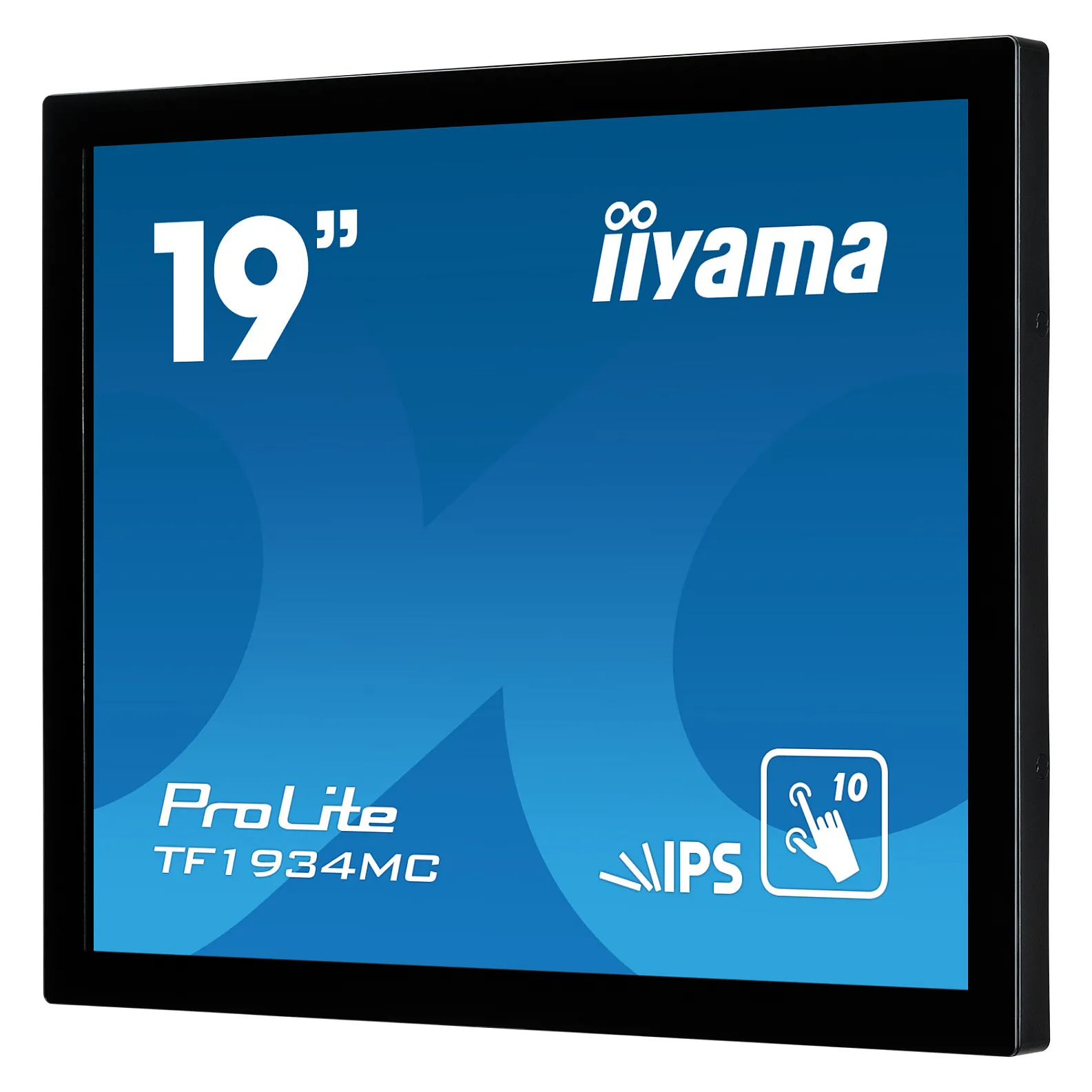

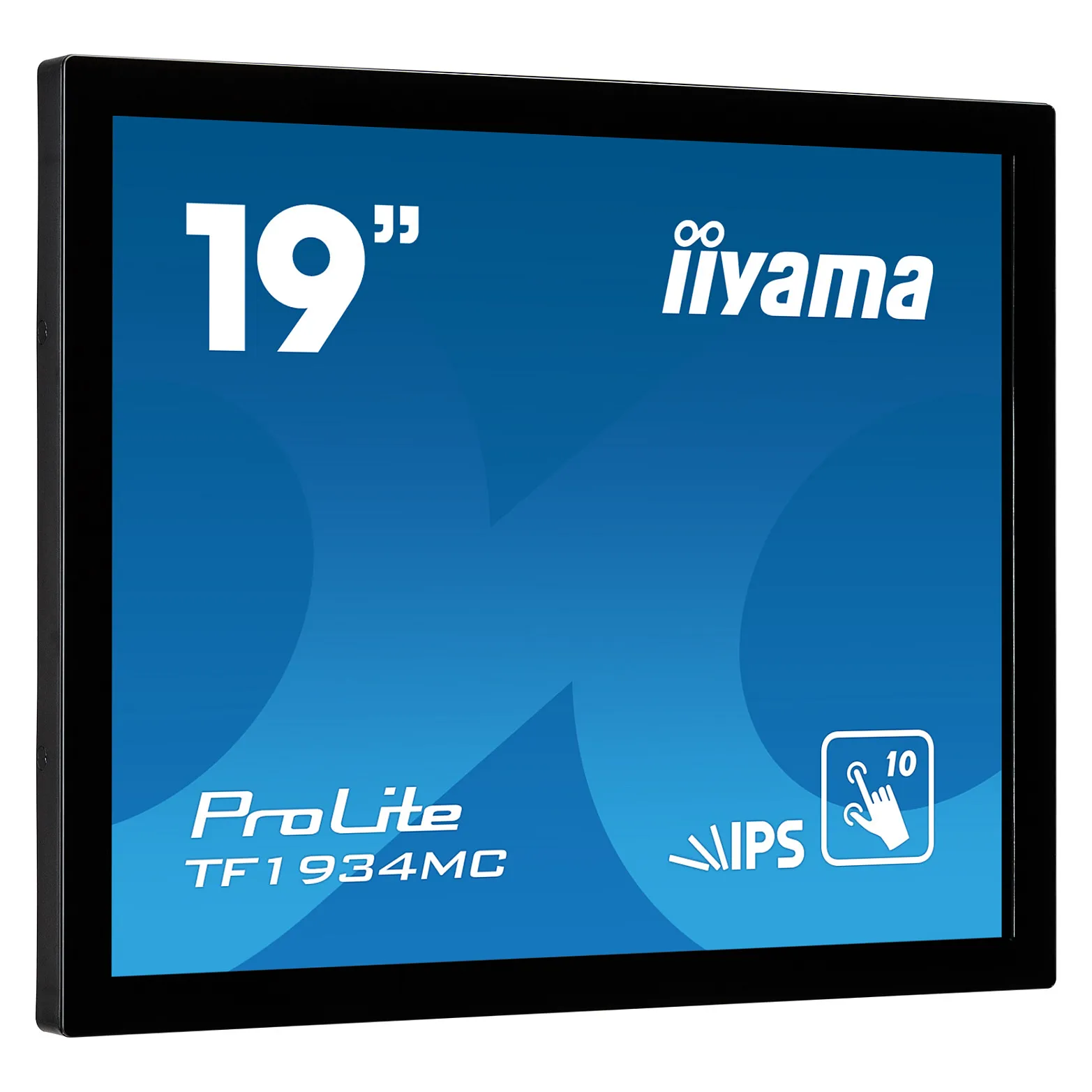

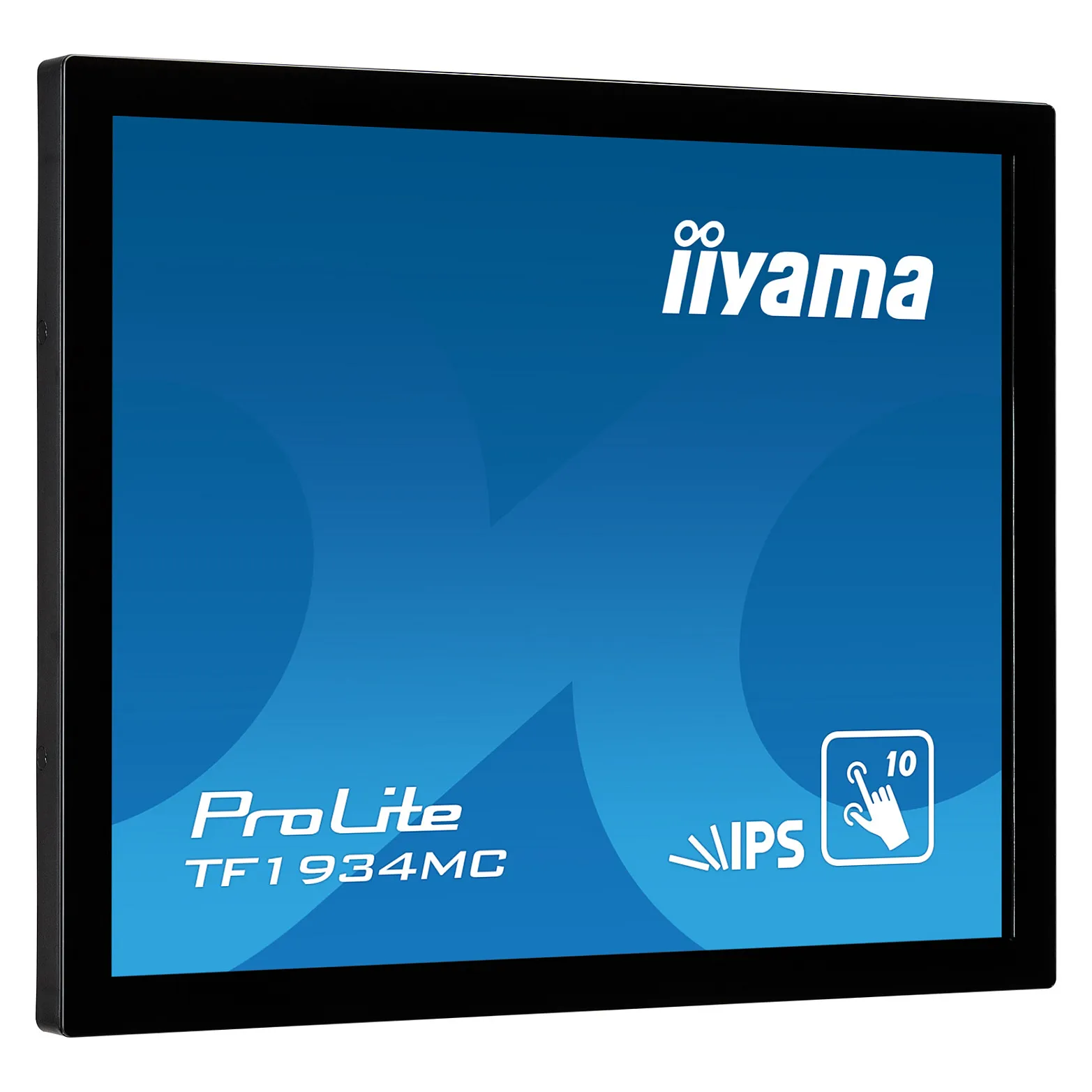

iiyama ProLite TF1934MC-B7X. Display diagonal: 48.3 cm (19"), Display resolution: 1280 x 1024 pixels, HD type: SXGA, Display technology: LED, Response time: 14 ms, Native aspect ratio: 5:4, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black
ProLite TF1934MC-B7X uses Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it a perfect interactive display for Interactive Digital Signage. In addition to the superb image quality, the screen comes with an IP65 Rating, making it dust and water resistant. Equipped with a rugged bezel making it suitable for demanding environments. The ProLite TF1934MC-B7X is the ideal screen for the kiosk integrators and a solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations. For ease of integration, the TF1934MC-B7X can be equipped with optional external mounting brackets ( OMK1-1 ) making it an ideal solution for kiosk integrators and Instore Retail.
Display
Display diagonal: 48.3 cm (19″)
Display resolution: 1280 x 1024 pixels
HD type: SXGA
Native aspect ratio: 5:4
Display technology: LED
Panel type: IPS
Feature: LED backlight
Backlight type: LED
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (typical): 350 cd/m²
Display brightness: 315 cd/m²
Response time: 14 ms
Response time measurement type: GTG (Gray to Gray)
Screen shape: Flat
Supported graphics resolutions: 1280 x 1024 (SXGA)
Aspect ratio: 5:4
Contrast ratio (typical): 1000:1
Contrast ratio (dynamic): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.294 x 0.294 mm
Horizontal scan range: 31.4 – 80 kHz
Viewable size, horizontal: 37.6 cm
Viewable size, vertical: 30.1 cm
Viewable size diagonal: 48 cm
Display diagonal (metric): 48 cm
Performance
Feature: Flicker-free technology
Feature: Low Blue Light technology
Feature: Palm rejection
Design
Product colour: Black
Front bezel colour: Black
Glass thickness: 6 mm
Ports & interfaces
Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: HDCP
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Wall mountable
Feature: Cable management
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages: 7
Power
Energy efficiency class (SDR): E
Energy consumption (SDR) per 1000 hours: 18 kWh
Power consumption (typical): 21 W
Power consumption (standby): 1.5 W
Power consumption (off): 1.5 W
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G
Weight & dimensions
Width (with stand): 416 mm
Depth (with stand): 46.5 mm
Height (with stand): 344 mm
Weight (with stand): 4.4 kg
Width (without stand): 416 mm
Depth (without stand): 46.5 mm
Height (without stand): 344 mm
Weight (without stand): 4.4 kg
Packaging data
Package width: 500 mm
Package depth: 425 mm
Package height: 133 mm
Package weight: 6.3 kg
USB cable length: 1.8 m
Packaging content

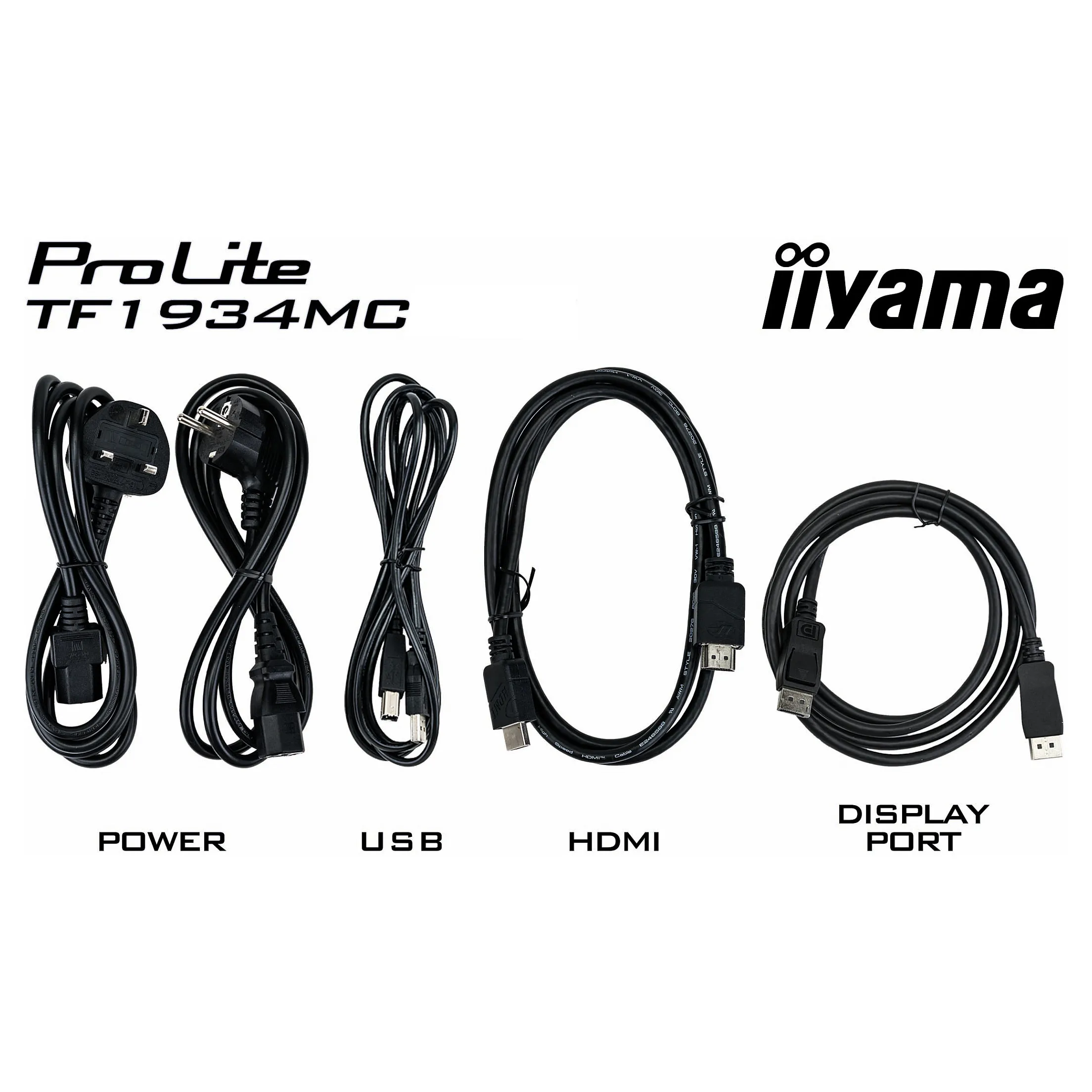

Cables included: AC, USB, HDMI, DisplayPort
Feature: Quick start guide
DisplayPort cable length: 1.8 m
HDMI cable length: 1.8 m
Power cable length: 1.8 m
Sustainability
Sustainability certificates: ErP
Other features
International Protection (IP) code: IP65
Positional accuracy: 2 mm
Feature: AC adapter included
Display viewable area (HxV): 376.5 x 301.1 mm
Brightness: 315 cd/m²
Packaging content: AC adapter, Touch Panel Driver Disk (CD-ROM)
Active display area (W x H): 376.5 x 301.1 mm
Weight: 4.4 kg
Height: 344 mm
Touch method: stylus, finger, glove (latex)
Width: 416 mm
Depth: 46.5 mm
Control panel: Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, WEEE
Mean time between failures (MTBF): 50000 h
Supplied AC adapter type: AC
Certification: CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, REACH SVHC above 0.1%: Lead
Logistics data
Harmonized System (HS) code: 85285210
