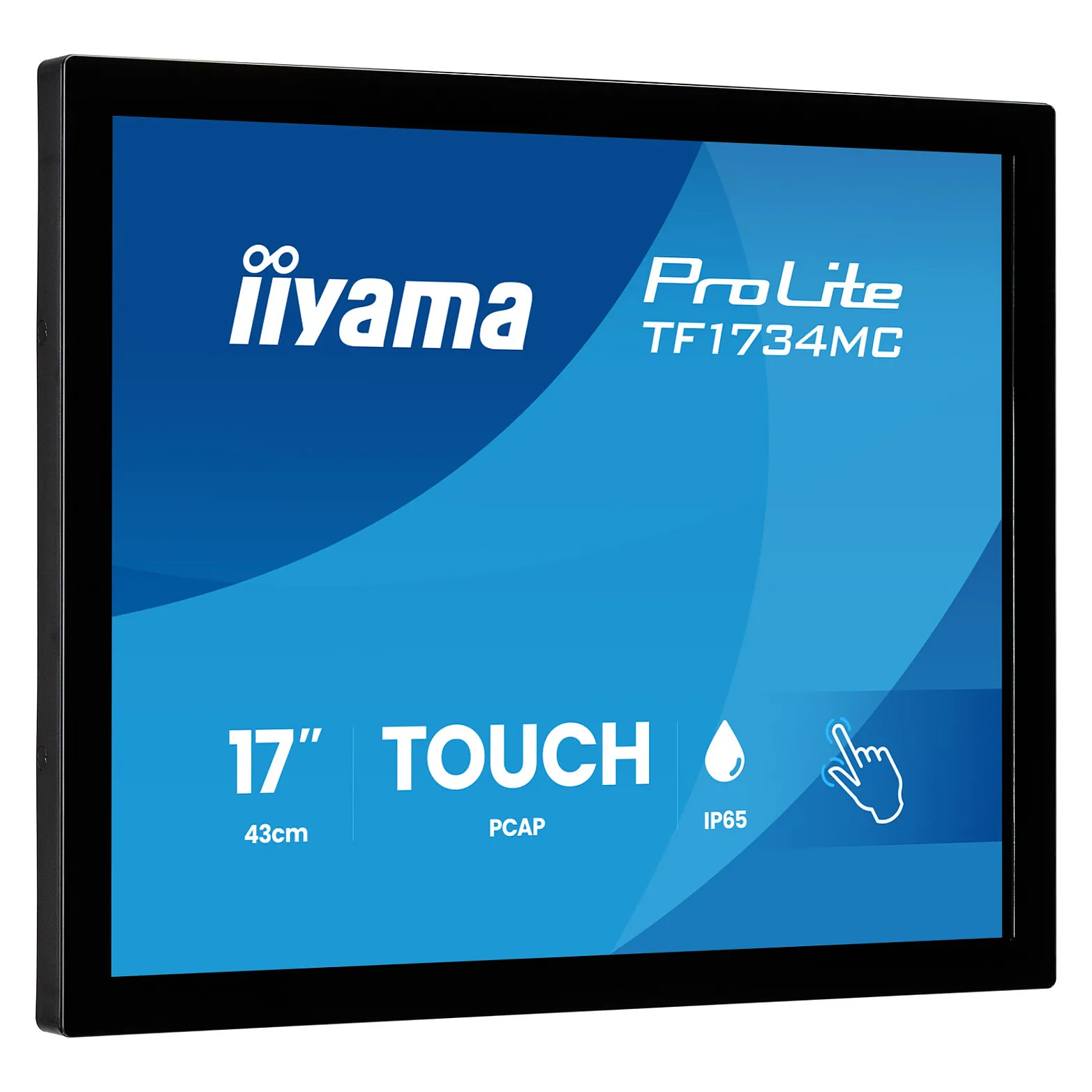

iiyama ProLite TF1734MC-B8X. Display diagonal: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, HD type: SXGA, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 5:4, Viewing angle, horizontal: 170°, Viewing angle, vertical: 160°. VESA mounting. Product colour: Black

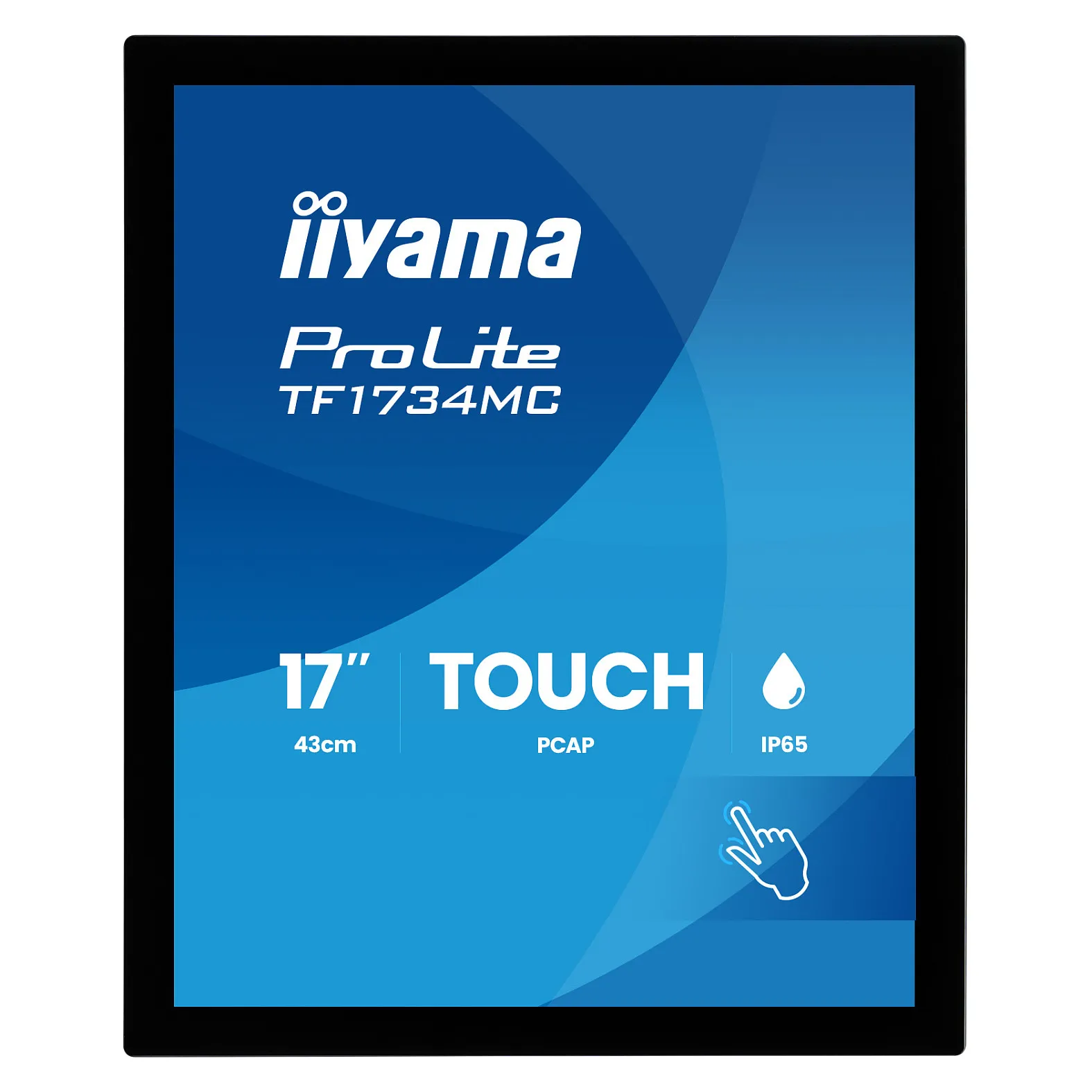

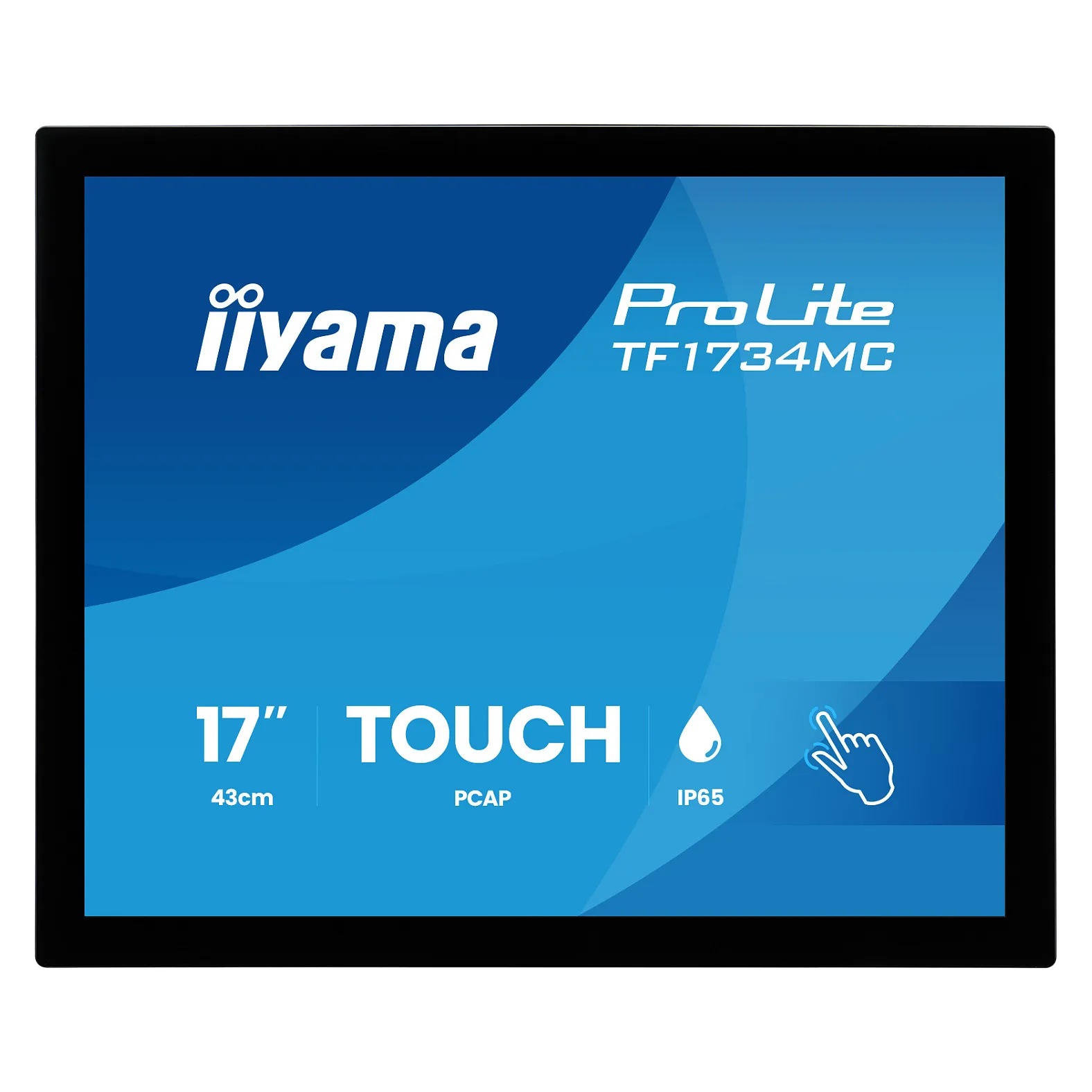

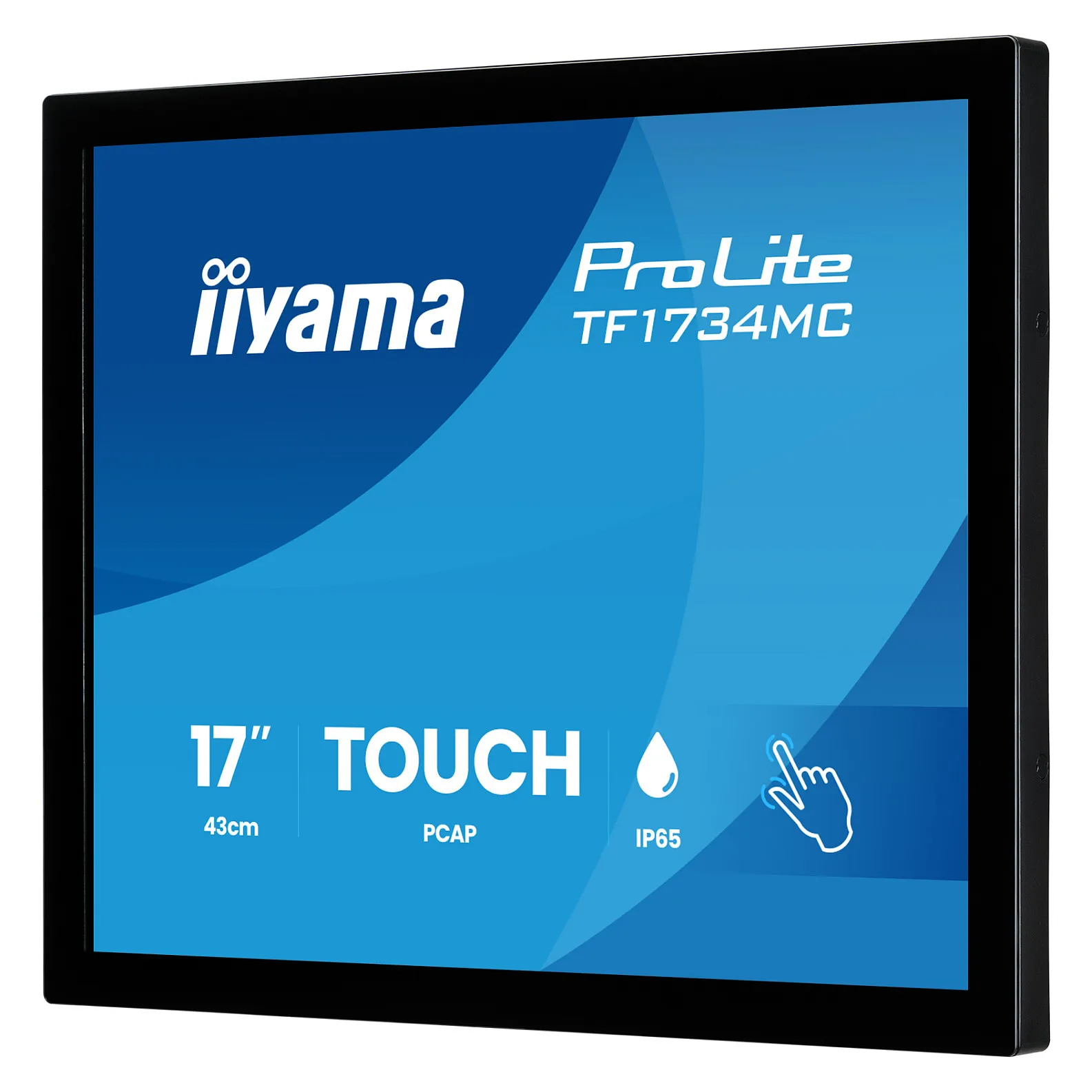

The ProLite TF1734MC-B8X is a 17” Open Frame touchscreen monitor designed for integration into kiosks, retail systems, interactive displays and custom installations. Its 10-point PCAP touch technology provides accurate multi-touch operation, while the edge-to-edge glass surface offers durability, scratch resistance and a clean, professional appearance.
With IP65-rated front protection, the screen is resistant to dust and splashing water from the front, making it suitable for demanding public and commercial environments. The anti-fingerprint coating helps keep the display clear and easy to use, even with frequent interaction.

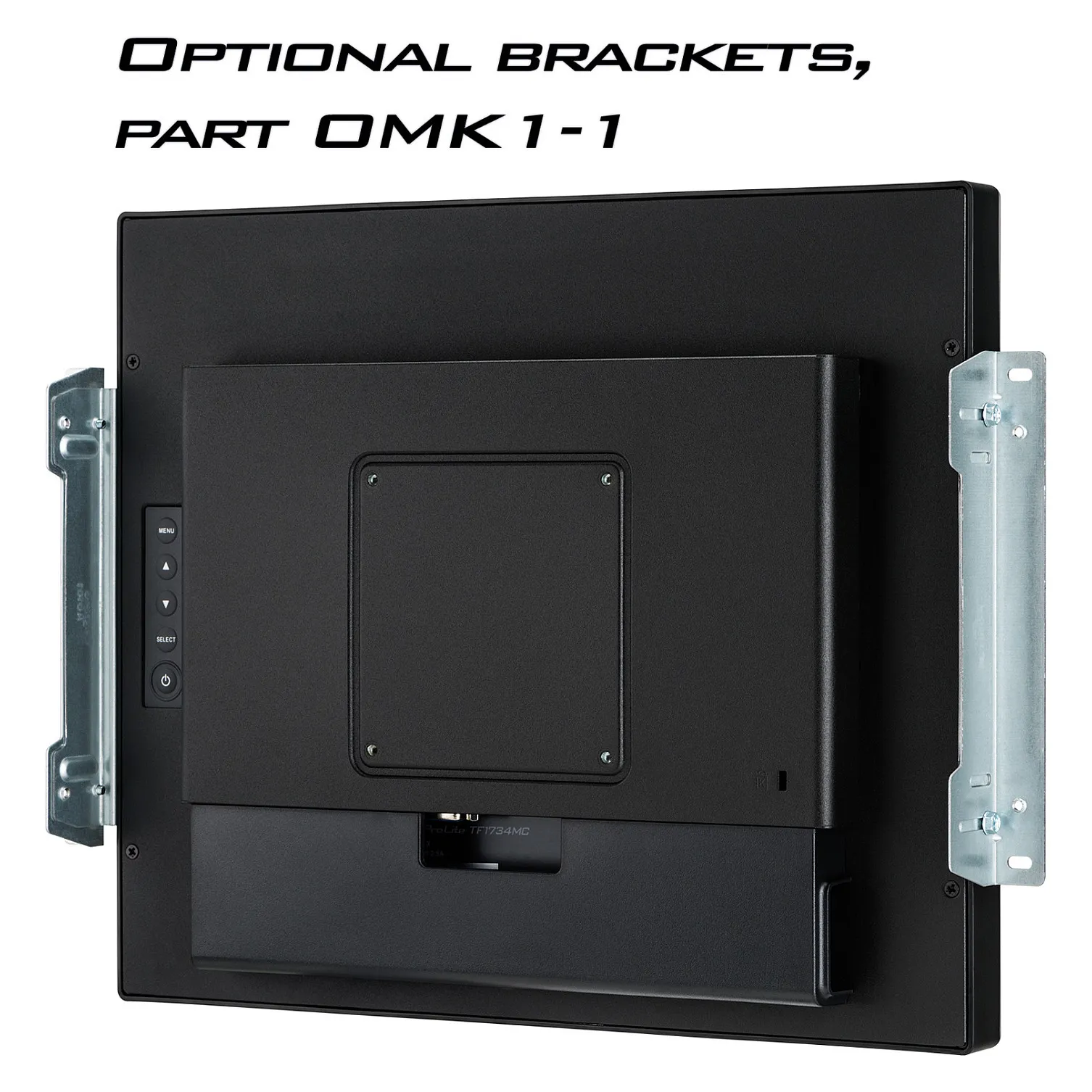

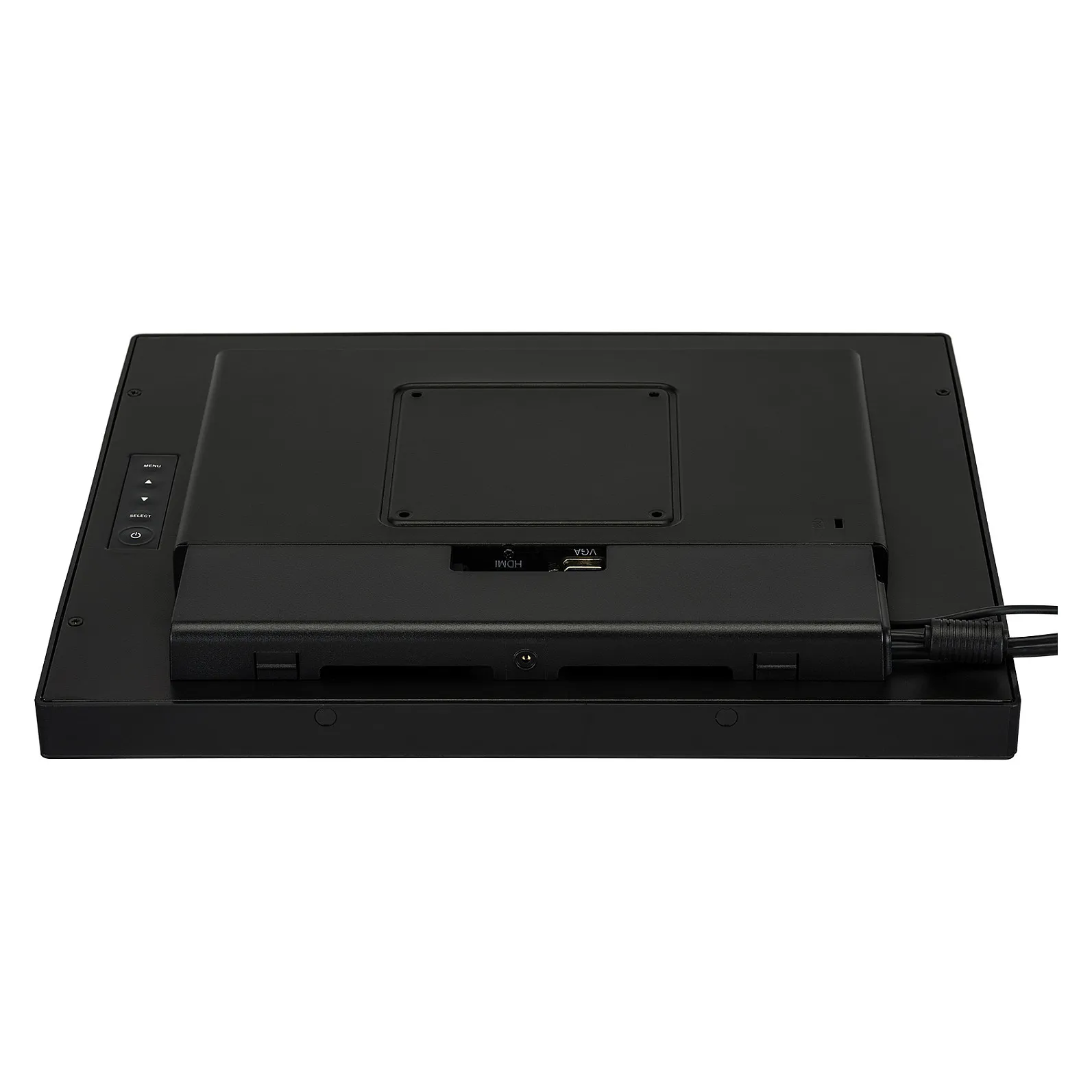

For applications requiring additional protection, the Touch Through-Glass function allows reliable touch operation through a glass overlay up to 6 mm. The monitor can be installed in landscape, portrait or face-up orientation, while optional Open Frame mounting brackets support easy and secure integration into different installation designs.For ease of integration, the monitor can be equipped with optional external mounting brackets (OMK1-1).
Display diagonal: 43.2 cm (17″)
Display resolution: 1280 x 1024 pixels
HD type: SXGA
Native aspect ratio: 5:4
Display technology: LCD
Panel type: TN
Feature: Touchscreen
Touchscreen type: Table
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (peak): 350 cd/m²
Display brightness (typical): 300 cd/m²
Display brightness: 300 cd/m²
Response time: 5 ms
Screen shape: Flat
Contrast ratio (typical): 1000:1
Maximum refresh rate: 75 Hz
Viewing angle, horizontal: 170°
Viewing angle, vertical: 160°
Display number of colours: 16.7 million colours
Pixel pitch: 0.264 x 0.264 mm
Horizontal scan range: 31 – 80 kHz
Viewable size, horizontal: 33.8 cm
Viewable size, vertical: 27 cm
Display diagonal (metric): 43 cm
Performance
Feature: Palm rejection
Design
Market positioning: Business
Product colour: Black
Front bezel colour: Black
Glass thickness: 3 mm
Ports & interfaces
Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Ergonomics

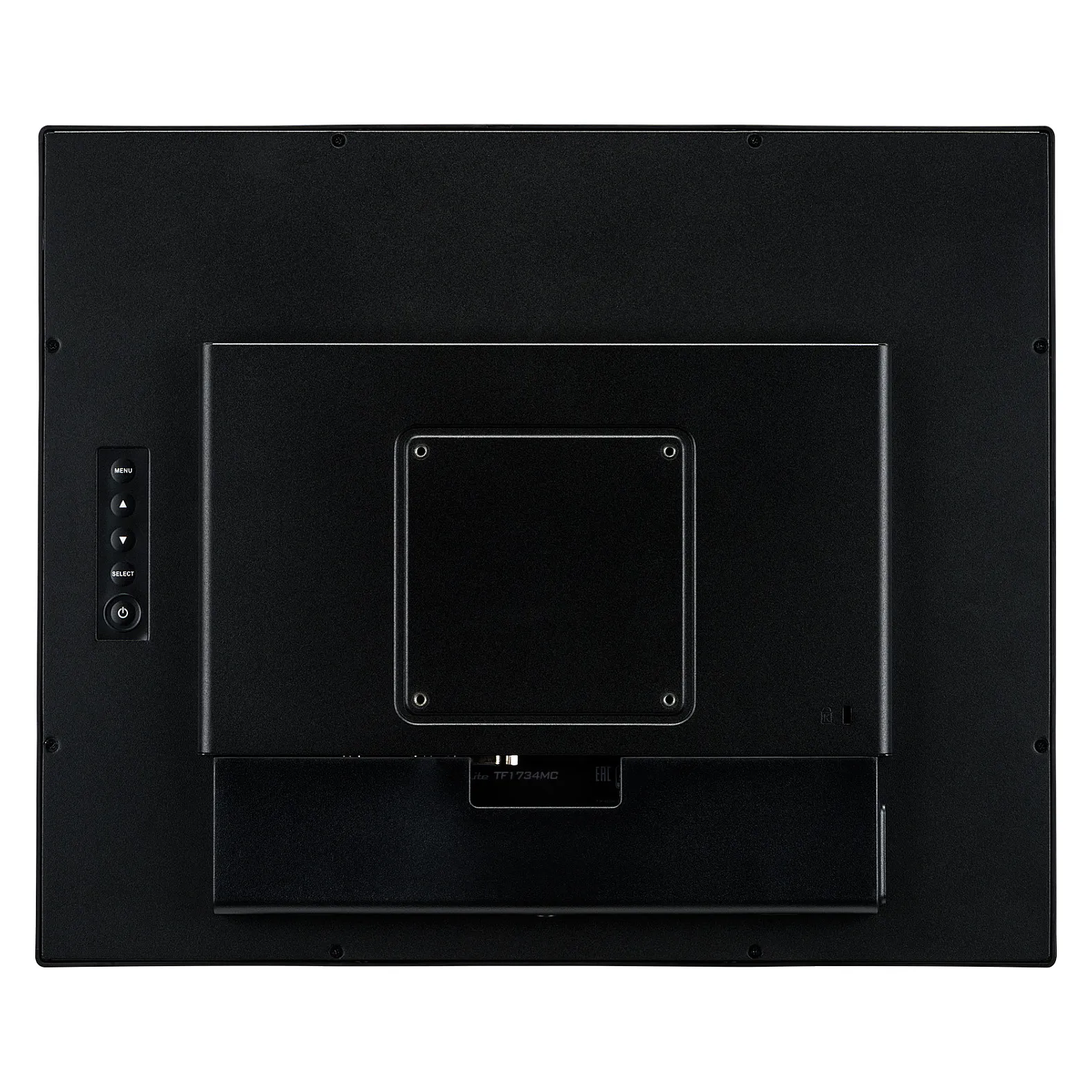

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian
Power
Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Power consumption (typical): 13 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC adapter output voltage: 12 V
Power supply type: External
Weight & dimensions
Width (with stand): 369 mm

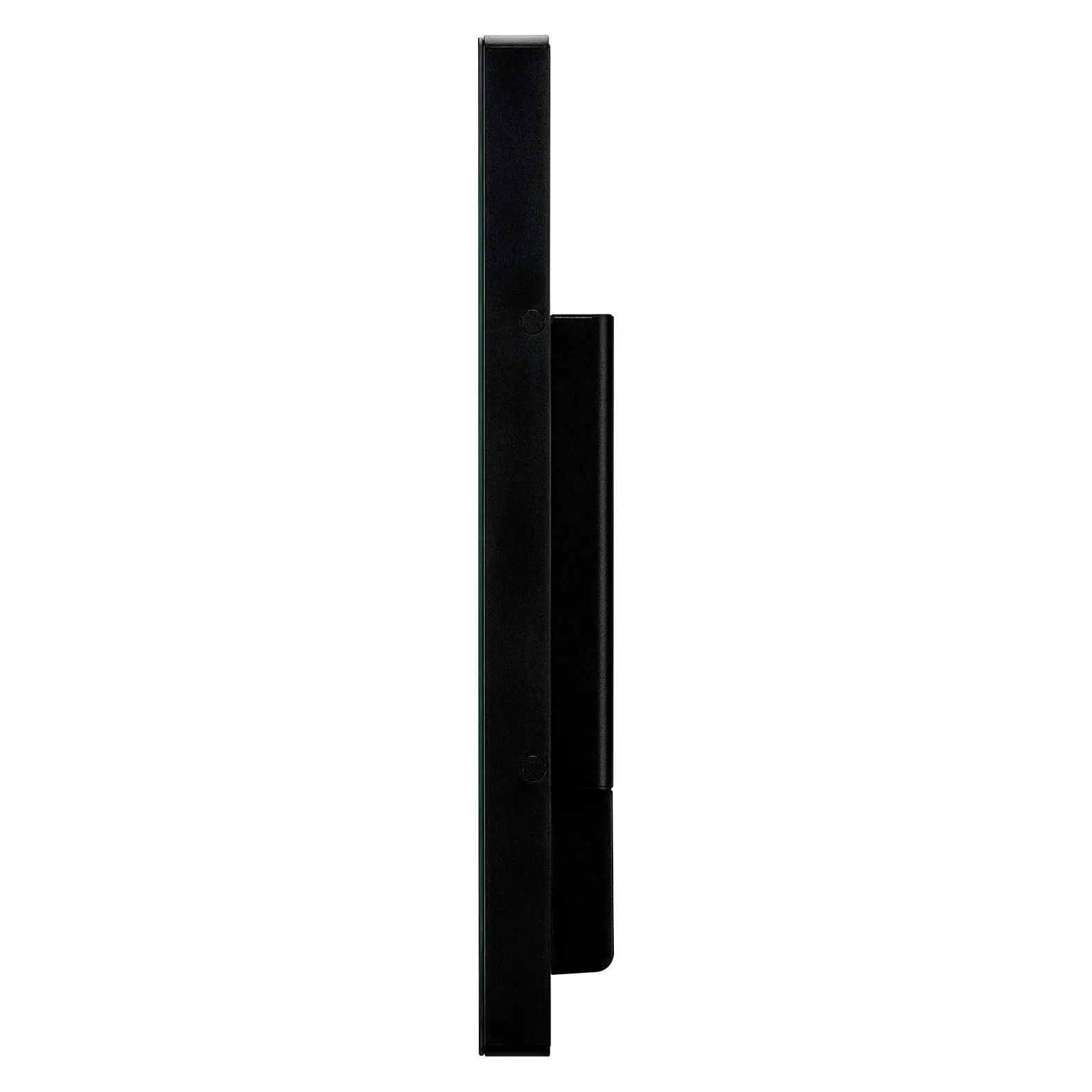

Depth (with stand): 47.5 mm
Height (with stand): 307 mm
Weight (with stand): 3.6 kg
Packaging data
Package width: 387 mm
Package depth: 455 mm
Package height: 145 mm
Package weight: 5.2 kg
USB cable length: 1.8 m
Packaging content

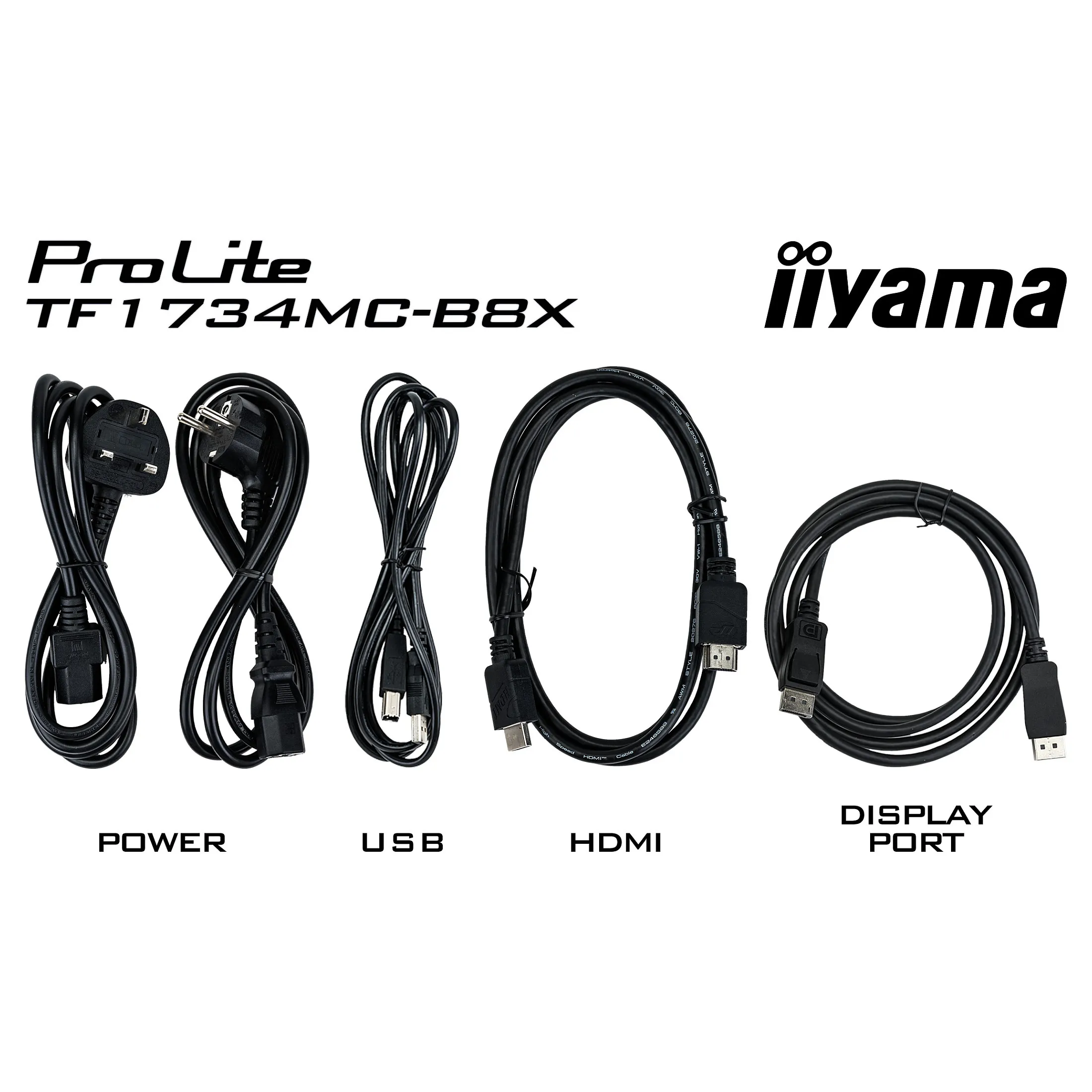

Cables included: AC, USB, HDMI, DisplayPort
Feature: Quick start guide
DisplayPort cable length: 1.8 m
HDMI cable length: 1.8 m
Power cable length: 1.8 m
Sustainability
Sustainability certificates: ErP
Other features
International Protection (IP) code: IP65
Positional accuracy: 2 mm
Feature: AC adapter included
Brightness: 300 cd/m²
Packaging content: AC adapter
Active display area (W x H): 338 x 270 mm
Touch method: stylus, finger, glove (latex)
Weight: 3.6 kg
Height: 307 mm
Width: 369 mm
Depth: 47.5 mm
Control panel: Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
Technical details
Native refresh rate: 75 Hz
