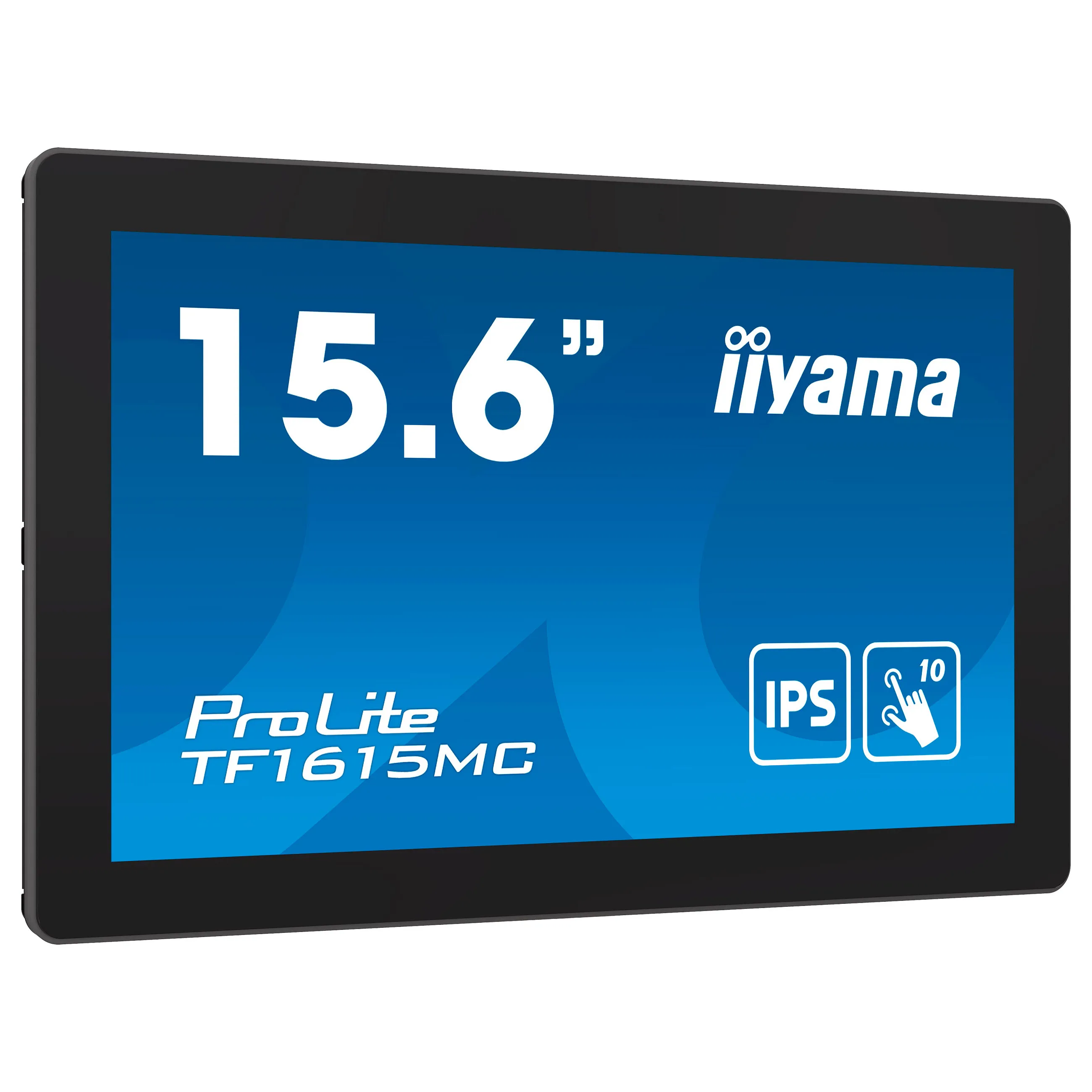

iiyama ProLite TF1615MC-B1. Display diagonal: 39.6 cm (15.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Response time: 25 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub. VESA mounting. Product colour: Black

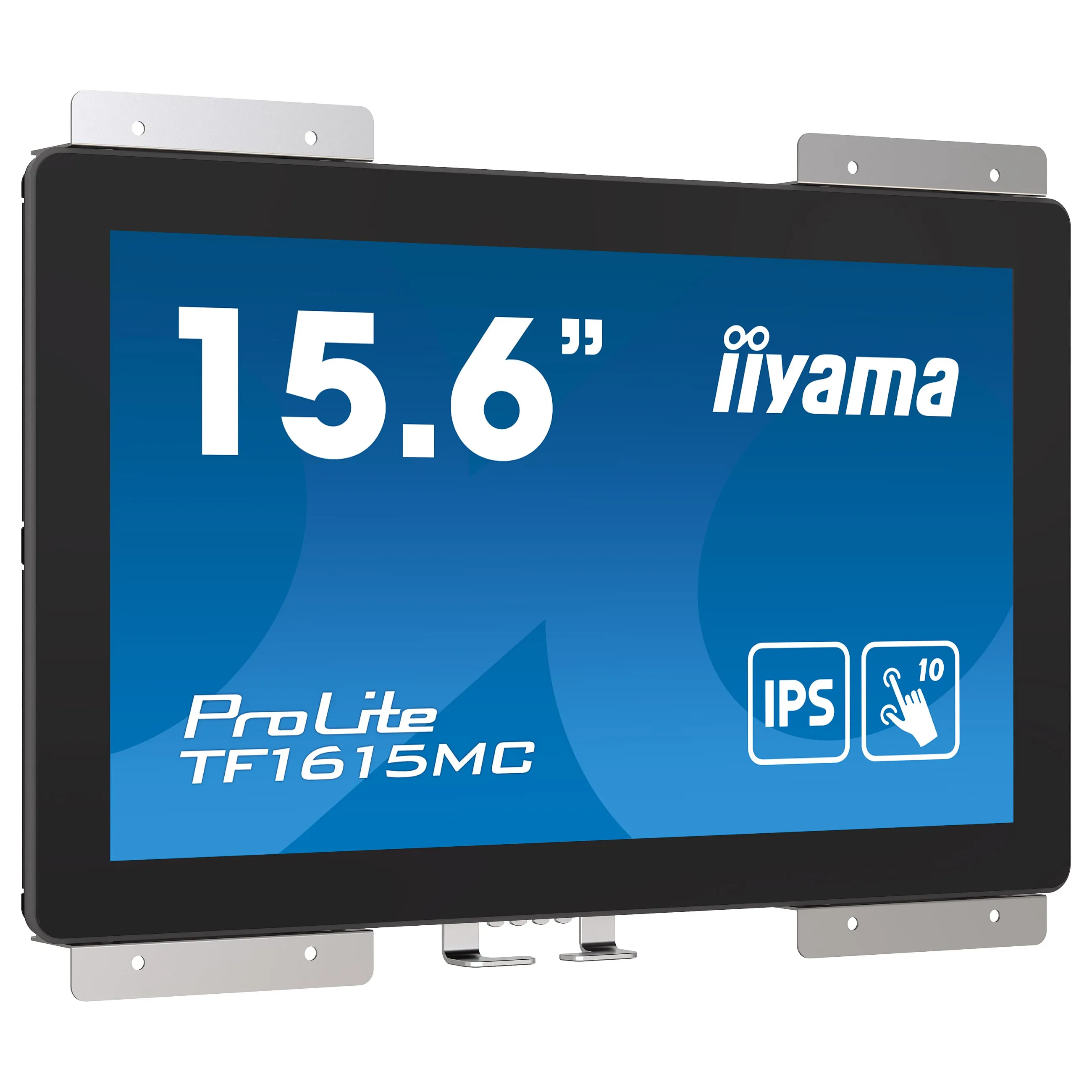

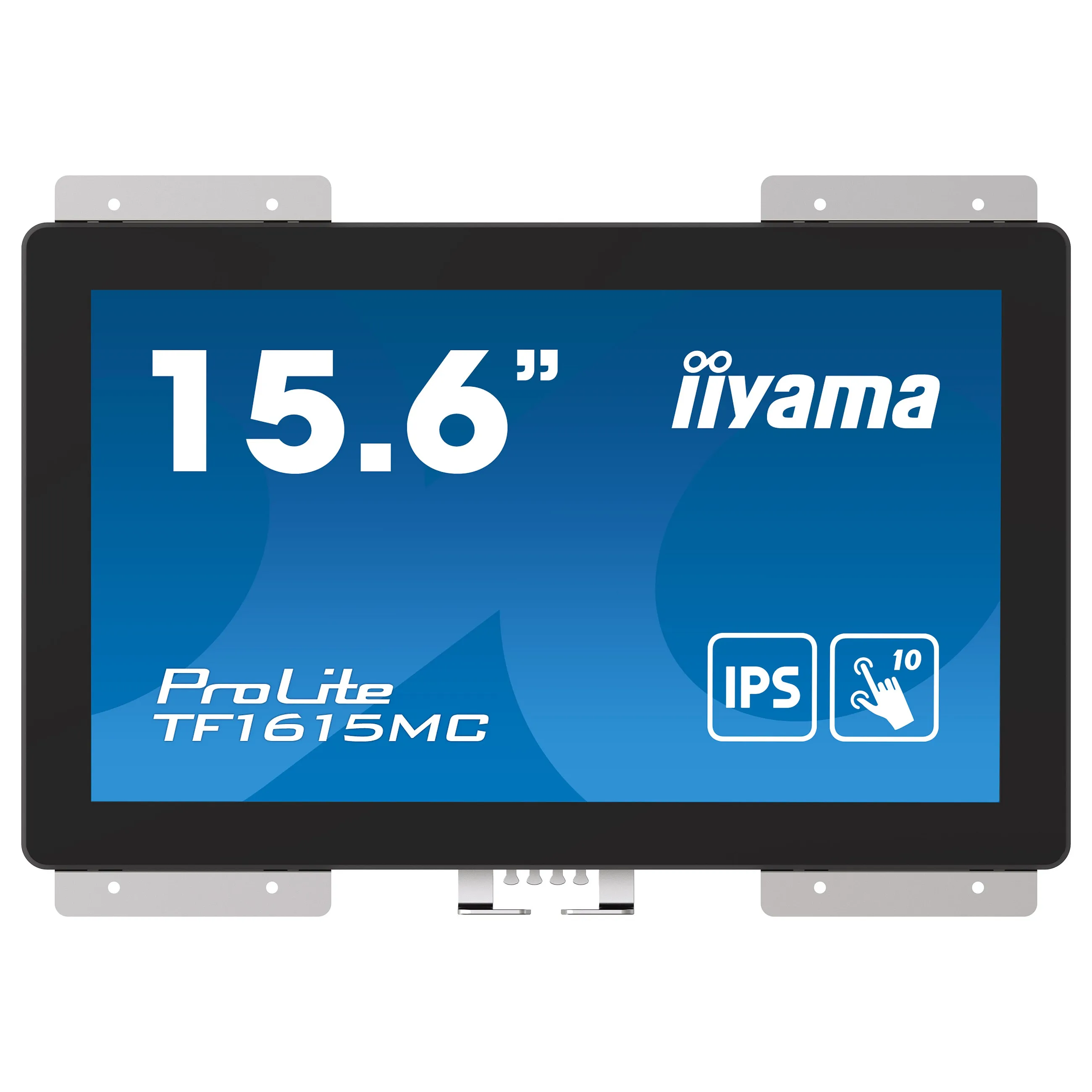

The ProLite TF1615MC-B1 (15.6 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the ProLite TF1615MC-B1 can be equipped with optional external mounting brackets ( OMK5-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
Display
Display diagonal: 39.6 cm (15.6″)
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Panel type: IPS
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Display brightness (peak): 450 cd/m²
Display brightness (typical): 450 cd/m²
Display brightness: 405 cd/m²
Response time: 25 ms
Screen shape: Flat
Aspect ratio: 16:9
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Pixel pitch: 0.17925 x 0.17925 mm
Horizontal scan range: 31.5 – 67.5 kHz
Viewable size, horizontal: 34.5 cm
Viewable size, vertical: 19.5 cm
Display diagonal (metric): 39.5 cm
Surface hardness: 7H
Design
Market positioning: Business
Product colour: Black
Front bezel colour: Black
Glass thickness: 3.3 mm

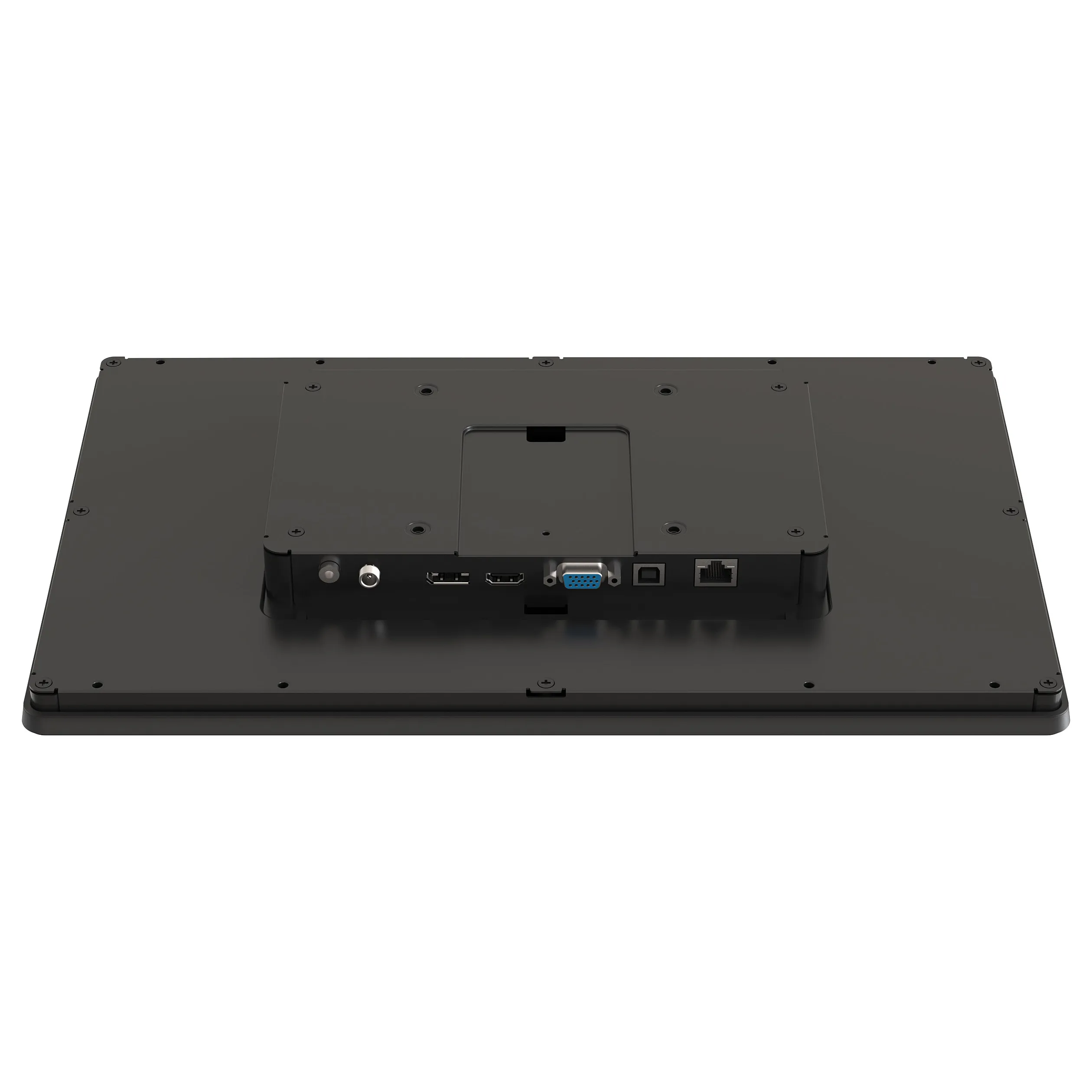

Ports & interfaces
Feature: Built-in USB hub
Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
DisplayPorts quantity: 1
Feature: Headphone out
Feature: HDCP
Network
Feature: Ethernet LAN
Ergonomics

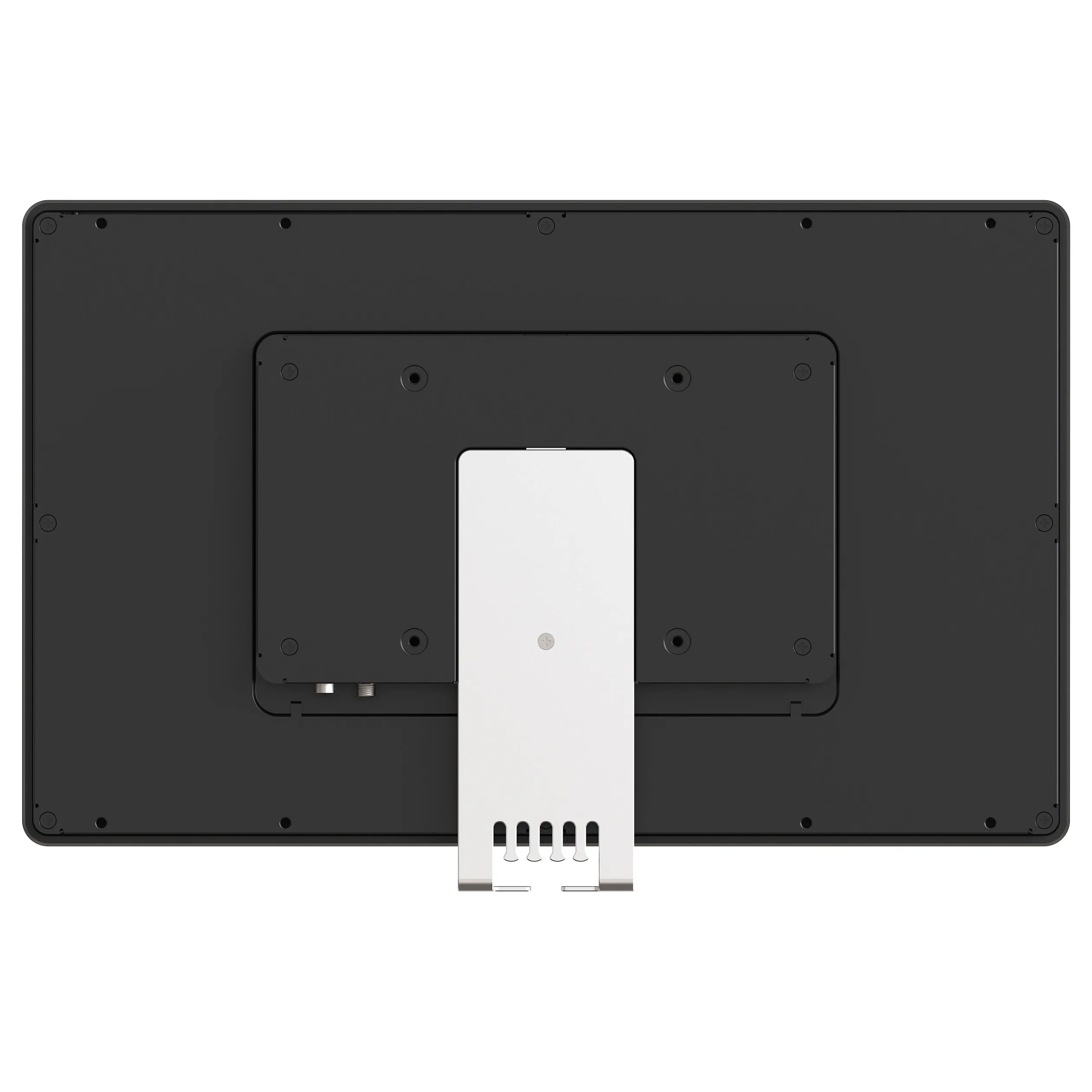

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Power
Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 11 kWh
Power consumption (typical): 18 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Weight & dimensions
Width (with stand): 398.5 mm
Depth (with stand): 42 mm
Height (with stand): 246 mm
Weight (with stand): 2.5 kg
Width (without stand): 398.5 mm
Depth (without stand): 42 mm
Height (without stand): 246 mm
Weight (without stand): 2.5 kg
Packaging data
Package width: 470 mm
Package depth: 343 mm
Package height: 145 mm
Package weight: 4.3 kg
Package type: Box
Packaging content
Cables included: AC, USB, HDMI, DisplayPort
Feature: Power adapter included
Feature: Quick start guide
Sustainability
Sustainability certificates: ErP
Other features
International Protection (IP) code: IP65
Feature: AC adapter included
Brightness: 405 cd/m²
Packaging content: AC adapter, external control pad
Active display area (W x H): 345.2 x 194.6 mm
Weight: 2.5 kg
Height: 246 mm
Width: 398.5 mm
Touch method: stylus, finger, glove (latex)
Depth: 42 mm
Control panel: menu,scroll up/ brightness, scroll down/ contrast, select, power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
Mean time between failures (MTBF): 50000 h
Ethernet LAN (RJ-45) ports: 1
Certification: CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
