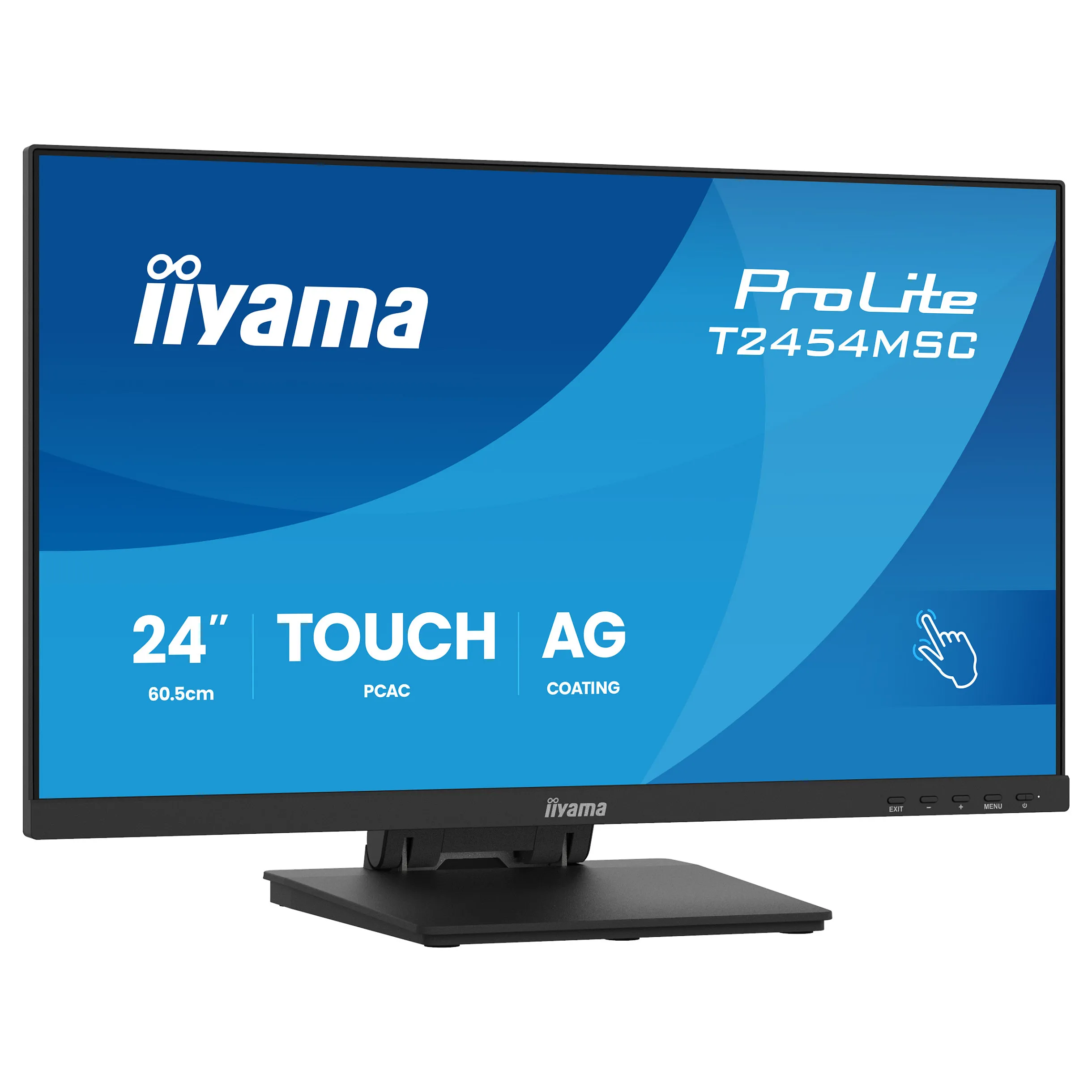

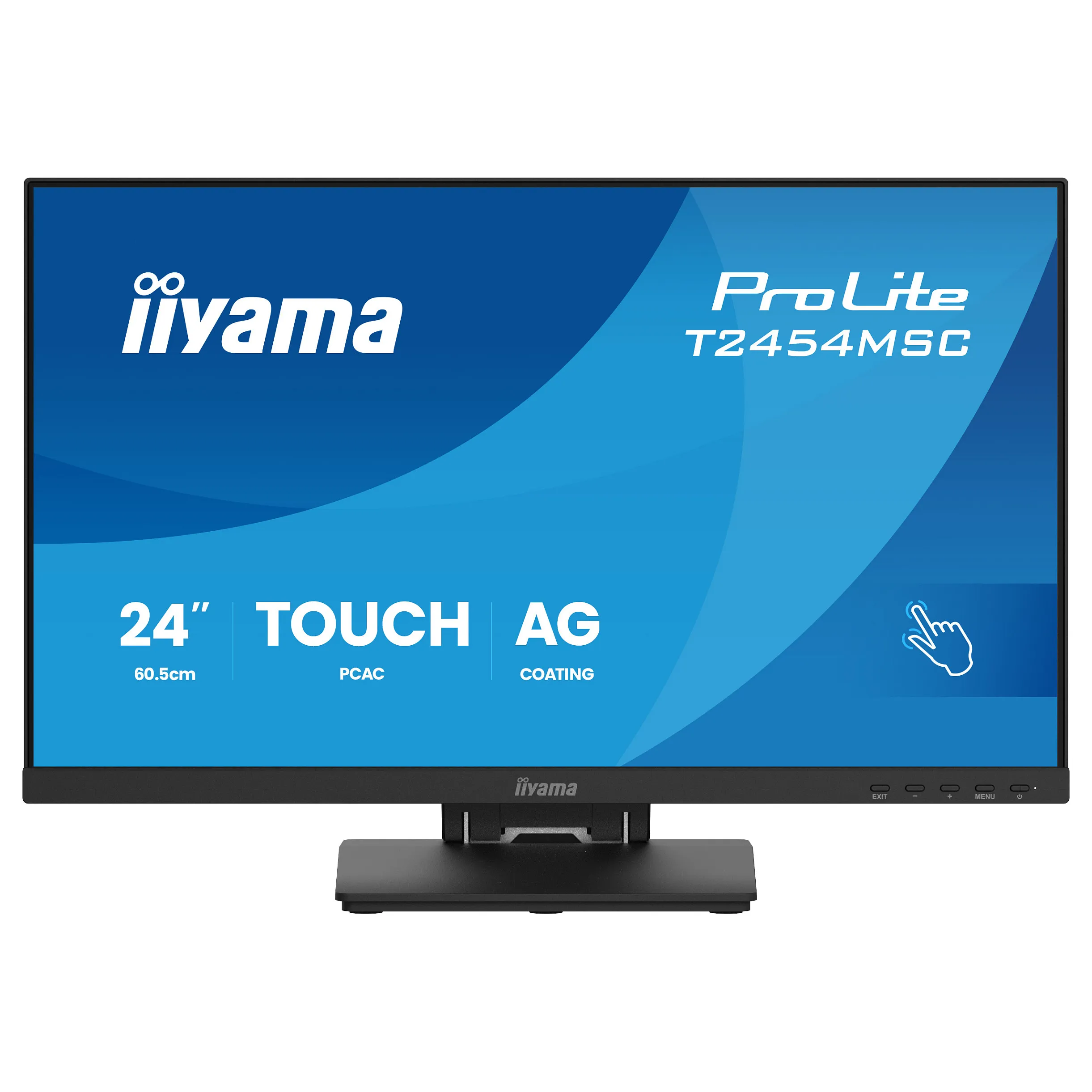

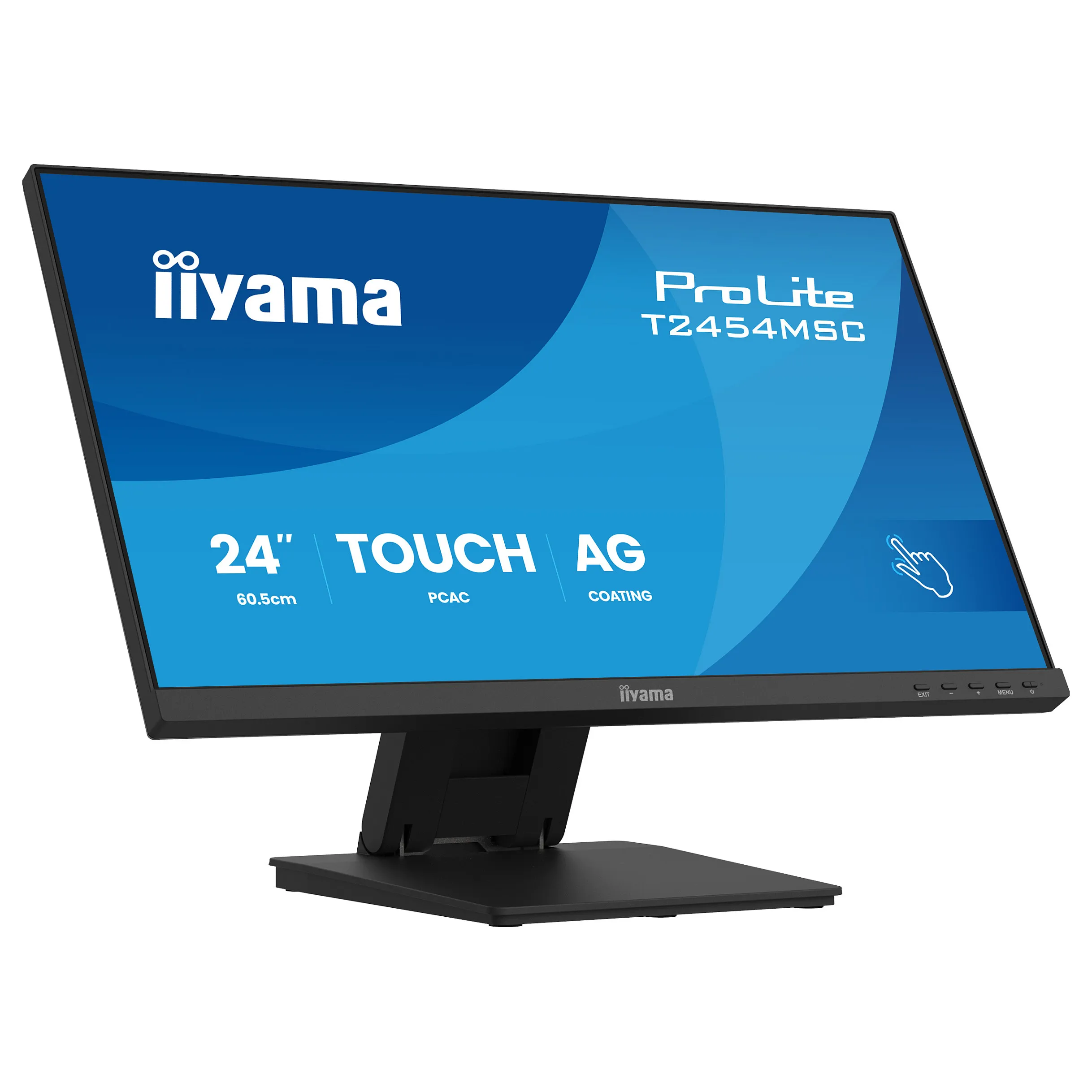

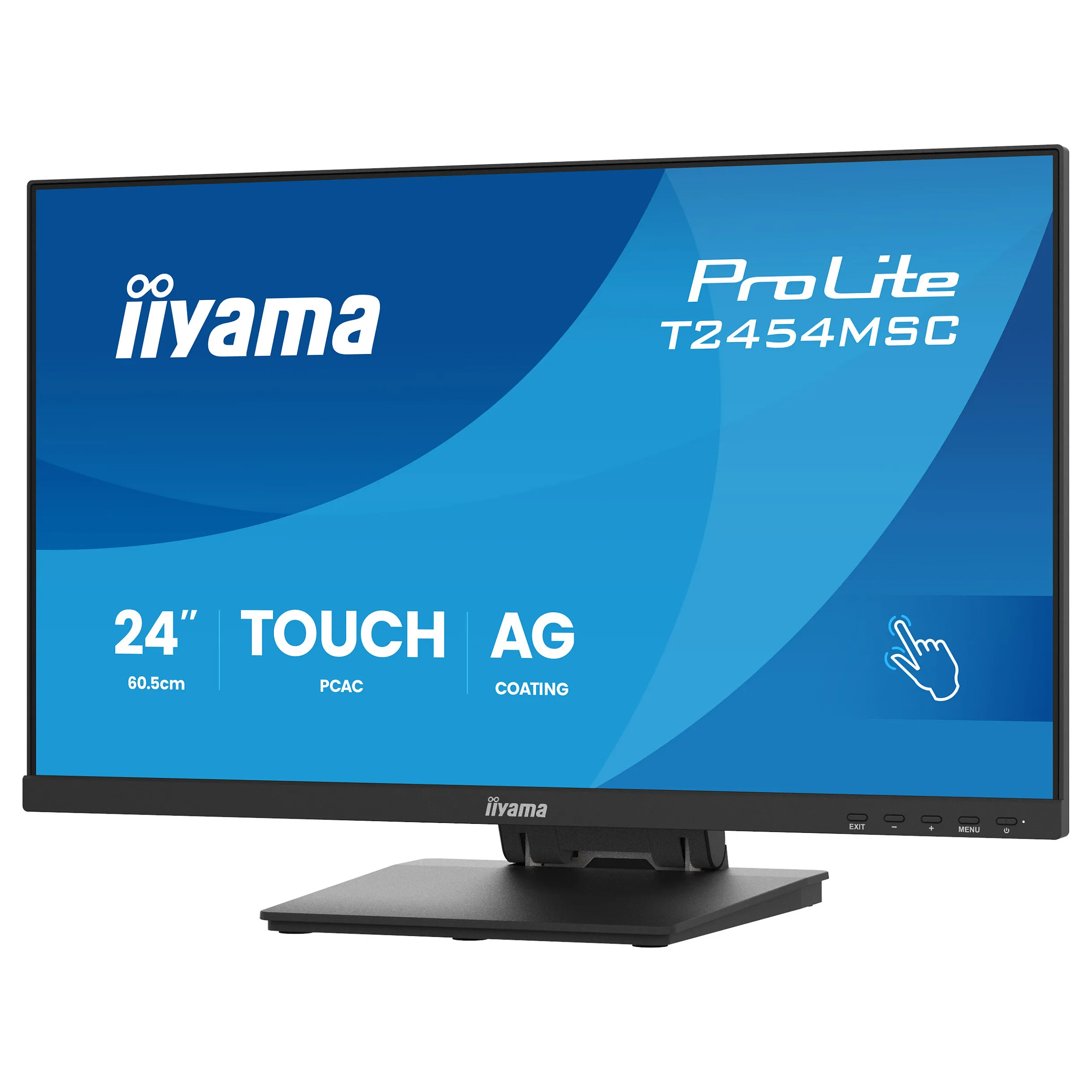

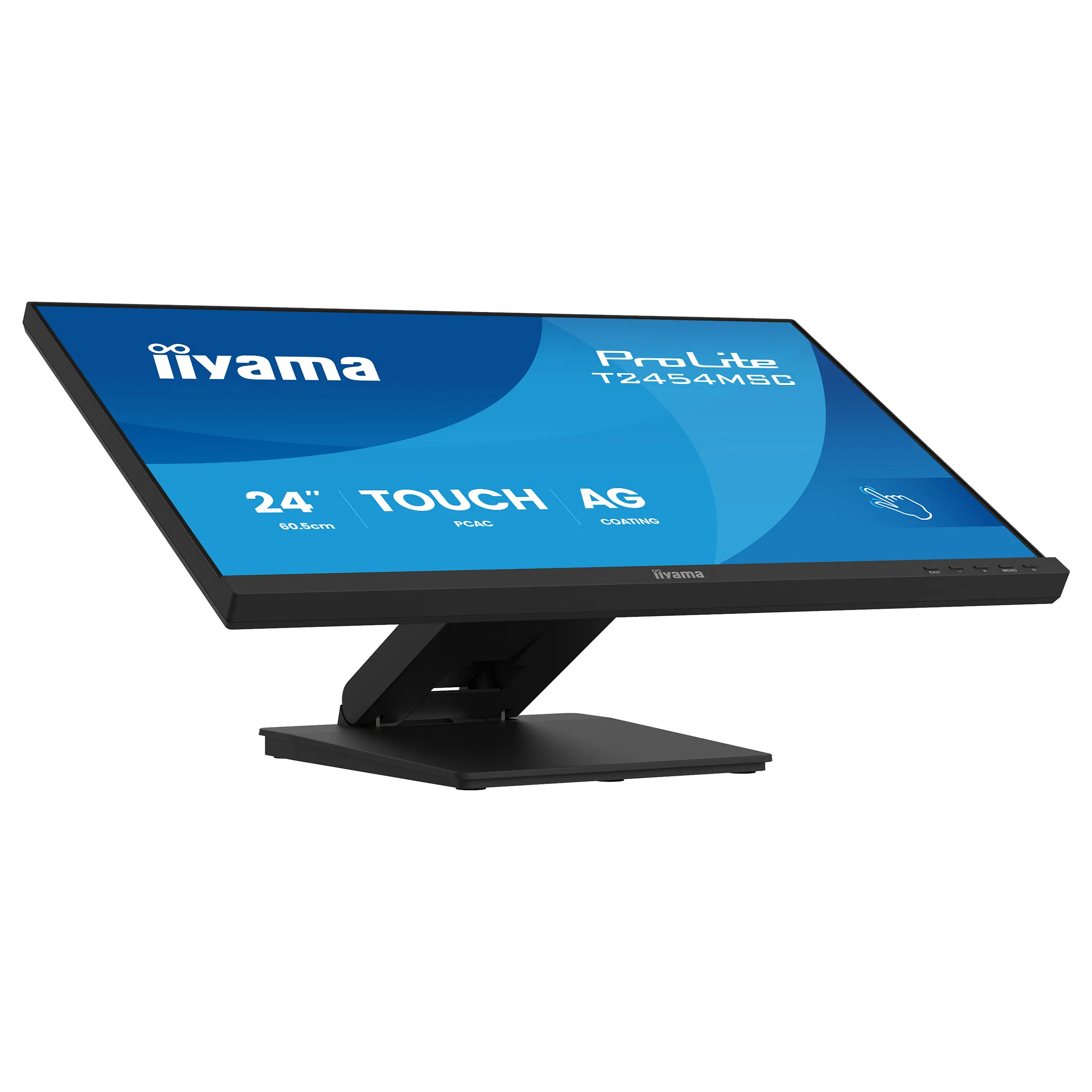

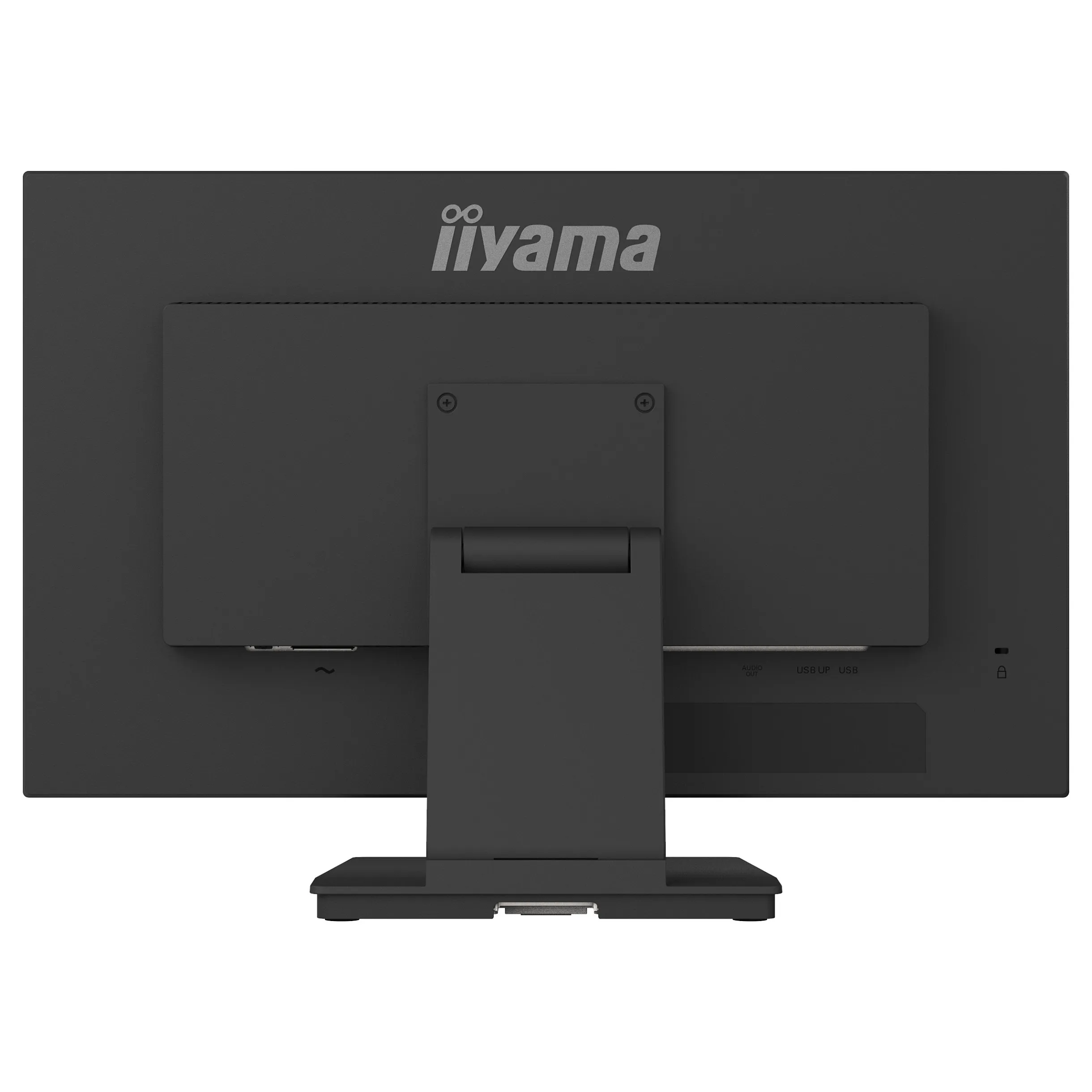

iiyama ProLite T2454MSC-B3AG. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 4 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black

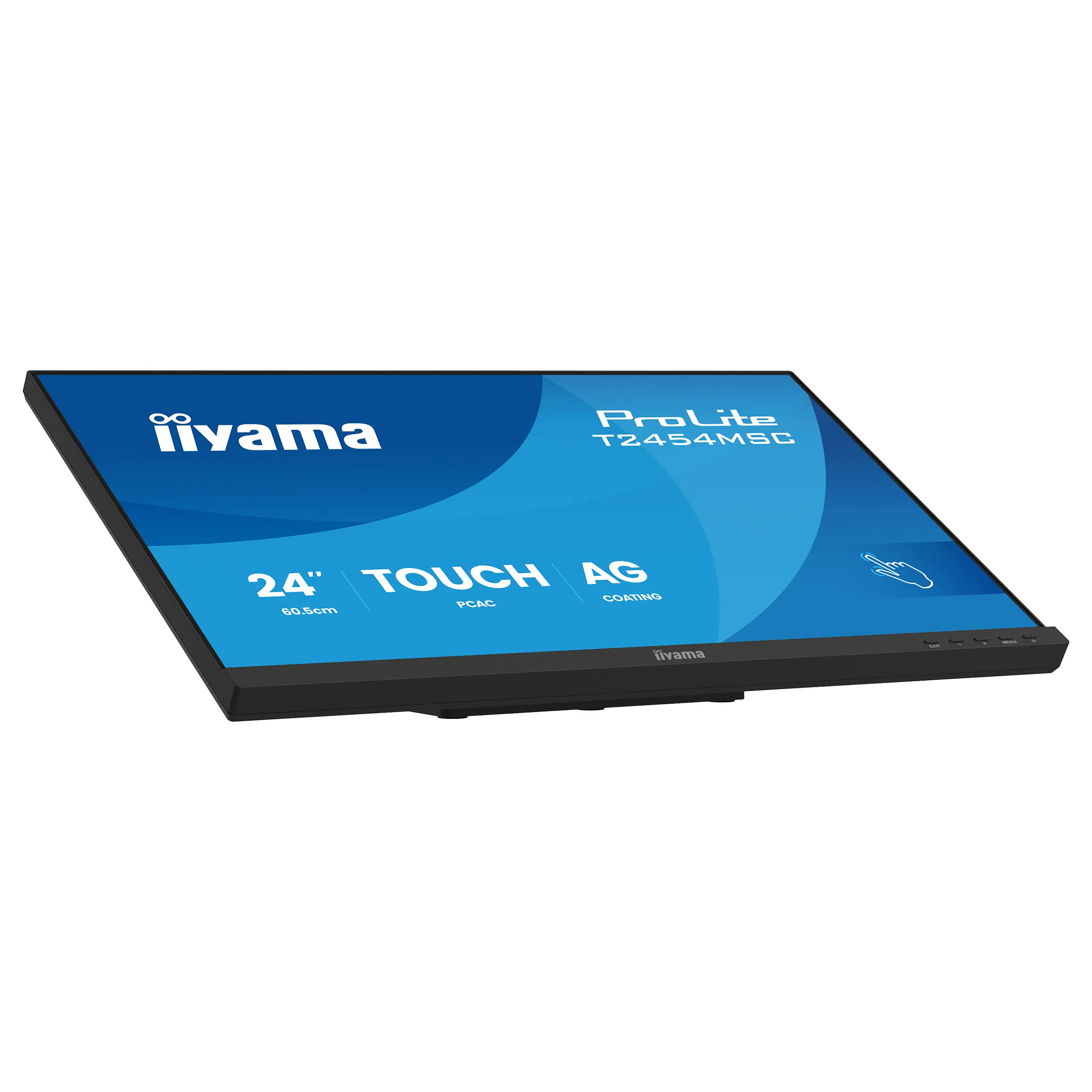

Immersive interaction and elegant design – Discover the ProLite T2454MSC-B3AG, a vibrant 24″ Full HD touchscreen monitor designed for exceptional interactive experiences. Featuring intuitive 10-point Touch technology (InCell PCAP), which ensures smooth and precise touch response. The vibrant colours of the IPS panel will captivate users with precise and natural interaction from any angle. Its sleek and stylish design and anti-glare surface offer durability and ease of cleaning, perfect for busy commercial environments, hospitality spaces, healthcare facilities and public areas. With adjustable ergonomics, neat cable management, built-in audio and seamless connectivity (HDMI, DisplayPort, USB 3.2 hub), it is an ideal choice for POS, self-service solutions and interactive signage.
Display
Display diagonal: 60.5 cm (23.8″)
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: IPS
LED backlight: Yes
Touchscreen: Yes
Touchscreen type: Multi-user
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (typical): 300 cd/m²
Display brightness: 300 cd/m²
Response time: 4 ms
Response time measurement type: GTG (Gray to Gray)
Anti-glare screen: Yes
Screen shape: Flat
Supported graphics resolutions: 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Contrast ratio (typical): 1000:1
Contrast ratio (dynamic): 5000000:1
Maximum refresh rate: 83 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.2745 x 0.2745 mm
Horizontal scan range: 30 – 83 kHz
Viewable size, horizontal: 52.7 cm
Viewable size, vertical: 29.6 cm
Display diagonal (metric): 60.5 cm
Surface hardness: 3H
Colour depth: 8 bit
Performance
NVIDIA G-SYNC: No
AMD FreeSync: No
Flicker-free technology: Yes
Low Blue Light technology: Yes
Windows operating systems supported: Yes
Linux operating systems supported: Yes
OmniTapps Multitouch compatibility: Yes
Multimedia
Number of speakers: 2
RMS rated power: 4 W
Built-in speaker(s): Yes
Megapixel (approx.): 2.1 MP
Built-in camera: No
Design
Market positioning: Business
Product colour: Black
Front bezel colour: Black

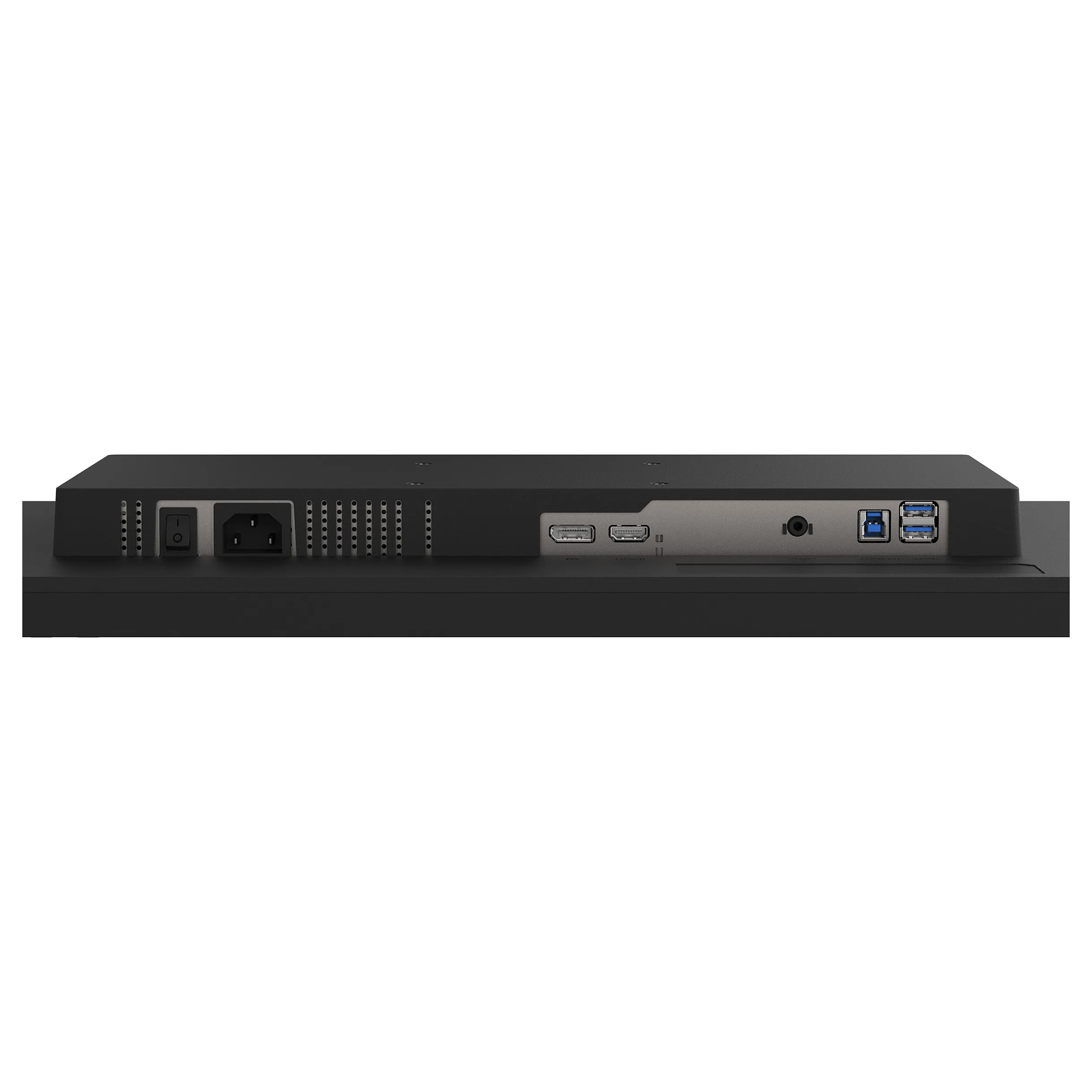

Ports & interfaces
Built-in USB hub: Yes
USB hub version: 3.2 Gen 1 (3.1 Gen 1)
Number of upstream ports: 1
Number of downstream ports: 2
USB Type-A downstream ports quantity: 2
USB Touch port: Yes
HDMI: Yes
HDMI ports quantity: 1
DisplayPorts quantity: 1
Headphone out: Yes
HDCP: Yes

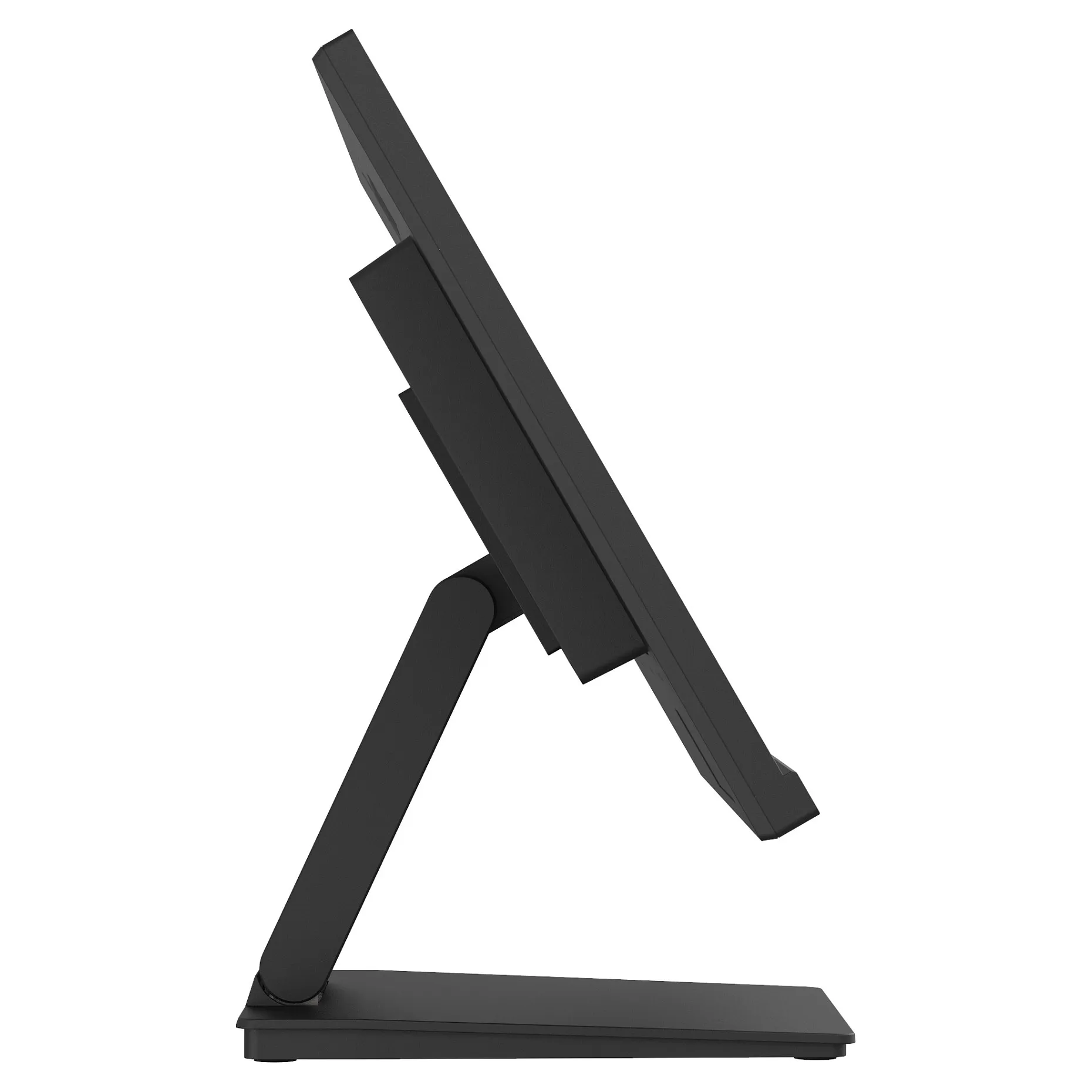

Ergonomics

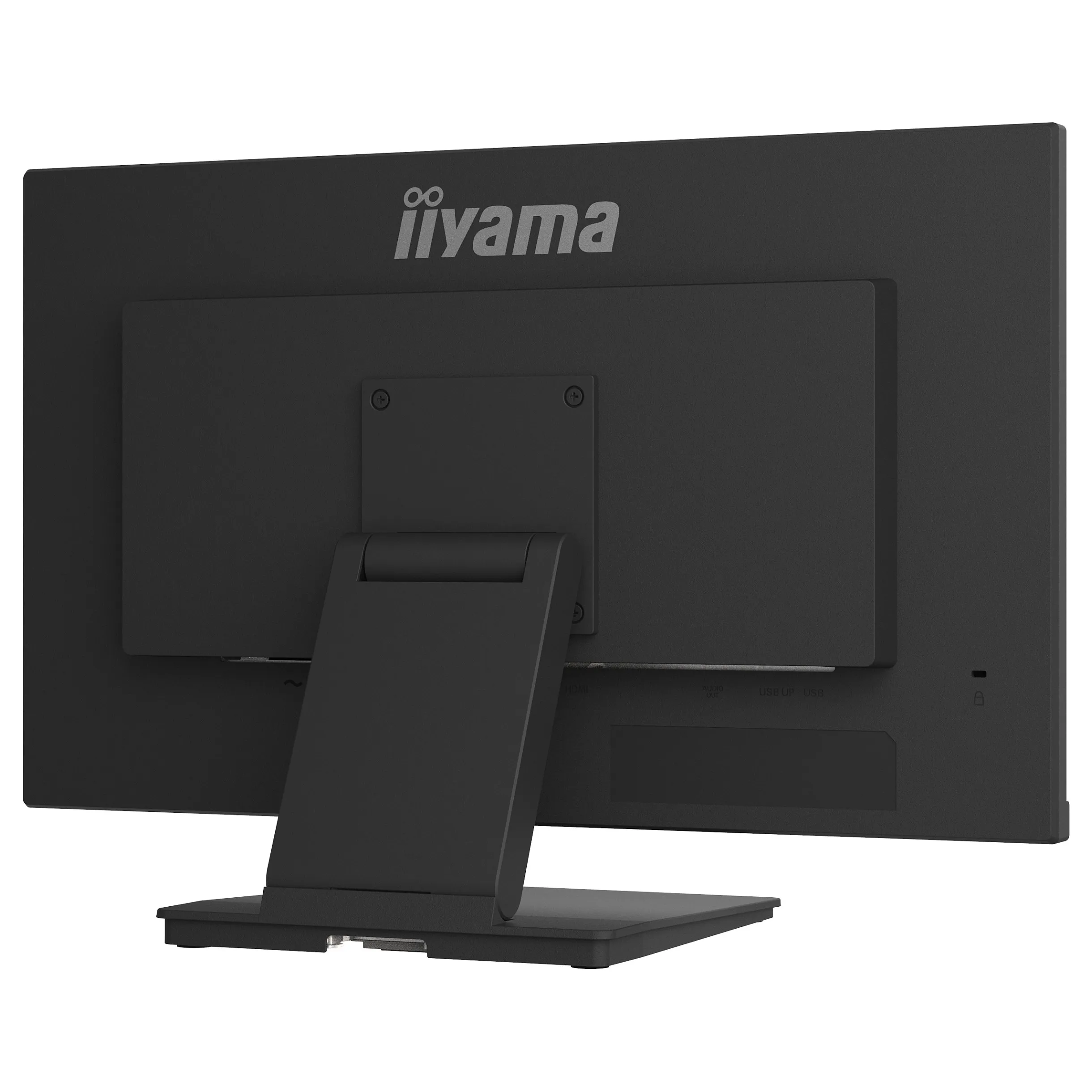

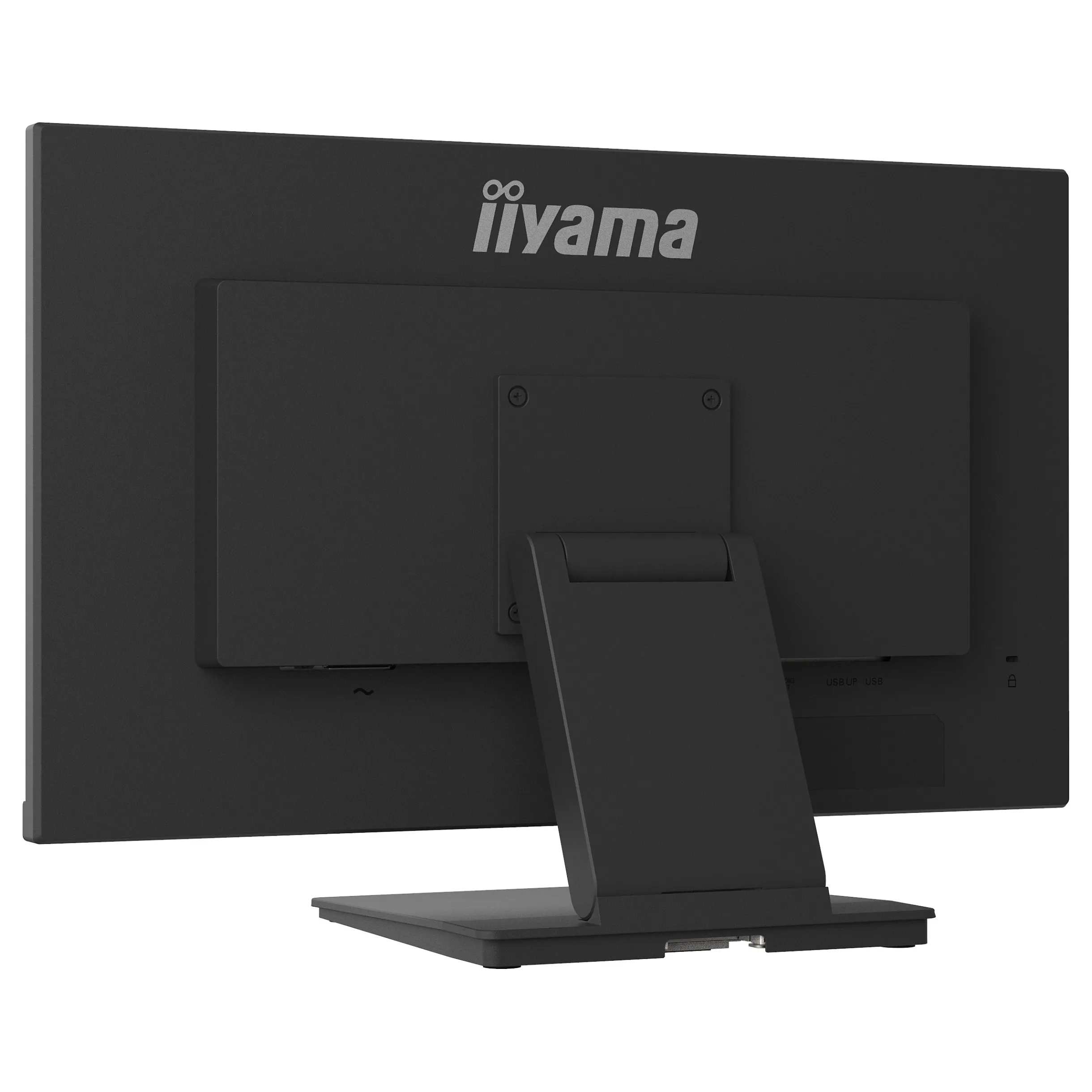

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm
Wall mountable: Yes
Cable management: Yes
Cable lock slot: Yes
Cable lock slot type: Kensington
Height adjustment: Yes
Adjustable height (max): 11.1 cm

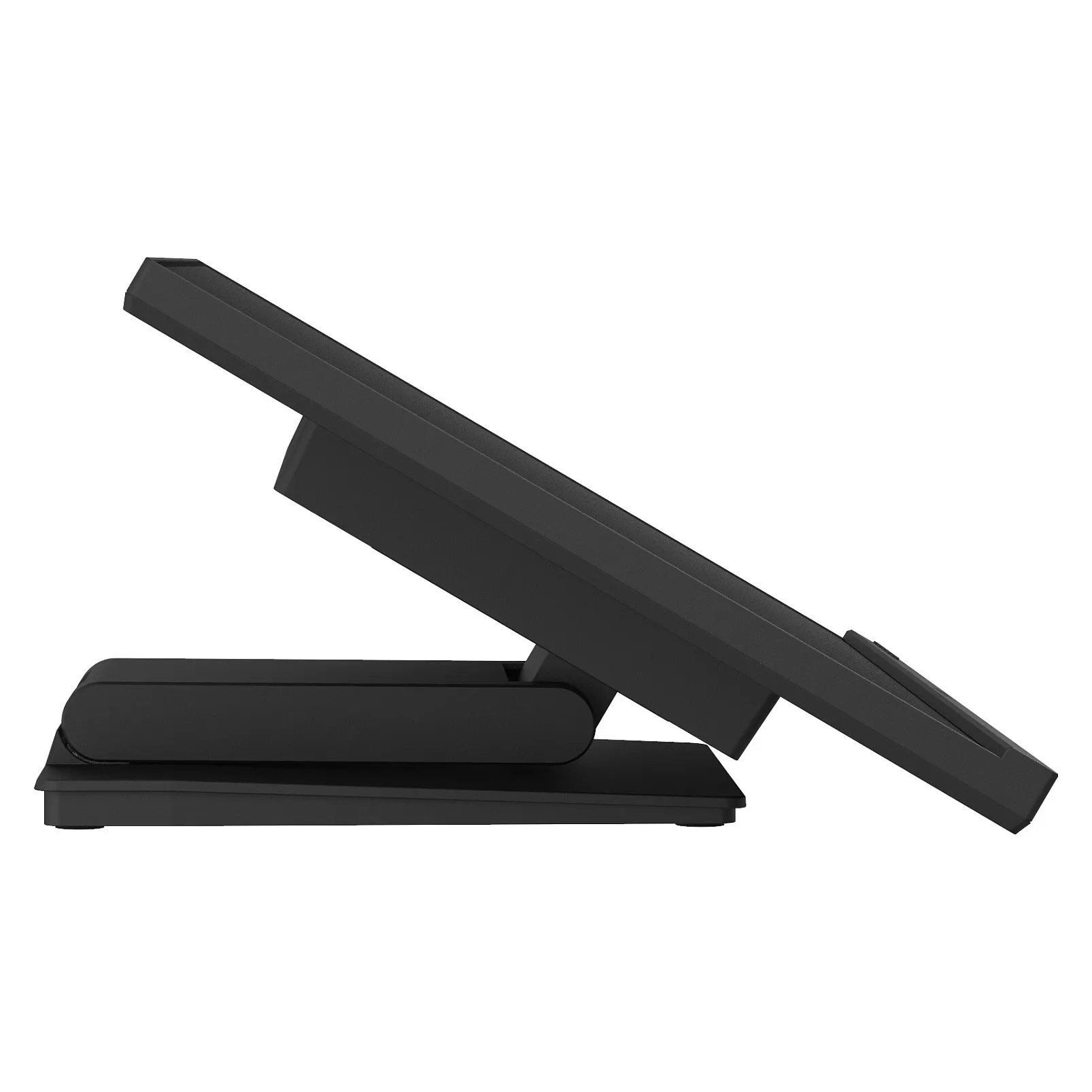

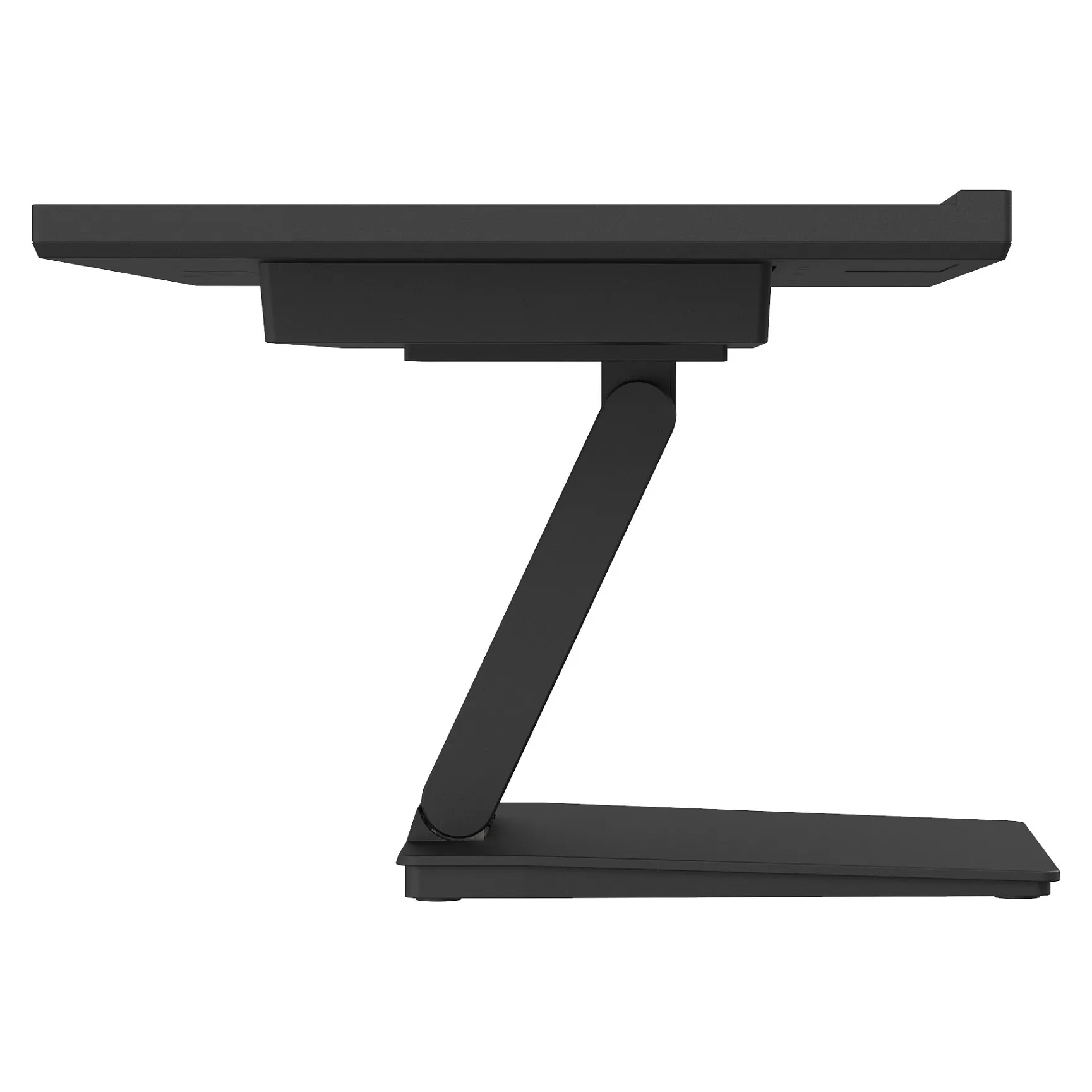

Tilt adjustment: Yes

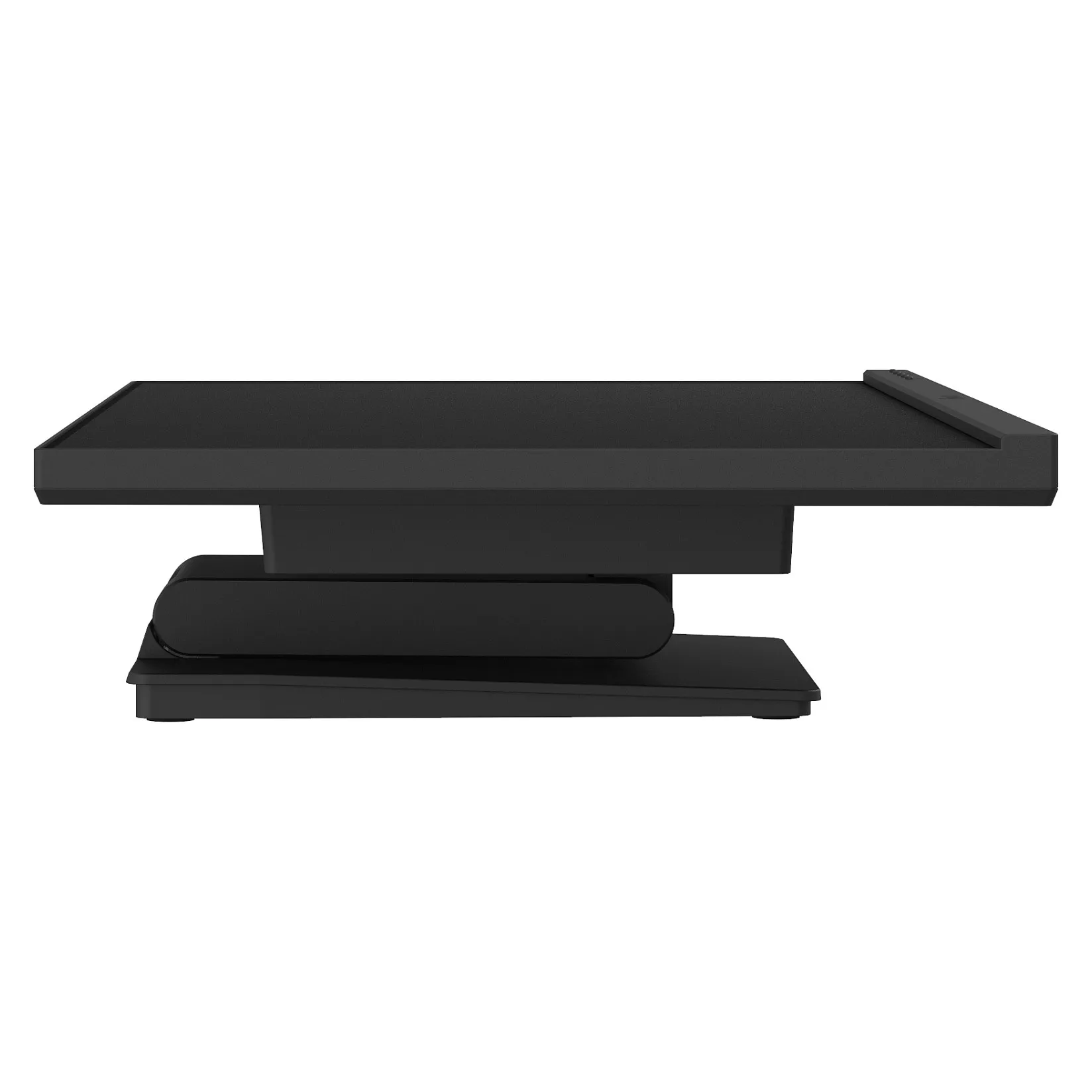

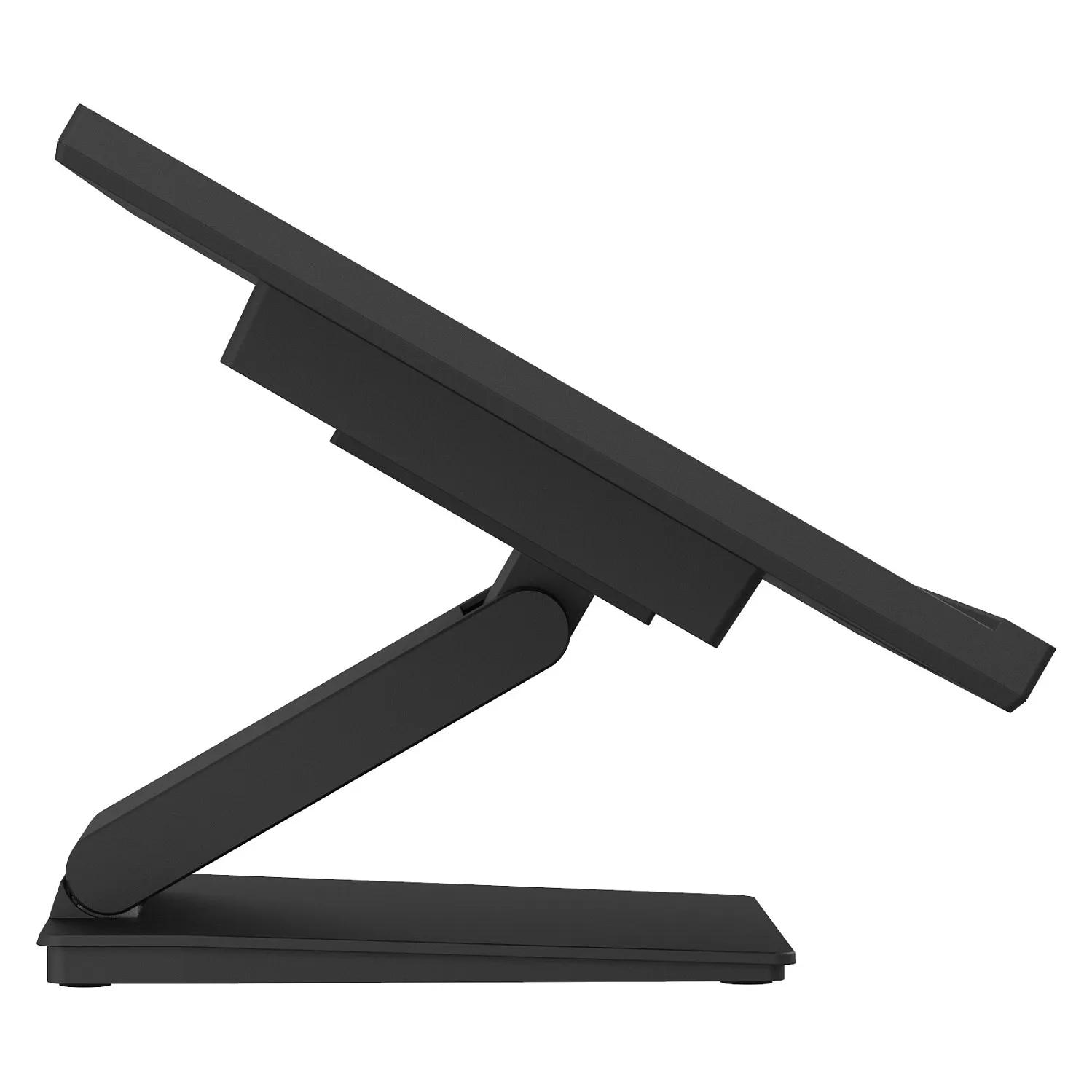

Tilt angle range: -5 – 90°
On Screen Display (OSD): Yes
On Screen Display (OSD) languages: German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian
Number of OSD languages: 10
Plug and Play: Yes
Power
Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 17 kWh
Power consumption (typical): 17 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power supply type: Internal
Energy efficiency scale: A to G
Operational conditions
Operating temperature (T-T): 5 – 35 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 20 – 80%
Storage relative humidity (H-H): 10 – 90%
Weight & dimensions
Width (with stand): 540 mm
Depth (with stand): 241 mm
Height (with stand): 373 mm
Weight (with stand): 5.4 kg
Packaging data
Package width: 615 mm
Package depth: 148 mm
Package height: 420 mm
Package weight: 7.1 kg
Packaging content
Cables included: AC, USB, HDMI
Quick start guide: Yes
Sustainability
Sustainability certificates: EPEAT, ErP
Other features
Compatible operating systems: All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Positional accuracy: 2 mm
Placement supported: Horizontal/Vertical
Packaging content: Screwdriver
Active display area (W x H): 527.04 x 296.46 mm
USB ports quantity: 2
Weight: 5.4 kg
Height: 373 mm
Width: 540 mm
User controls: luminance (contrast, brightness, i-Style Color, adv. contrast, eco), Image settings (aspect ratio), Color settings (gamma, 6- axis, color temp), OSD (OSD horizontal position, OSD vertical position, OSD time, language), Extra (reset, DDC/CI, signal select, OverDrive, opening logo, information)
Touch method: finger, glove (latex), capacitive stylus
Depth: 241 mm

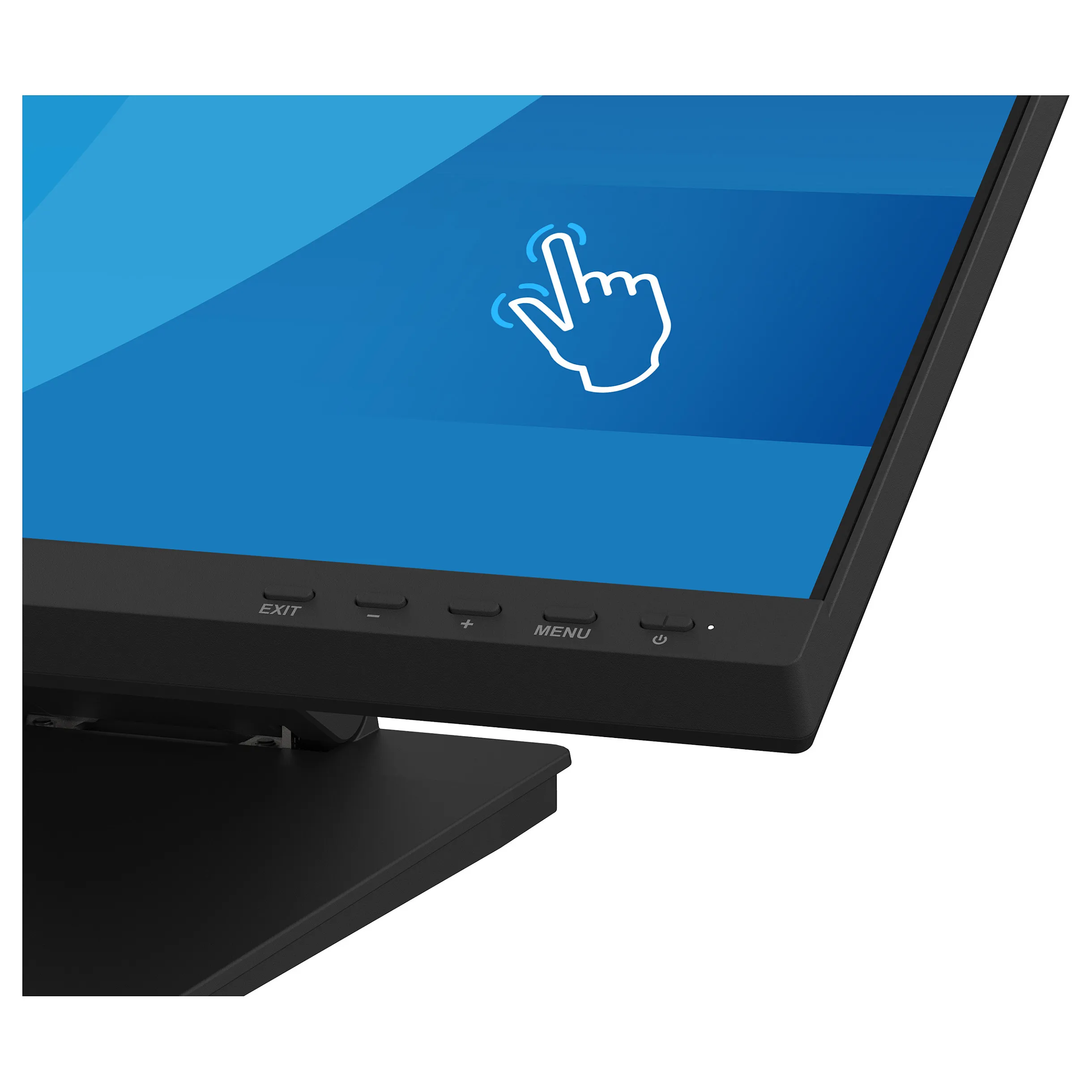

Control panel: Power, menu, +, -, Exit
Compliance certificates: CE, EAC, REACH, RoHS, UKCA, WEEE
Mean time between failures (MTBF): 50000 h
Supplied AC adapter type: AC
Certification: CE, TÜV-Bauart, VCCI-B, EAC, ErP, WEEE, REACH, CB
Logistics data
Harmonized System (HS) code: 85285210
