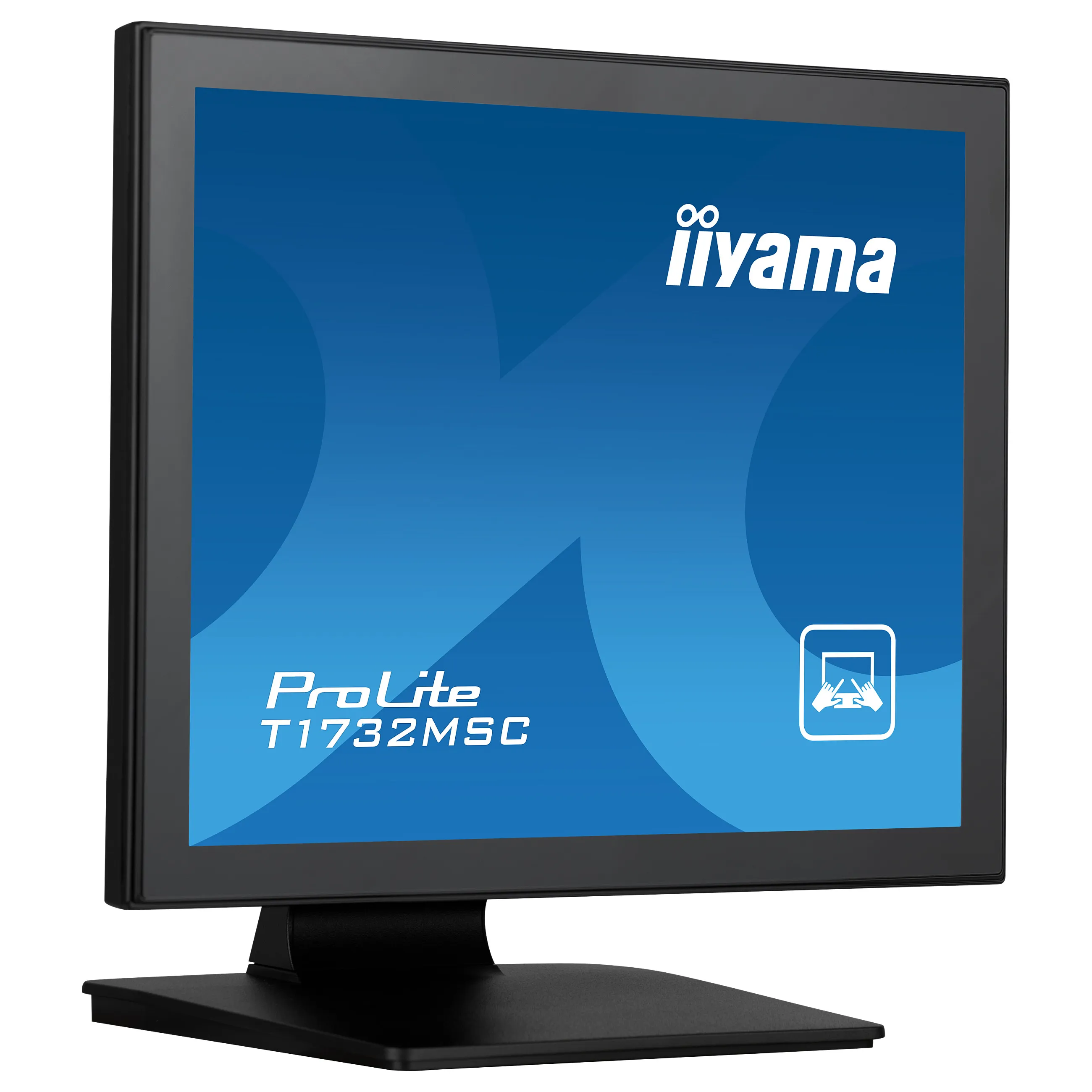

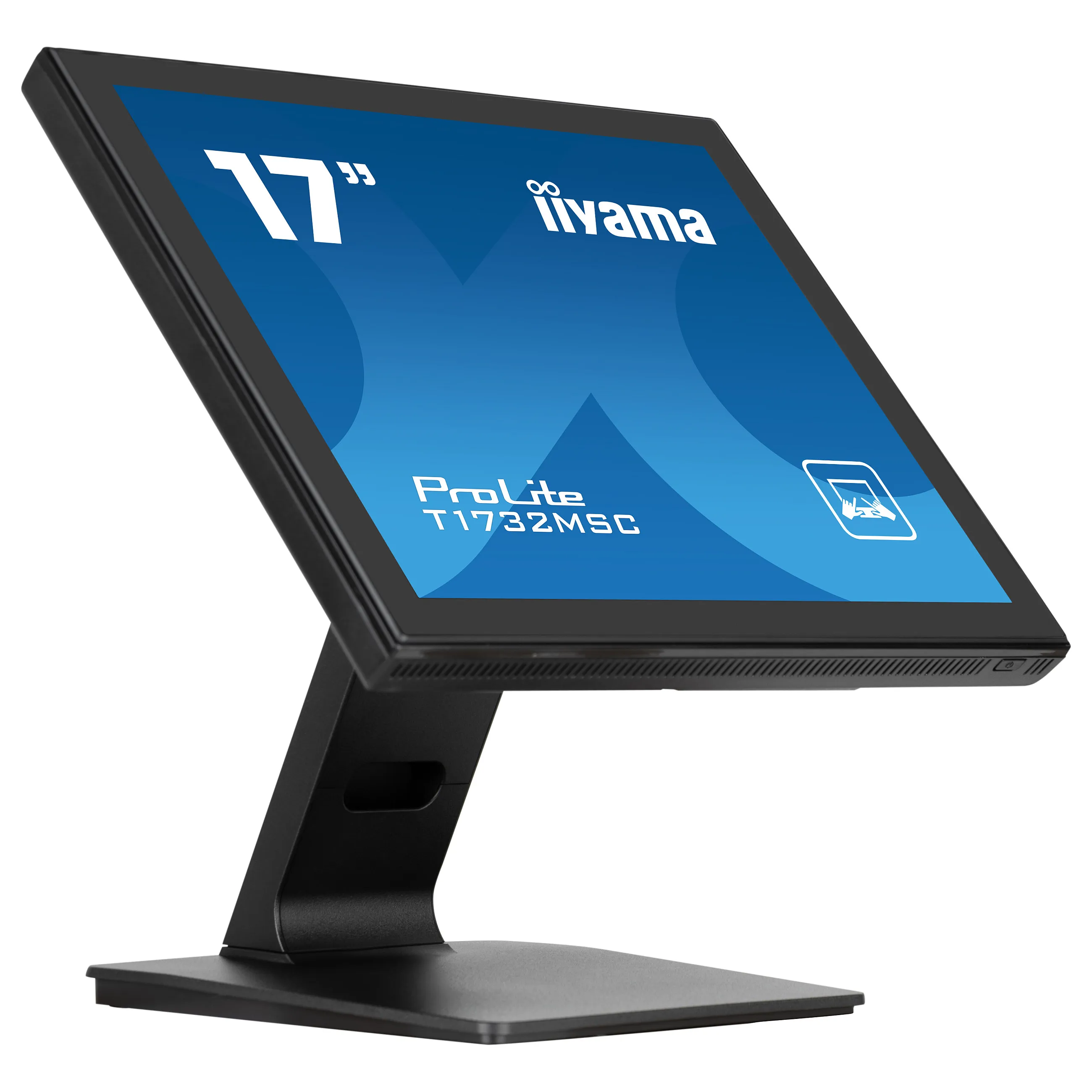

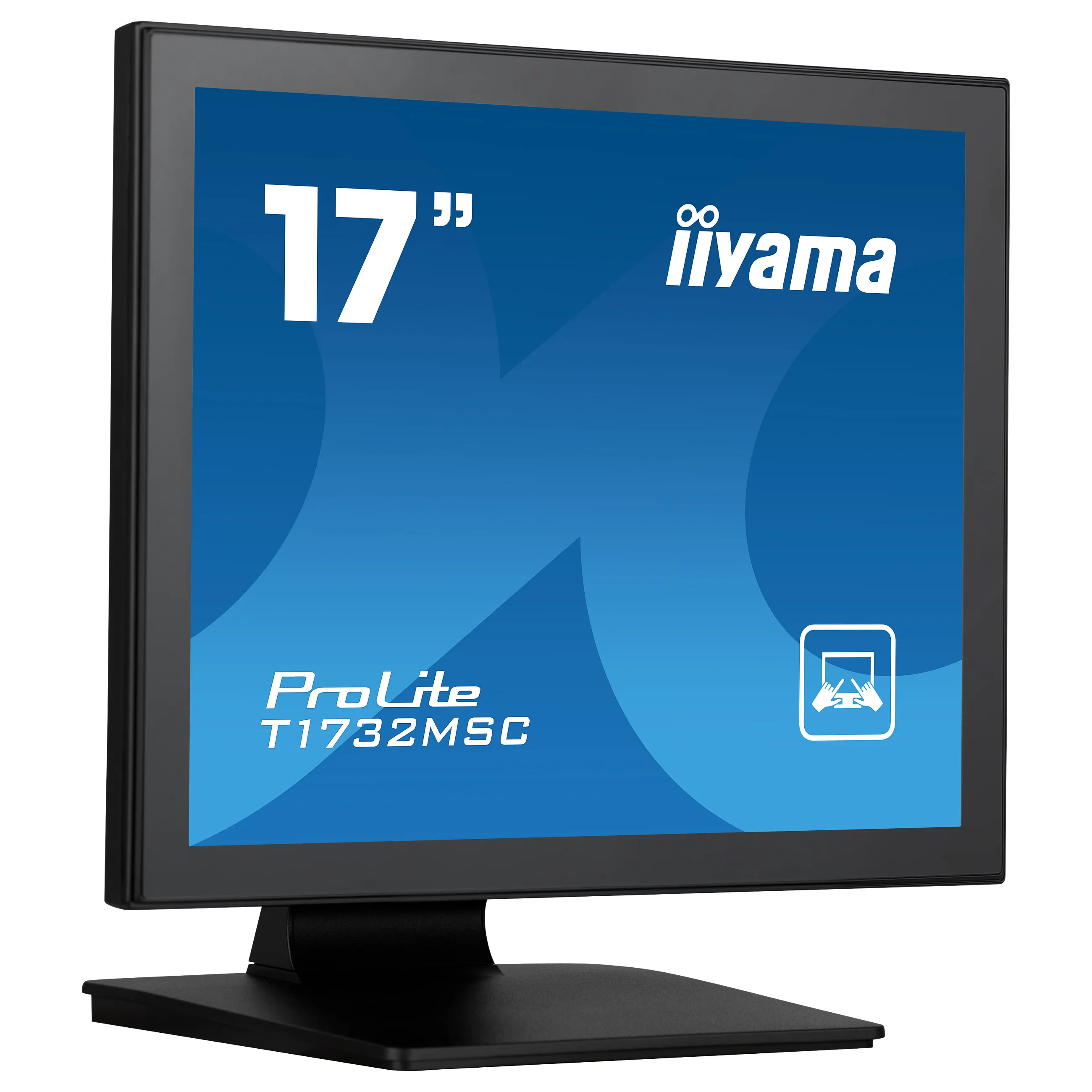

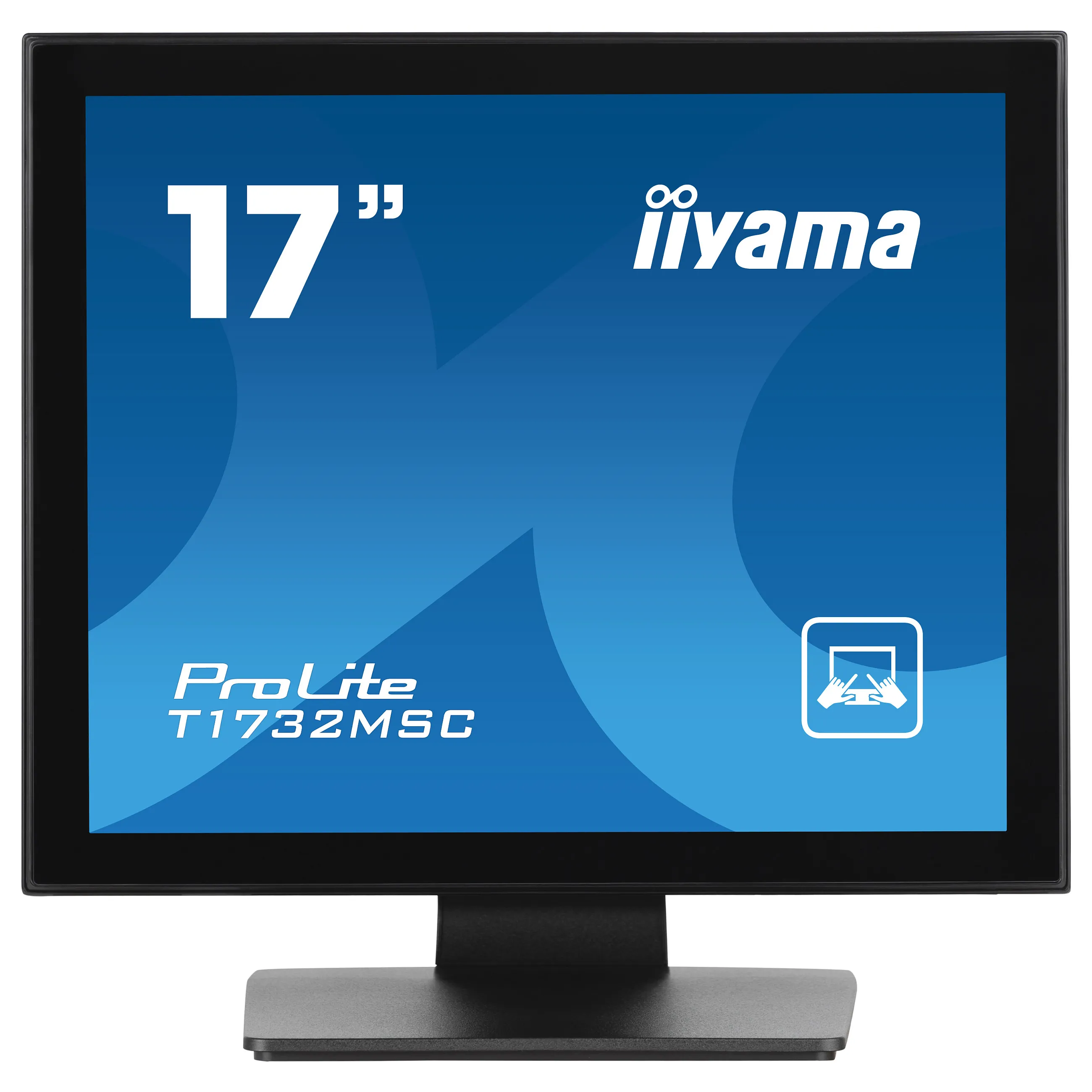

iiyama ProLite T1732MSC-B1SAG. Display diagonal: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, HD type: Full HD, Display technology: LED, Display surface: Matt, Response time: 5 ms, Native aspect ratio: 5:4, Viewing angle, horizontal: 170°, Viewing angle, vertical: 160°. Built-in speaker(s). VESA mounting. Product colour: Black

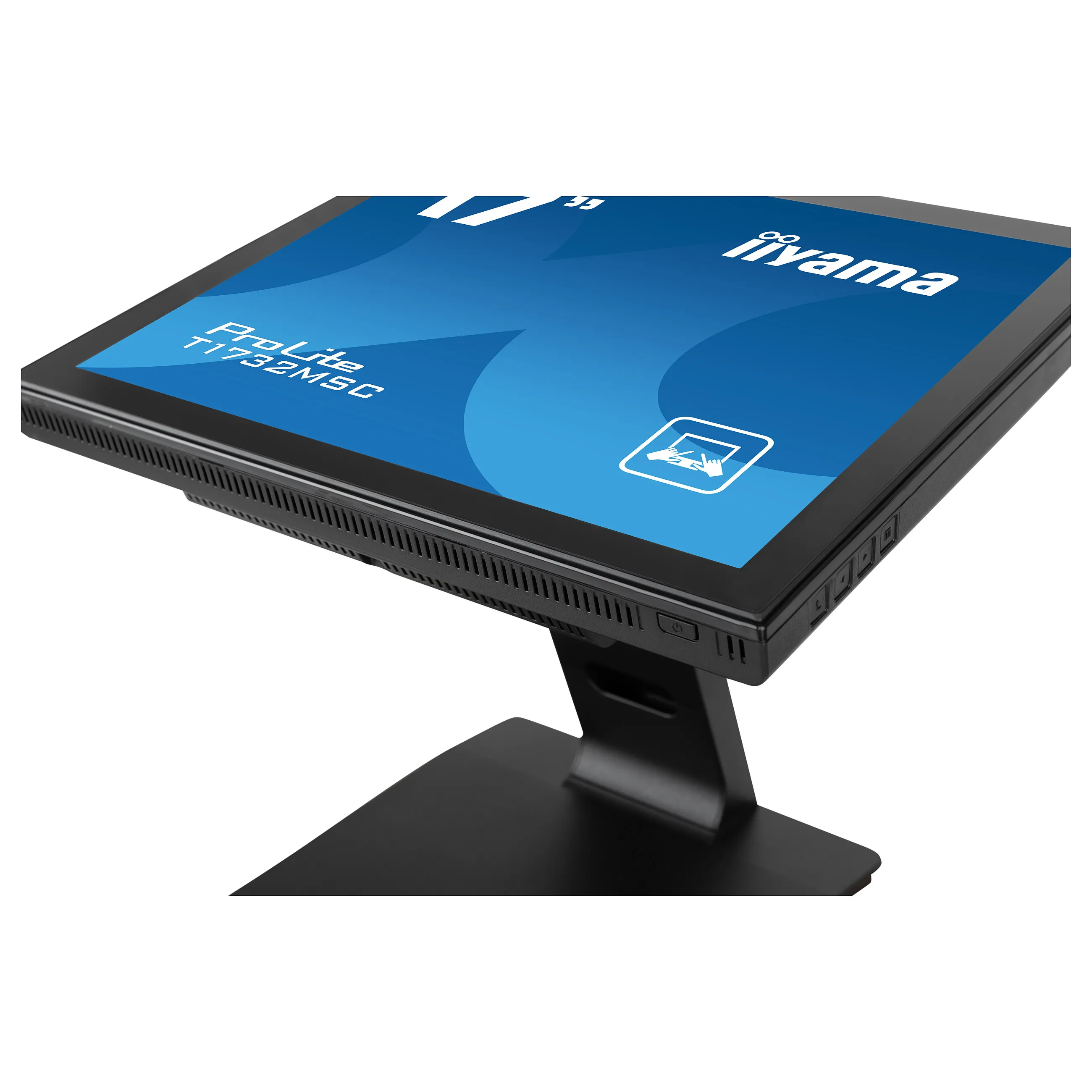

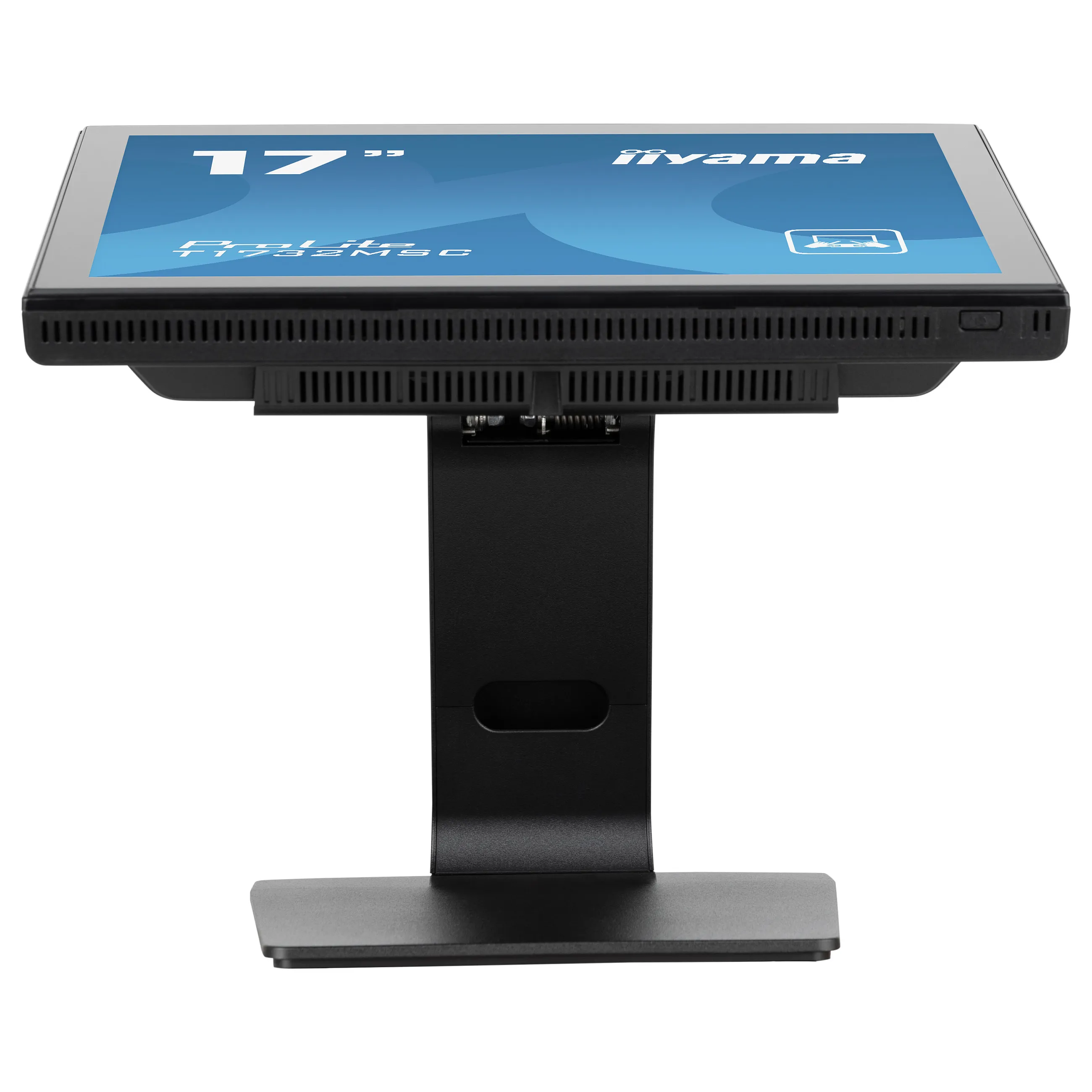

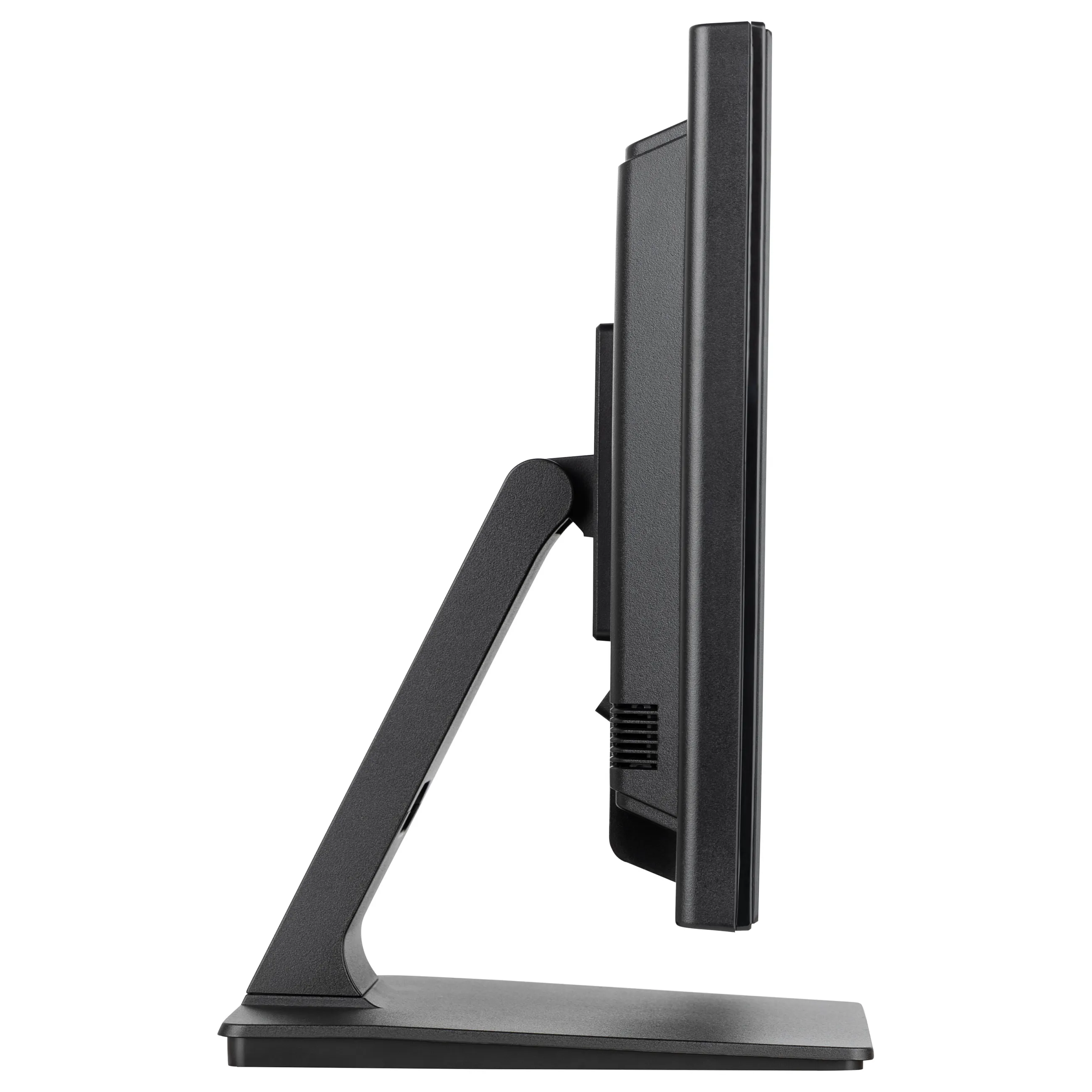

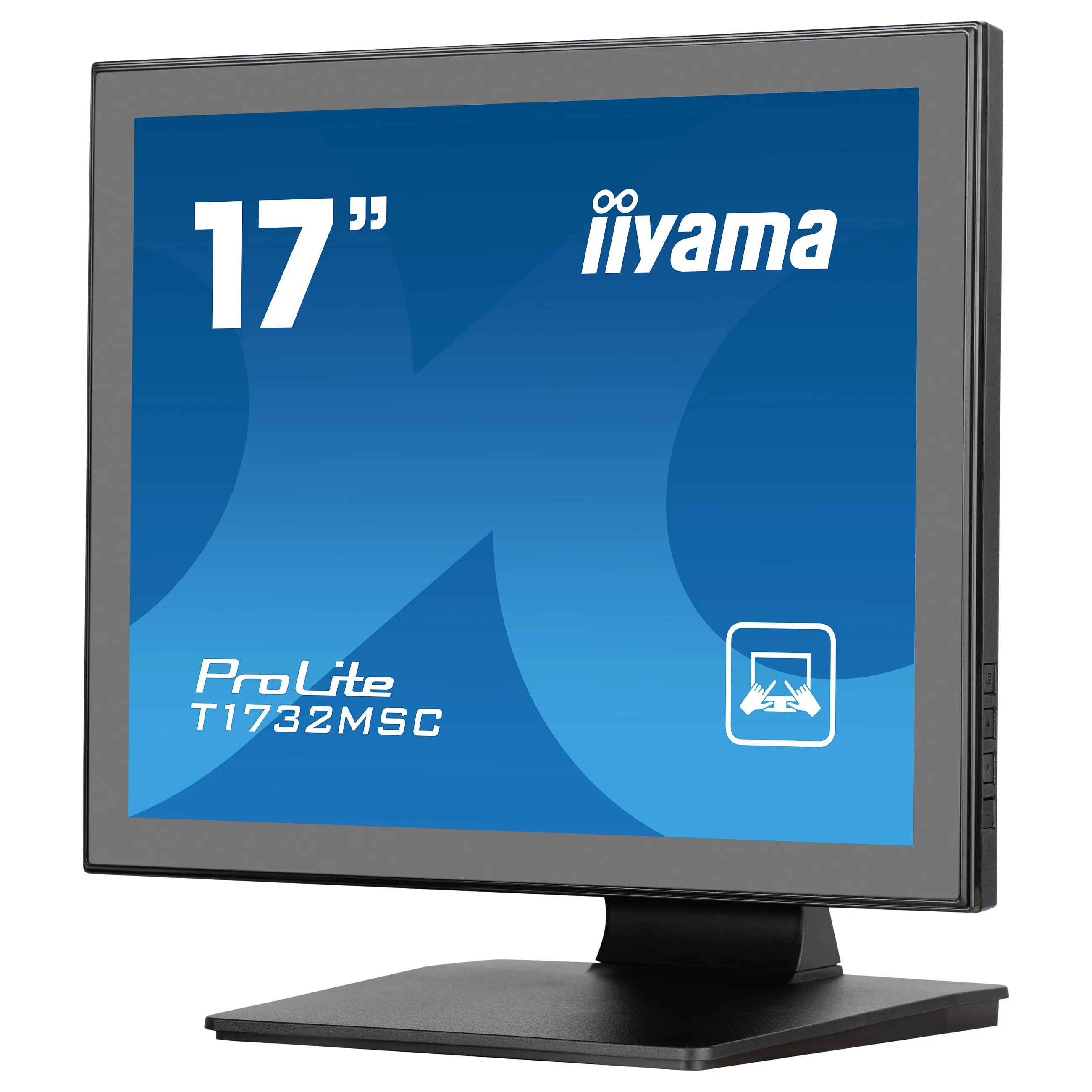

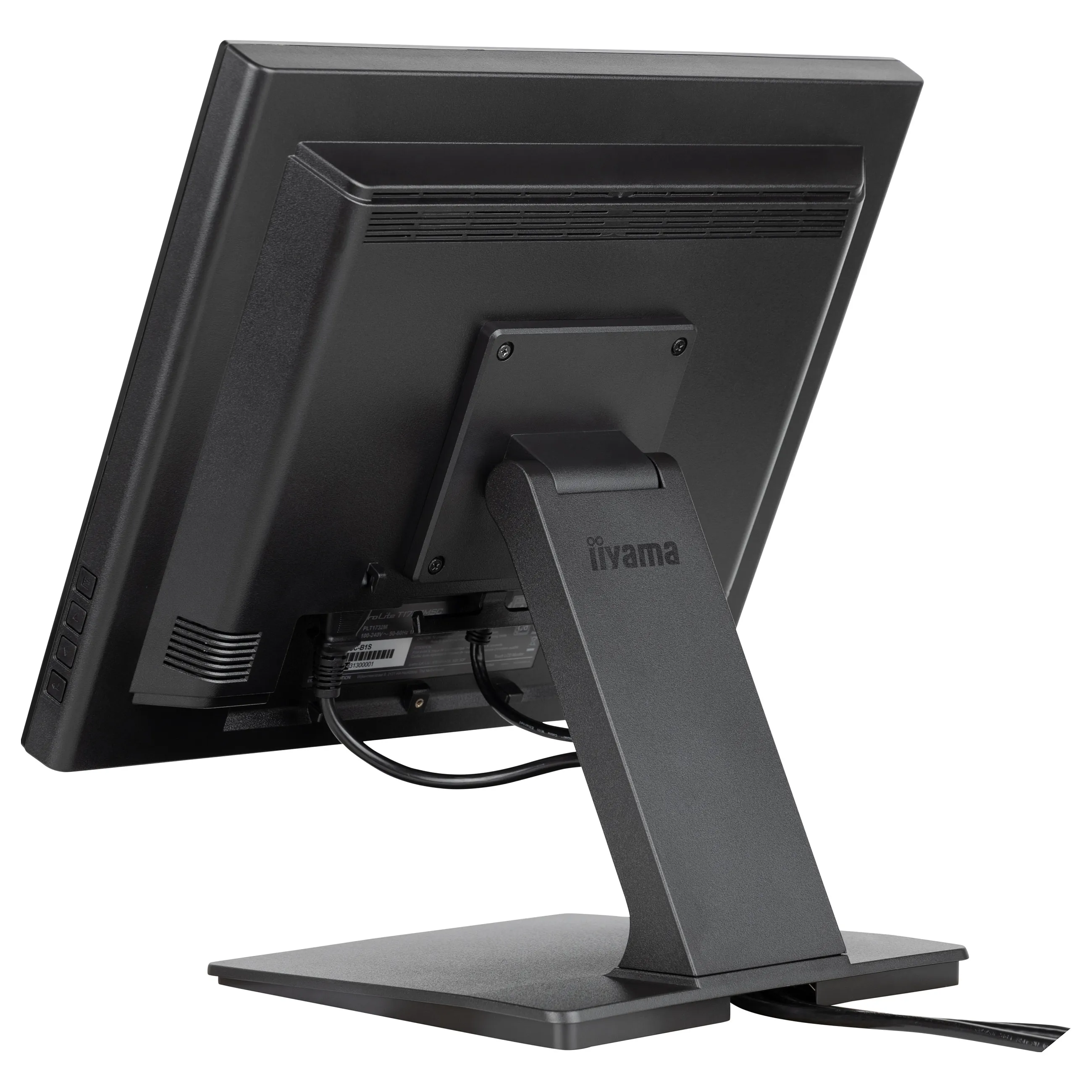

The ProLite T1732MSC-B1SAG 17″ multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The anti-glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. The touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touchscreen with an adjustable stand offering full 90 degree positioning angles. Menu Buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the touchscreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.
Display
Display diagonal: 43.2 cm (17″)
Display resolution: 1280 x 1024 pixels
HD type: Full HD
Native aspect ratio: 5:4
Display technology: LED
Panel type: TN
Backlight type: LED
Feature: Touchscreen
Touchscreen type: Tabletop
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (peak): 215 cd/m²
Display brightness (typical): 250 cd/m²
Display brightness: 215 cd/m²
Response time: 5 ms
Display surface: Matt
Feature: Anti-glare screen
Screen shape: Flat
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 170°
Viewing angle, vertical: 160°
Display number of colours: 16.7 million colours
Pixel pitch: 0.264 x 0.264 mm
Horizontal scan range: 31 – 80 kHz
Viewable size, horizontal: 33.8 cm
Viewable size, vertical: 27.1 cm
Display diagonal (metric): 43 cm
Multimedia
Number of speakers: 2
RMS rated power: 2 W
Feature: Built-in speaker(s)
Design
Market positioning: Business
Product colour: Black
Front bezel colour: Black
Feet colour: Black
Glass thickness: 1.2 mm

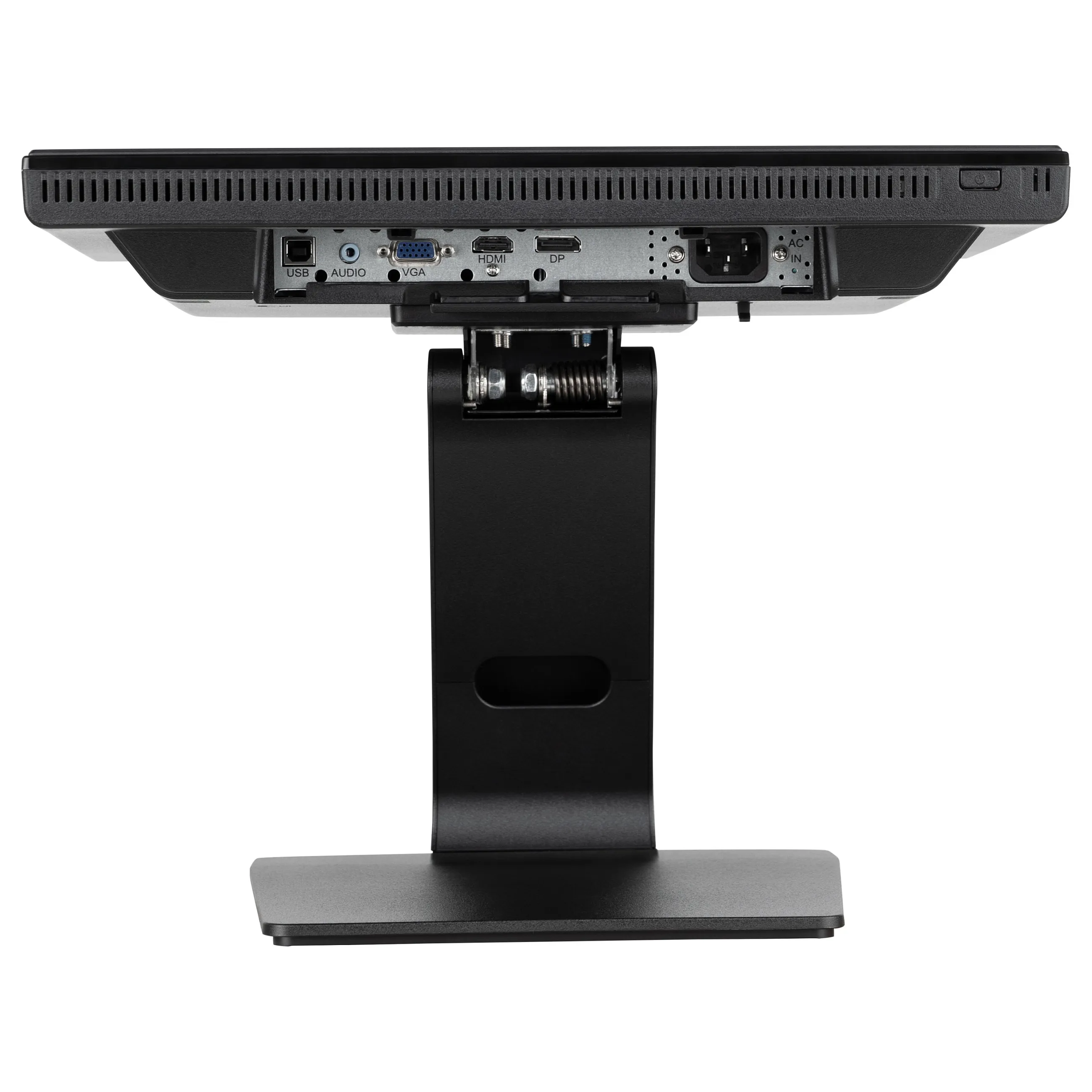

Ports & interfaces
Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Audio input: Yes
Audio output: Yes
Headphone outputs: 1
Feature: HDCP
Feature: DC-in jack
Ergonomics

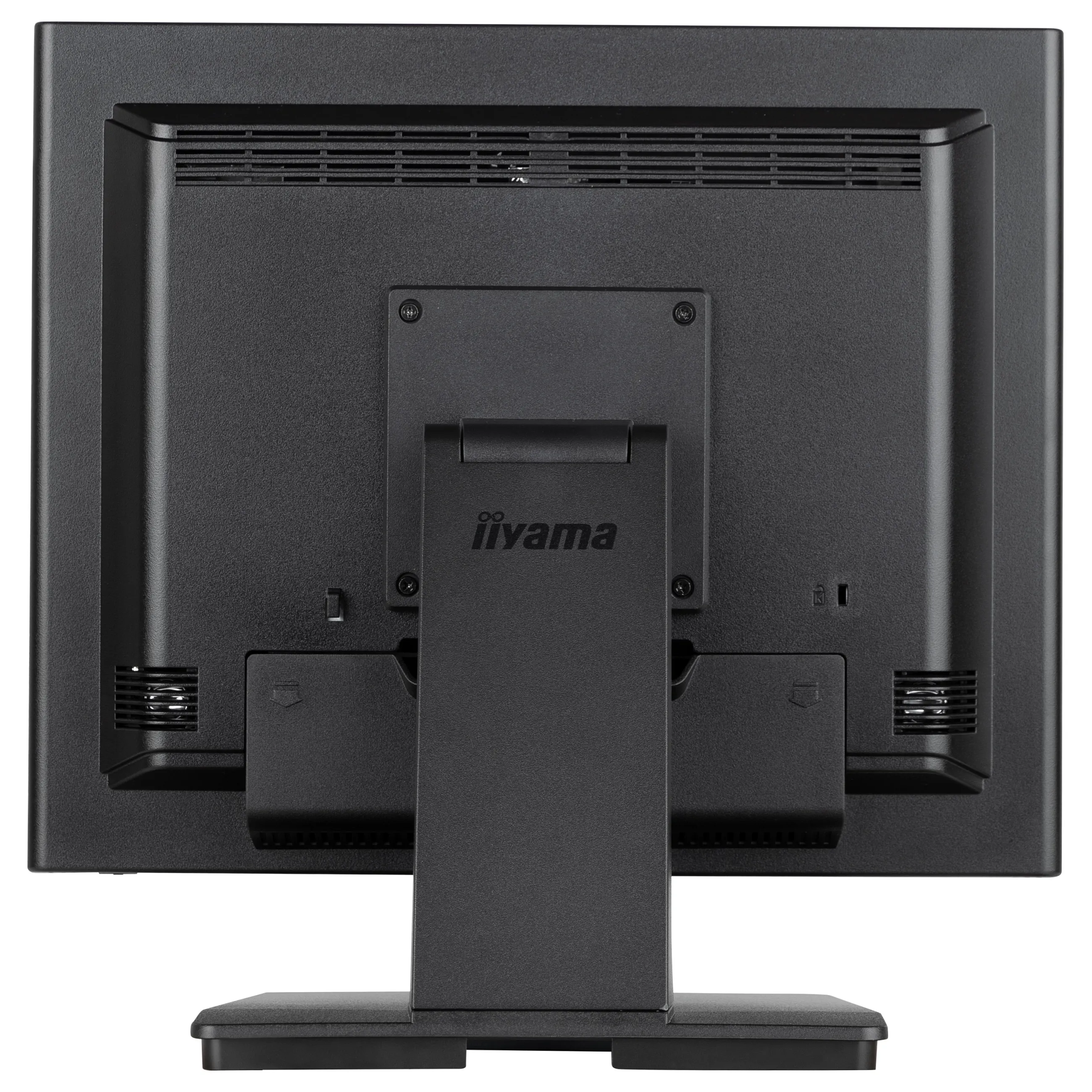

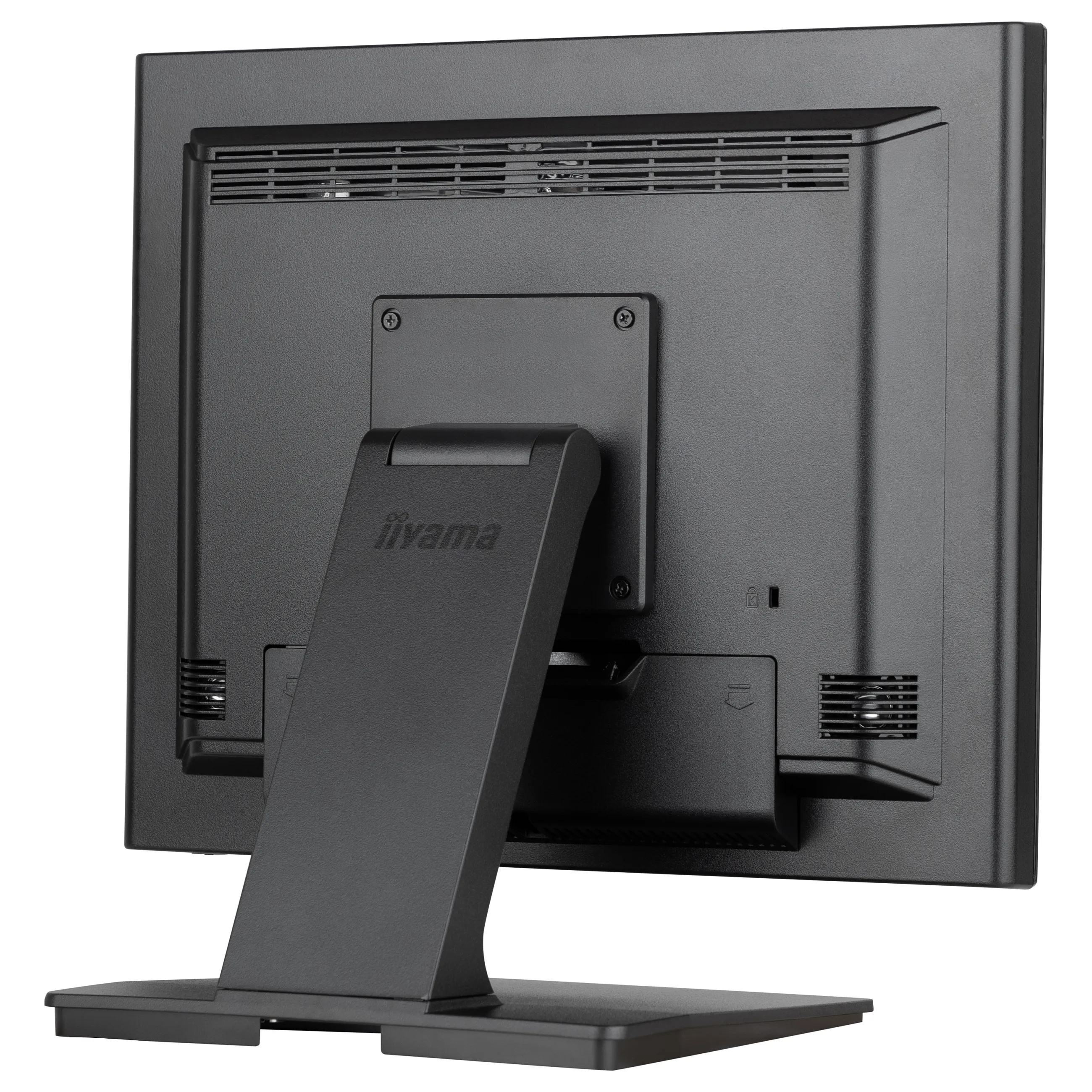

Feature: VESA mounting

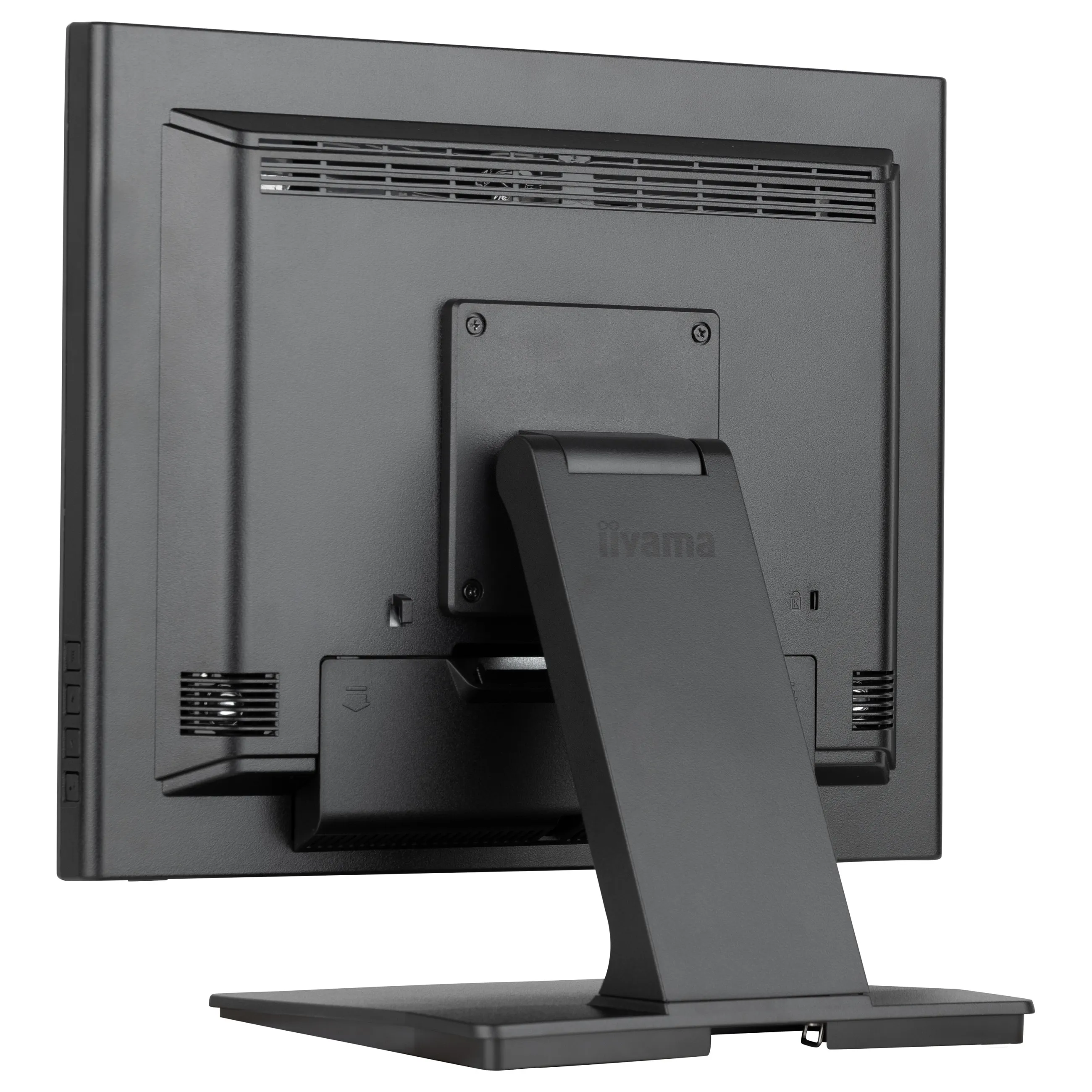

Panel mounting interface: 100 x 100 mm

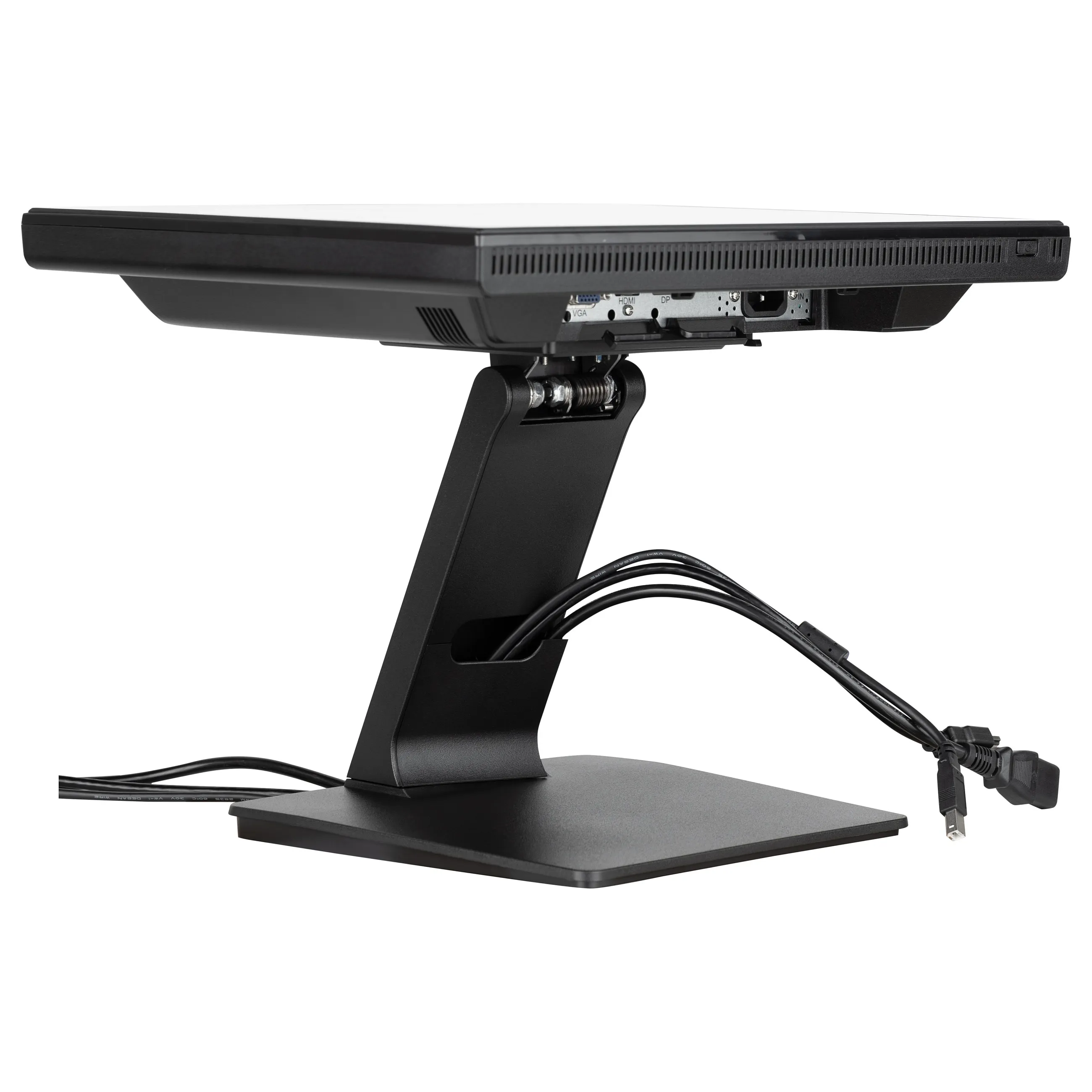

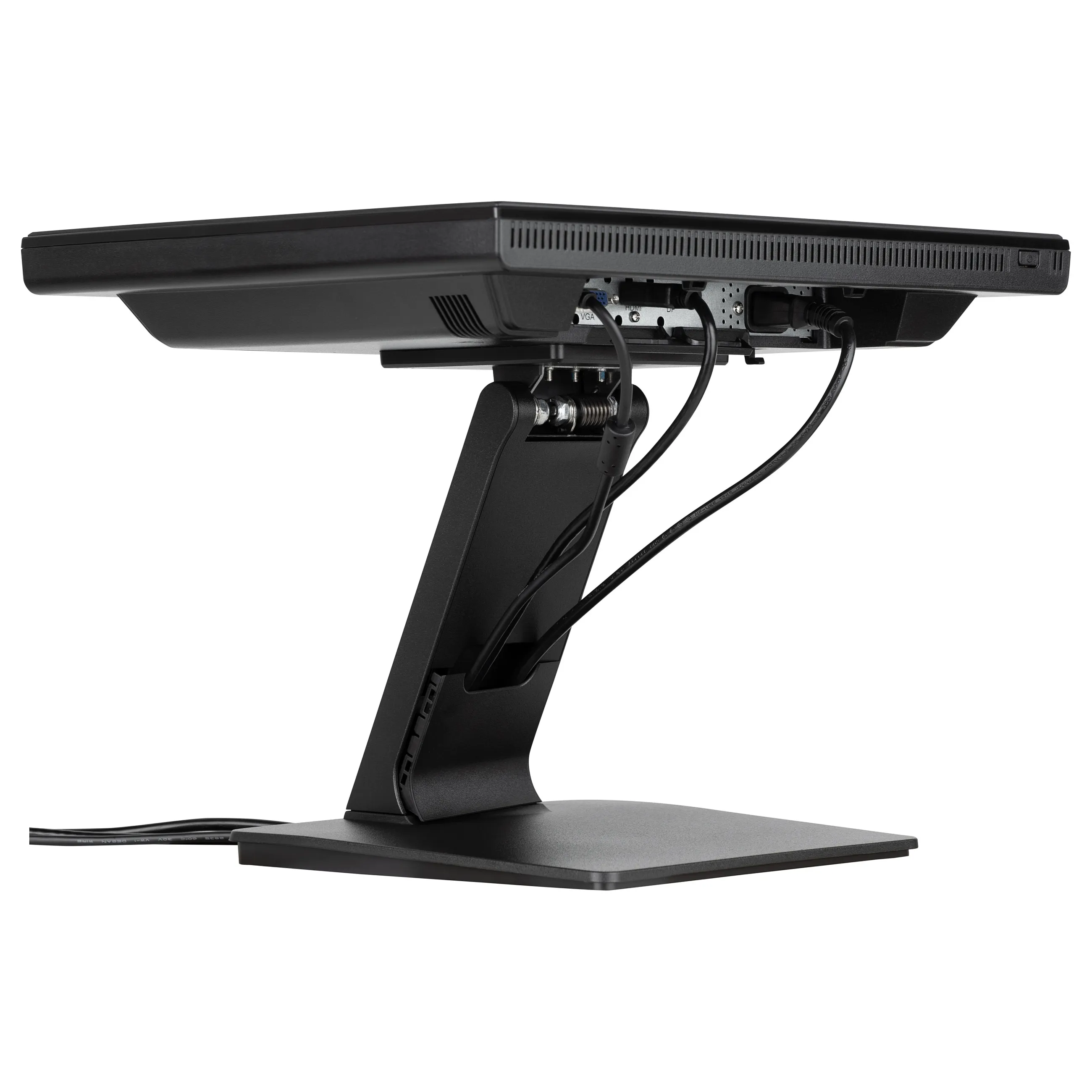

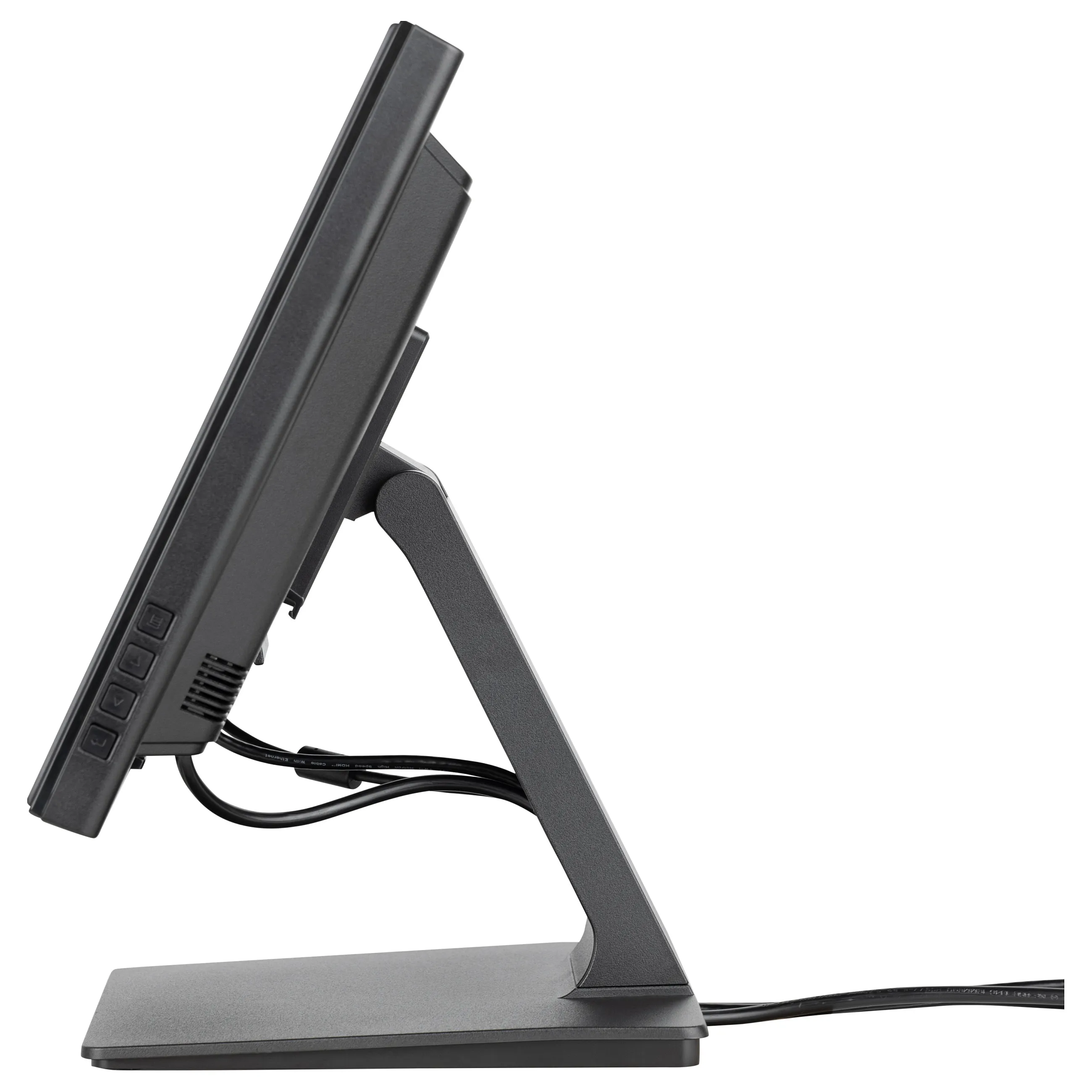

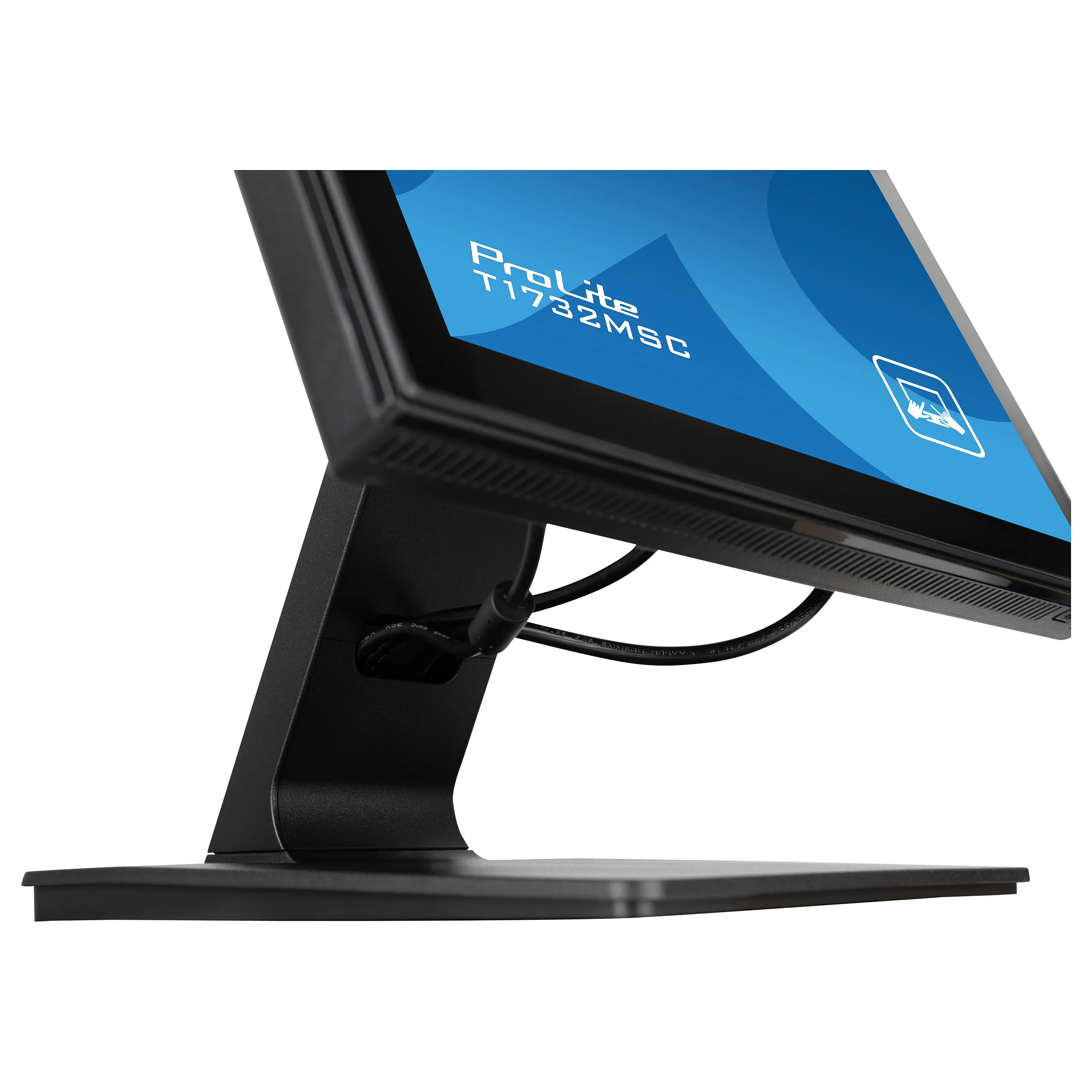

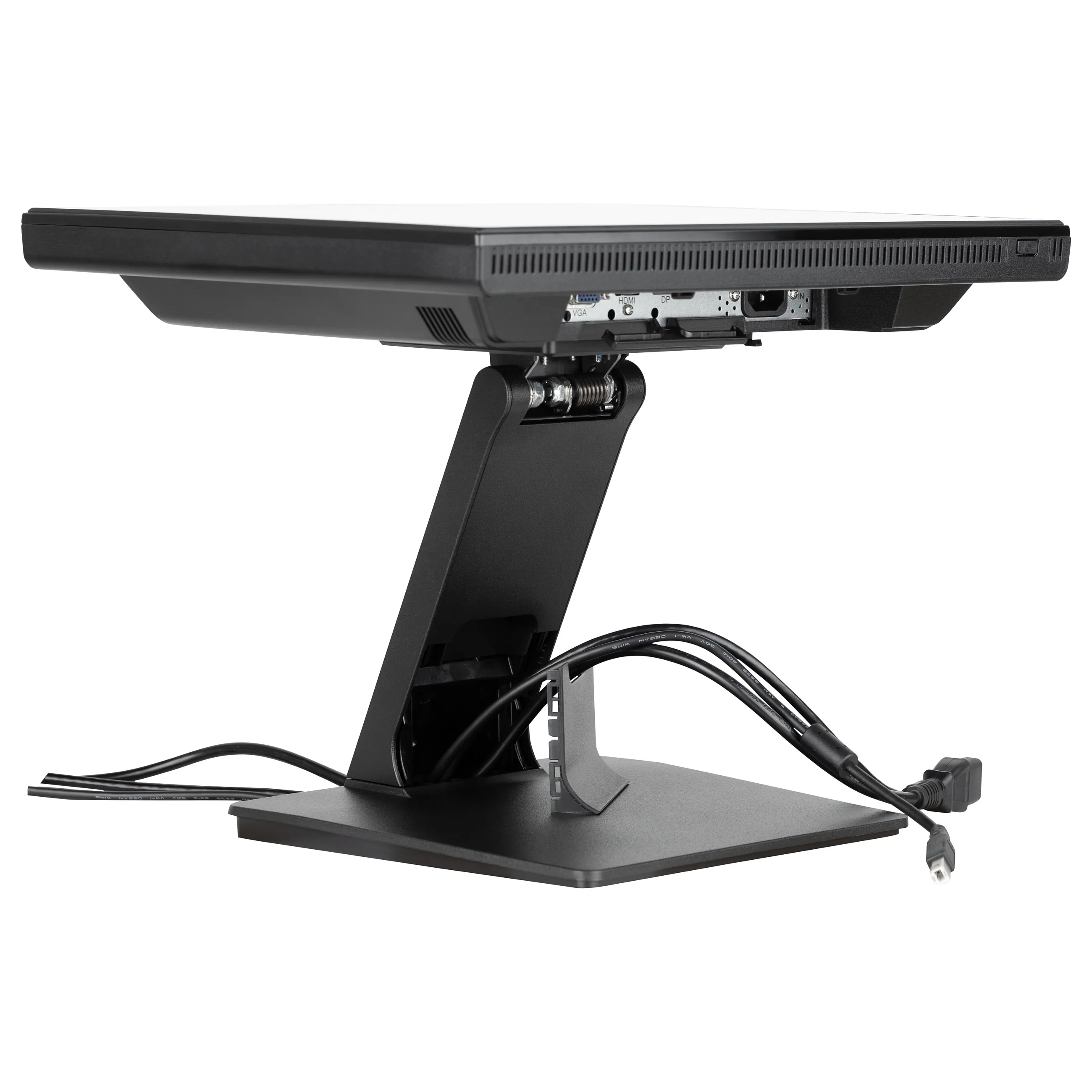

Feature: Cable management
Feature: Cable lock slot
Cable lock slot type: Kensington

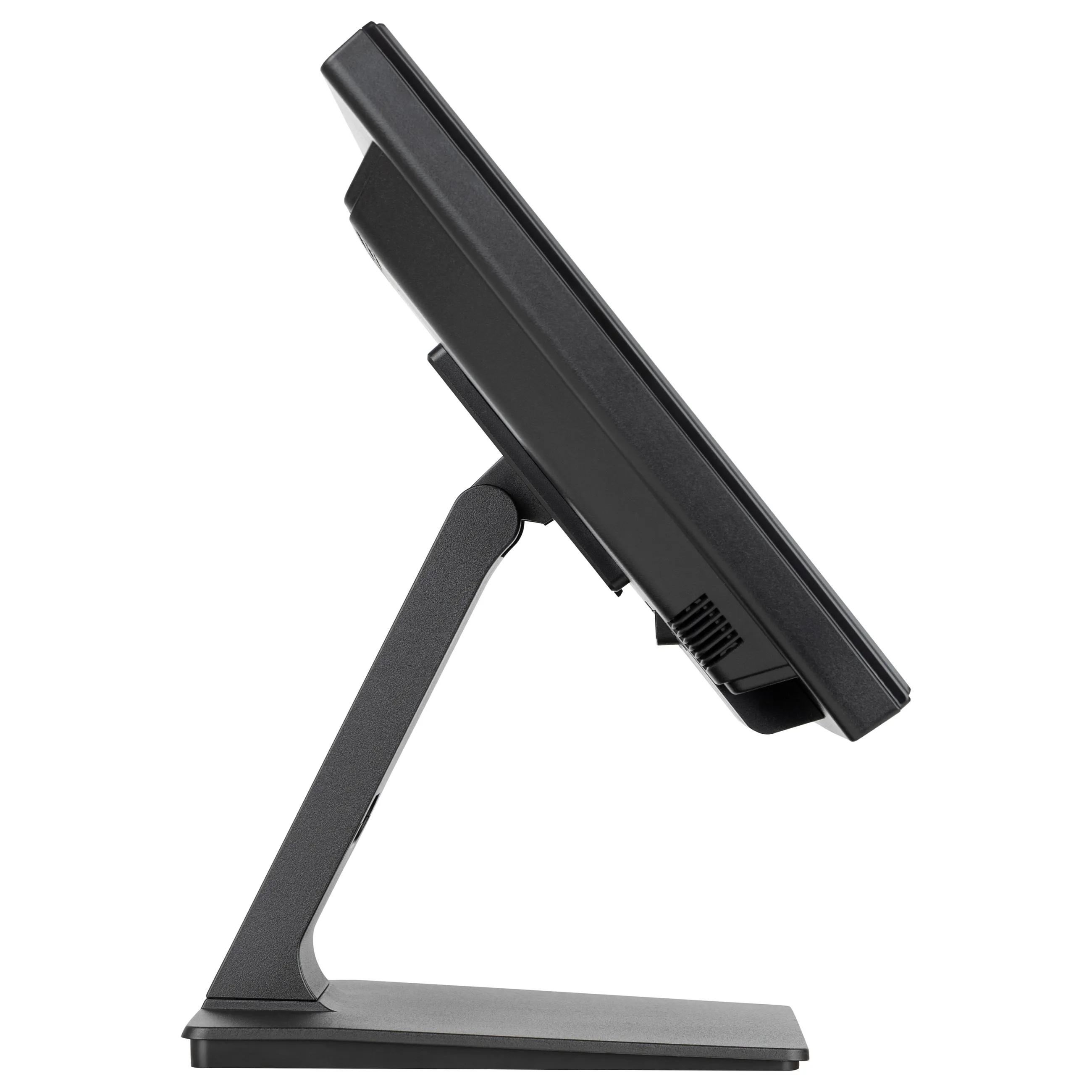

Feature: Tilt adjustment

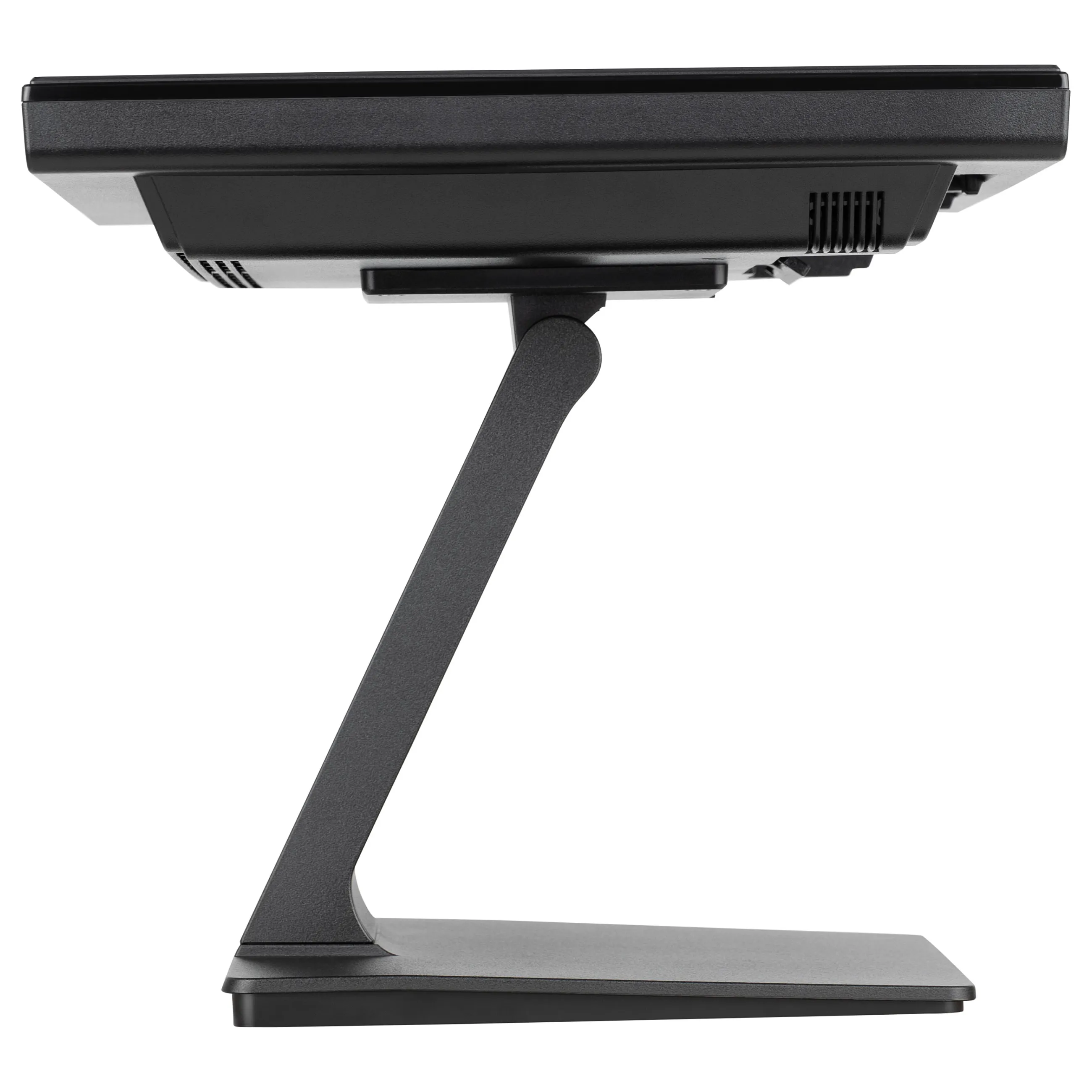

Tilt angle range: 5 – 90°
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages: 7
Power
Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 11.9 kWh
Power consumption (typical): 20 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power supply type: Internal
Energy efficiency scale: A to G
Weight & dimensions
Width (with stand): 387 mm
Depth (with stand): 240 mm
Height (with stand): 378 mm
Weight (with stand): 4.9 kg
Packaging content
Feature: Stand included
Cables included: AC, USB, HDMI, DisplayPort, Audio
Feature: Power adapter included
Feature: Quick start guide
Feature: Manual
Sustainability
Feature: Sustainability compliance
Sustainability certificates: ErP
Other features
International Protection (IP) code: IP54
Brightness: 215 cd/m²
Active display area (W x H): 338 x 270.5 mm
Touch method: stylus, finger, glove (latex)
Weight: 4.9 kg
Height: 378 mm
Width: 387 mm
Depth: 240 mm
Control panel: Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE
