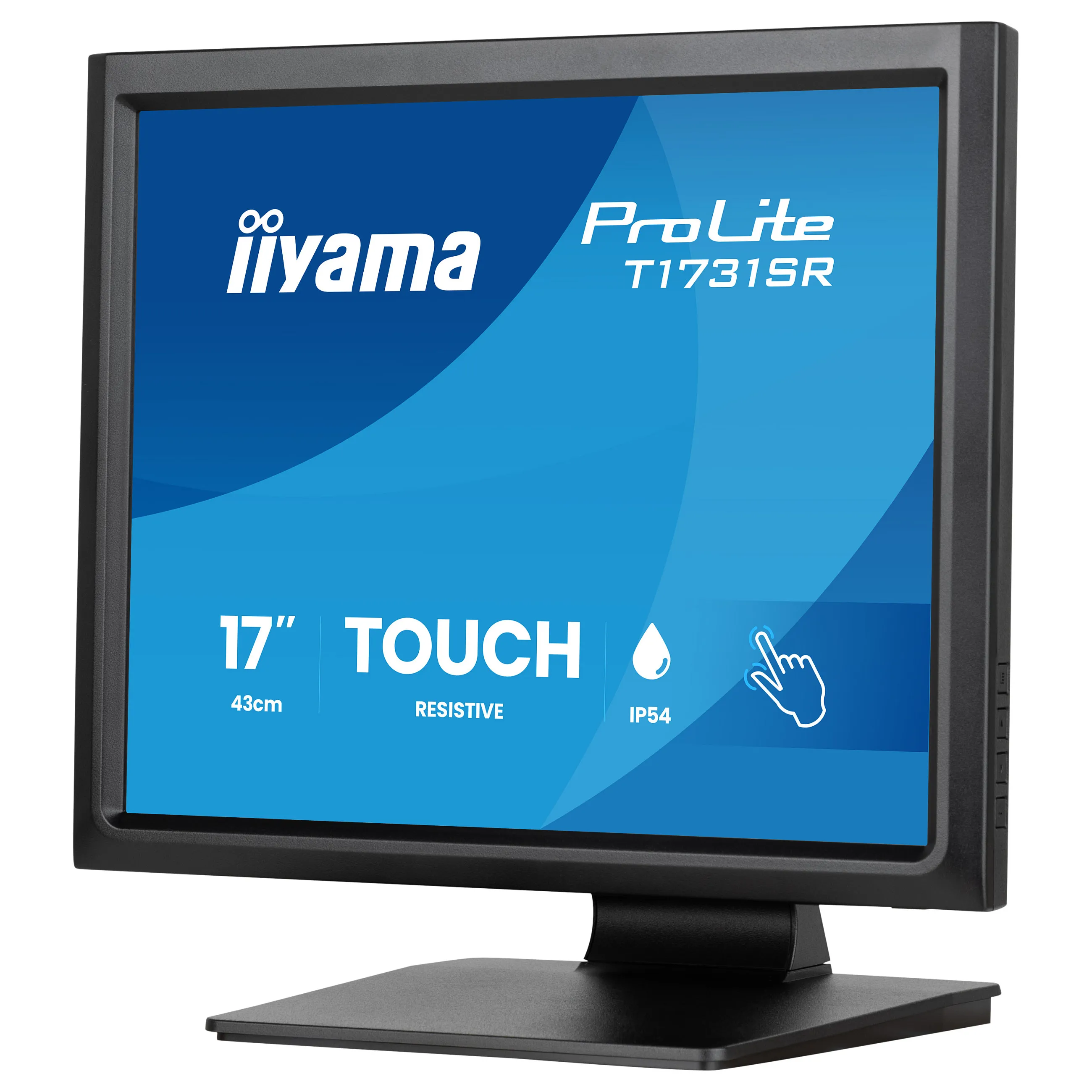

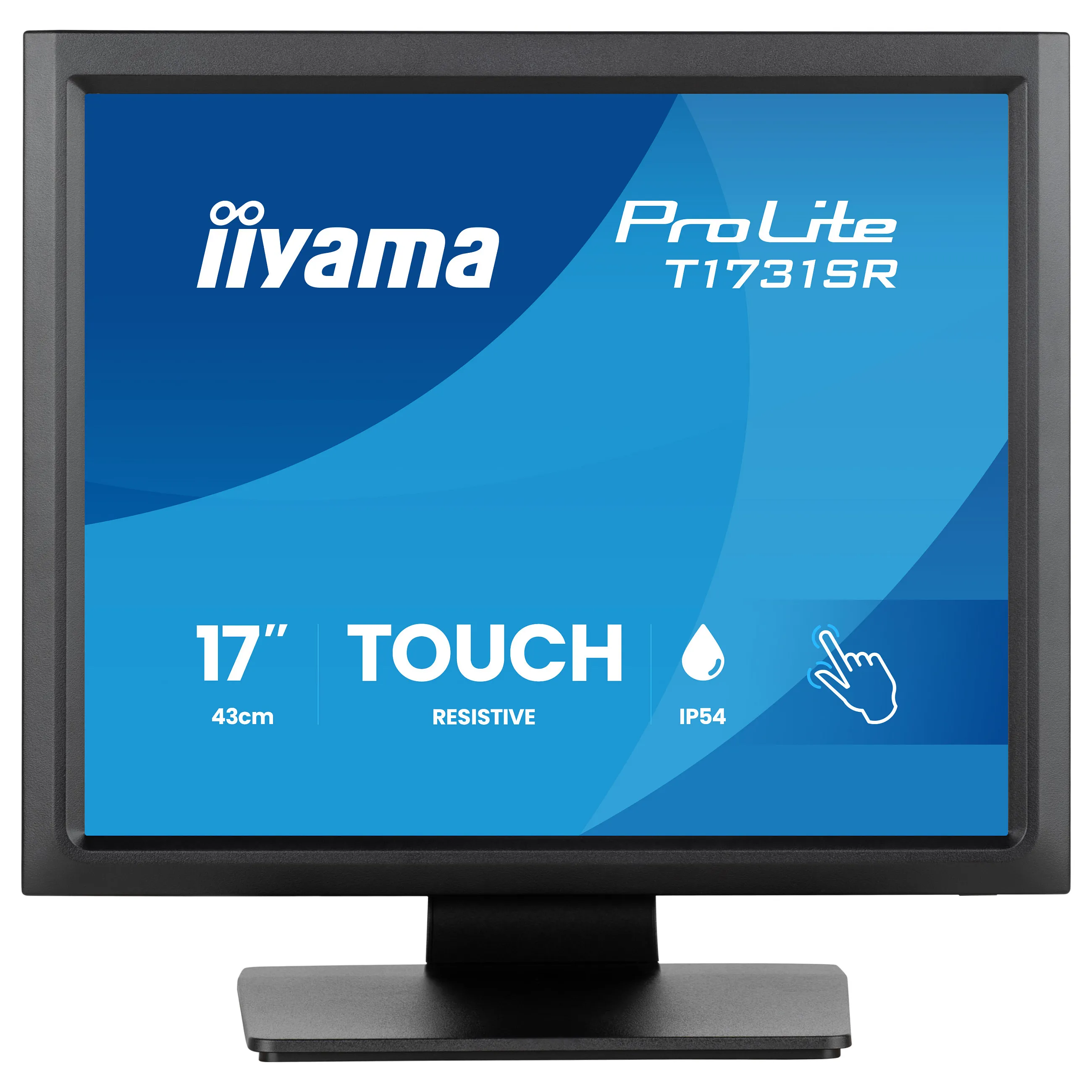

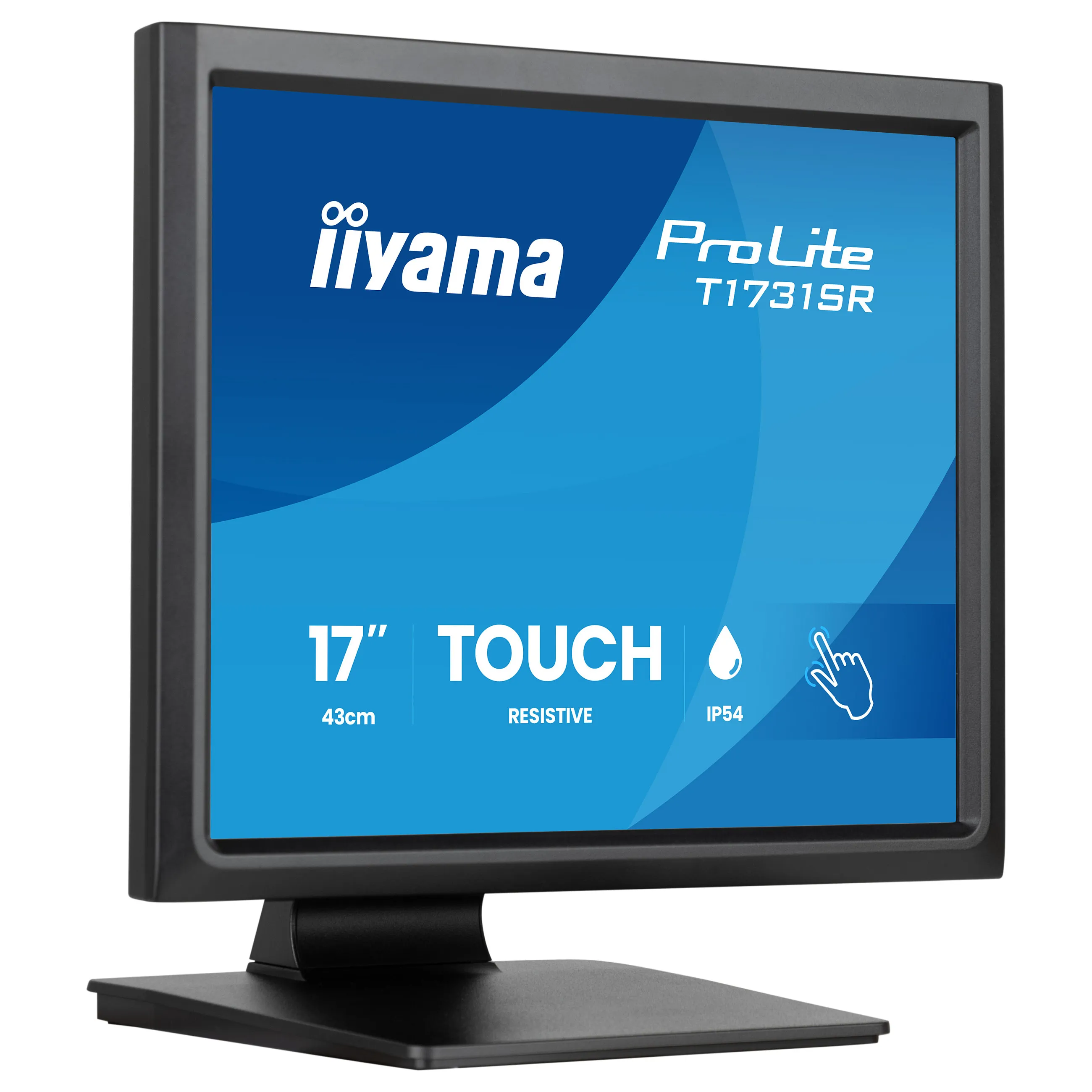

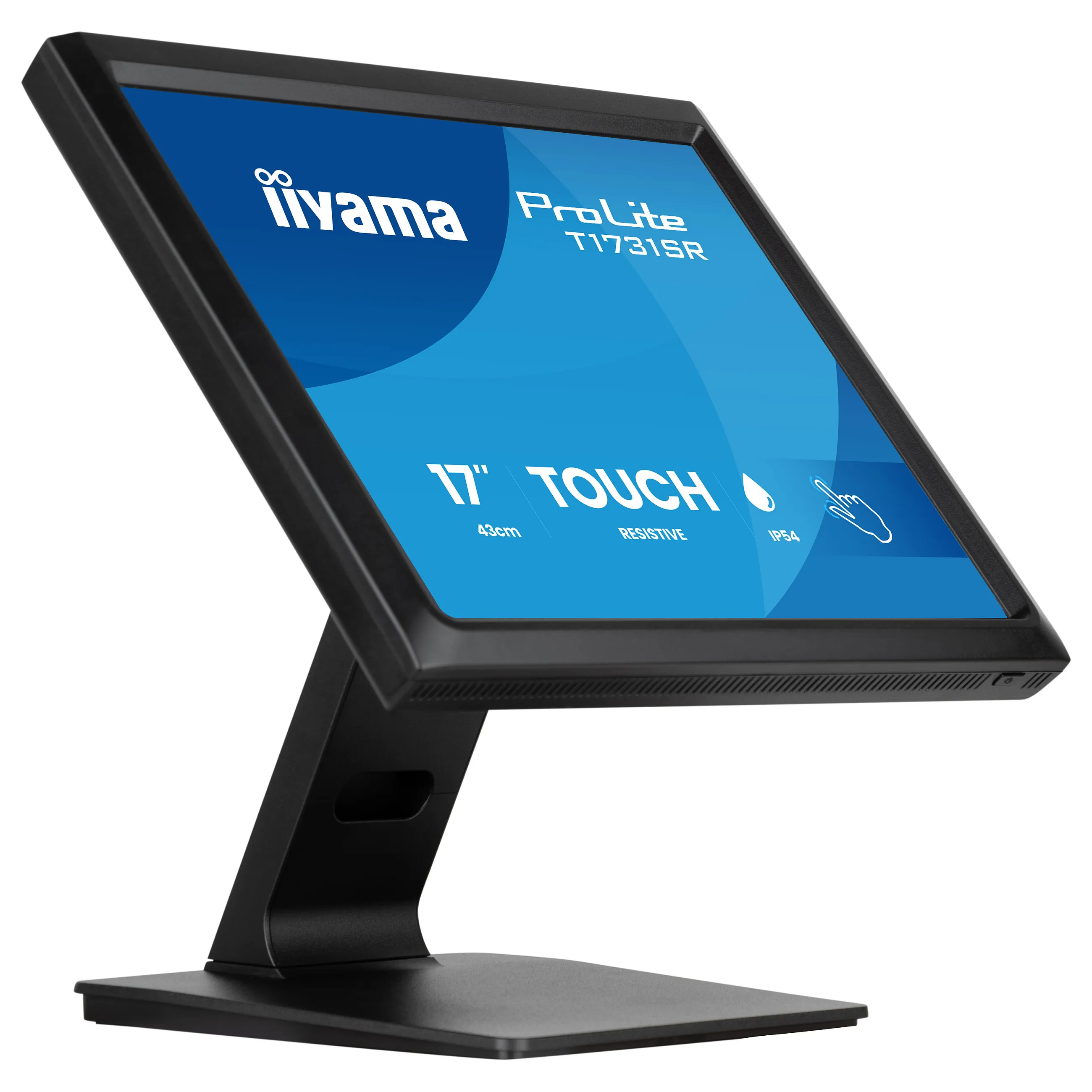

iiyama ProLite T1731SR-B2S. Display diagonal: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, HD type: SXGA, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 5:4, Viewing angle, horizontal: 170°, Viewing angle, vertical: 170°. Built-in speaker(s). VESA mounting. Product colour: Black
The ProLite T1731SR-B2S is designed for workplaces where touch interaction needs to be simple, reliable and practical. Its 5-wire resistive touch technology responds to almost any suitable input method, including a finger, glove, stylus or pen-like tool. This makes it ideal for environments where users work quickly, wear gloves or need dependable touch operation without relying on bare fingers.
With its IP54-rated front surface, the display is protected against dust and splashing water from the front, making it a strong choice for retail counters, restaurants, workshops, warehouses and light industrial applications.

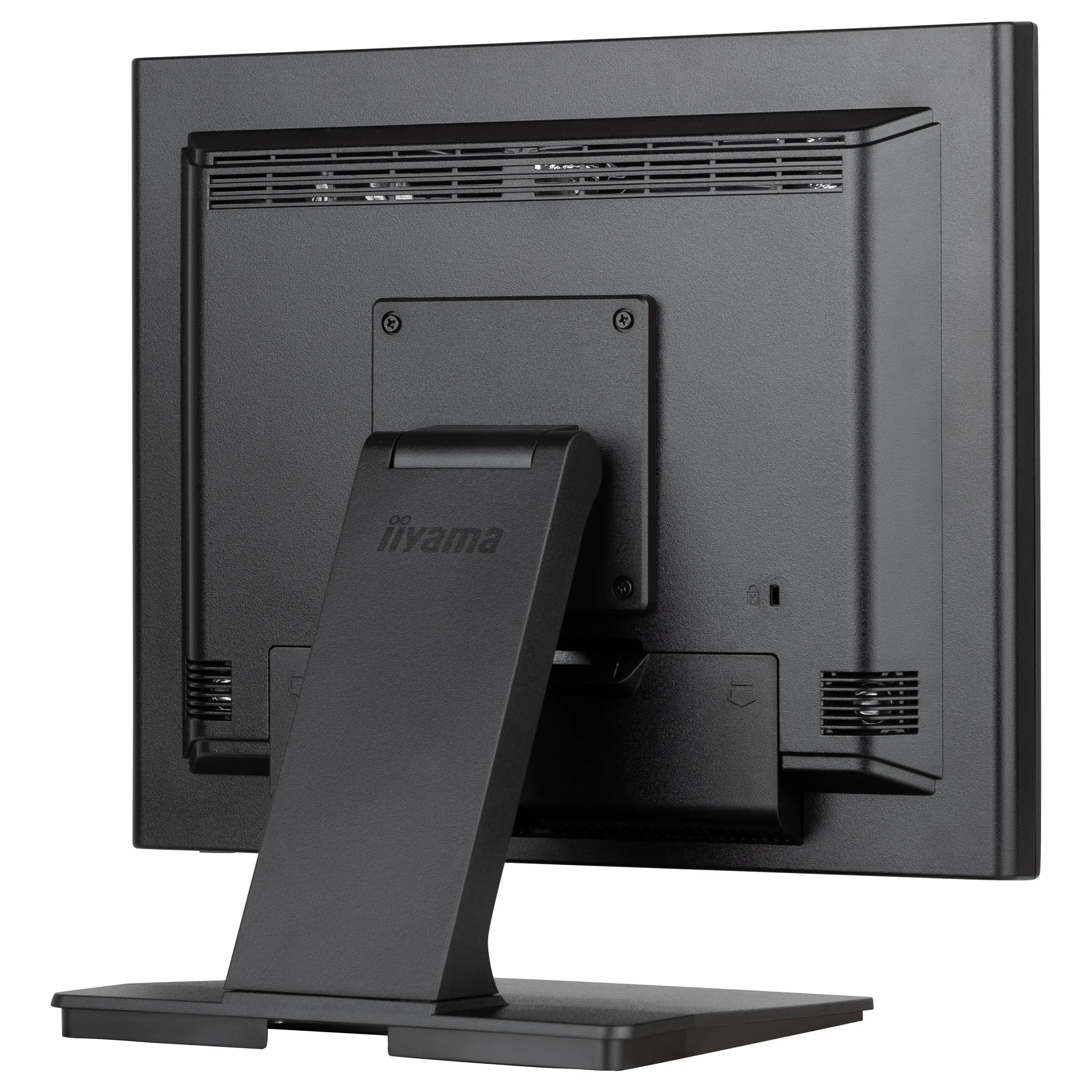

The monitor also offers flexible analogue and digital inputs with USB touch support for easy integration. An adjustable ergonomic stand and integrated cable management help create a clean, comfortable and professional workspace.
Display diagonal: 43.2 cm (17″)
Display resolution: 1280 x 1024 pixels
HD type: SXGA
Native aspect ratio: 5:4
Display technology: LCD
Panel type: TN
Feature: Touchscreen
Touchscreen type: Table
Touchscreen technology: Resistive
Touch technology: Single-touch
Number of simultaneous touchpoints: 1
Display brightness (peak): 250 cd/m²
Display brightness (typical): 195 cd/m²
Display brightness: 195 cd/m²
Response time: 5 ms
Feature: Anti-glare screen
Screen shape: Flat
Contrast ratio (typical): 1000:1
Maximum refresh rate: 75 Hz
Viewing angle, horizontal: 170°
Viewing angle, vertical: 170°
Display number of colours: 16.7 million colours
Pixel pitch: 0.264 x 0.264 mm
Horizontal scan range: 31 – 80 kHz
Viewable size, horizontal: 33.8 cm
Viewable size, vertical: 27 cm
Display diagonal (metric): 43 cm
Multimedia
Number of speakers: 2
RMS rated power: 2 W
Feature: Built-in speaker(s)
Design
Market positioning: Business
Product colour: Black
Front bezel colour: Black

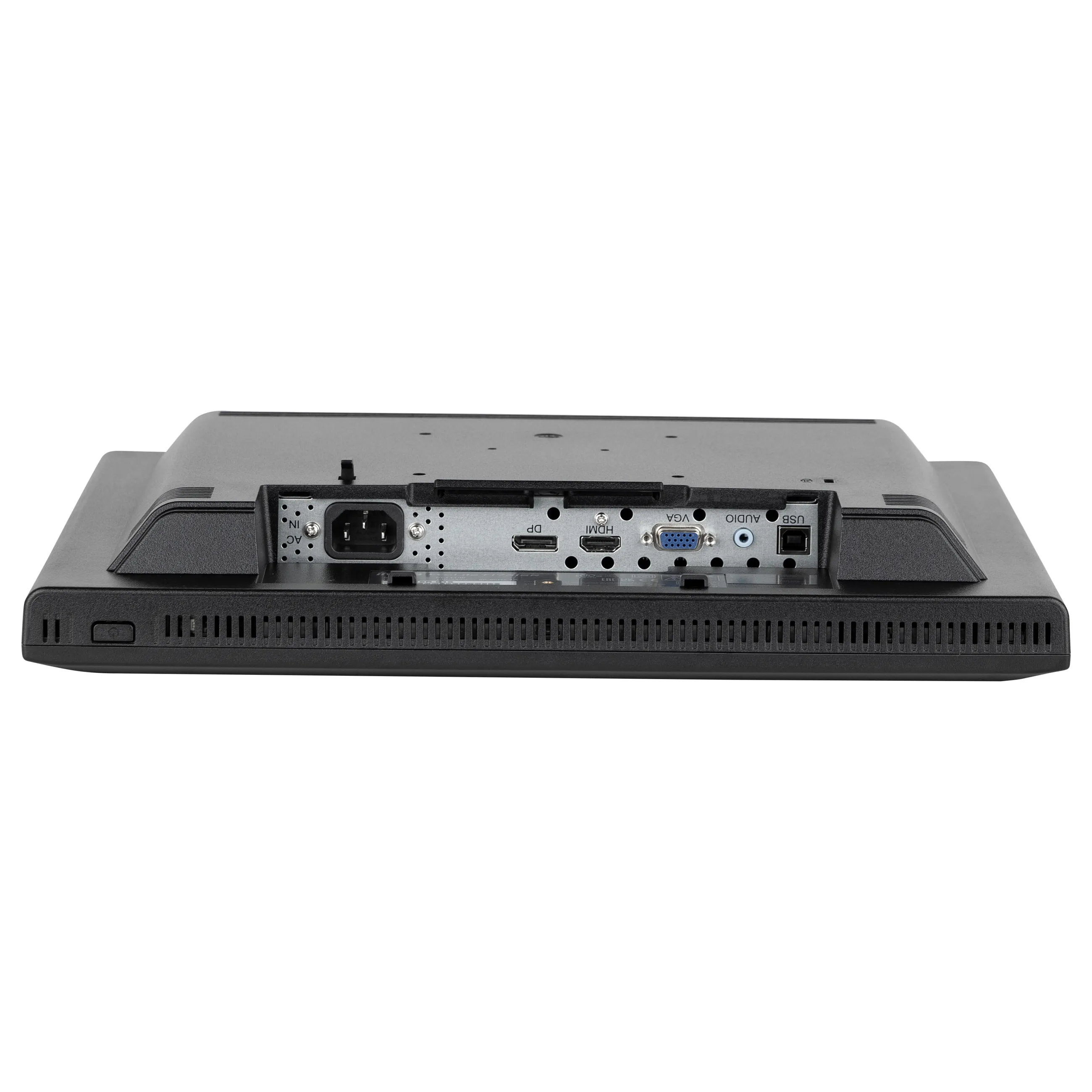

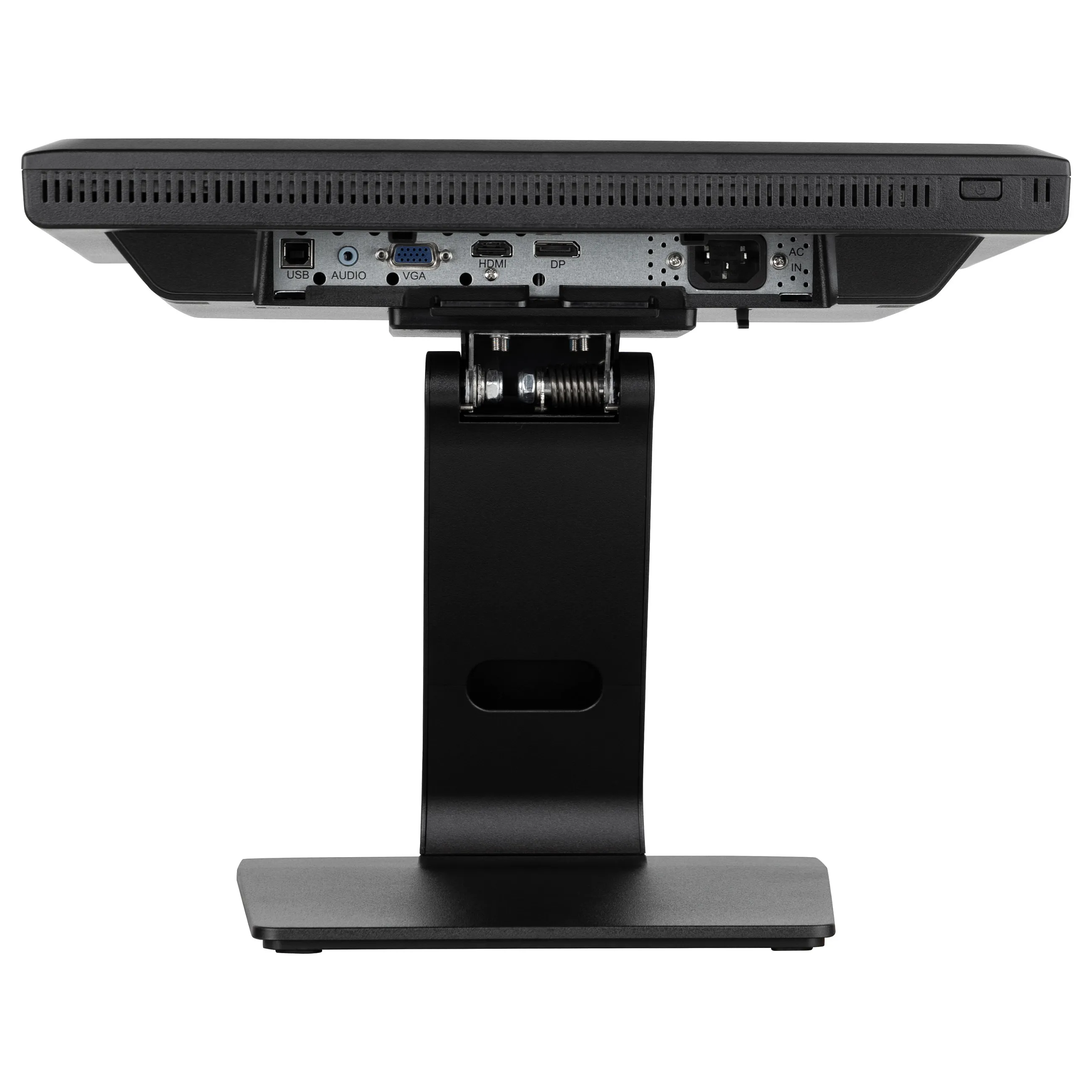

Ports & interfaces
Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Audio input: Yes
Feature: HDCP
Ergonomics

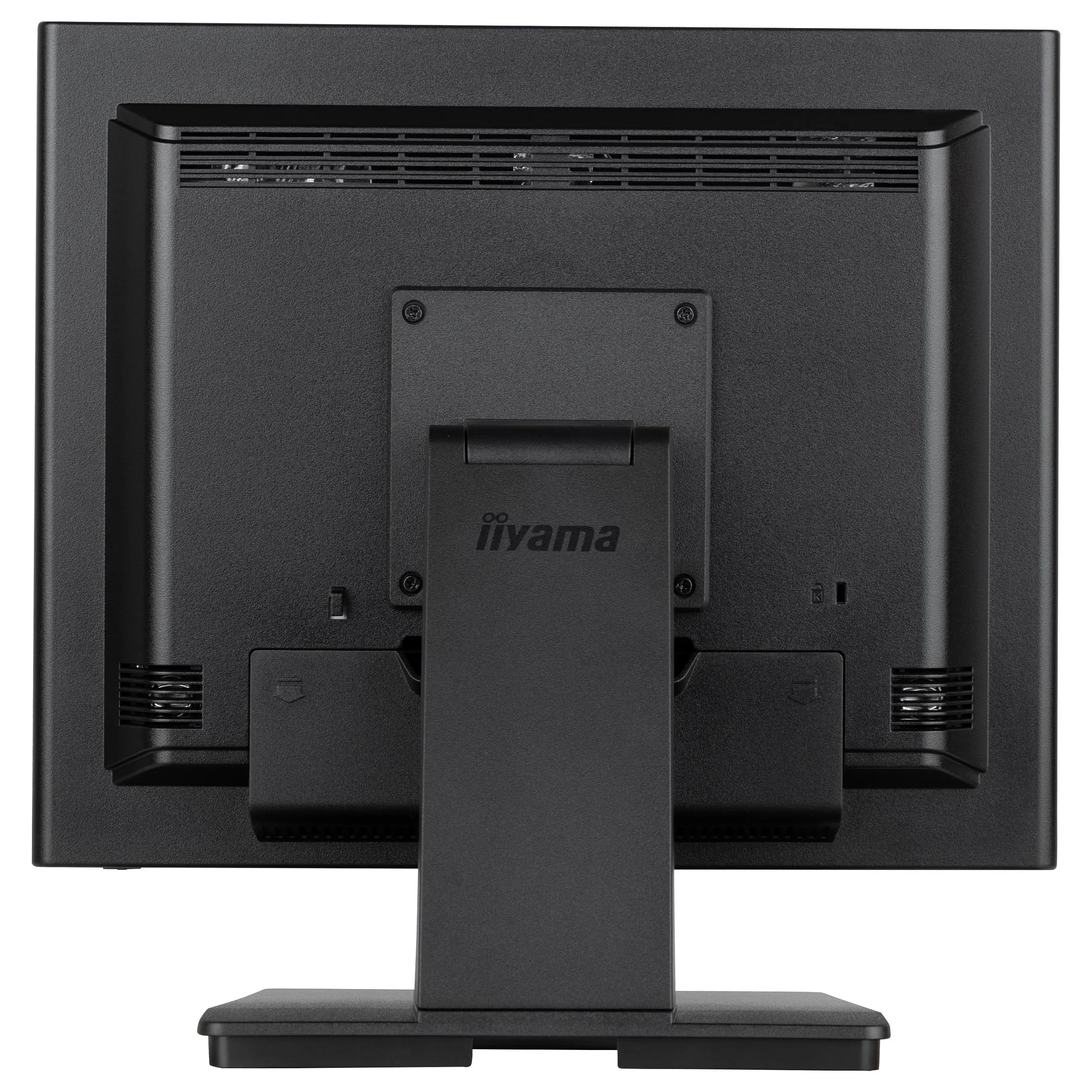

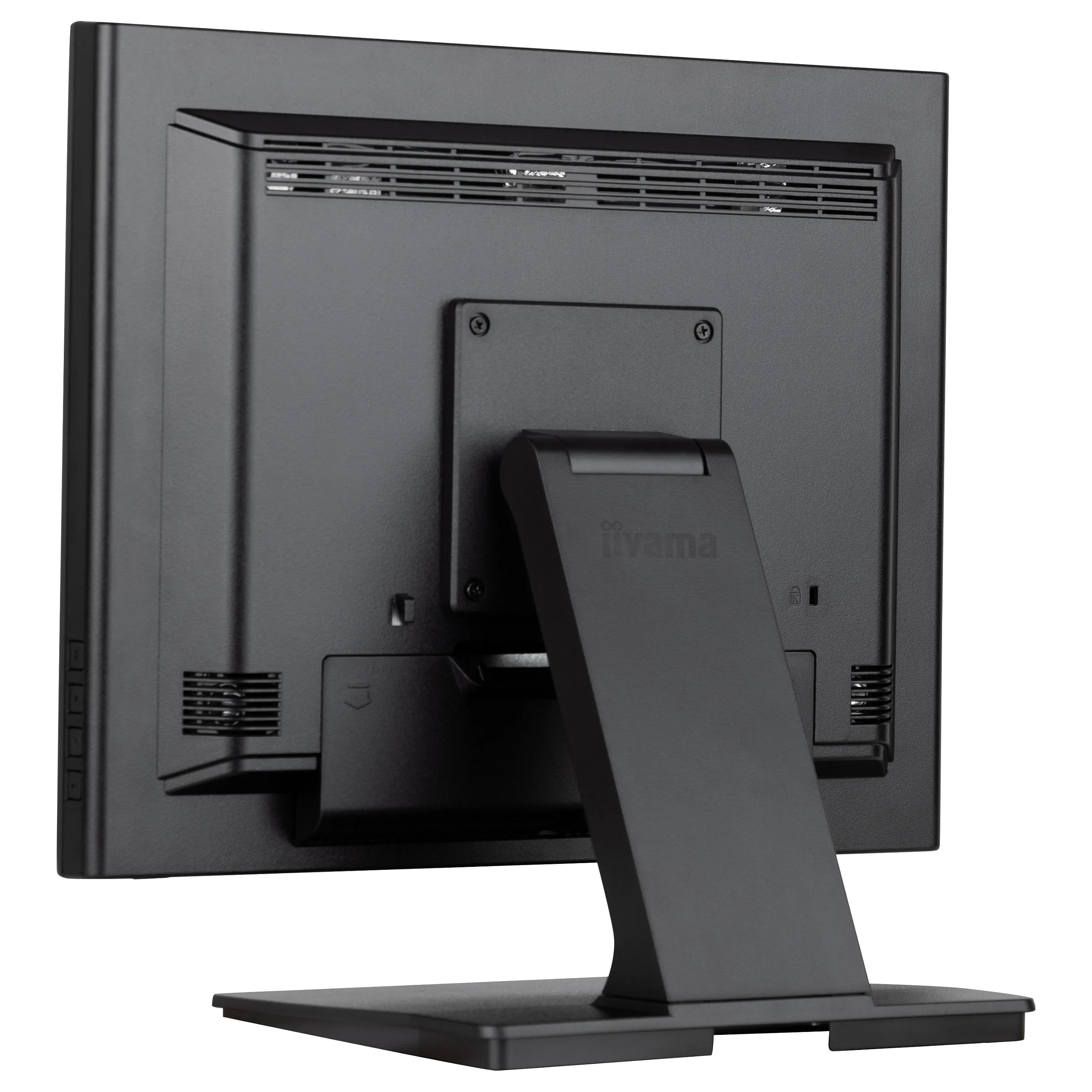

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm

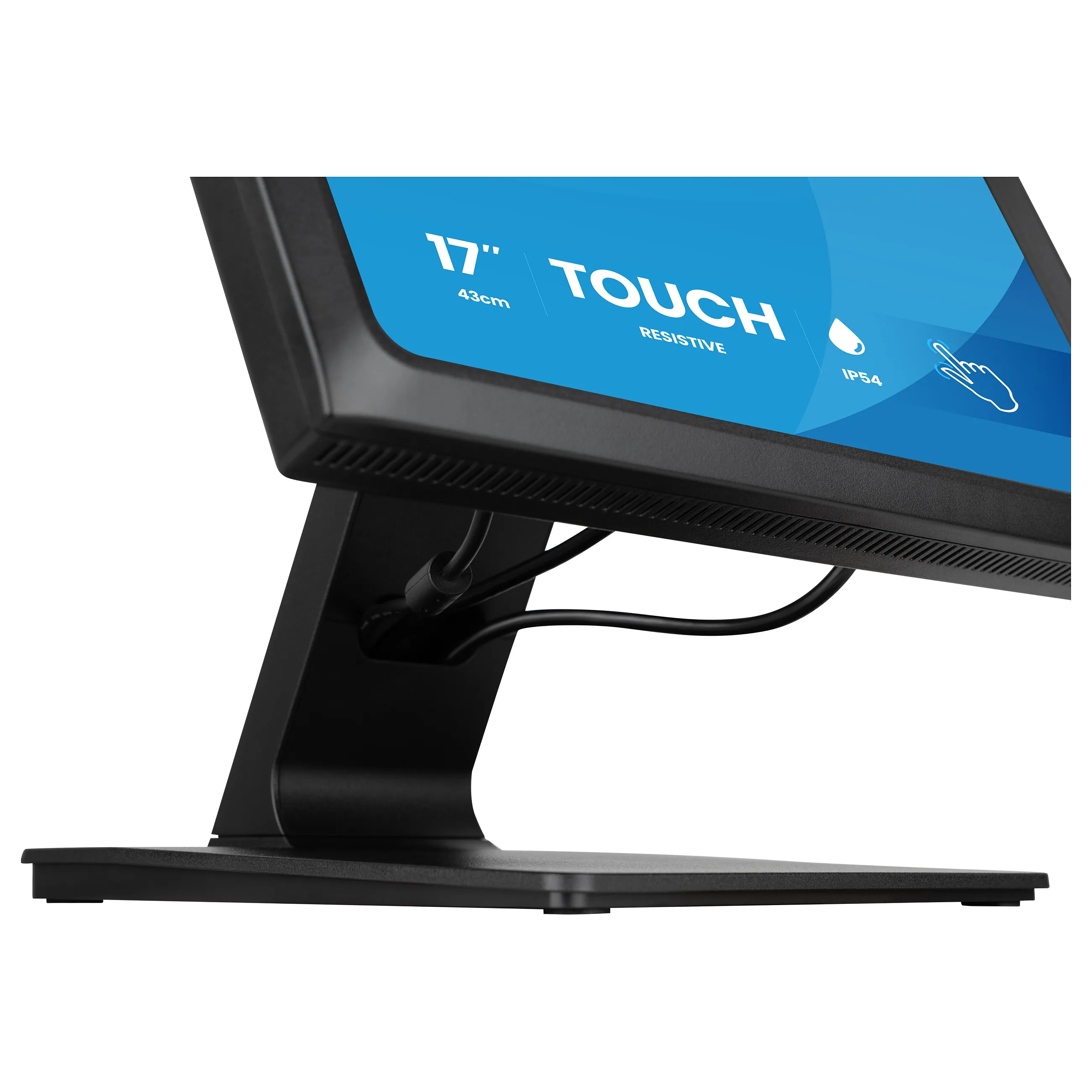

Feature: Cable management
Feature: Cable lock slot
Cable lock slot type: Kensington

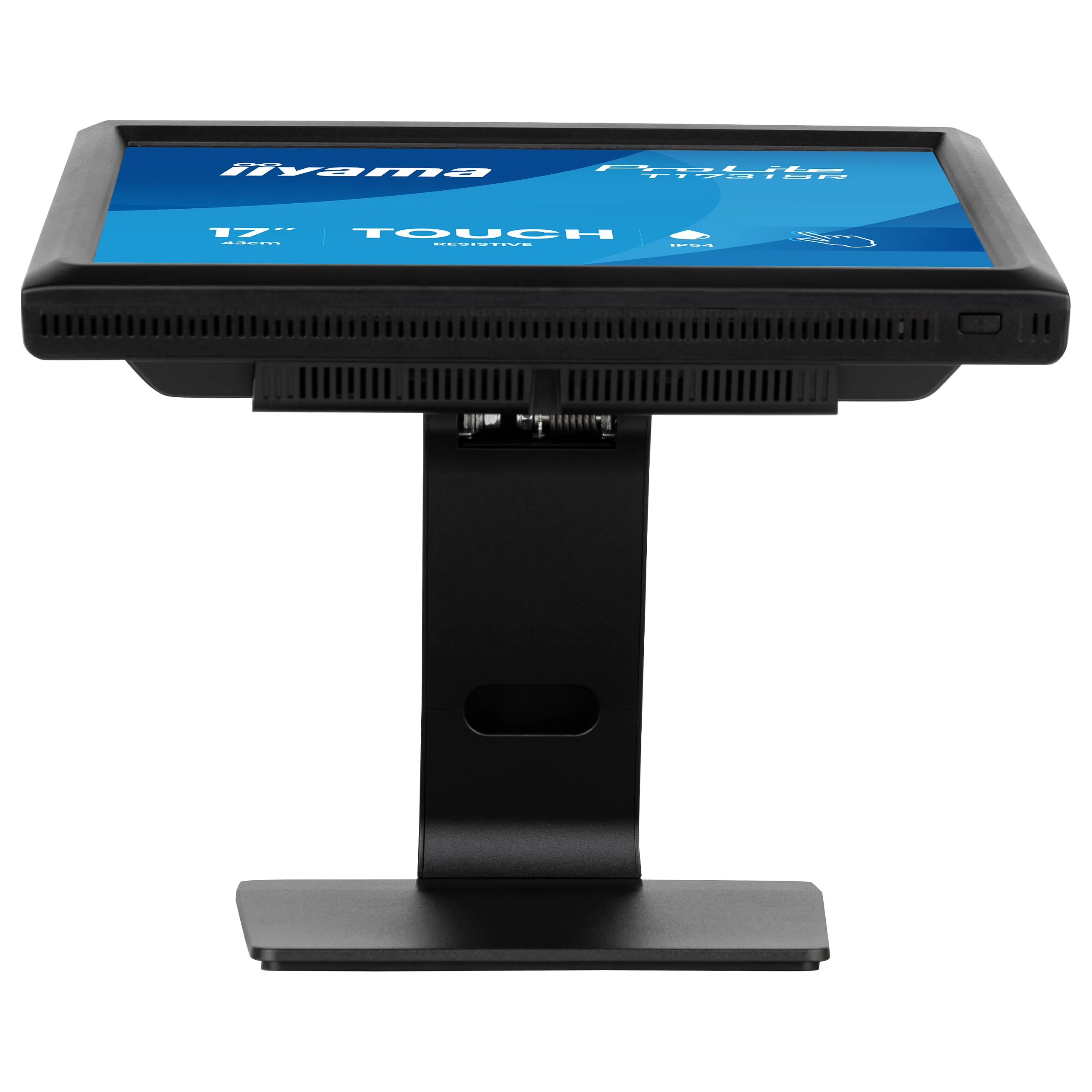

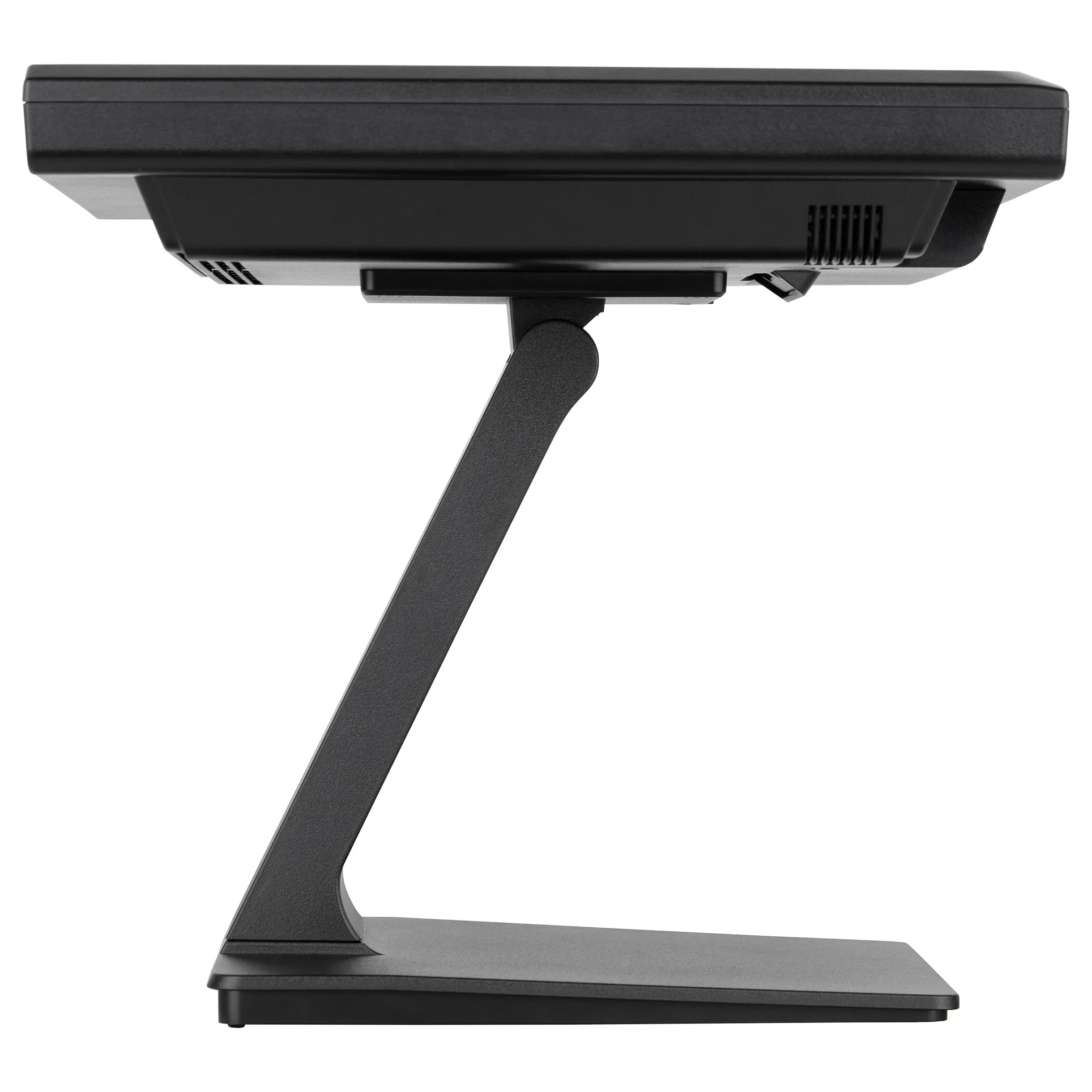

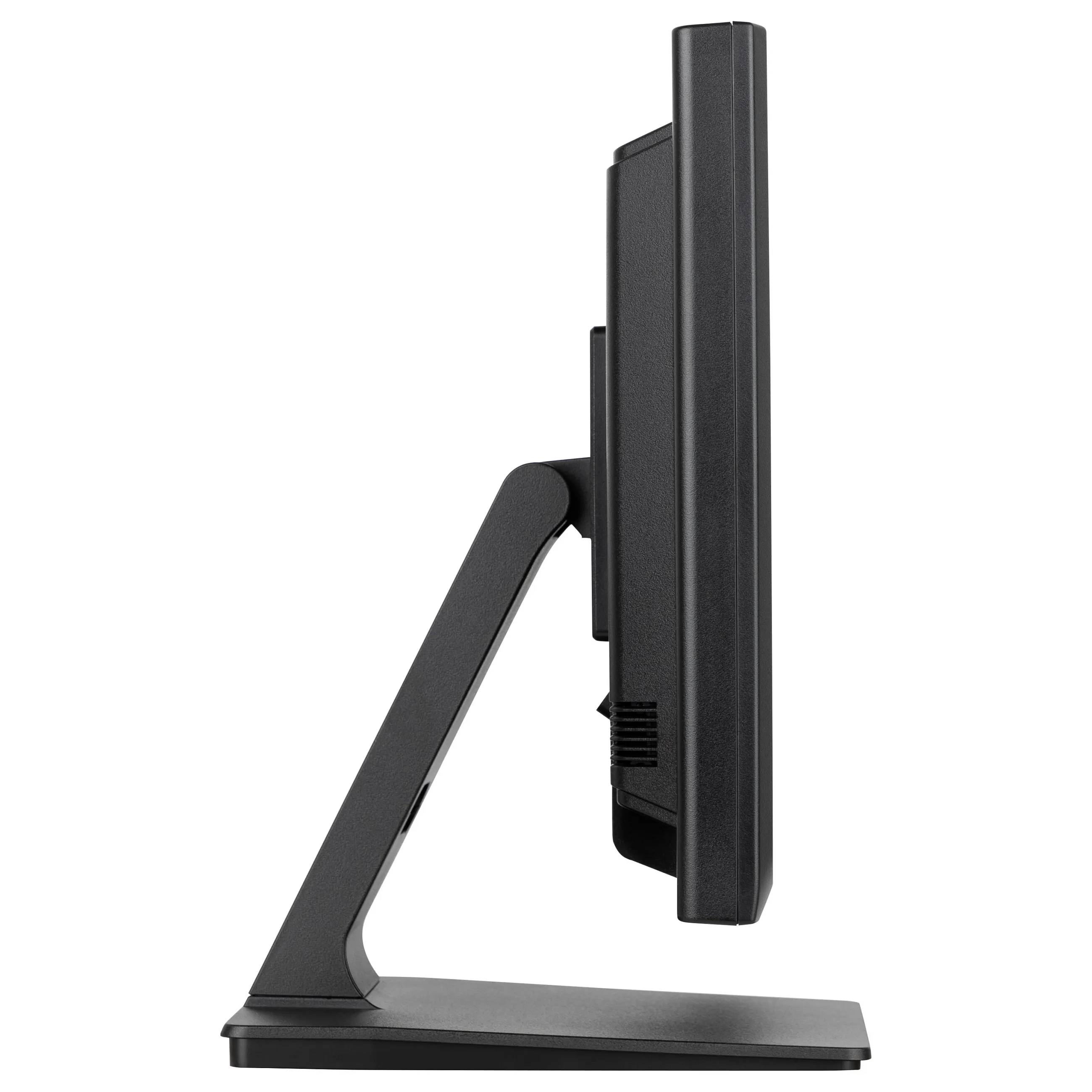

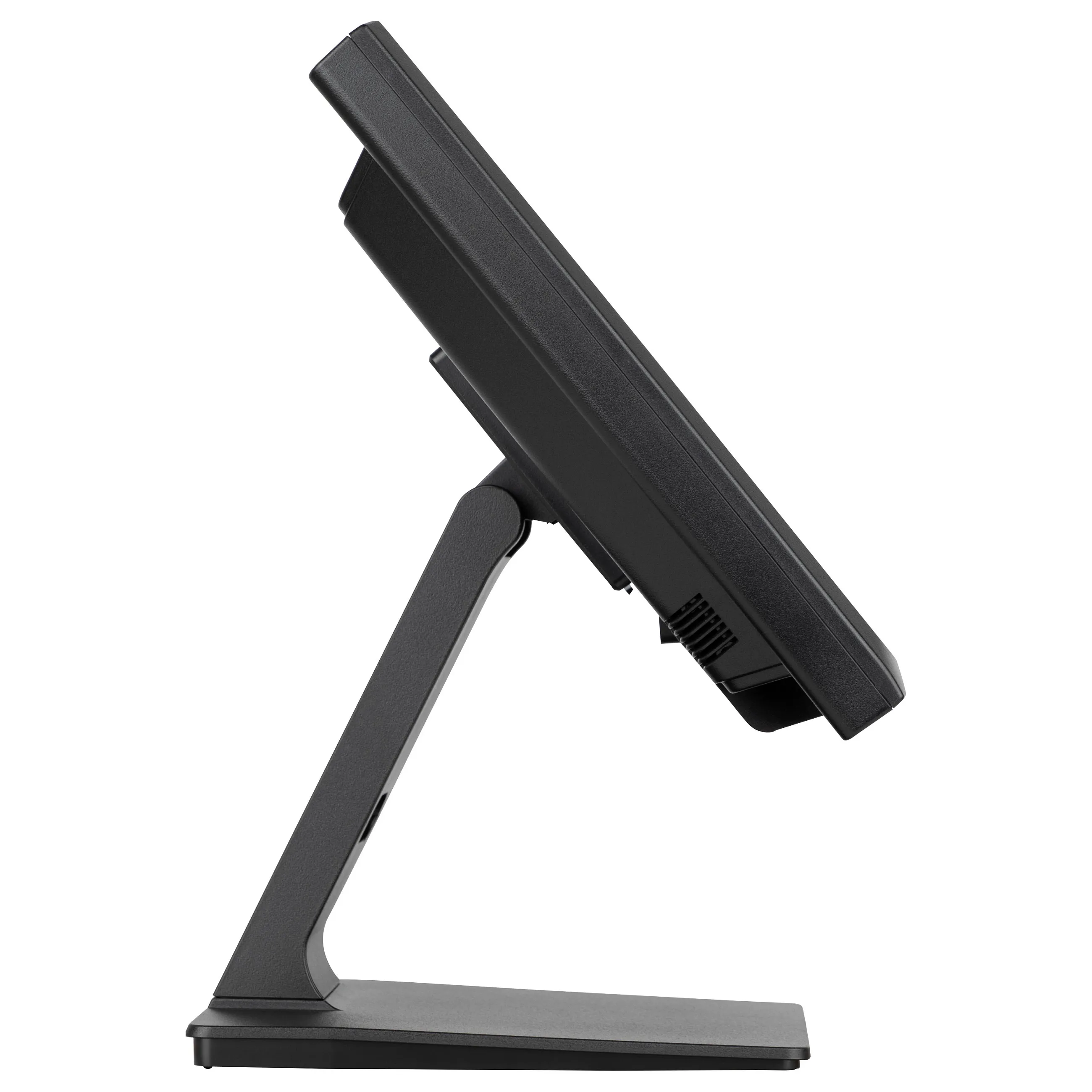

Feature: Tilt adjustment
Tilt angle range: -5 – 90°
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Feature: Plug and Play
Power
Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Power consumption (typical): 20 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power supply type: Internal
Weight & dimensions
Width (with stand): 387 mm
Depth (with stand): 239.5 mm
Height (with stand): 378 mm
Weight (with stand): 5.4 kg
Packaging data
Package width: 470 mm
Package depth: 180 mm
Package height: 445 mm
Package weight: 7.3 kg
USB cable length: 1.8 m
Packaging content

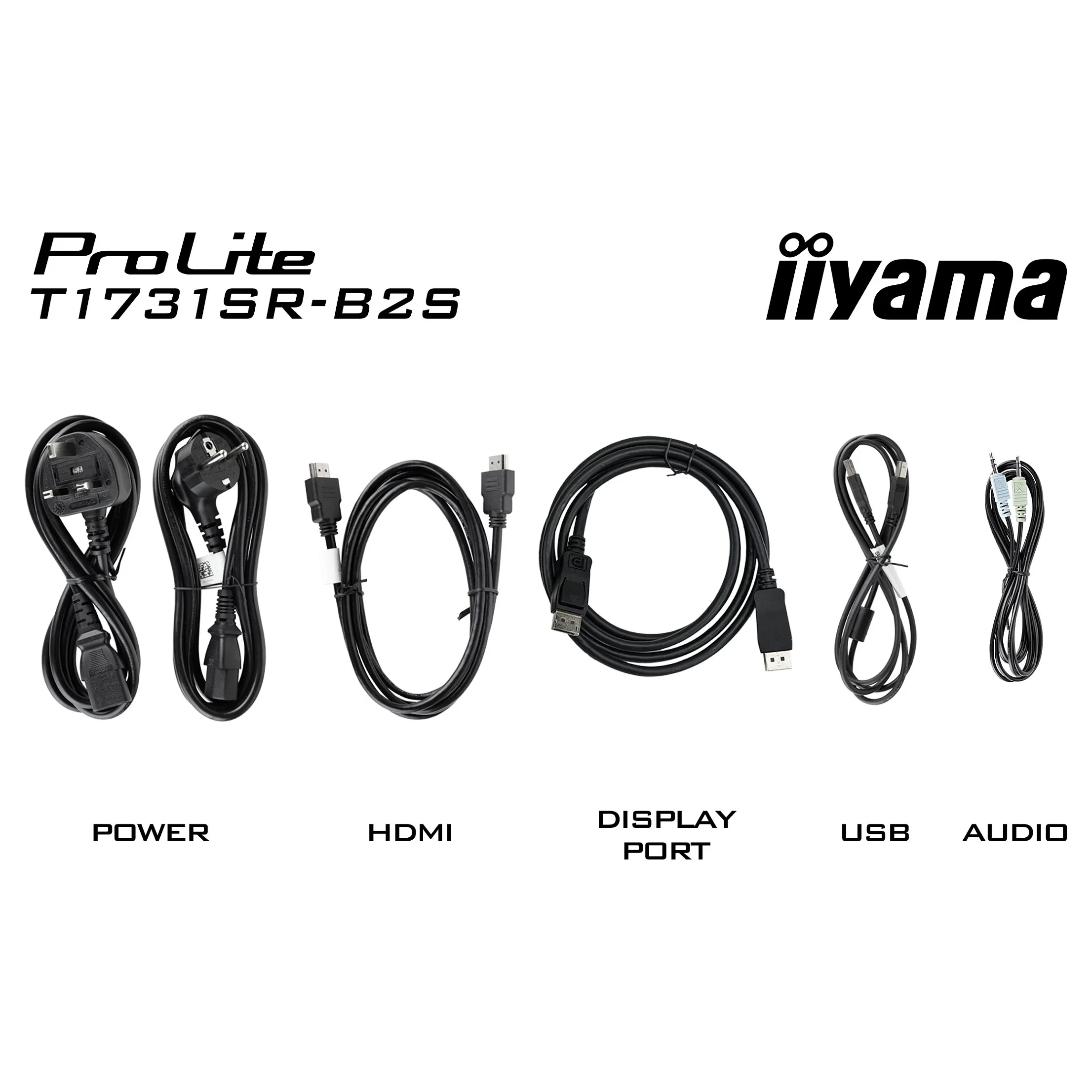

Cables included: AC, USB, HDMI, DisplayPort, Audio
Feature: Quick start guide
Audio cable length: 1.8 m
DisplayPort cable length: 1.8 m
HDMI cable length: 1.8 m
Power cable length: 1.8 m
Sustainability
Sustainability certificates: ErP
Other features
International Protection (IP) code: IP54
Brightness: 195 cd/m²
Packaging content: Screwdriver
Active display area (W x H): 338 x 270 mm
Touch method: stylus, finger, glove, glove (latex)
Weight: 5.4 kg
Height: 378 mm
Width: 387 mm
Depth: 239.5 mm

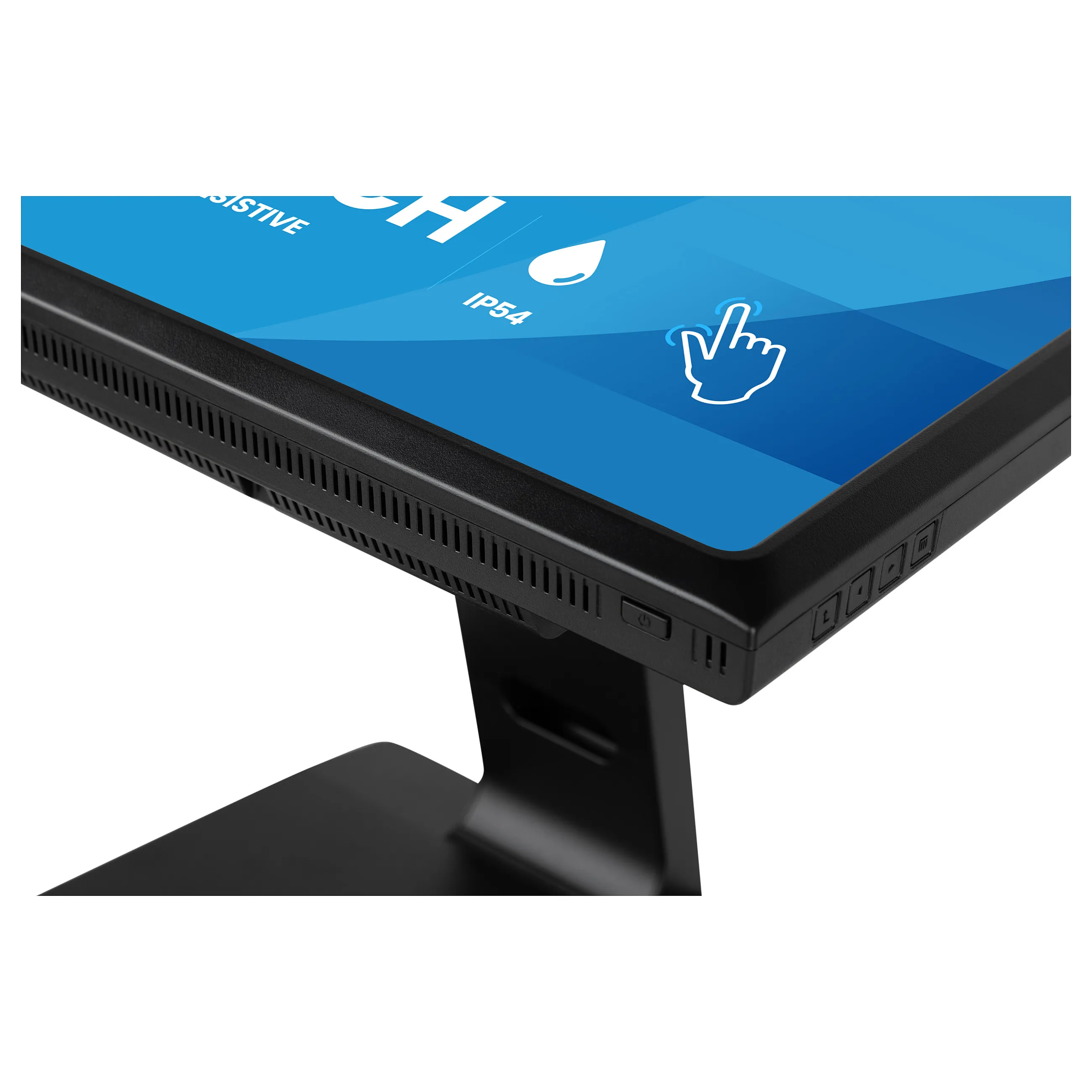

Control panel: Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE
Mean time between failures (MTBF): 50000 h
Technical details
Native refresh rate: 75 Hz
