iiyama ProLite T1721MSC-B2. Display diagonal: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, HD type: SXGA, Display technology: LED, Display surface: Matt, Response time: 5 ms, Native aspect ratio: 5:4, Viewing angle, horizontal: 170°, Viewing angle, vertical: 160°. Built-in speaker(s). Built-in USB hub. VESA mounting. Product colour: Black

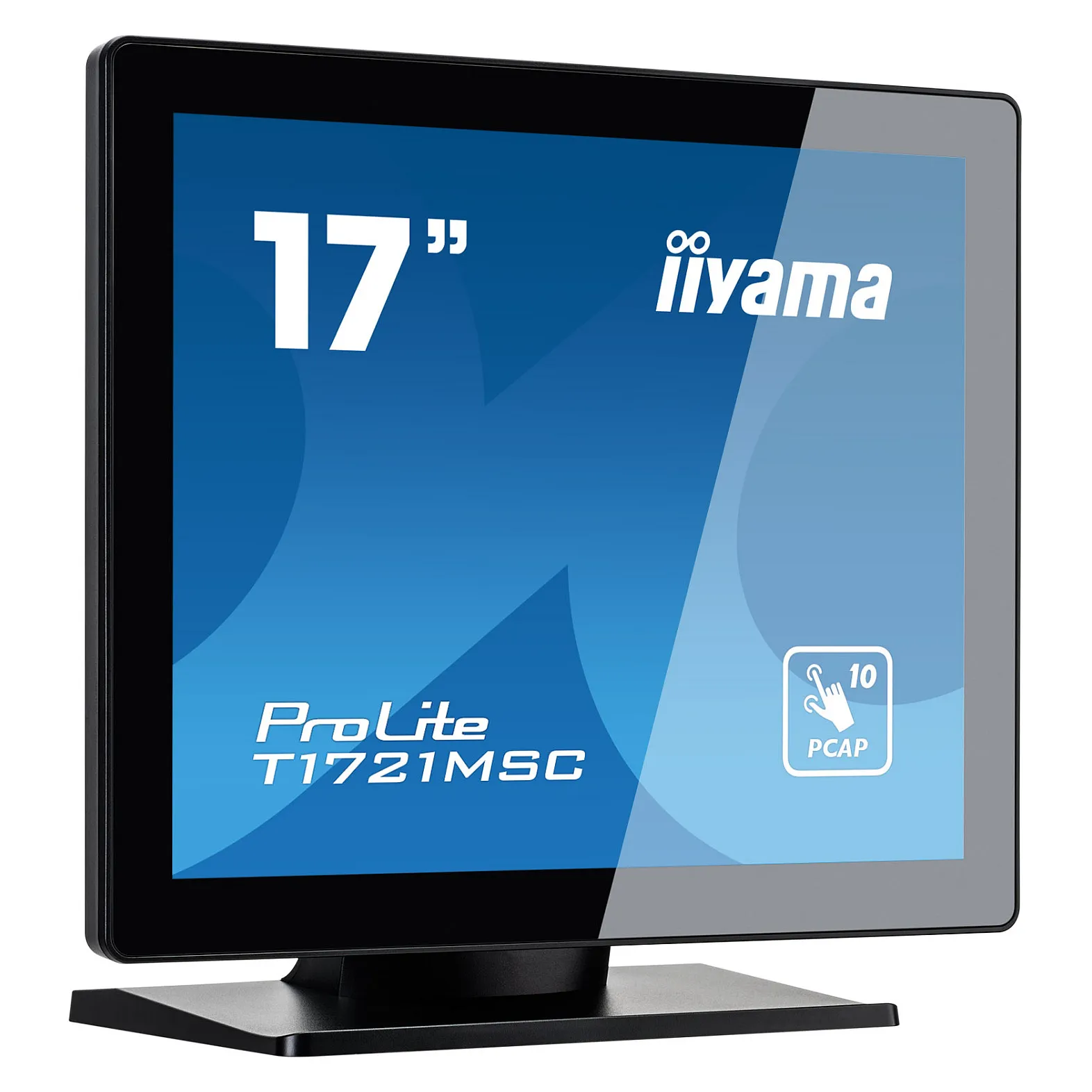

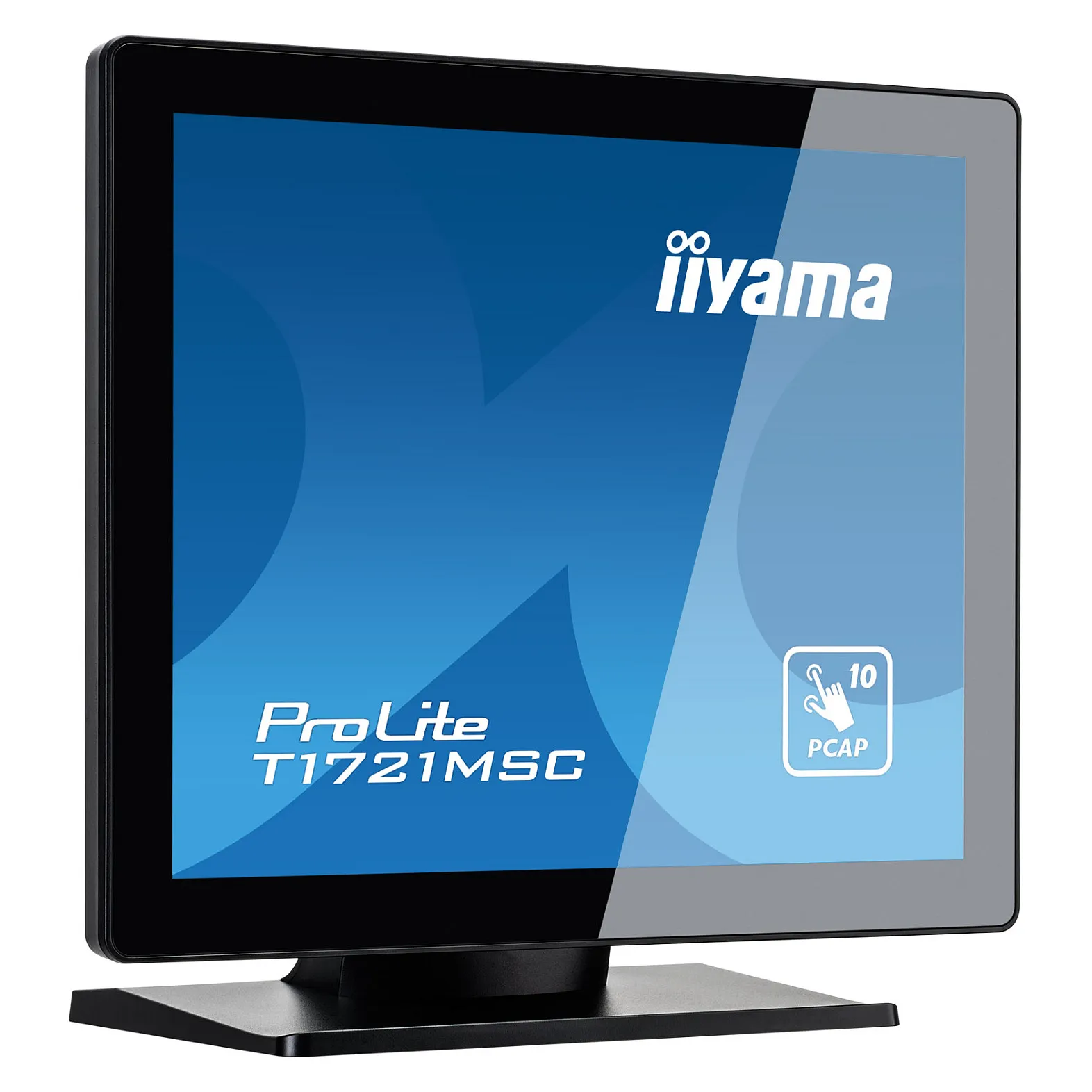

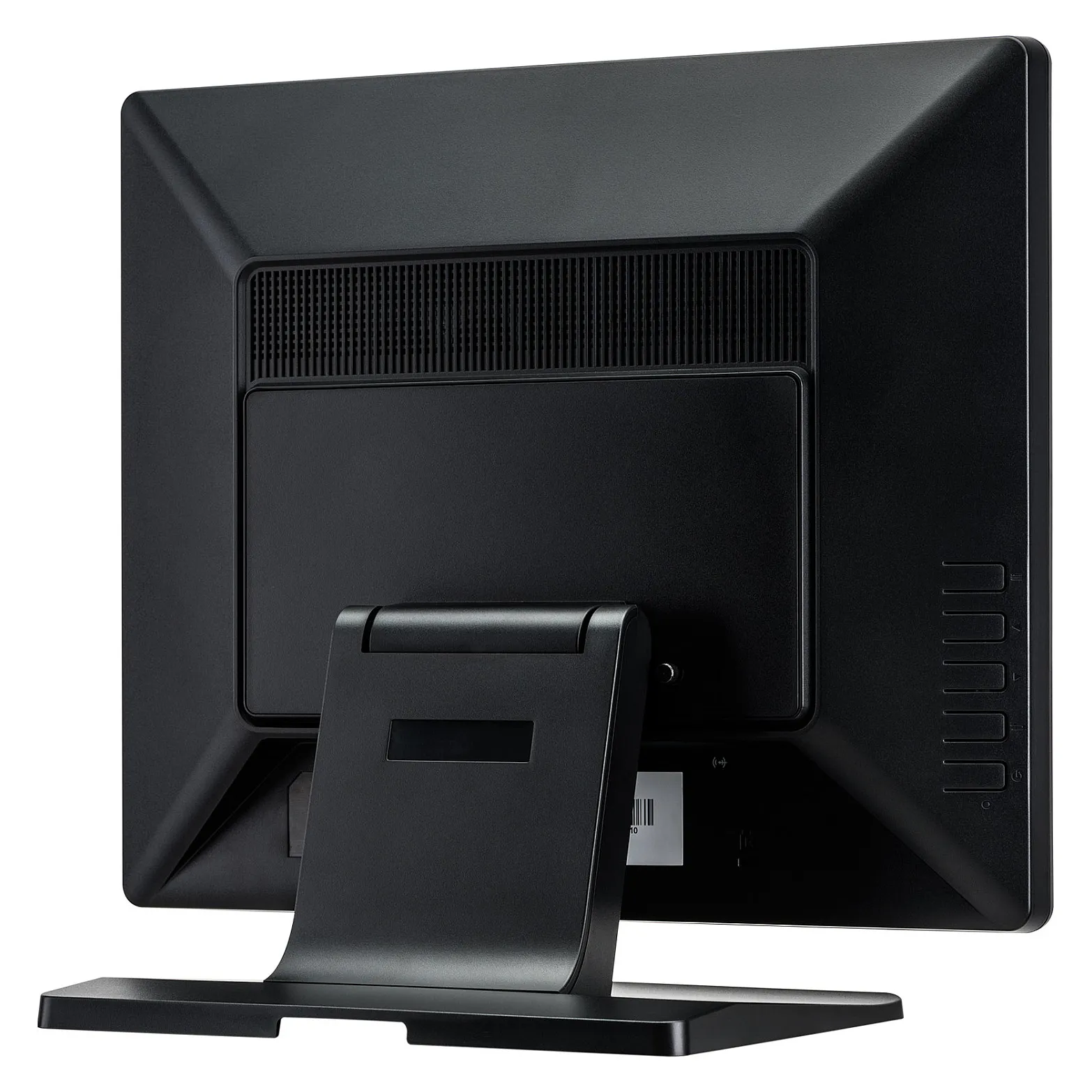

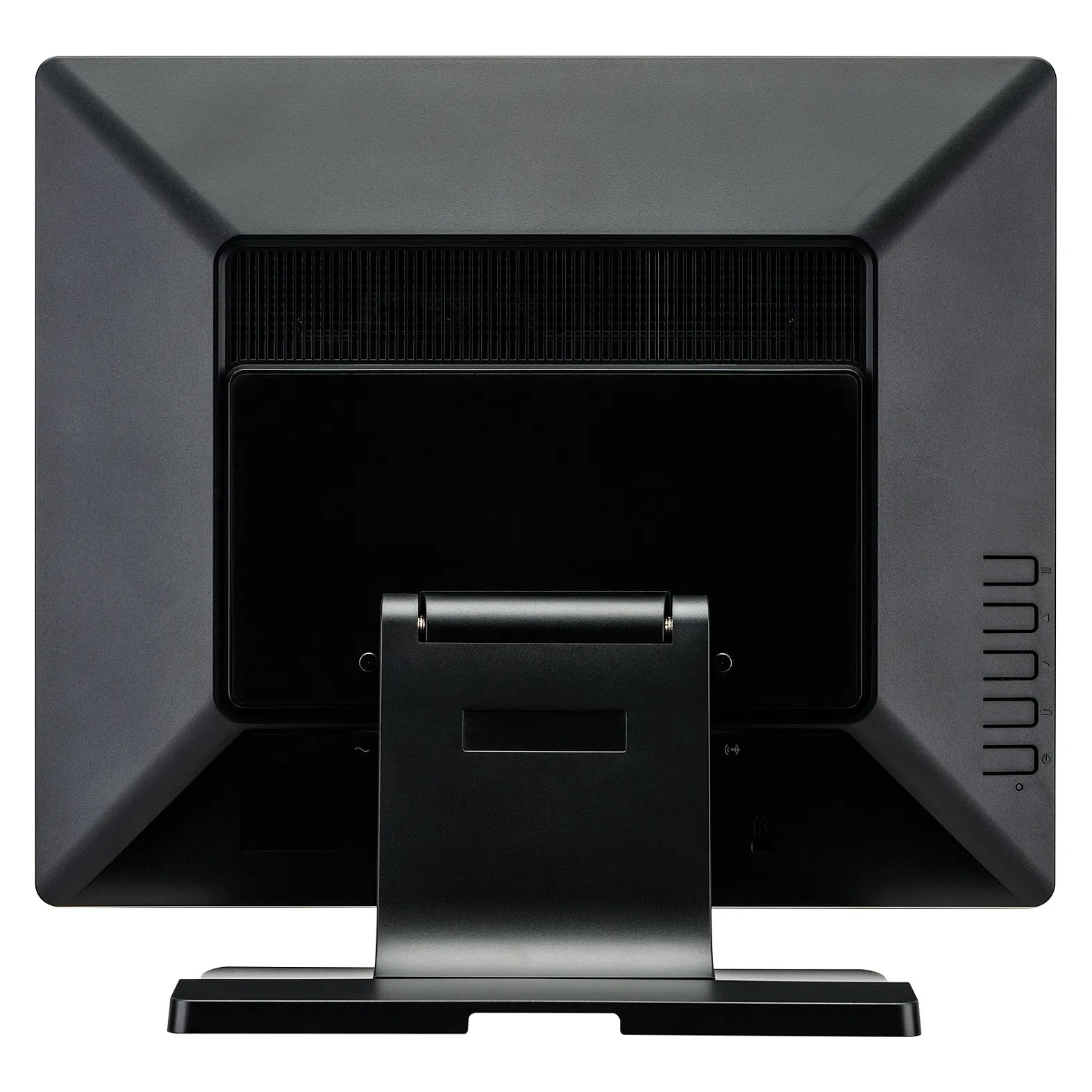

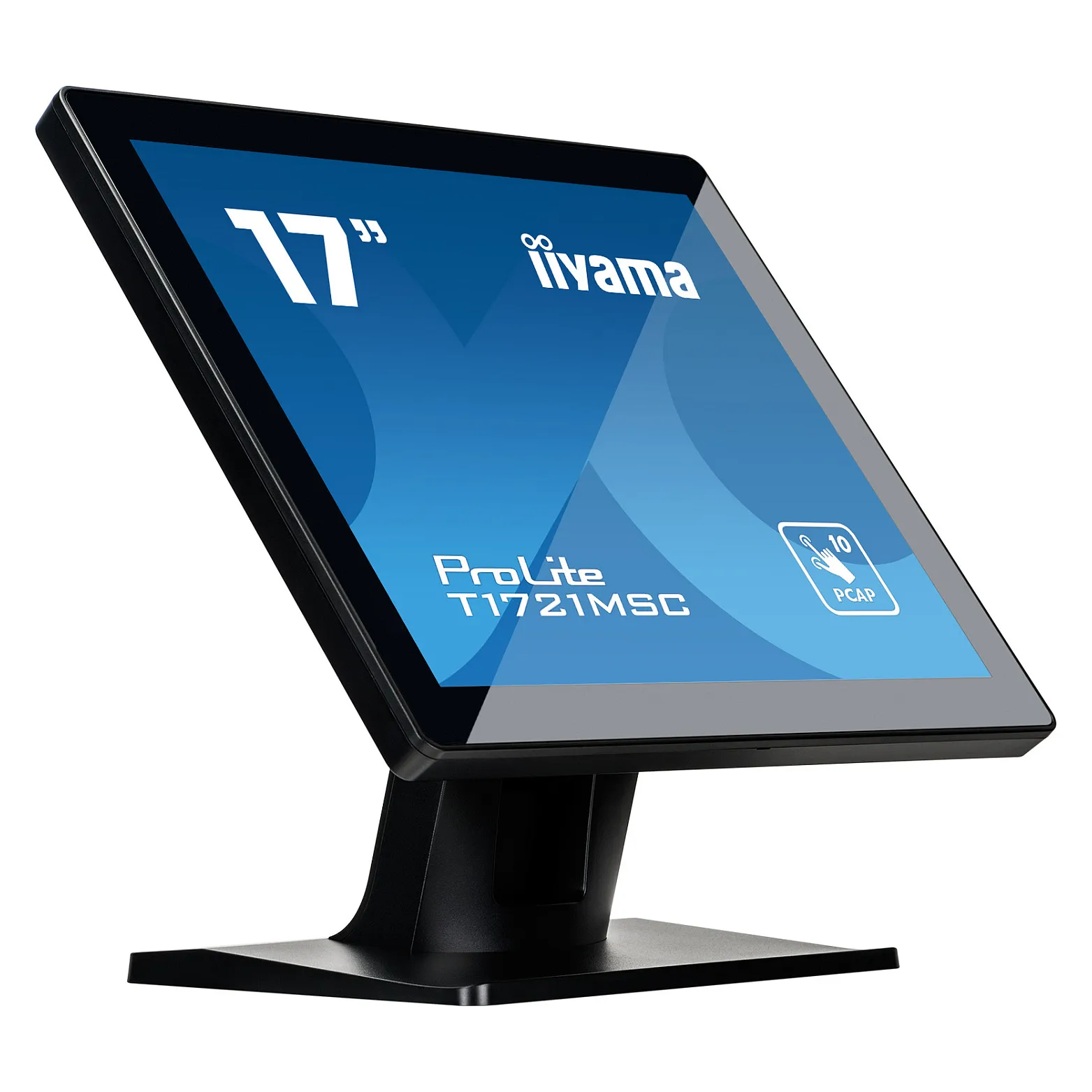

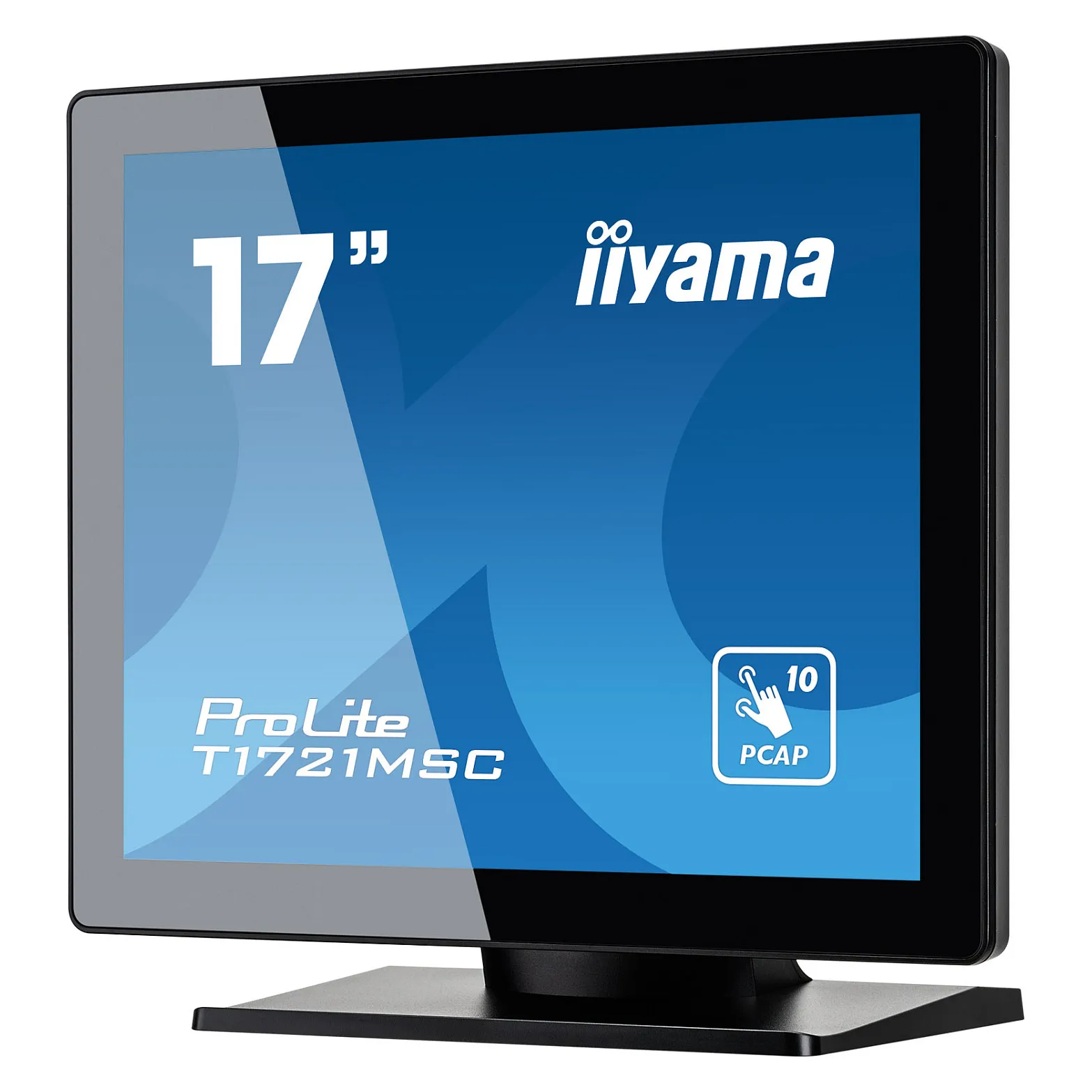

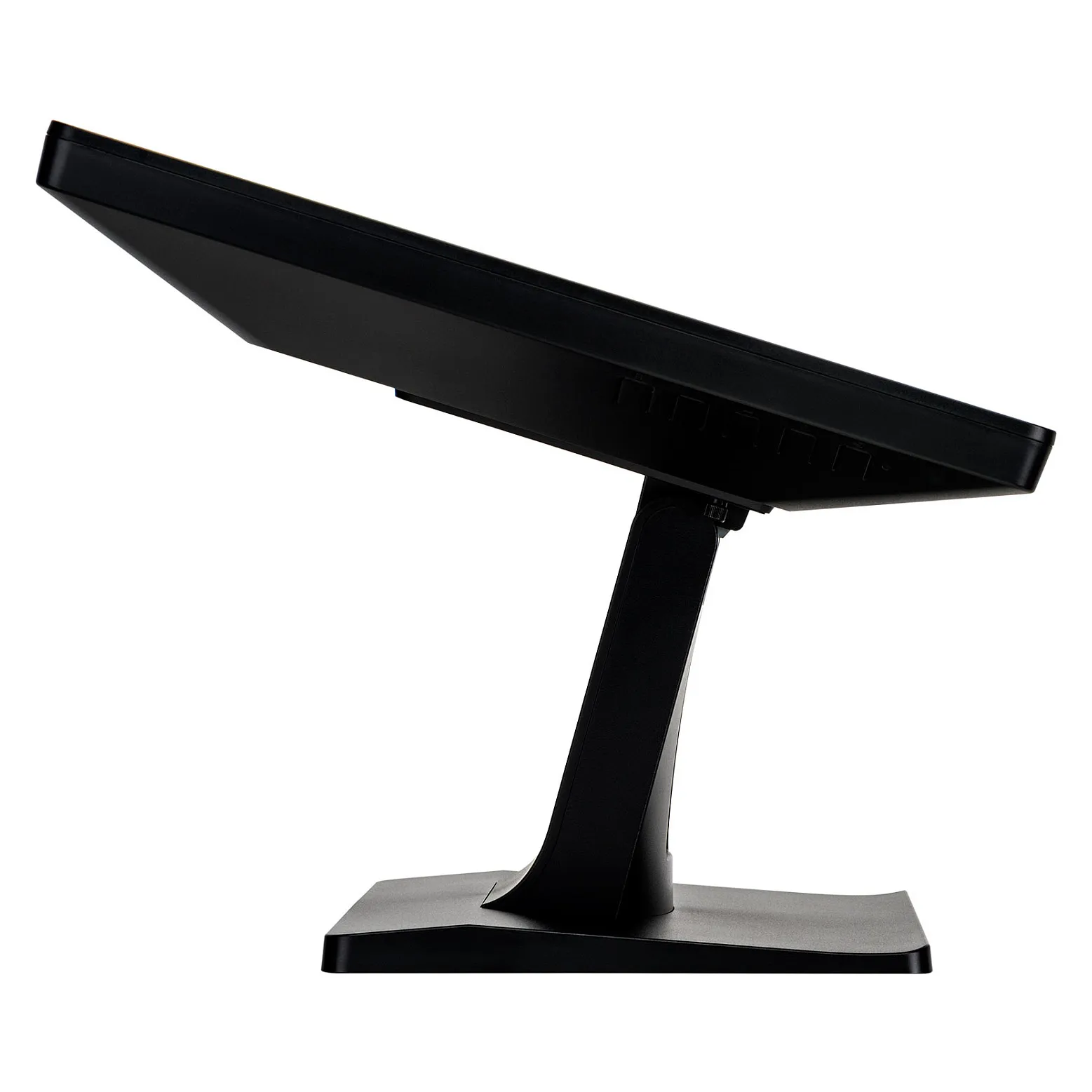

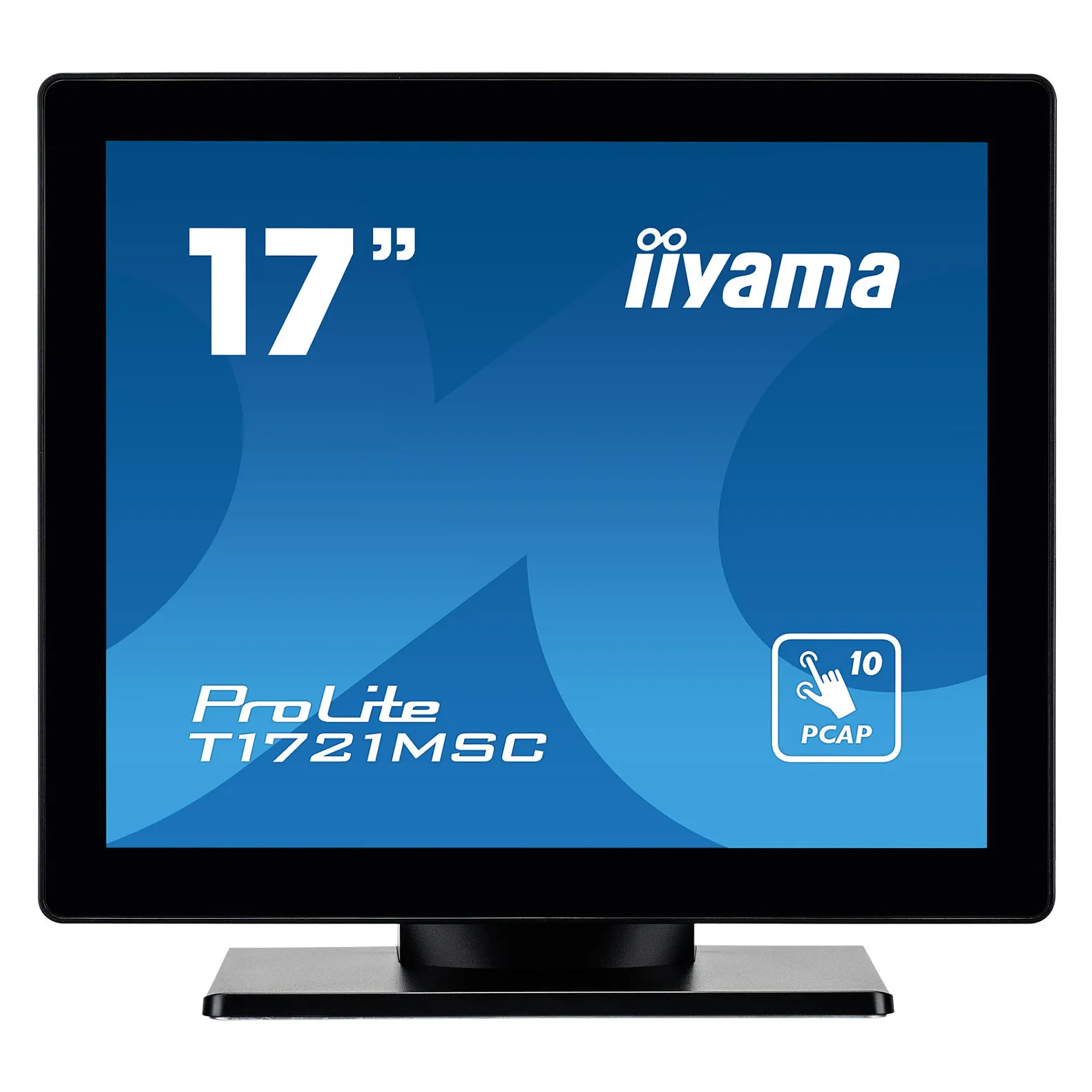

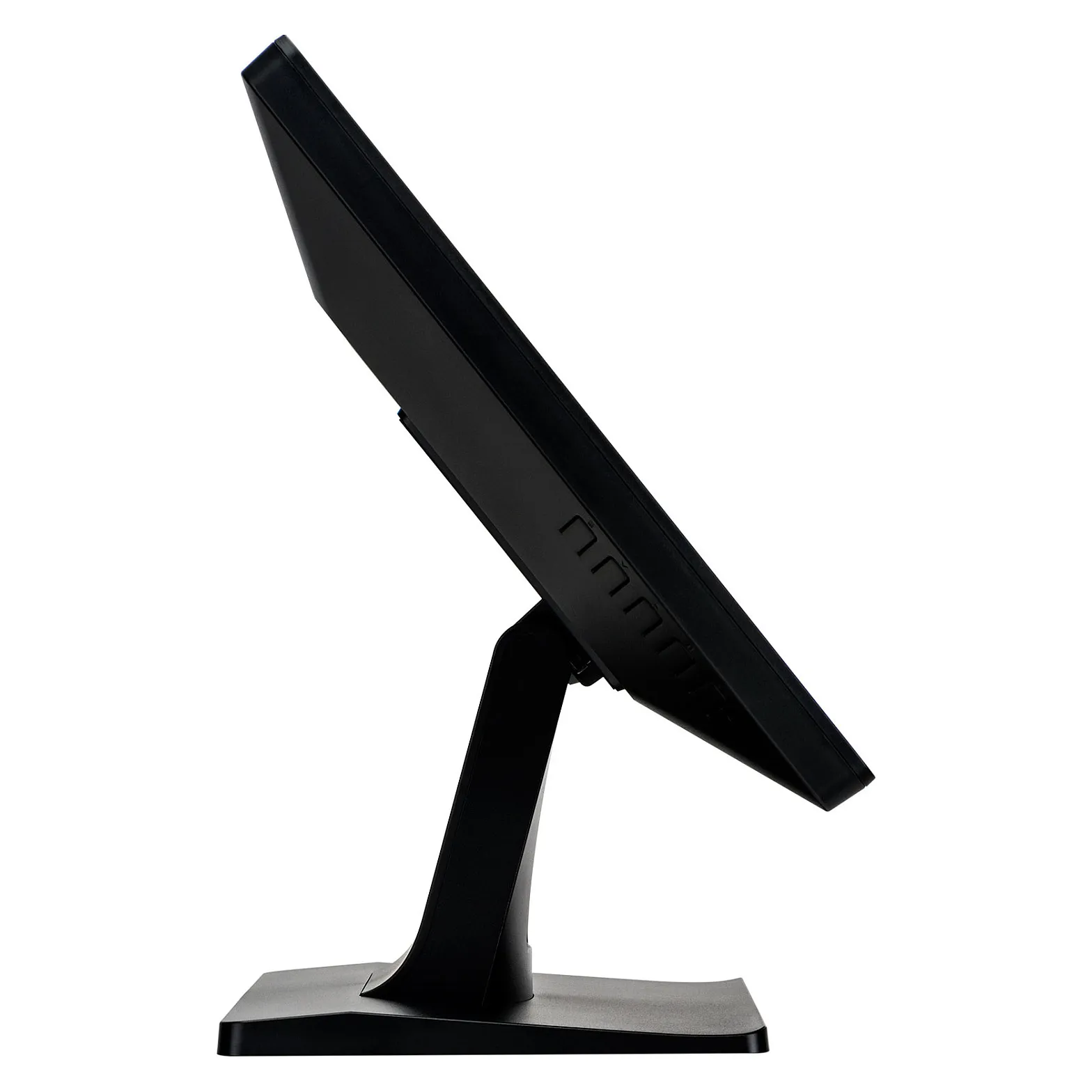

The ProLite T1721MSC-B2 17” touchscreen is based on projected capacitive technology, offering optimal seamless and accurate touch response. Due to its glass overlay, it guarantees high durability, scratch-resistance and perfect picture performance. A solid and steady base supports the touchscreen with an adjustable stand offering up to 80 degree tilt angles. Menu buttons are located on the back of the screen which can be locked to prevent tampering and include a handy function to deactivate the touchscreen for cleaning. The ProLite T1721MSC-B2 is an incredibly powerful touch solution, perfect for instore retail purposes.
Display
Display diagonal: 43.2 cm (17″)
Display resolution: 1280 x 1024 pixels
HD type: SXGA
Native aspect ratio: 5:4
Display technology: LED
Panel type: TN
Backlight type: LED
Feature: Touchscreen
Touchscreen type: Tabletop
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (peak): 230 cd/m²
Display brightness (typical): 250 cd/m²
Display brightness: 230 cd/m²
Response time: 5 ms
Display surface: Matt
Screen shape: Flat
Contrast ratio (typical): 1000:1
Maximum refresh rate: 75 Hz
Viewing angle, horizontal: 170°
Viewing angle, vertical: 160°
Display number of colours: 16.7 million colours
Pixel pitch: 0.264 x 0.264 mm
Horizontal scan range: 31.4 – 80 kHz
Viewable size, horizontal: 33.8 cm
Viewable size, vertical: 27.1 cm
Display diagonal (metric): 43 cm
Feature: DDC/CI
Surface hardness: 7H
Performance
Feature: Low Blue Light technology
Multimedia
Number of speakers: 2
RMS rated power: 4 W
Feature: Built-in speaker(s)
Design
Market positioning: Business
Product colour: Black
Front bezel colour: Black
Feet colour: Black
Glass thickness: 1.5 mm
Ports & interfaces
Feature: Built-in USB hub
Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
Audio input: Yes
Feature: Headphone out
Feature: HDCP
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable management
Feature: Cable lock slot
Cable lock slot type: Kensington

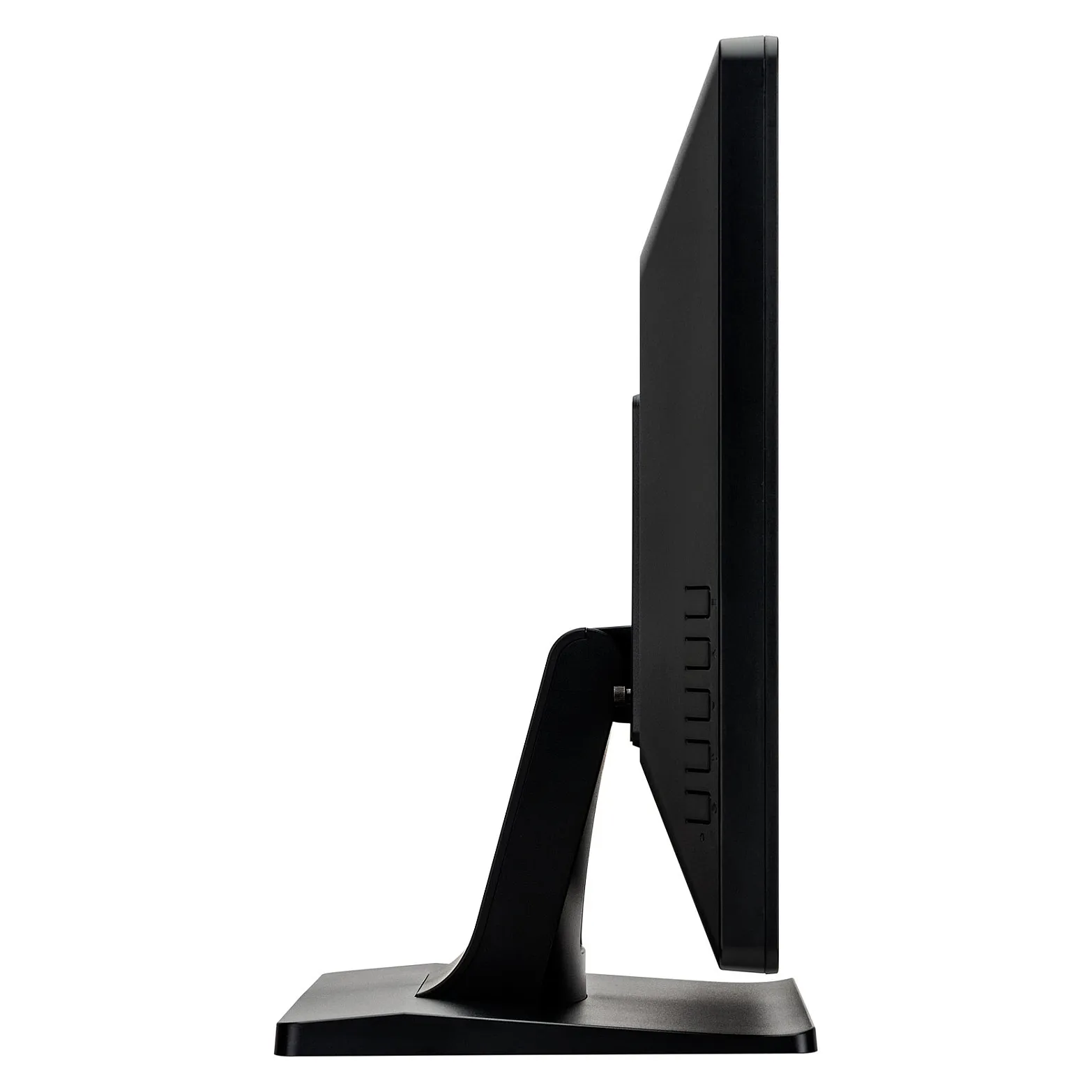

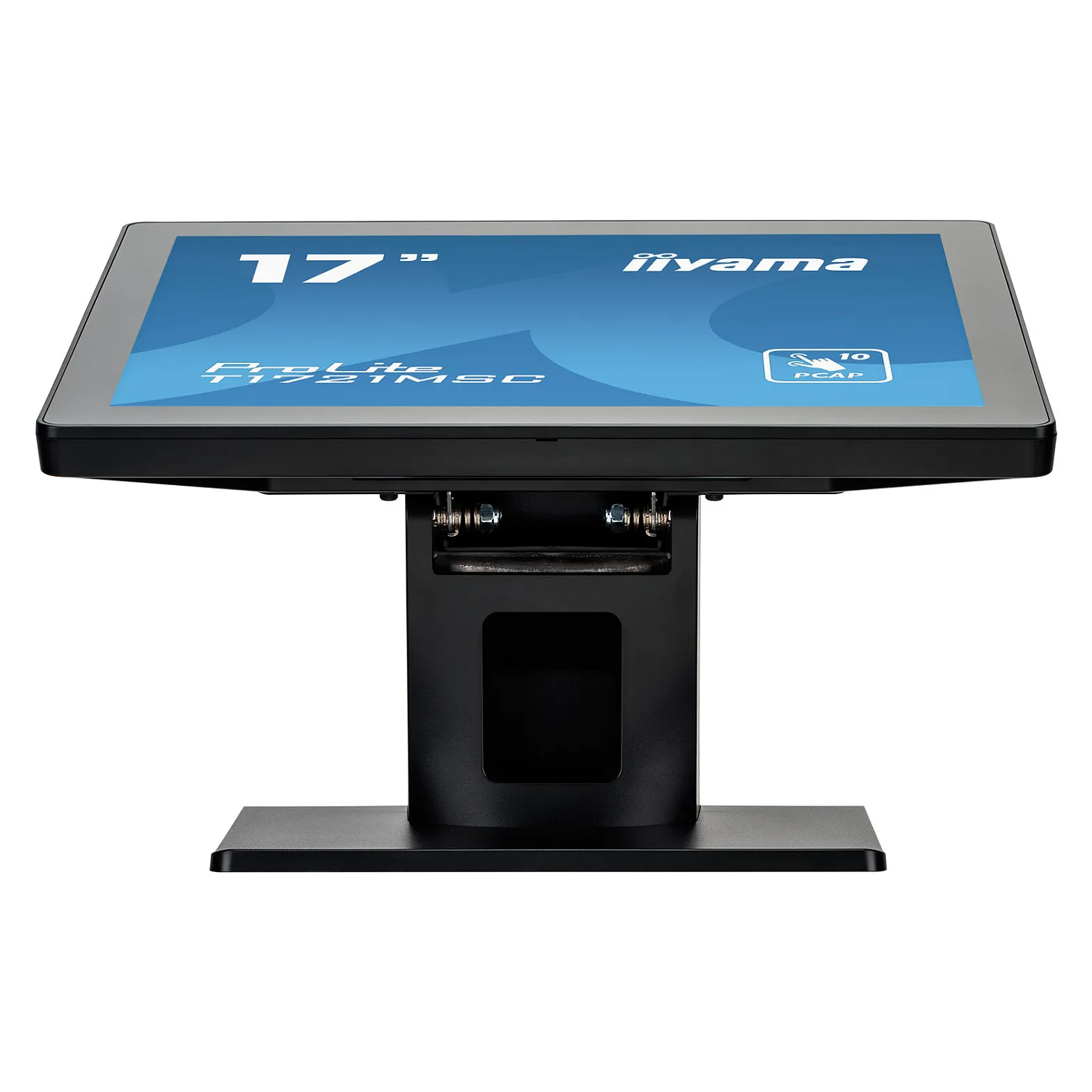

Feature: Tilt adjustment
Tilt angle range: 10 – 70°
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages: 8
Power
Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 13 kWh
Power consumption (typical): 20 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G
Weight & dimensions
Width (with stand): 392.5 mm
Depth (with stand): 198 mm
Height (with stand): 364 mm
Weight (with stand): 4.4 kg
Packaging data
Package width: 537 mm
Package depth: 172 mm
Package height: 500 mm
Package weight: 5.8 kg
USB cable length: 1.8 m
Packaging content
Feature: Stand included

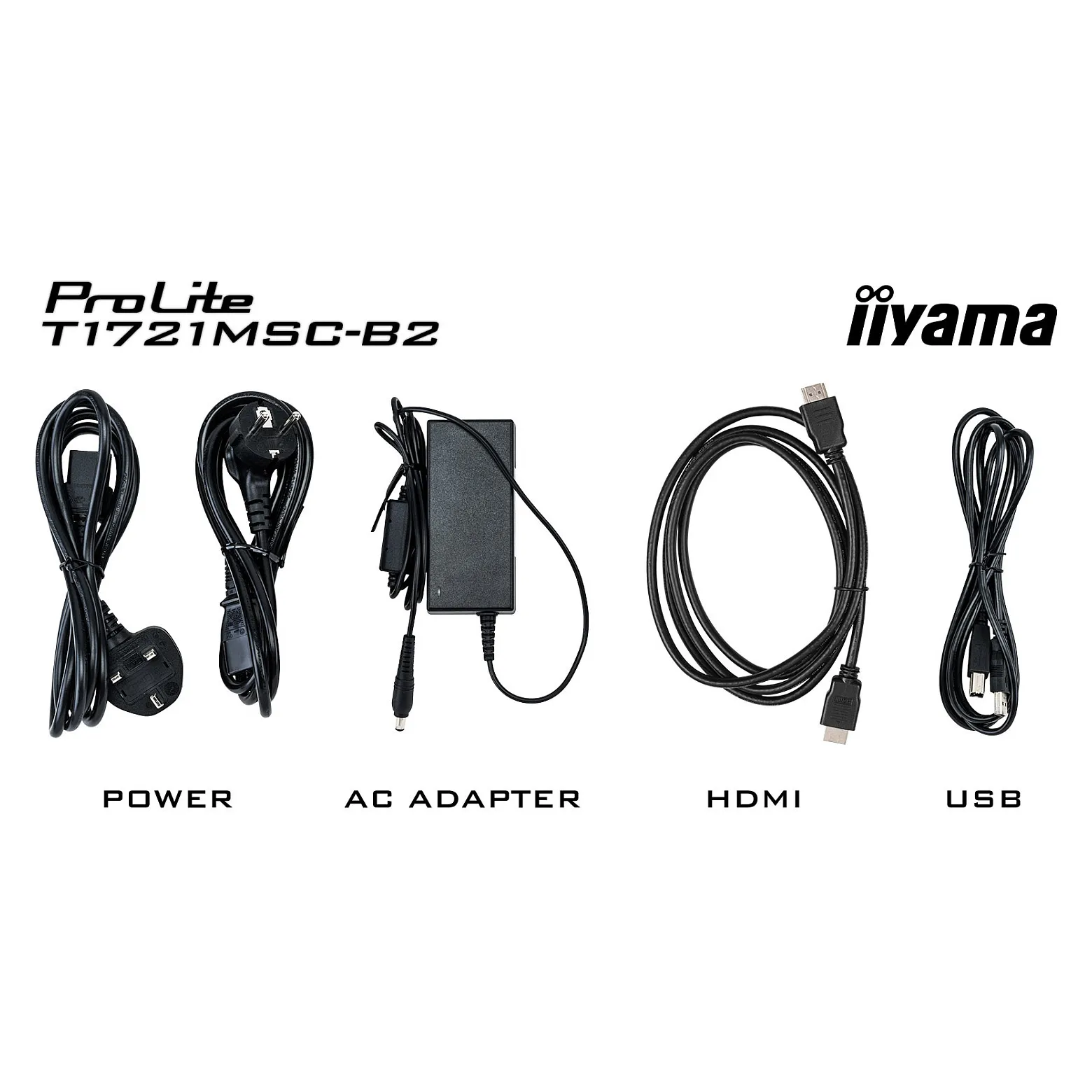

Cables included: AC, USB, HDMI
Feature: Power adapter included
Feature: Quick start guide
Feature: Manual
HDMI cable length: 1.8 m
Power cable length: 1.8 m
Sustainability
Feature: Sustainability compliance
Sustainability certificates: ErP
Other features
International Protection (IP) code: IPX3
Feature: AC adapter included
Brightness: 230 cd/m²
Packaging content: AC adapter, mylar sheet (for VESA mount)
Active display area (W x H): 338 x 270.5 mm
USB ports quantity: 1
Weight: 4.4 kg
Height: 364 mm
Touch method: stylus, finger, glove (latex)
Width: 392.5 mm
Depth: 198 mm

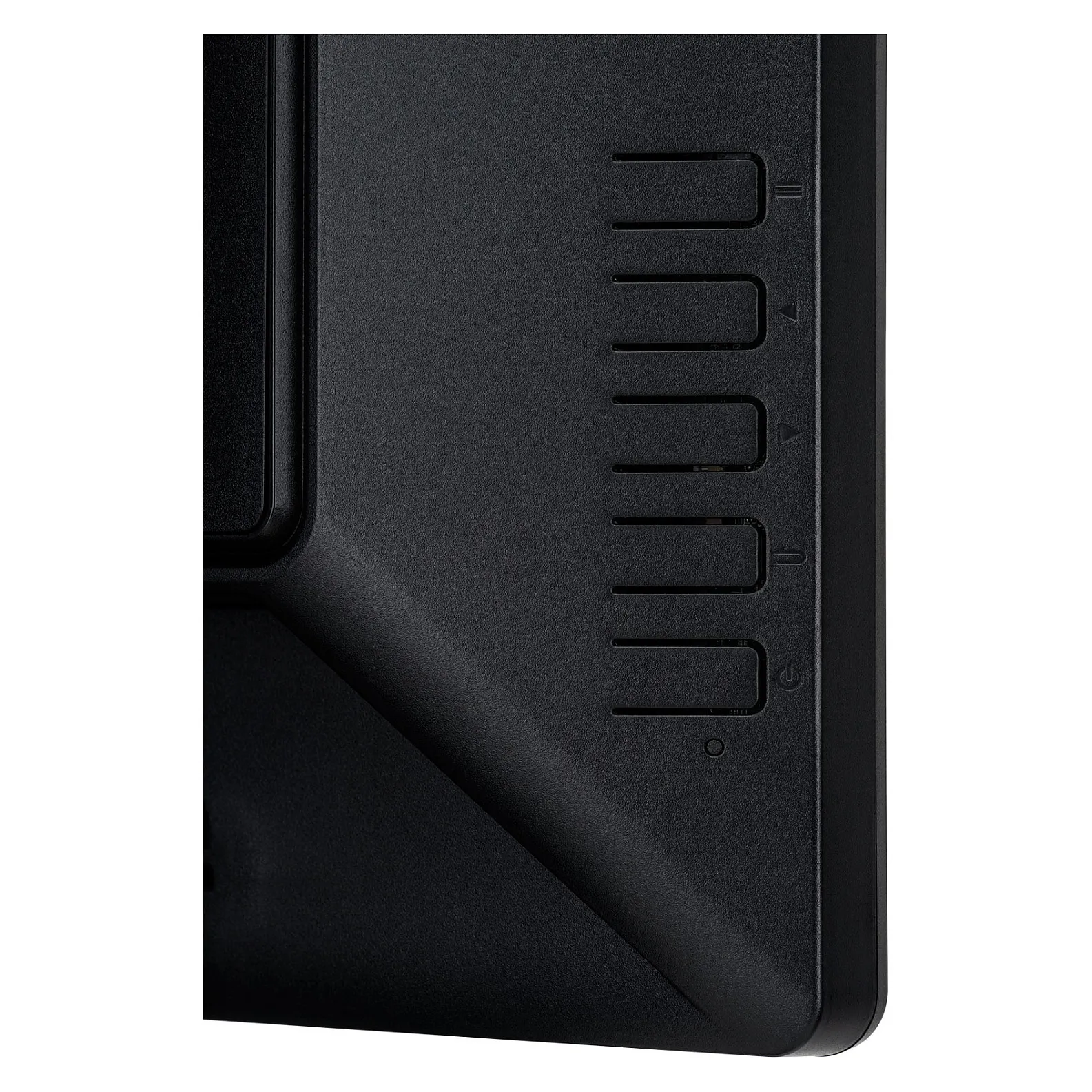

Control panel: Menu, Up/Left/ Auto adjustment button, Down/Right button, Return/Exit button, Power
Compliance certificates: CE, cULus, REACH, RoHS, UKCA, WEEE
Mean time between failures (MTBF): 50000 h
Certification: CE, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Technical details
Native refresh rate: 75 Hz
Display diagonal: 43.2 cm (17″)
Display resolution: 1280 x 1024 pixels
HD type: SXGA
Native aspect ratio: 5:4
Display technology: LED
Panel type: TN
Backlight type: LED
Feature: Touchscreen
Touchscreen type: Tabletop
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (peak): 230 cd/m²
Display brightness (typical): 250 cd/m²
Display brightness: 230 cd/m²
Response time: 5 ms
Display surface: Matt
Screen shape: Flat
Contrast ratio (typical): 1000:1
Maximum refresh rate: 75 Hz
Viewing angle, horizontal: 170°
Viewing angle, vertical: 160°
Display number of colours: 16.7 million colours
Pixel pitch: 0.264 x 0.264 mm
Horizontal scan range: 31.4 – 80 kHz
Viewable size, horizontal: 33.8 cm
Viewable size, vertical: 27.1 cm
Display diagonal (metric): 43 cm
Feature: DDC/CI
Surface hardness: 7H
Performance
Feature: Low Blue Light technology
Multimedia
Number of speakers: 2
RMS rated power: 4 W
Feature: Built-in speaker(s)
Design
Market positioning: Business
Product colour: Black
Front bezel colour: Black
Feet colour: Black
Glass thickness: 1.5 mm
Ports & interfaces
Feature: Built-in USB hub
Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
Audio input: Yes
Feature: Headphone out
Feature: HDCP
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable management
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Tilt adjustment
Tilt angle range: 10 – 70°
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages: 8
Power
Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 13 kWh
Power consumption (typical): 20 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G
Weight & dimensions
Width (with stand): 392.5 mm
Depth (with stand): 198 mm
Height (with stand): 364 mm
Weight (with stand): 4.4 kg
Packaging data
Package width: 537 mm
Package depth: 172 mm
Package height: 500 mm
Package weight: 5.8 kg
USB cable length: 1.8 m
Packaging content
Feature: Stand included
Cables included: AC, USB, HDMI
Feature: Power adapter included
Feature: Quick start guide
Feature: Manual
HDMI cable length: 1.8 m
Power cable length: 1.8 m
Sustainability
Feature: Sustainability compliance
Sustainability certificates: ErP
Other features
International Protection (IP) code: IPX3
Feature: AC adapter included
Brightness: 230 cd/m²
Packaging content: AC adapter, mylar sheet (for VESA mount)
Active display area (W x H): 338 x 270.5 mm
USB ports quantity: 1
Weight: 4.4 kg
Height: 364 mm
Touch method: stylus, finger, glove (latex)
Width: 392.5 mm
Depth: 198 mm
Control panel: Menu, Up/Left/ Auto adjustment button, Down/Right button, Return/Exit button, Power
Compliance certificates: CE, cULus, REACH, RoHS, UKCA, WEEE
Mean time between failures (MTBF): 50000 h
Certification: CE, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Technical details
Native refresh rate: 75 Hz
