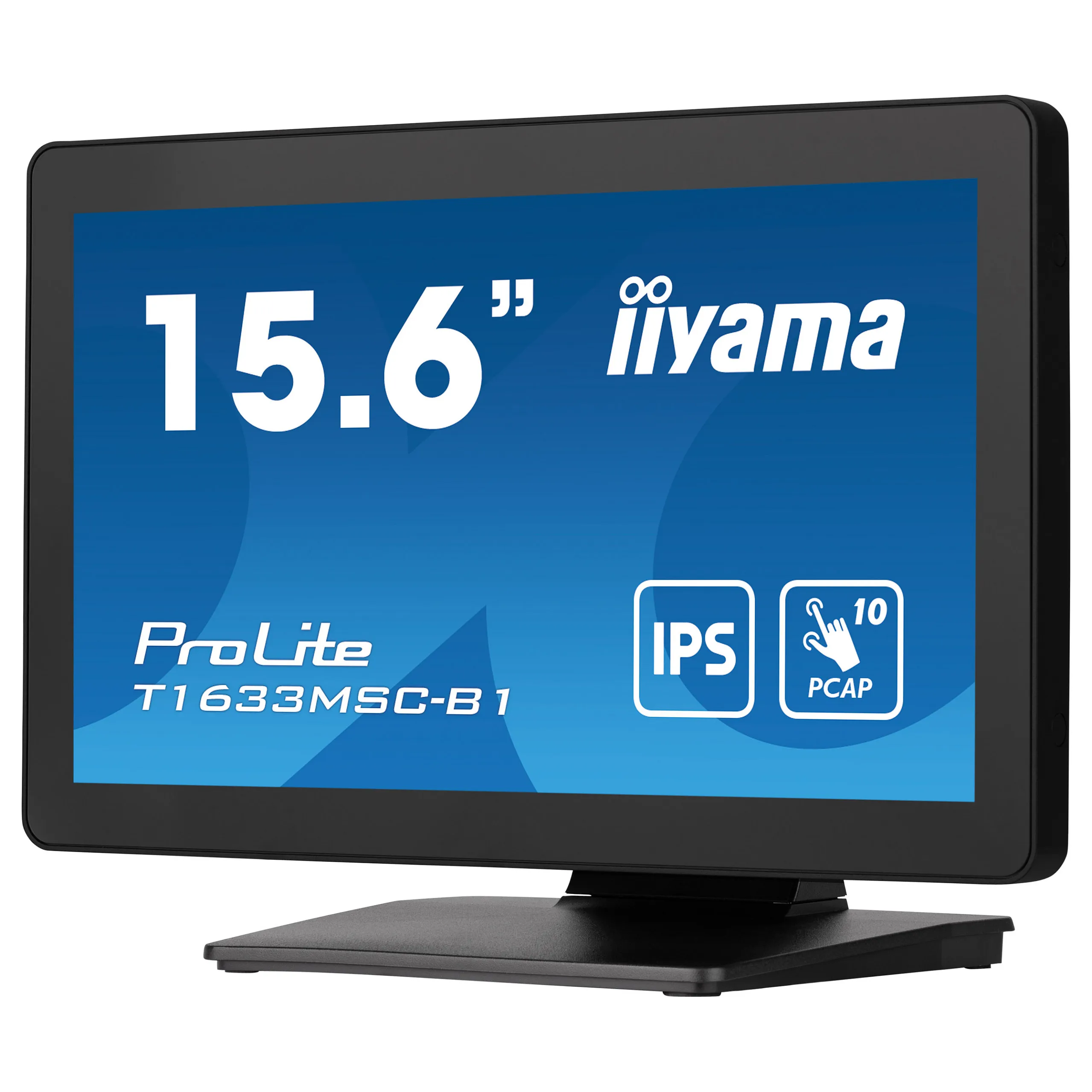

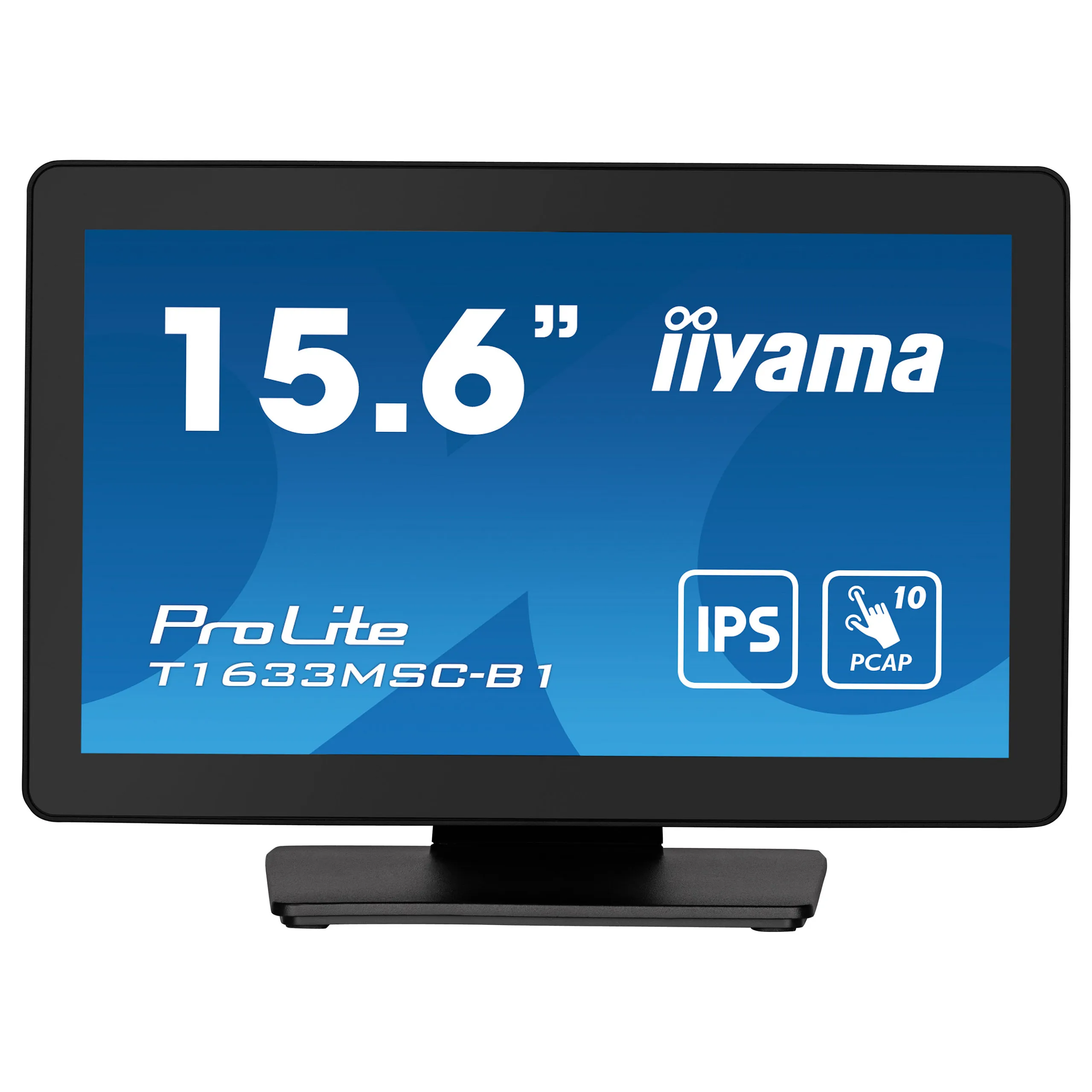

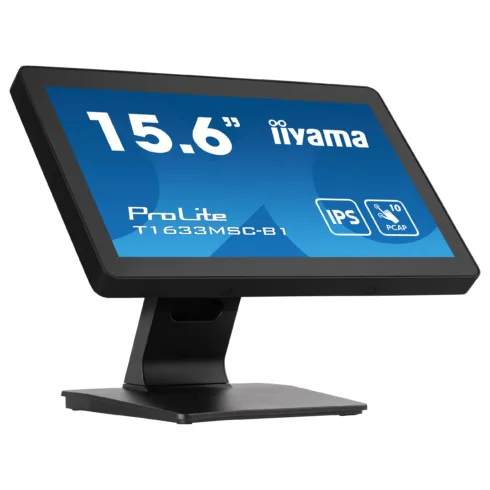

iiyama ProLite T1633MSC-B1. Display diagonal: 39.6 cm (15.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 2.0. VESA mounting. Product colour: Black

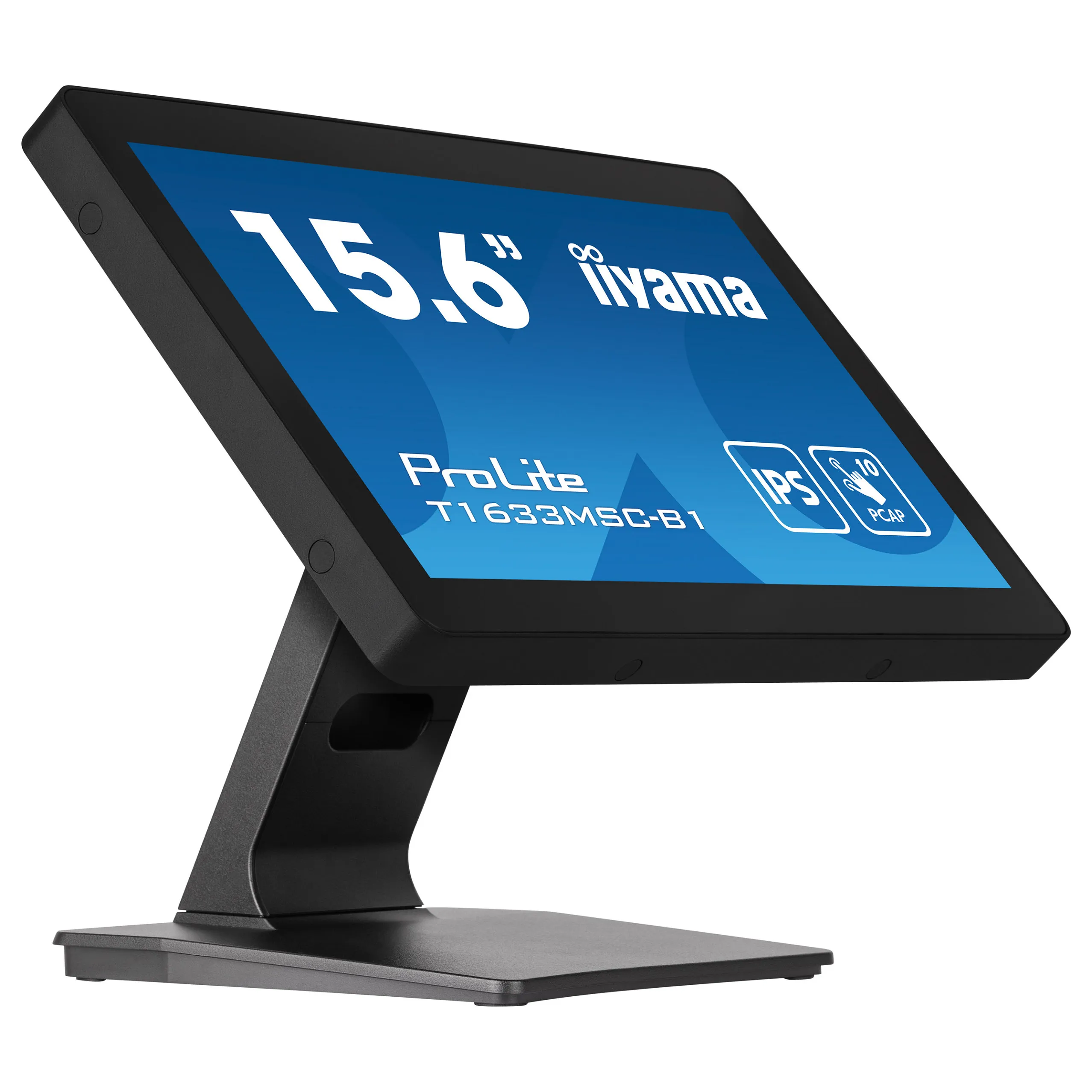

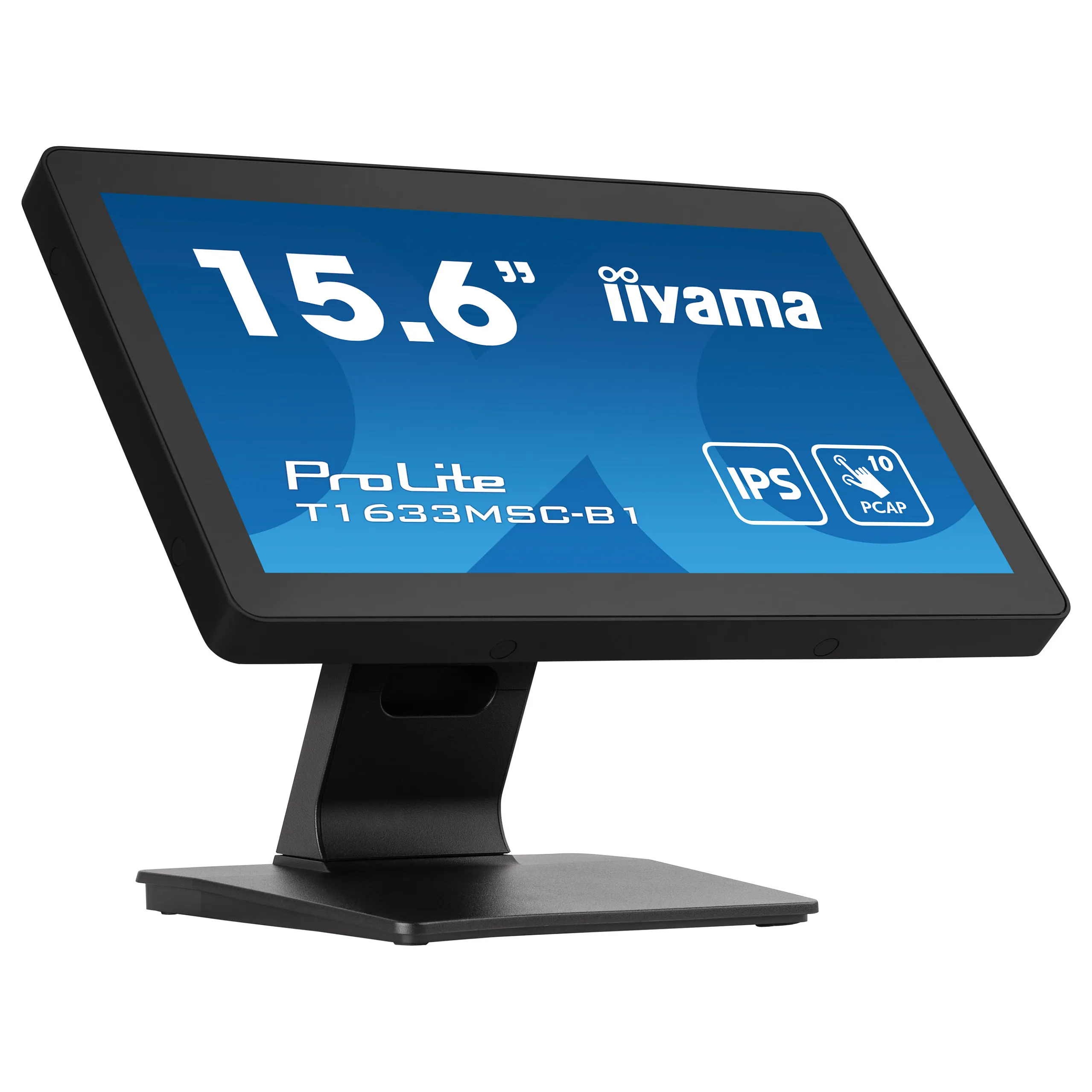

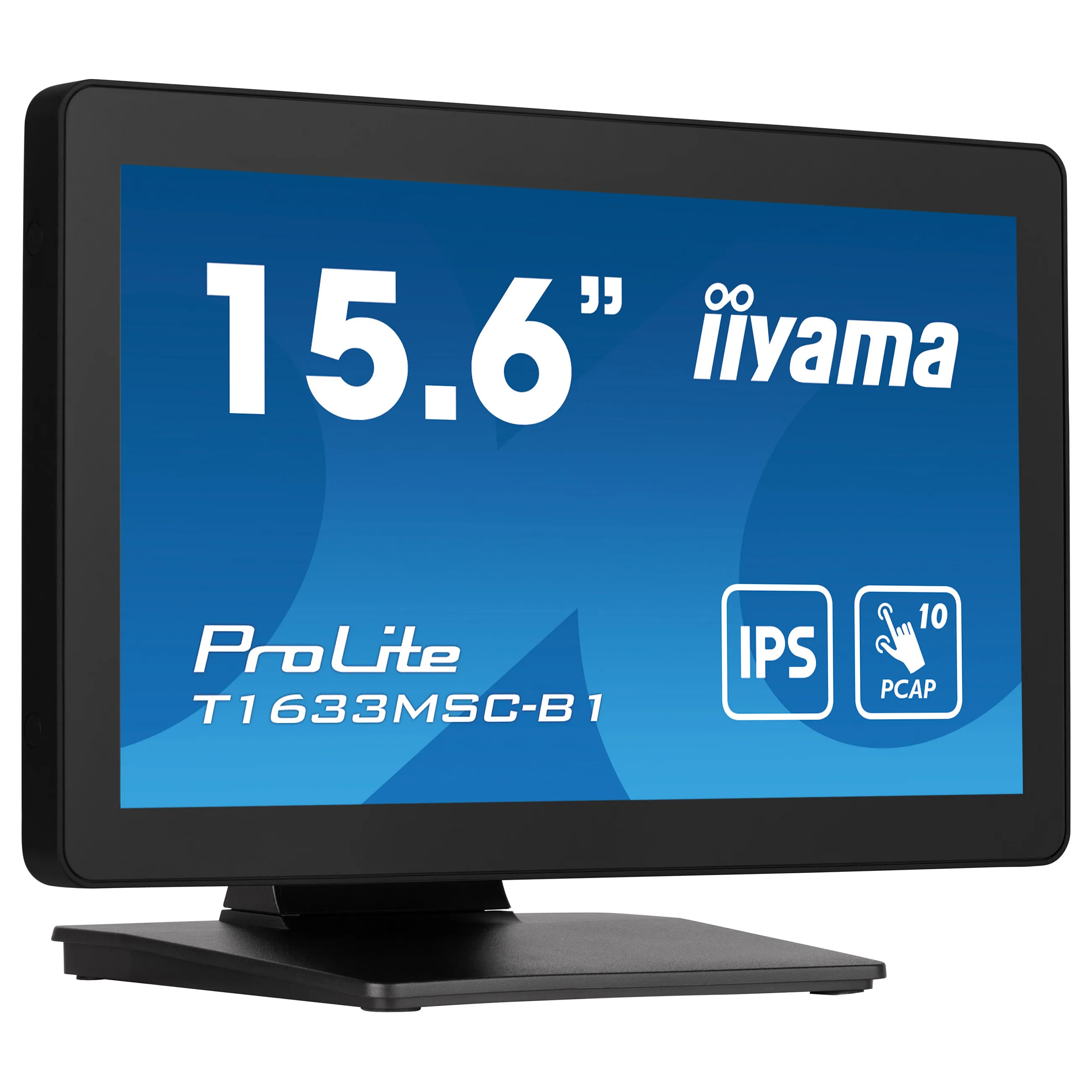

The ProLite T1633MSC-B1 uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. The screen guarantees high durability, scratch-resistance, clarity and a perfect picture performance. Featuring IPS Panel Technology and Full HD (1920×1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition to the superb image quality, the screen comes with an IP54 rating, which means the screen and bezel is dust and water resistant from the front. A perfect solution for retail applications.
Display
Display diagonal: 39.6 cm (15.6″)
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: IPS
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Display brightness (typical): 450 cd/m²
Display brightness: 385 cd/m²
Response time: 5 ms
Response time measurement type: GTG (Gray to Gray)
Screen shape: Flat
Contrast ratio (typical): 1000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.179 x 0.179 mm
Horizontal scan range: 30 – 68 kHz
Viewable size, horizontal: 34.4 cm
Viewable size, vertical: 19.4 cm
Display diagonal (metric): 39.5 cm
Performance
Feature: Low Blue Light technology
Feature: Palm rejection
Multimedia
Number of speakers: 2
RMS rated power: 4 W
Feature: Built-in speaker(s)
Design
Market positioning: Home
Product colour: Black
Front bezel colour: Black
Ports & interfaces
Feature: Built-in USB hub
USB hub version: 2.0
Number of downstream ports: 2
Feature: USB Touch port
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: HDCP
Ergonomics

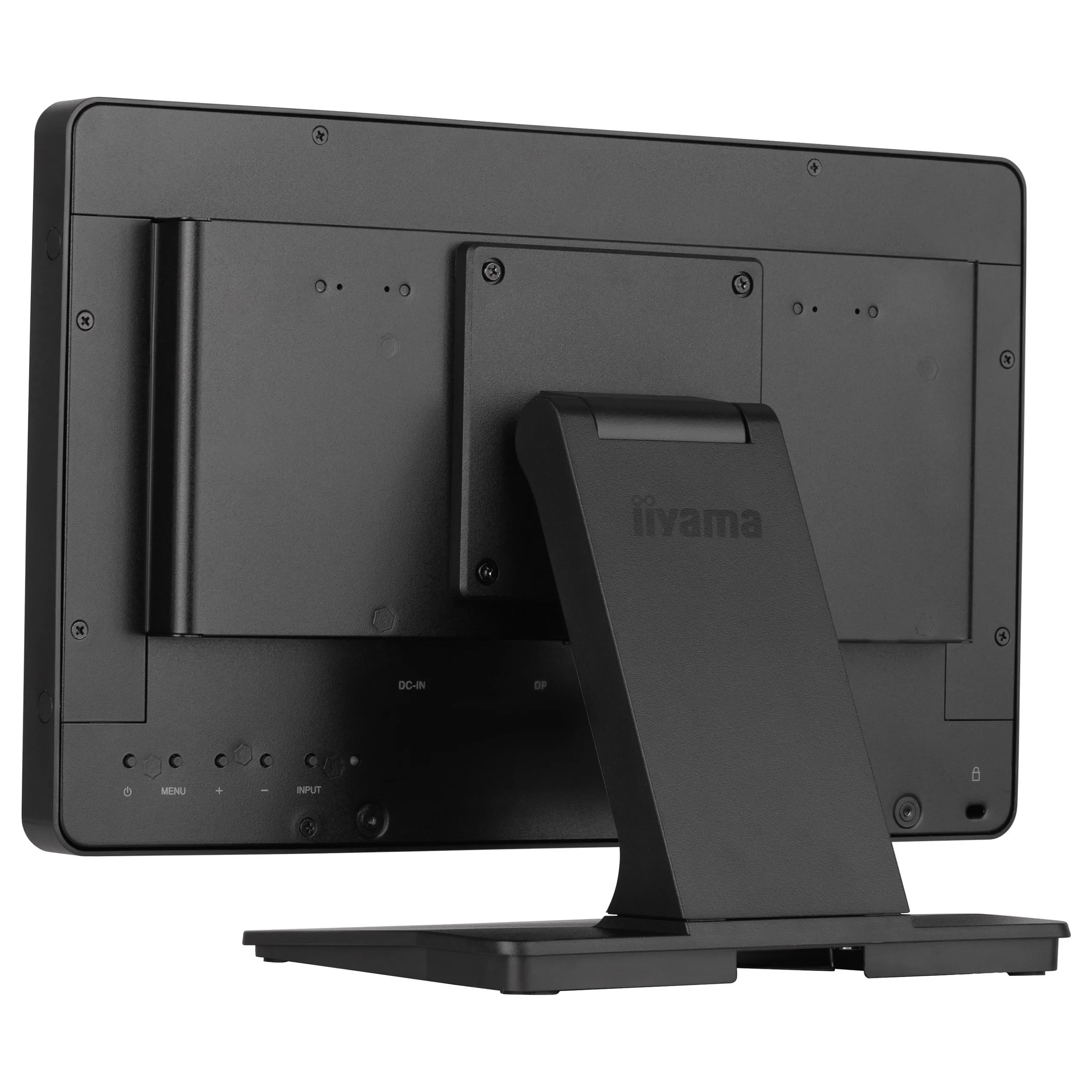

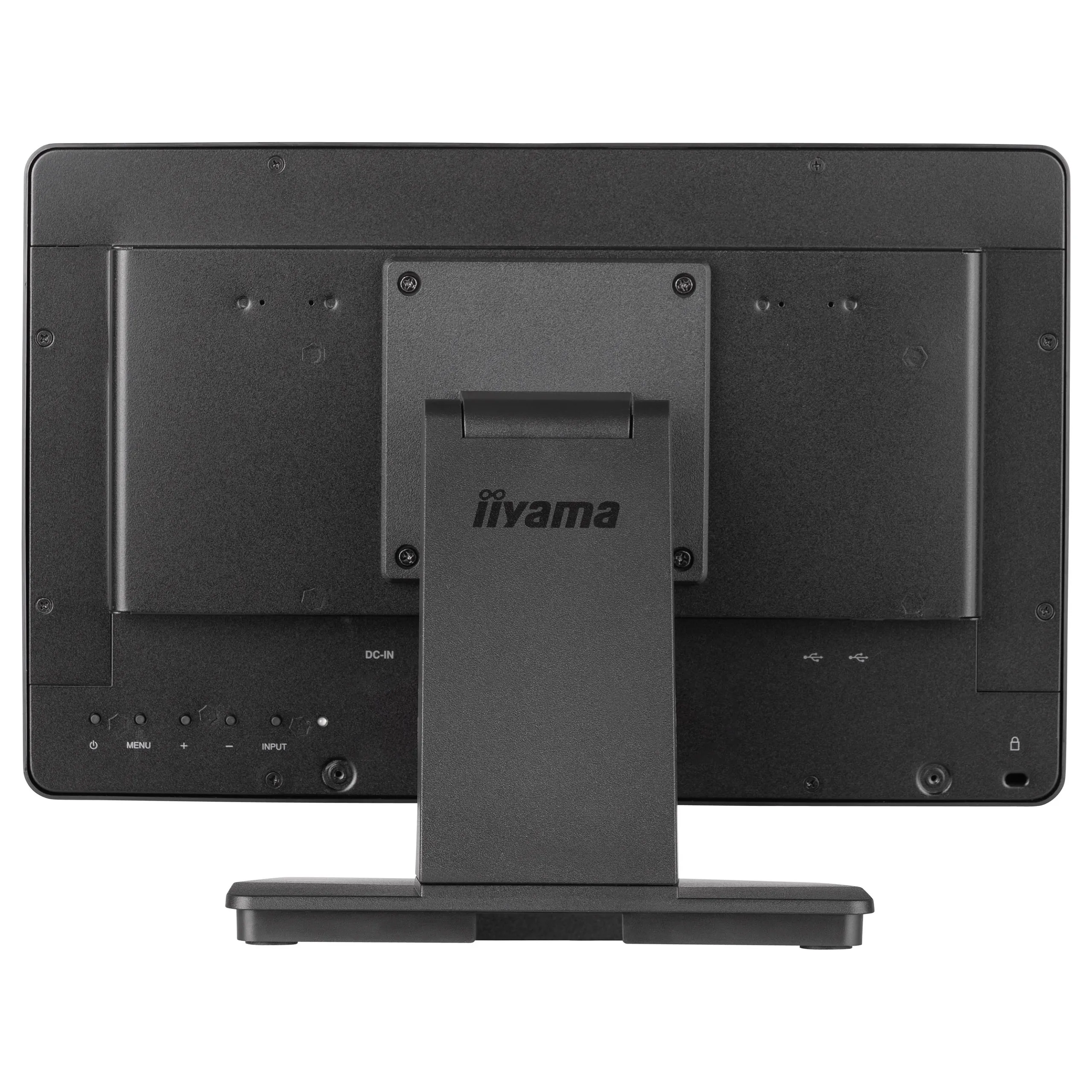

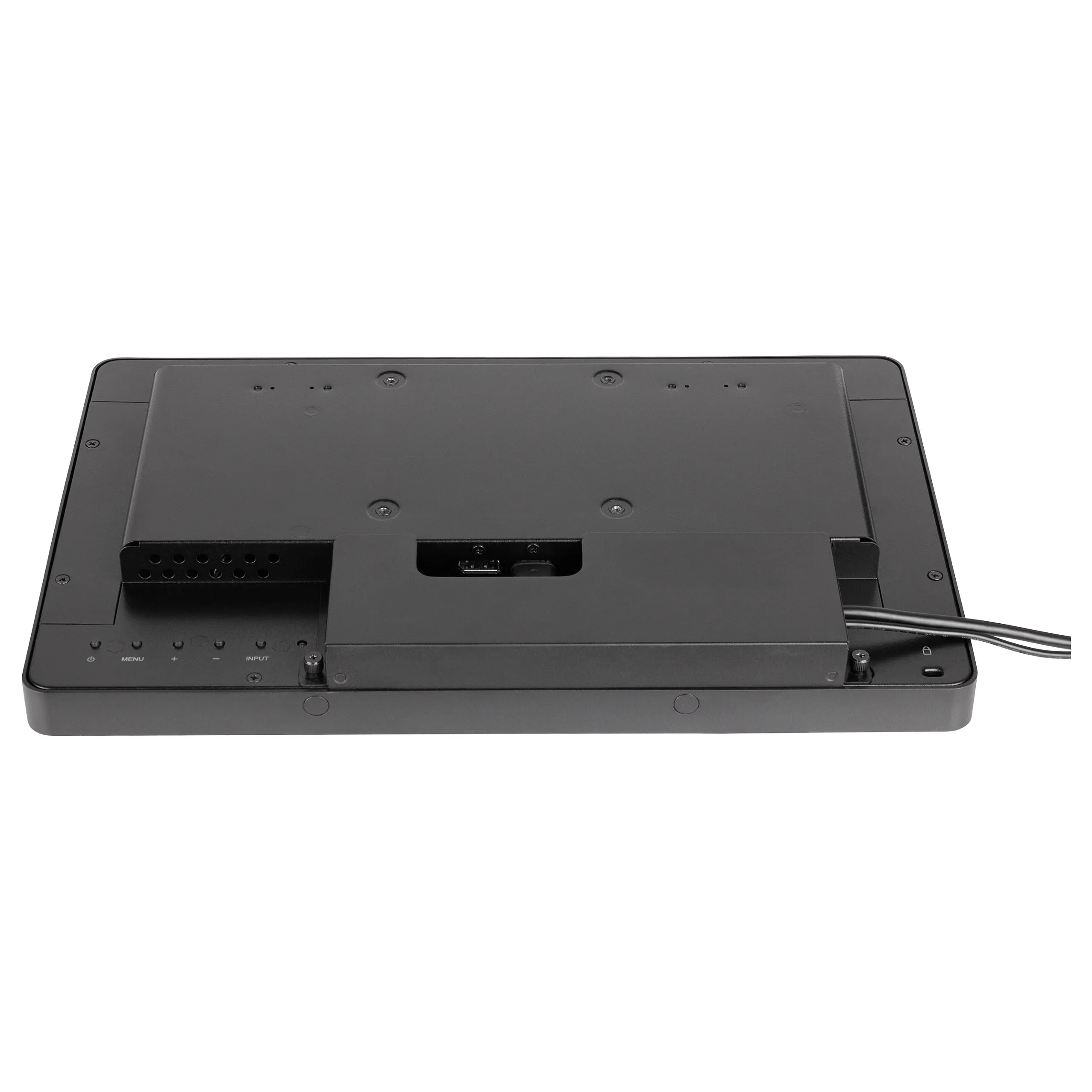

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm

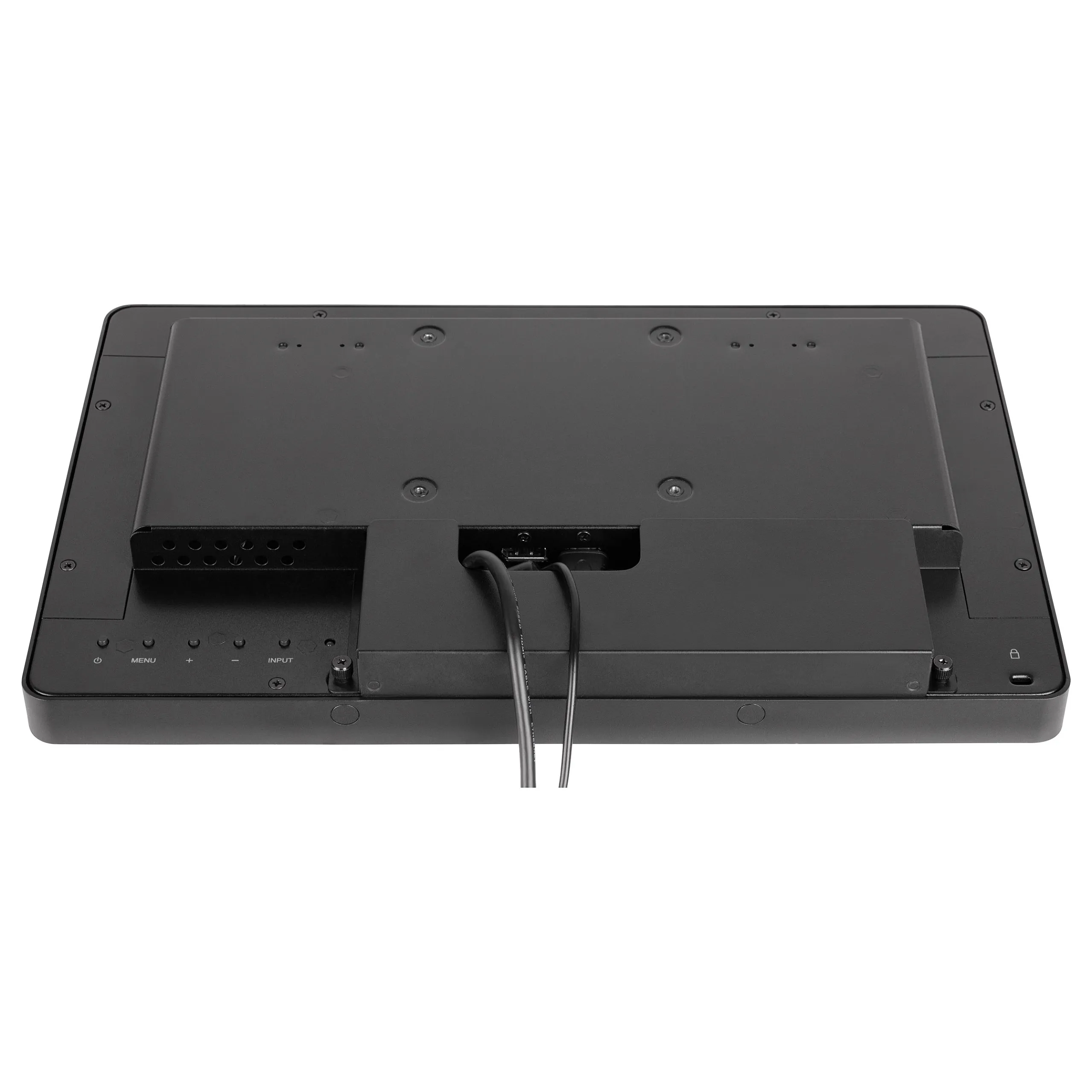

Feature: Cable management
Feature: Cable lock slot
Cable lock slot type: Kensington

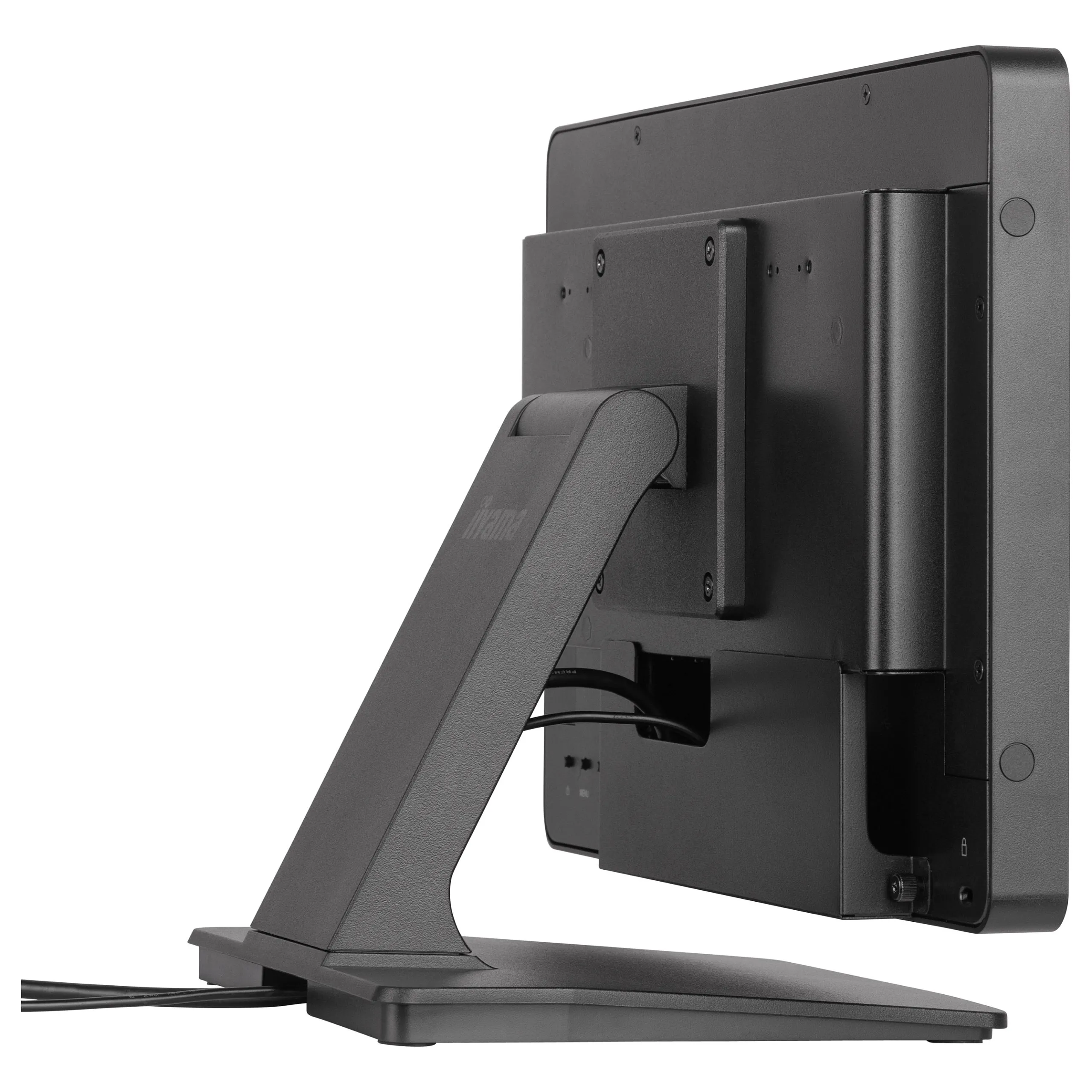

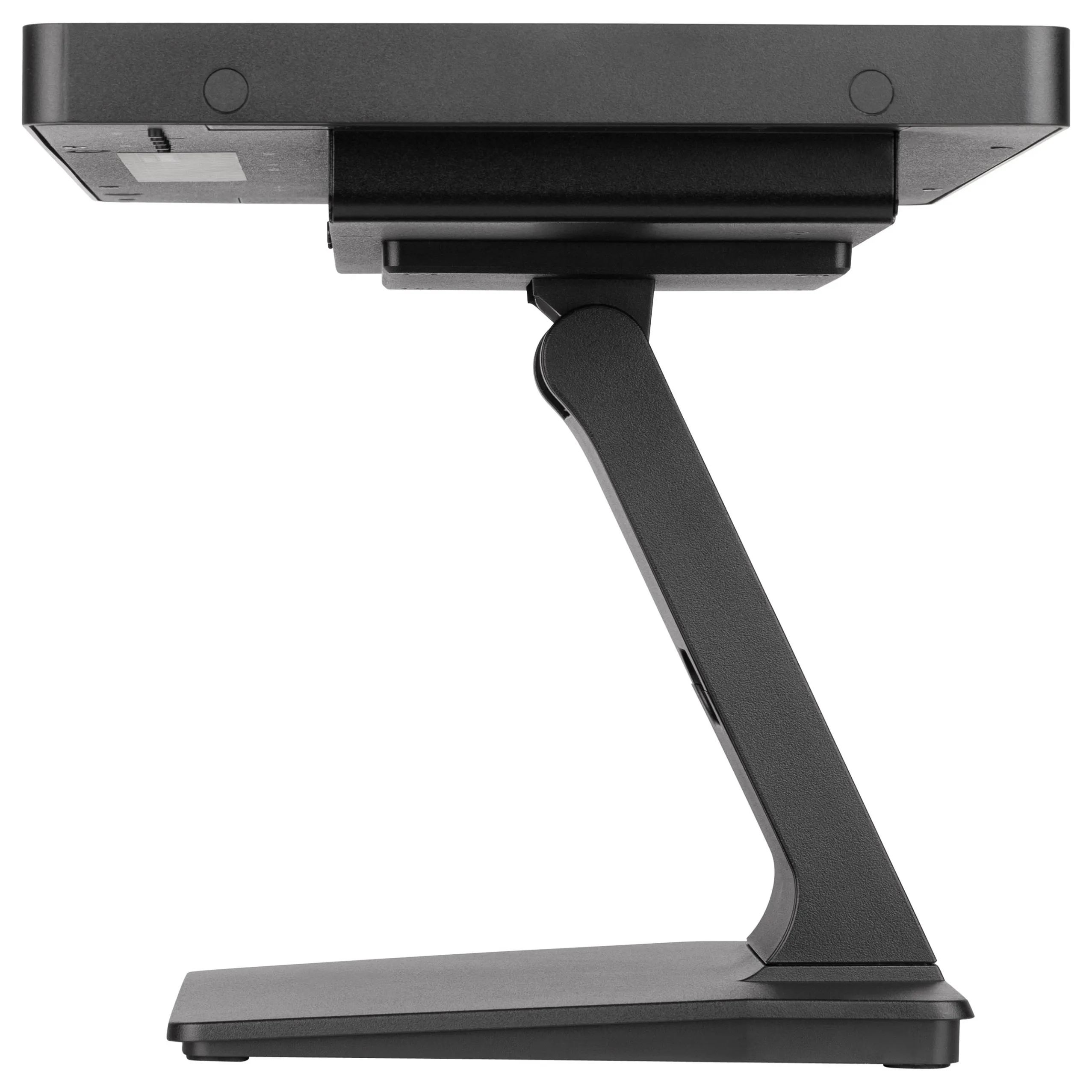

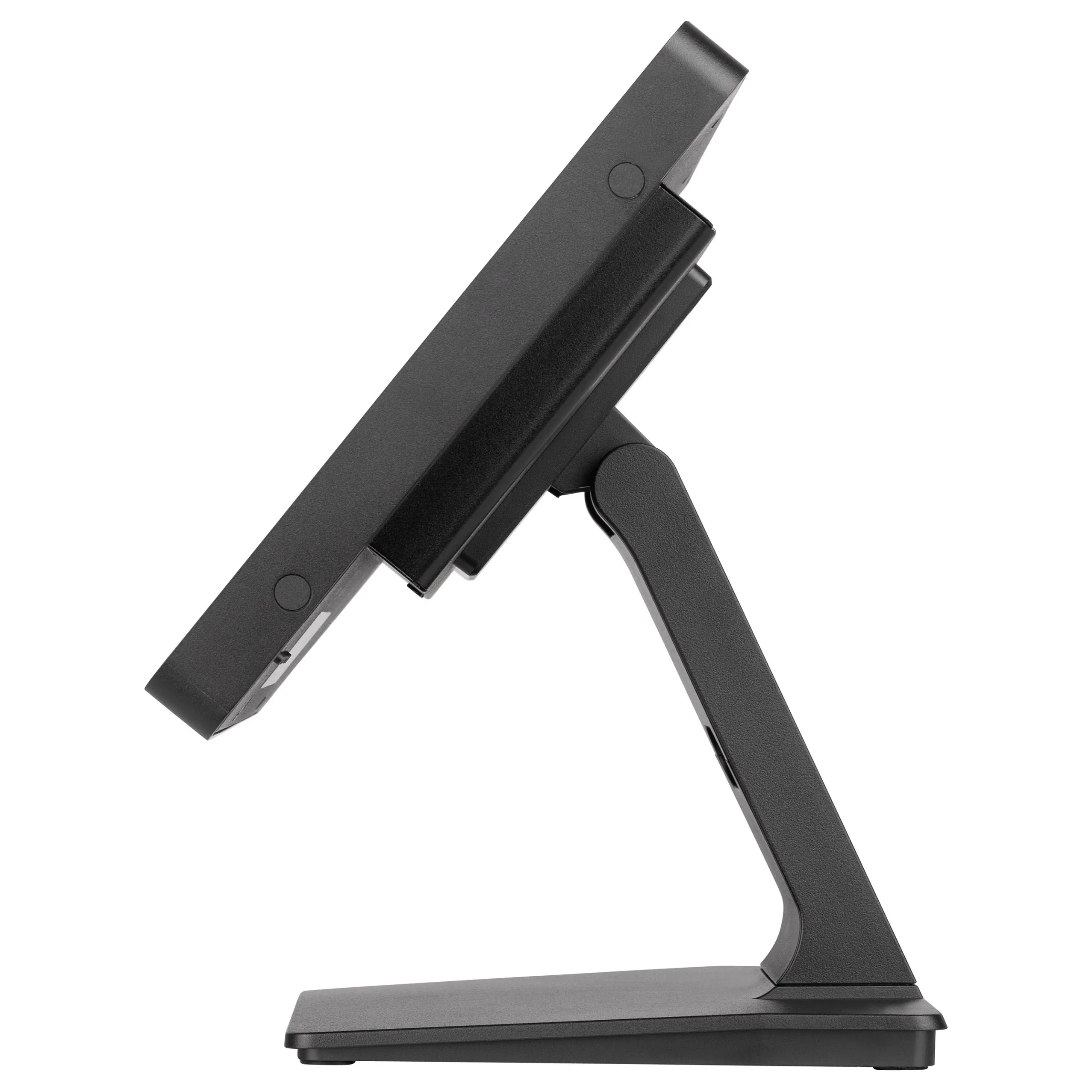

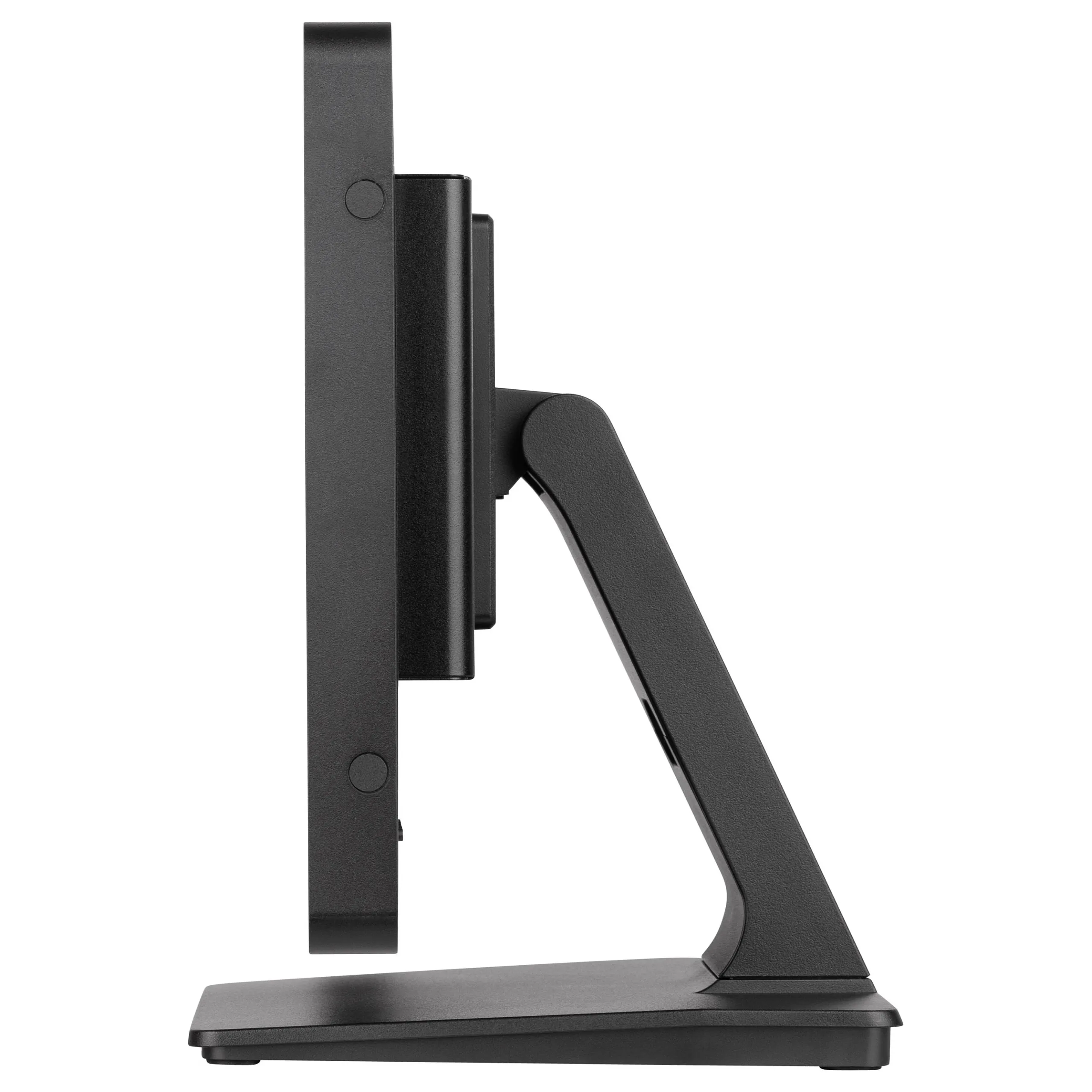

Feature: Tilt adjustment
Tilt angle range: 90 – 5°
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian
Number of OSD languages: 12
Power
Energy efficiency class (SDR): C
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 7.7 kWh
Power consumption (typical): 12 W
Power consumption (standby): 8 W
Power consumption (off): 0.5 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G
Weight & dimensions
Width (with stand): 389 mm
Depth (with stand): 200 mm
Height (with stand): 284 mm
Weight (with stand): 3.4 kg
Weight (without stand): 5.3 kg
Packaging data
Package width: 475 mm
Package depth: 169 mm
Package height: 343 mm
Package weight: 5.3 kg
Package type: Box
Packaging content
Cables included: AC, USB, HDMI
Feature: Power adapter included
Feature: Quick start guide
Sustainability
Sustainability certificates: ErP
Other features
International Protection (IP) code: IP54
Feature: AC adapter included
Brightness: 385 cd/m²
Packaging content: AC adapter
Active display area (W x H): 344.2 x 193.6 mm
Touch method: stylus, finger, glove (latex)
USB ports quantity: 2
Weight: 3.4 kg
Height: 284 mm
Width: 389 mm
Depth: 200 mm
Control panel: Power, Menu, Volume +, Volume -, Input
Compliance certificates: CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Certification: CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA
Technical details
Native refresh rate: 60 Hz
Display diagonal: 39.6 cm (15.6″)
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: IPS
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Display brightness (typical): 450 cd/m²
Display brightness: 385 cd/m²
Response time: 5 ms
Response time measurement type: GTG (Gray to Gray)
Screen shape: Flat
Contrast ratio (typical): 1000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.179 x 0.179 mm
Horizontal scan range: 30 – 68 kHz
Viewable size, horizontal: 34.4 cm
Viewable size, vertical: 19.4 cm
Display diagonal (metric): 39.5 cm
Performance
Feature: Low Blue Light technology
Feature: Palm rejection
Multimedia
Number of speakers: 2
RMS rated power: 4 W
Feature: Built-in speaker(s)
Design
Market positioning: Home
Product colour: Black
Front bezel colour: Black
Ports & interfaces
Feature: Built-in USB hub
USB hub version: 2.0
Number of downstream ports: 2
Feature: USB Touch port
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: HDCP
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable management
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Tilt adjustment
Tilt angle range: 90 – 5°
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian
Number of OSD languages: 12
Power
Energy efficiency class (SDR): C
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 7.7 kWh
Power consumption (typical): 12 W
Power consumption (standby): 8 W
Power consumption (off): 0.5 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G
Weight & dimensions
Width (with stand): 389 mm
Depth (with stand): 200 mm
Height (with stand): 284 mm
Weight (with stand): 3.4 kg
Weight (without stand): 5.3 kg
Packaging data
Package width: 475 mm
Package depth: 169 mm
Package height: 343 mm
Package weight: 5.3 kg
Package type: Box
Packaging content
Cables included: AC, USB, HDMI
Feature: Power adapter included
Feature: Quick start guide
Sustainability
Sustainability certificates: ErP
Other features
International Protection (IP) code: IP54
Feature: AC adapter included
Brightness: 385 cd/m²
Packaging content: AC adapter
Active display area (W x H): 344.2 x 193.6 mm
Touch method: stylus, finger, glove (latex)
USB ports quantity: 2
Weight: 3.4 kg
Height: 284 mm
Width: 389 mm
Depth: 200 mm
Control panel: Power, Menu, Volume +, Volume -, Input
Compliance certificates: CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Certification: CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA
Technical details
Native refresh rate: 60 Hz
