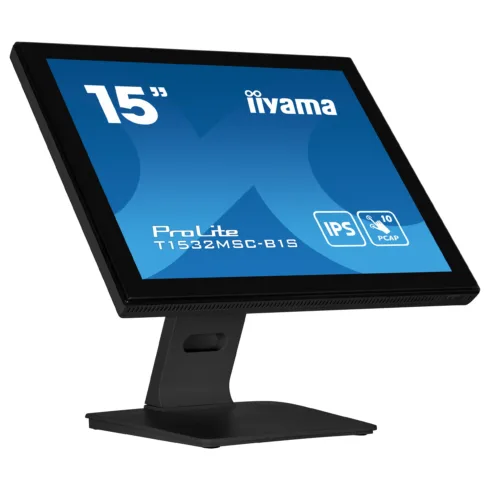

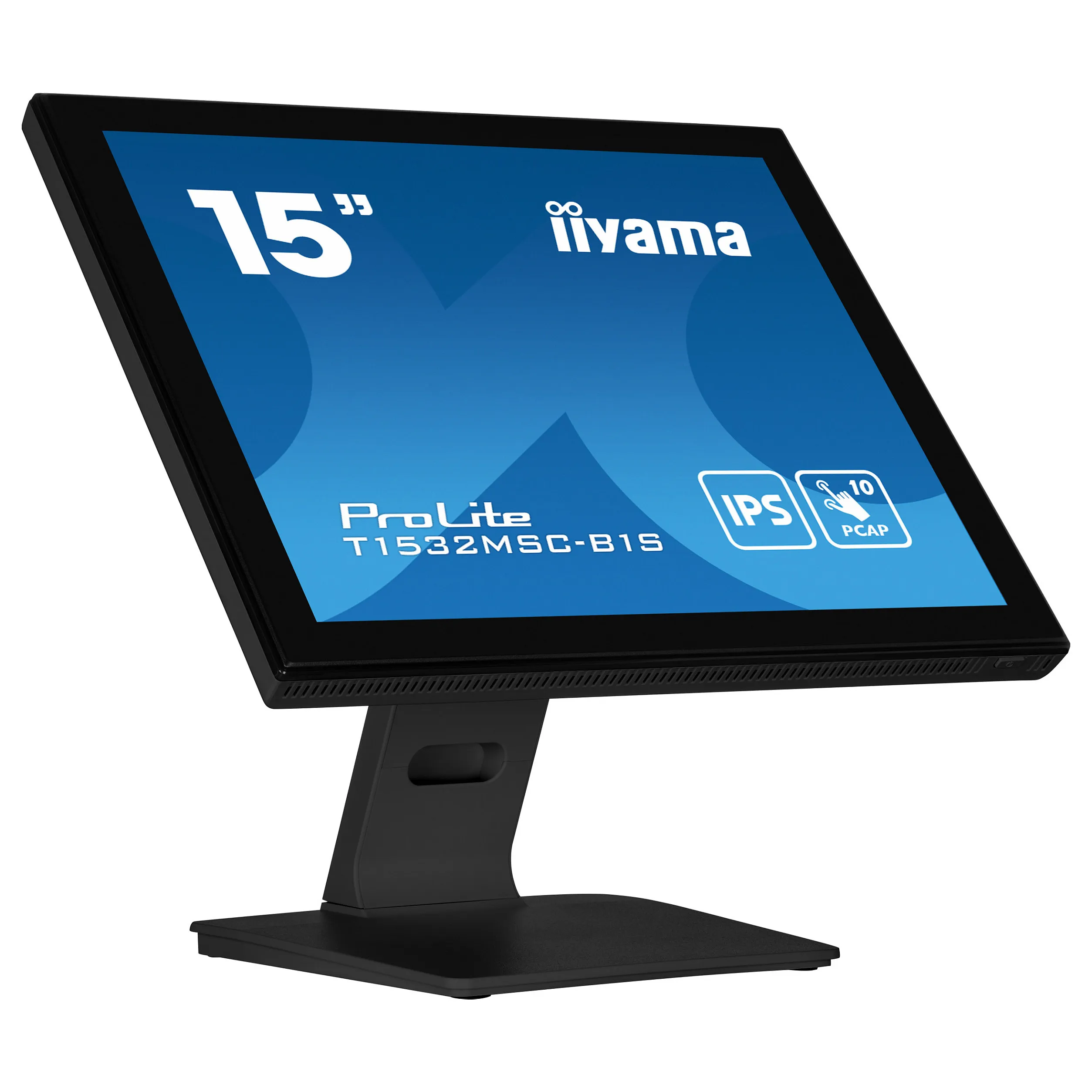

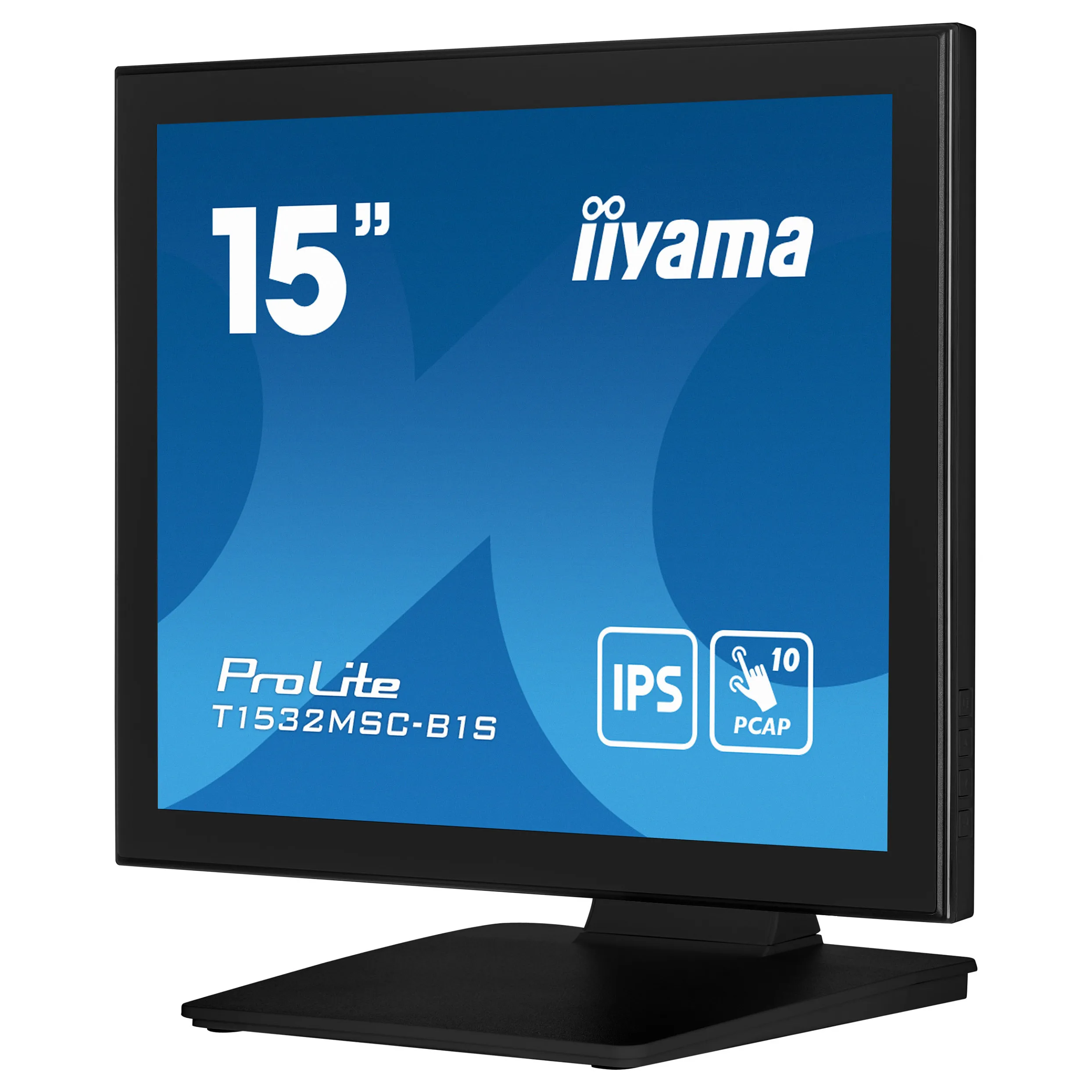

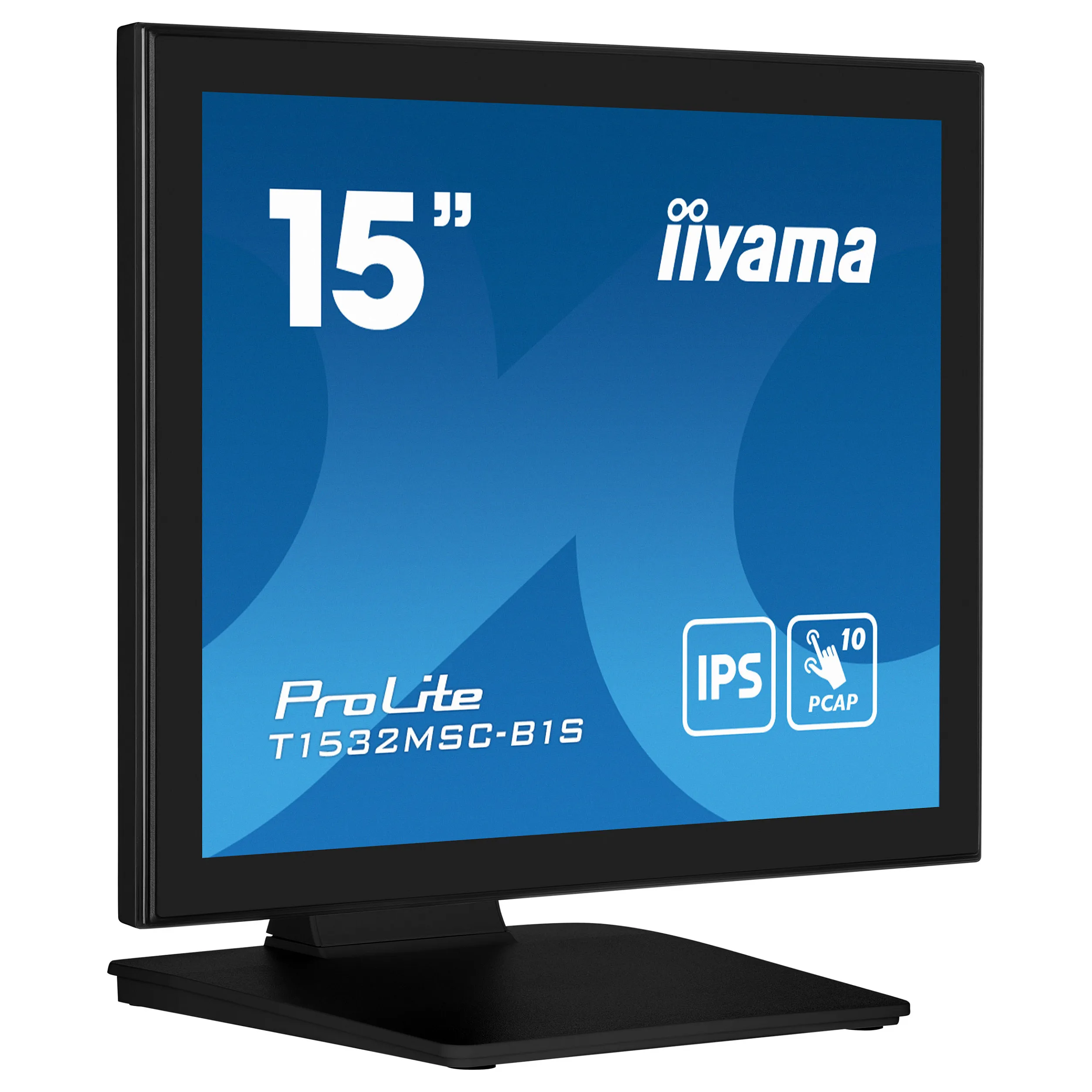

iiyama ProLite T1532MSC-B1S. Display diagonal: 38.1 cm (15"), Display resolution: 1024 x 768 pixels, HD type: XGA, Display technology: LCD, Response time: 8 ms, Native aspect ratio: 4:3, Viewing angle, horizontal: 176°, Viewing angle, vertical: 176°. Built-in speaker(s). VESA mounting. Product colour: Black

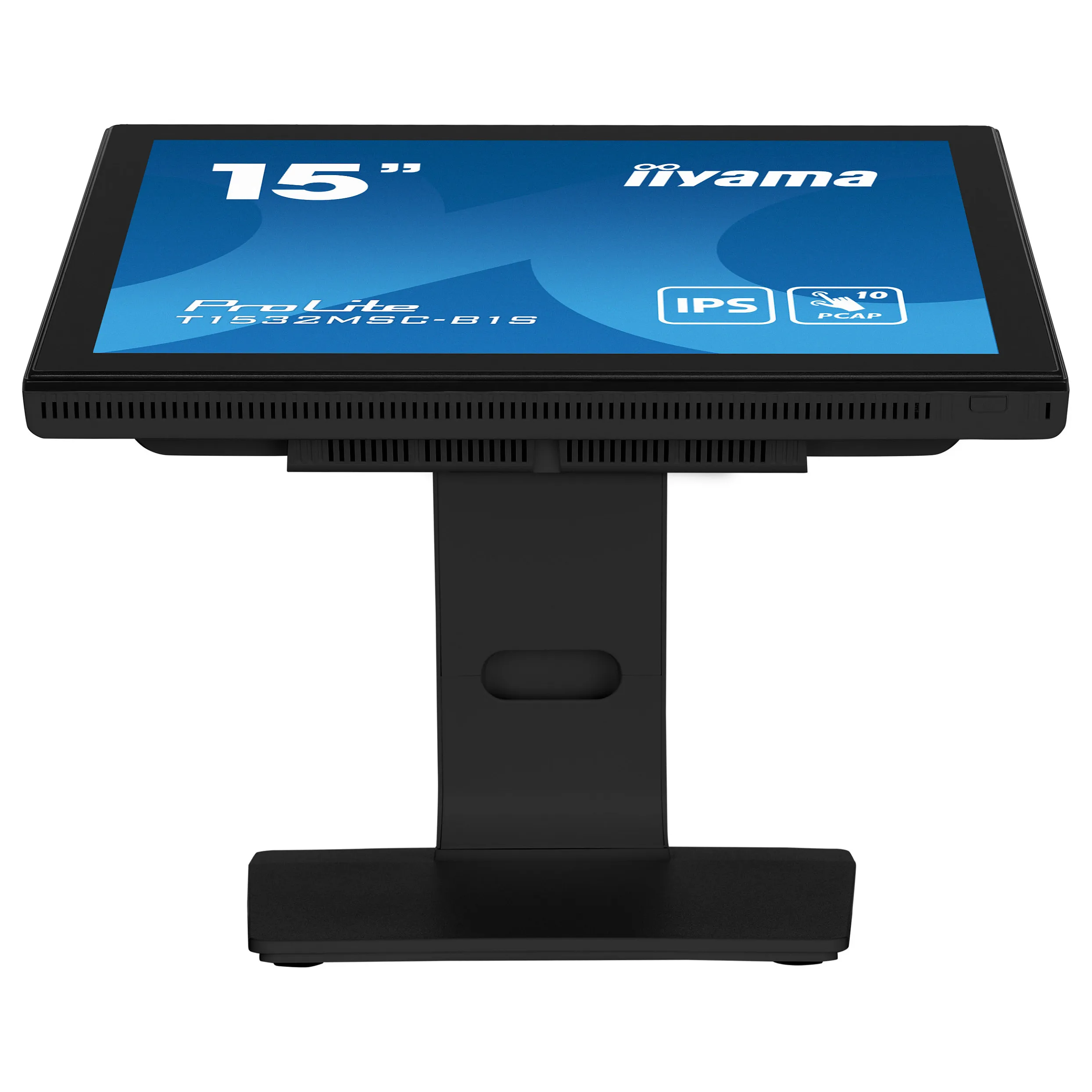

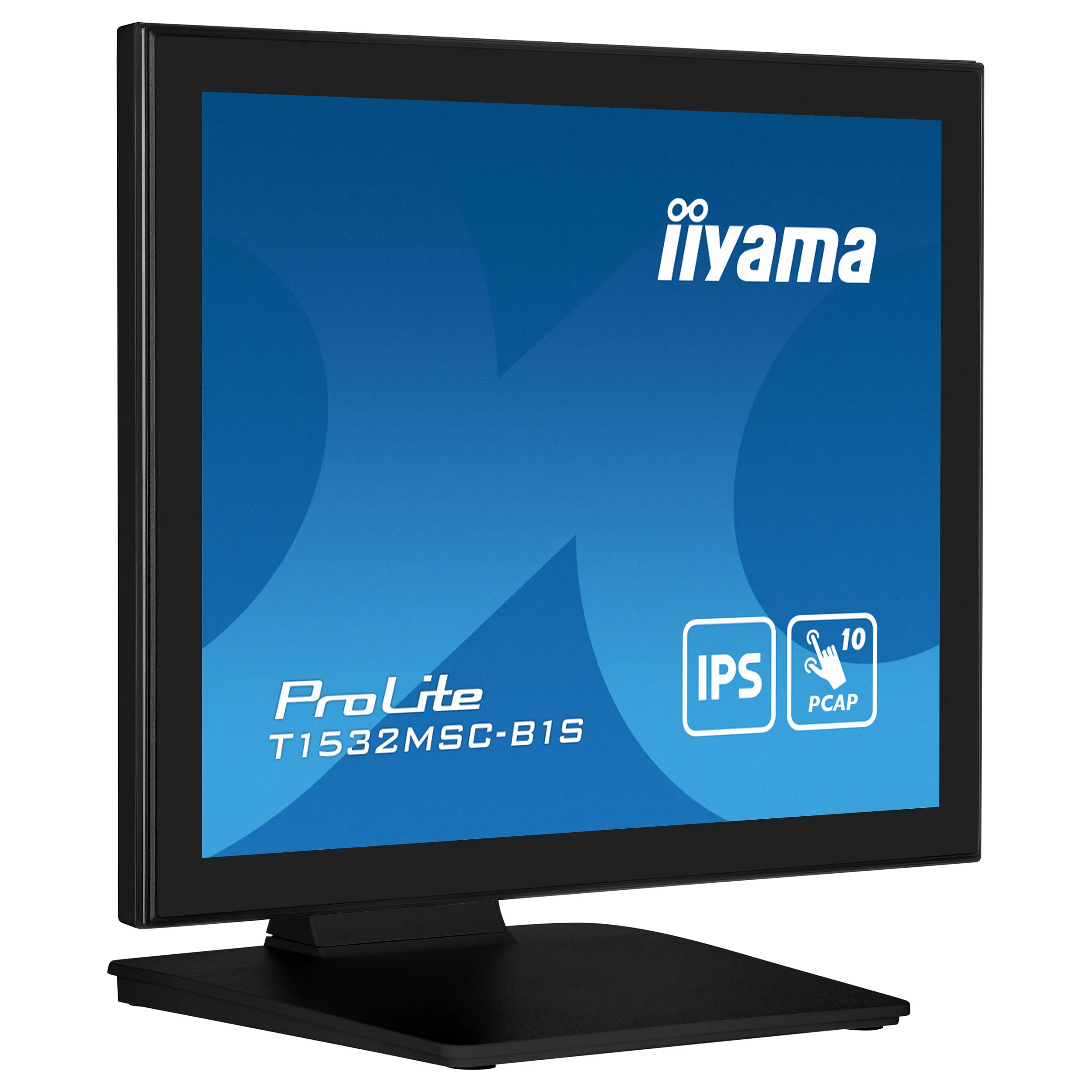

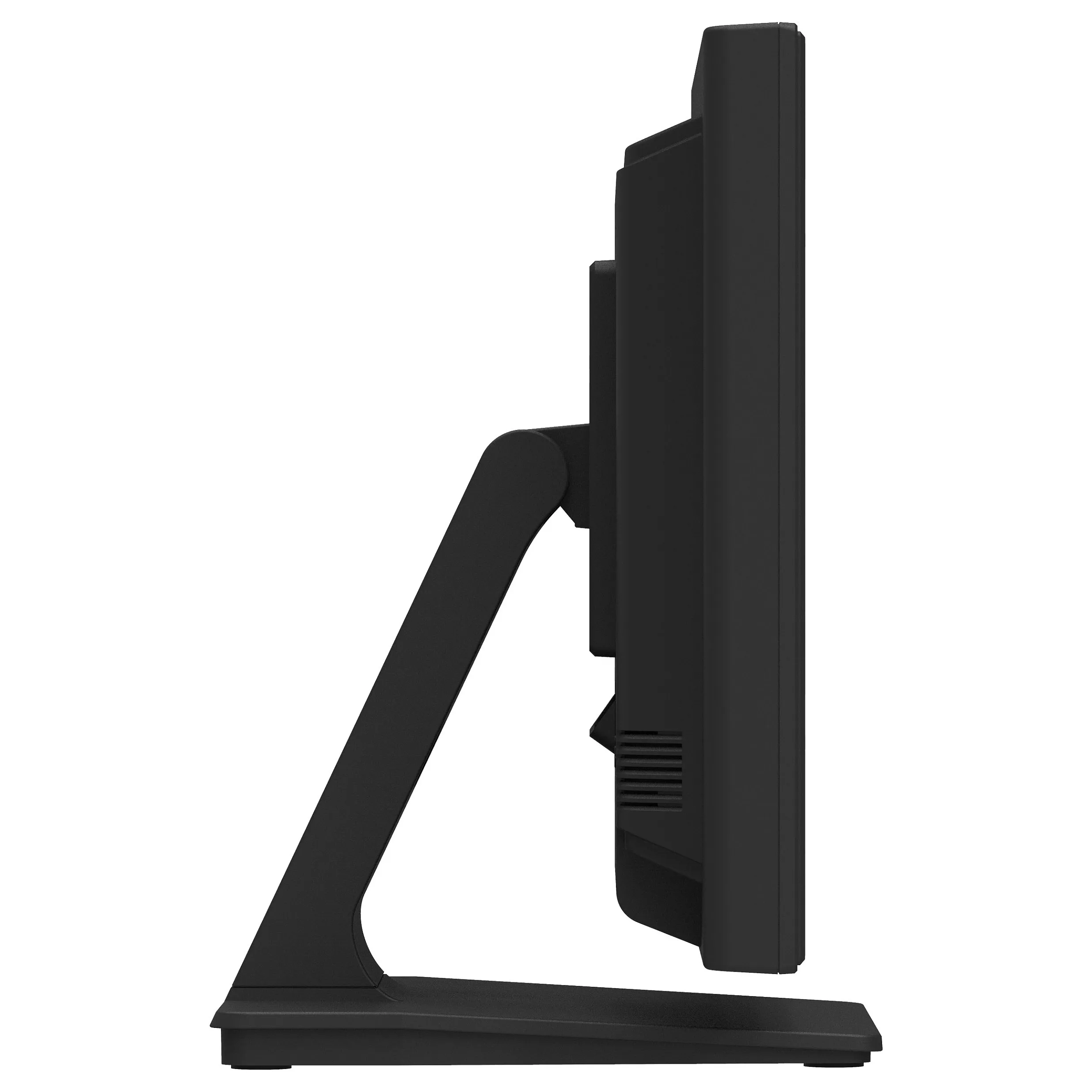

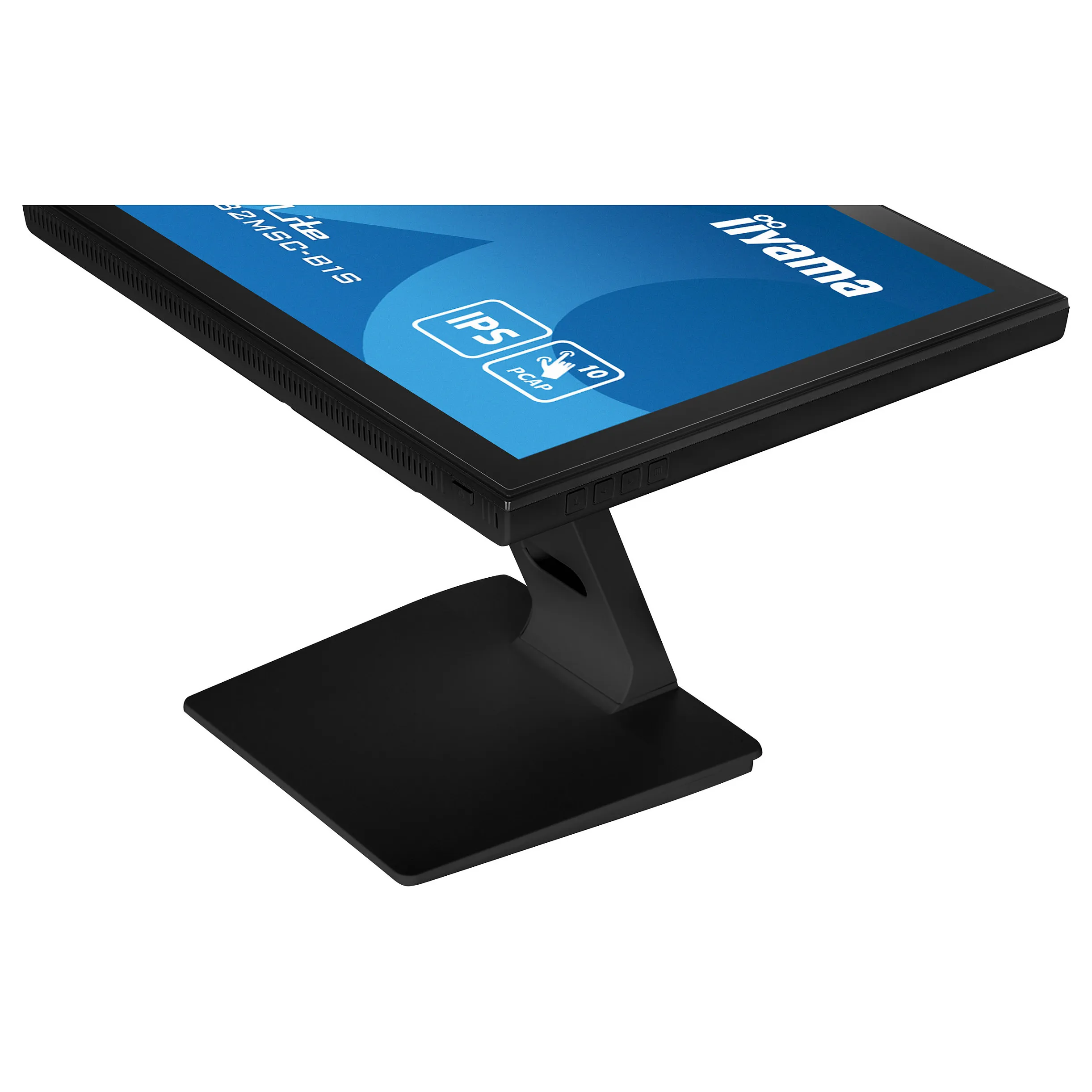

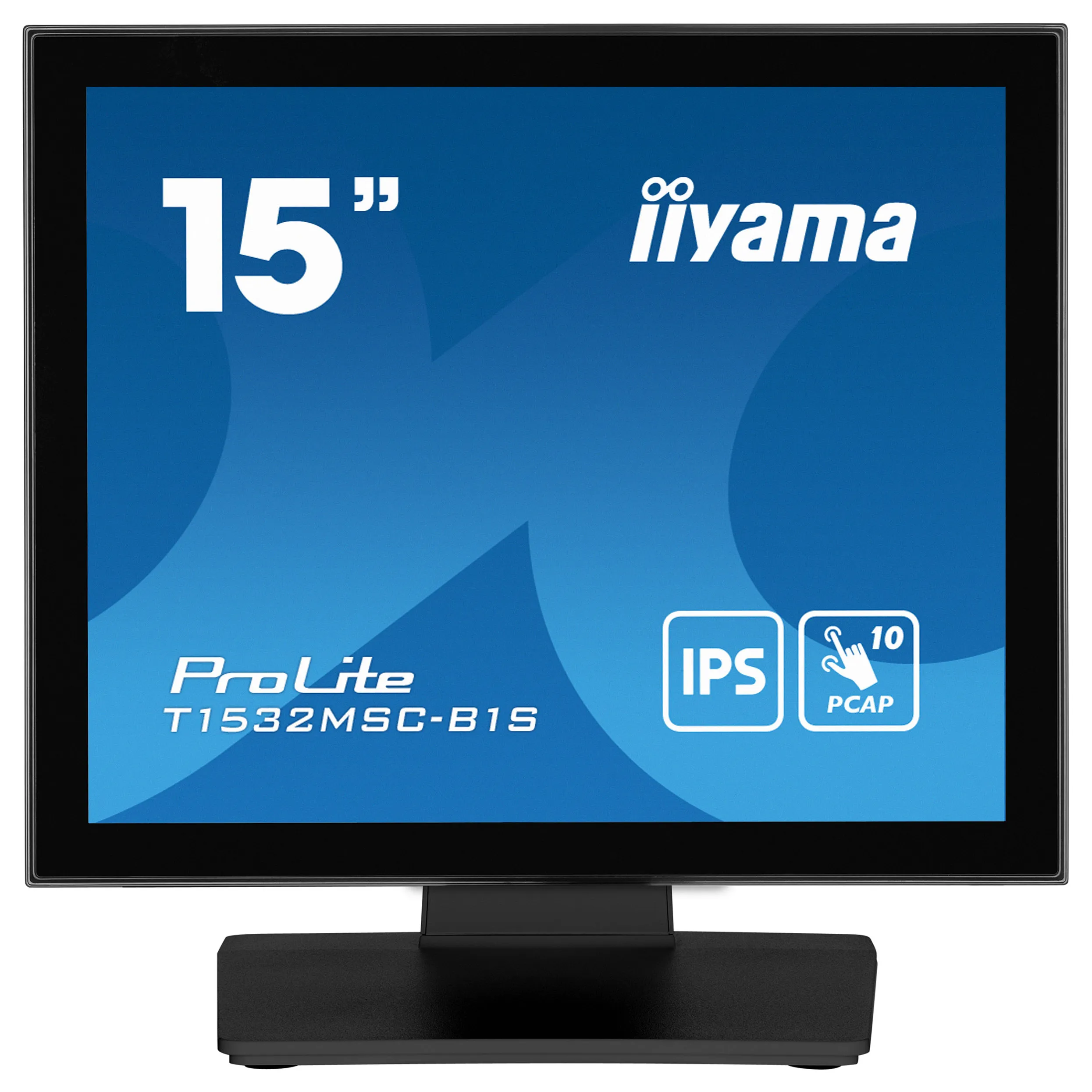

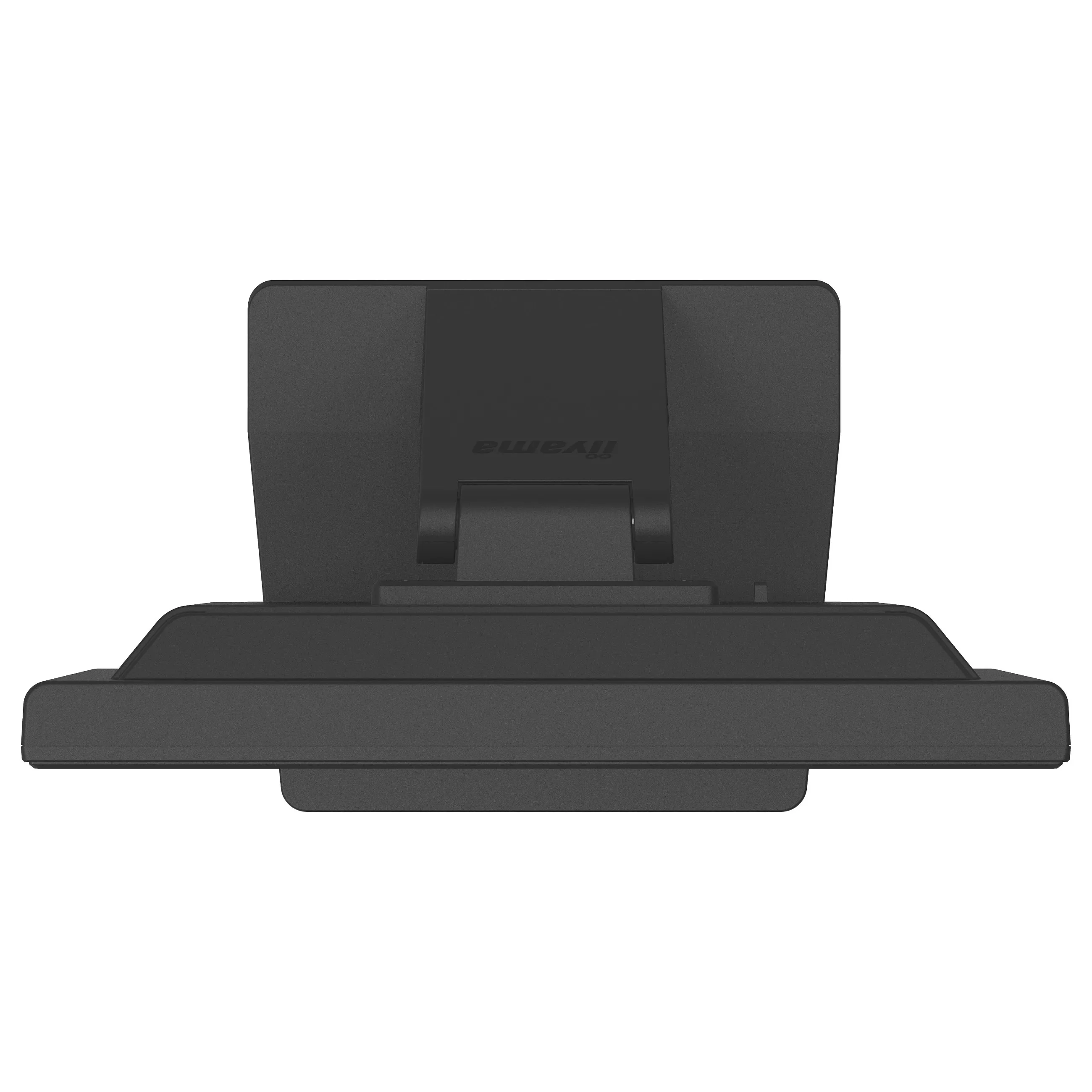

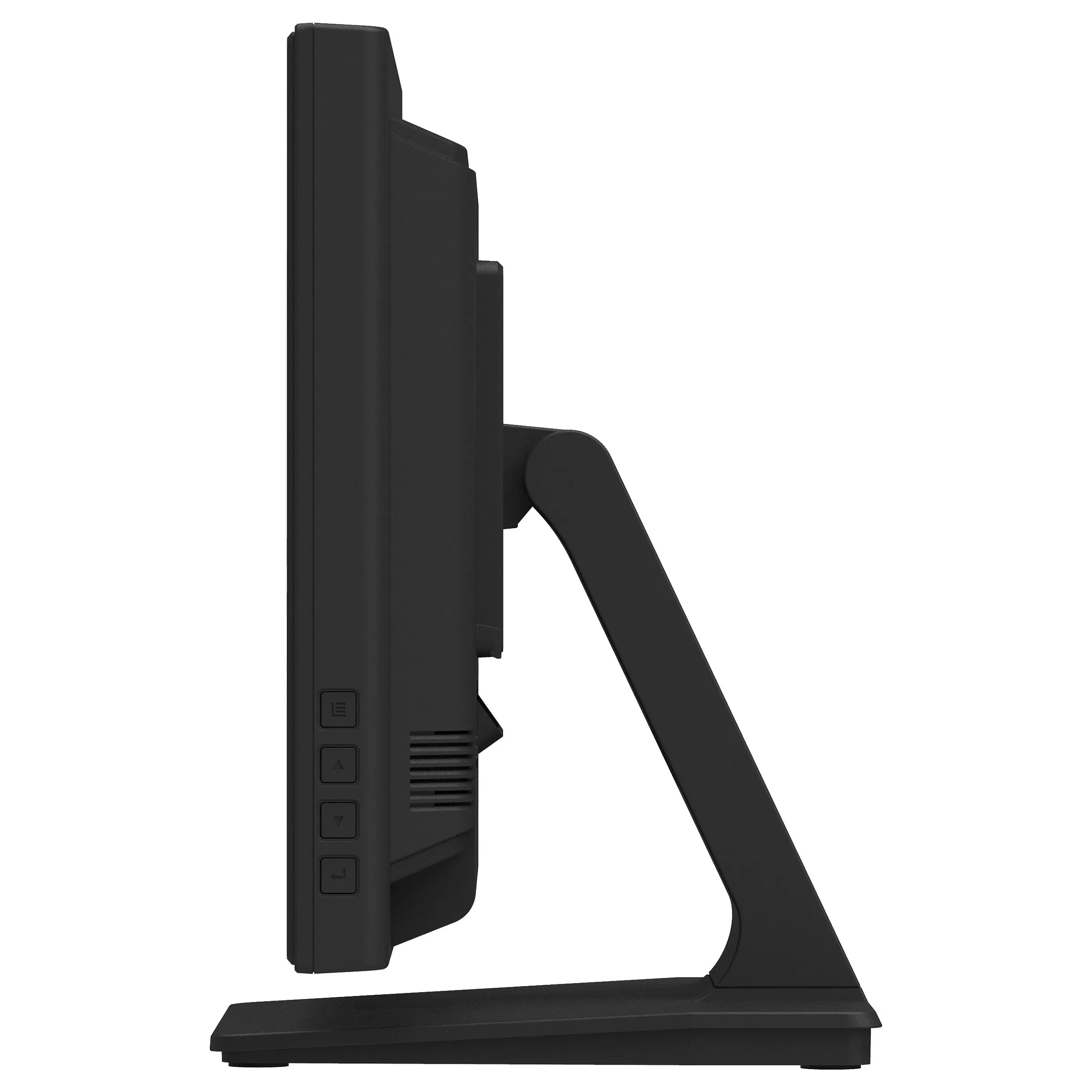

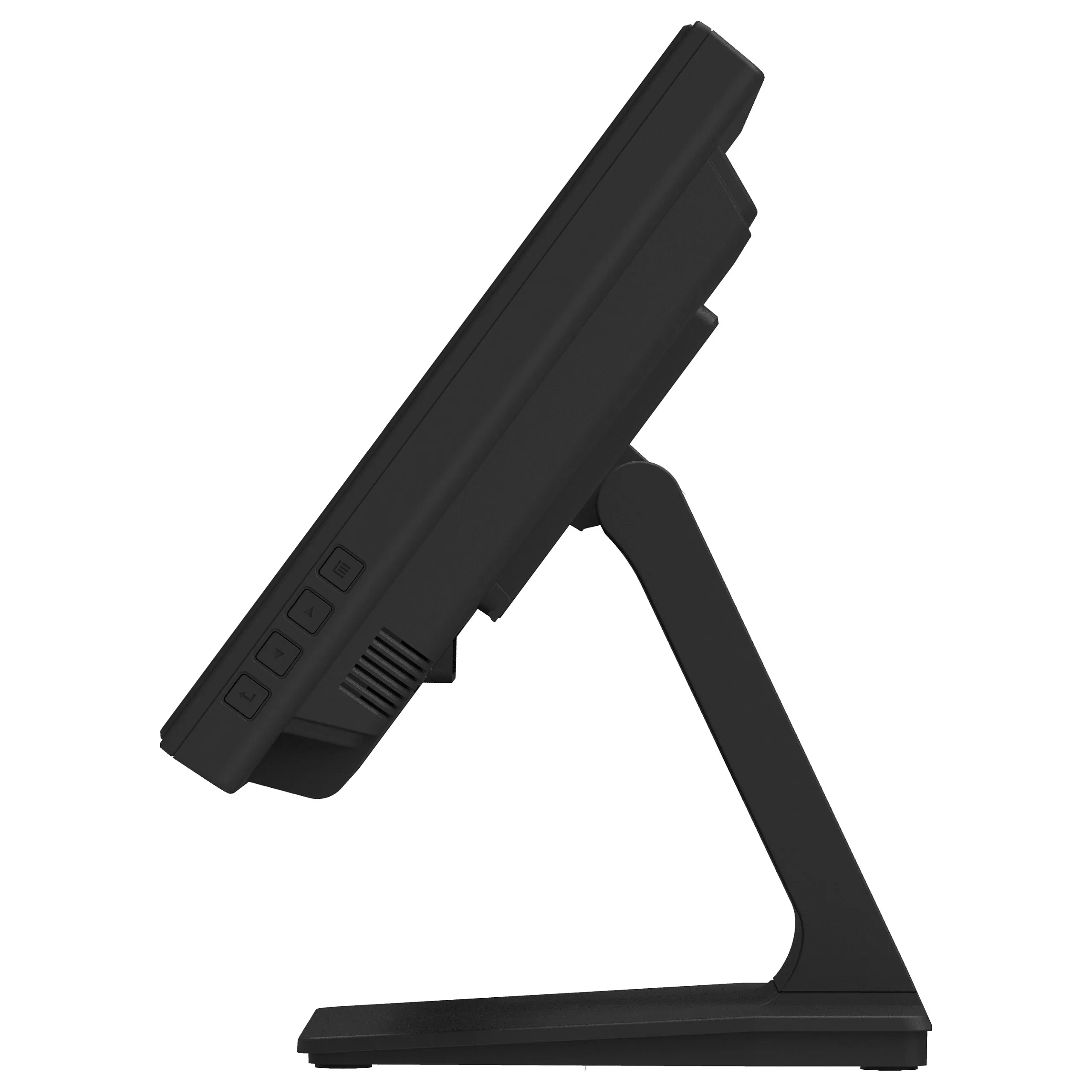

The ProLite T1532MSC-B1S 15″ multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touchscreen with an adjustable stand offering full 90 degree positioning angles. Menu buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the touchscreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.
Display
Display diagonal: 38.1 cm (15″)
Display resolution: 1024 x 768 pixels
HD type: XGA
Native aspect ratio: 4:3
Display technology: LCD
Panel type: TN
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (typical): 350 cd/m²
Display brightness: 315 cd/m²
Response time: 8 ms
Screen shape: Flat
Contrast ratio (typical): 800:1
Viewing angle, horizontal: 176°
Viewing angle, vertical: 176°
Pixel pitch: 0.297 x 0.297 mm
Horizontal scan range: 31 – 60 kHz
Viewable size, horizontal: 30.4 cm
Viewable size, vertical: 22.8 cm
Digital horizontal frequency: 31 – 60 kHz
Display diagonal (metric): 38 cm
Multimedia
Number of speakers: 2
RMS rated power: 2 W
Feature: Built-in speaker(s)
Design
Product colour: Black
Front bezel colour: Black

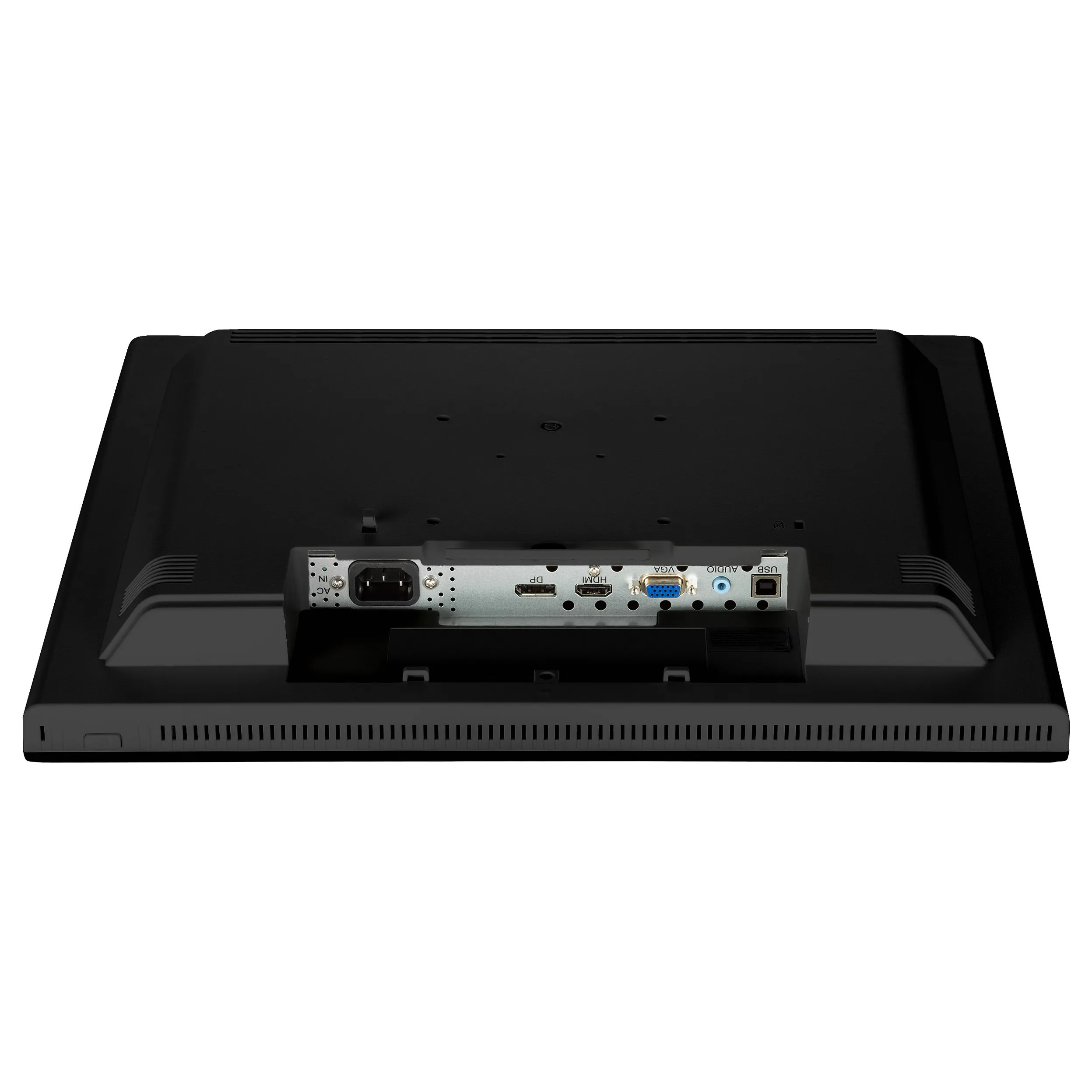

Ports & interfaces
Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: HDCP
Ergonomics

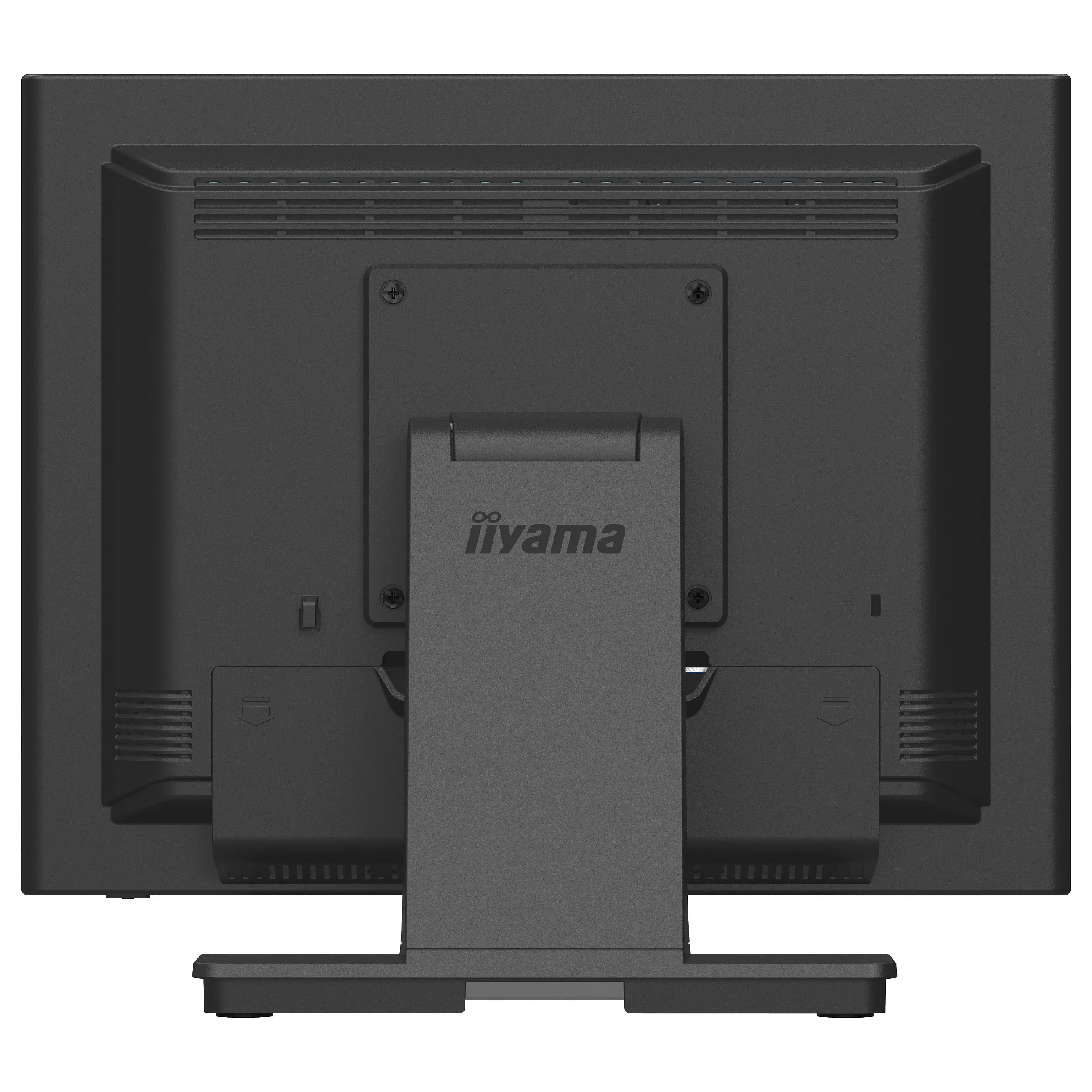

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm

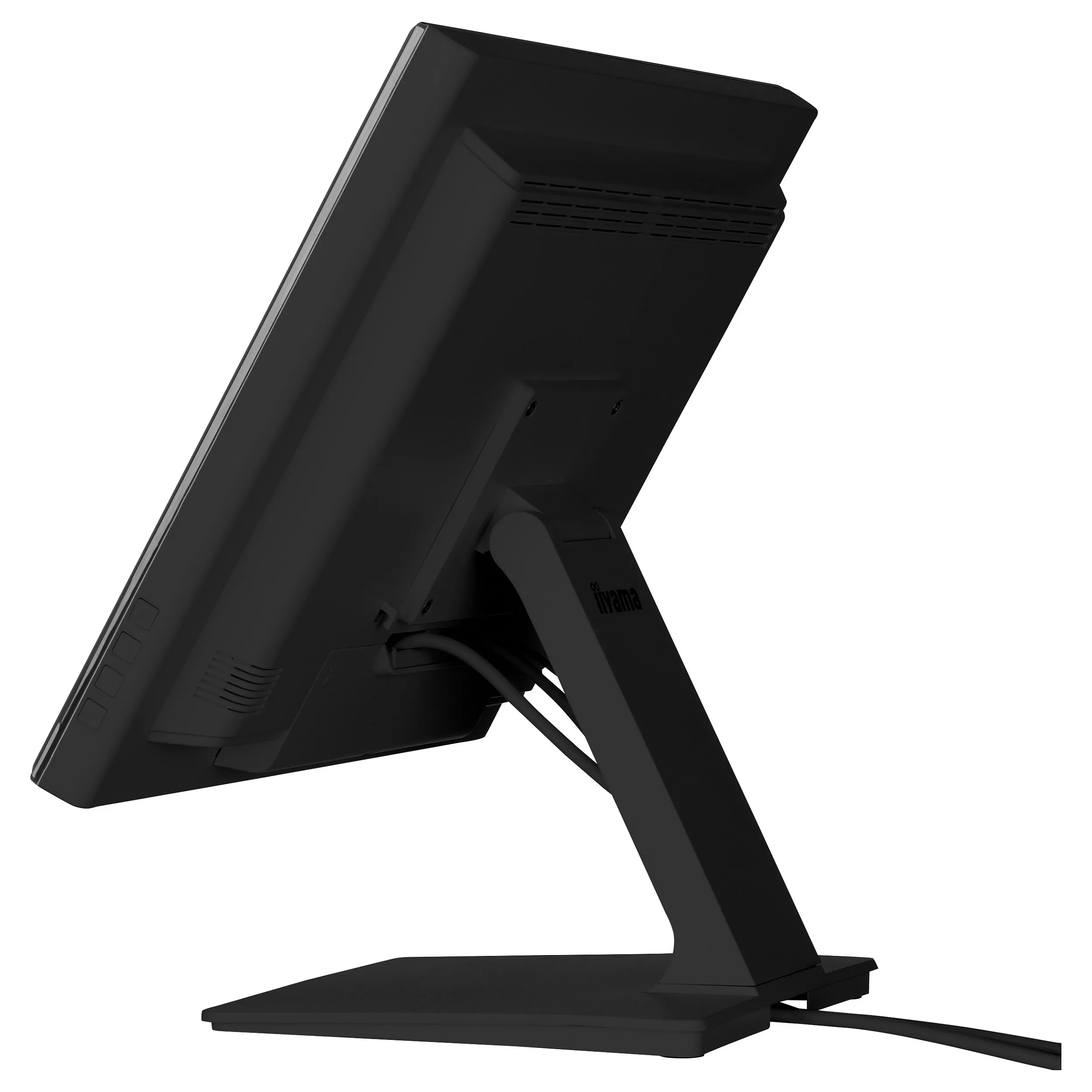

Feature: Cable management
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Tilt adjustment

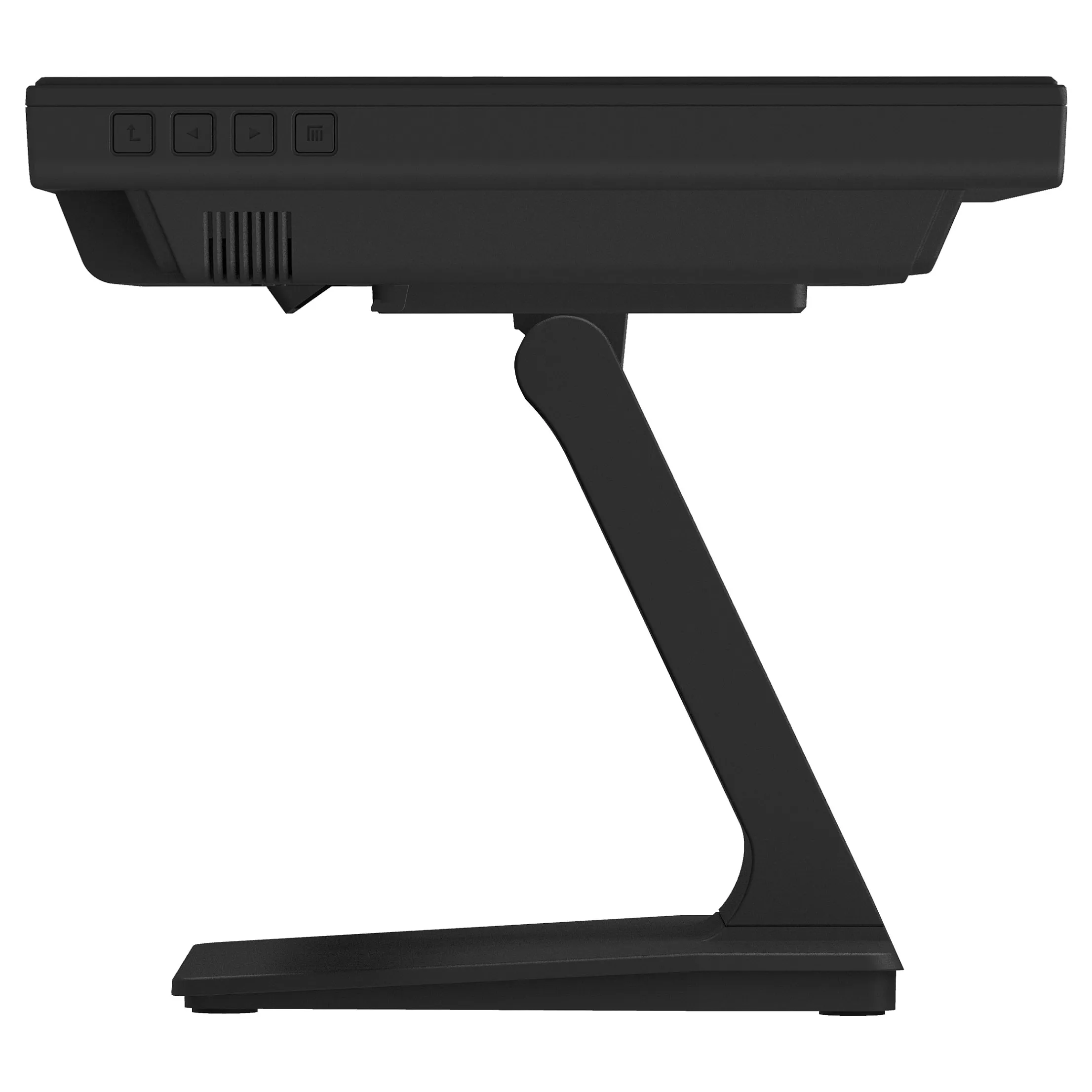

Tilt angle range: -5 – 90°
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Power
Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 10.1 kWh
Power consumption (typical): 16 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power supply type: Internal
Weight & dimensions
Width (with stand): 351 mm
Depth (with stand): 200 mm
Height (with stand): 306.5 mm
Weight (with stand): 3.7 kg
Packaging content

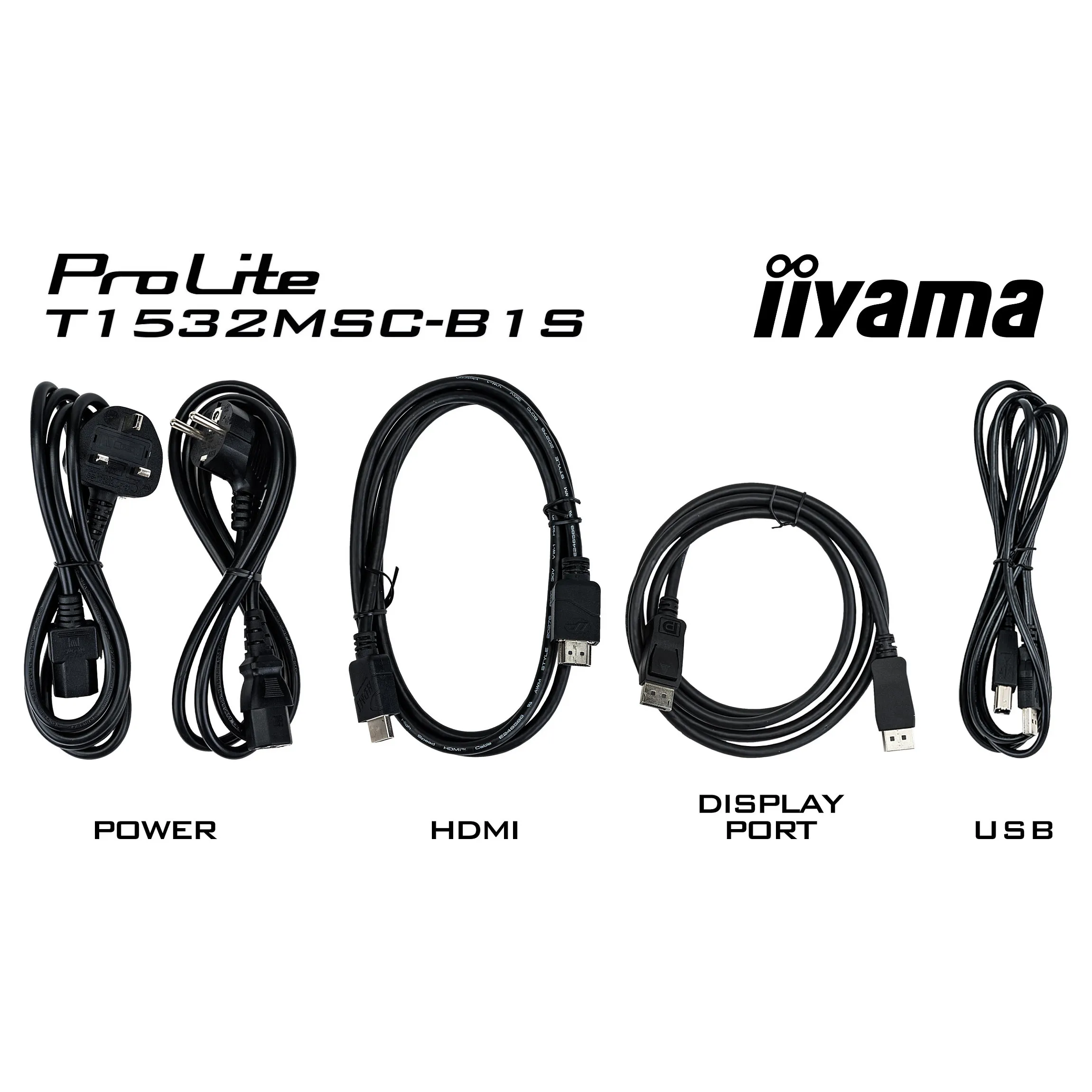

Cables included: AC, USB, HDMI, DisplayPort, Audio
Feature: Quick start guide
Sustainability
Sustainability certificates: ErP
Other features
International Protection (IP) code: IP54
Brightness: 315 cd/m²
Active display area (W x H): 304.1 x 228.1 mm
Touch method: stylus, finger, glove (latex)
Weight: 3.7 kg
Height: 306.5 mm
Width: 351 mm
Depth: 200 mm
Control panel: Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE
Display diagonal: 38.1 cm (15″)
Display resolution: 1024 x 768 pixels
HD type: XGA
Native aspect ratio: 4:3
Display technology: LCD
Panel type: TN
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (typical): 350 cd/m²
Display brightness: 315 cd/m²
Response time: 8 ms
Screen shape: Flat
Contrast ratio (typical): 800:1
Viewing angle, horizontal: 176°
Viewing angle, vertical: 176°
Pixel pitch: 0.297 x 0.297 mm
Horizontal scan range: 31 – 60 kHz
Viewable size, horizontal: 30.4 cm
Viewable size, vertical: 22.8 cm
Digital horizontal frequency: 31 – 60 kHz
Display diagonal (metric): 38 cm
Multimedia
Number of speakers: 2
RMS rated power: 2 W
Feature: Built-in speaker(s)
Design
Product colour: Black
Front bezel colour: Black
Ports & interfaces
Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: HDCP
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable management
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Tilt adjustment
Tilt angle range: -5 – 90°
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Power
Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 10.1 kWh
Power consumption (typical): 16 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power supply type: Internal
Weight & dimensions
Width (with stand): 351 mm
Depth (with stand): 200 mm
Height (with stand): 306.5 mm
Weight (with stand): 3.7 kg
Packaging content
Cables included: AC, USB, HDMI, DisplayPort, Audio
Feature: Quick start guide
Sustainability
Sustainability certificates: ErP
Other features
International Protection (IP) code: IP54
Brightness: 315 cd/m²
Active display area (W x H): 304.1 x 228.1 mm
Touch method: stylus, finger, glove (latex)
Weight: 3.7 kg
Height: 306.5 mm
Width: 351 mm
Depth: 200 mm
Control panel: Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE
