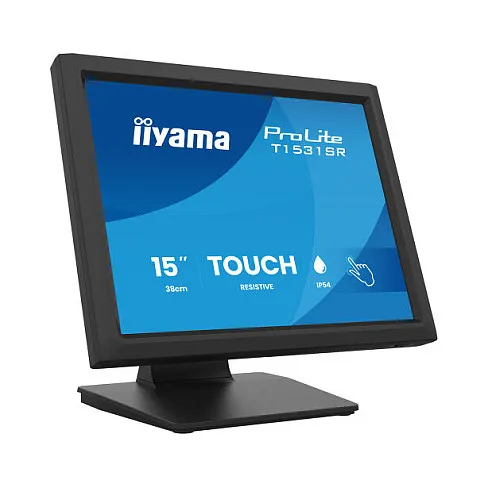

iiyama ProLite T1531SR-B2S. Display diagonal: 38.1 cm (15"), Display resolution: 1024 x 768 pixels, HD type: XGA, Response time: 18 ms, Native aspect ratio: 4:3, Viewing angle, horizontal: 176°, Viewing angle, vertical: 176°. Built-in speaker(s). VESA mounting. Product colour: Black
The ProLite T1531SR-B2S is designed for workplaces where touch interaction needs to be simple, reliable and practical. Its 5-wire resistive touch technology responds to almost any suitable input method, including a finger, glove, stylus or pen-like tool. This makes it ideal for environments where users work quickly, wear gloves or need dependable touch operation without relying on bare fingers. With its IP54-rated front surface, the display is protected against dust and splashing water from the front, making it a strong choice for retail counters, restaurants, workshops, warehouses and light industrial applications. The monitor also offers flexible analogue and digital inputs with USB touch support for easy integration. An adjustable ergonomic stand and integrated cable management help create a clean, comfortable and professional workspace.
Display
Display diagonal: 38.1 cm (15″)
Display resolution: 1024 x 768 pixels
HD type: XGA
Native aspect ratio: 4:3
Panel type: VA
Feature: Touchscreen
Touchscreen type: Tabletop
Touchscreen technology: Resistive
Number of simultaneous touchpoints: 1
Display brightness: 270 cd/m²
Response time: 18 ms
Screen shape: Flat
Contrast ratio (typical): 2500:1
Maximum refresh rate: 75 Hz
Viewing angle, horizontal: 176°
Viewing angle, vertical: 176°
Display number of colours: 16.2 million colours
Pixel pitch: 0.297 x 0.297 mm
Horizontal scan range: 31 – 60 kHz
Viewable size, horizontal: 30.4 cm
Viewable size, vertical: 22.8 cm
Display diagonal (metric): 38 cm
Multimedia
Number of speakers: 2
RMS rated power: 2 W
Feature: Built-in speaker(s)
Design
Market positioning: Industrial
Product colour: Black
Front bezel colour: Black
Ports & interfaces
Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Audio input: Yes
Feature: HDCP
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Wall mountable
Feature: Cable management
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Tilt adjustment
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Power
Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 11 kWh
Power consumption (typical): 16 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power supply type: Internal
Energy efficiency scale: A to G
Weight & dimensions
Width (with stand): 351 mm
Depth (with stand): 200 mm
Height (with stand): 306.5 mm
Weight (with stand): 4.1 kg
Packaging data
Package width: 425 mm
Package depth: 160 mm
Package height: 410 mm
Package weight: 5.9 kg
USB cable length: 1.8 m
Packaging content
Cables included: AC, USB, HDMI, DisplayPort, Audio
Feature: Quick start guide
Audio cable length: 1.8 m
DisplayPort cable length: 1.8 m
HDMI cable length: 1.8 m
Power cable length: 1.8 m
Sustainability
Sustainability certificates: ErP
Other features
International Protection (IP) code: IP54
Brightness: 270 cd/m²
Packaging content: Screwdriver
Active display area (W x H): 304 x 228 mm
Touch method: stylus, finger, glove, glove (latex)
Weight: 4.1 kg
Height: 306.5 mm
Width: 351 mm
Depth: 200 mm
Control panel: Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE
Mean time between failures (MTBF): 50000 h
Certification: CE, EAC, VCCI-B, RoHS podrška, ErP, WEEE, cULus, REACH, UKCA
Technical details
Native refresh rate: 75 Hz
Display diagonal: 38.1 cm (15″)
Display resolution: 1024 x 768 pixels
HD type: XGA
Native aspect ratio: 4:3
Panel type: VA
Feature: Touchscreen
Touchscreen type: Tabletop
Touchscreen technology: Resistive
Number of simultaneous touchpoints: 1
Display brightness: 270 cd/m²
Response time: 18 ms
Screen shape: Flat
Contrast ratio (typical): 2500:1
Maximum refresh rate: 75 Hz
Viewing angle, horizontal: 176°
Viewing angle, vertical: 176°
Display number of colours: 16.2 million colours
Pixel pitch: 0.297 x 0.297 mm
Horizontal scan range: 31 – 60 kHz
Viewable size, horizontal: 30.4 cm
Viewable size, vertical: 22.8 cm
Display diagonal (metric): 38 cm
Multimedia
Number of speakers: 2
RMS rated power: 2 W
Feature: Built-in speaker(s)
Design
Market positioning: Industrial
Product colour: Black
Front bezel colour: Black
Ports & interfaces
Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Audio input: Yes
Feature: HDCP
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Wall mountable
Feature: Cable management
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Tilt adjustment
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Power
Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 11 kWh
Power consumption (typical): 16 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power supply type: Internal
Energy efficiency scale: A to G
Weight & dimensions
Width (with stand): 351 mm
Depth (with stand): 200 mm
Height (with stand): 306.5 mm
Weight (with stand): 4.1 kg
Packaging data
Package width: 425 mm
Package depth: 160 mm
Package height: 410 mm
Package weight: 5.9 kg
USB cable length: 1.8 m
Packaging content
Cables included: AC, USB, HDMI, DisplayPort, Audio
Feature: Quick start guide
Audio cable length: 1.8 m
DisplayPort cable length: 1.8 m
HDMI cable length: 1.8 m
Power cable length: 1.8 m
Sustainability
Sustainability certificates: ErP
Other features
International Protection (IP) code: IP54
Brightness: 270 cd/m²
Packaging content: Screwdriver
Active display area (W x H): 304 x 228 mm
Touch method: stylus, finger, glove, glove (latex)
Weight: 4.1 kg
Height: 306.5 mm
Width: 351 mm
Depth: 200 mm
Control panel: Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE
Mean time between failures (MTBF): 50000 h
Certification: CE, EAC, VCCI-B, RoHS podrška, ErP, WEEE, cULus, REACH, UKCA
Technical details
Native refresh rate: 75 Hz
