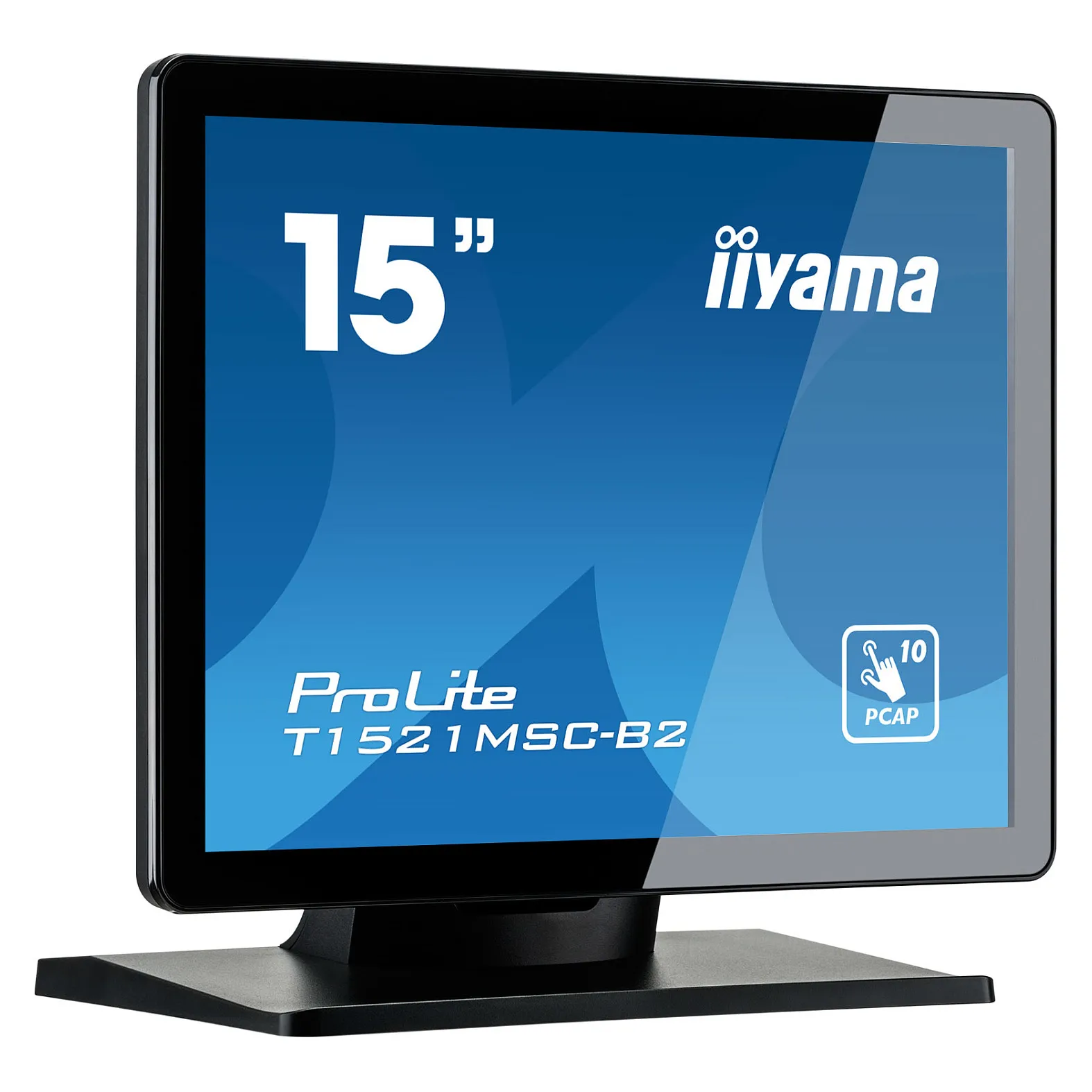

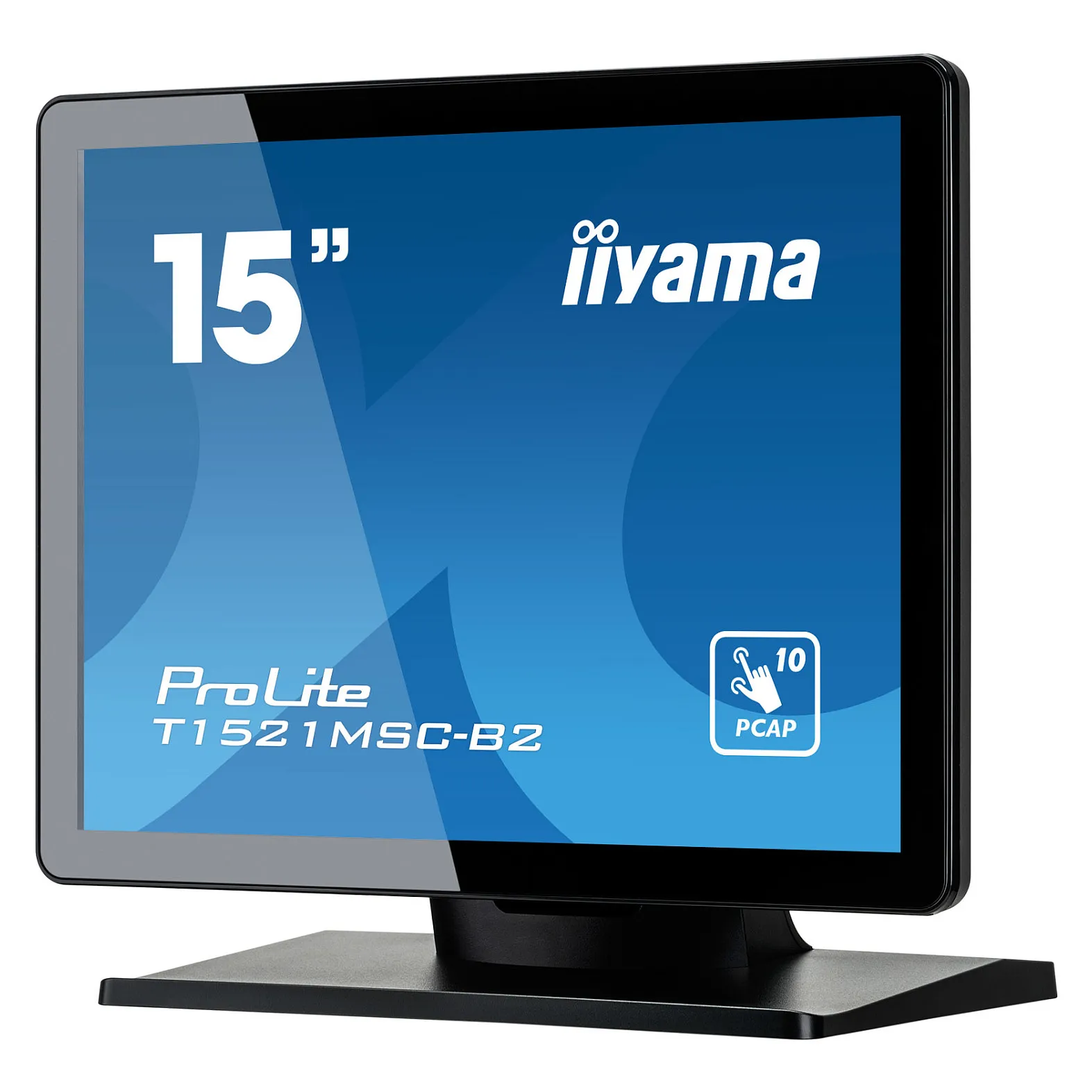

iiyama ProLite T1521MSC-B2. Display diagonal: 38.1 cm (15"), Display resolution: 1024 x 768 pixels, HD type: XGA, Display technology: LED, Display surface: Matt, Response time: 8 ms, Native aspect ratio: 4:3, Viewing angle, horizontal: 170°, Viewing angle, vertical: 160°. Built-in speaker(s). VESA mounting. Product colour: Black

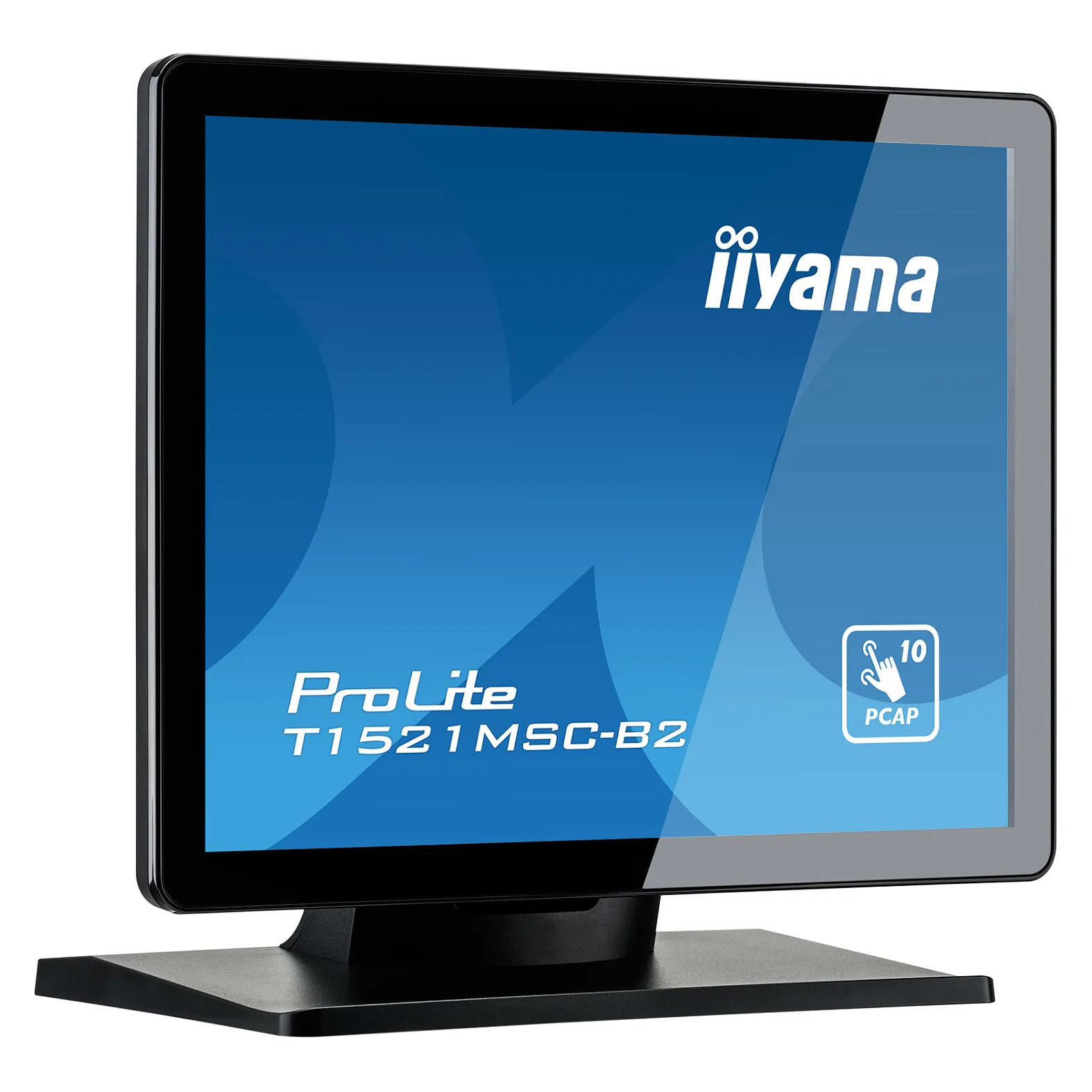

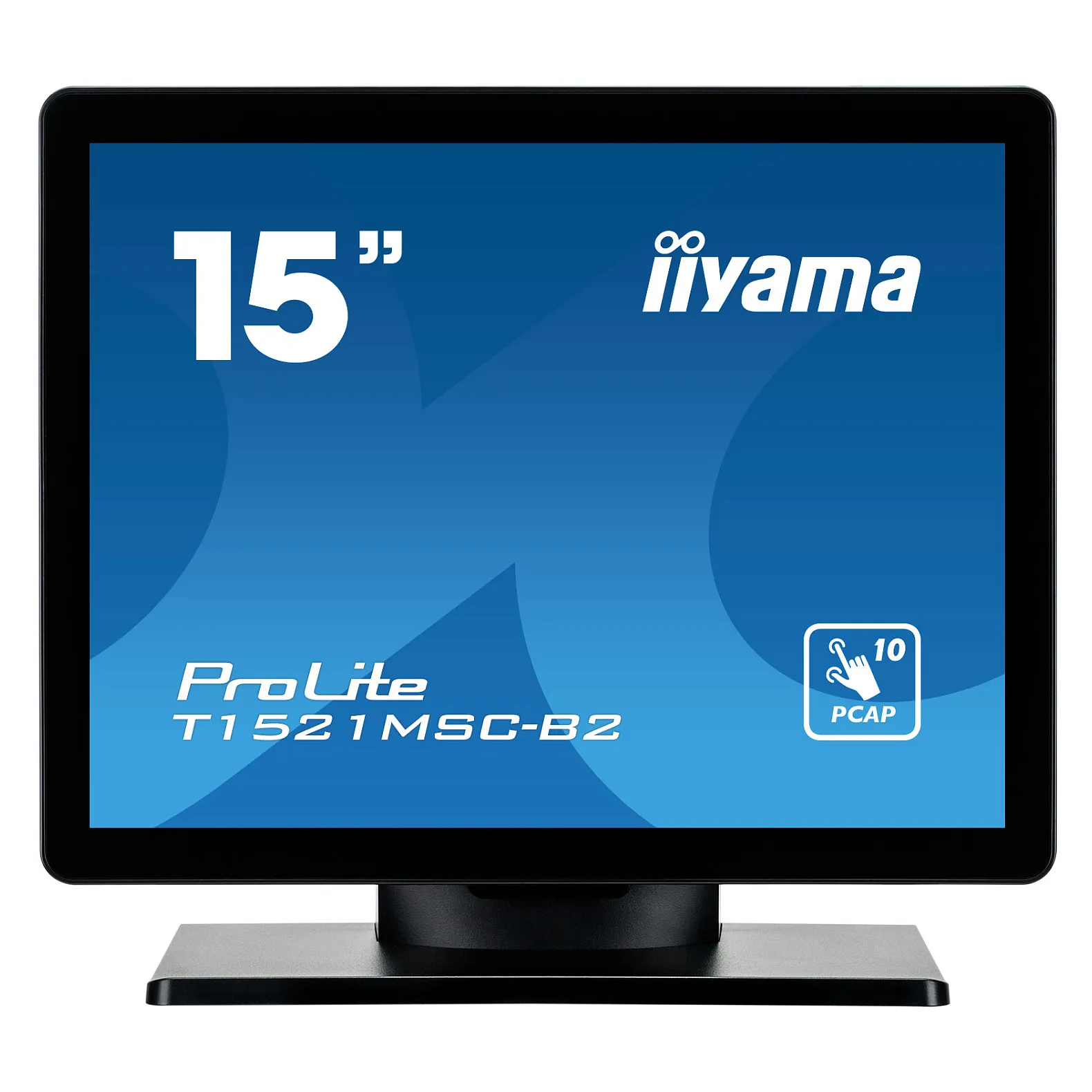

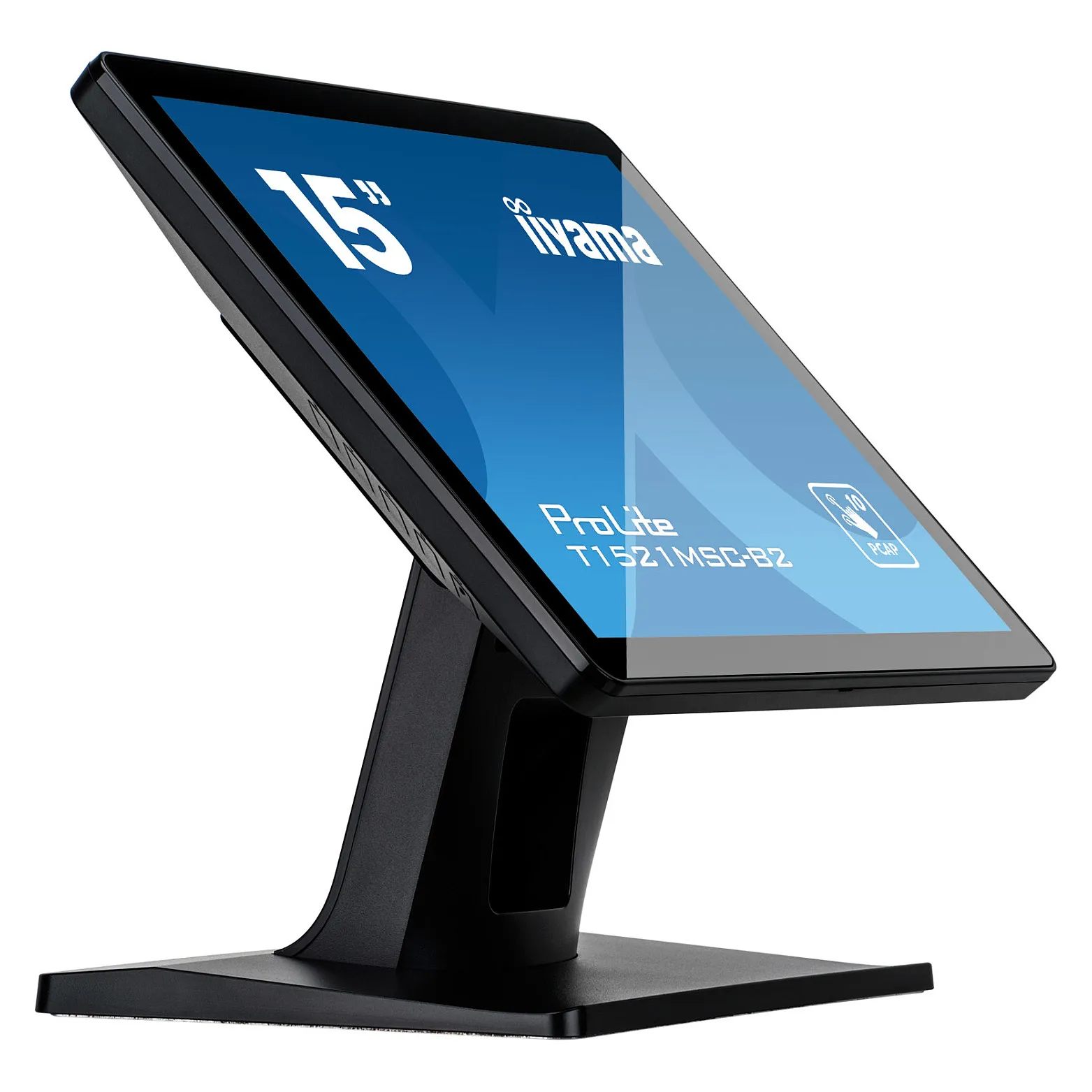

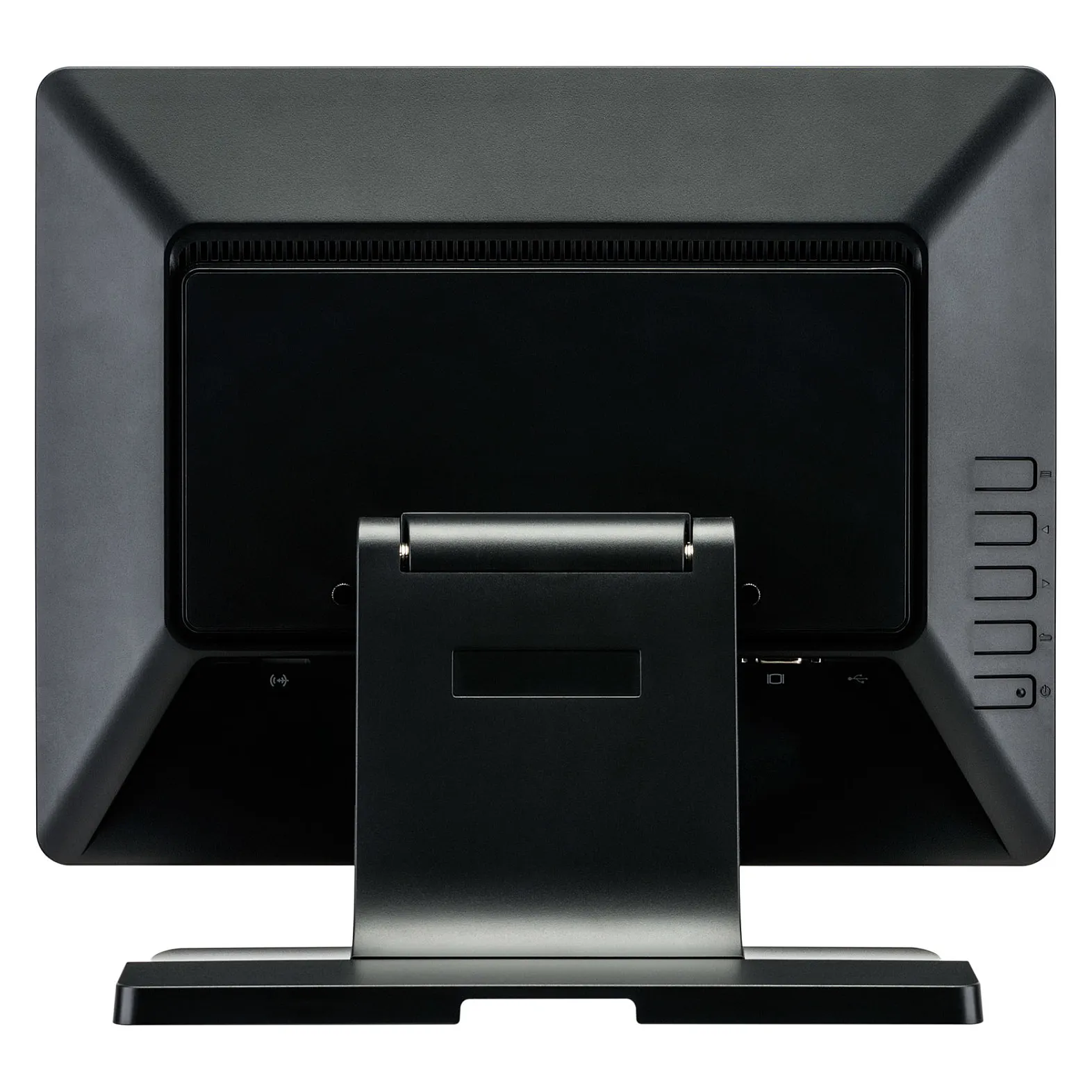

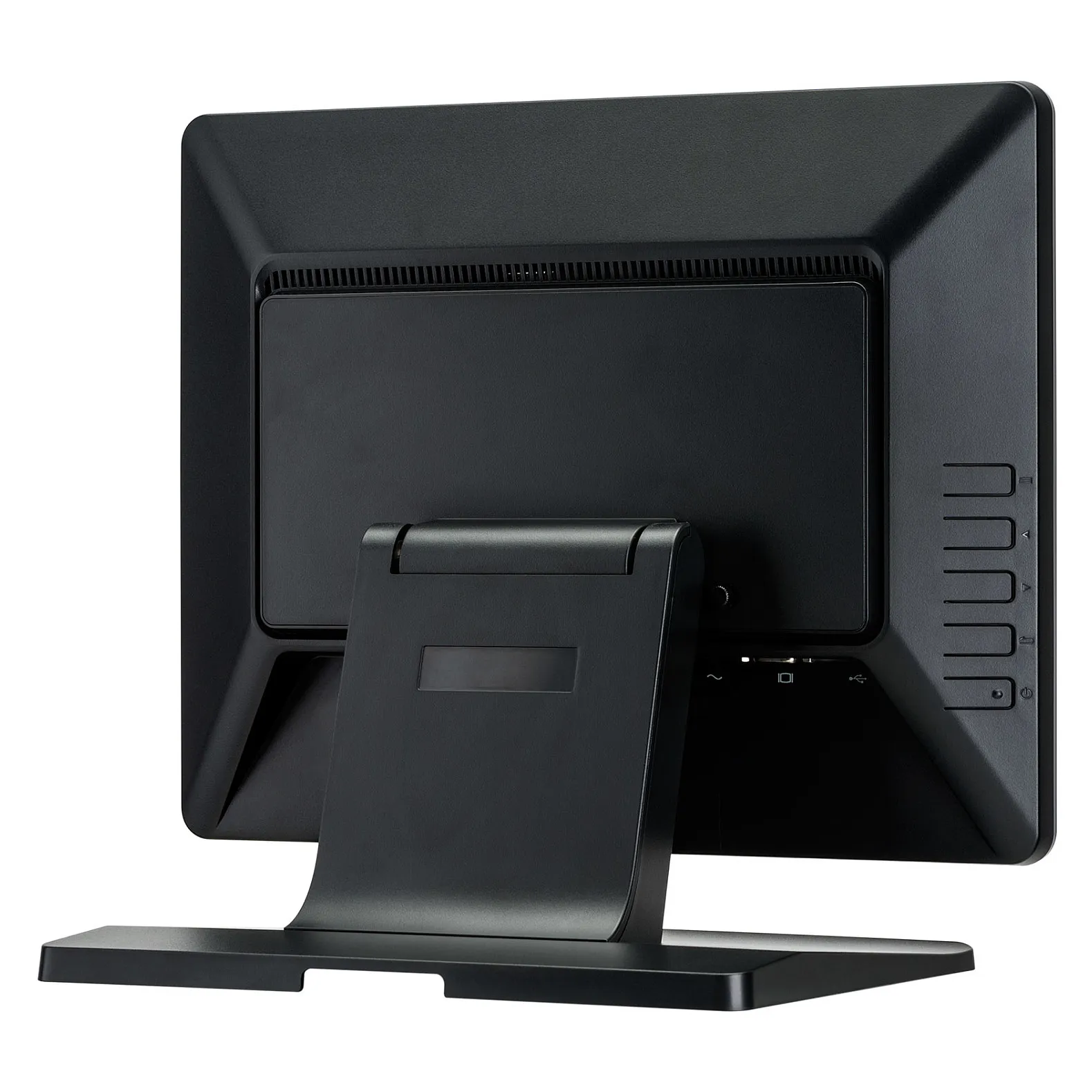

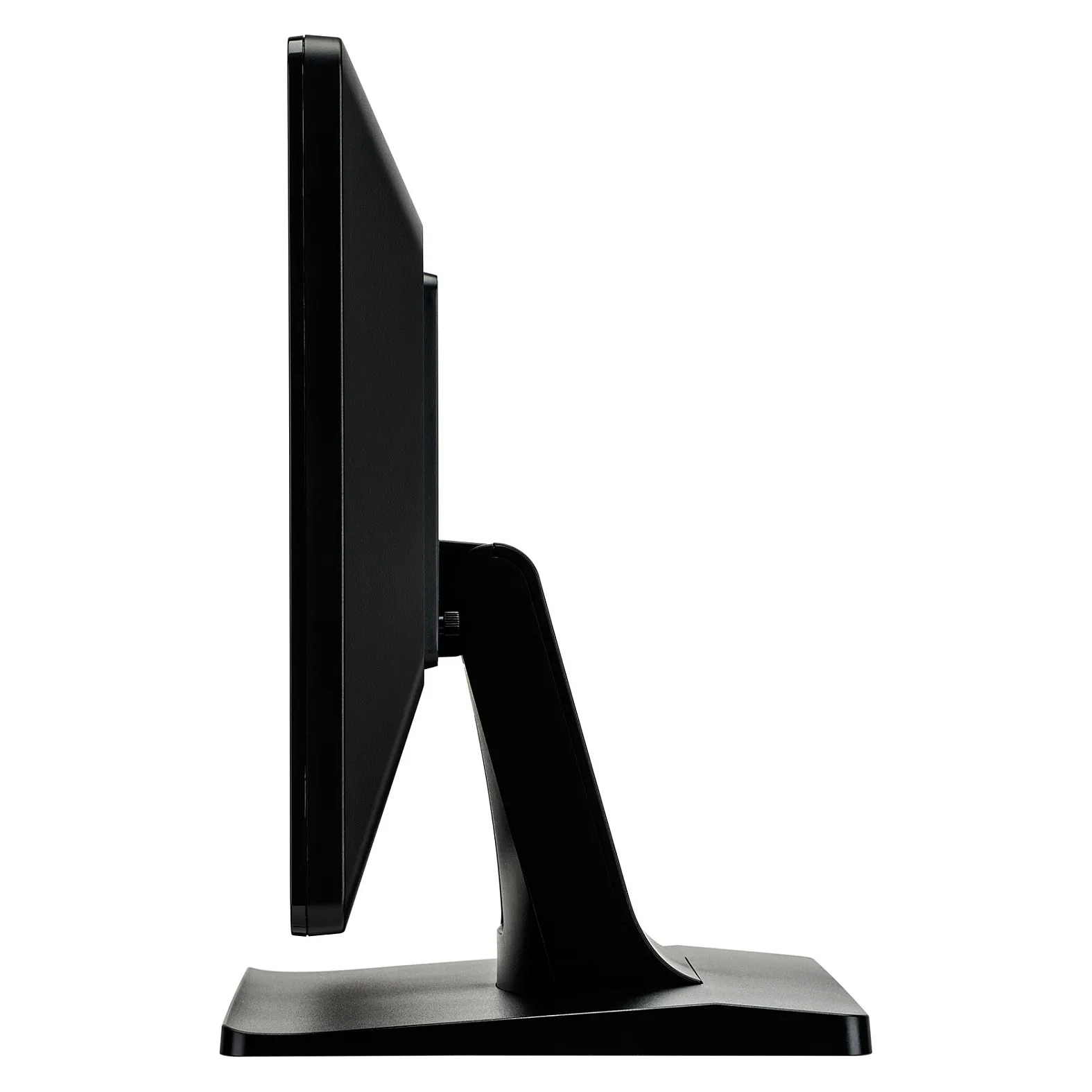

The ProLite T1521MSC-B2 15” touchscreen is based on projected capacitive technology, offering optimal seamless and accurate touch response. Due to its glass overlay, it guarantees high durability, scratch-resistance and perfect picture performance. A solid and steady base supports the touchscreen with an adjustable stand offering up to 70 degree tilt angles. Menu buttons are located on the back of the screen which can be locked to prevent tampering, and includes a handy function to deactivate the touchscreen for cleaning. The ProLite T1521MSC-B2 is an incredibly powerful touch solution, perfect for instore retail purposes.
Display
Display diagonal: 38.1 cm (15″)
Display resolution: 1024 x 768 pixels
HD type: XGA
Native aspect ratio: 4:3
Display technology: LED
Panel type: TN
Backlight type: LED
Feature: Touchscreen
Touchscreen type: Tabletop
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (peak): 370 cd/m²
Display brightness (typical): 370 cd/m²
Display brightness: 325 cd/m²
Response time: 8 ms
Display surface: Matt
Screen shape: Flat
Contrast ratio (typical): 800:1
Viewing angle, horizontal: 170°
Viewing angle, vertical: 160°
Display number of colours: 16.7 million colours
Pixel pitch: 0.297 x 0.297 mm
Horizontal scan range: 31.4 – 60 kHz
Viewable size, horizontal: 30.4 cm
Viewable size, vertical: 22.8 cm
Display diagonal (metric): 38 cm
Feature: DDC/CI
Surface hardness: 7H
Multimedia
Number of speakers: 2
RMS rated power: 4 W
Feature: Built-in speaker(s)
Design
Market positioning: Business
Product colour: Black
Front bezel colour: Black
Feet colour: Black
Glass thickness: 1.2 mm

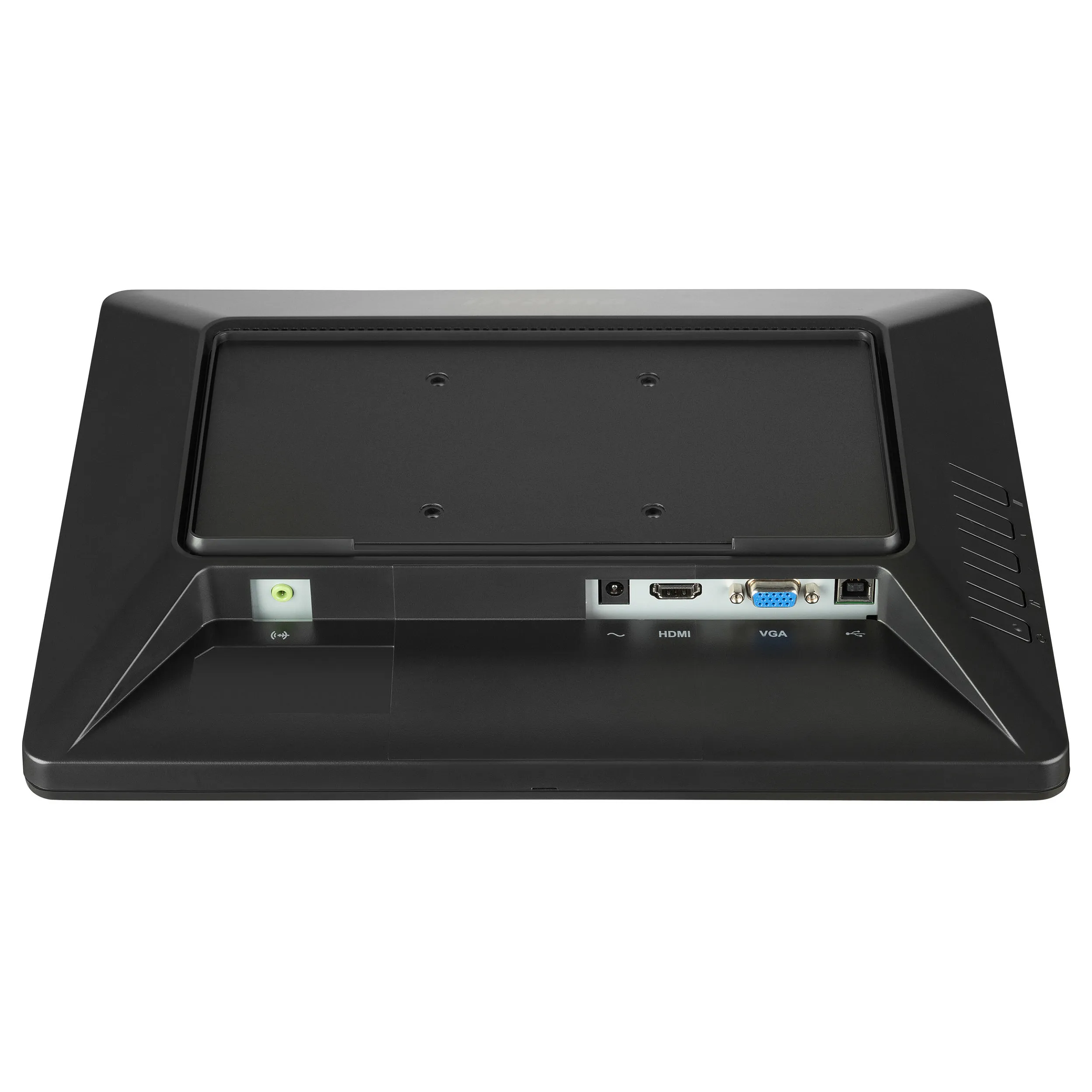

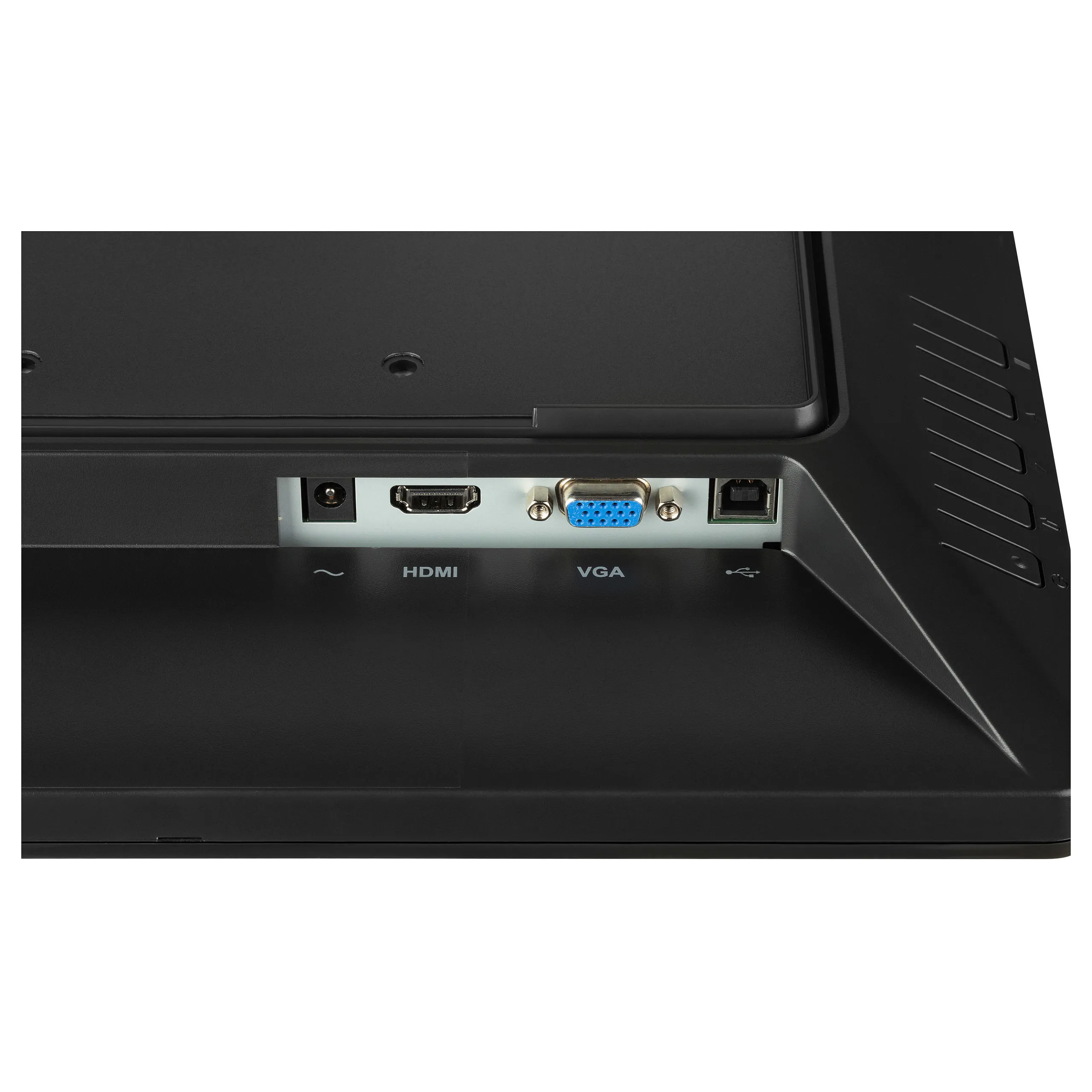

Ports & interfaces
Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
Ergonomics

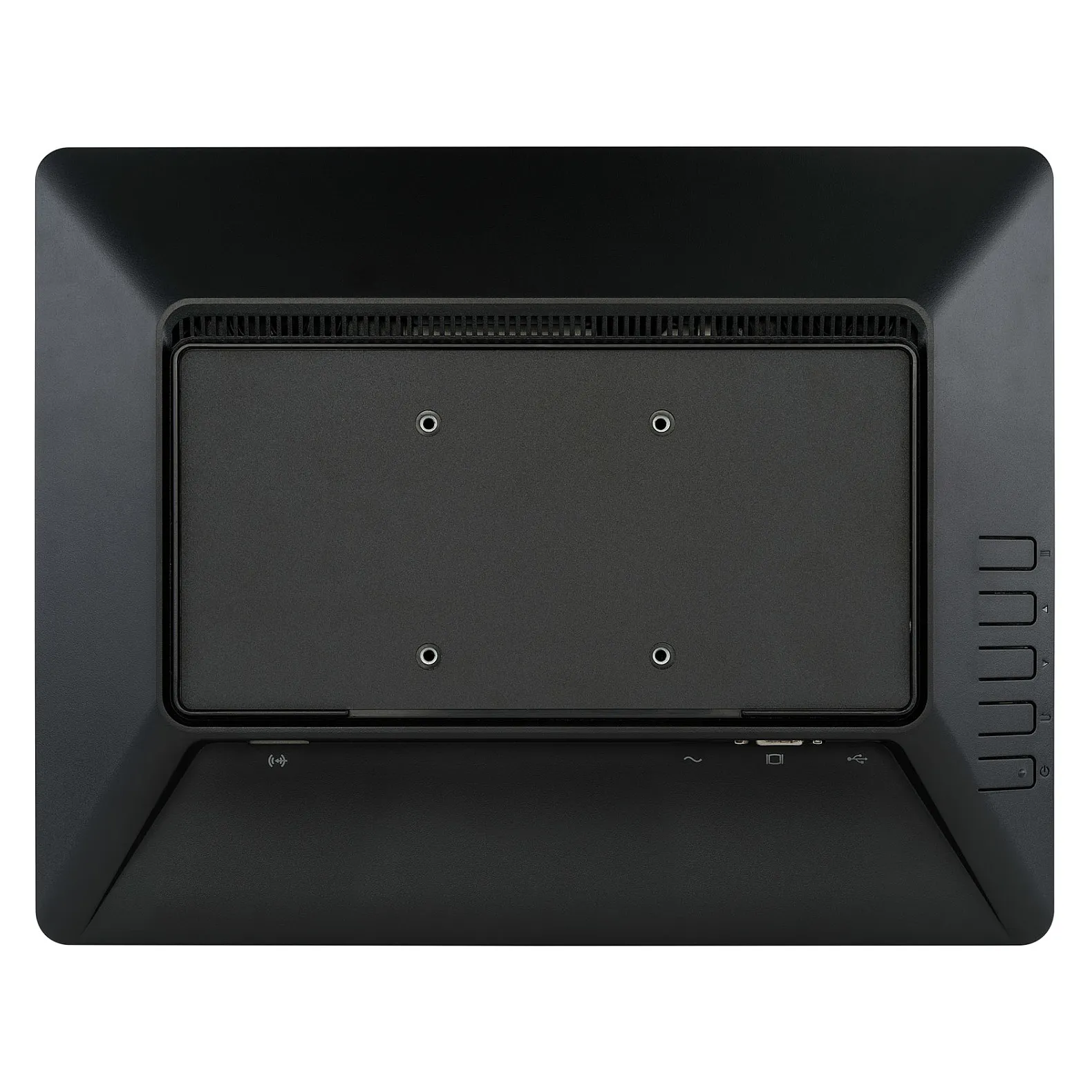

Feature: VESA mounting
Panel mounting interface: 75 x 75 mm
Feature: Cable management

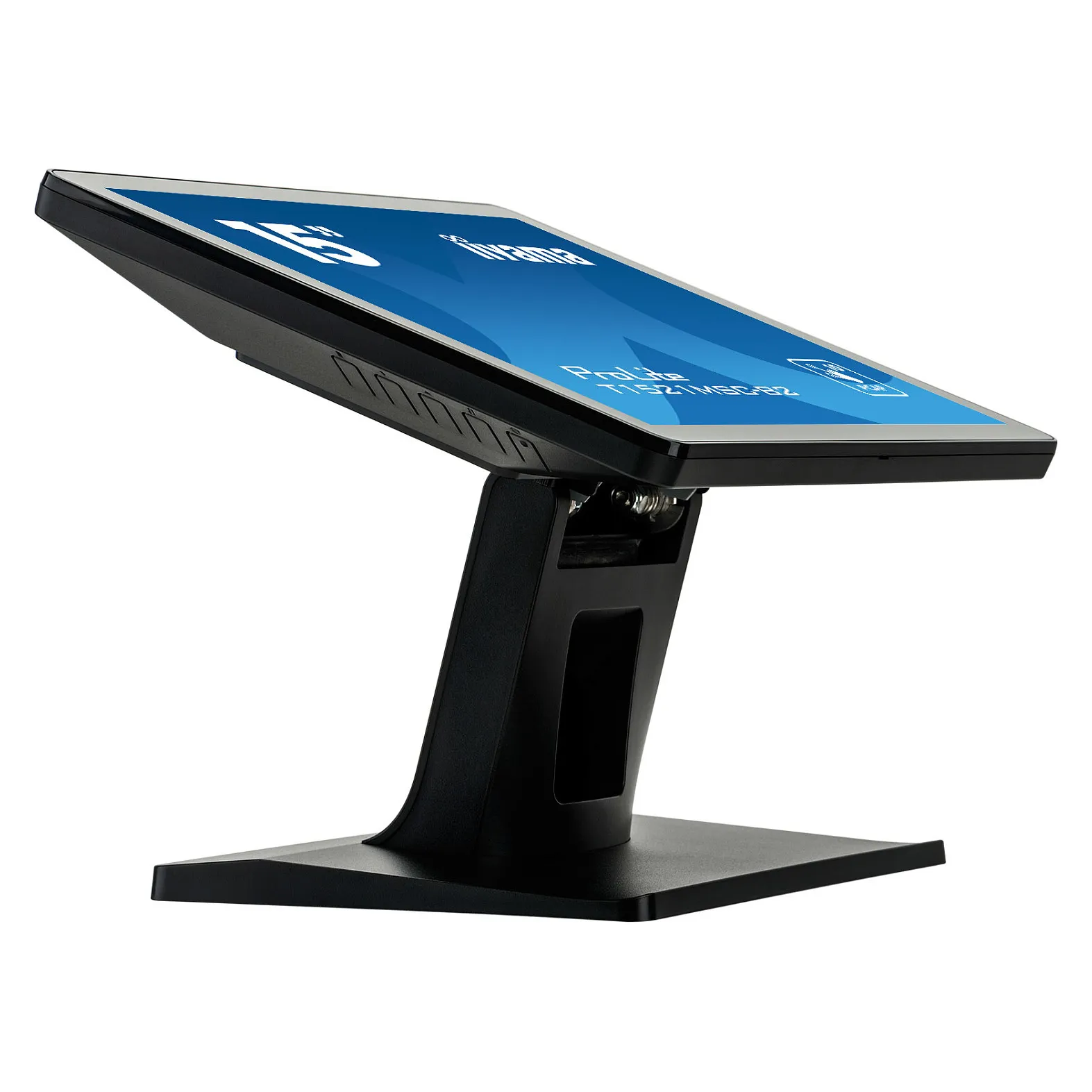

Feature: Tilt adjustment

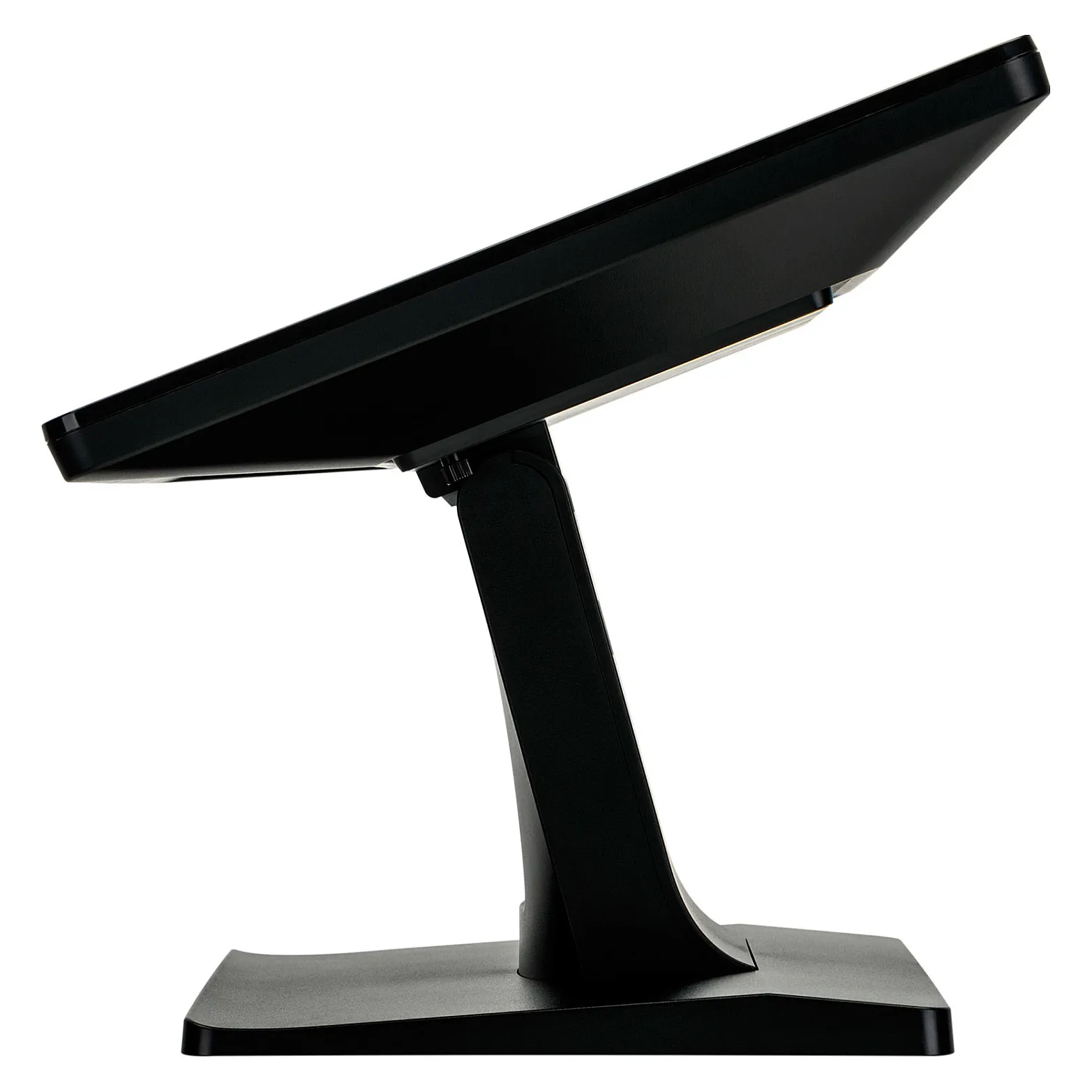

Tilt angle range: 10 – 70°
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: German, English, Spanish, French, Italian, Japanese, Dutch, Russian
Number of OSD languages: 8
Power

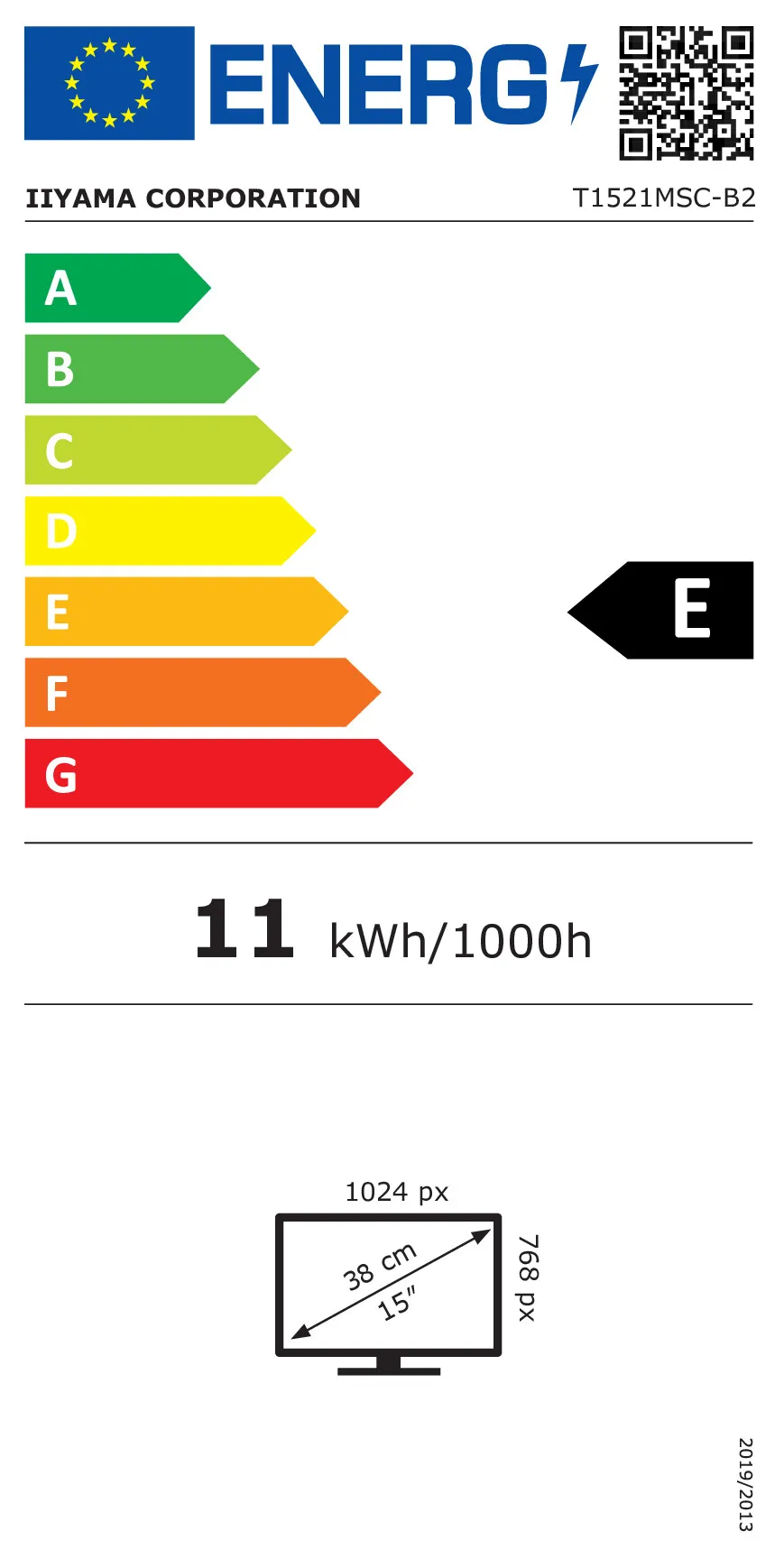

Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 11 kWh
Power consumption (typical): 16 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.5 W
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G
Weight & dimensions
Width (with stand): 340.5 mm
Depth (with stand): 198 mm
Height (with stand): 308 mm
Weight (with stand): 3.5 kg
Packaging content
Feature: Stand included

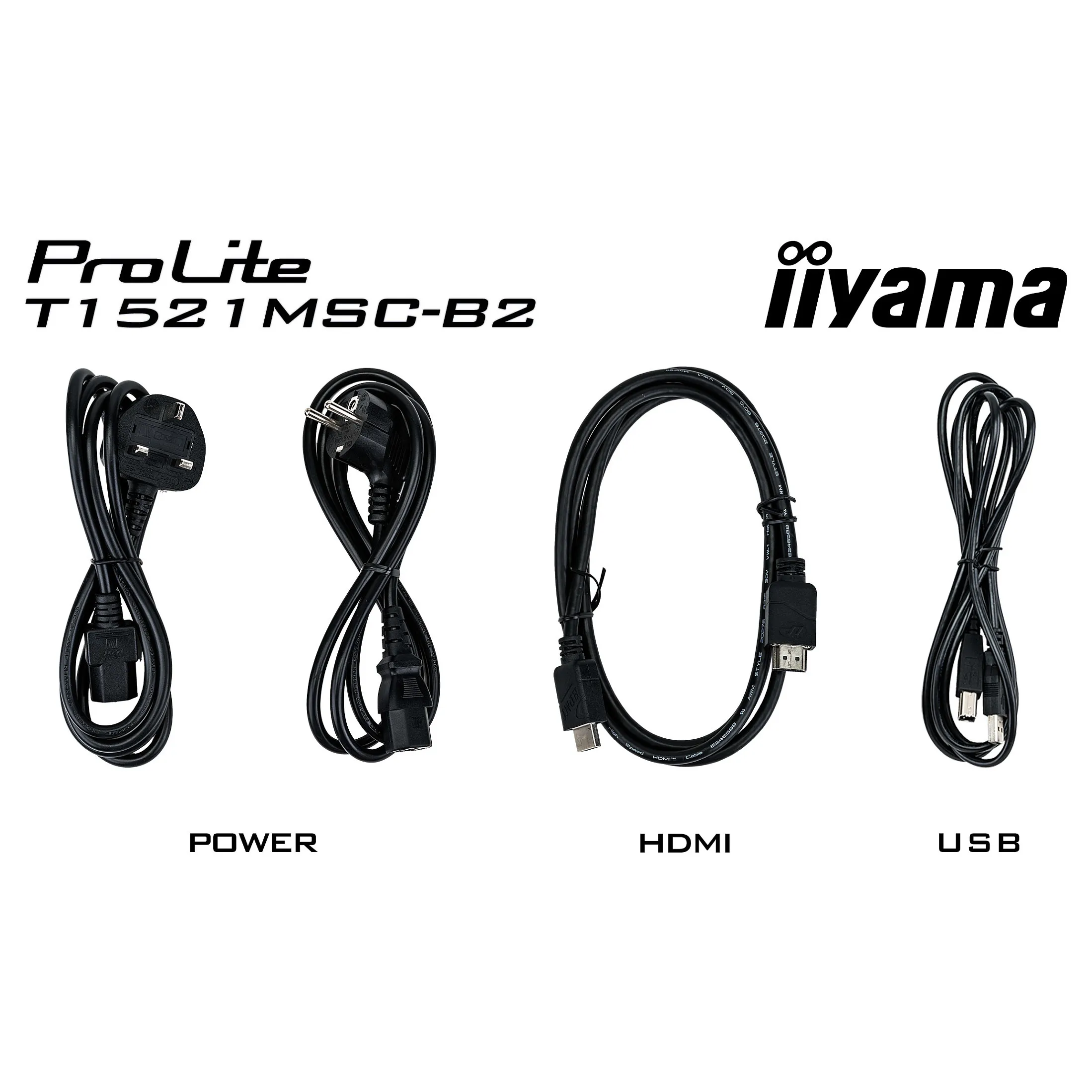

Cables included: AC, USB, HDMI
Feature: Power adapter included
Feature: Quick start guide
Feature: Manual
Sustainability
Feature: Sustainability compliance
Sustainability certificates: ErP
Other features
International Protection (IP) code: IPX3
Feature: AC adapter included
Brightness: 325 cd/m²

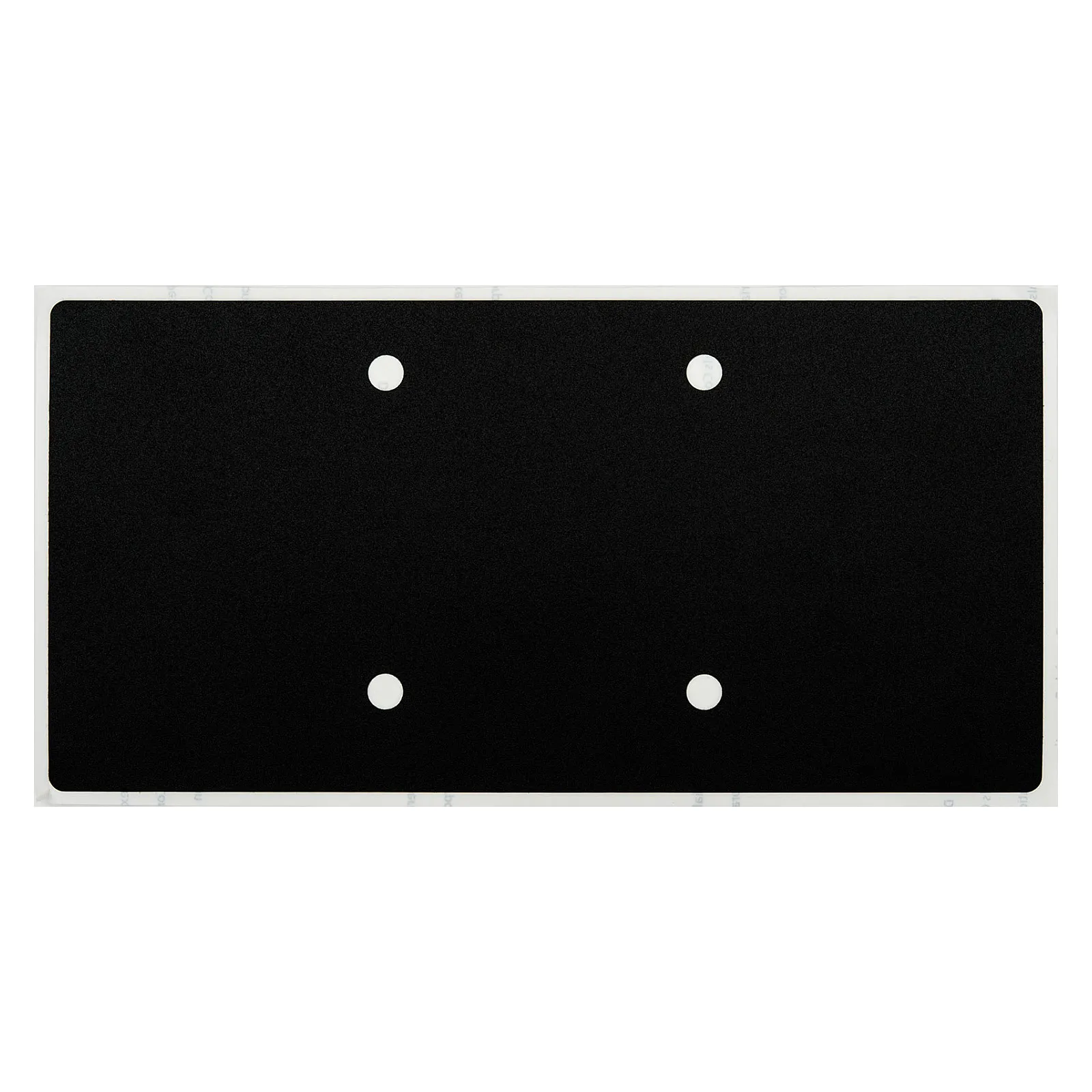

Packaging content: AC adapter, mylar sheet (for VESA mount)
Active display area (W x H): 304 x 228 mm
Touch method: stylus, finger, glove (latex)
Weight: 3.5 kg
Height: 308 mm
Width: 340.5 mm
Depth: 198 mm
Control panel: Menu, Up/Left/ Auto adjustment button, Down/Right button, Return/Exit button, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
Display diagonal: 38.1 cm (15″)
Display resolution: 1024 x 768 pixels
HD type: XGA
Native aspect ratio: 4:3
Display technology: LED
Panel type: TN
Backlight type: LED
Feature: Touchscreen
Touchscreen type: Tabletop
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (peak): 370 cd/m²
Display brightness (typical): 370 cd/m²
Display brightness: 325 cd/m²
Response time: 8 ms
Display surface: Matt
Screen shape: Flat
Contrast ratio (typical): 800:1
Viewing angle, horizontal: 170°
Viewing angle, vertical: 160°
Display number of colours: 16.7 million colours
Pixel pitch: 0.297 x 0.297 mm
Horizontal scan range: 31.4 – 60 kHz
Viewable size, horizontal: 30.4 cm
Viewable size, vertical: 22.8 cm
Display diagonal (metric): 38 cm
Feature: DDC/CI
Surface hardness: 7H
Multimedia
Number of speakers: 2
RMS rated power: 4 W
Feature: Built-in speaker(s)
Design
Market positioning: Business
Product colour: Black
Front bezel colour: Black
Feet colour: Black
Glass thickness: 1.2 mm
Ports & interfaces
Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
Ergonomics
Feature: VESA mounting
Panel mounting interface: 75 x 75 mm
Feature: Cable management
Feature: Tilt adjustment
Tilt angle range: 10 – 70°
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: German, English, Spanish, French, Italian, Japanese, Dutch, Russian
Number of OSD languages: 8
Power
Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 11 kWh
Power consumption (typical): 16 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.5 W
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G
Weight & dimensions
Width (with stand): 340.5 mm
Depth (with stand): 198 mm
Height (with stand): 308 mm
Weight (with stand): 3.5 kg
Packaging content
Feature: Stand included
Cables included: AC, USB, HDMI
Feature: Power adapter included
Feature: Quick start guide
Feature: Manual
Sustainability
Feature: Sustainability compliance
Sustainability certificates: ErP
Other features
International Protection (IP) code: IPX3
Feature: AC adapter included
Brightness: 325 cd/m²
Packaging content: AC adapter, mylar sheet (for VESA mount)
Active display area (W x H): 304 x 228 mm
Touch method: stylus, finger, glove (latex)
Weight: 3.5 kg
Height: 308 mm
Width: 340.5 mm
Depth: 198 mm
Control panel: Menu, Up/Left/ Auto adjustment button, Down/Right button, Return/Exit button, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
