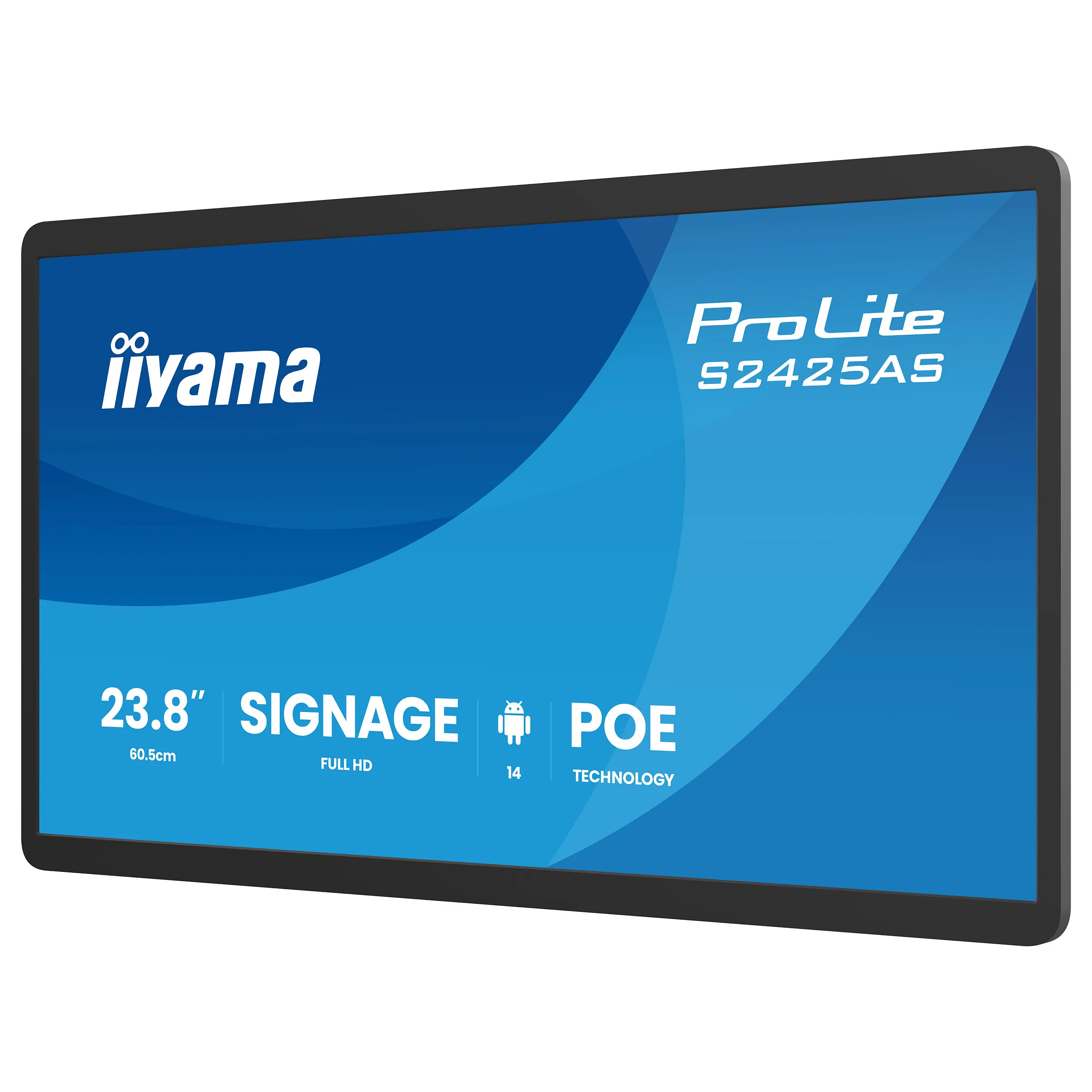

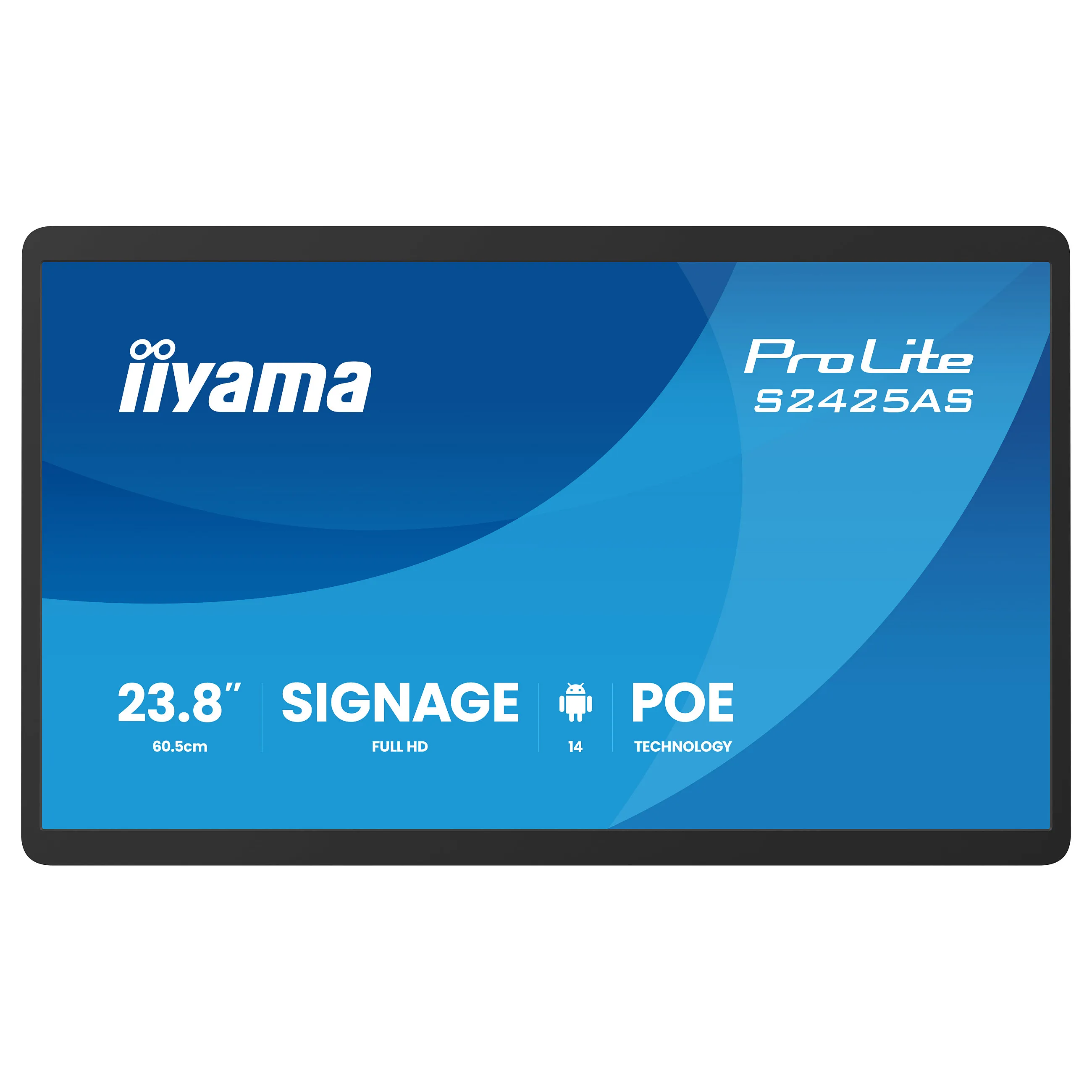

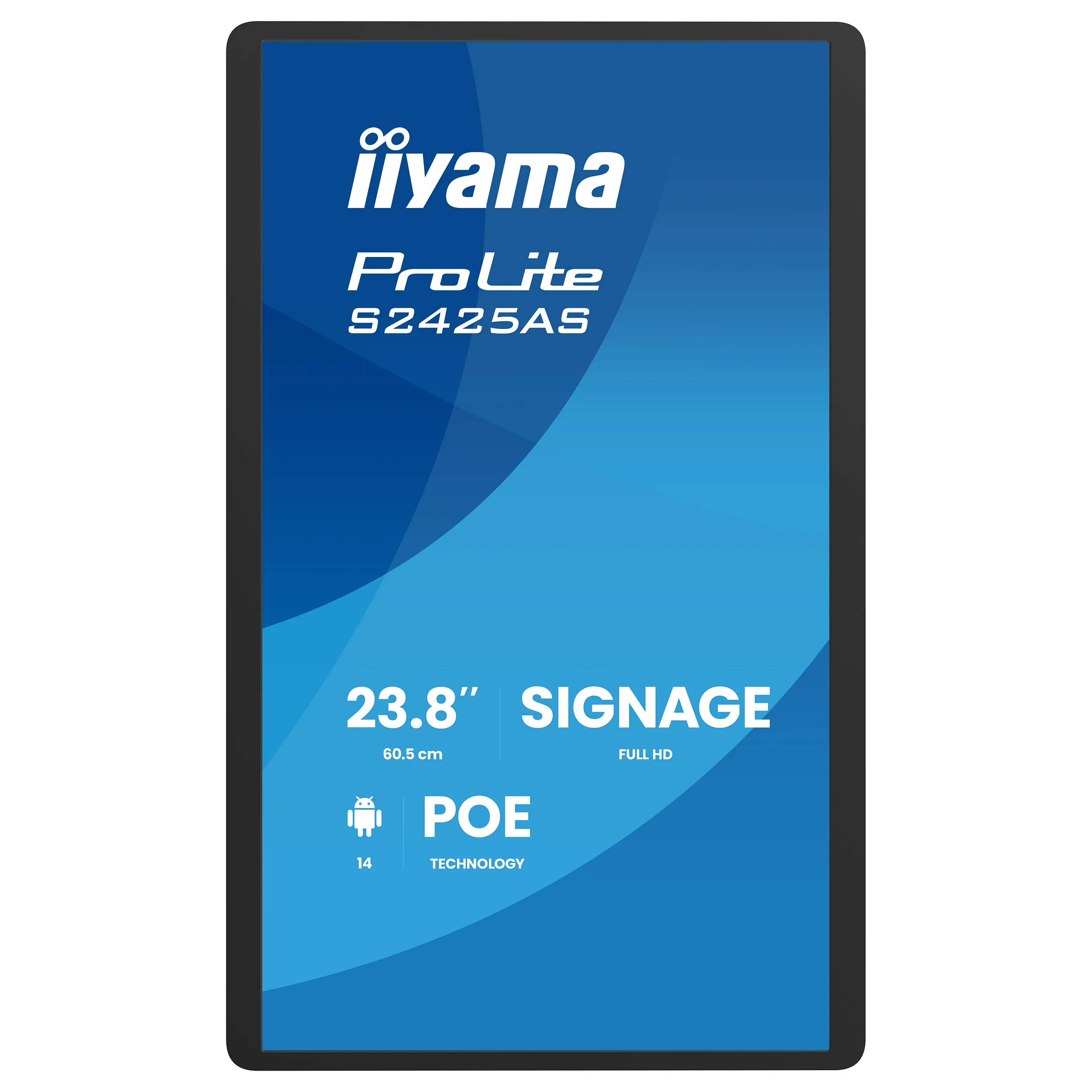

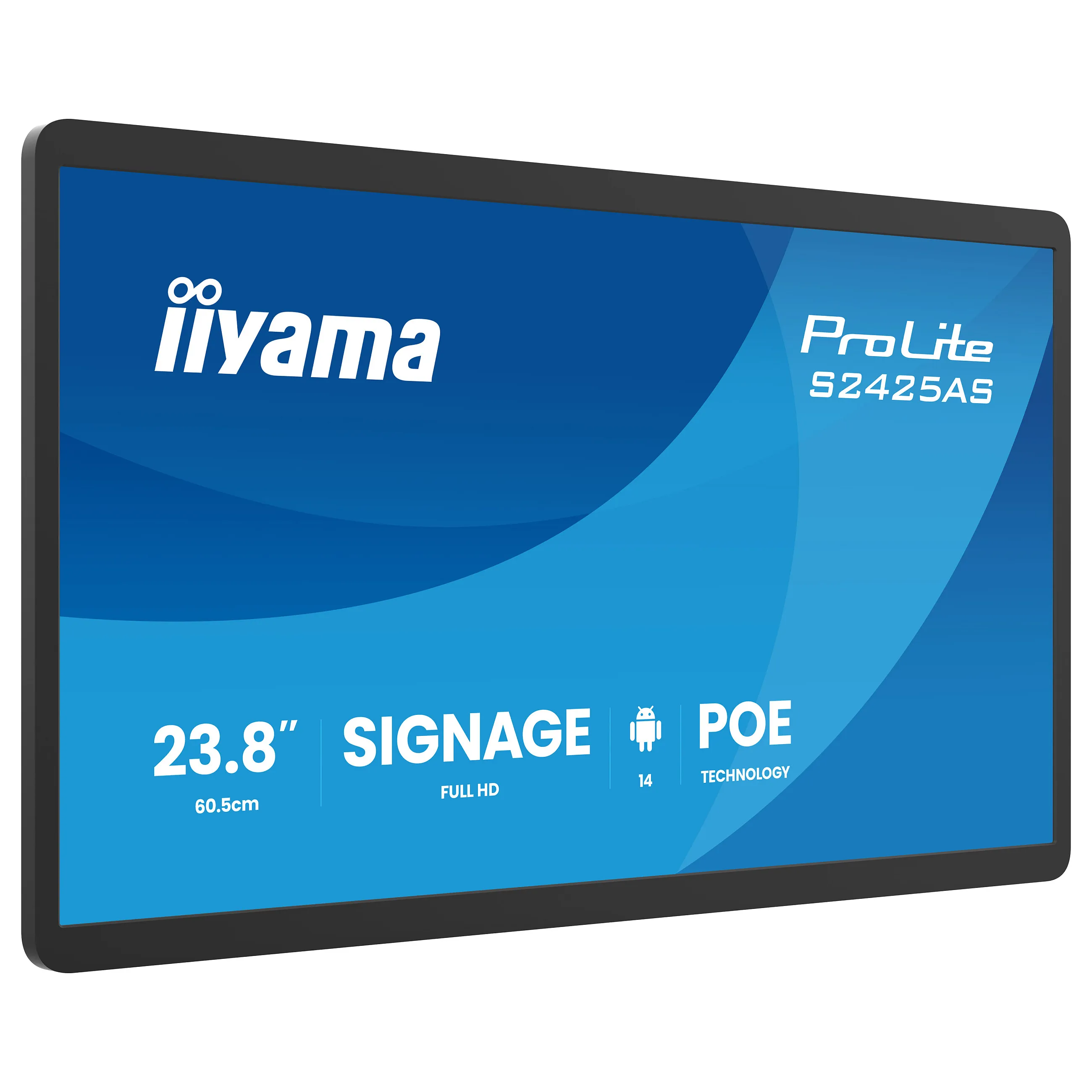

iiyama ProLite S2425AS-B1P. Product design: Digital signage flat panel. Display diagonal: 60.5 cm (23.8"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 500 cd/m², HD type: Full HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black
The ProLite S2425AS-B1P is a 23.8” Android display built for stable, secure content presentation in retail and commercial environments. Designed purely for displaying content, it is perfectly suited for supermarkets, shops and information points where interaction is not required. Its high-brightness Full HD IPS panel delivers up to 500cd/m2 for excellent visibility, even in bright locations, while Power over Ethernet (PoE) simplifies installation and reduces cabling. iiyama guarantees compatibility with the platform for a minimum of 5 years, ensuring long-term reliability and peace of mind for professional installations.
Display
Panel type: IPS
Display diagonal: 60.5 cm (23.8″)
Display technology: LCD
Display resolution: 1920 x 1080 pixels
Display brightness: 500 cd/m²
HD type: Full HD
Native aspect ratio: 16:9
Response time: 14 ms
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.275 x 0.275 mm
Active display area (W x H): 527 x 296.5 mm
Display diagonal (metric): 60.5 cm
Horizontal scan range: 31 – 83 kHz
Haze rate: 25%
Surface hardness: 3H
Ports & interfaces
HDMI ports quantity: 1
Feature: USB port
USB ports quantity: 2
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type: USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Feature: Microphone in
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 10 W
Design
Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Bezel colour: Black
Feature: Anti-glare screen
Performance
Purpose: Universal
Operating hours (hours/days): 24/7
Number of microphones: 2
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 17.5 W
Power consumption (standby): 14 W
Power consumption (off): 3.5 W
Computer system
Feature: Computer system
Computer system type: System on Chip (SoC)
Feature: Built-in processor
Processor manufacturer: Rockchip
Processor family: ARM Rockchip
Processor model: Rockchip RK3576
Processor cores: 8
Internal memory: 4 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 32 GB
Operating system installed: Android
Operating system version: 14
Weight & dimensions
Display width: 549.5 mm
Display depth: 28 mm
Display height: 336 mm
Display weight: 4.24 kg
Width: 549.5 mm
Weight: 4.24 kg
Packaging data
Package width: 640 mm
Package depth: 121 mm
Package height: 410 mm
Package weight: 6.15 kg
Packaging content
Feature: Power adapter included
Cables included: AC
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Technical details
User controls: Power switch, Volume
Sustainability certificates: ErP
Compliance certificates: CE, EAC, REACH, RoHS, UKCA, WEEE
Other features
Feature: AC adapter included
Feature: Bluetooth
Bluetooth version: 5.3
Feature: Built-in microphone
USB 2.0 ports quantity: 2
Power supply type: External
Panel type: IPS
Display diagonal: 60.5 cm (23.8″)
Display technology: LCD
Display resolution: 1920 x 1080 pixels
Display brightness: 500 cd/m²
HD type: Full HD
Native aspect ratio: 16:9
Response time: 14 ms
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.275 x 0.275 mm
Active display area (W x H): 527 x 296.5 mm
Display diagonal (metric): 60.5 cm
Horizontal scan range: 31 – 83 kHz
Haze rate: 25%
Surface hardness: 3H
Ports & interfaces
HDMI ports quantity: 1
Feature: USB port
USB ports quantity: 2
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type: USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Feature: Microphone in
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 10 W
Design
Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Bezel colour: Black
Feature: Anti-glare screen
Performance
Purpose: Universal
Operating hours (hours/days): 24/7
Number of microphones: 2
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 17.5 W
Power consumption (standby): 14 W
Power consumption (off): 3.5 W
Computer system
Feature: Computer system
Computer system type: System on Chip (SoC)
Feature: Built-in processor
Processor manufacturer: Rockchip
Processor family: ARM Rockchip
Processor model: Rockchip RK3576
Processor cores: 8
Internal memory: 4 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 32 GB
Operating system installed: Android
Operating system version: 14
Weight & dimensions
Display width: 549.5 mm
Display depth: 28 mm
Display height: 336 mm
Display weight: 4.24 kg
Width: 549.5 mm
Weight: 4.24 kg
Packaging data
Package width: 640 mm
Package depth: 121 mm
Package height: 410 mm
Package weight: 6.15 kg
Packaging content
Feature: Power adapter included
Cables included: AC
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Technical details
User controls: Power switch, Volume
Sustainability certificates: ErP
Compliance certificates: CE, EAC, REACH, RoHS, UKCA, WEEE
Other features
Feature: AC adapter included
Feature: Bluetooth
Bluetooth version: 5.3
Feature: Built-in microphone
USB 2.0 ports quantity: 2
Power supply type: External
