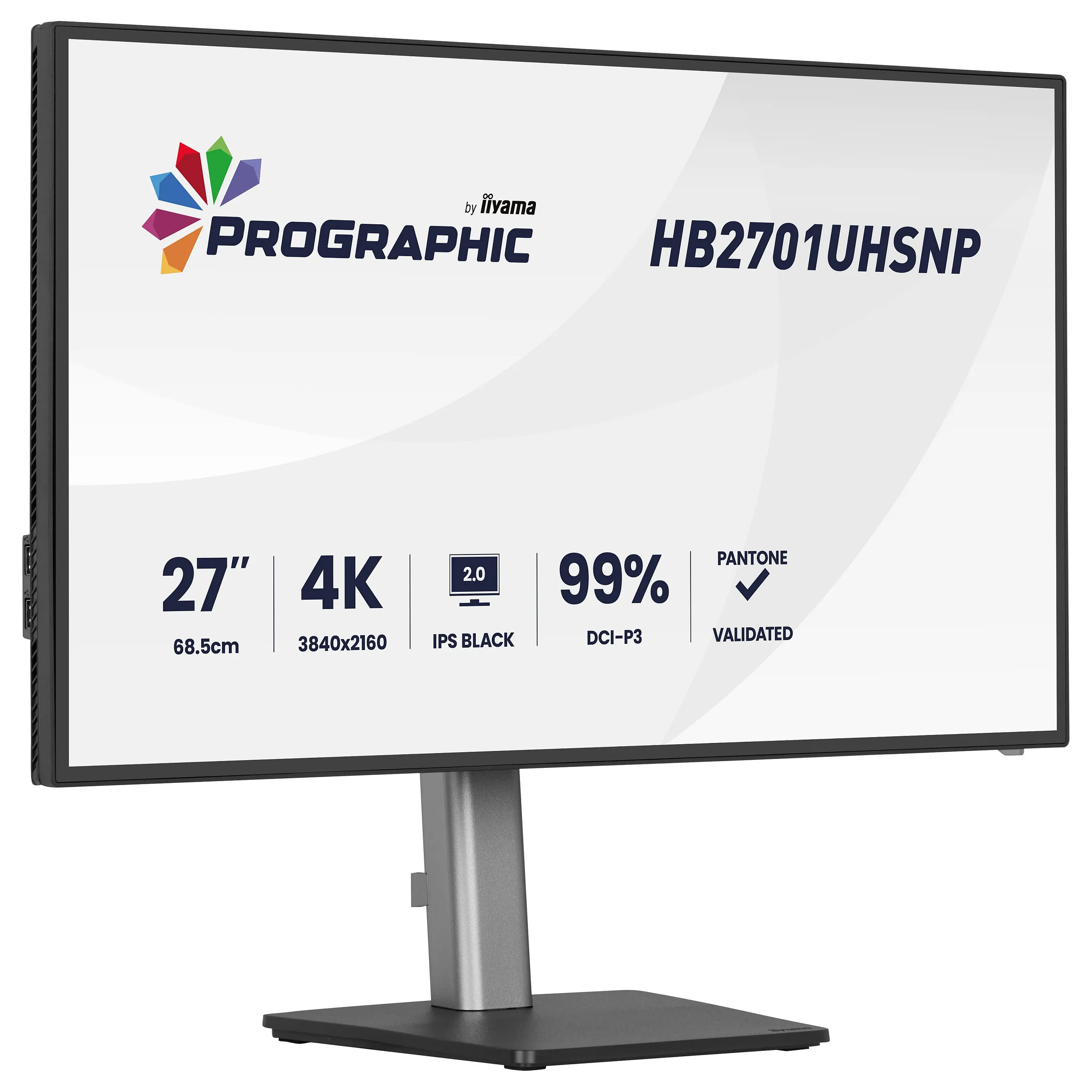

iiyama PROGRAPHIC HB2701UHSNP-B1. Display diagonal: 68.6 cm (27"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: LCD, Display surface: Matt, Response time: 4 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black

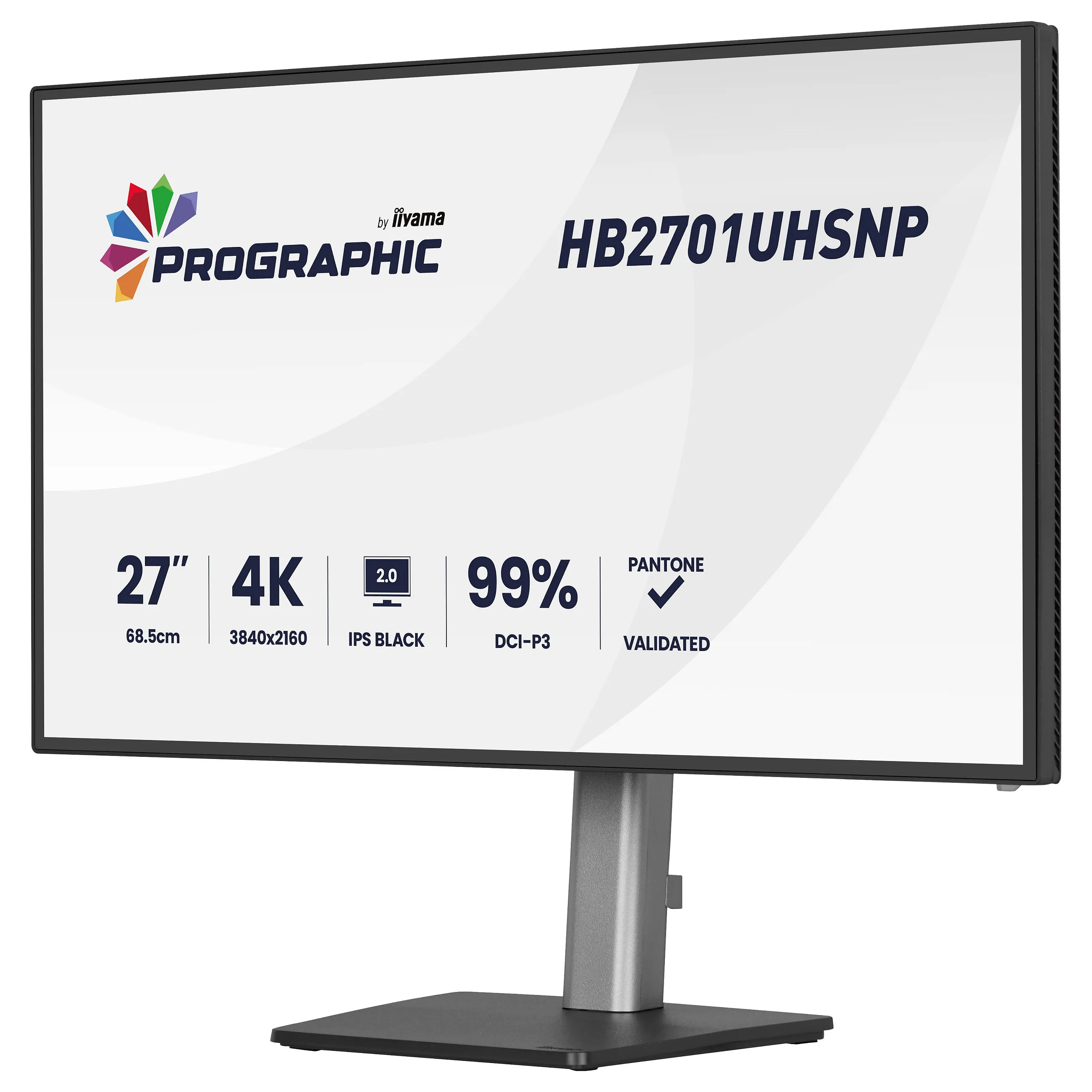

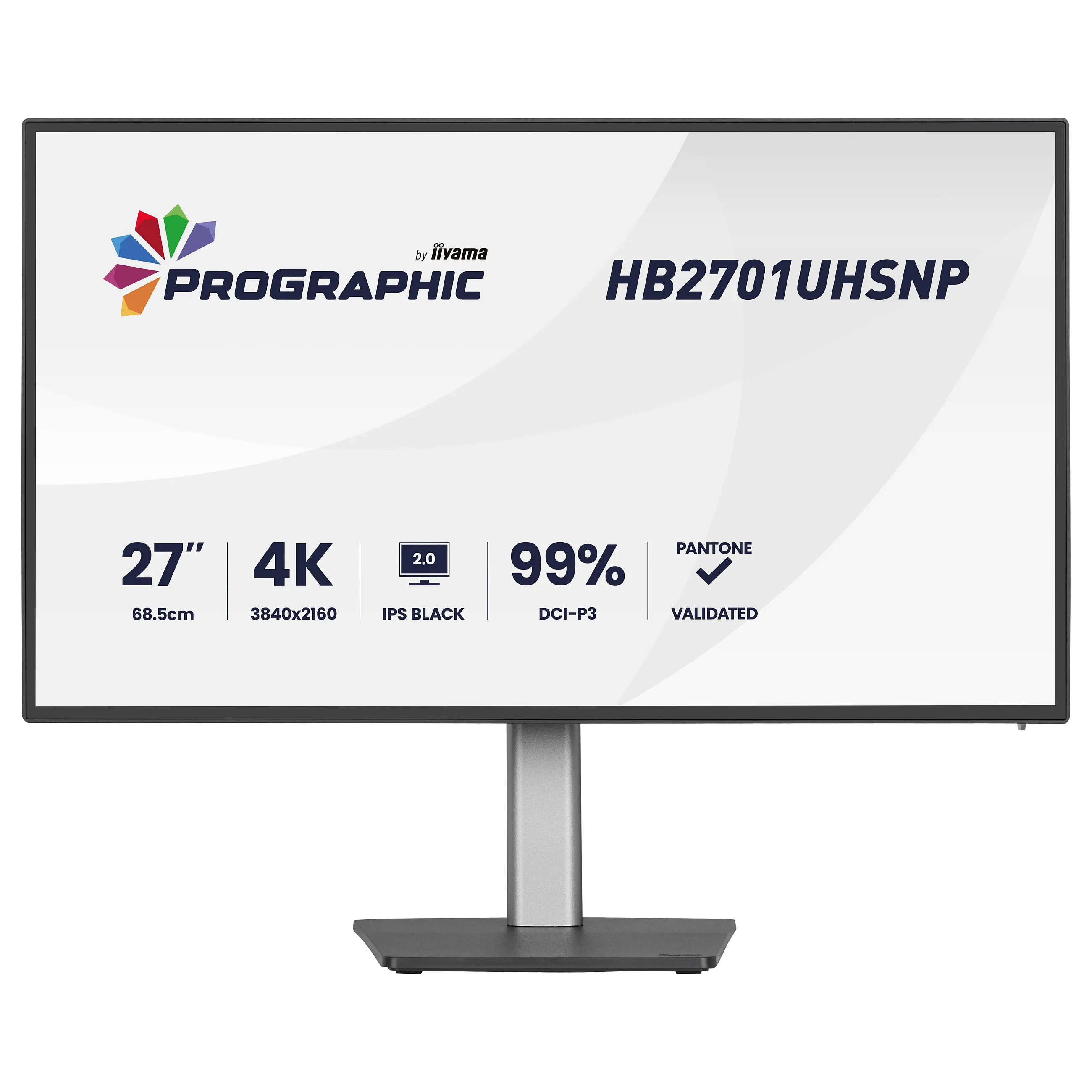

Work with confidence on the 27′′ ProGraphic HB2701, a 4K UHD monitor engineered for designers, photographers, and content creators who demand uncompromising visual clarity. Powered by IPS Black 2.0 technology, it delivers deeper contrast and richer blacks, ensuring every shadow and detail is revealed with stunning precision. With 99% DCI-P3 coverage and Pantone Validated colour accuracy, your work translates seamlessly across print, video, and digital platforms. The AGLR anti-glare coating minimises reflections, keeping you focused whether you’re in a bright studio or a dim workspace. These advanced features allow you to fully showcase your creativity and skills. Designed for productivity, the HB2701 features a 150mm height-adjustable stand, USB-C docking, and a built-in KVM switch, giving you a clean, connected setup ready for effortless multitasking.
Display
Display diagonal: 68.6 cm (27″)
Display resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: IPS
Display brightness (typical): 450 cd/m²
Response time: 4 ms
Response time measurement type: GTG (Gray to Gray)
Display surface: Matt
Screen shape: Flat
Contrast ratio (typical): 3000:1
Contrast ratio (dynamic): 80000000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.155 x 0.155 mm
Horizontal scan range: 30 – 140 kHz
Vertical scan range: 40 – 60 Hz
Viewable size, horizontal: 59.7 cm
Viewable size, vertical: 33.6 cm
Display diagonal (metric): 68.5 cm
Feature: High Dynamic Range (HDR) supported
High Dynamic Range (HDR) technology: High Dynamic Range (HDR) 400
Feature: DDC/CI
Colour depth: 8 bit
Colour gamut standard: DCI-P3, NTSC, sRGB
sRGB coverage (typical): 100%
NTSC coverage (typical): 72%
DCI-P3 coverage: 99%
Performance
Feature: Flicker-free technology
Feature: Low Blue Light technology
Multimedia
Number of speakers: 2
RMS rated power: 4 W
Feature: Built-in speaker(s)
Design
Market positioning: Graphics design
Product colour: Black

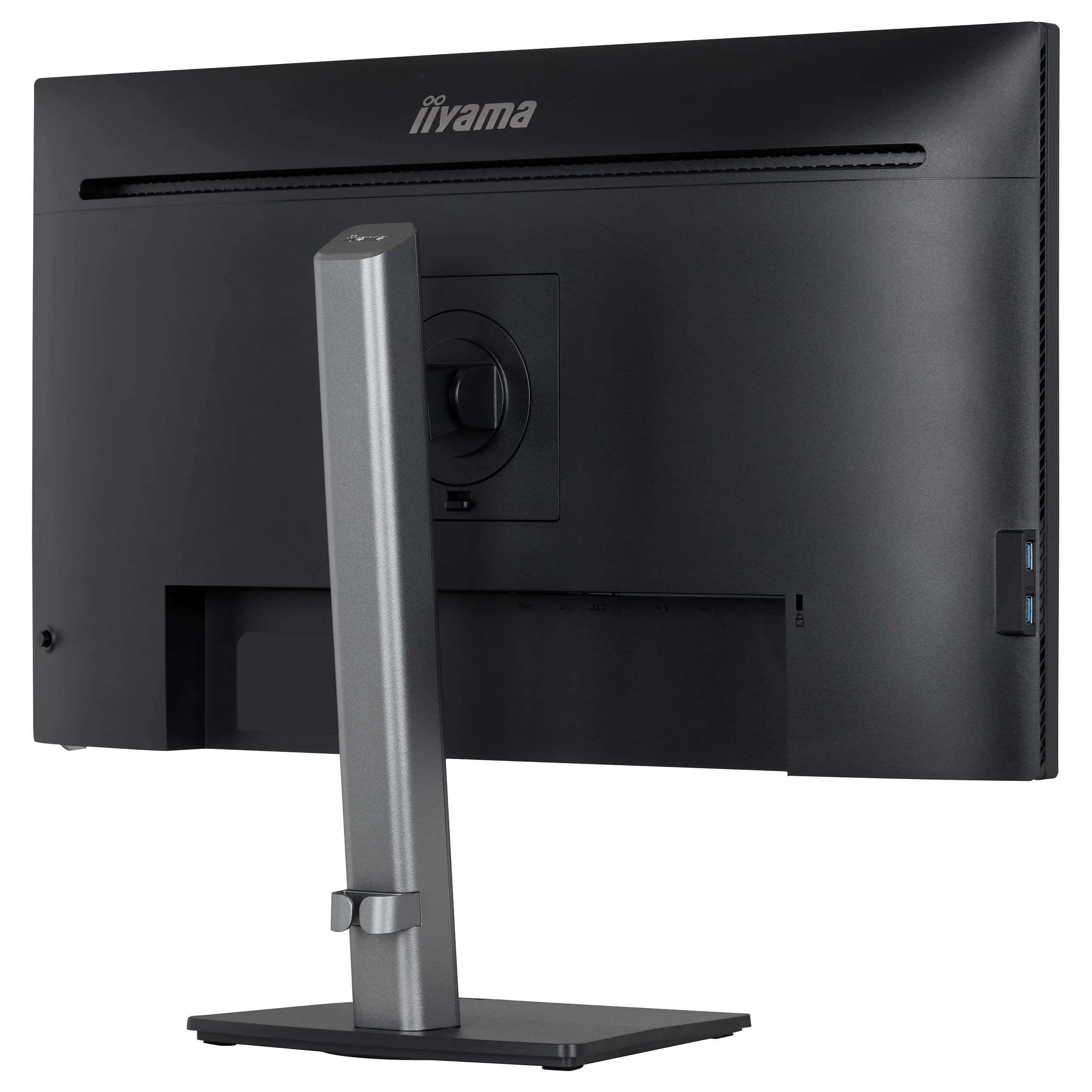

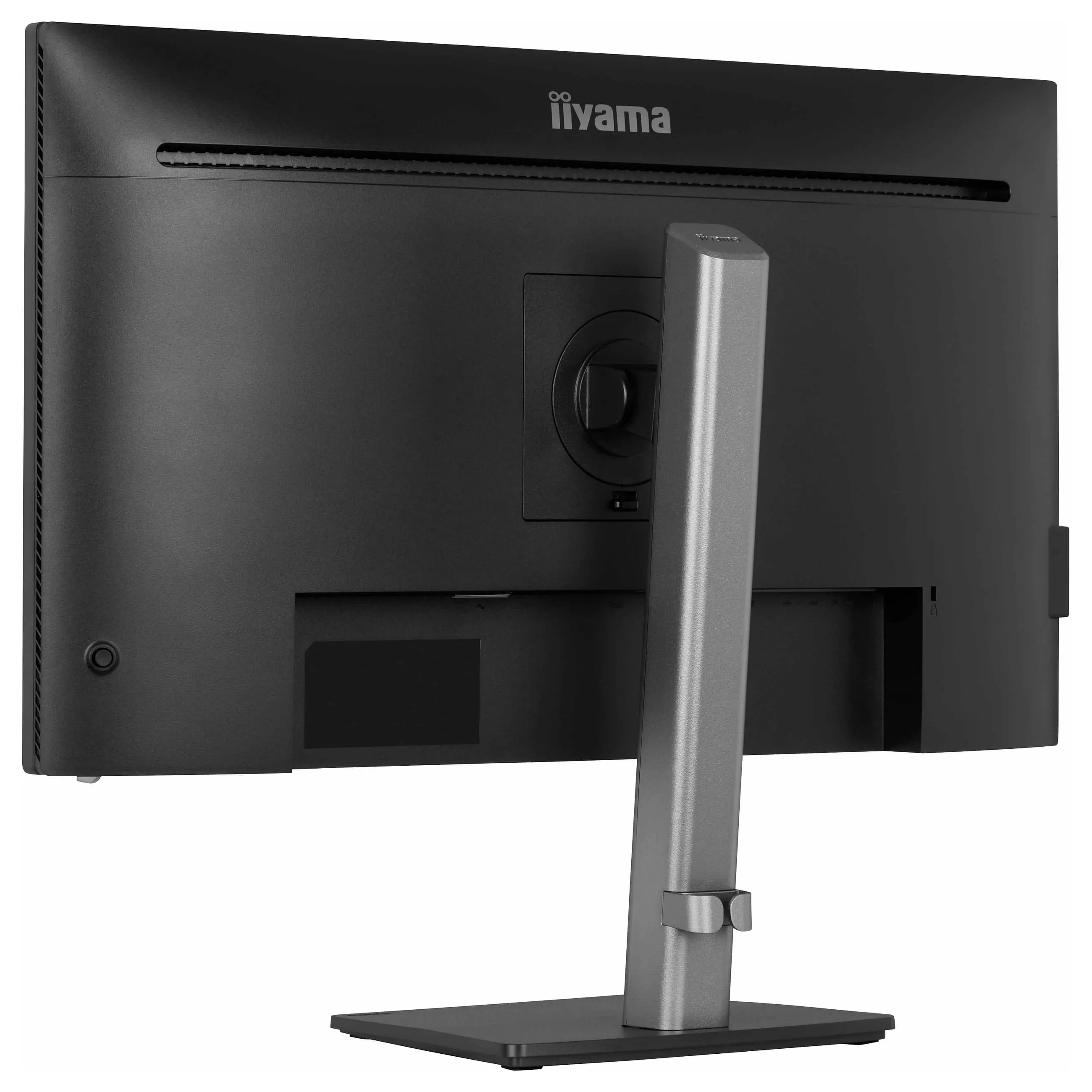

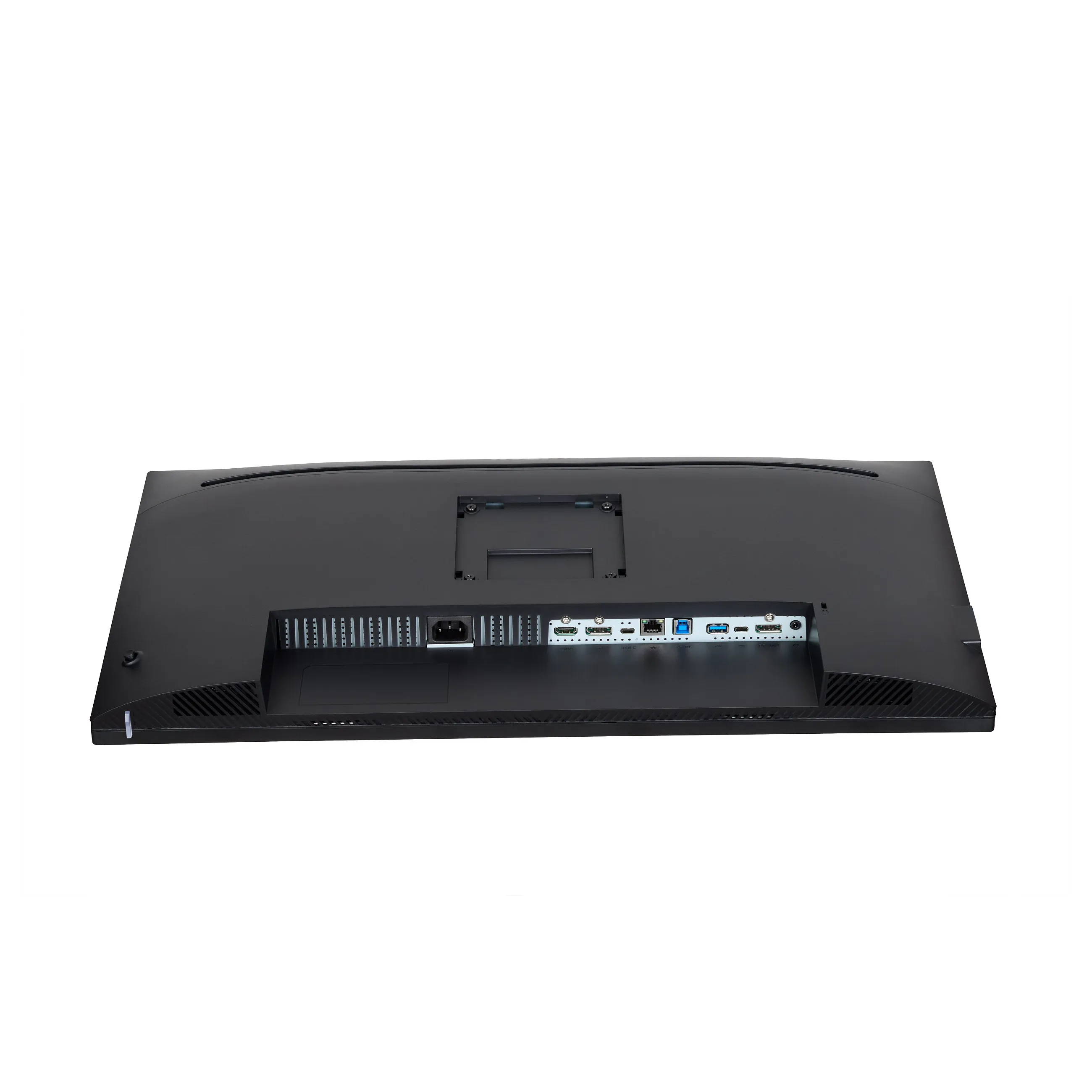

Ports & interfaces

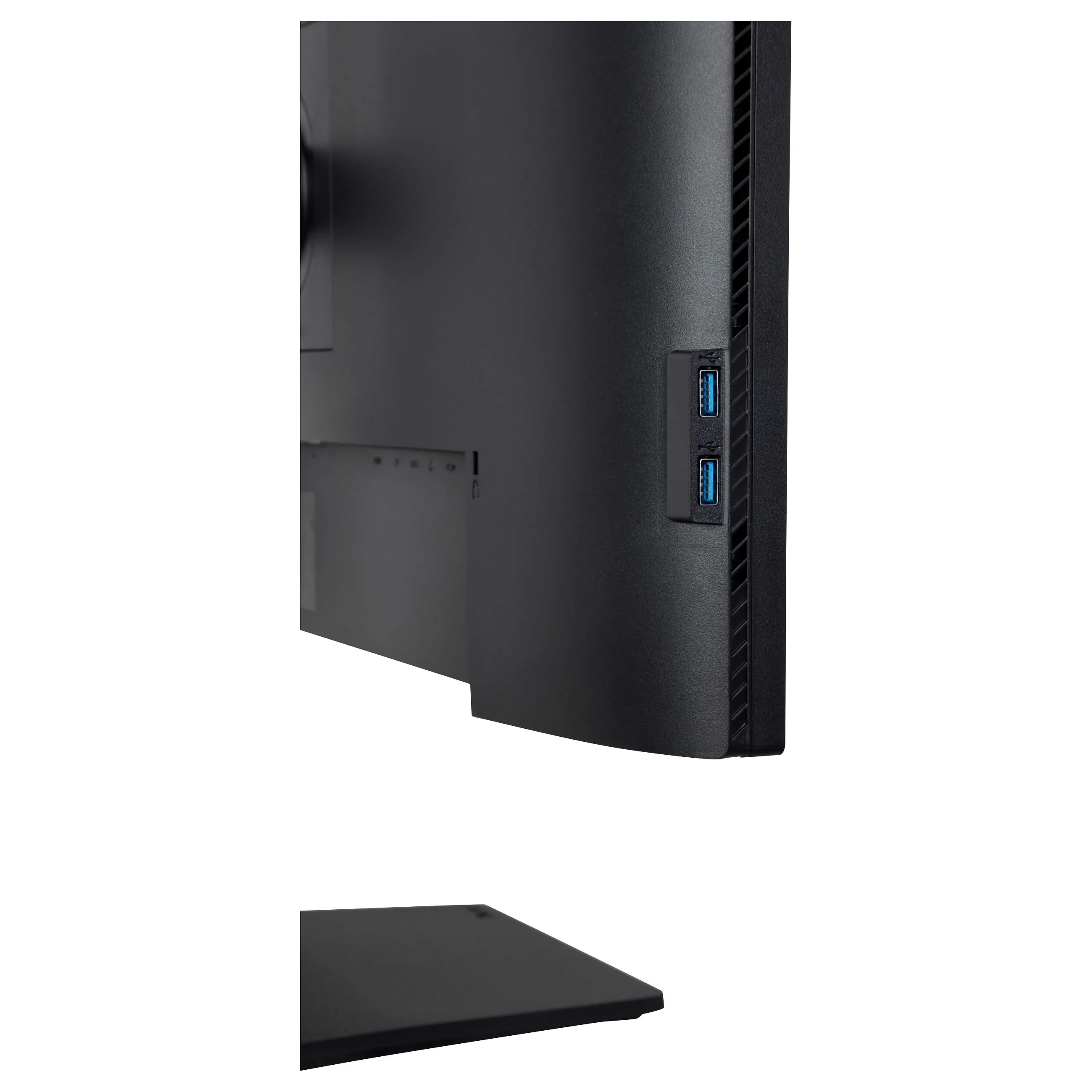

Feature: Built-in USB hub
USB hub version: 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-C
Number of upstream ports: 2
Number of downstream ports: 4
Number of USB Type-B upstream ports quantity: 1
Number of USB Type-C upstream ports quantity: 1
USB Type-A downstream ports quantity: 3
USB Type-C downstream ports quantity: 1
Feature: USB Type-C DisplayPort Alternate Mode
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 96 W
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
DisplayPort out quantity: 1
Feature: Headphone out
Headphone outputs: 1
Headphone connectivity: 3.5 mm
Feature: Built-in KVM switch
Feature: HDCP
Network
Feature: Ethernet LAN
Ergonomics

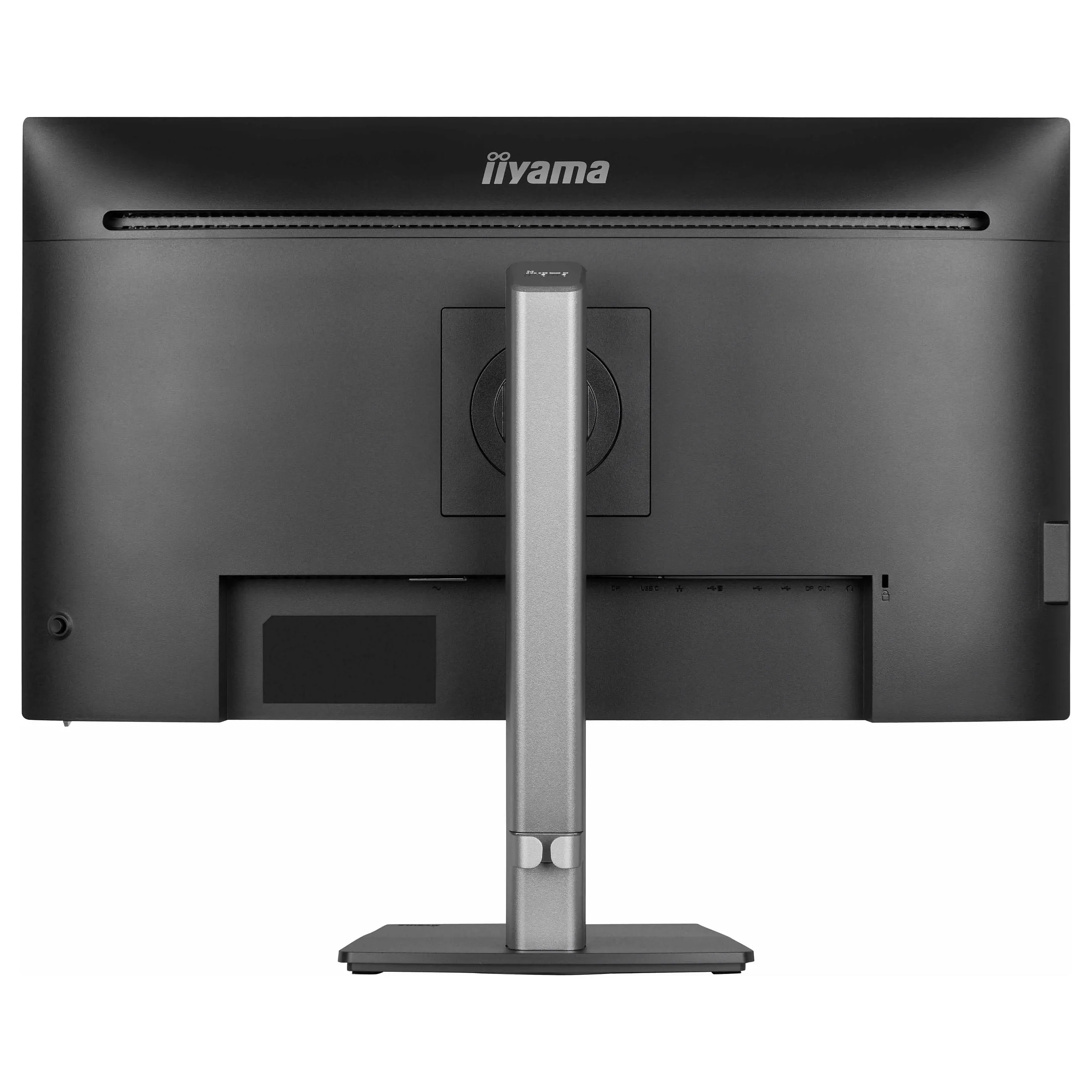

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable management
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Height adjustment
Adjustable height (max): 15 cm

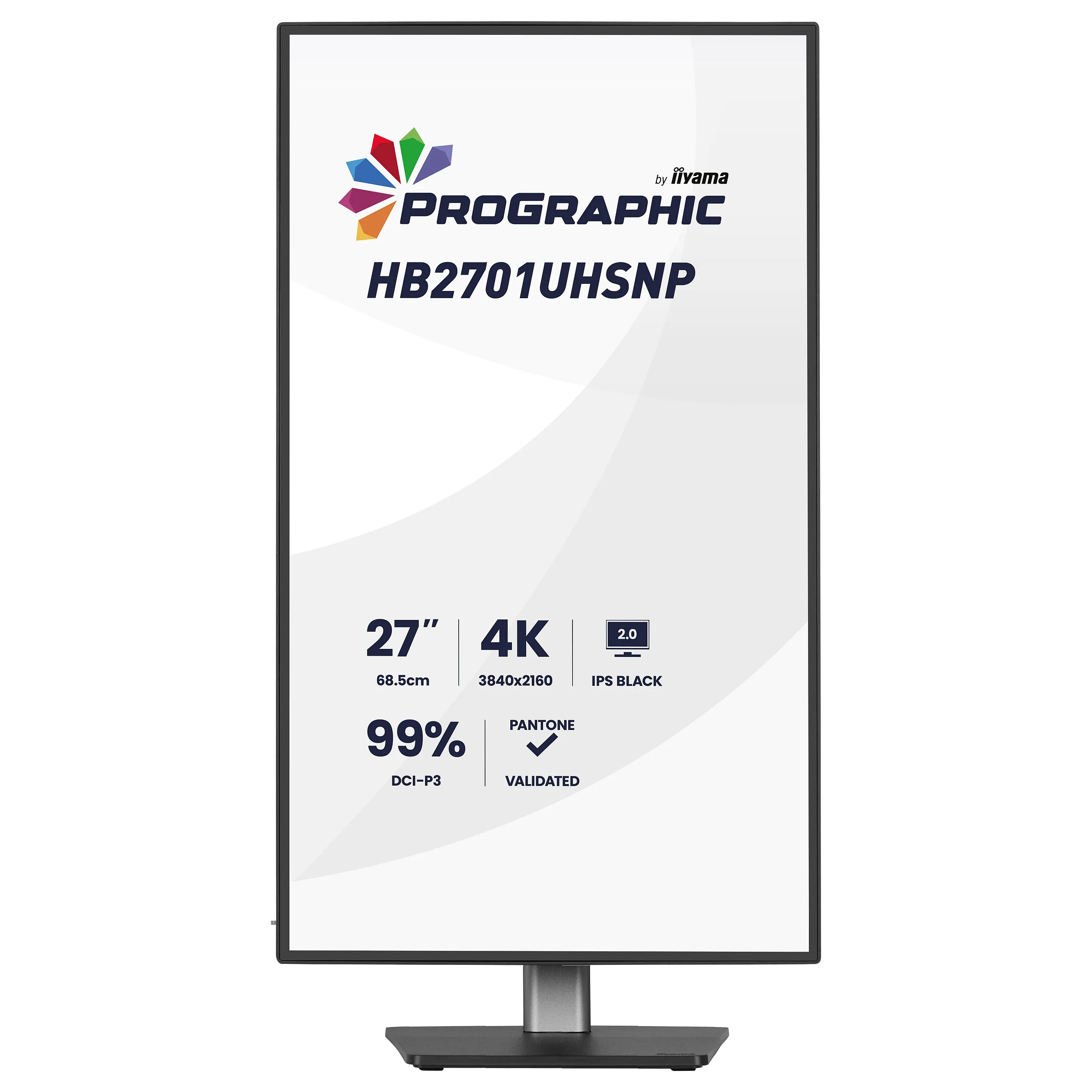

Feature: Pivot
Feature: Swivelling
Swivel angle range: -60 – 60°

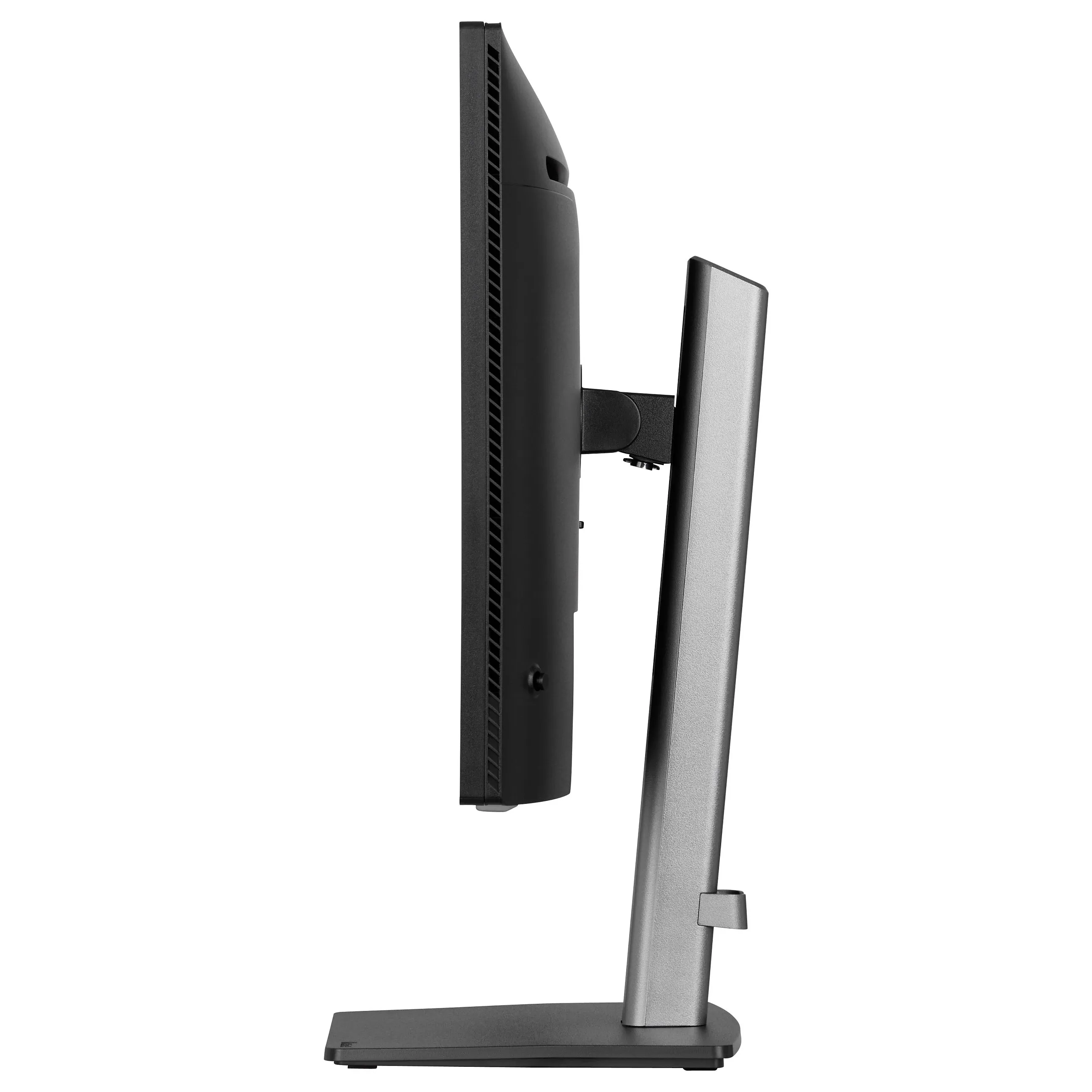

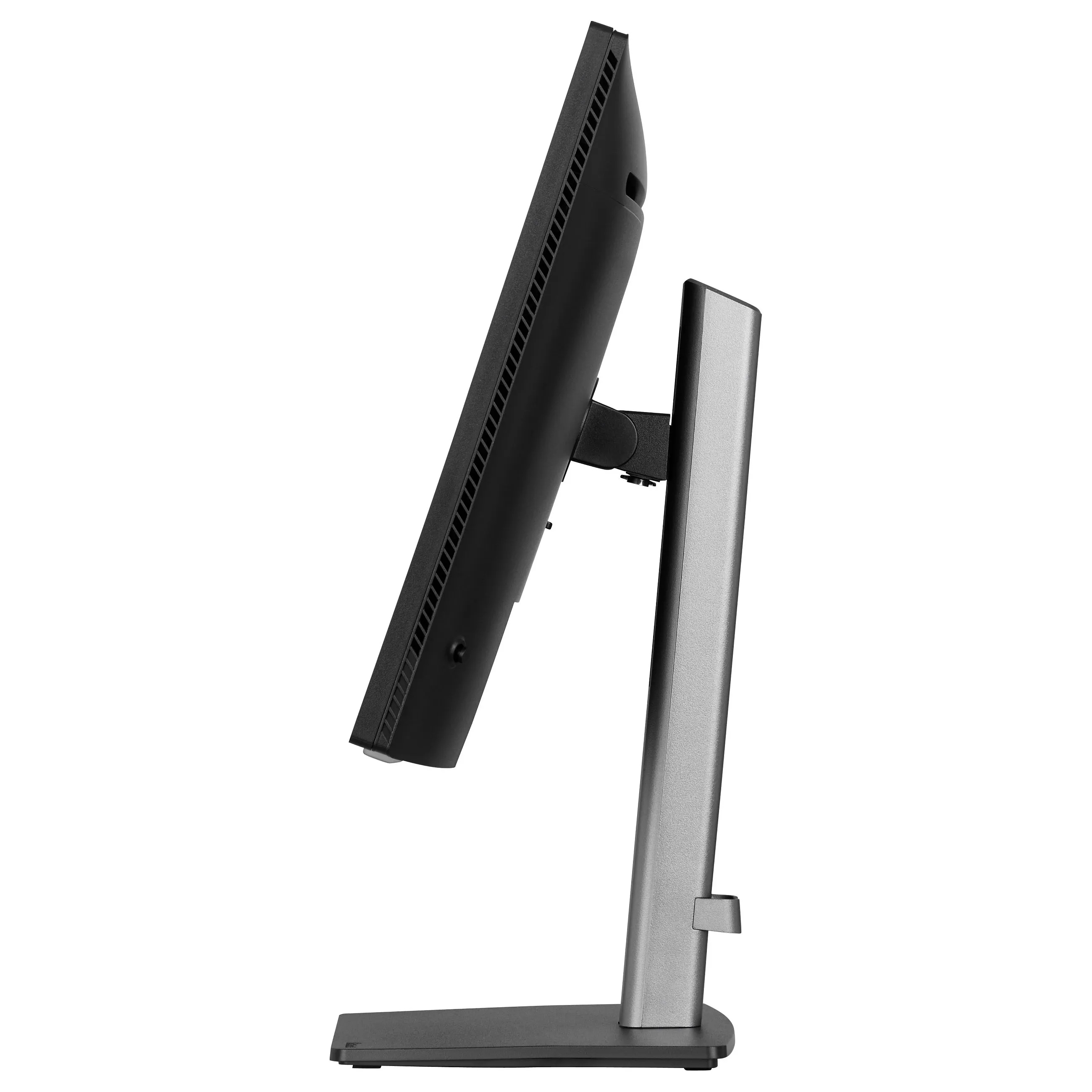

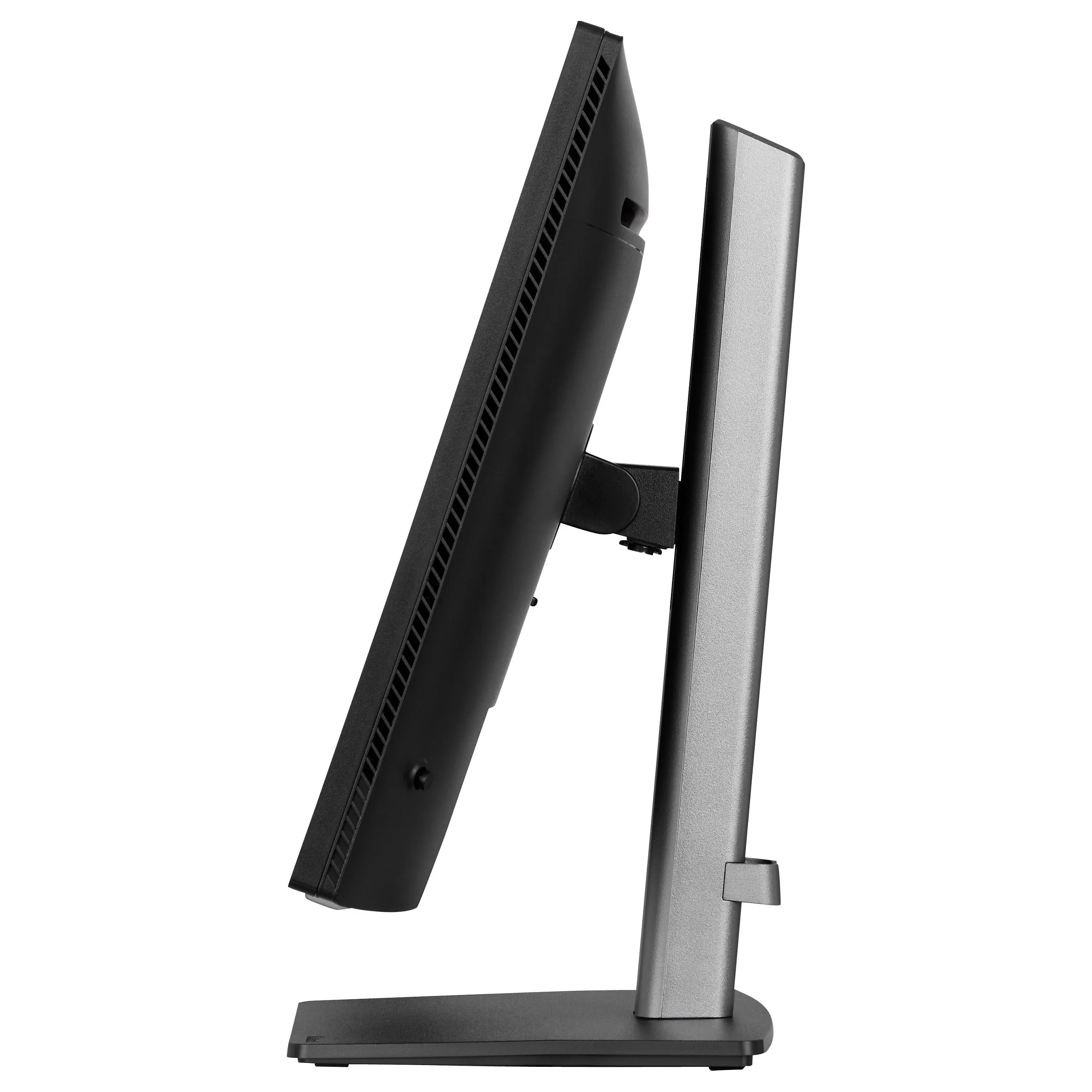

Feature: Tilt adjustment
Tilt angle range: -5 – 23°
On Screen Display (OSD) languages: Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian, Ukrainian
Power

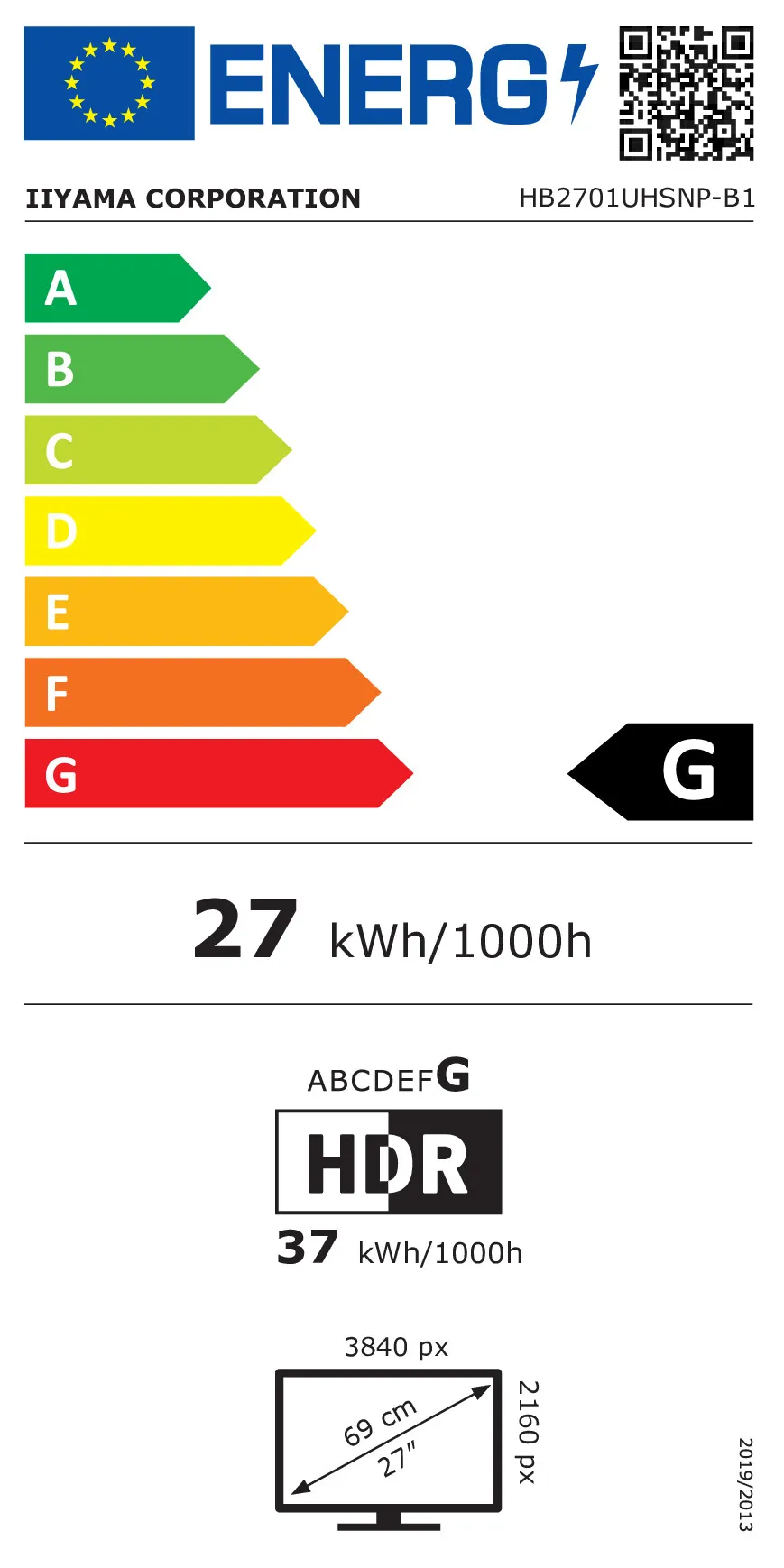

Energy efficiency class (SDR): G
Energy efficiency class (HDR): G
Energy consumption (SDR) per 1000 hours: 27 kWh
Energy consumption (HDR) per 1000 hours: 37 kWh
Power consumption (typical): 27 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 2.3 A
Power supply type: Internal
Energy efficiency scale: A to G
Operational conditions
Operating temperature (T-T): 5 – 35 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 10 – 80%
Storage relative humidity (H-H): 10 – 90%
Weight & dimensions
Width (with stand): 614 mm
Depth (with stand): 224.5 mm
Height (with stand): 544 mm
Weight (with stand): 6.7 kg
Height (without stand): 404 mm
Packaging data
Package width: 688 mm
Package depth: 138 mm
Package height: 463 mm
Package weight: 9.7 kg
Package type: Box
USB cable length: 1.8 m

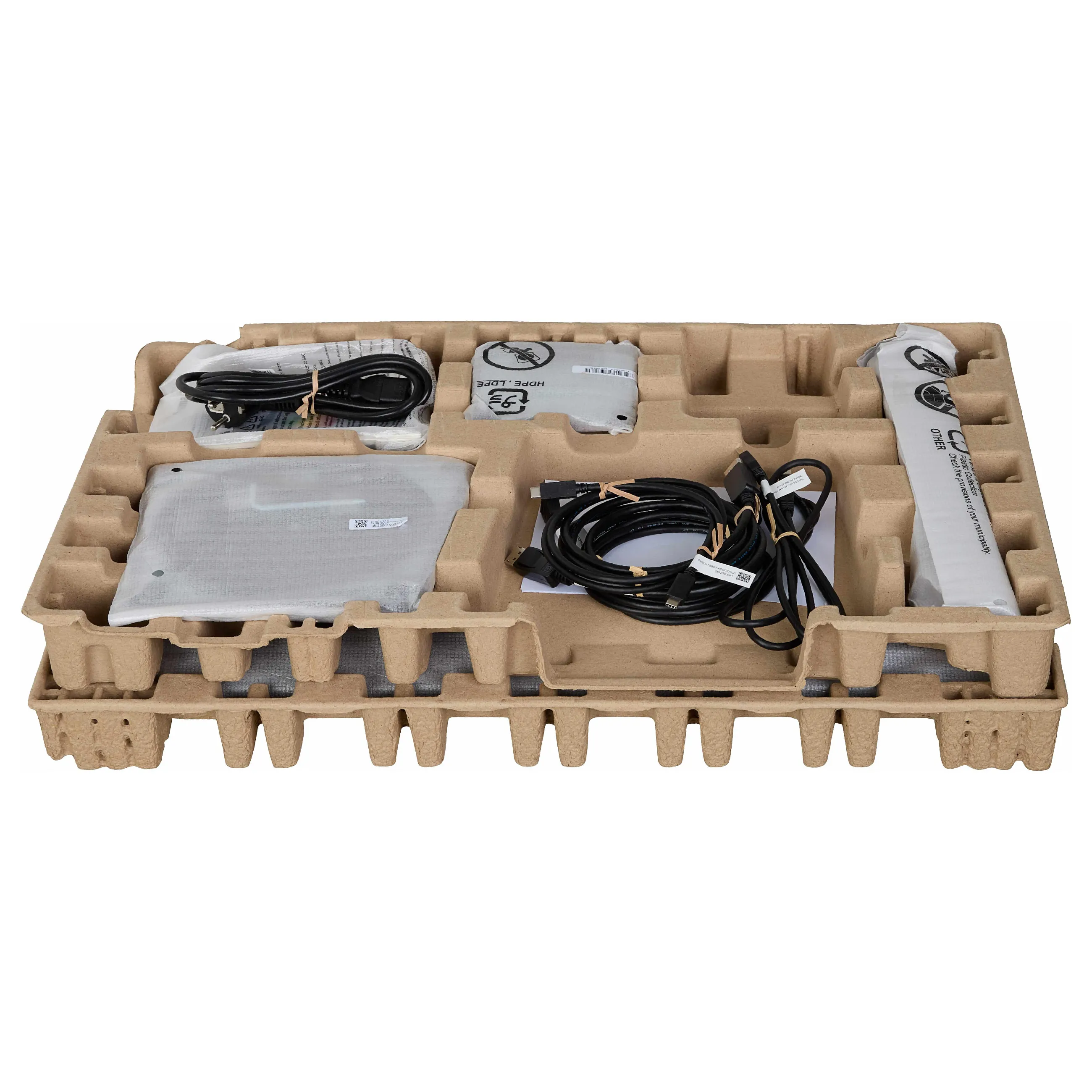

Packaging content

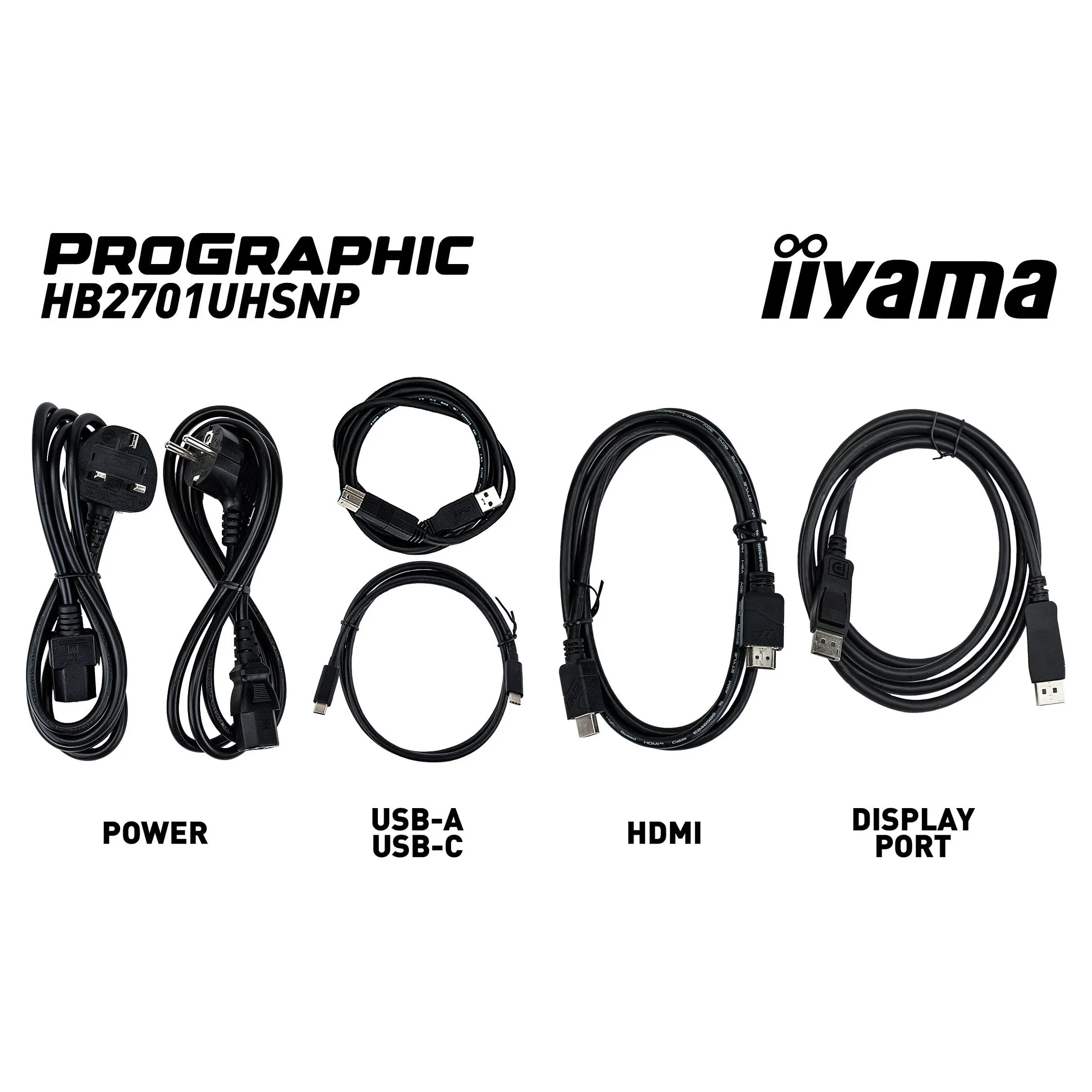

Cables included: AC, USB, HDMI, DisplayPort, USB Type-C
DisplayPort cable length: 1.8 m
HDMI cable length: 1.8 m
Power cable length: 1.8 m
Sustainability
Sustainability certificates: ErP, TCO
Other features
Packaging content: quick start guide, safety guide
Weight: 6.7 kg
Width: 614 mm
Depth: 224.5 mm
Control panel: Joystick/Power: Up/Input Select, Down/Shortcut, Right/Shortcut, Left/Shortcut
Compliance certificates: CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE
Ethernet LAN (RJ-45) ports: 1
Technical details
Native refresh rate: 60 Hz
Display diagonal: 68.6 cm (27″)
Display resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: IPS
Display brightness (typical): 450 cd/m²
Response time: 4 ms
Response time measurement type: GTG (Gray to Gray)
Display surface: Matt
Screen shape: Flat
Contrast ratio (typical): 3000:1
Contrast ratio (dynamic): 80000000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.155 x 0.155 mm
Horizontal scan range: 30 – 140 kHz
Vertical scan range: 40 – 60 Hz
Viewable size, horizontal: 59.7 cm
Viewable size, vertical: 33.6 cm
Display diagonal (metric): 68.5 cm
Feature: High Dynamic Range (HDR) supported
High Dynamic Range (HDR) technology: High Dynamic Range (HDR) 400
Feature: DDC/CI
Colour depth: 8 bit
Colour gamut standard: DCI-P3, NTSC, sRGB
sRGB coverage (typical): 100%
NTSC coverage (typical): 72%
DCI-P3 coverage: 99%
Performance
Feature: Flicker-free technology
Feature: Low Blue Light technology
Multimedia
Number of speakers: 2
RMS rated power: 4 W
Feature: Built-in speaker(s)
Design
Market positioning: Graphics design
Product colour: Black
Ports & interfaces
Feature: Built-in USB hub
USB hub version: 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-C
Number of upstream ports: 2
Number of downstream ports: 4
Number of USB Type-B upstream ports quantity: 1
Number of USB Type-C upstream ports quantity: 1
USB Type-A downstream ports quantity: 3
USB Type-C downstream ports quantity: 1
Feature: USB Type-C DisplayPort Alternate Mode
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 96 W
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
DisplayPort out quantity: 1
Feature: Headphone out
Headphone outputs: 1
Headphone connectivity: 3.5 mm
Feature: Built-in KVM switch
Feature: HDCP
Network
Feature: Ethernet LAN
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable management
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Height adjustment
Adjustable height (max): 15 cm
Feature: Pivot
Feature: Swivelling
Swivel angle range: -60 – 60°
Feature: Tilt adjustment
Tilt angle range: -5 – 23°
On Screen Display (OSD) languages: Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian, Ukrainian
Power
Energy efficiency class (SDR): G
Energy efficiency class (HDR): G
Energy consumption (SDR) per 1000 hours: 27 kWh
Energy consumption (HDR) per 1000 hours: 37 kWh
Power consumption (typical): 27 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 2.3 A
Power supply type: Internal
Energy efficiency scale: A to G
Operational conditions
Operating temperature (T-T): 5 – 35 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 10 – 80%
Storage relative humidity (H-H): 10 – 90%
Weight & dimensions
Width (with stand): 614 mm
Depth (with stand): 224.5 mm
Height (with stand): 544 mm
Weight (with stand): 6.7 kg
Height (without stand): 404 mm
Packaging data
Package width: 688 mm
Package depth: 138 mm
Package height: 463 mm
Package weight: 9.7 kg
Package type: Box
USB cable length: 1.8 m
Packaging content
Cables included: AC, USB, HDMI, DisplayPort, USB Type-C
DisplayPort cable length: 1.8 m
HDMI cable length: 1.8 m
Power cable length: 1.8 m
Sustainability
Sustainability certificates: ErP, TCO
Other features
Packaging content: quick start guide, safety guide
Weight: 6.7 kg
Width: 614 mm
Depth: 224.5 mm
Control panel: Joystick/Power: Up/Input Select, Down/Shortcut, Right/Shortcut, Left/Shortcut
Compliance certificates: CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE
Ethernet LAN (RJ-45) ports: 1
Technical details
Native refresh rate: 60 Hz
