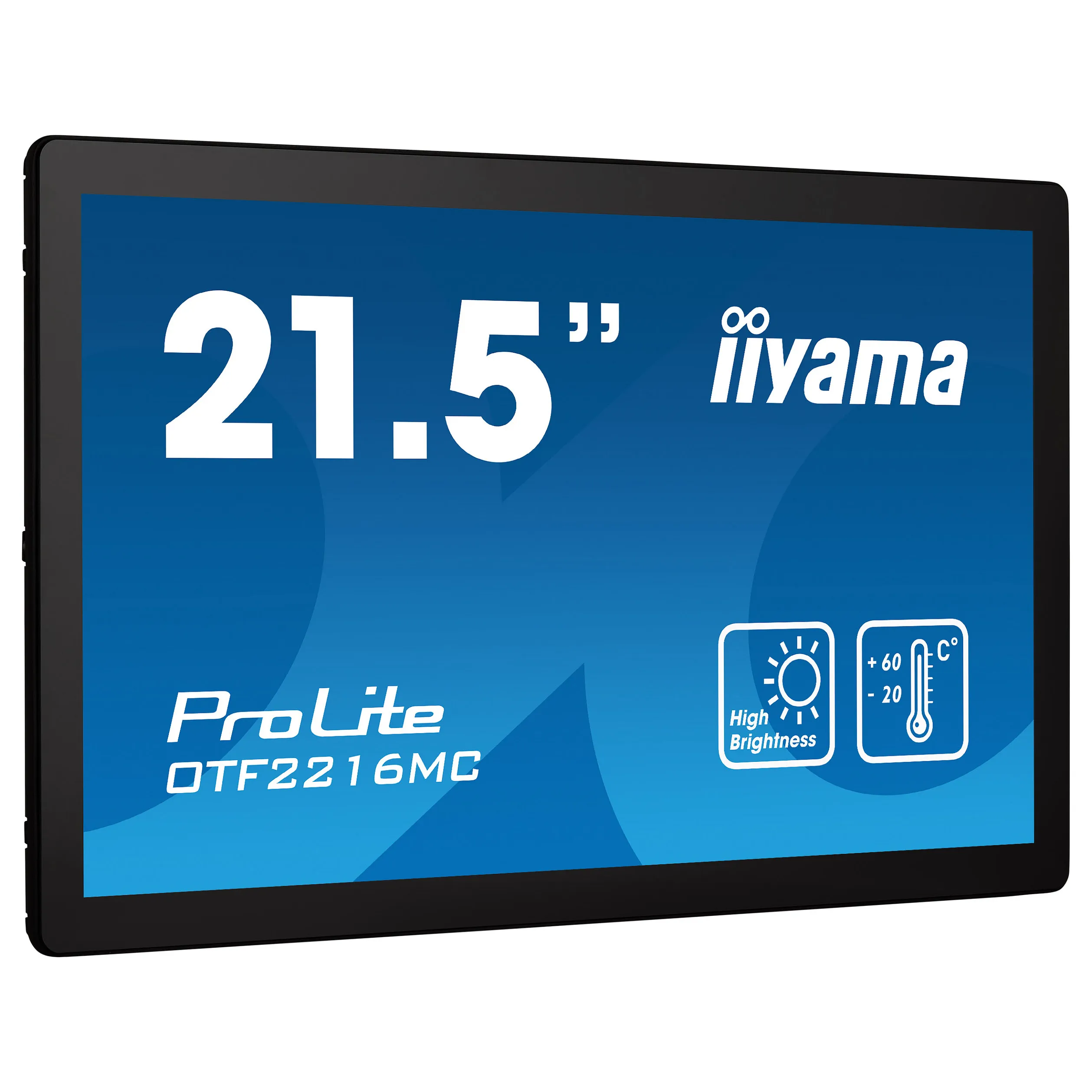

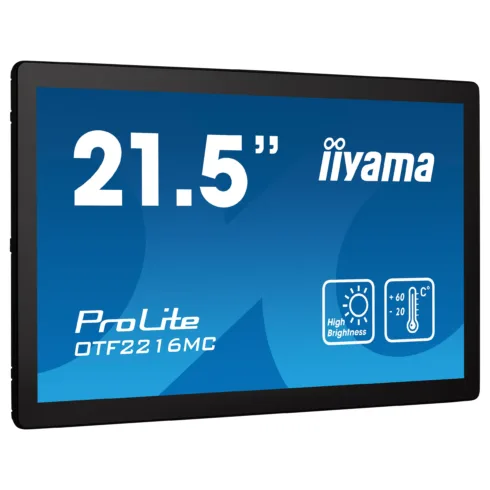

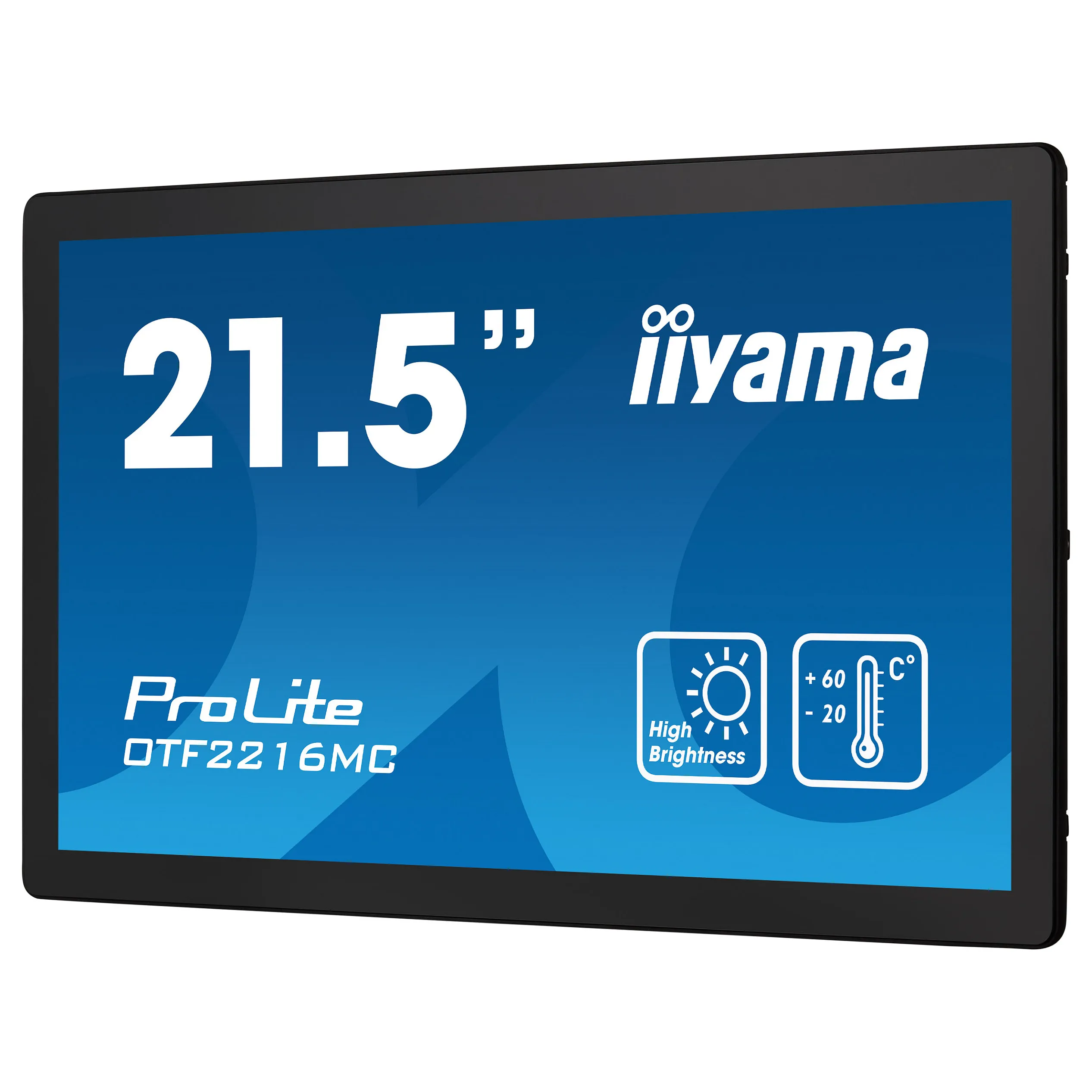

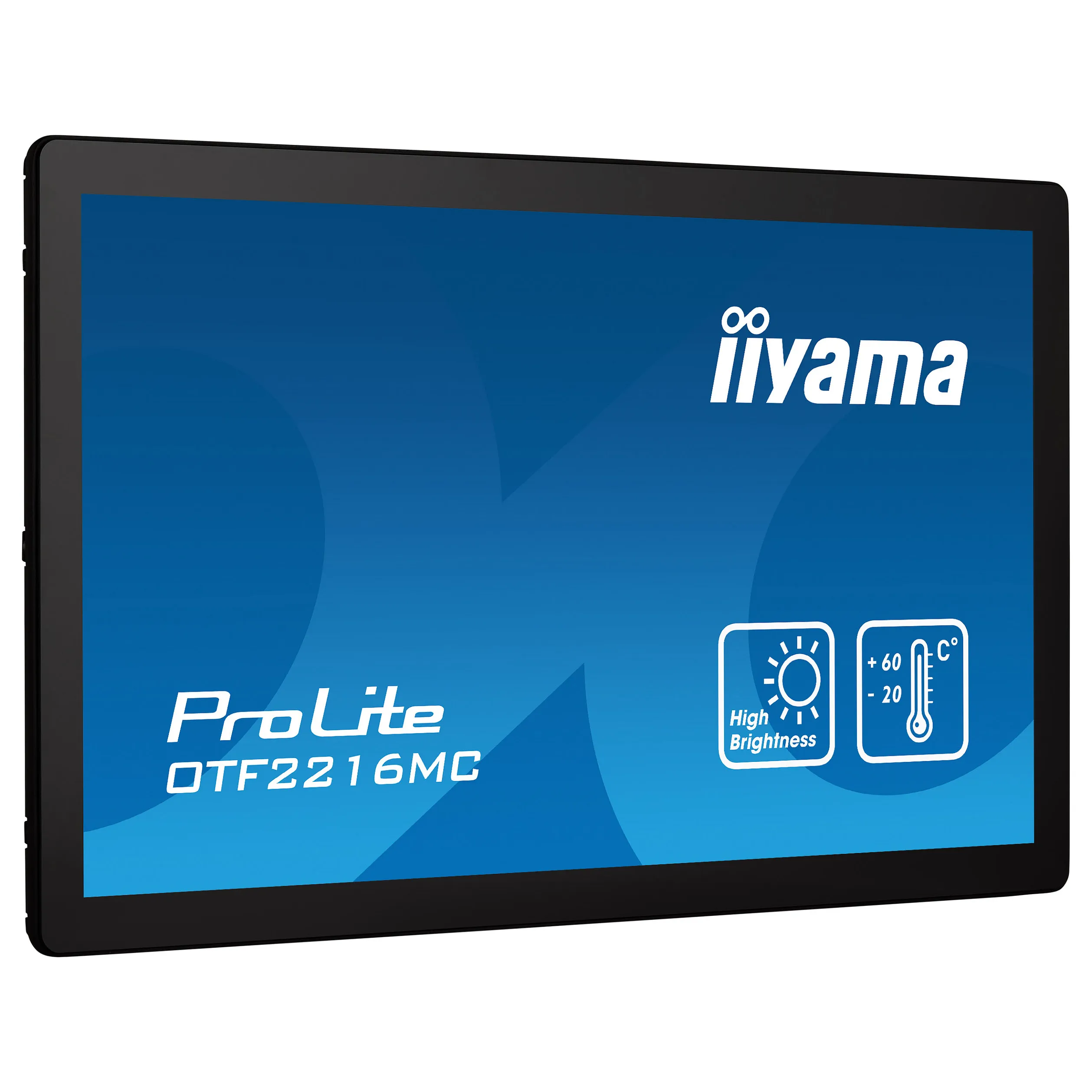

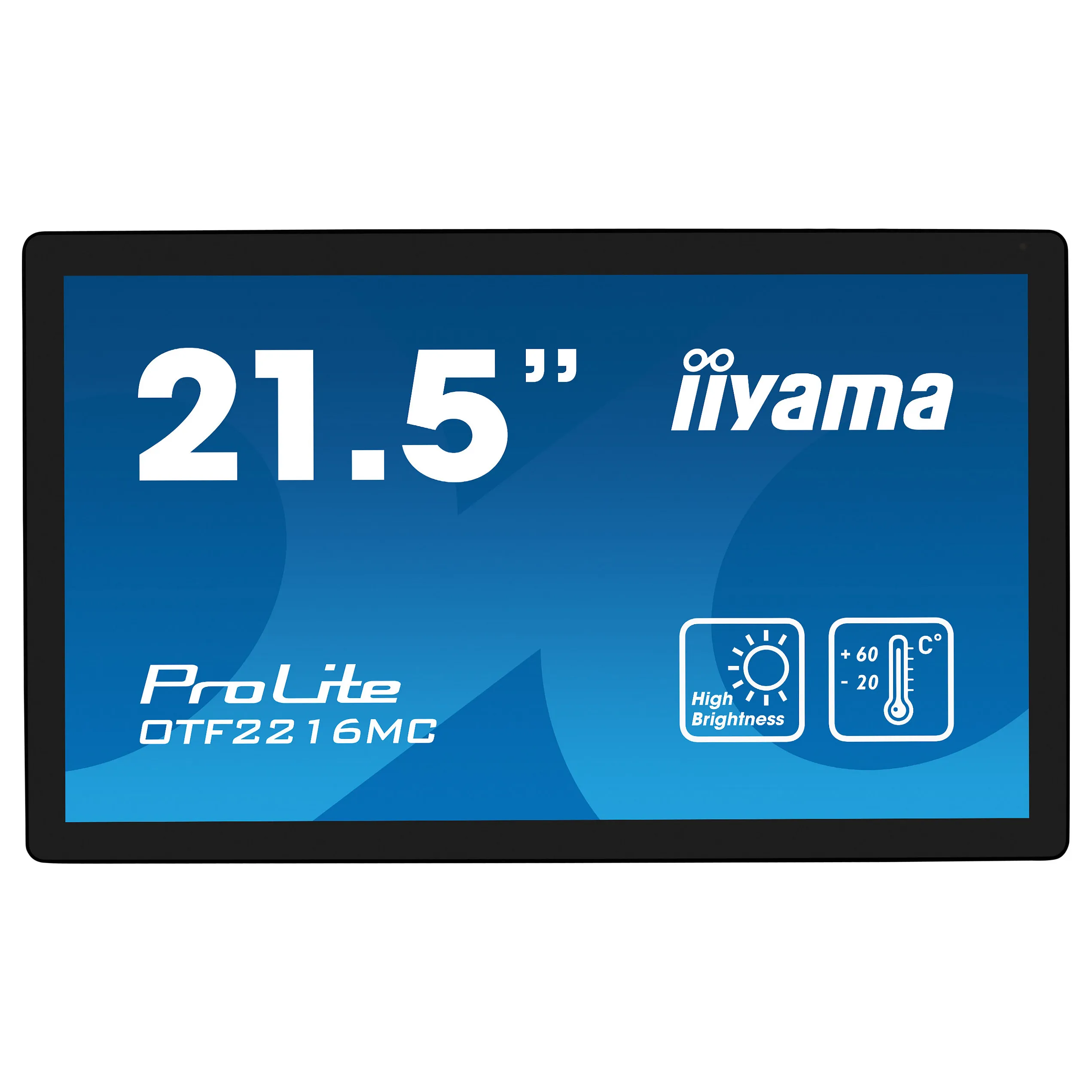

iiyama OTF2216MC-B1. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 25 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black
Built into a rugged, edge-to-edge glass bezel the ProLite OTF2216MC-B1 guarantees high durability and scratch-resistance, making it perfect for high use public facing applications. Landscape, portrait and face-up orientation ensure flexibility in any type of installation. It offers a brightness of up to 935 cd/m2, the content displayed will be visible even in very bright environments. The anti-glare display is UV resistant and IP65 protected, ensuring durability against sunlight, dust and water resistance from the front, additionally it can operate in temperatures ranging from -20 ̊C up to +60 ̊C and 24/7. The anti-fingerprint coating ensures a smoother touch. A reliable solution for pick-up points and kiosks. A proximity sensor turns off the screen when no one is present, an ambient light sensor adjusts screen brightness, and a temperature sensor controls fan speed for cooling, resulting in energy savings and extended product durability. For ease of integration, the ProLite OTF2216MC-B1 can be equipped with optional external mounting brackets ( OMK3-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
Display
Display diagonal: 54.6 cm (21.5″)
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: VA
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (peak): 1100 cd/m²
Display brightness (typical): 1100 cd/m²
Display brightness: 935 cd/m²
Response time: 25 ms
Screen shape: Flat
Contrast ratio (typical): 5000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.248 x 0.248 mm
Horizontal scan range: 31.4 – 82 kHz
Viewable size, horizontal: 47.7 cm
Viewable size, vertical: 26.9 cm
Digital horizontal frequency: 31.8 – 82 kHz
Display diagonal (metric): 54.6 cm
Surface hardness: 7H
Colour depth: 8 bit
Performance
Operating hours (hours/days): 24/7
Feature: Palm rejection
Design
Market positioning: Office
Product colour: Black
Front bezel colour: Black
Glass thickness: 3.15 mm

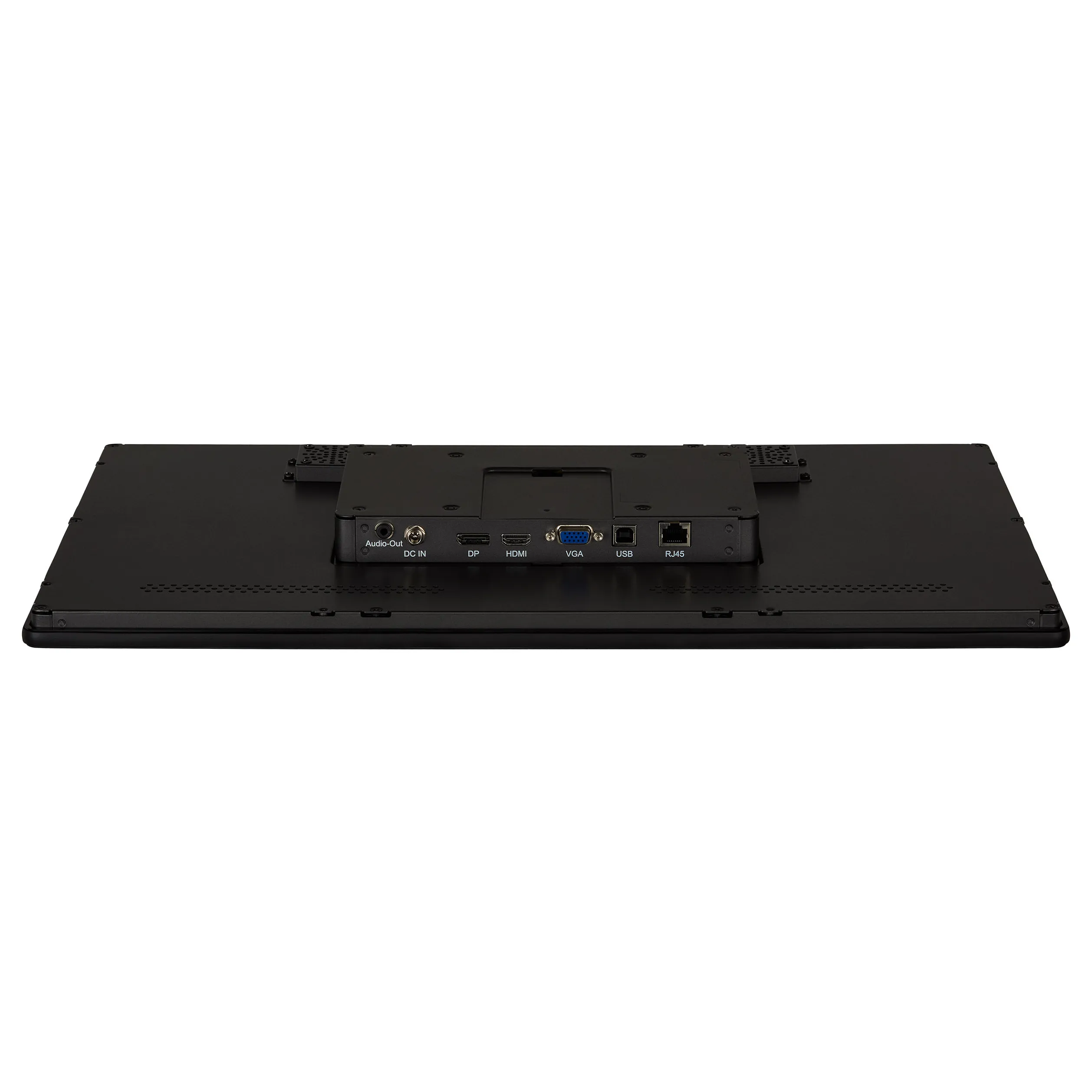

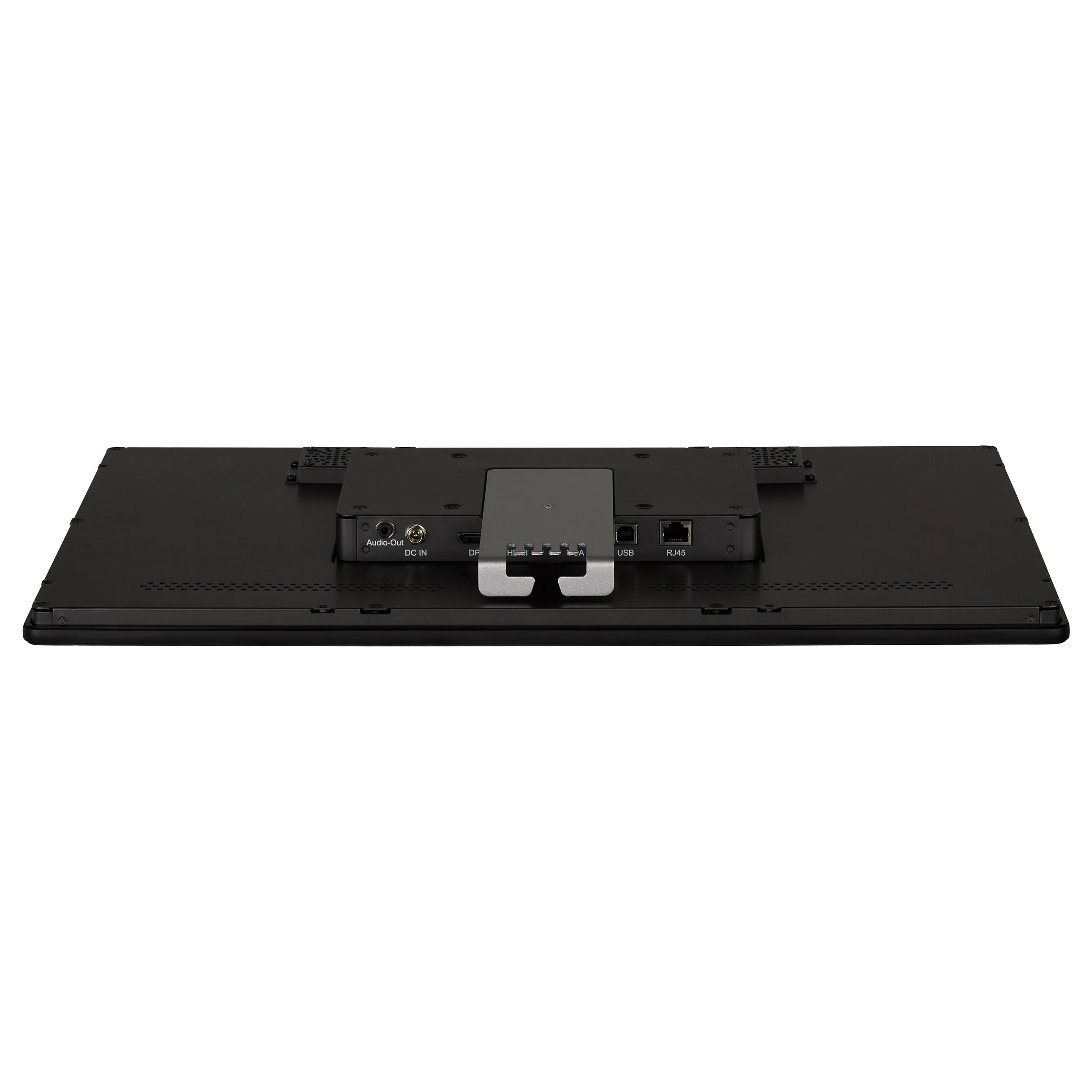

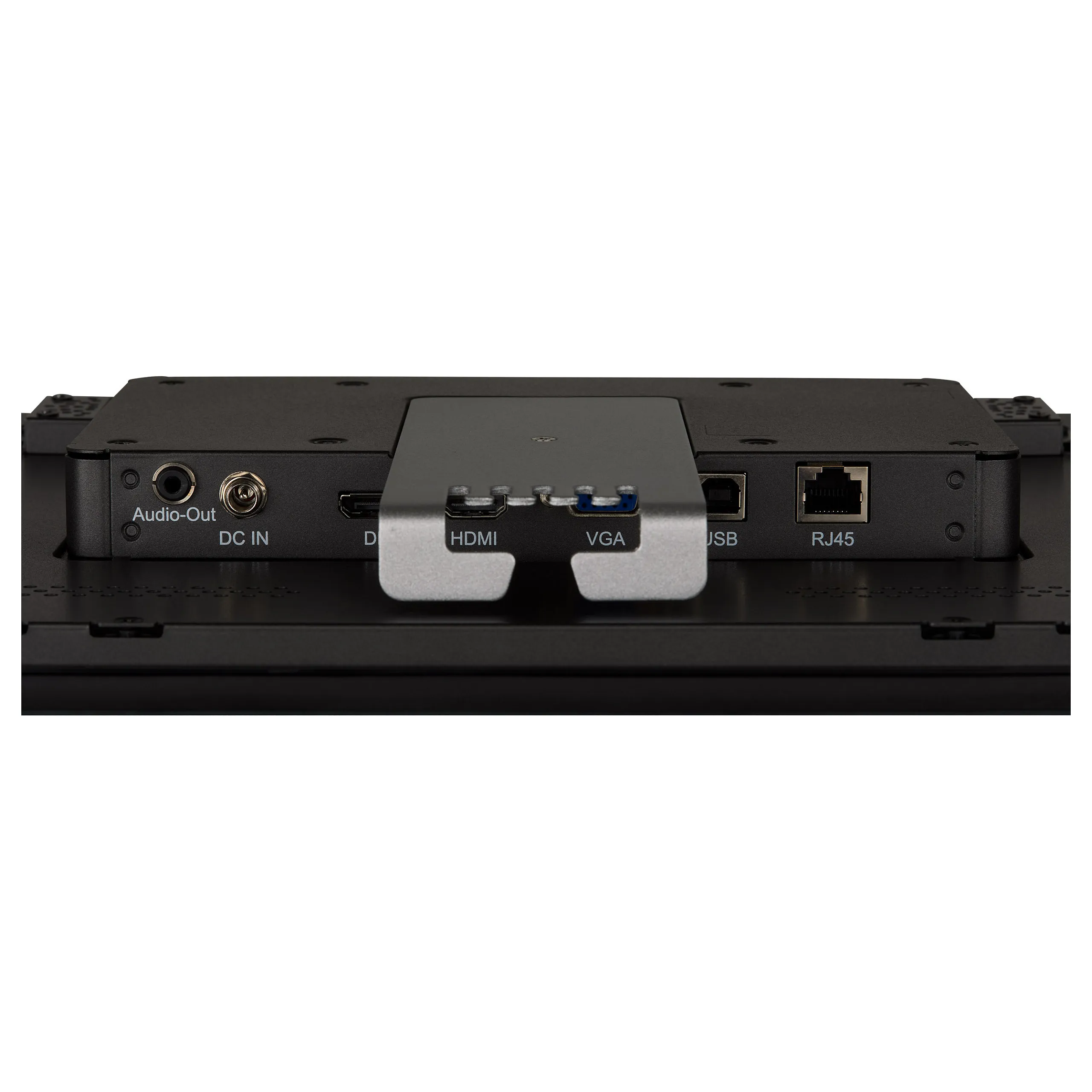

Ports & interfaces
Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: Headphone out
Feature: HDCP
Network
Feature: Ethernet LAN
Ergonomics

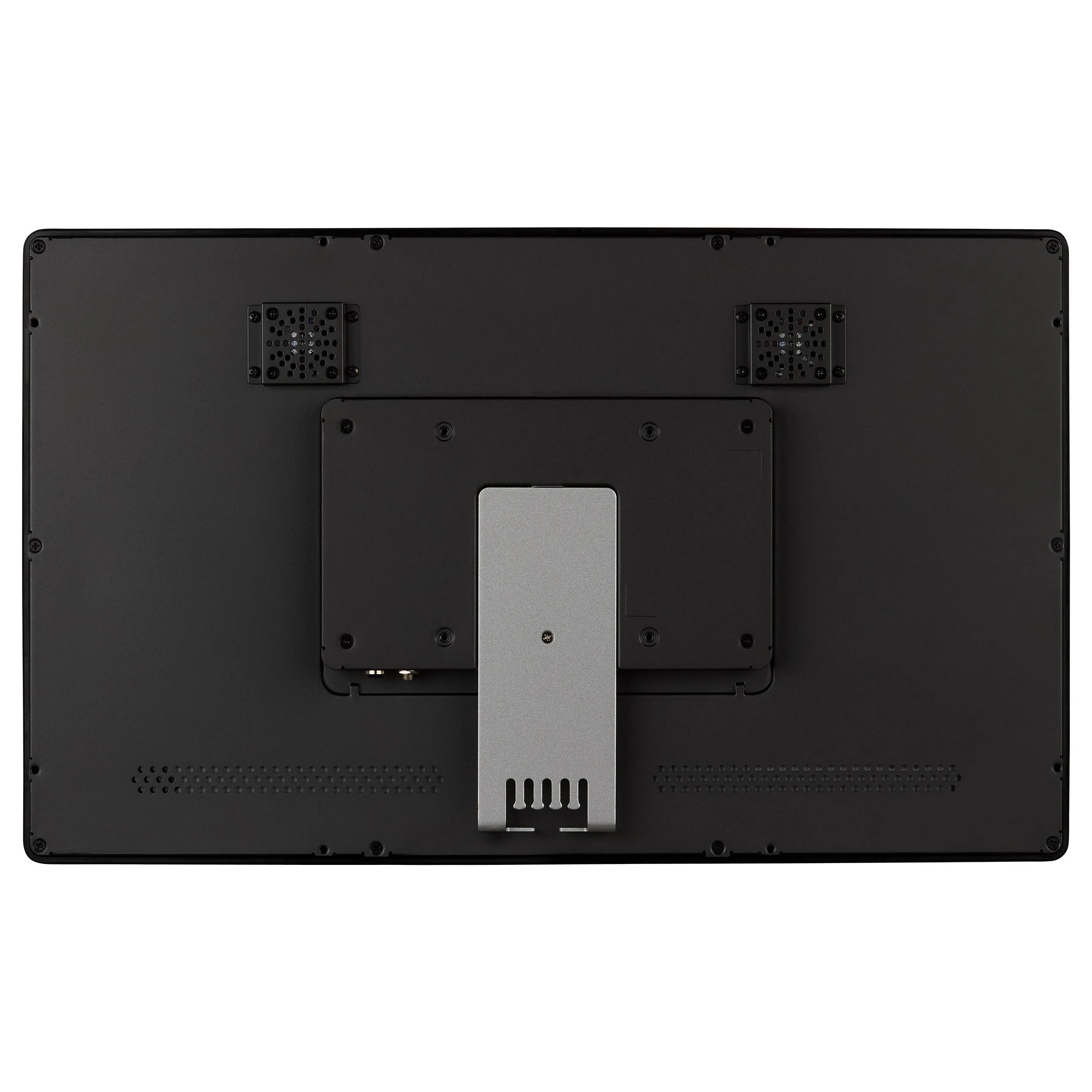

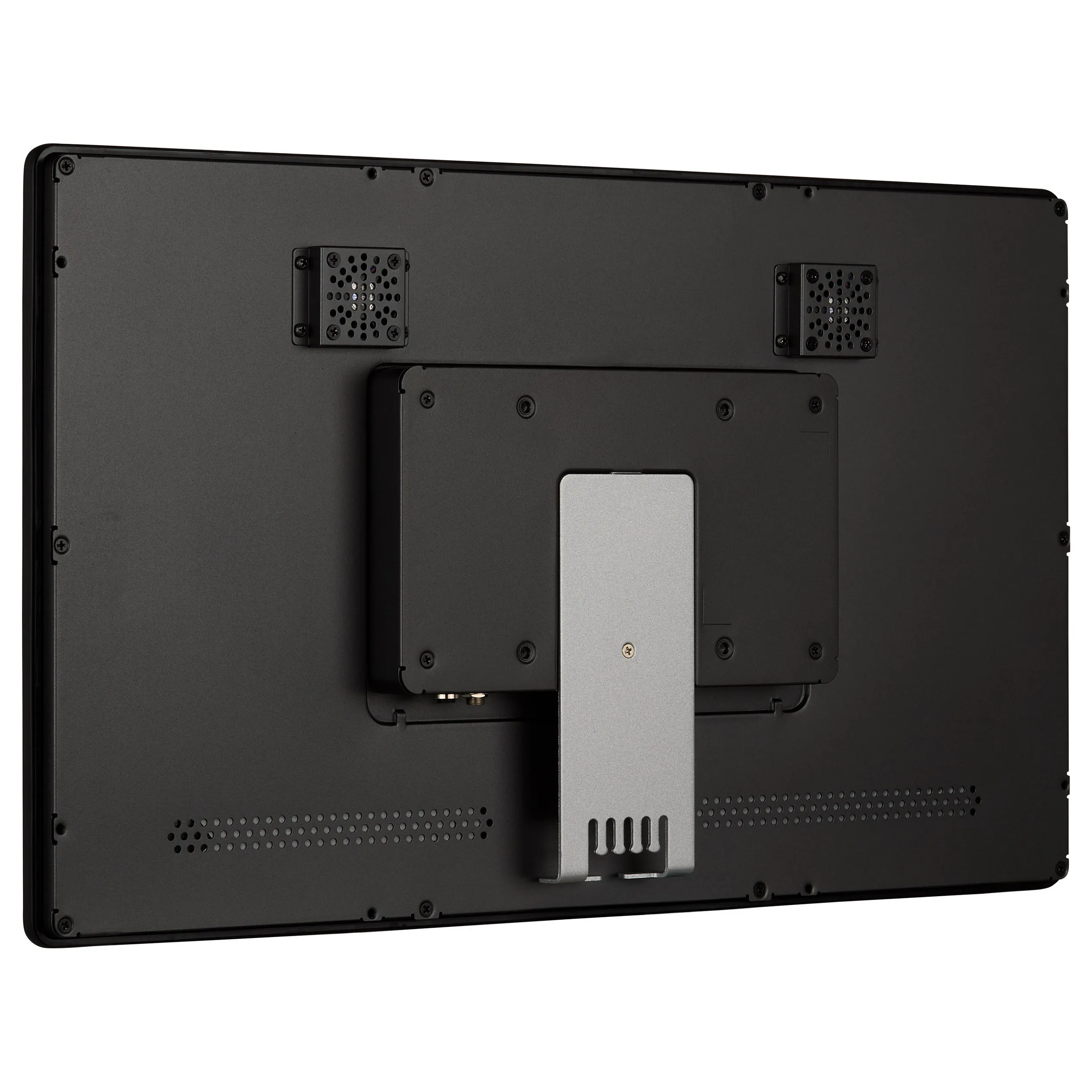

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable management
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages: 7
Power
Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 15.5 kWh
Power consumption (typical): 43 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G
Operational conditions
Operating temperature (T-T): -20 – 60 °C
Weight & dimensions
Width (with stand): 520 mm
Depth (with stand): 42.5 mm
Height (with stand): 315 mm
Weight (with stand): 4.6 kg
Width (without stand): 520 mm
Depth (without stand): 42.5 mm
Height (without stand): 315 mm
Weight (without stand): 4.6 kg
Packaging data
Package width: 608 mm
Package depth: 150 mm
Package height: 400 mm
Package weight: 4.5 kg
Packaging content
Cables included: AC, USB, HDMI, DisplayPort
Feature: Remote control included
Feature: Quick start guide
Sustainability
Sustainability certificates: ErP
Other features
International Protection (IP) code: IP65
Feature: AC adapter included
Placement supported: Indoor
Brightness: 935 cd/m²
Packaging content: AC adapter
Active display area (W x H): 477 x 269 mm
Weight: 4.6 kg
Height: 315 mm
Width: 520 mm
Touch method: finger, glove (latex)
Depth: 42.5 mm

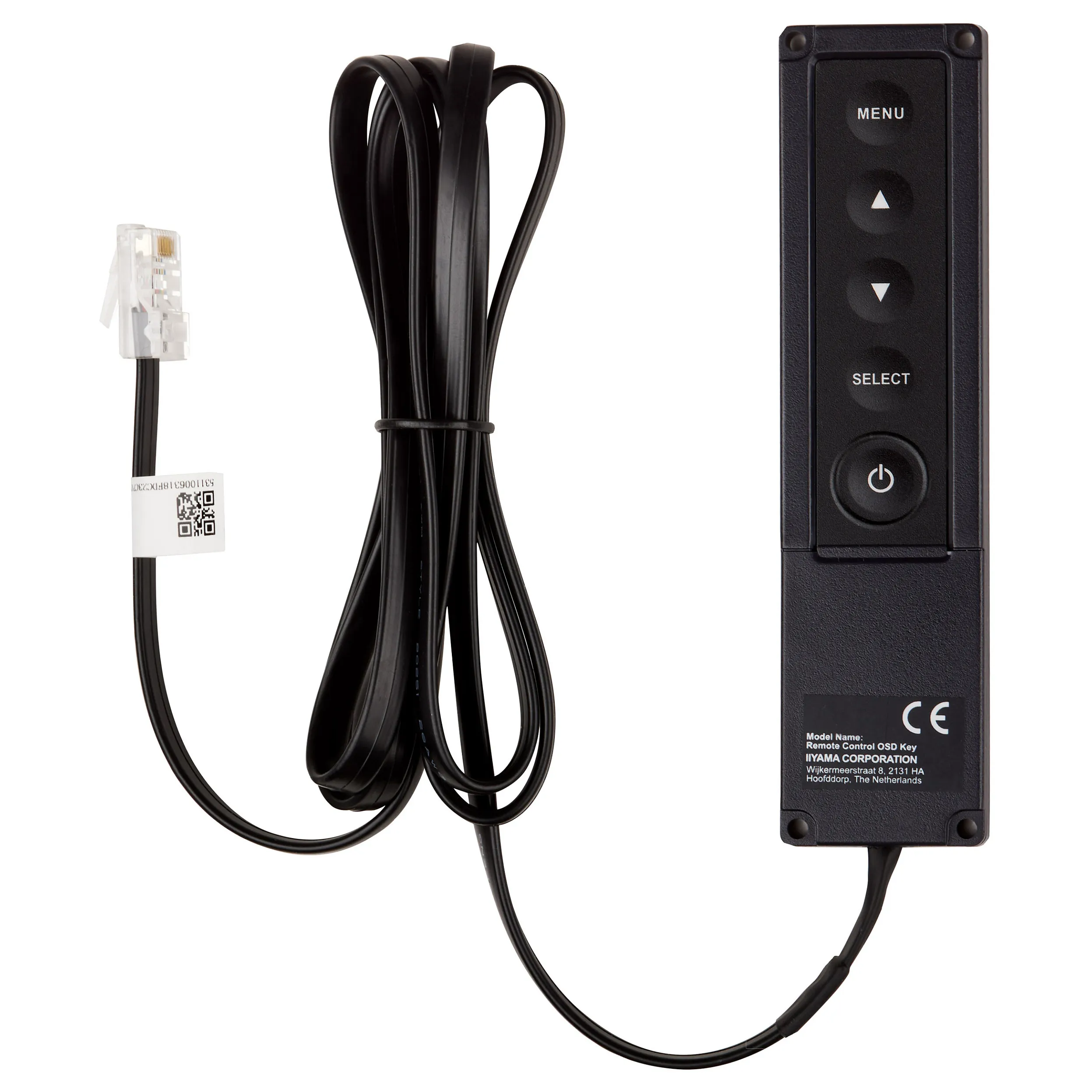

Control panel: Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
Mean time between failures (MTBF): 60000 h
Ethernet LAN (RJ-45) ports: 1
Certification: CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Technical details
Native refresh rate: 60 Hz
Display diagonal: 54.6 cm (21.5″)
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: VA
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (peak): 1100 cd/m²
Display brightness (typical): 1100 cd/m²
Display brightness: 935 cd/m²
Response time: 25 ms
Screen shape: Flat
Contrast ratio (typical): 5000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.248 x 0.248 mm
Horizontal scan range: 31.4 – 82 kHz
Viewable size, horizontal: 47.7 cm
Viewable size, vertical: 26.9 cm
Digital horizontal frequency: 31.8 – 82 kHz
Display diagonal (metric): 54.6 cm
Surface hardness: 7H
Colour depth: 8 bit
Performance
Operating hours (hours/days): 24/7
Feature: Palm rejection
Design
Market positioning: Office
Product colour: Black
Front bezel colour: Black
Glass thickness: 3.15 mm
Ports & interfaces
Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: Headphone out
Feature: HDCP
Network
Feature: Ethernet LAN
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable management
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages: 7
Power
Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 15.5 kWh
Power consumption (typical): 43 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G
Operational conditions
Operating temperature (T-T): -20 – 60 °C
Weight & dimensions
Width (with stand): 520 mm
Depth (with stand): 42.5 mm
Height (with stand): 315 mm
Weight (with stand): 4.6 kg
Width (without stand): 520 mm
Depth (without stand): 42.5 mm
Height (without stand): 315 mm
Weight (without stand): 4.6 kg
Packaging data
Package width: 608 mm
Package depth: 150 mm
Package height: 400 mm
Package weight: 4.5 kg
Packaging content
Cables included: AC, USB, HDMI, DisplayPort
Feature: Remote control included
Feature: Quick start guide
Sustainability
Sustainability certificates: ErP
Other features
International Protection (IP) code: IP65
Feature: AC adapter included
Placement supported: Indoor
Brightness: 935 cd/m²
Packaging content: AC adapter
Active display area (W x H): 477 x 269 mm
Weight: 4.6 kg
Height: 315 mm
Width: 520 mm
Touch method: finger, glove (latex)
Depth: 42.5 mm
Control panel: Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
Mean time between failures (MTBF): 60000 h
Ethernet LAN (RJ-45) ports: 1
Certification: CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Technical details
Native refresh rate: 60 Hz
