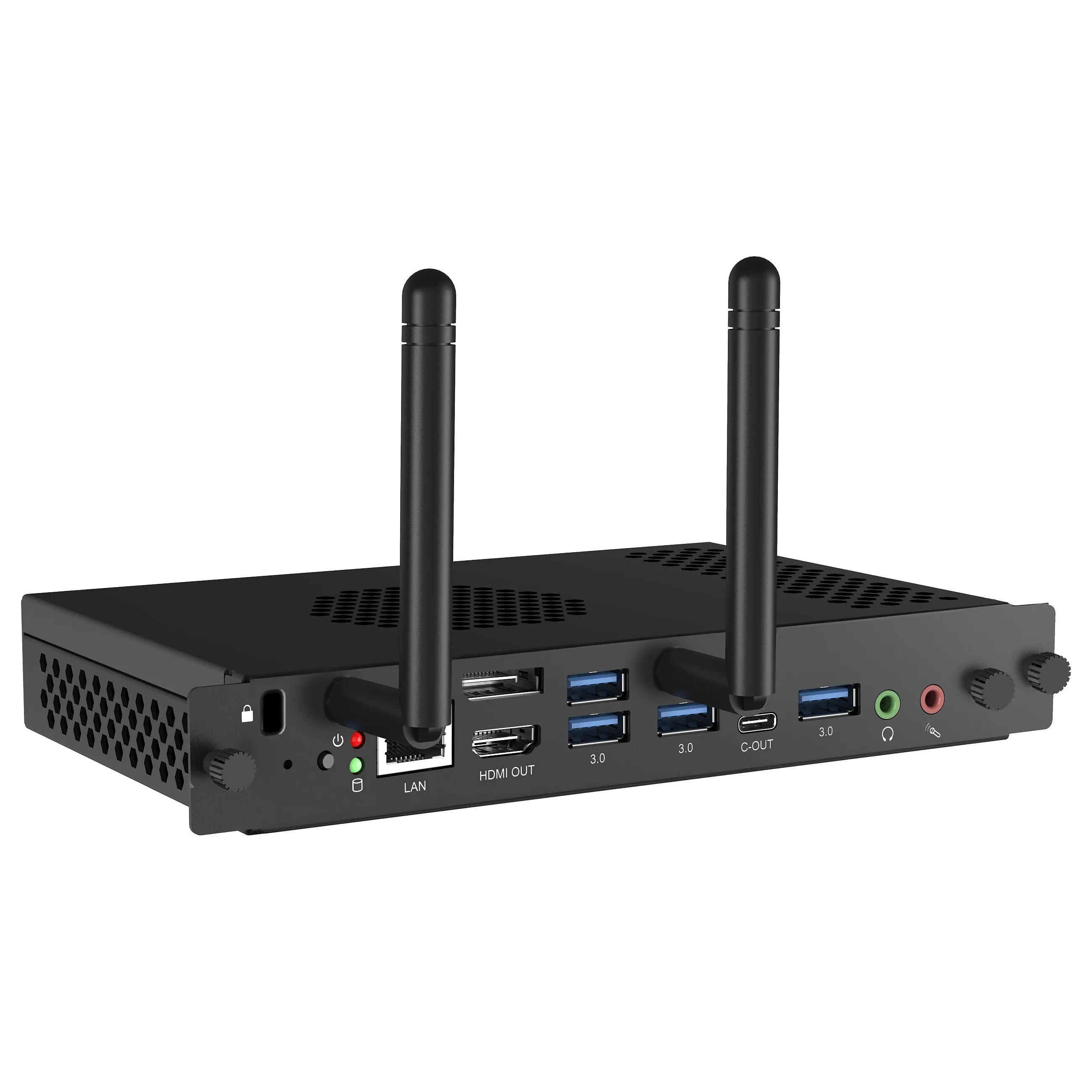

iiyama OPC51204BC-1. Processor family: Intel® Core™ i5, Processor model: i5-12450H. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM, Memory clock speed: 3200 MHz. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics. Wi-Fi. Operating system installed: Windows 11 IoT Enterprise, Operating system architecture: 64-bit. Chassis type: Mini PC. Product type: Mini PC. Weight: 600 g. Product colour: Black
This mini OPS PC with Intel Core i5 inside turns your iiyama (interactive) large format display into a stand-alone solution. It comes equipped with a powerful Intel processor with integrated Ultra HD graphics and a fast SSD drive. No hassle with cables and having to mount a PC at the back of the monitor or on a floor lift. The OPC51204BC-1 is also very quiet with a noise level below 34dB at 100% CPU load at 1 meter distance. Simply slide in the iiyama OPS slot PC and get started right away.
Processor
Processor manufacturer: Intel
Processor family: Intel® Core™ i5
Processor generation: 12th gen Intel® Core™ i5
Processor model: i5-12450H
Processor cores: 8
Performance cores: 4
Efficient cores: 4
Performance-core Max Turbo Frequency: 4.4 GHz
Efficient-core Max Turbo Frequency: 3.3 GHz
Processor cache: 12 MB
Processor cache type: Smart Cache
Processor base power: 45 W
Maximum turbo power: 95 W
Memory
Internal memory: 8 GB
Maximum internal memory: 32 GB
Internal memory type: DDR4-SDRAM
Memory clock speed: 3200 MHz
Maximum internal memory: 32 MB
Storage
Total storage capacity: 256 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 256 GB
Number of SSDs installed: 1
SSD capacity: 256 GB
SSD interface: PCI Express
SSD form factor: M.2
Graphics
Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® UHD Graphics
On-board graphics card model: Intel® UHD Graphics
Performance
Feature: Trusted Platform Module (TPM)
Product type: Mini PC
Trusted Platform Module (TPM) version: 2.0
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 100,10,1000 Mbit/s
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Feature: Bluetooth
Bluetooth version: 5.2

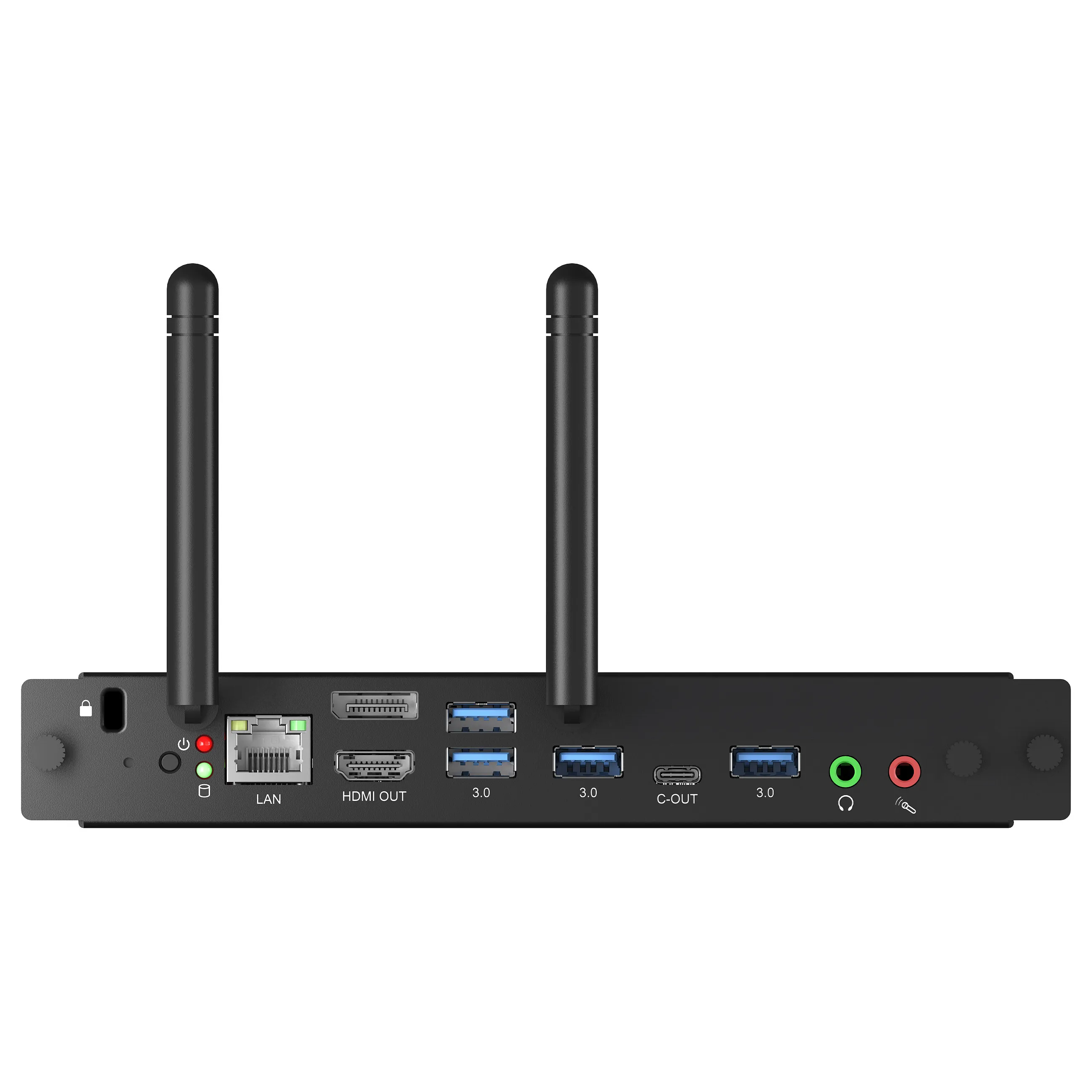

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.4
HDMI ports quantity: 1
HDMI version: 2.0
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1
Feature: Microphone in
Power
Power consumption (typical): 80.7 W
Power consumption (standby): 2.9 W
Design
Chassis type: Mini PC
Product colour: Black
Software
Operating system architecture: 64-bit
Operating system installed: Windows 11 IoT Enterprise
Compatible operating systems: Windows 11 IoT Enterprise
Audio
Audio system: High Definition Audio
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -10 – 50 °C
Operating relative humidity (H-H): 10 – 95%
Storage relative humidity (H-H): 10 – 95%
Weight & dimensions
Width: 119 mm
Depth: 180 mm
Height: 30 mm
Weight: 600 g
Packaging data
Package width: 260 mm
Package depth: 72 mm
Package height: 192 mm
Package weight: 957 g
