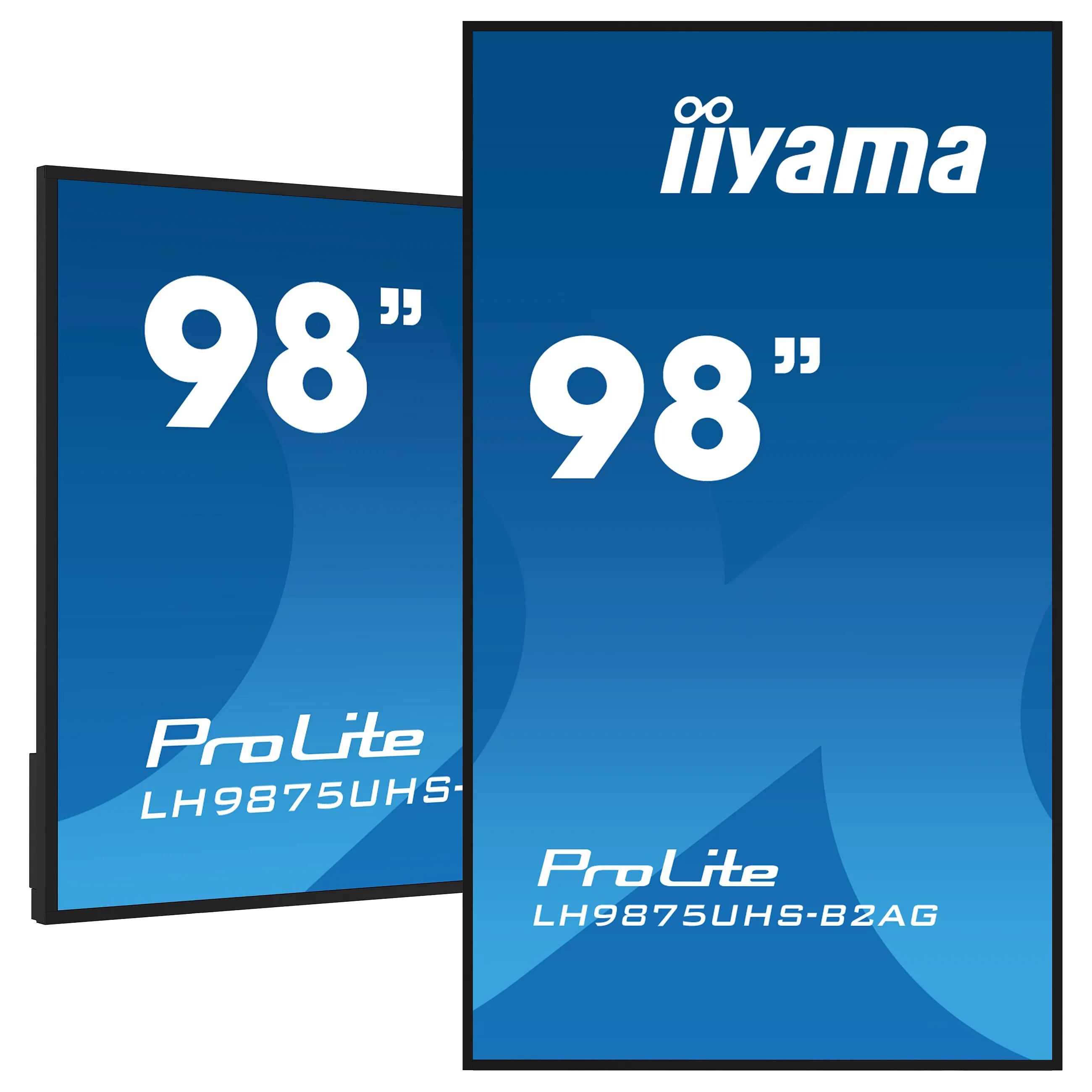

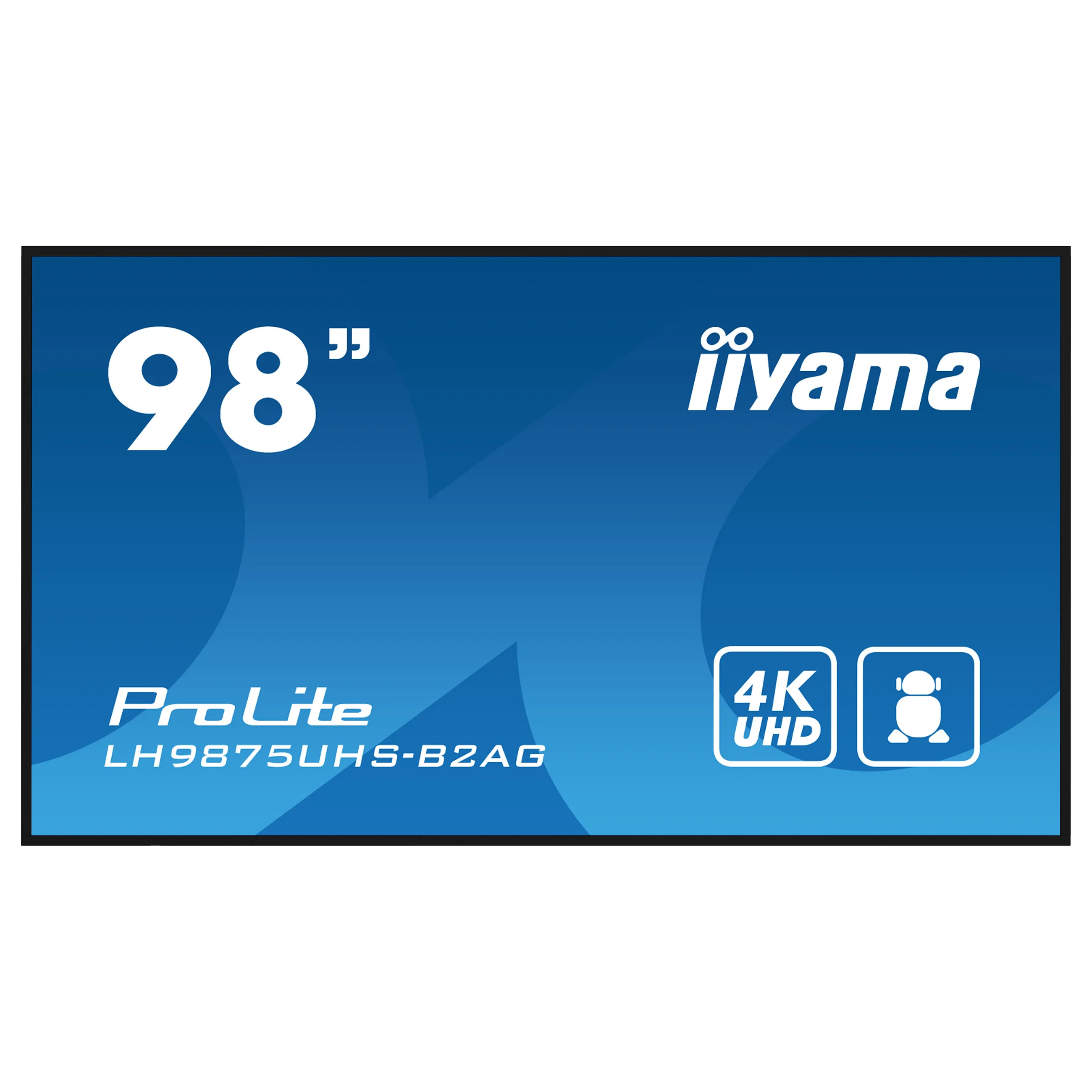

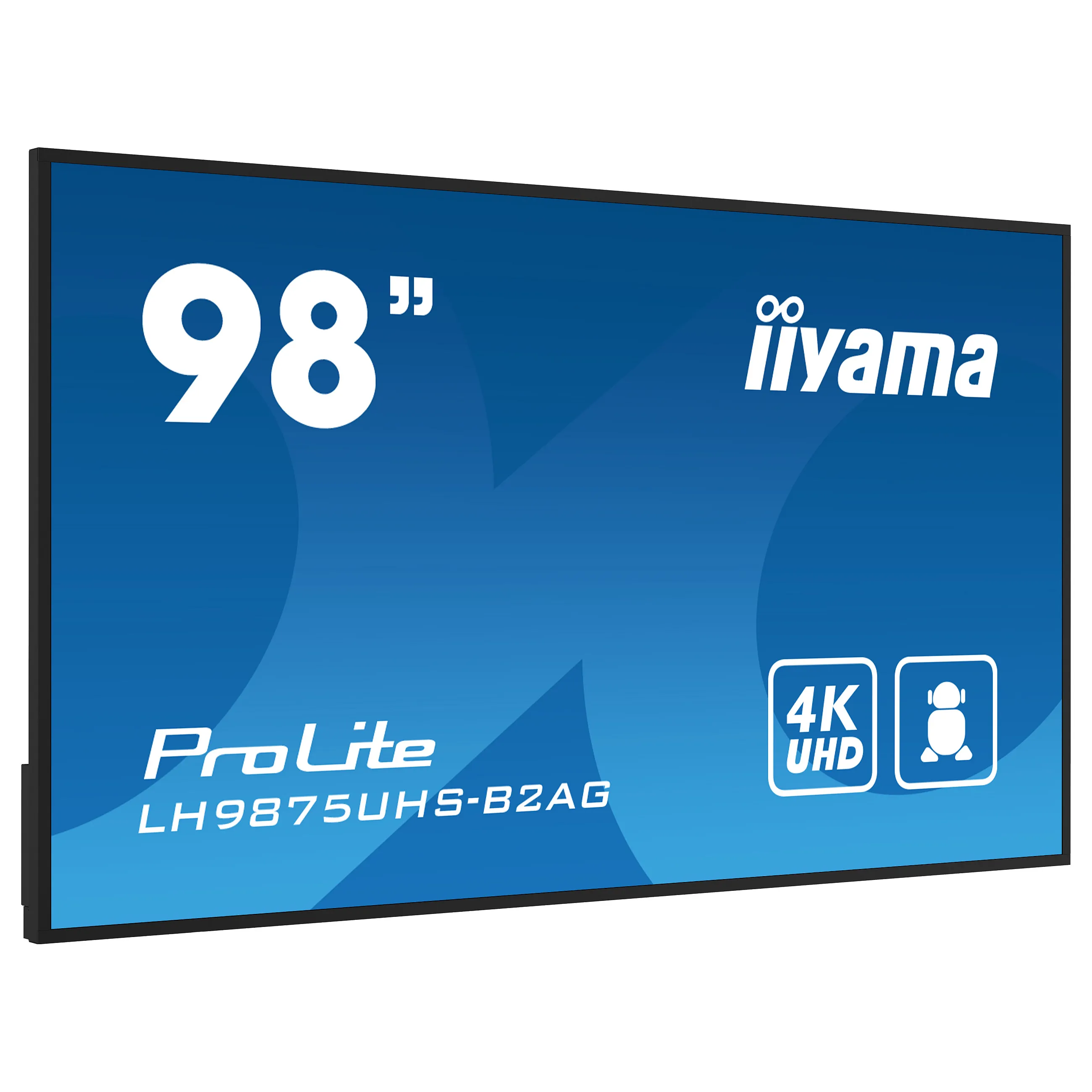

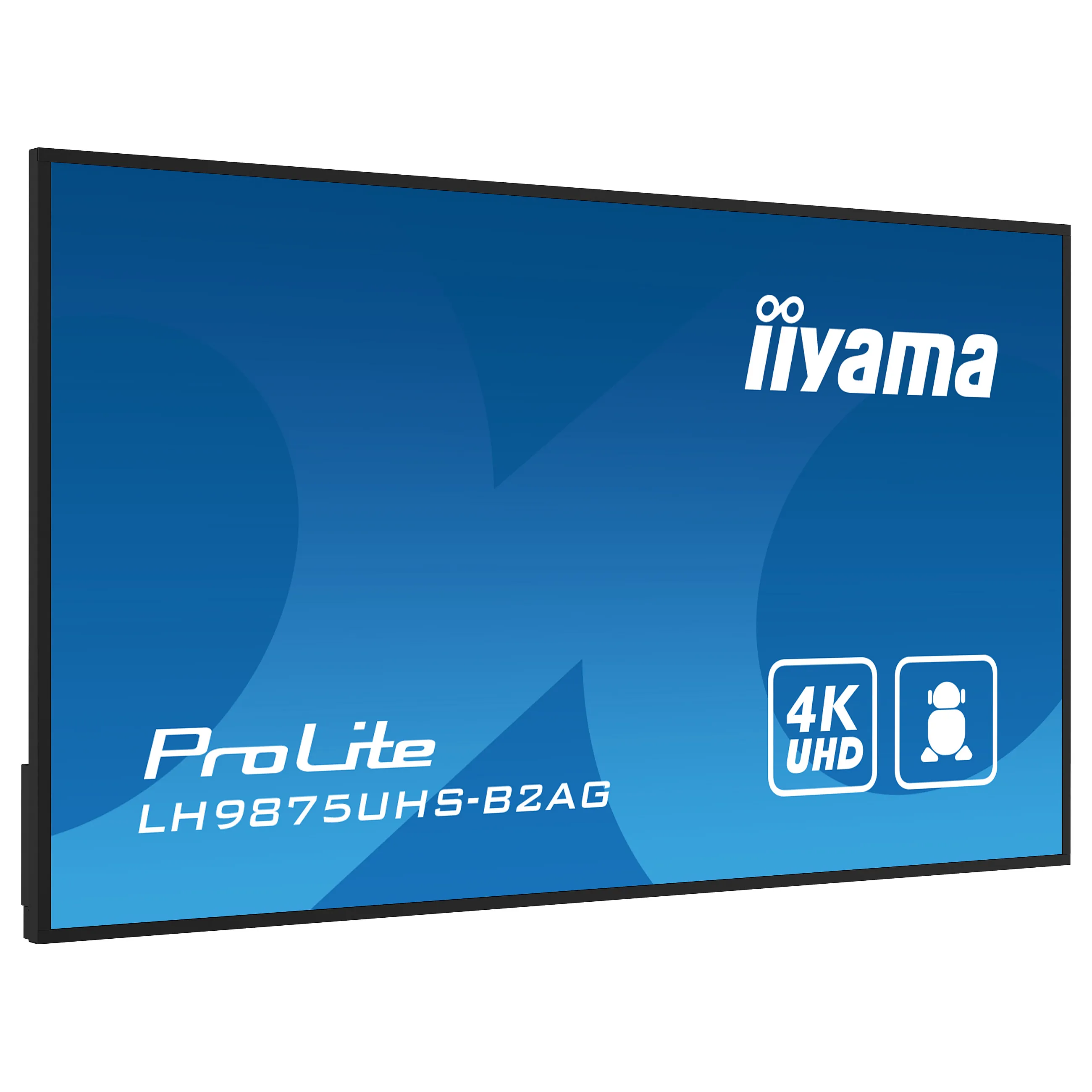

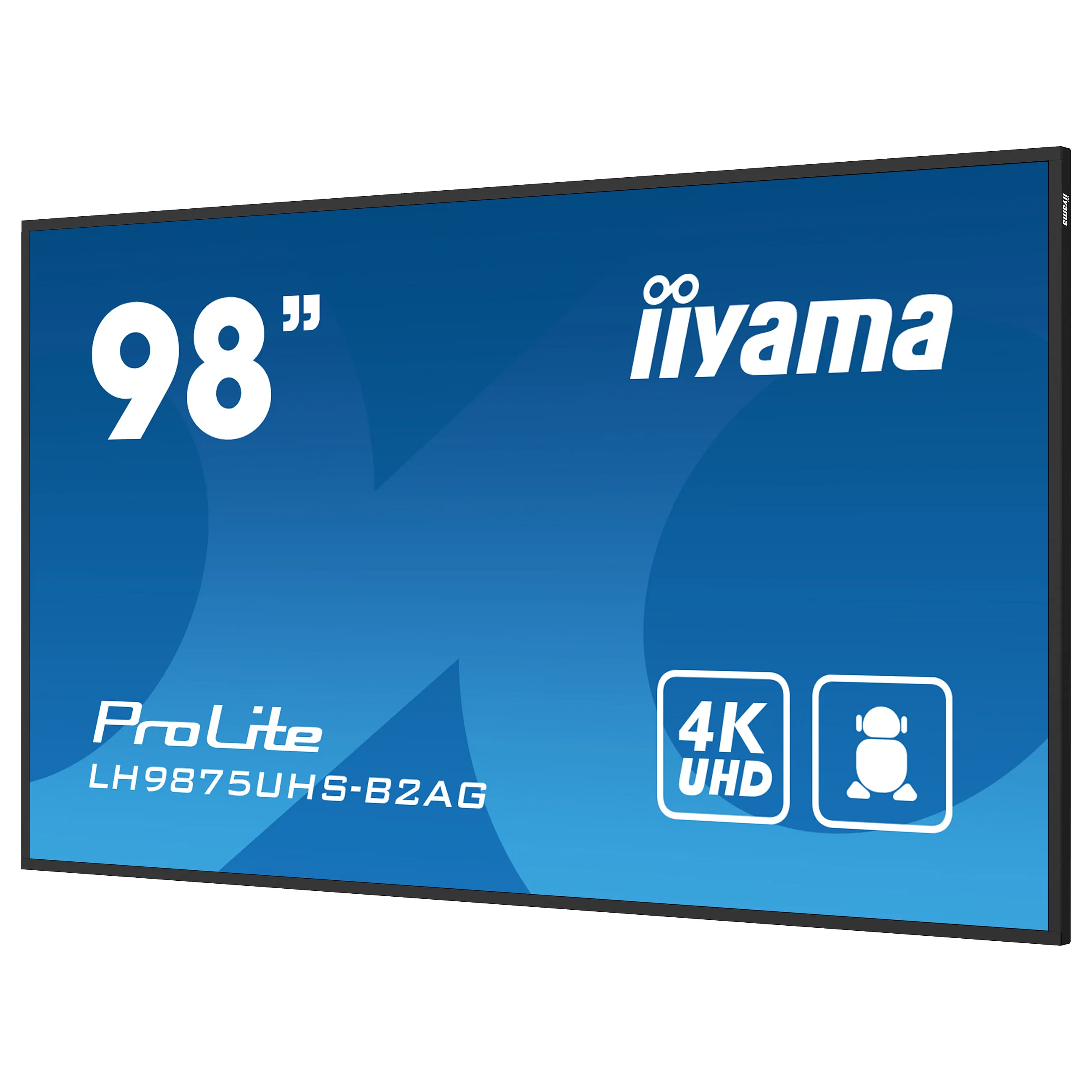

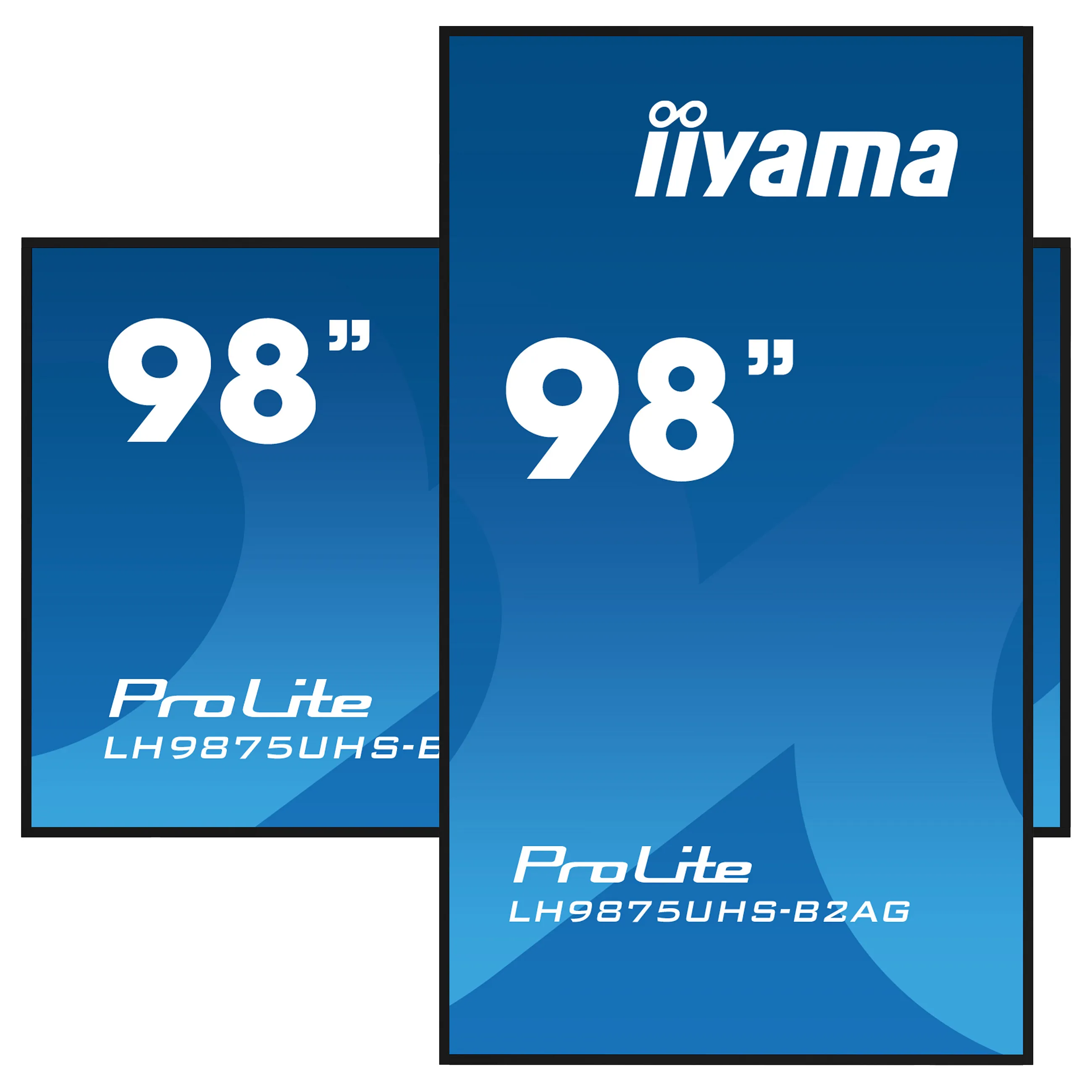

iiyama LH9875UHS-B2AG. Product design: Digital signage flat panel. Display diagonal: 2.48 m (97.5"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black
Choose non-stop high performance and uninterrupted reliability with the ideal all-in-one signage solution for mission critical environments. This 500cd/m2 high brightness display featuring on-board Android 11 OS offers a straightforward user experience, making content creation, management, and sharing a breeze. The OPS PC Slot provides an embedded PC option for total flexibility, security and control. WiFi enabled, the LH9875UHS-B2AG is ready for remote content delivery using your network or you can choose to utilise LAN control. The on-board iiSignage2 (Content Management System) gives you total control of your messaging and advertising remotely and safely. The Signal FailOver feature ensures your content is always actively displayed through your choice of inputs for mission critical environments. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network. With iiControl (DMS), iiShare and the integrated EShare app (wireless screen sharing) you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before. Its versatile orientation, sleek design, and 24/7 reliability ensures seamless integration into any business environment. Whether it’s used in retail, corporate, hospitality, or educational settings, the LH9875UHS-B2AG will undoubtedly captivate your audience and leave a lasting impression.
Display
Panel type: IPS
Display diagonal: 2.48 m (97.5″)
Display technology: LED
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.562 x 0.562 mm
Active display area (W x H): 2159 x 1214 mm
Display diagonal (metric): 247.7 cm
Horizontal scan range: 28 – 160 kHz
Native refresh rate: 60 Hz
Haze rate: 25%

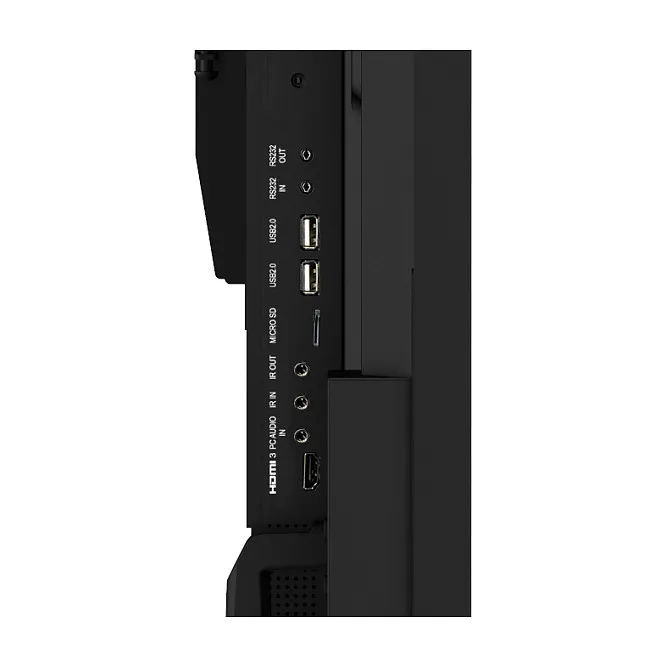

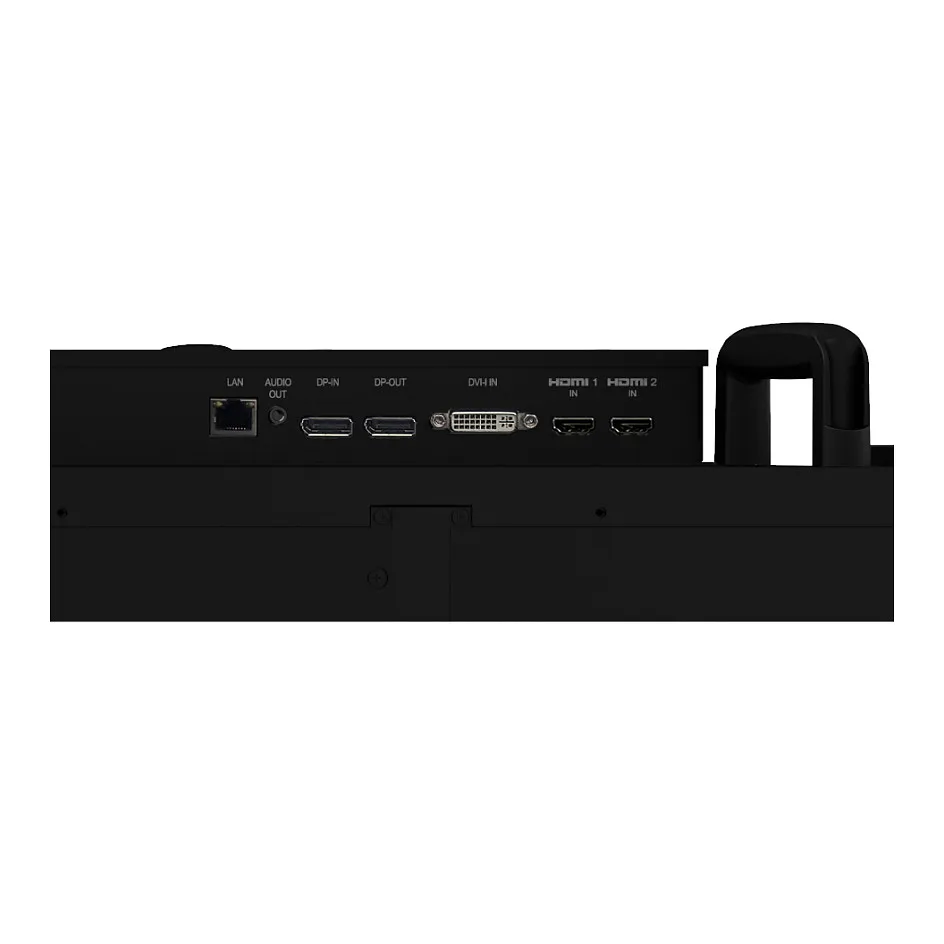

Ports & interfaces
HDMI ports quantity: 3
HDMI version: 2.0
Feature: DVI port
DVI-I ports quantity: 1
VGA (D-Sub) input ports: 1
DisplayPorts quantity: 1
DisplayPorts out: 1
Feature: USB port
USB ports quantity: 2
USB version: 2.0
Ethernet LAN (RJ-45) ports: 1
Audio (L/R) in: 1
Audio (L/R) out: 1
Feature: RS-232C
Remote (IR) input: 1
Remote (IR) output: 1
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Feature: OPS module slot
Feature: Audio Return Channel (ARC)
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 32 W
Design
Product design: Digital signage flat panel
Placement supported: Indoor

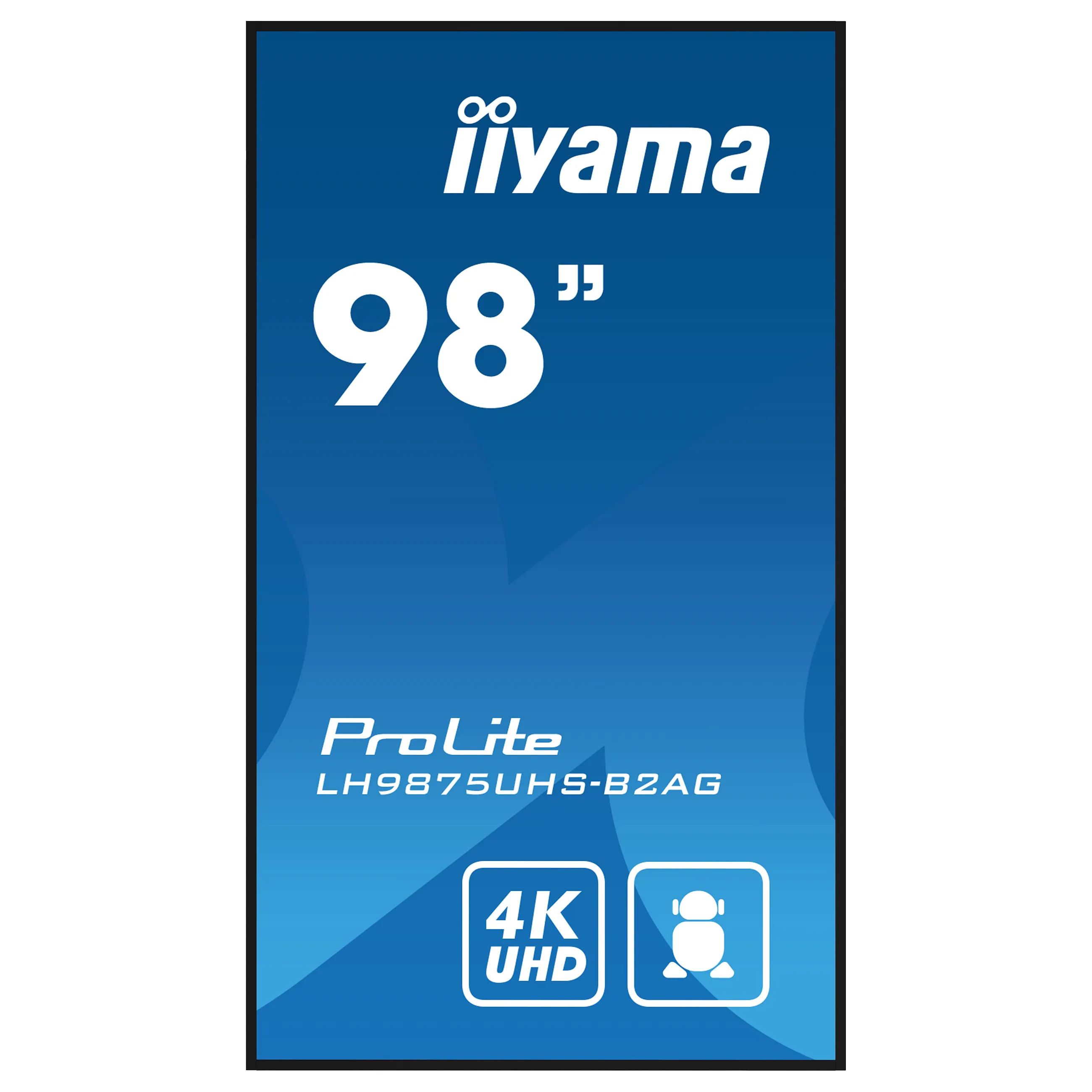

Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat

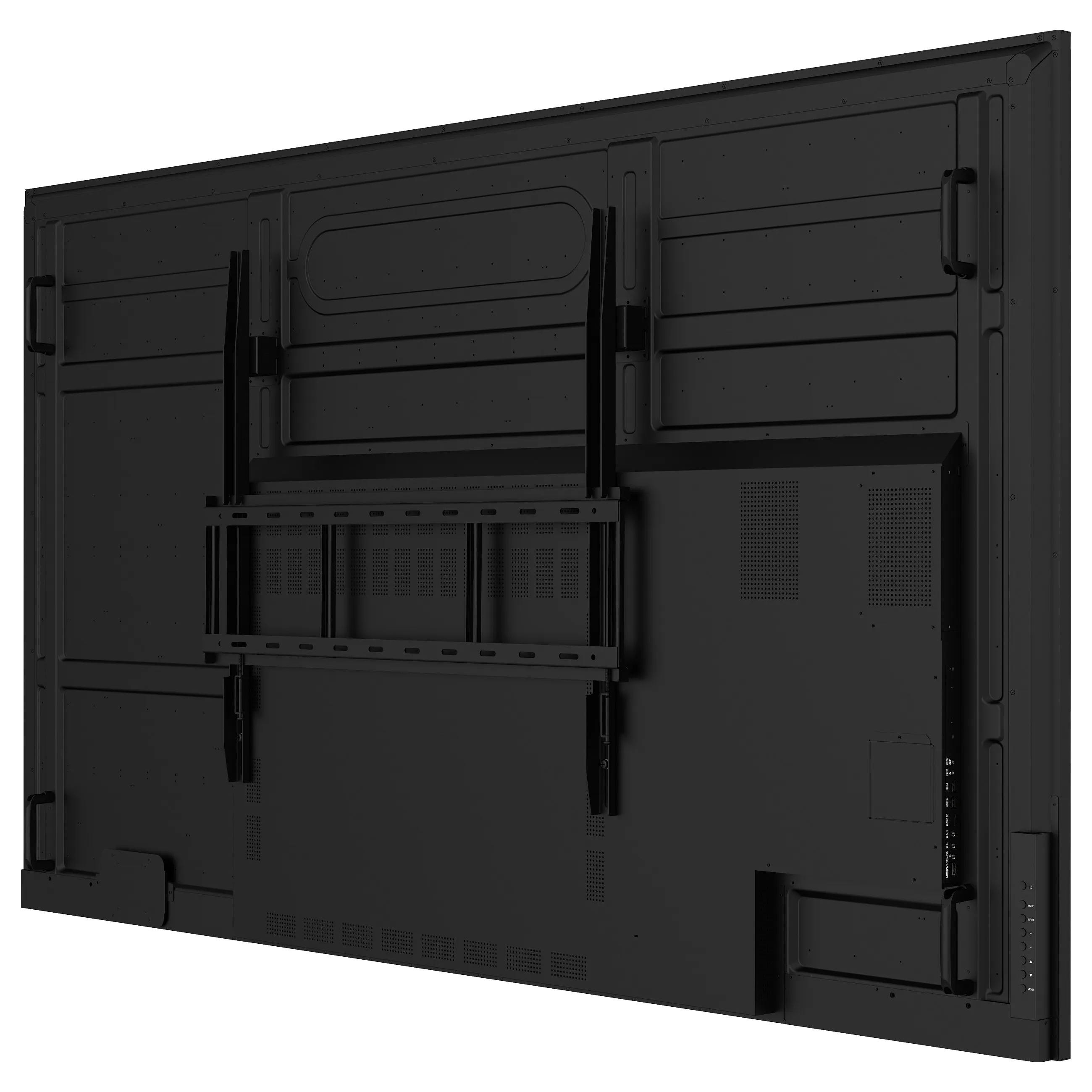

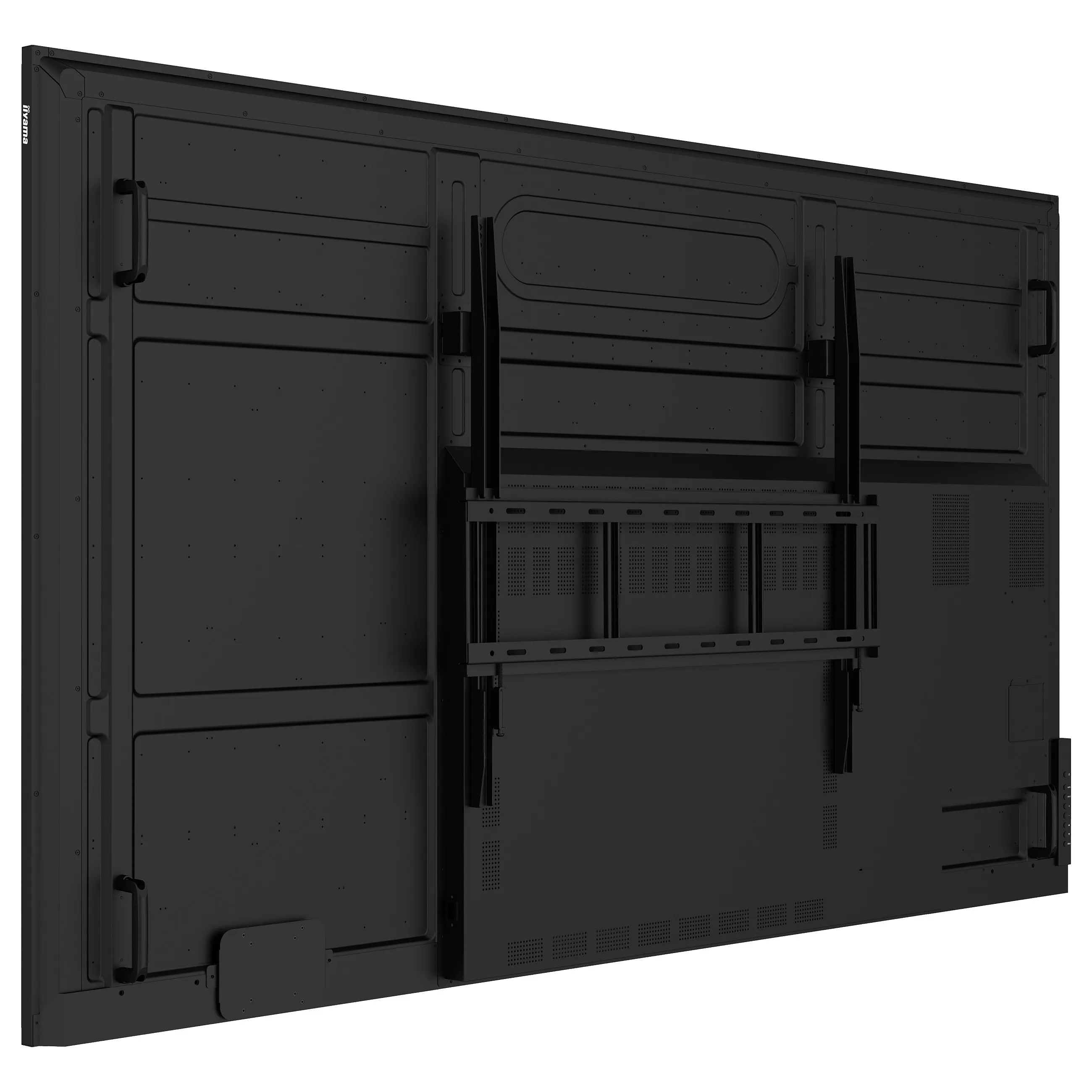

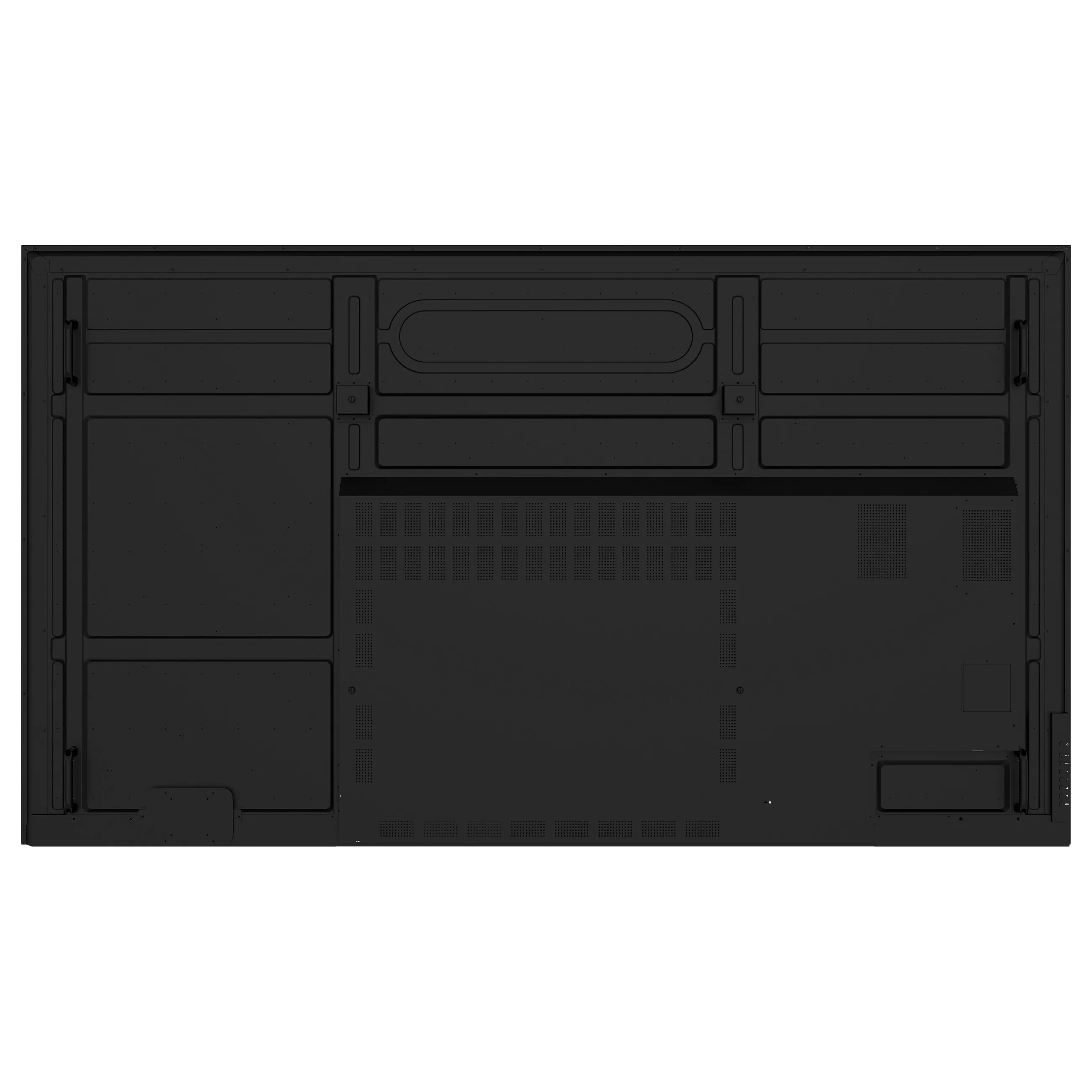

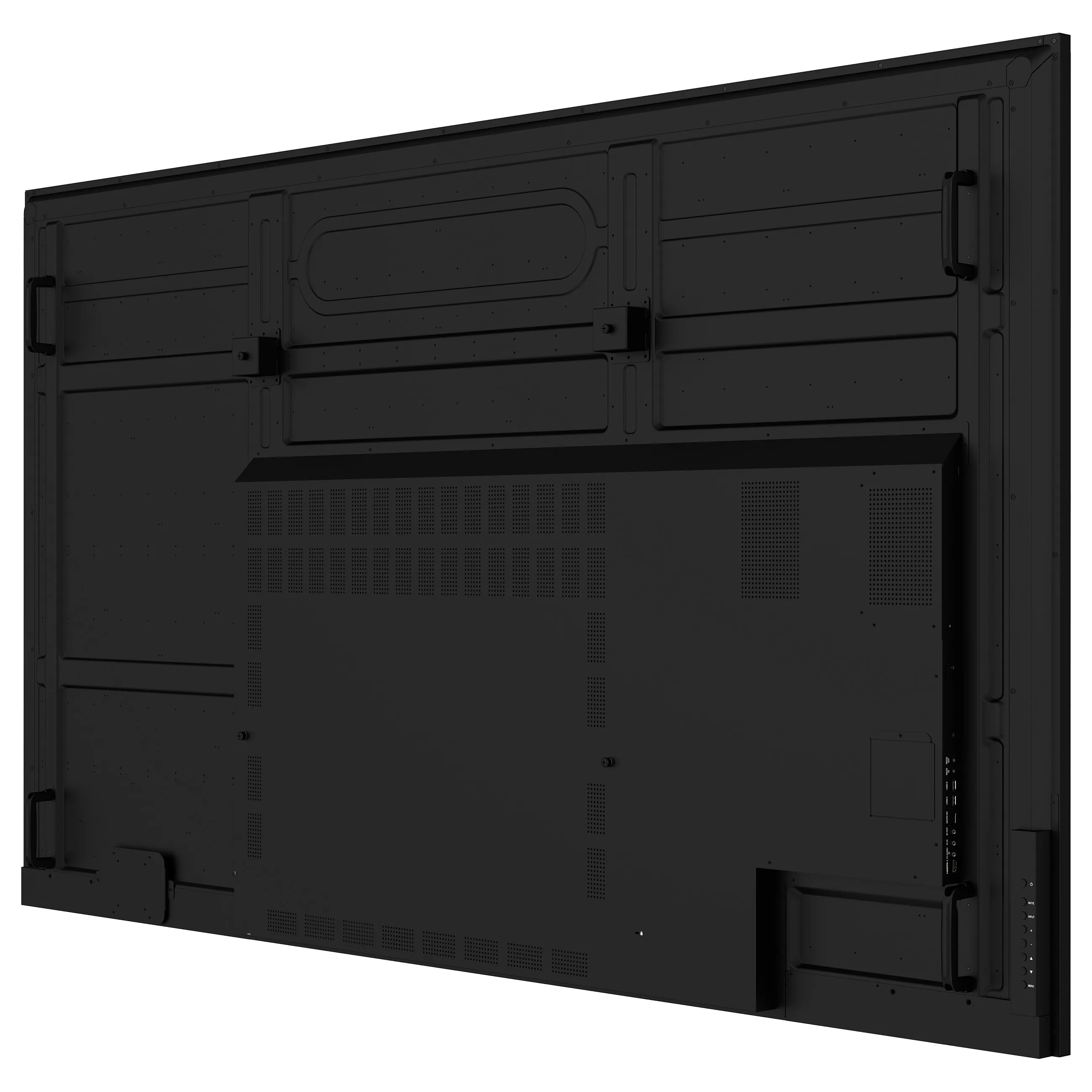

Feature: VESA mounting
Panel mounting interface: 800 x 600 mm
Bezel width (bottom): 2.33 cm
Bezel width (side): 2.3 cm
Bezel width (top): 2.33 cm
Bezel colour: Black
Feature: Anti-glare screen
Performance
Purpose: Universal
Feature: On Screen Display (OSD)
Number of OSD languages: 15
On Screen Display (OSD) languages: Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 1.4/2.2
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 173 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W

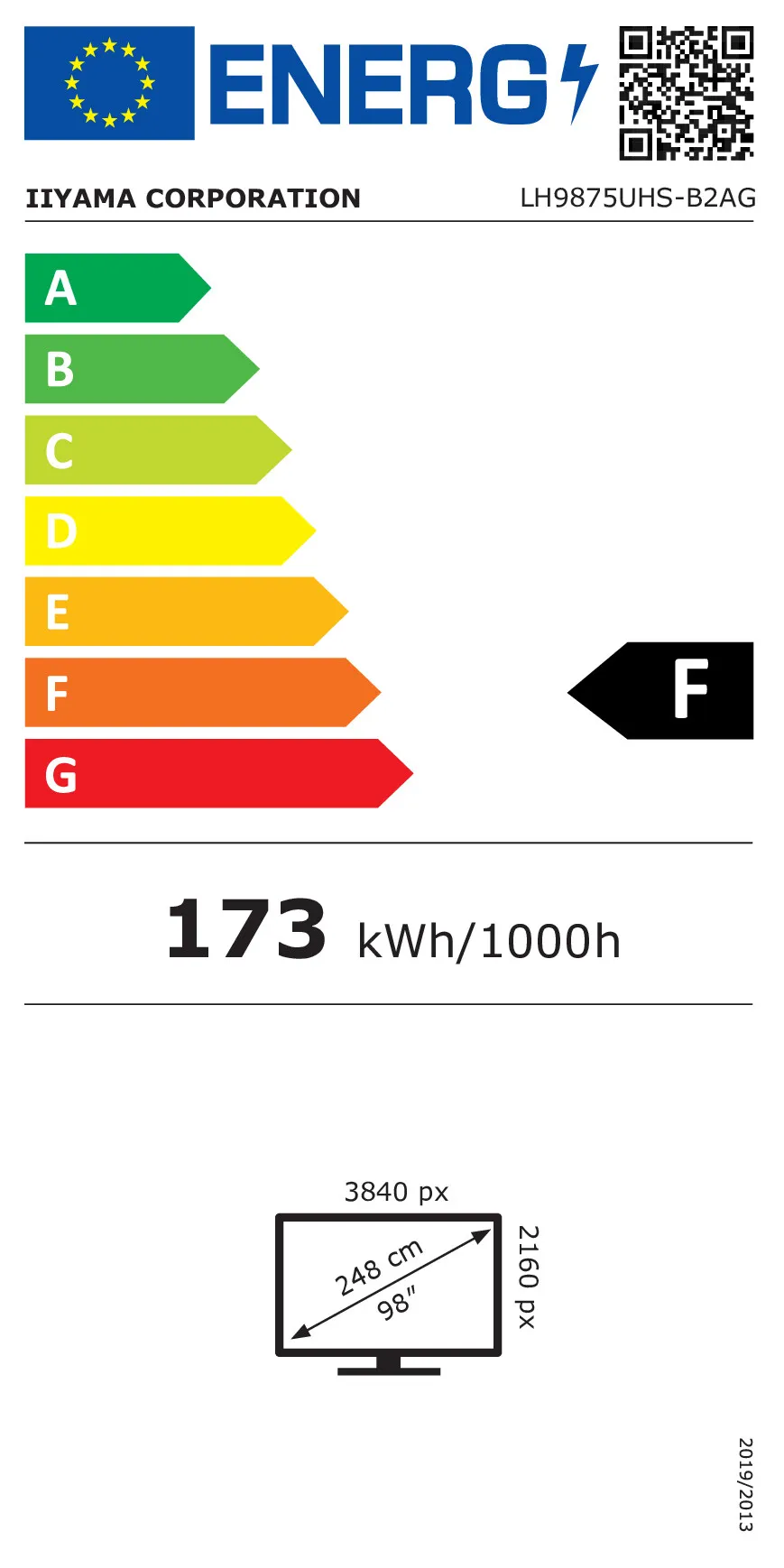

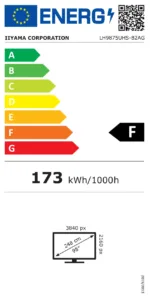

Energy efficiency class (SDR): F
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 173 kWh
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Computer system
Feature: Computer system
Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Cortex
Processor architecture: ARM Cortex-A73
Processor cores: 4
Internal memory: 4 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 32 GB
Operating system installed: Android 11
Weight & dimensions
Display width: 2204.9 mm
Display depth: 1260.4 mm
Display height: 101.7 mm
Display weight: 77.8 kg
Width: 2204.9 mm
Depth: 1260.4 mm
Height: 101.7 mm
Weight: 77.8 kg
Packaging data
Package width: 2360 mm
Package depth: 1400 mm
Package height: 280 mm
Package weight: 102.6 kg
Packaging content
Feature: Remote control included
Feature: Batteries included

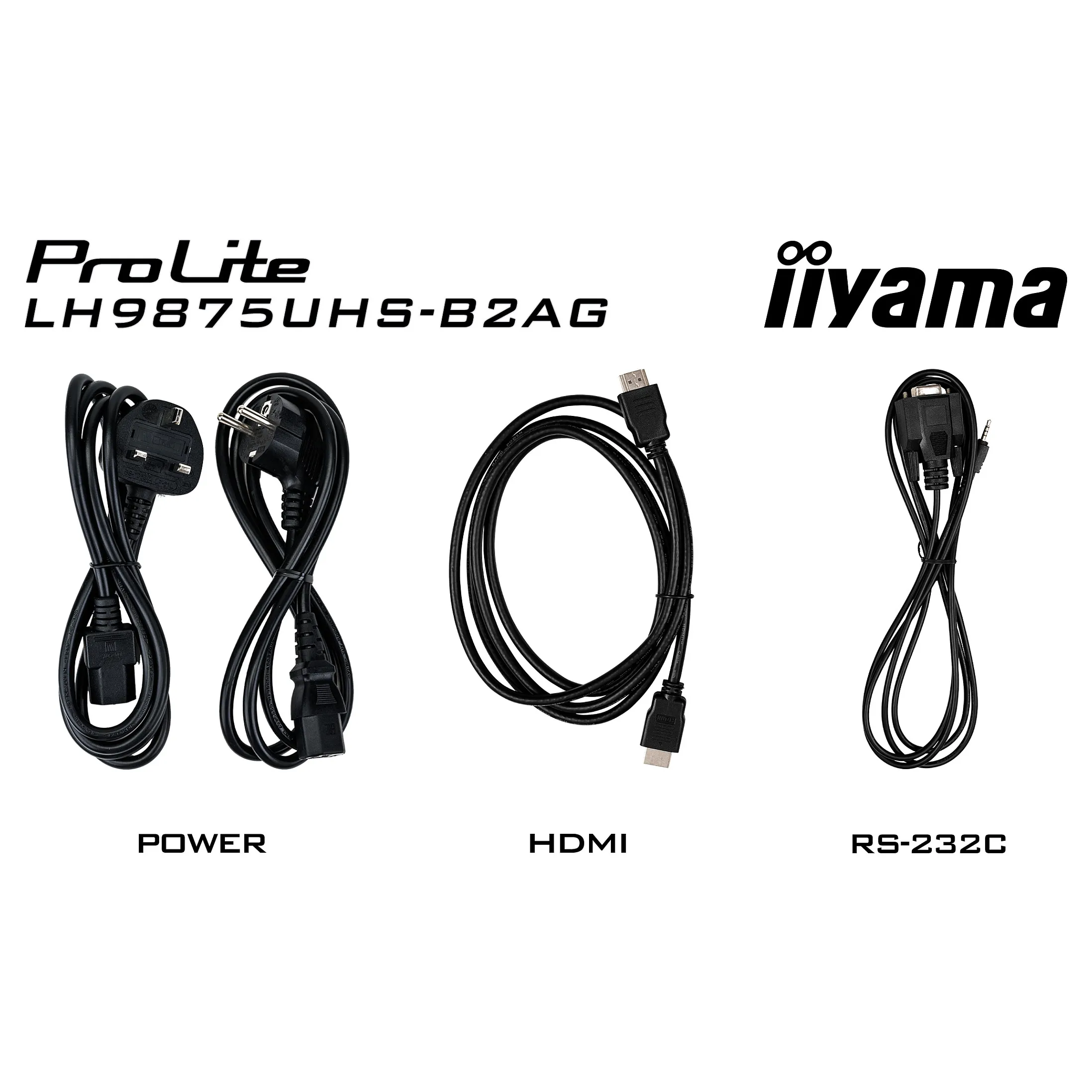

Cables included: AC, HDMI, RS-232

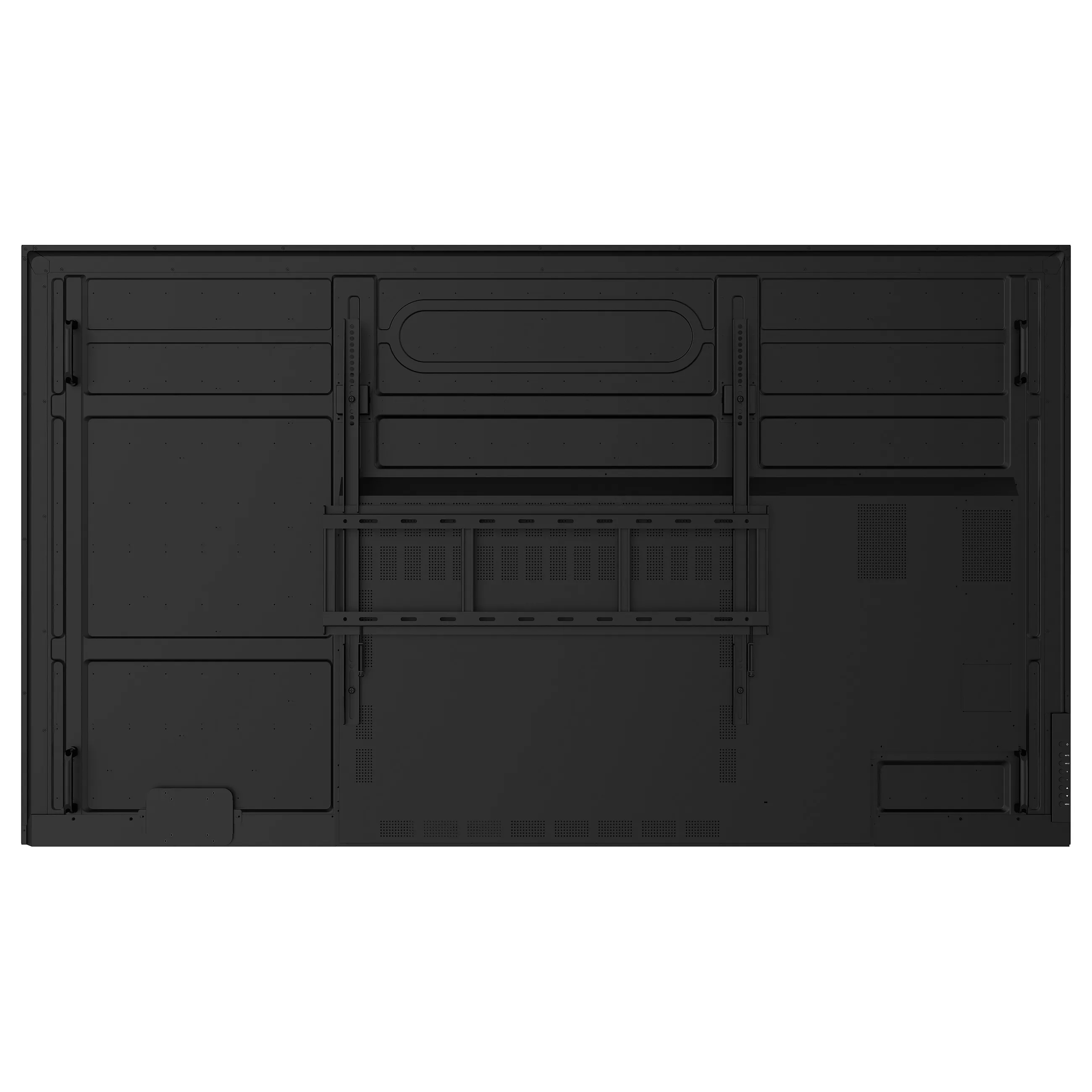

Feature: Mounting kit
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Certificates
Certification: CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Logistics data
Products per pallet: 4 pc(s)
Network
Feature: Ethernet LAN
Feature: Wi-Fi
Technical details
Feature: Audio in (mini jack)
Playback media: Y
Sustainability certificates: ErP
Pallet net height: 114 cm
Pallet net length: 156.6 cm
Pallet net width: 2.36 m
Compliance certificates: CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
Feature: Quick start guide
Power supply type: Internal
Panel type: IPS
Display diagonal: 2.48 m (97.5″)
Display technology: LED
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.562 x 0.562 mm
Active display area (W x H): 2159 x 1214 mm
Display diagonal (metric): 247.7 cm
Horizontal scan range: 28 – 160 kHz
Native refresh rate: 60 Hz
Haze rate: 25%
Ports & interfaces
HDMI ports quantity: 3
HDMI version: 2.0
Feature: DVI port
DVI-I ports quantity: 1
VGA (D-Sub) input ports: 1
DisplayPorts quantity: 1
DisplayPorts out: 1
Feature: USB port
USB ports quantity: 2
USB version: 2.0
Ethernet LAN (RJ-45) ports: 1
Audio (L/R) in: 1
Audio (L/R) out: 1
Feature: RS-232C
Remote (IR) input: 1
Remote (IR) output: 1
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Feature: OPS module slot
Feature: Audio Return Channel (ARC)
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 32 W
Design
Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 800 x 600 mm
Bezel width (bottom): 2.33 cm
Bezel width (side): 2.3 cm
Bezel width (top): 2.33 cm
Bezel colour: Black
Feature: Anti-glare screen
Performance
Purpose: Universal
Feature: On Screen Display (OSD)
Number of OSD languages: 15
On Screen Display (OSD) languages: Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 1.4/2.2
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 173 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): F
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 173 kWh
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Computer system
Feature: Computer system
Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Cortex
Processor architecture: ARM Cortex-A73
Processor cores: 4
Internal memory: 4 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 32 GB
Operating system installed: Android 11
Weight & dimensions
Display width: 2204.9 mm
Display depth: 1260.4 mm
Display height: 101.7 mm
Display weight: 77.8 kg
Width: 2204.9 mm
Depth: 1260.4 mm
Height: 101.7 mm
Weight: 77.8 kg
Packaging data
Package width: 2360 mm
Package depth: 1400 mm
Package height: 280 mm
Package weight: 102.6 kg
Packaging content
Feature: Remote control included
Feature: Batteries included
Cables included: AC, HDMI, RS-232
Feature: Mounting kit
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Certificates
Certification: CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Logistics data
Products per pallet: 4 pc(s)
Network
Feature: Ethernet LAN
Feature: Wi-Fi
Technical details
Feature: Audio in (mini jack)
Playback media: Y
Sustainability certificates: ErP
Pallet net height: 114 cm
Pallet net length: 156.6 cm
Pallet net width: 2.36 m
Compliance certificates: CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
Feature: Quick start guide
Power supply type: Internal
