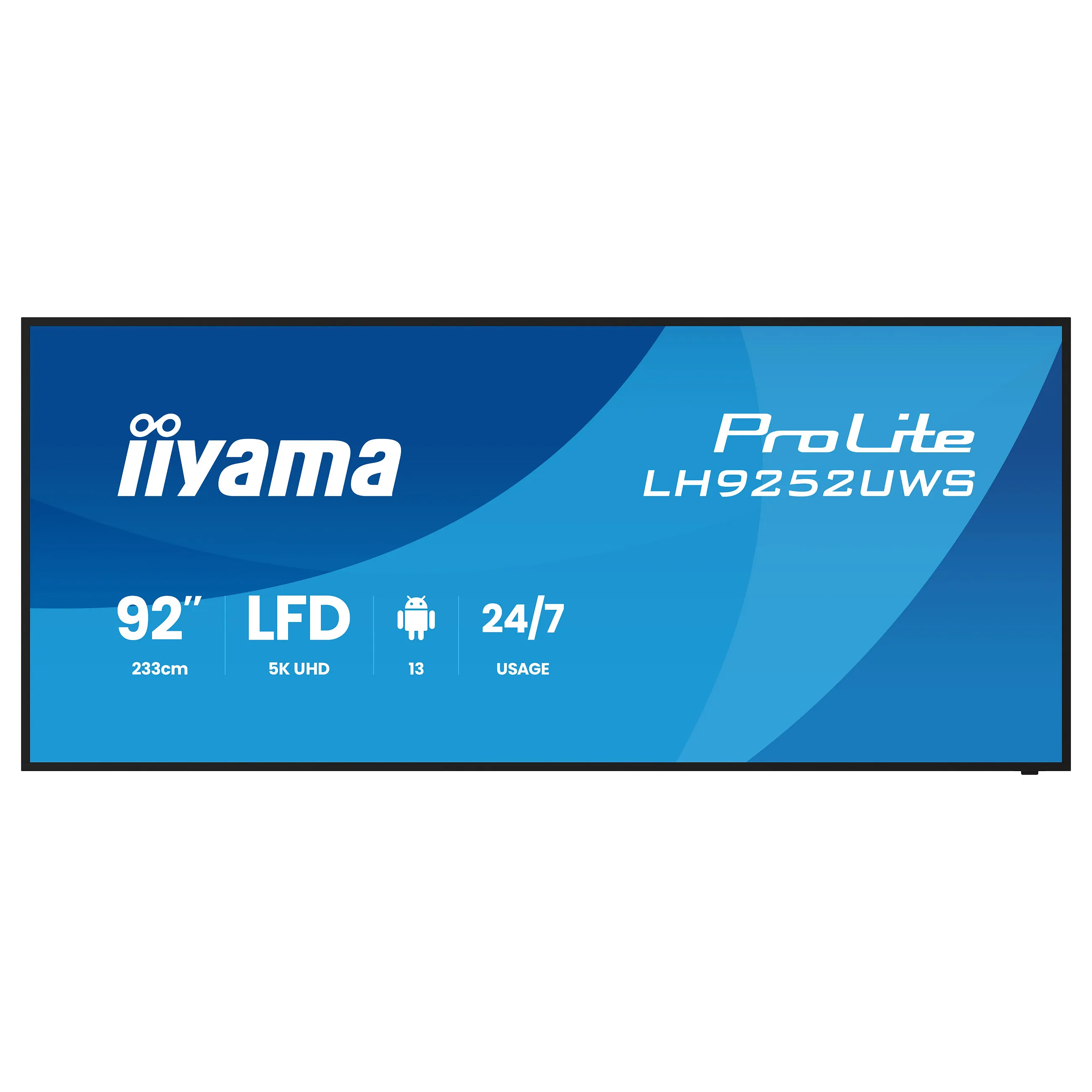

iiyama LH9252UWS-B1AG. Product design: Kiosk design. Display diagonal: 2.34 m (92"), Display technology: LCD, Display resolution: 5120 x 2160 pixels, Display brightness: 500 cd/m², HD type: UltraWide 5K HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

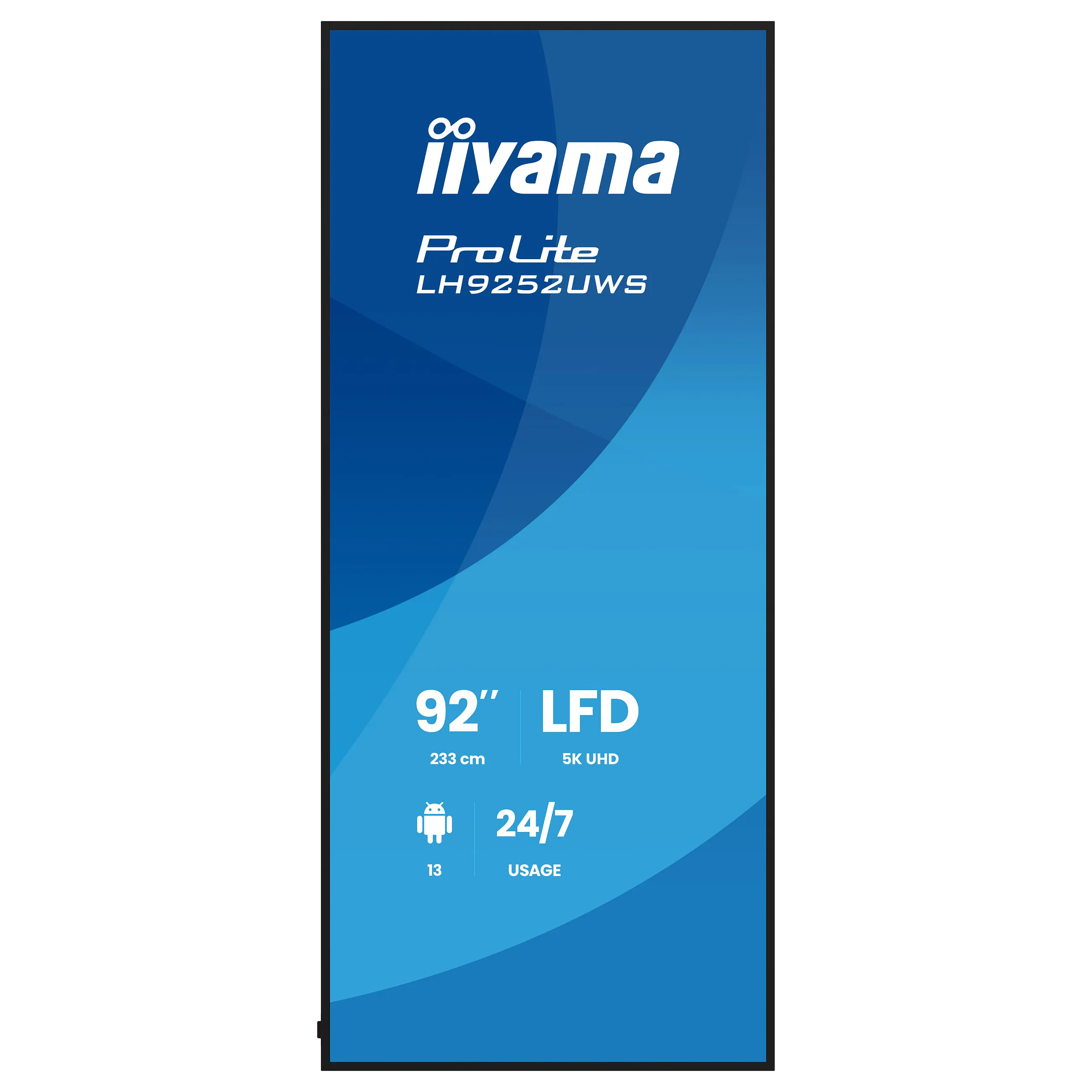

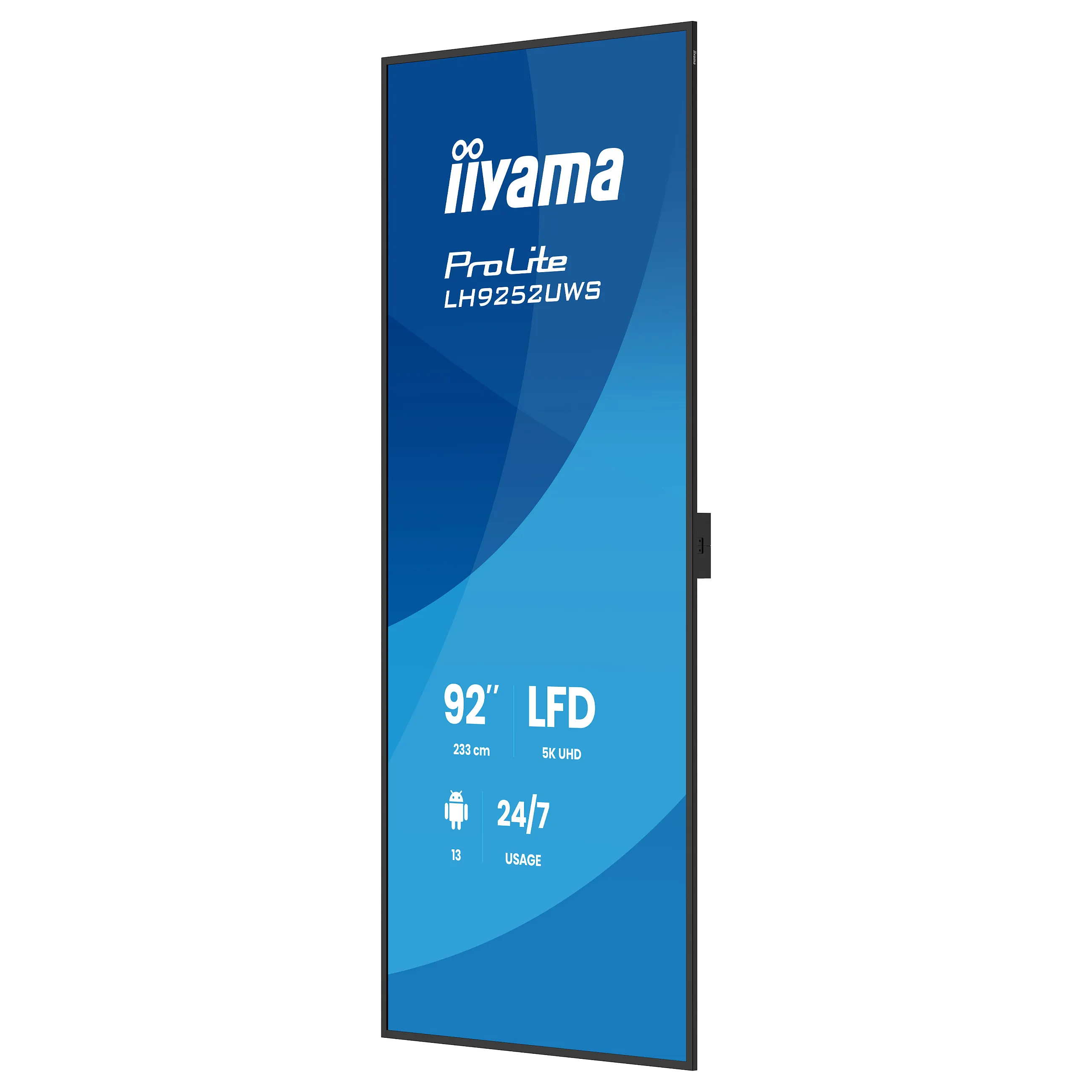

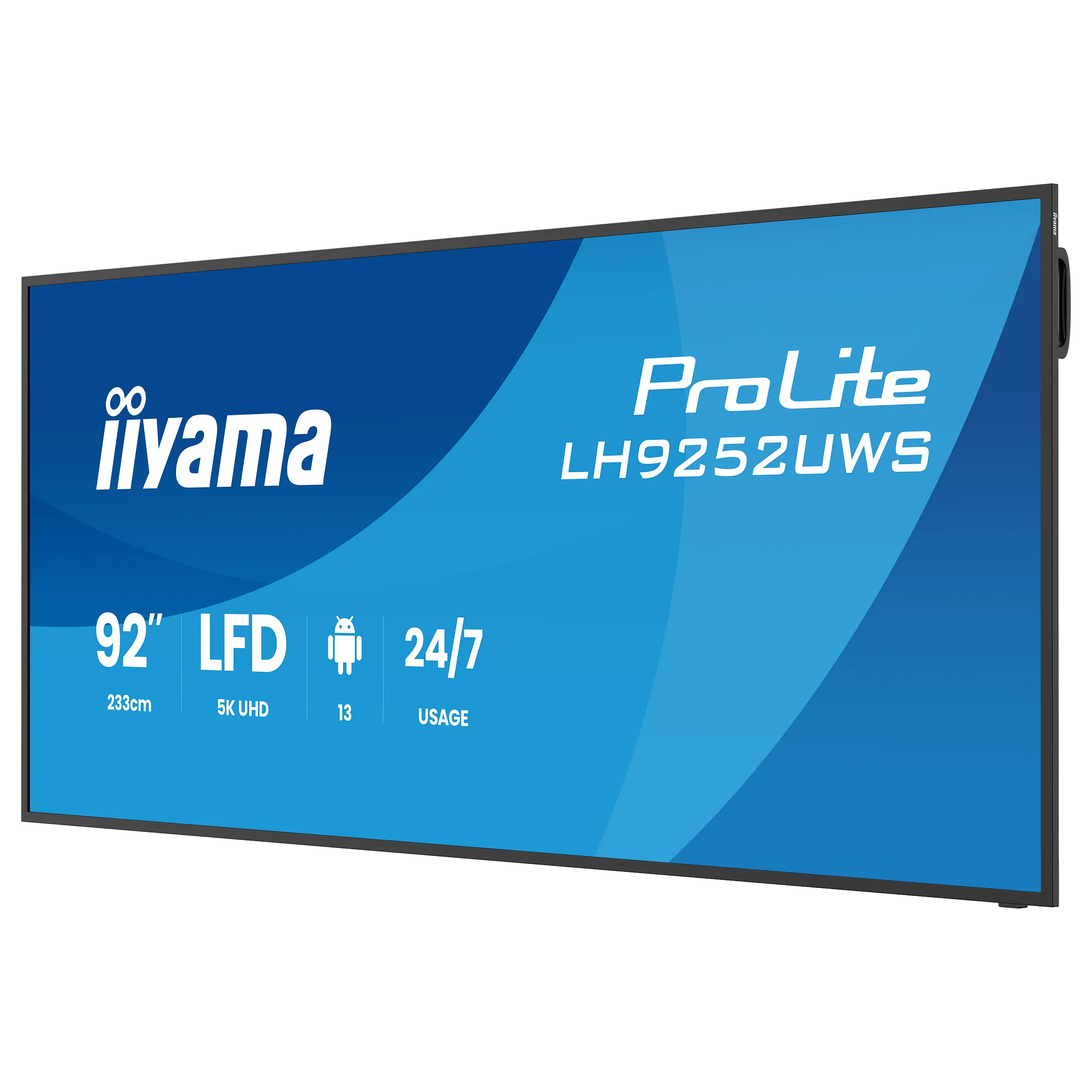

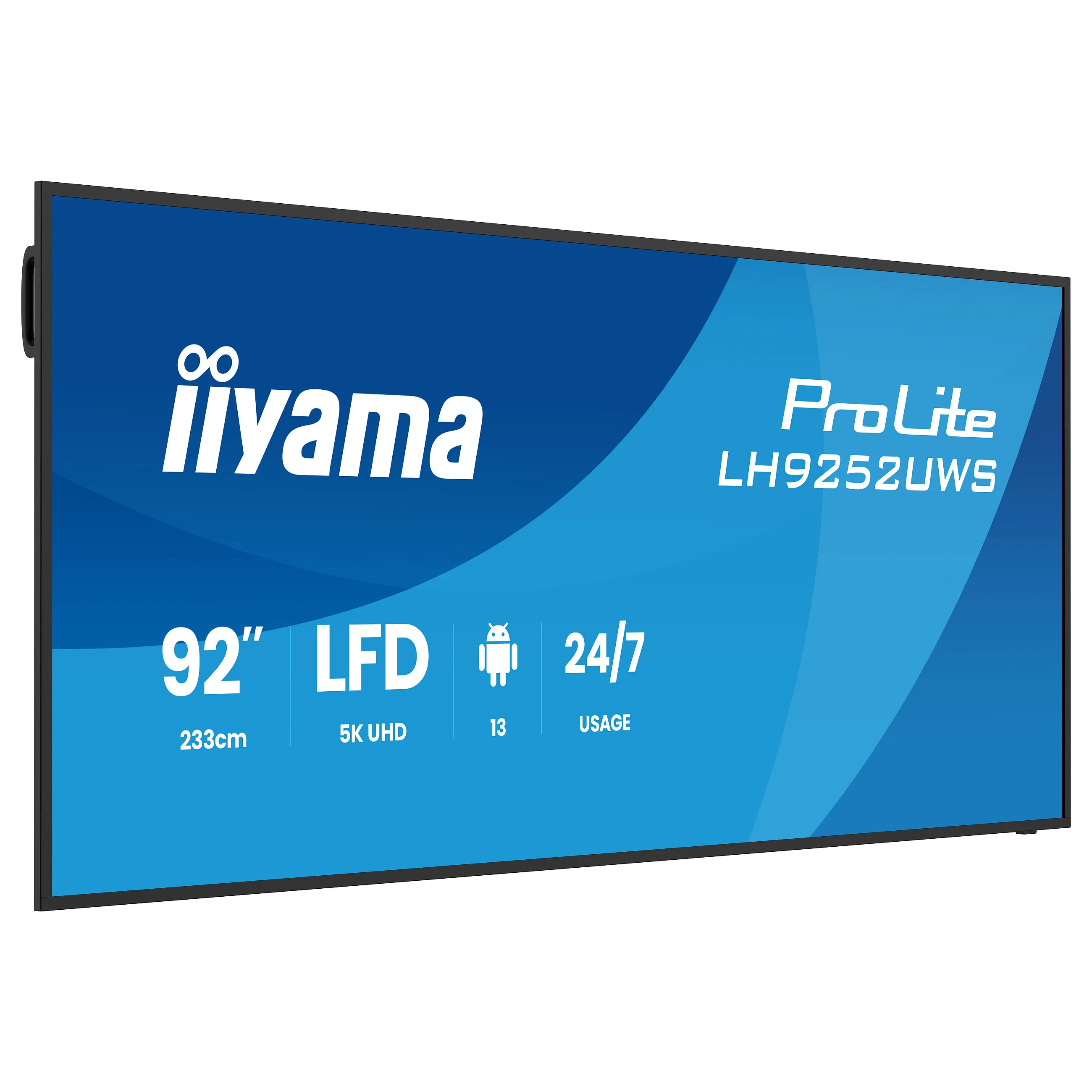

The ProLite LH9252UWS-B1AG features an impressive 92″ 5K UltraWide VA panel with USB-C connectivity, Android OS and integrated speakers with subwoofer, making it an ideal solution for collaborative workspaces, digital signage and immersive presentation environments.
Display
Panel type: VA
Display diagonal: 2.34 m (92″)
Display technology: LCD
Display resolution: 5120 x 2160 pixels
Display brightness: 500 cd/m²
HD type: UltraWide 5K HD
Native aspect ratio: 21:9
Response time: 6.5 ms
Contrast ratio (typical): 5000:1
Contrast ratio (dynamic): 5000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.13945 x 0.41835 mm
Active display area (W x H): 2141.952 x 903.636 mm
Display diagonal (metric): 233 cm
Horizontal scan range: 30 – 135 kHz
Native refresh rate: 60 Hz
Haze rate: 25%

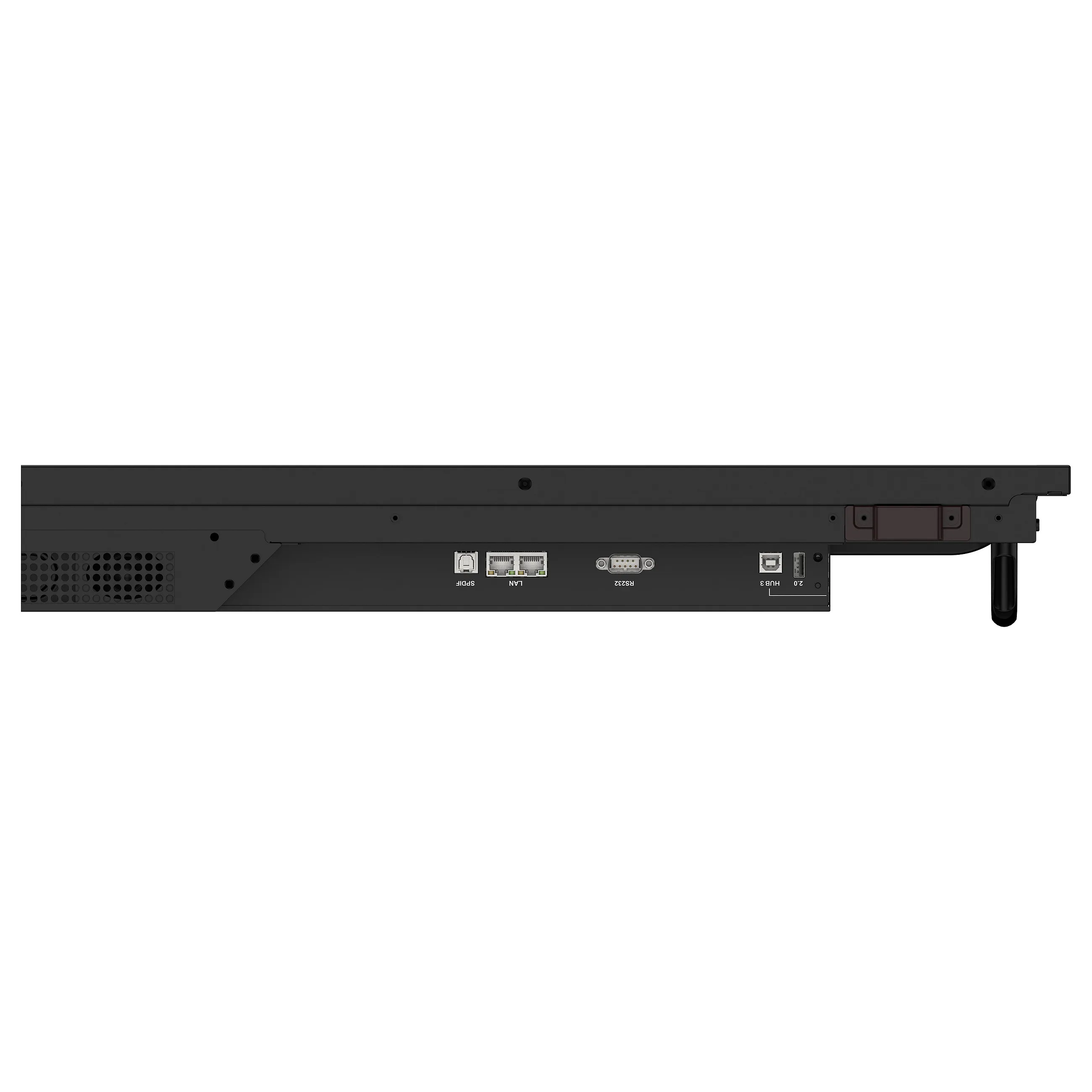

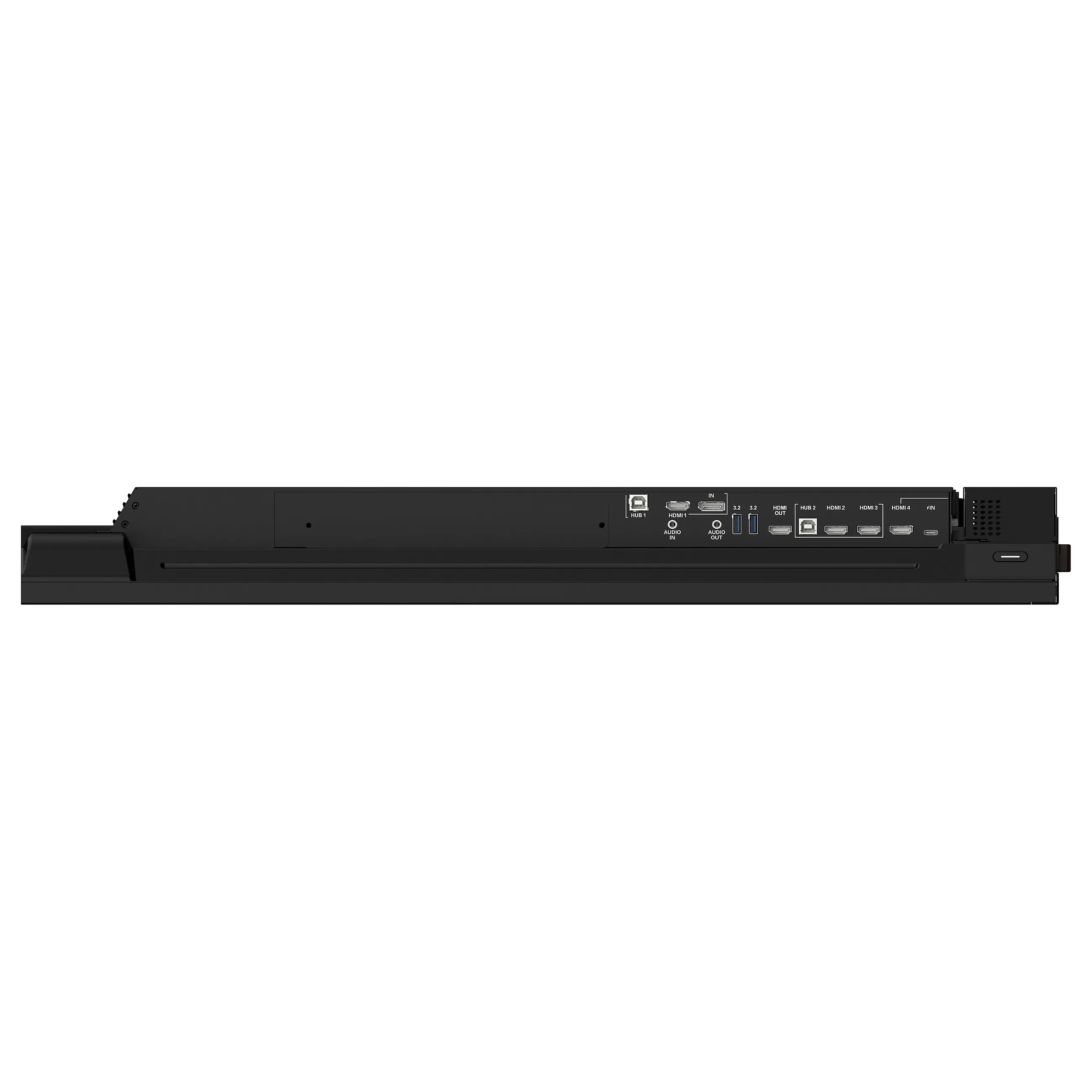

Ports & interfaces
HDMI ports quantity: 1
HDMI version: 2.0
HDMI input ports quantity: 1
Consumer Electronics Control (CEC): Yes
DisplayPorts quantity: 1
Feature: USB port
USB ports quantity: 3
Ethernet LAN (RJ-45) ports: 2
Feature: RS-232C
Feature: OPS module slot
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W
Design
Product design: Kiosk design
Placement supported: Indoor/outdoor

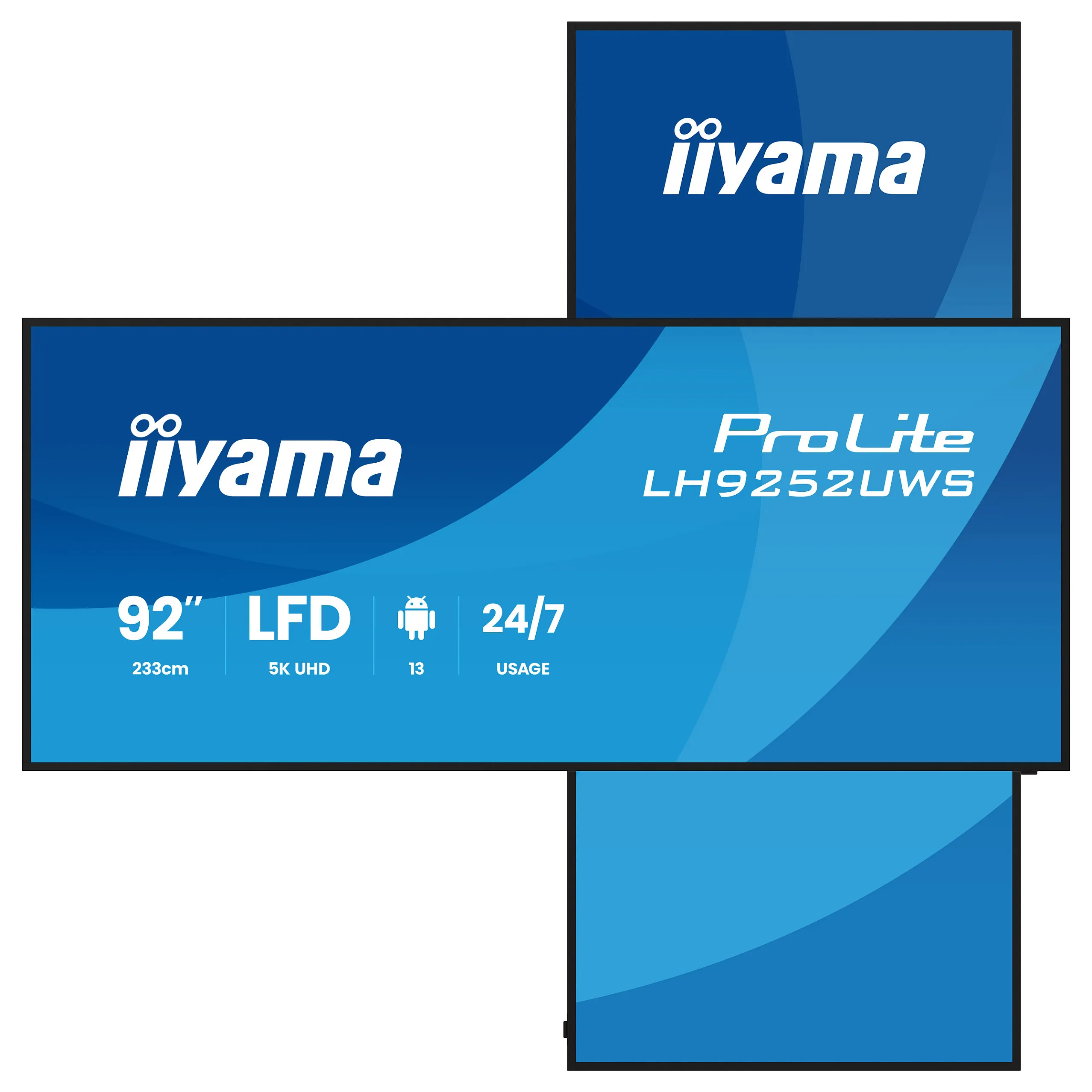

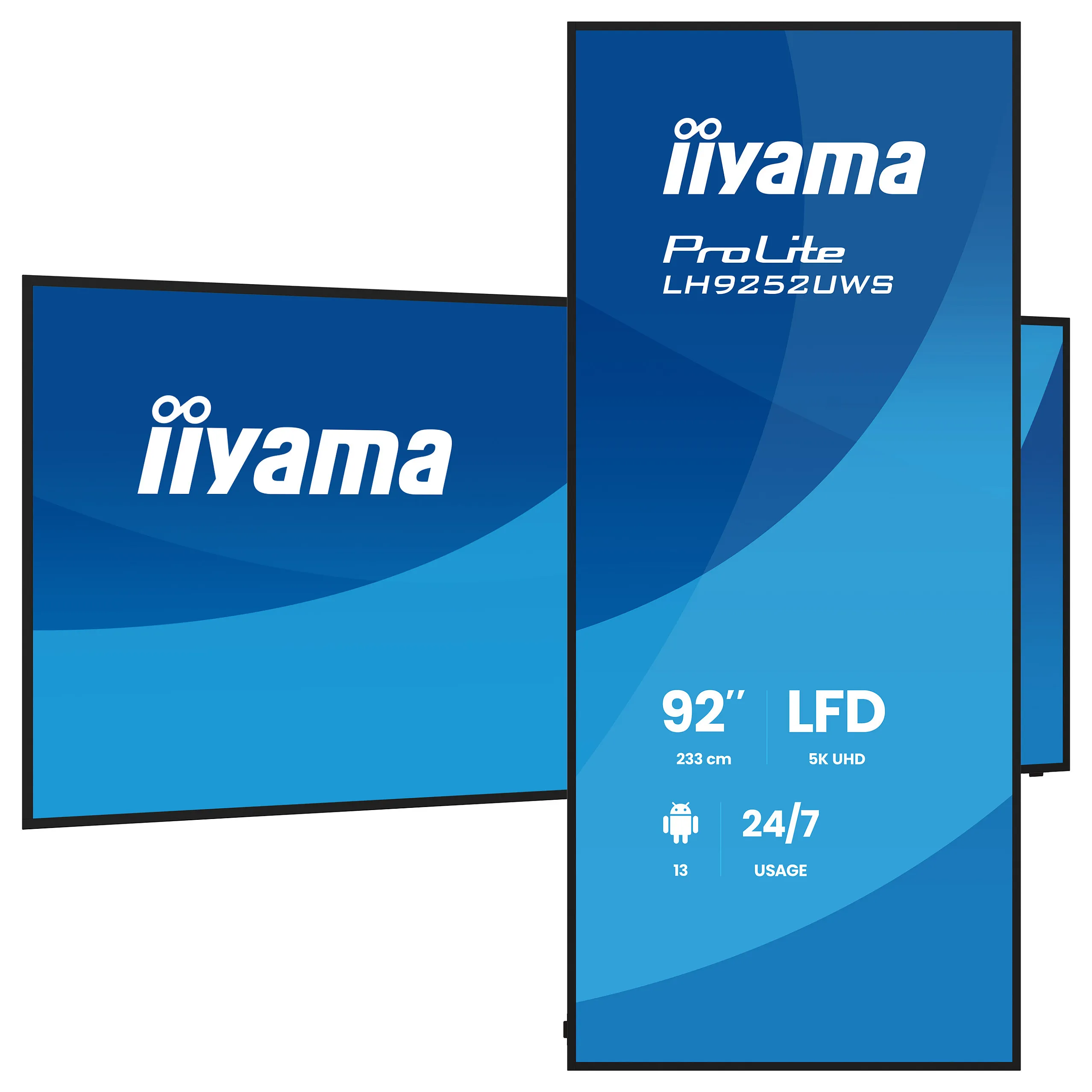

Orientation: Horizontal/Vertical
Product colour: Black

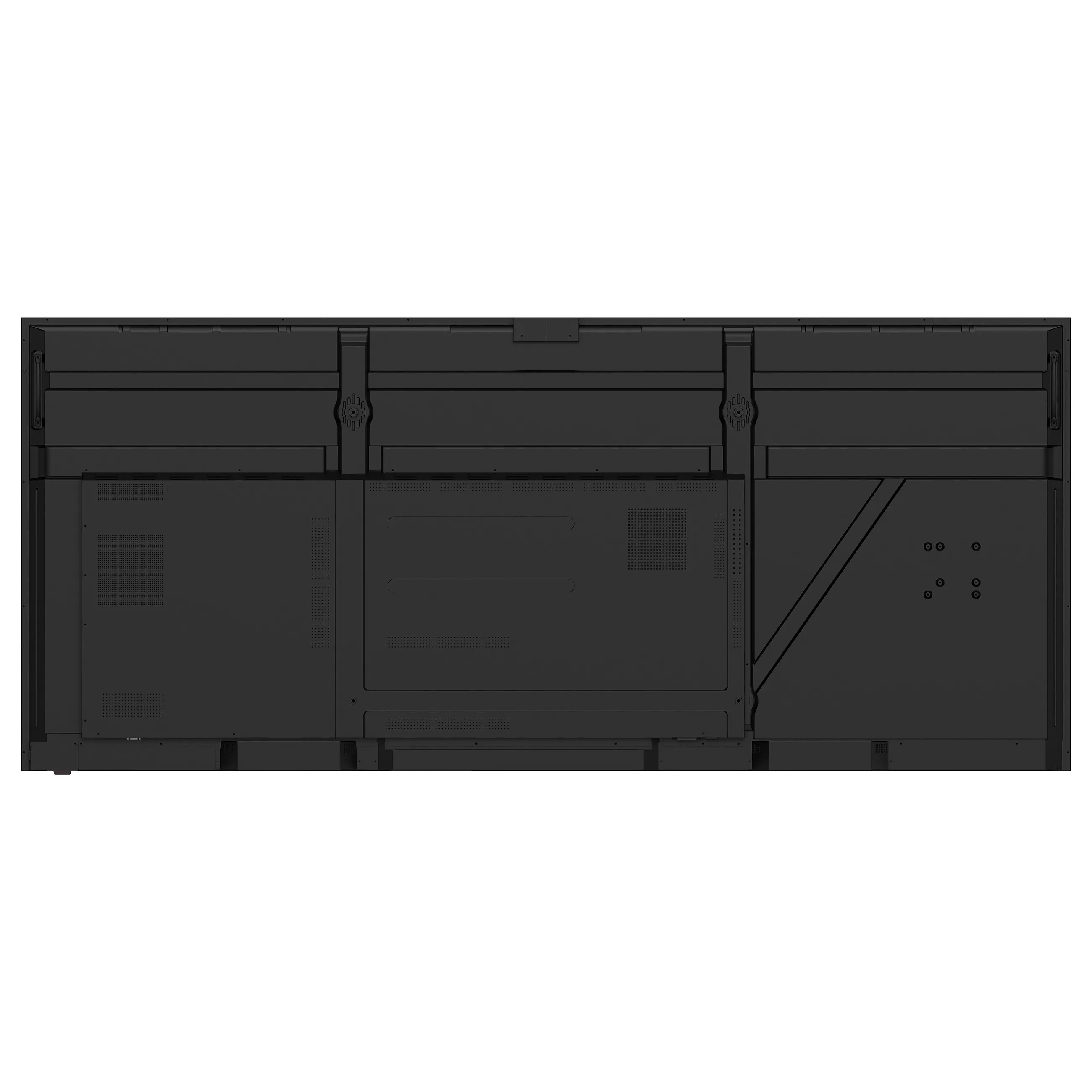

Feature: VESA mounting
Panel mounting interface: 800 x 600 mm
Bezel width (bottom): 1.49 cm
Bezel width (side): 1.49 cm
Bezel width (top): 1.49 cm
Feature: Anti-glare screen
Performance
Purpose: Commercial
Feature: On Screen Display (OSD)
Number of OSD languages: 18
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 1.4
Power
Power consumption (typical): 201 W
Power consumption (standby): 0.4 W
Power consumption (off): 0.3 W

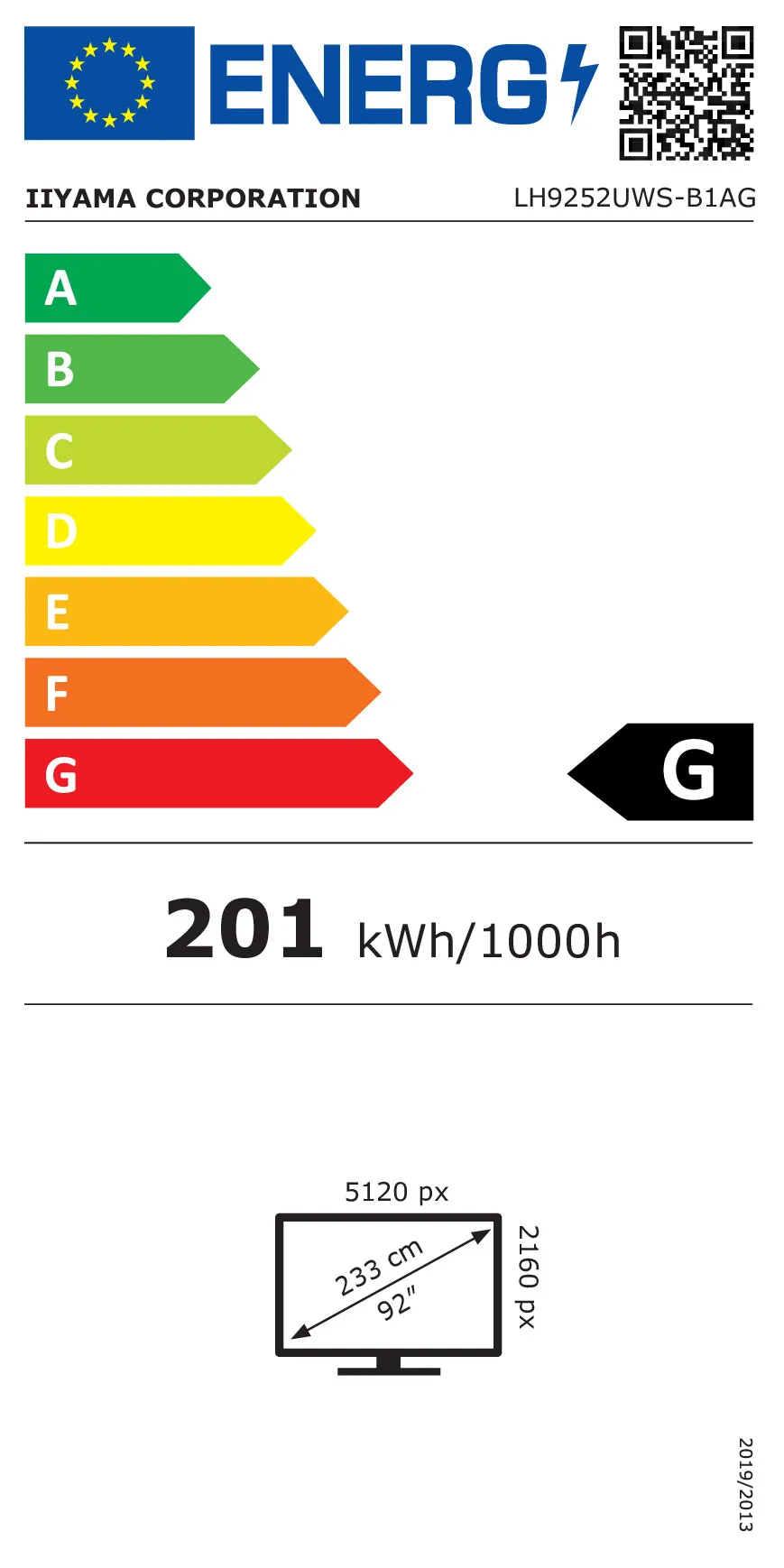

Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Computer system
Feature: Built-in processor
Processor model: RK3588
Processor architecture: ARM Cortex-A76+Cortex-A55
Processor cores: 8
Internal memory: 8 GB
On-board graphics card model: Mali-G640 MP4
Internal storage capacity: 128 GB
Operating system installed: Android
Operating system version: 13
Weight & dimensions
Display width: 2182 mm
Display depth: 85.2 mm
Display height: 943.8 mm
Display weight: 44 kg
Width: 2182 mm
Depth: 85.2 mm
Height: 943.8 mm
Weight: 44 kg
Packaging data
Package width: 2360 mm
Package depth: 225 mm
Package height: 1072 mm
Package weight: 63 kg
Packaging content
Feature: Remote control included
Feature: Batteries included
Cables included: AC, HDMI, DisplayPort, RS-232
Feature: Wi-Fi module included
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Logistics data
Products per pallet: 50 pc(s)
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Technical details
OPS slot: 1
Feature: Audio in (mini jack)
Sustainability certificates: ErP
Pallet net height: 114 cm
Pallet net length: 12 cm
Pallet net width: 2.38 m
Compliance certificates: CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
Feature: Quick start guide
Power supply type: Internal
Panel type: VA
Display diagonal: 2.34 m (92″)
Display technology: LCD
Display resolution: 5120 x 2160 pixels
Display brightness: 500 cd/m²
HD type: UltraWide 5K HD
Native aspect ratio: 21:9
Response time: 6.5 ms
Contrast ratio (typical): 5000:1
Contrast ratio (dynamic): 5000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.13945 x 0.41835 mm
Active display area (W x H): 2141.952 x 903.636 mm
Display diagonal (metric): 233 cm
Horizontal scan range: 30 – 135 kHz
Native refresh rate: 60 Hz
Haze rate: 25%
Ports & interfaces
HDMI ports quantity: 1
HDMI version: 2.0
HDMI input ports quantity: 1
Consumer Electronics Control (CEC): Yes
DisplayPorts quantity: 1
Feature: USB port
USB ports quantity: 3
Ethernet LAN (RJ-45) ports: 2
Feature: RS-232C
Feature: OPS module slot
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W
Design
Product design: Kiosk design
Placement supported: Indoor/outdoor
Orientation: Horizontal/Vertical
Product colour: Black
Feature: VESA mounting
Panel mounting interface: 800 x 600 mm
Bezel width (bottom): 1.49 cm
Bezel width (side): 1.49 cm
Bezel width (top): 1.49 cm
Feature: Anti-glare screen
Performance
Purpose: Commercial
Feature: On Screen Display (OSD)
Number of OSD languages: 18
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 1.4
Power
Power consumption (typical): 201 W
Power consumption (standby): 0.4 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Computer system
Feature: Built-in processor
Processor model: RK3588
Processor architecture: ARM Cortex-A76+Cortex-A55
Processor cores: 8
Internal memory: 8 GB
On-board graphics card model: Mali-G640 MP4
Internal storage capacity: 128 GB
Operating system installed: Android
Operating system version: 13
Weight & dimensions
Display width: 2182 mm
Display depth: 85.2 mm
Display height: 943.8 mm
Display weight: 44 kg
Width: 2182 mm
Depth: 85.2 mm
Height: 943.8 mm
Weight: 44 kg
Packaging data
Package width: 2360 mm
Package depth: 225 mm
Package height: 1072 mm
Package weight: 63 kg
Packaging content
Feature: Remote control included
Feature: Batteries included
Cables included: AC, HDMI, DisplayPort, RS-232
Feature: Wi-Fi module included
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Logistics data
Products per pallet: 50 pc(s)
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Technical details
OPS slot: 1
Feature: Audio in (mini jack)
Sustainability certificates: ErP
Pallet net height: 114 cm
Pallet net length: 12 cm
Pallet net width: 2.38 m
Compliance certificates: CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
Feature: Quick start guide
Power supply type: Internal
