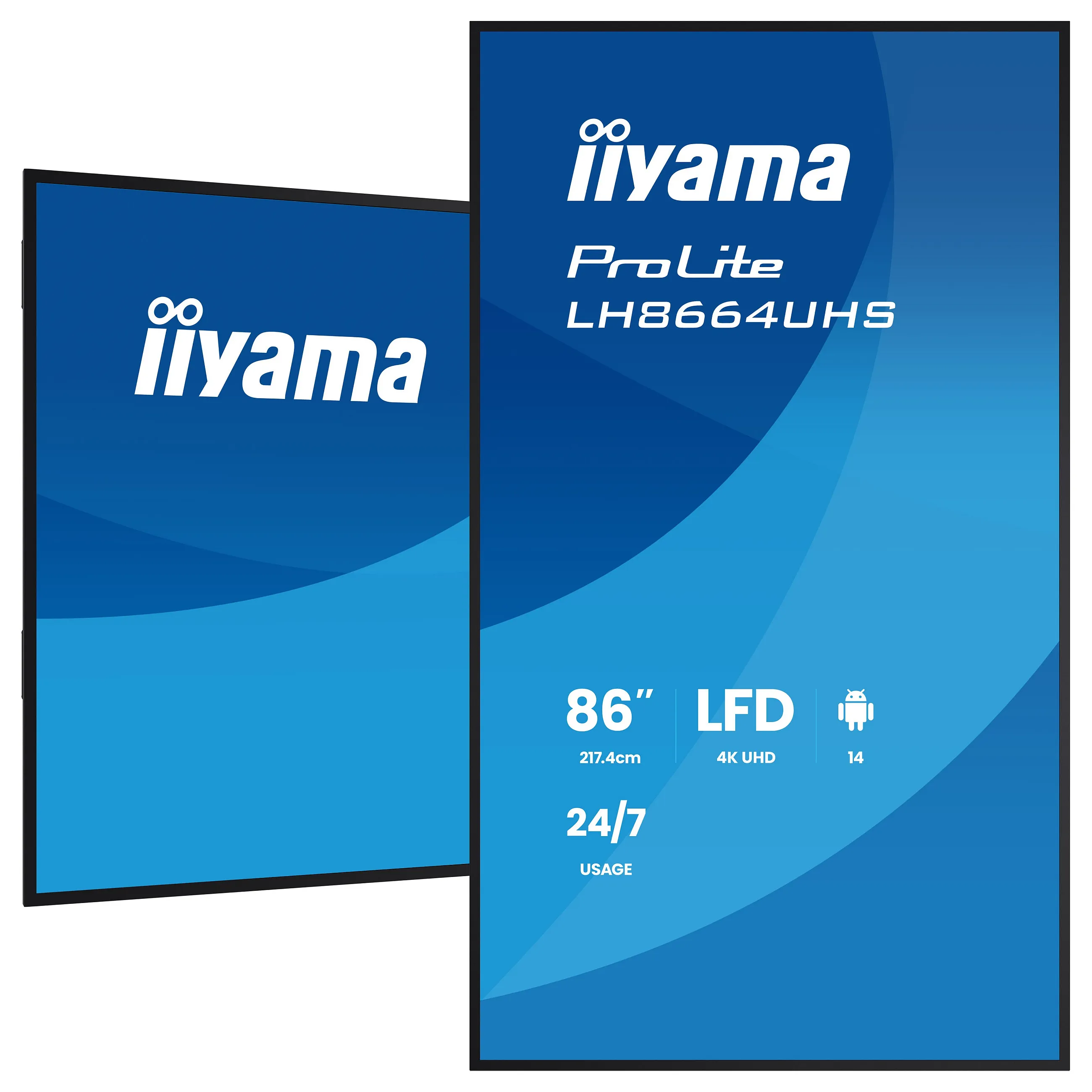

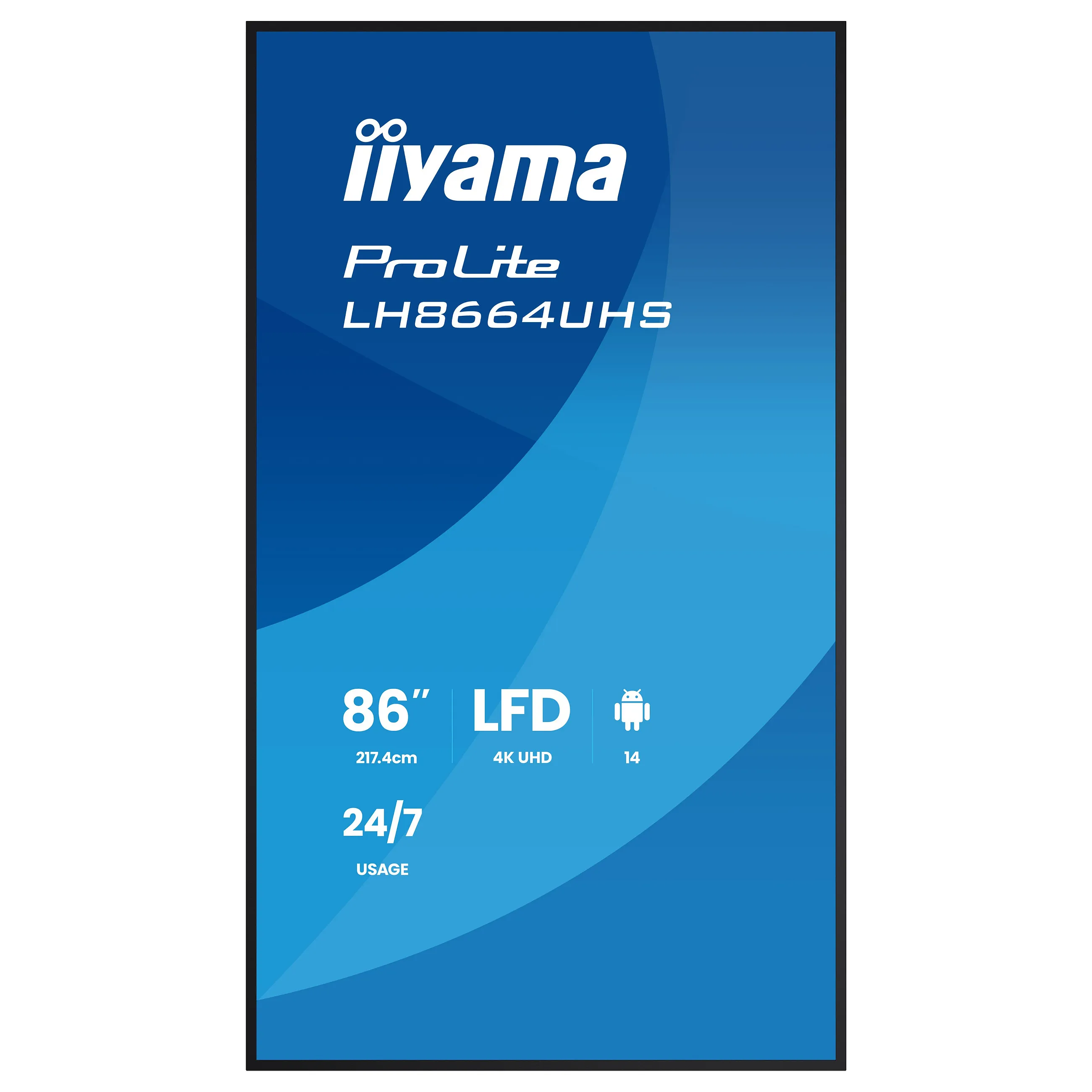

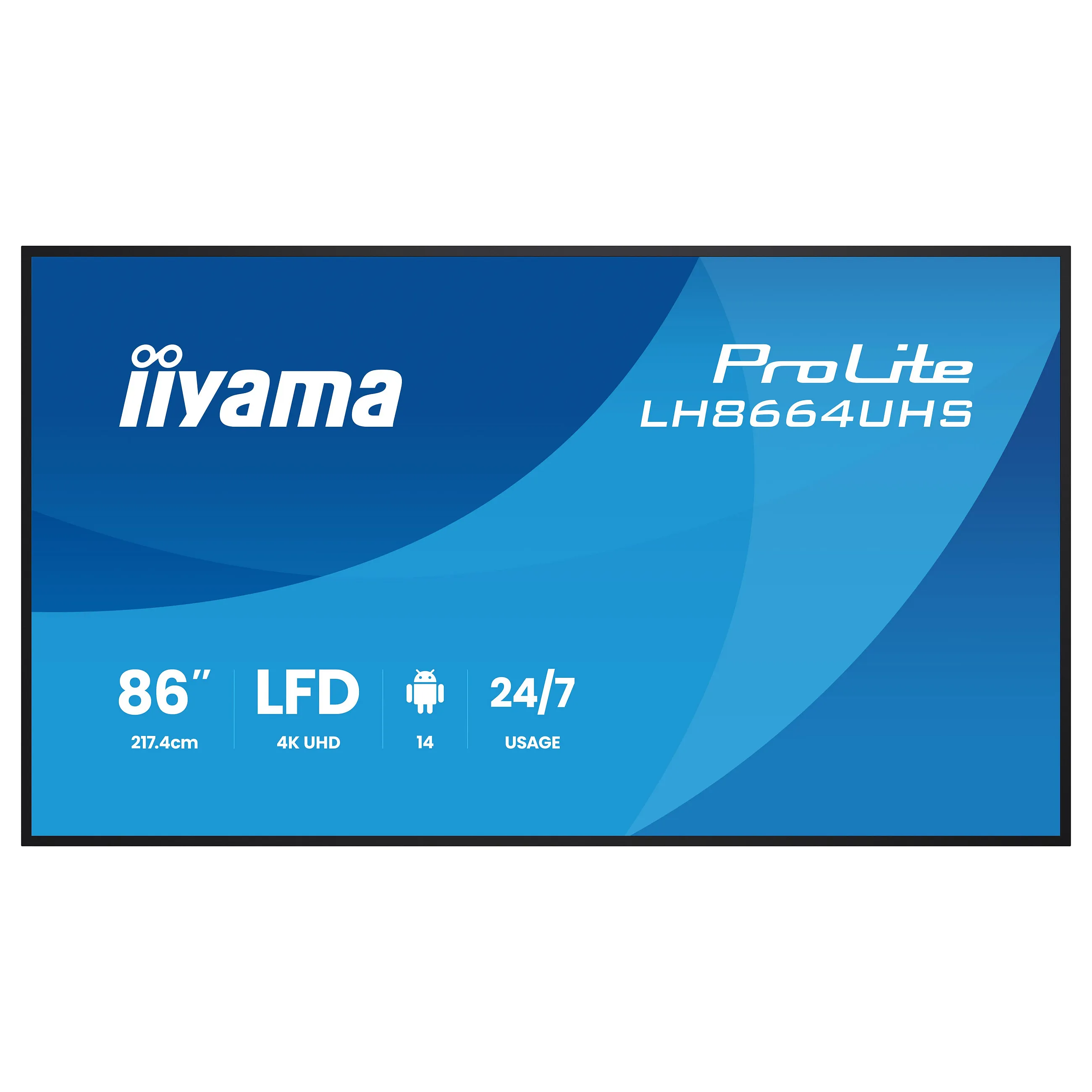

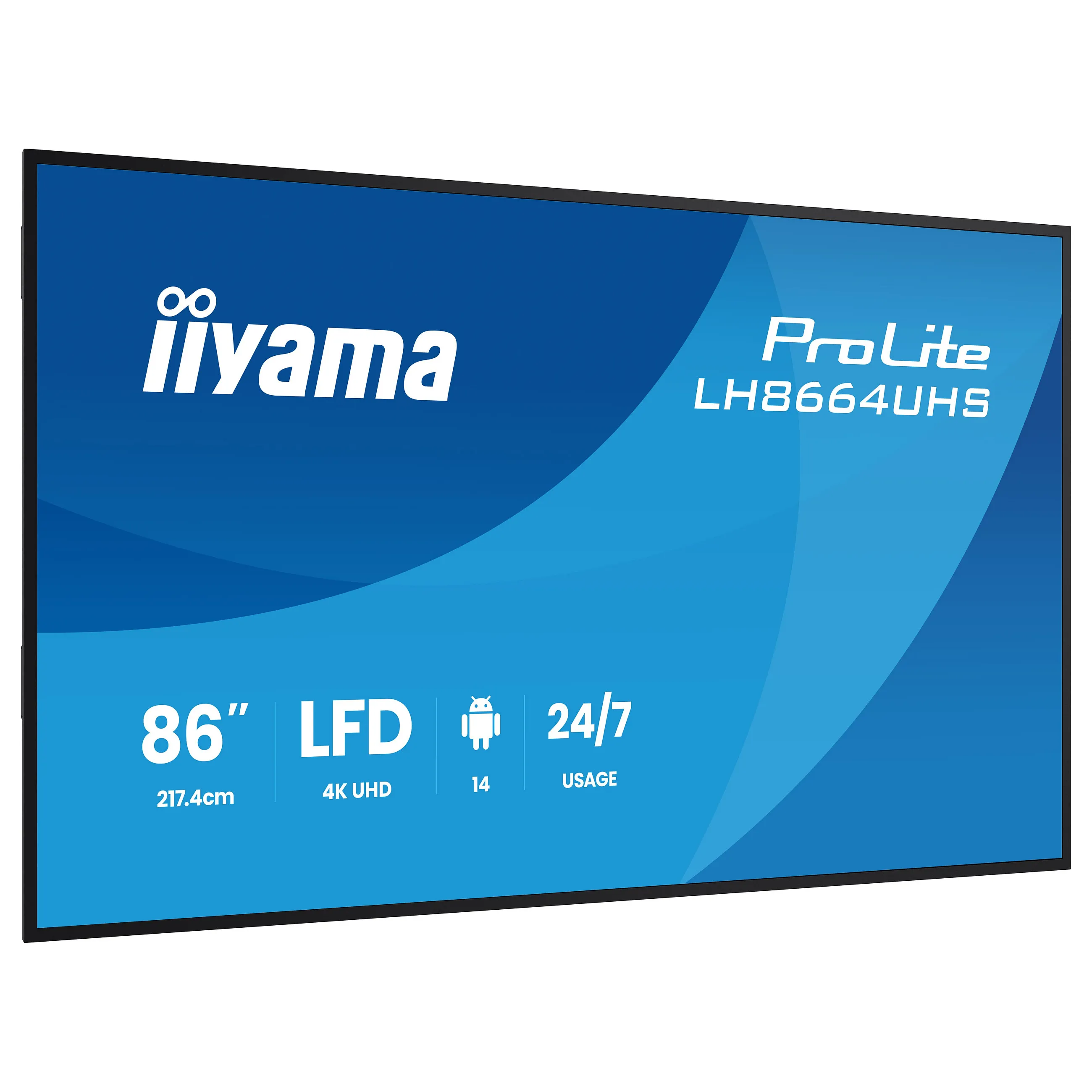

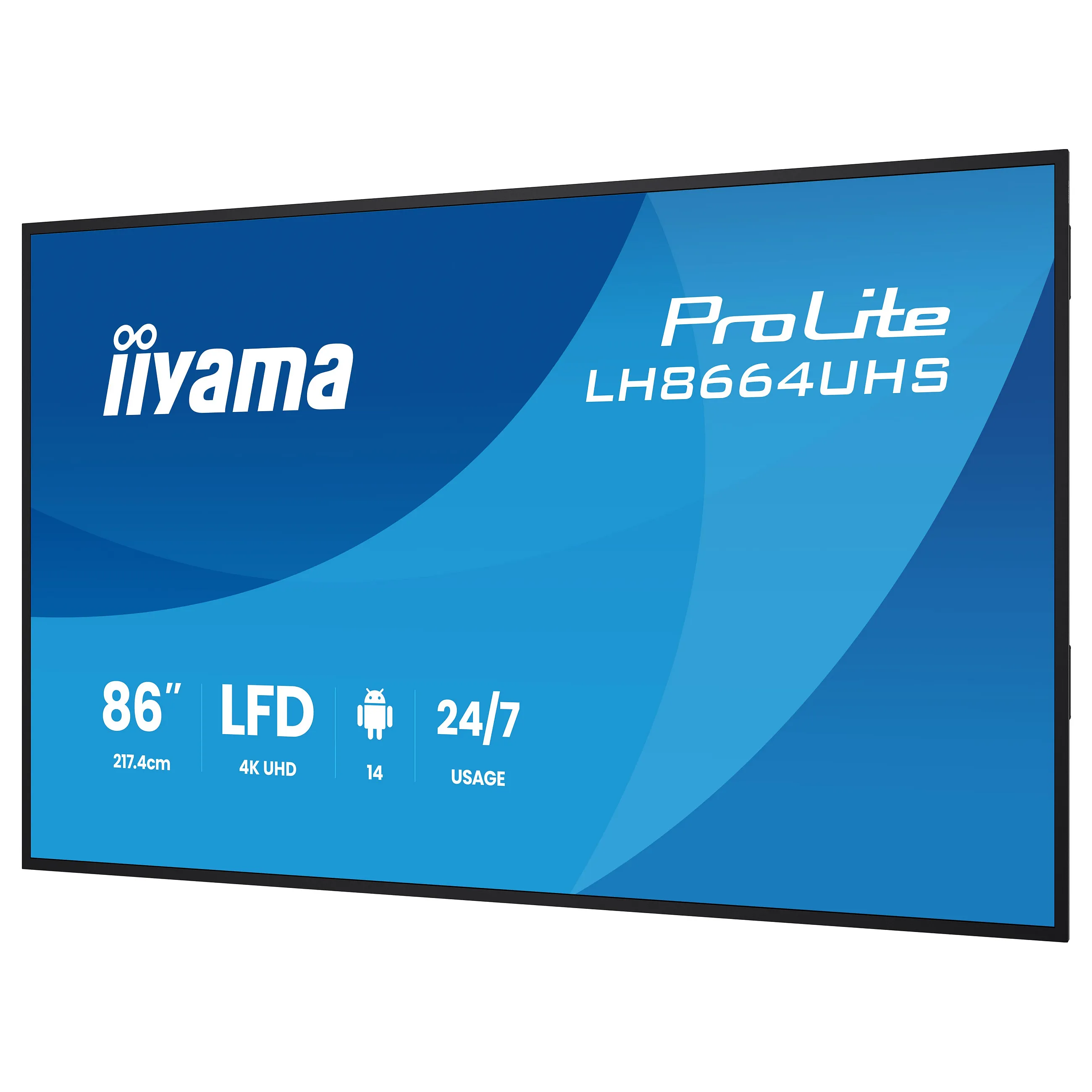

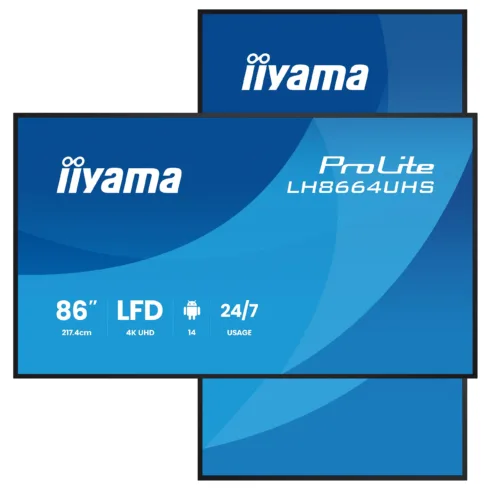

iiyama LH8664UHS-B3AG. Product design: Digital signage flat panel. Display diagonal: 2.17 m (85.6"), Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black
Elevate your visual communication with the LH8664UHS-B3AG and unlock the new possibilities for your business. This 500cd/m2 high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With Android 14 OS, iiSignage2 (CMS), iiControl (DMS) and iiShare , plus EShare (Wireless Presentation) features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze. WiFi enabled, the display is ready for remote content delivery using your network or you can choose to utilise LAN control. Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it’s used in retail, corporate, hospitality, or educational settings, the LH8664UHS-B3AG will undoubtedly captivate your audience and leave a lasting impression.
Display
Panel type: IPS
Display diagonal: 2.17 m (85.6″)
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.493 x 0.493 mm
Active display area (W x H): 1895 x 1066 mm
Display diagonal (metric): 217.4 cm
Horizontal scan range: 28 – 160 kHz
Native refresh rate: 60 Hz
Haze rate: 25%

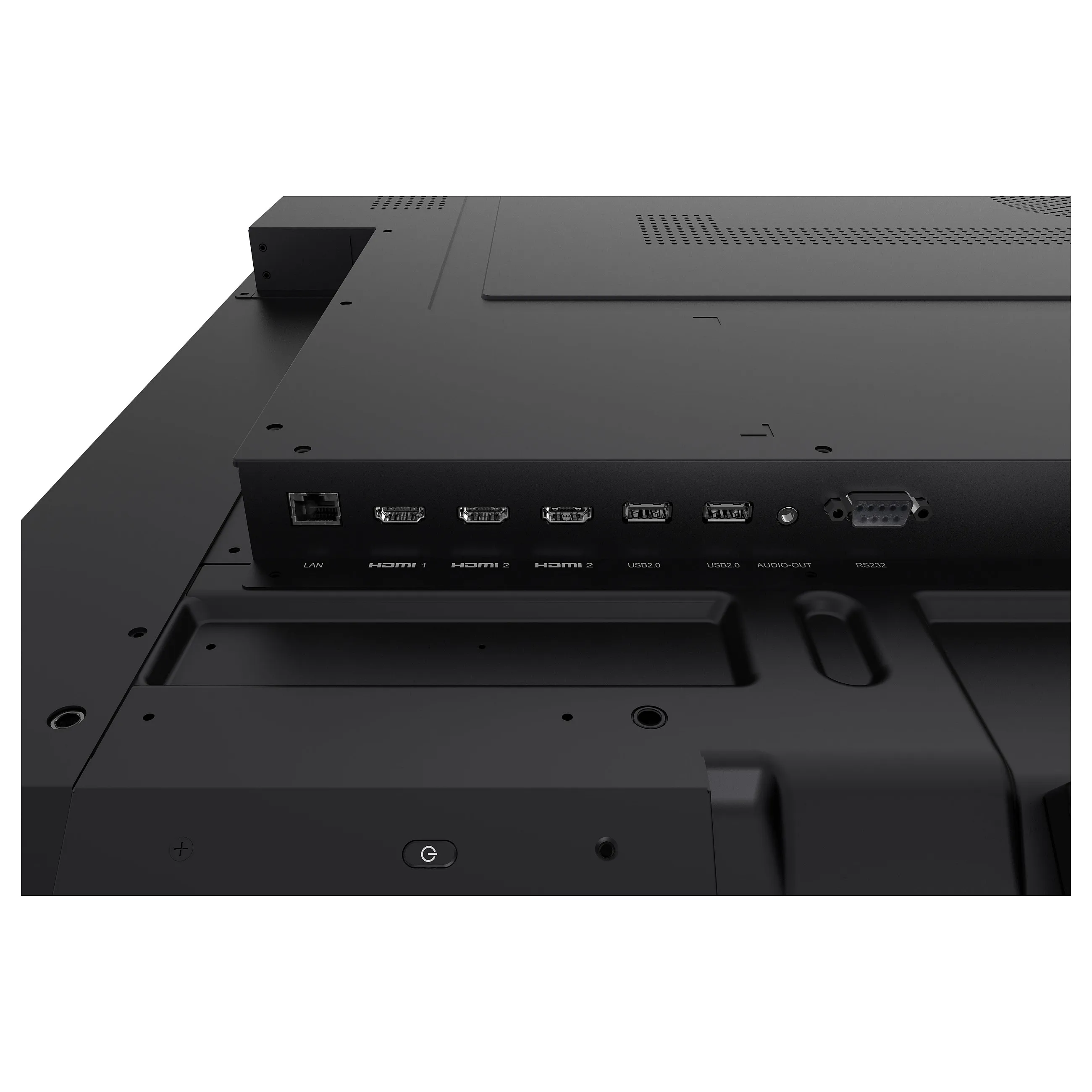

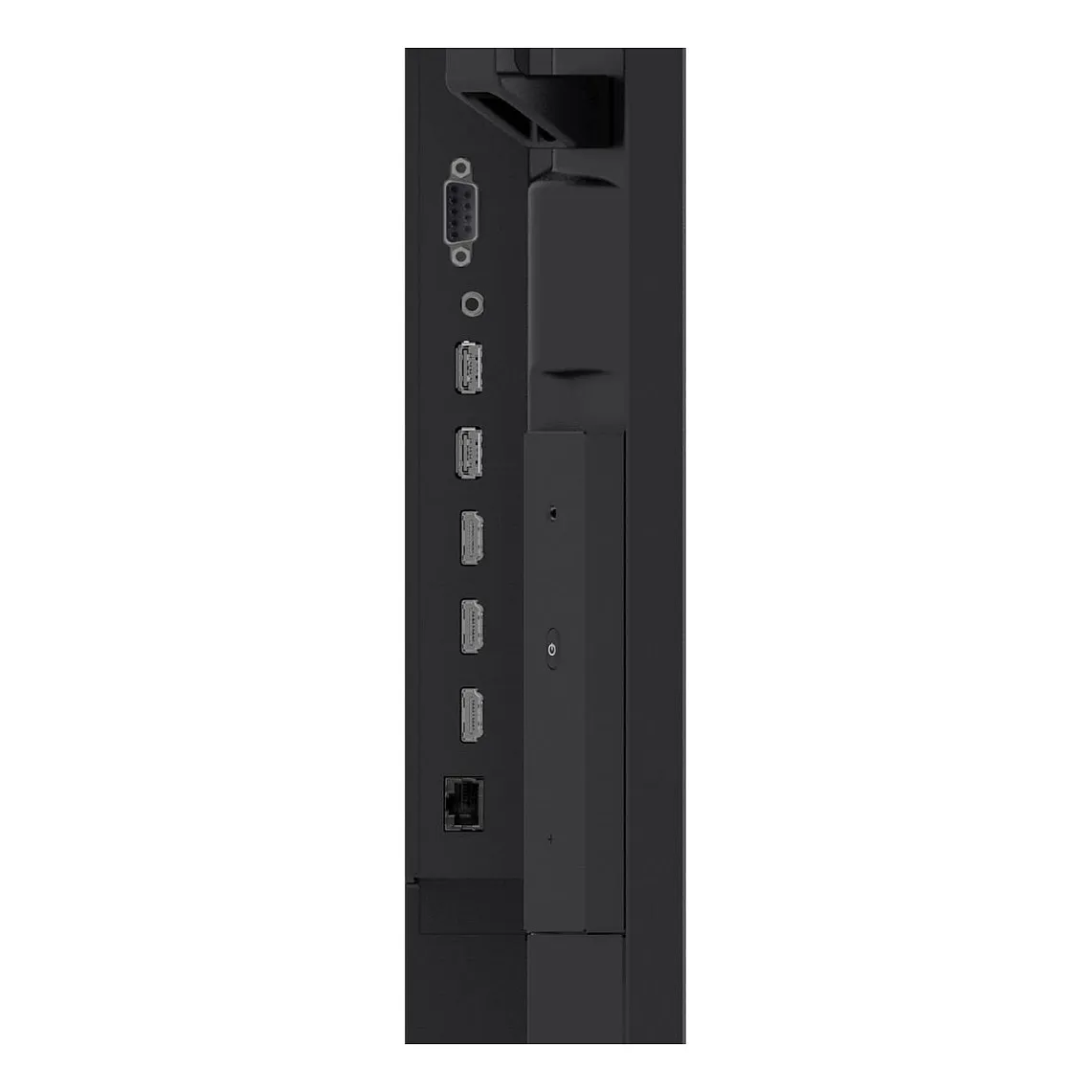

Ports & interfaces
HDMI ports quantity: 2
HDMI version: 2.0
HDMI input ports quantity: 2
DisplayPort version: 1.2
Feature: USB port
USB ports quantity: 2
USB version: 2.0
USB connector type: USB Type-A, USB Type-C
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 15 W
Feature: USB Type-C DisplayPort Alternate Mode
Ethernet LAN (RJ-45) ports: 1
Feature: RS-232C
Feature: Infrared data port
Remote (IR) input: 1
Remote (IR) output: 1
Feature: Audio Return Channel (ARC)
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 32 W
Design
Product design: Digital signage flat panel
Placement supported: Indoor

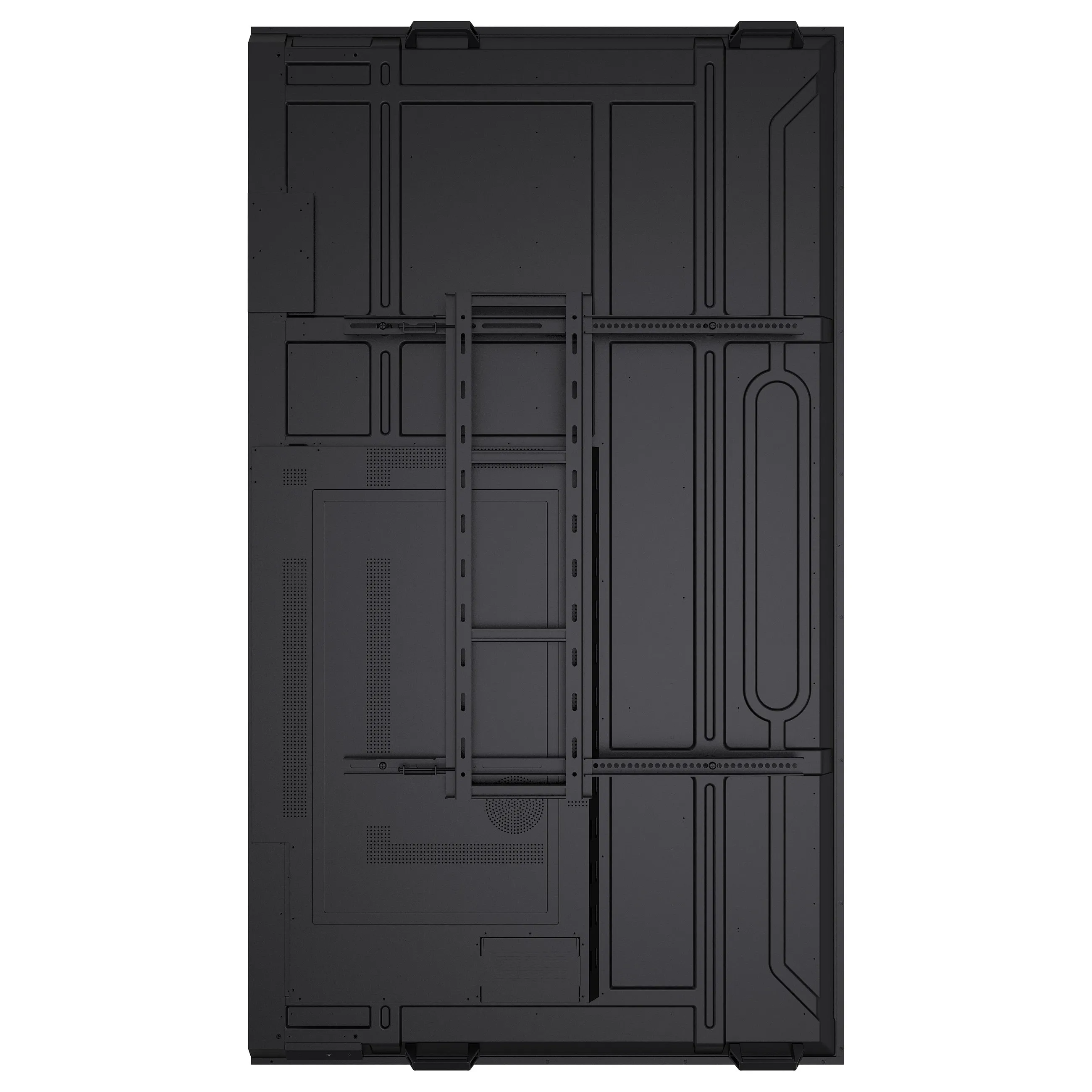

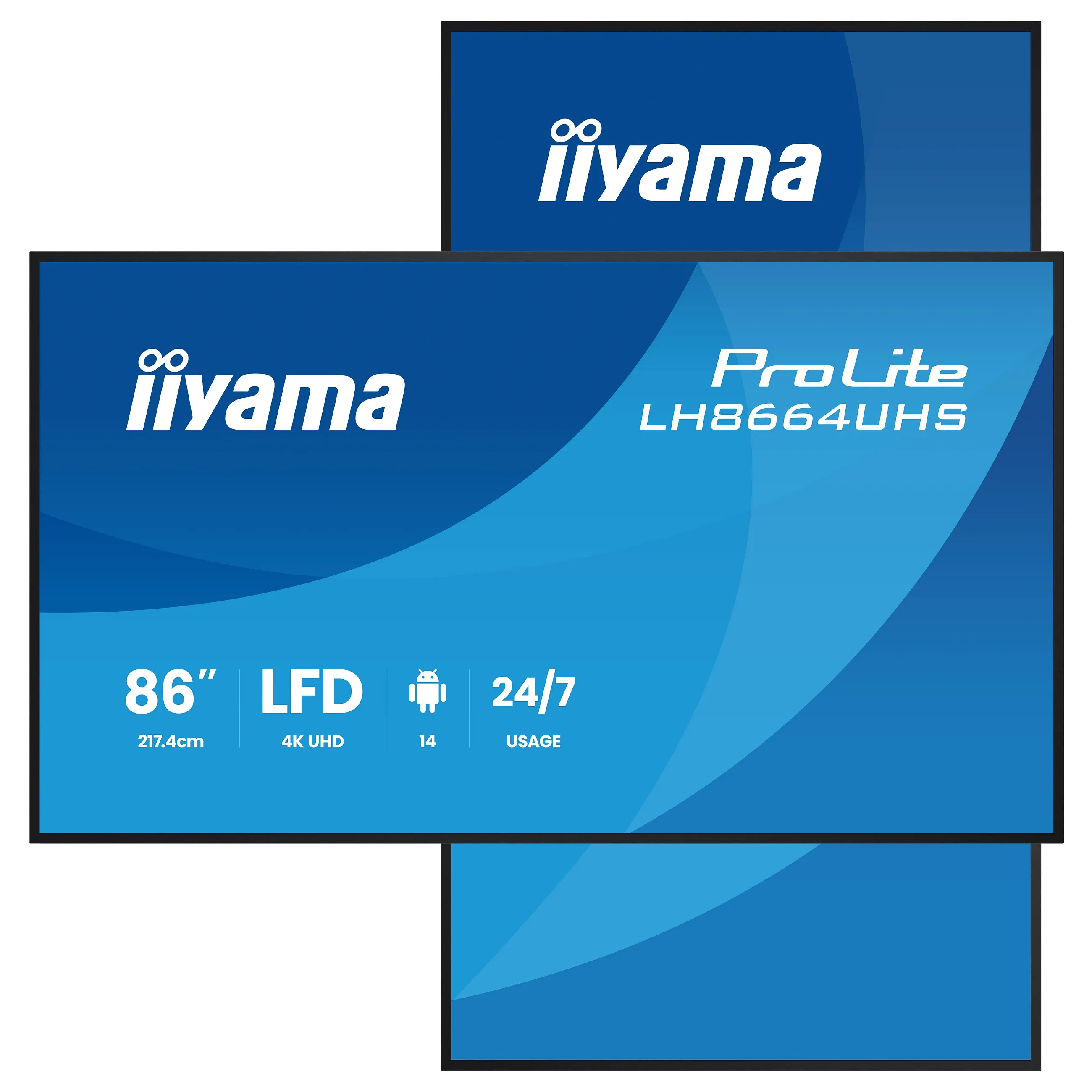

Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat

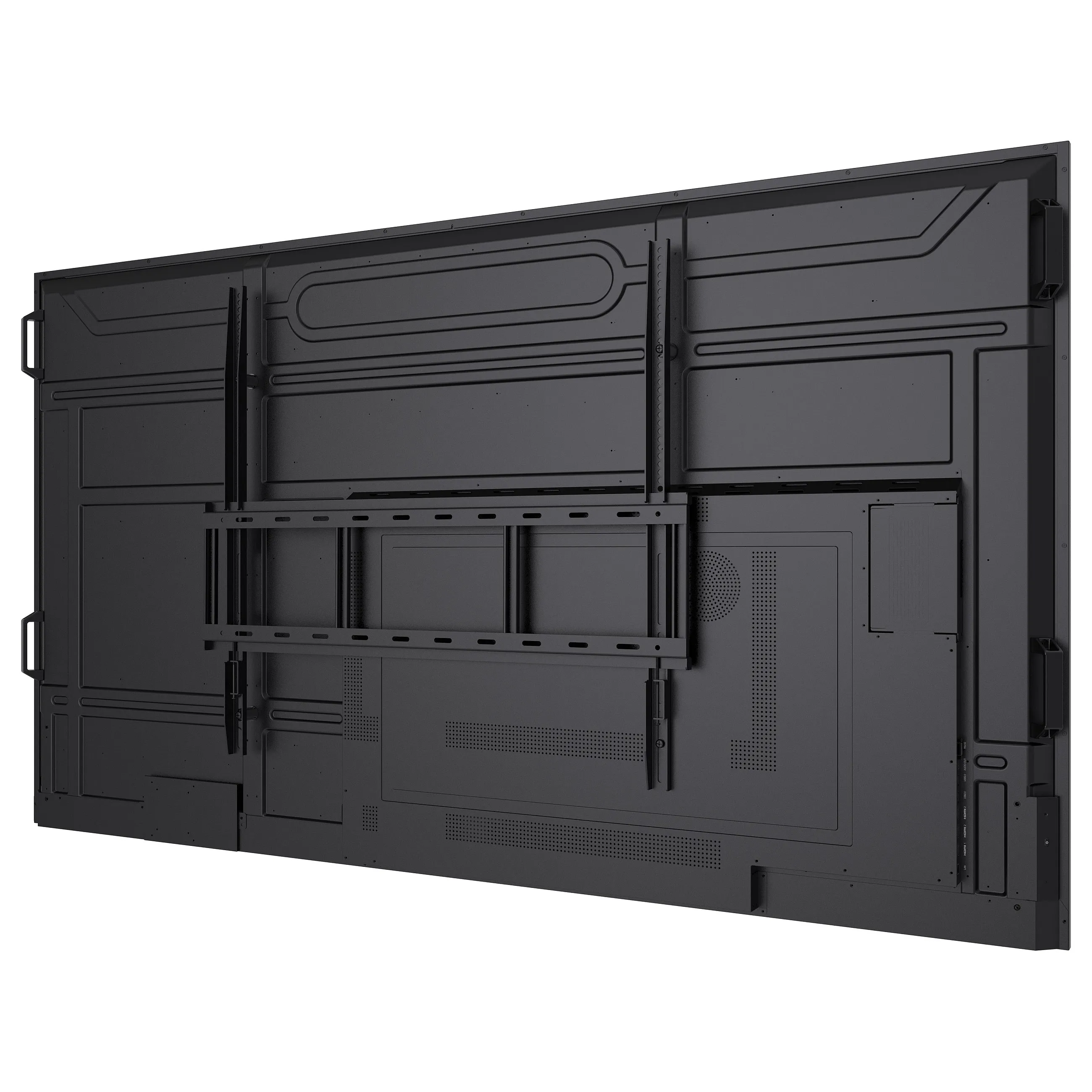

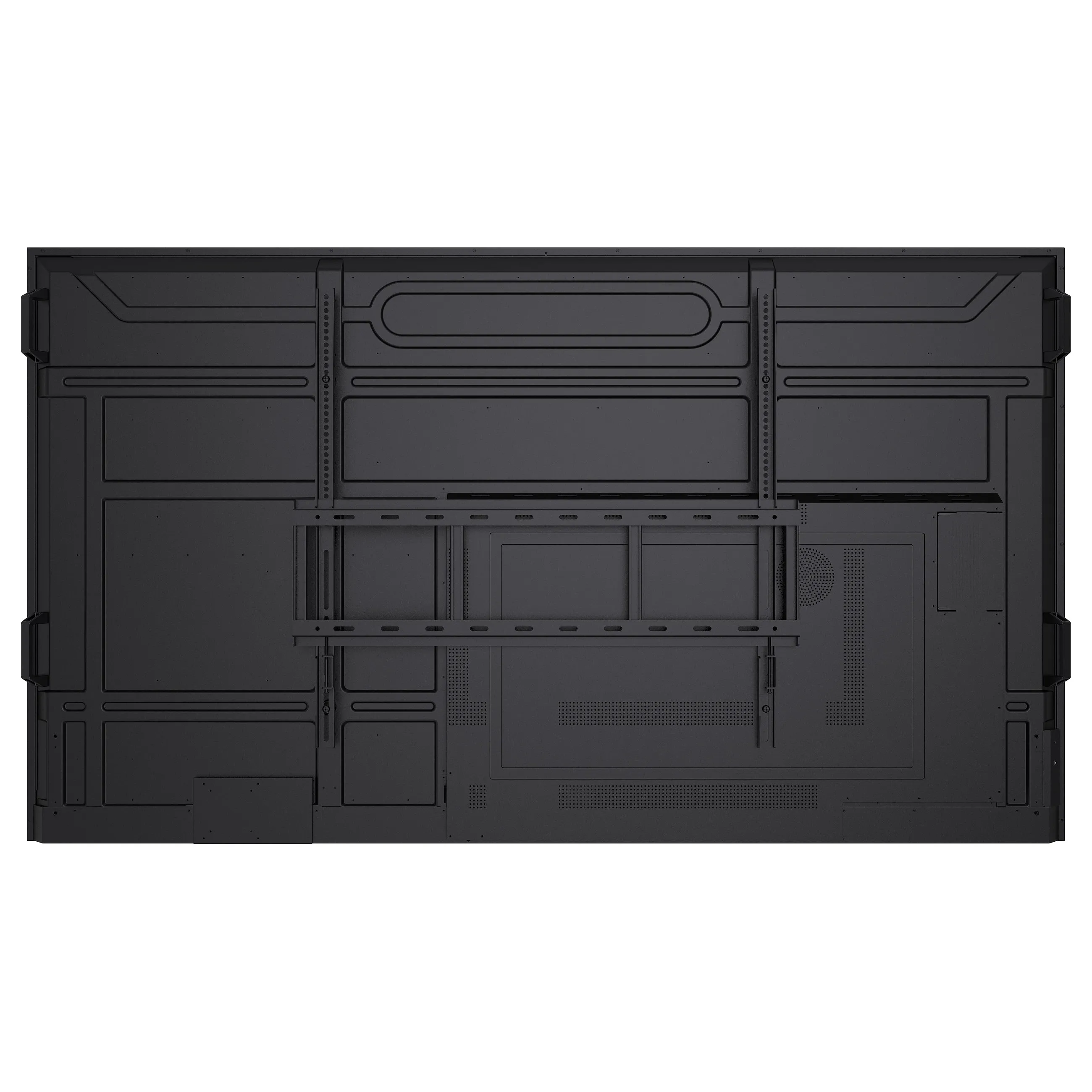

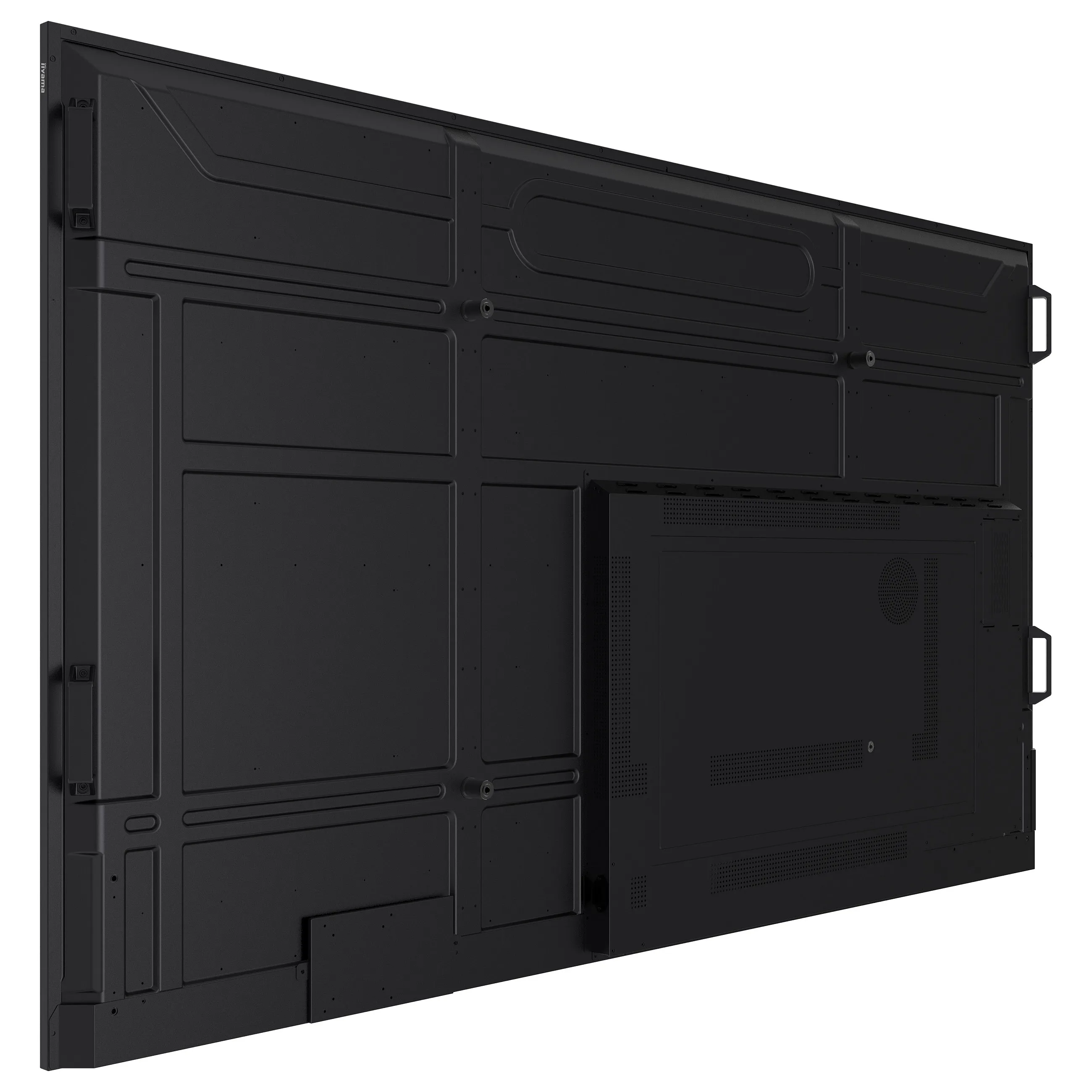

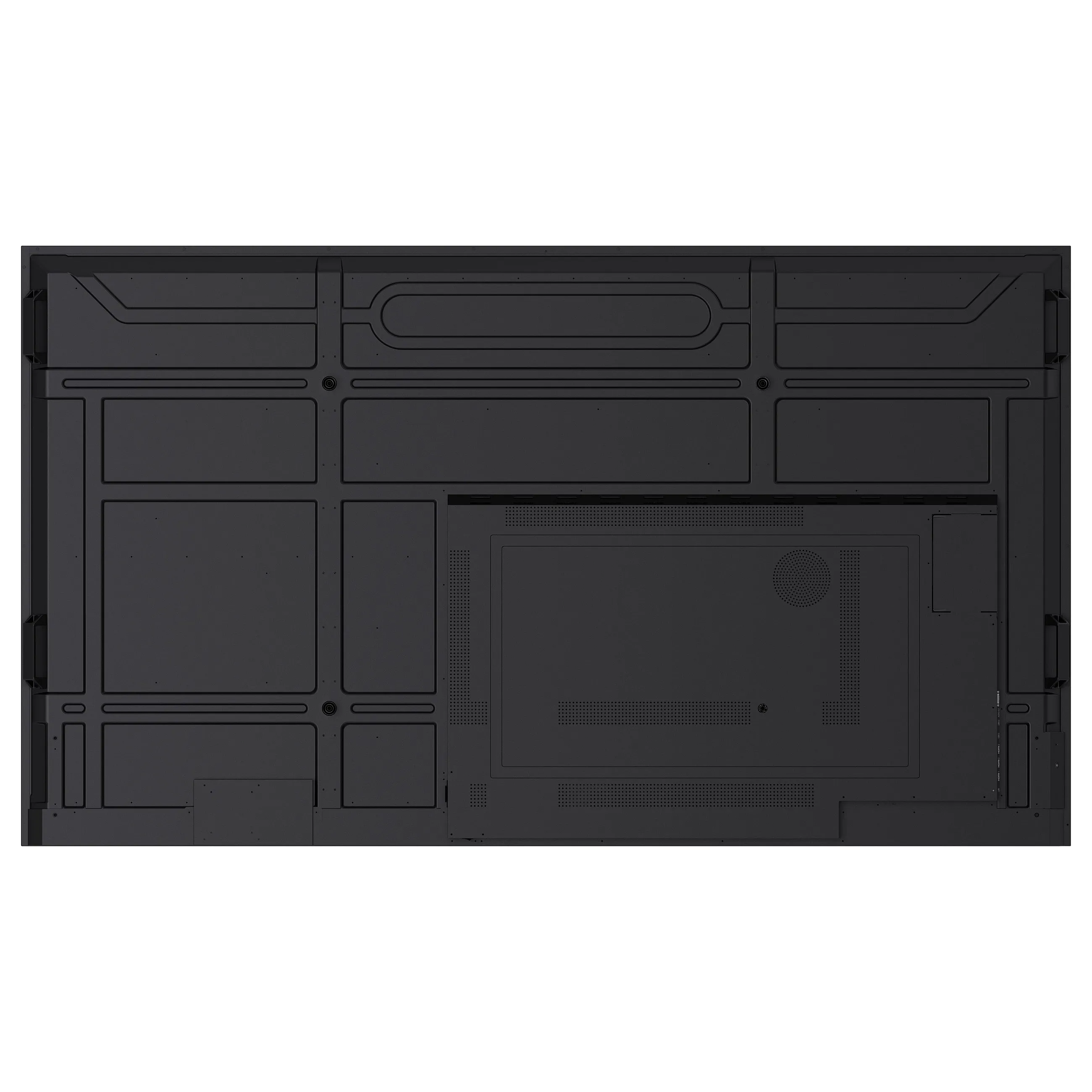

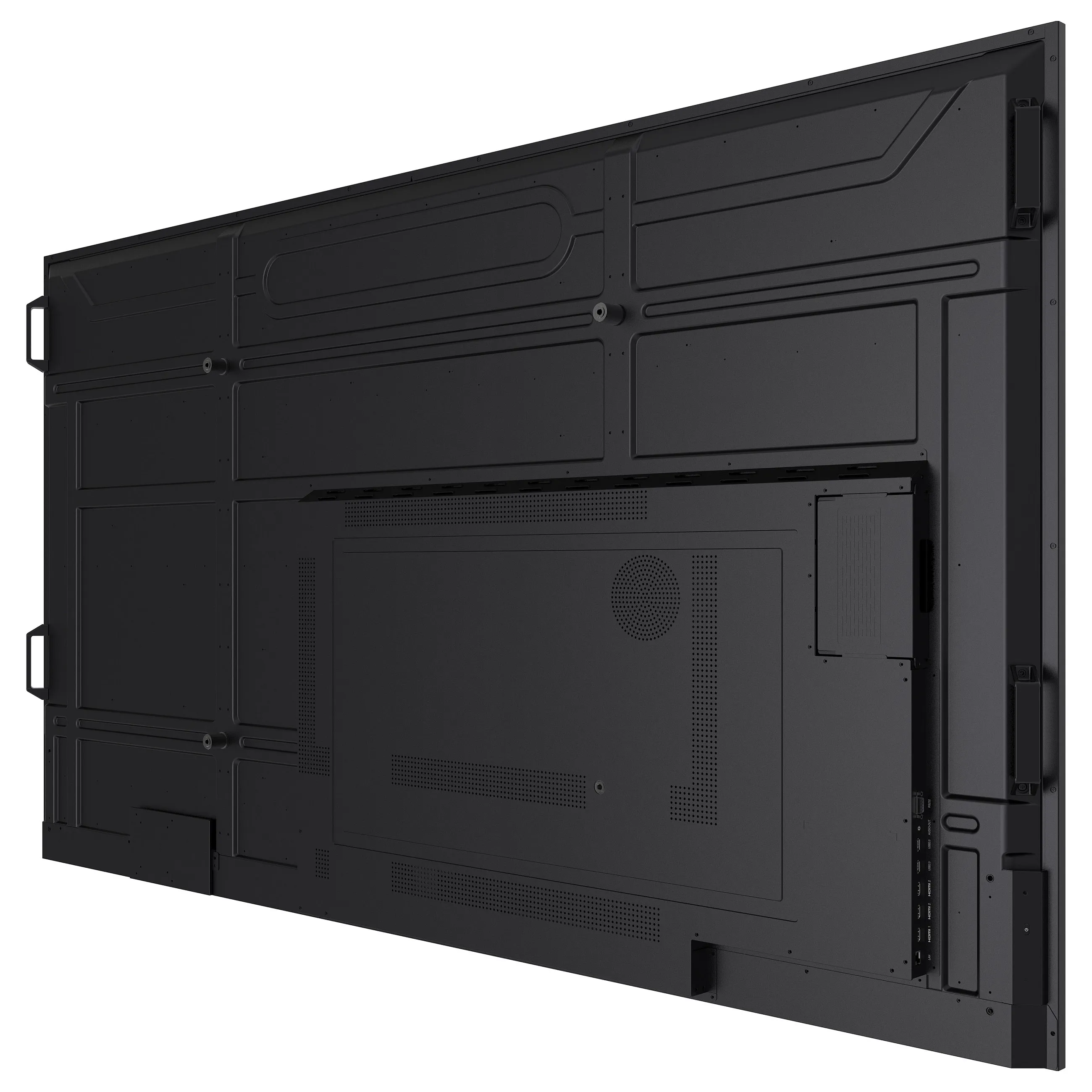

Feature: VESA mounting

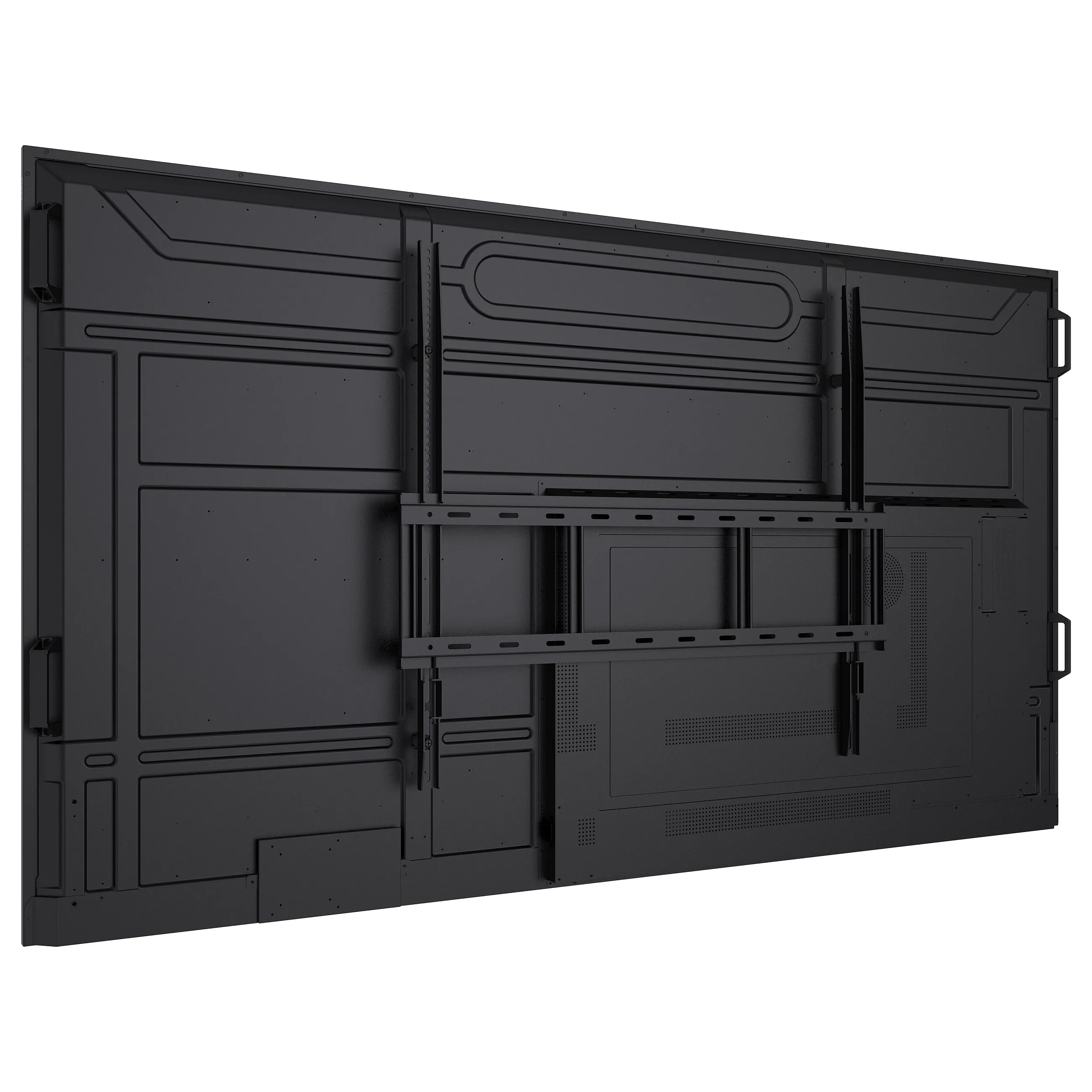

Panel mounting interface: 800 x 600 mm
Bezel width (bottom): 2.2 cm
Bezel width (side): 2.15 cm
Bezel width (top): 2.2 cm
Bezel colour: Black
Feature: Anti-glare screen
Performance
Purpose: Corporate
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 1.4/2.2
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 277 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 277 kWh
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Computer system
Feature: Built-in processor
Processor manufacturer: MediaTek
Processor model: MT9679
Processor architecture: ARM Cortex-A73
Processor cores: 4
Internal memory: 4 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 32 GB
Operating system installed: Android
Operating system version: 14
Weight & dimensions
Display width: 1937.8 mm

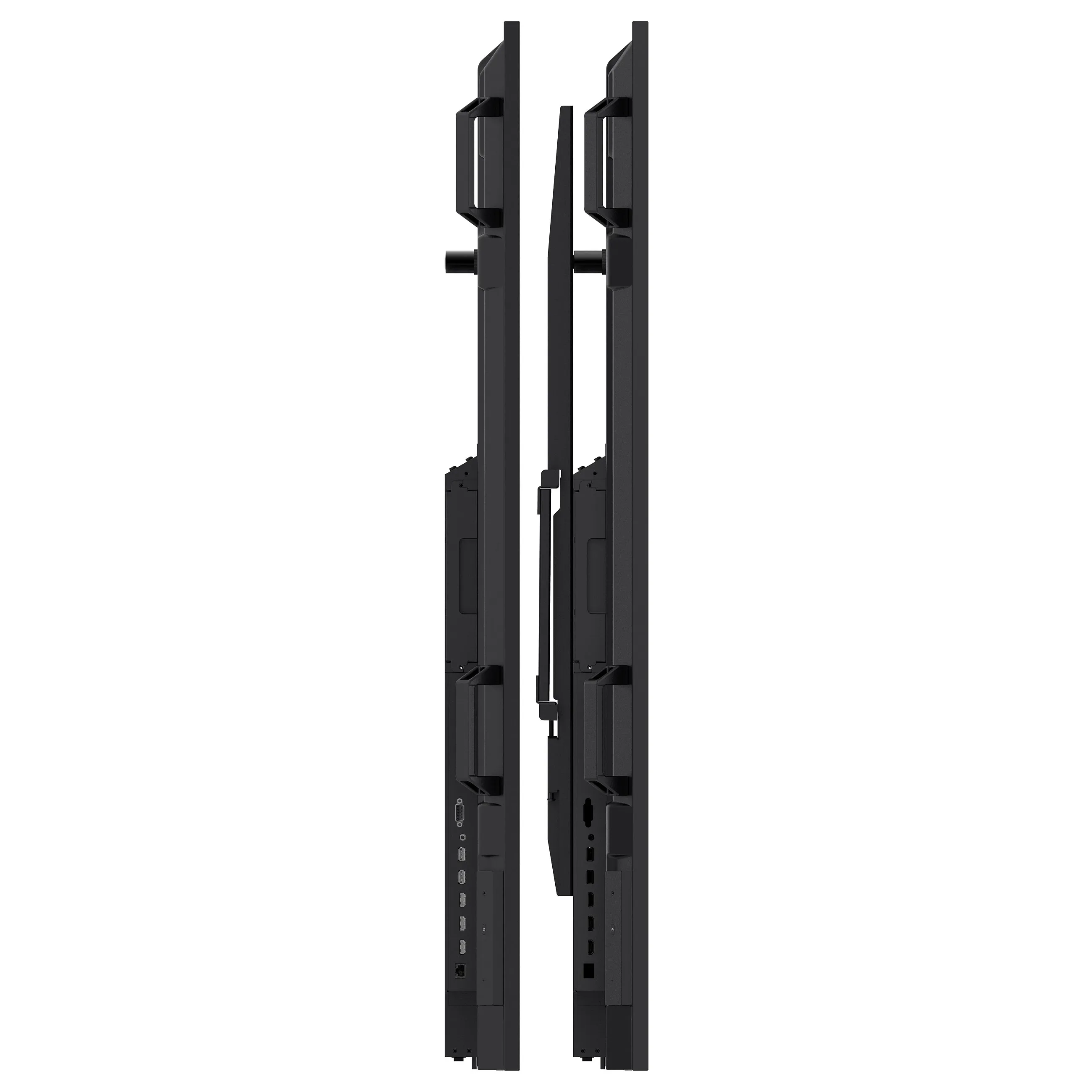

Display depth: 79.6 mm
Display height: 1108.8 mm
Display weight: 47.9 kg
Width: 1937.8 mm
Depth: 79.6 mm
Height: 1108.8 mm
Weight: 47.9 kg
Packaging data
Package width: 2095 mm
Package depth: 225 mm
Package height: 1215 mm
Package weight: 62.2 kg
Packaging content
Feature: Remote control included

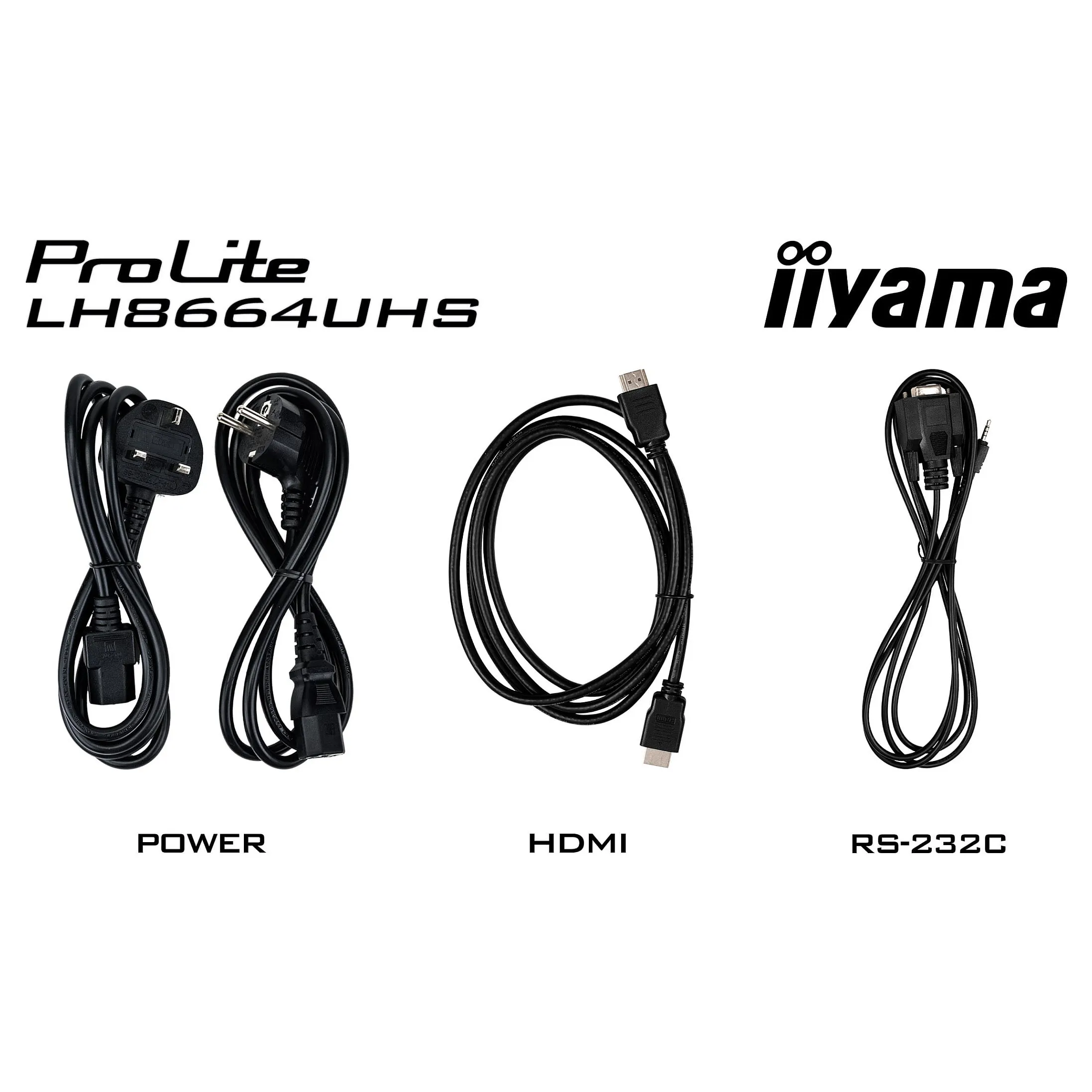

Cables included: AC, HDMI, RS-232
Feature: Mounting kit
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Network
Feature: Ethernet LAN
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 5 (802.11ac)
Technical details
Playback media: Y
Sustainability certificates: EPEAT, ErP
Compliance certificates: CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
Feature: Quick start guide
Power supply type: Internal
Panel type: IPS
Display diagonal: 2.17 m (85.6″)
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.493 x 0.493 mm
Active display area (W x H): 1895 x 1066 mm
Display diagonal (metric): 217.4 cm
Horizontal scan range: 28 – 160 kHz
Native refresh rate: 60 Hz
Haze rate: 25%
Ports & interfaces
HDMI ports quantity: 2
HDMI version: 2.0
HDMI input ports quantity: 2
DisplayPort version: 1.2
Feature: USB port
USB ports quantity: 2
USB version: 2.0
USB connector type: USB Type-A, USB Type-C
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 15 W
Feature: USB Type-C DisplayPort Alternate Mode
Ethernet LAN (RJ-45) ports: 1
Feature: RS-232C
Feature: Infrared data port
Remote (IR) input: 1
Remote (IR) output: 1
Feature: Audio Return Channel (ARC)
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 32 W
Design
Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 800 x 600 mm
Bezel width (bottom): 2.2 cm
Bezel width (side): 2.15 cm
Bezel width (top): 2.2 cm
Bezel colour: Black
Feature: Anti-glare screen
Performance
Purpose: Corporate
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 1.4/2.2
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 277 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 277 kWh
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Computer system
Feature: Built-in processor
Processor manufacturer: MediaTek
Processor model: MT9679
Processor architecture: ARM Cortex-A73
Processor cores: 4
Internal memory: 4 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 32 GB
Operating system installed: Android
Operating system version: 14
Weight & dimensions
Display width: 1937.8 mm
Display depth: 79.6 mm
Display height: 1108.8 mm
Display weight: 47.9 kg
Width: 1937.8 mm
Depth: 79.6 mm
Height: 1108.8 mm
Weight: 47.9 kg
Packaging data
Package width: 2095 mm
Package depth: 225 mm
Package height: 1215 mm
Package weight: 62.2 kg
Packaging content
Feature: Remote control included
Cables included: AC, HDMI, RS-232
Feature: Mounting kit
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Network
Feature: Ethernet LAN
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 5 (802.11ac)
Technical details
Playback media: Y
Sustainability certificates: EPEAT, ErP
Compliance certificates: CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
Feature: Quick start guide
Power supply type: Internal
