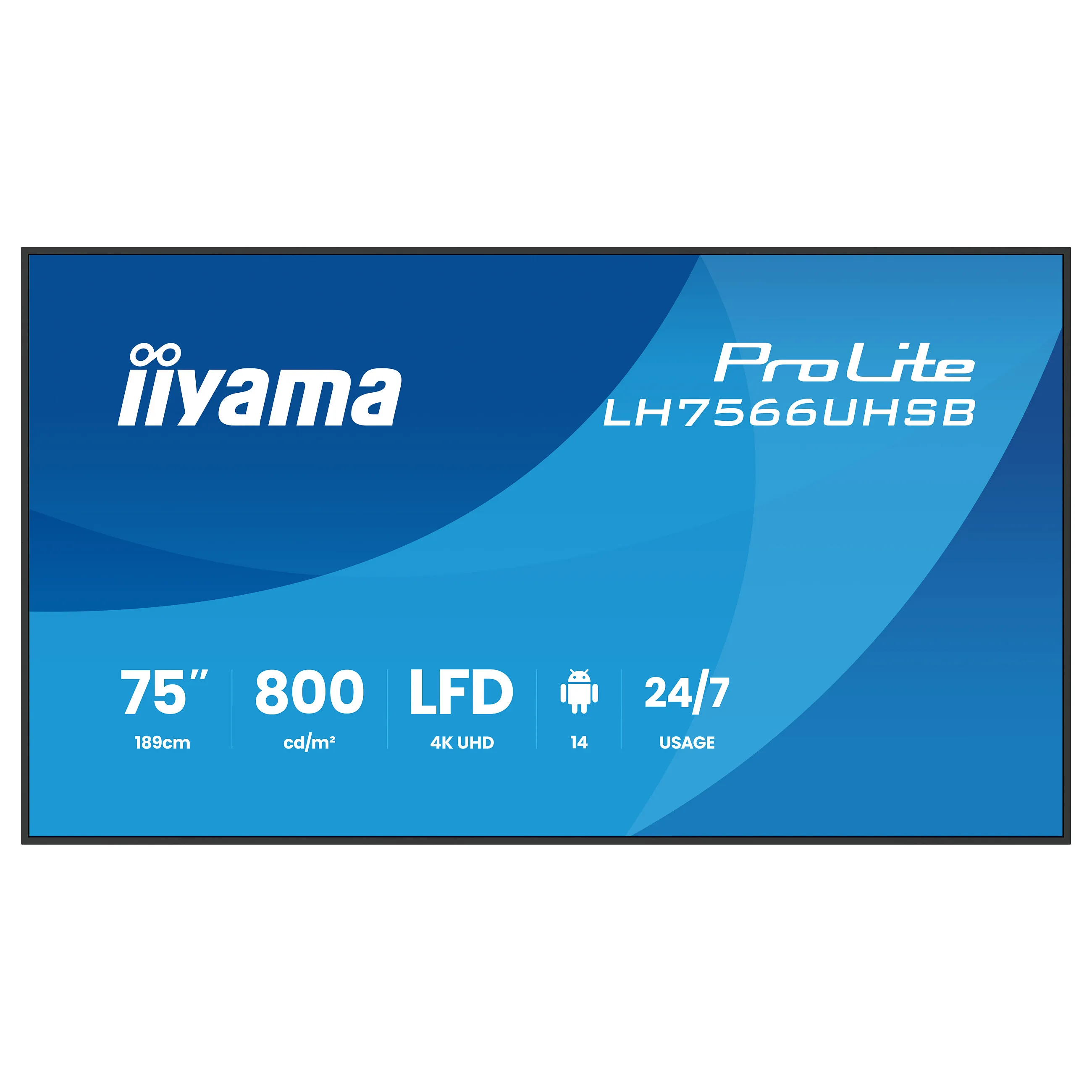

iiyama LH7566UHSB-B1AG. Product design: Digital signage flat panel. Display diagonal: 190.5 cm (75"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 800 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

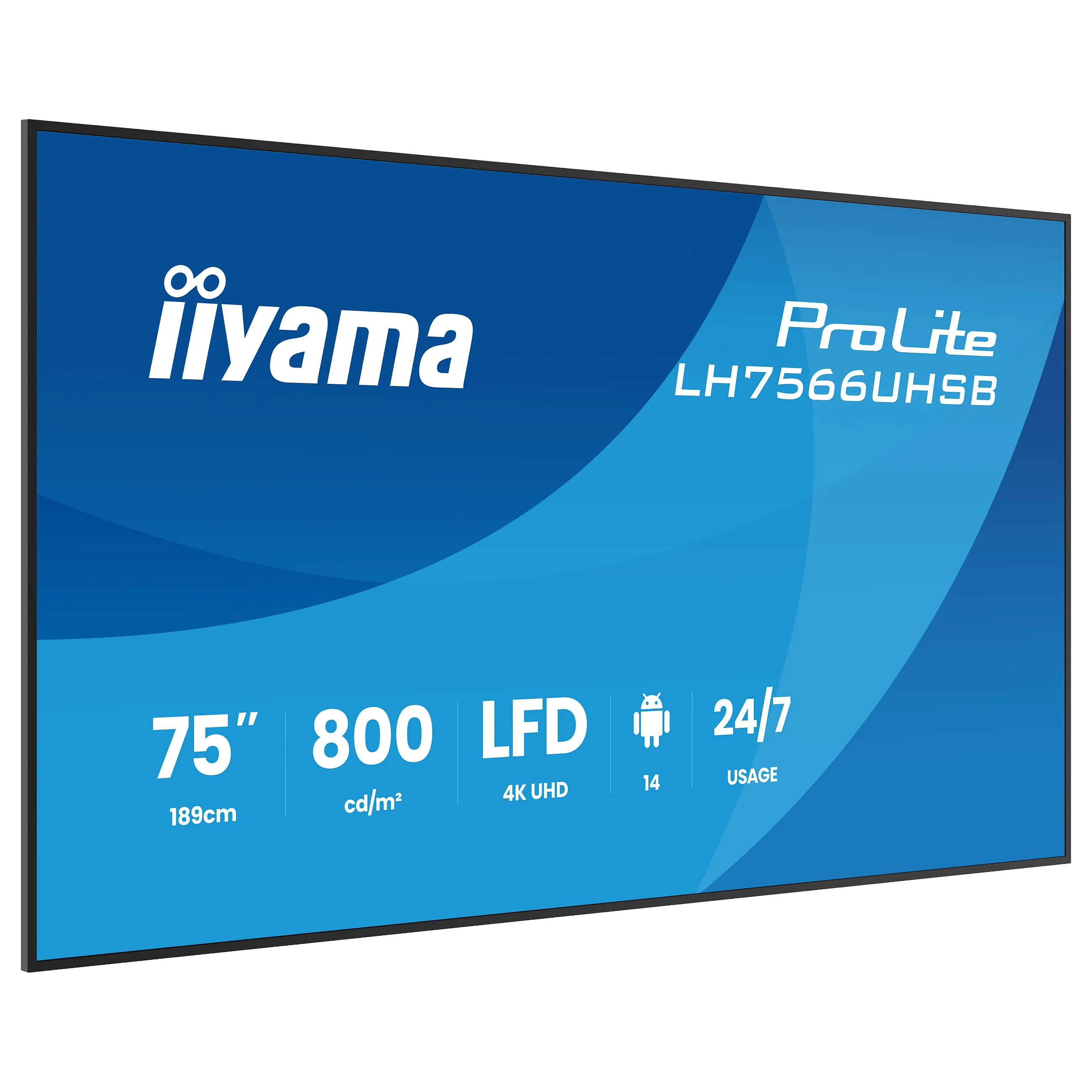

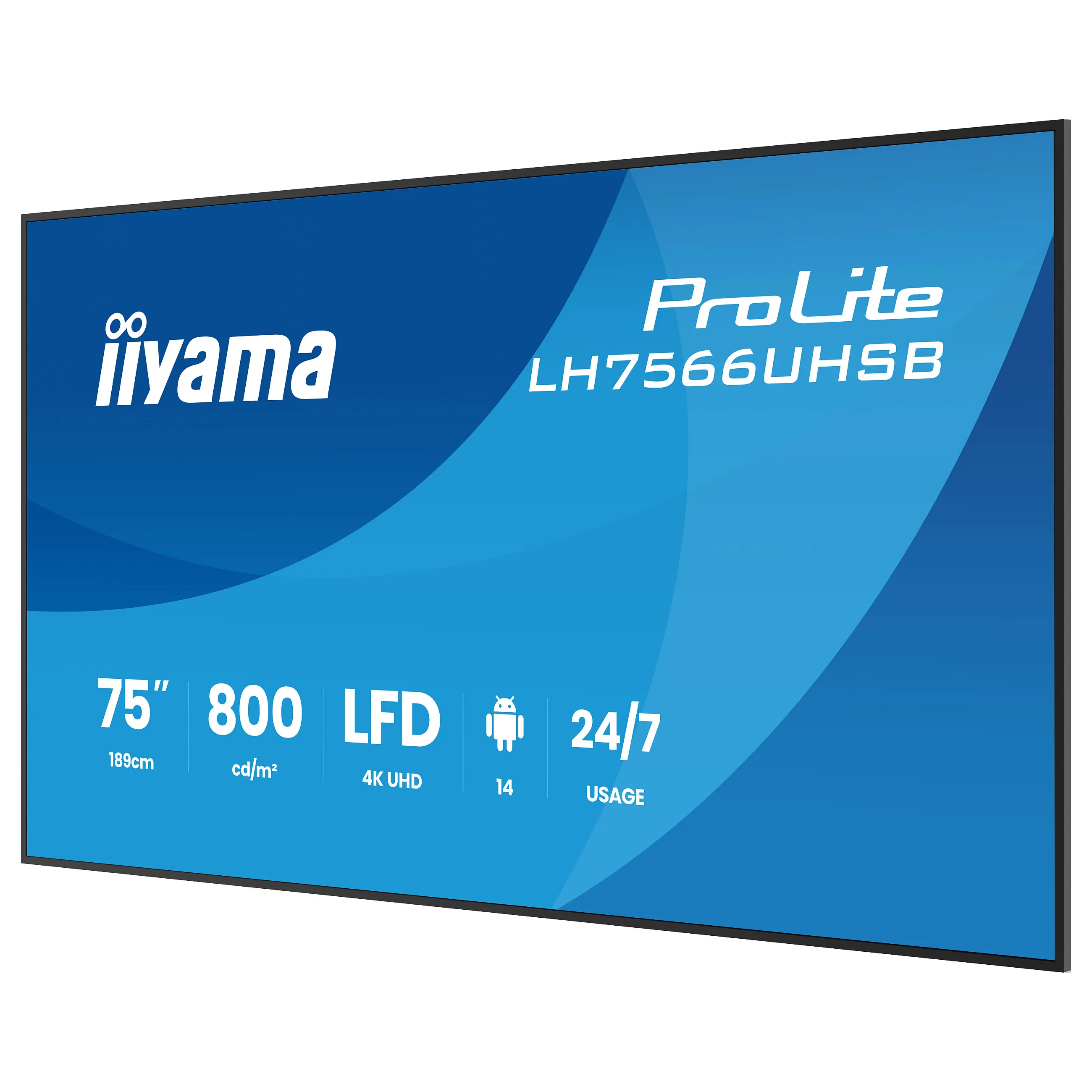

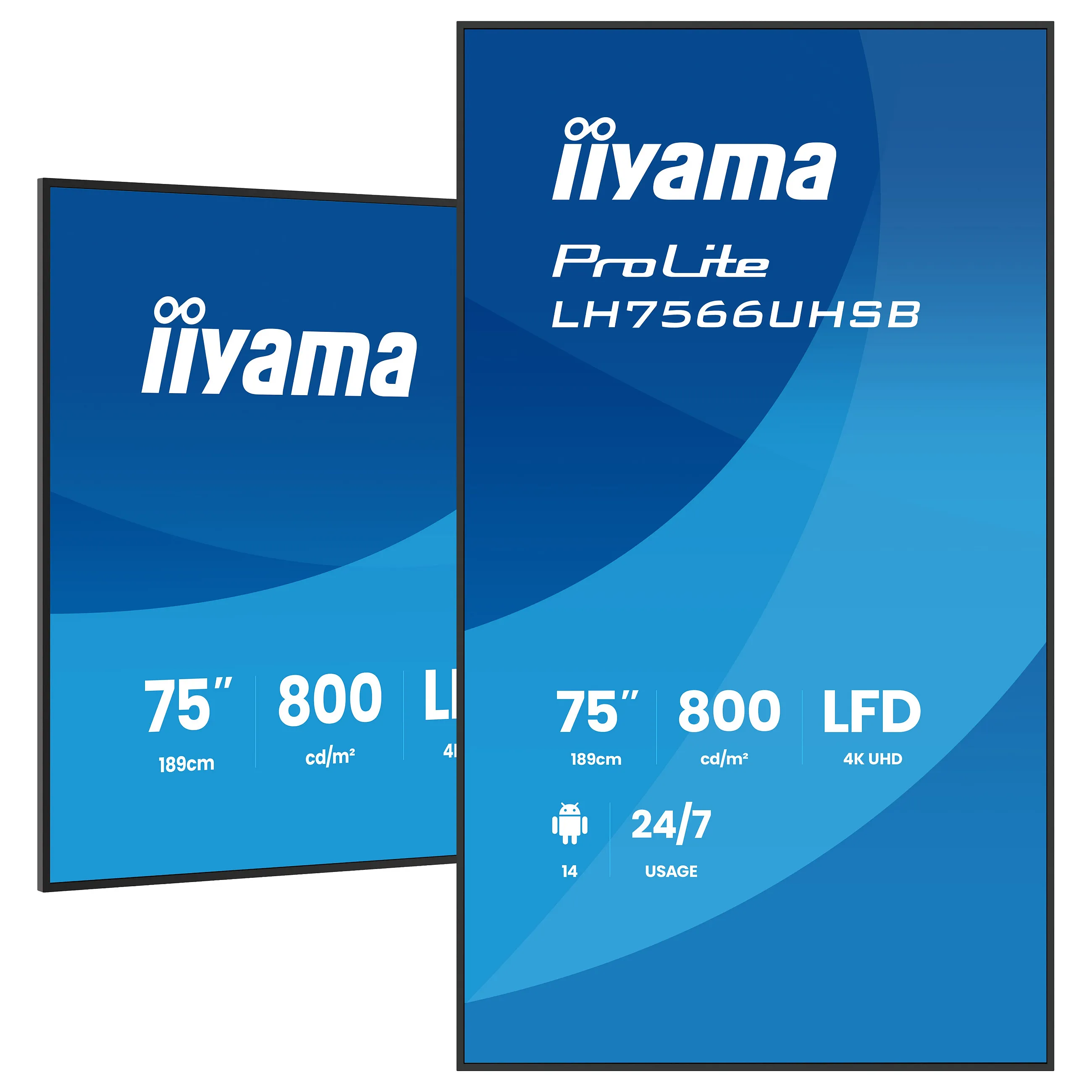

The ProLite LH7566UHSB-B1AG is a 75″ 4K UHD digital signage powerhouse designed to elevate your business’s visual communication. With Android 14 OS, iiSignage2 (CMS), iiControl (DMS), and iiShare (Wireless Presentation), managing content is effortless. It’s WiFi enabled for remote content delivery and offers reliable 24/7 operation. Perfect for retail, corporate, hospitality, or restaurant settings, this display ensures a captivating audience experience with its versatile design and high brightness of 800cd/m2 .
Display
Panel type: VA
Display diagonal: 190.5 cm (75″)
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 800 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 6.5 ms
Contrast ratio (typical): 5000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.429 x 0.429 mm
Active display area (W x H): 1650.24 x 928.26 mm
Display diagonal (metric): 189.5 cm
Horizontal scan range: 57 – 62 kHz
Native refresh rate: 60 Hz
Haze rate: 25%

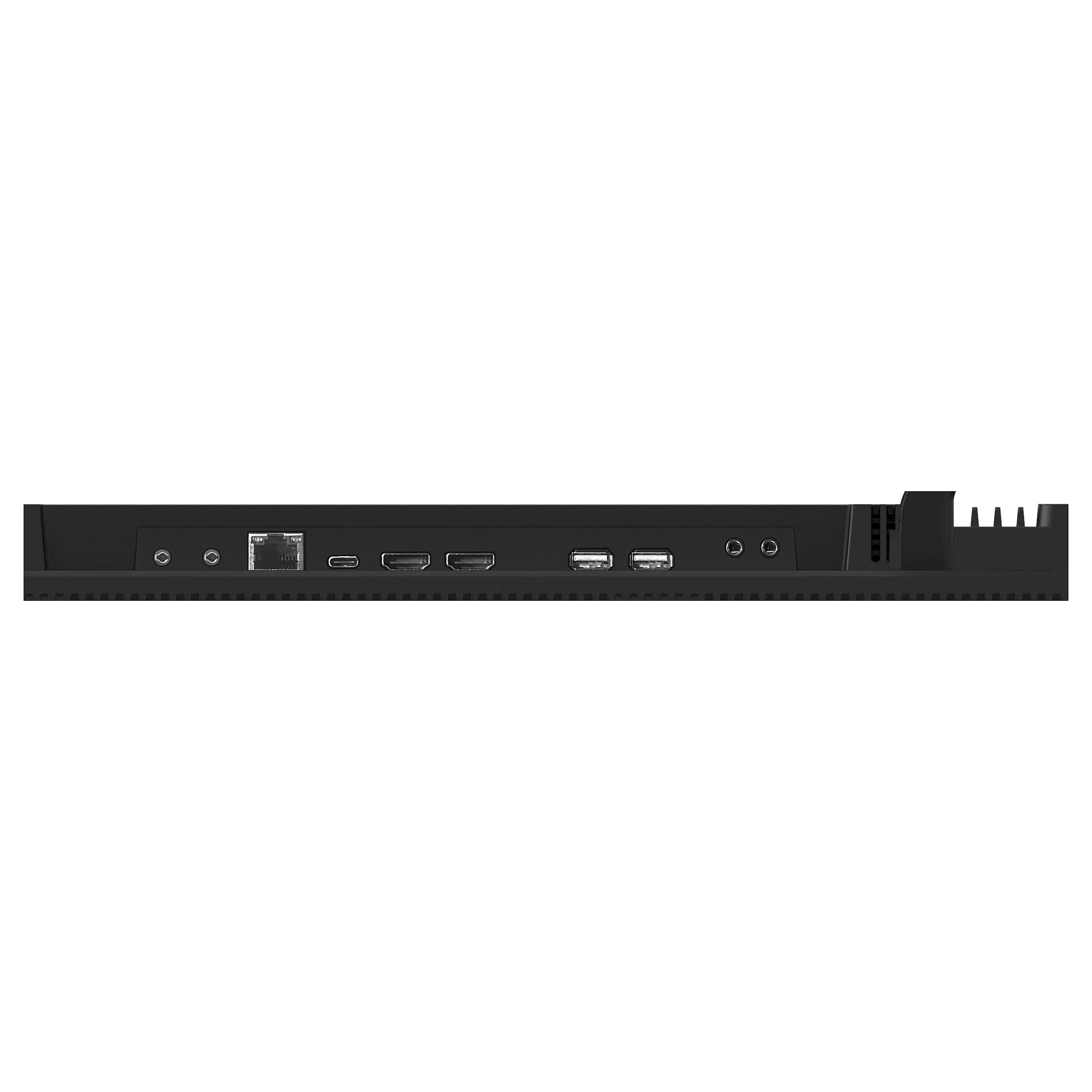

Ports & interfaces
HDMI ports quantity: 2
HDMI version: 2.0
Feature: USB port
USB ports quantity: 2
USB version: 2.0
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 15 W
Feature: USB Type-C DisplayPort Alternate Mode
Ethernet LAN (RJ-45) ports: 1
Feature: RS-232C
Remote (IR) input: 1
Remote (IR) output: 1
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W
Design
Product design: Digital signage flat panel
Placement supported: Indoor

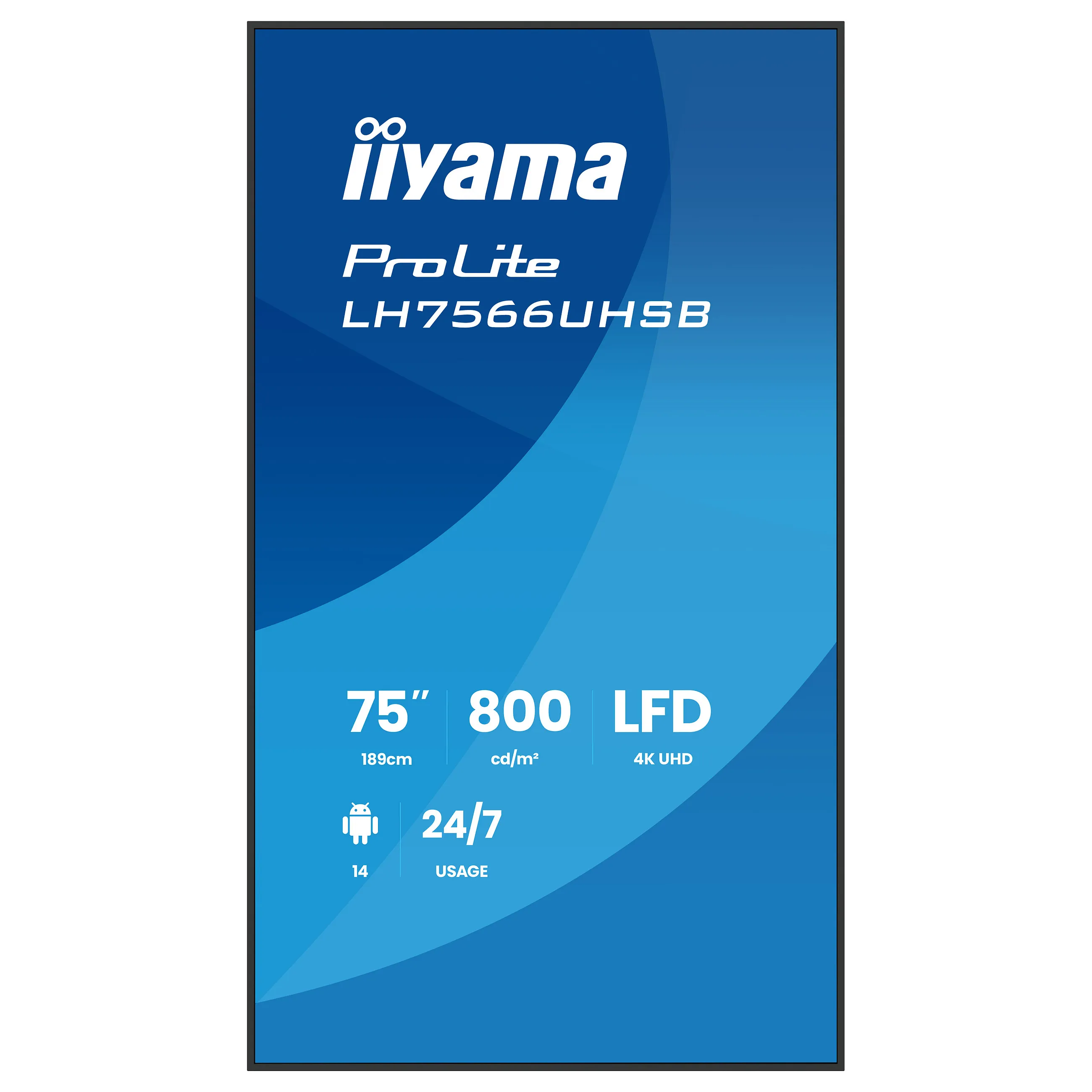

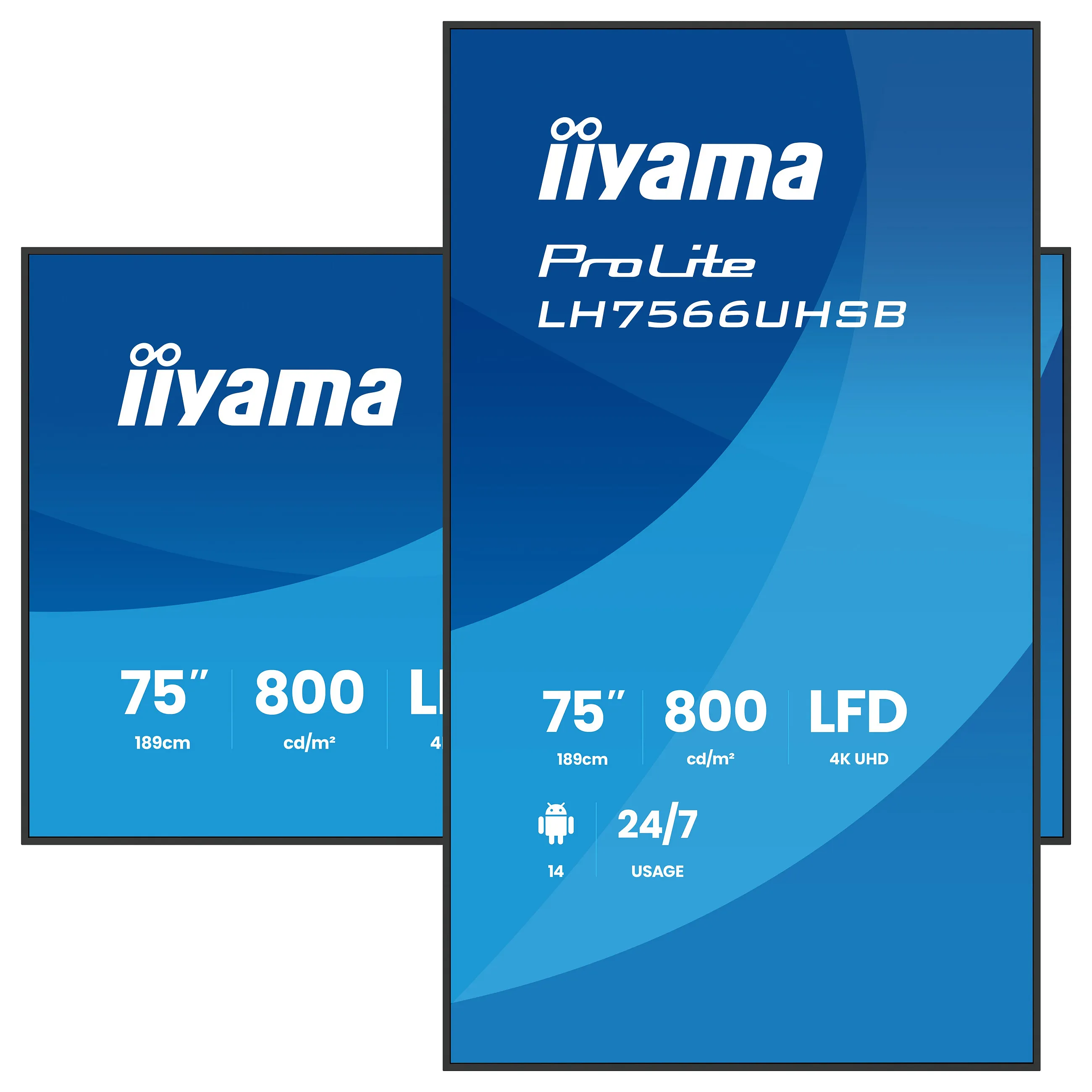

Orientation: Horizontal/Vertical
Product colour: Black
Feature: VESA mounting

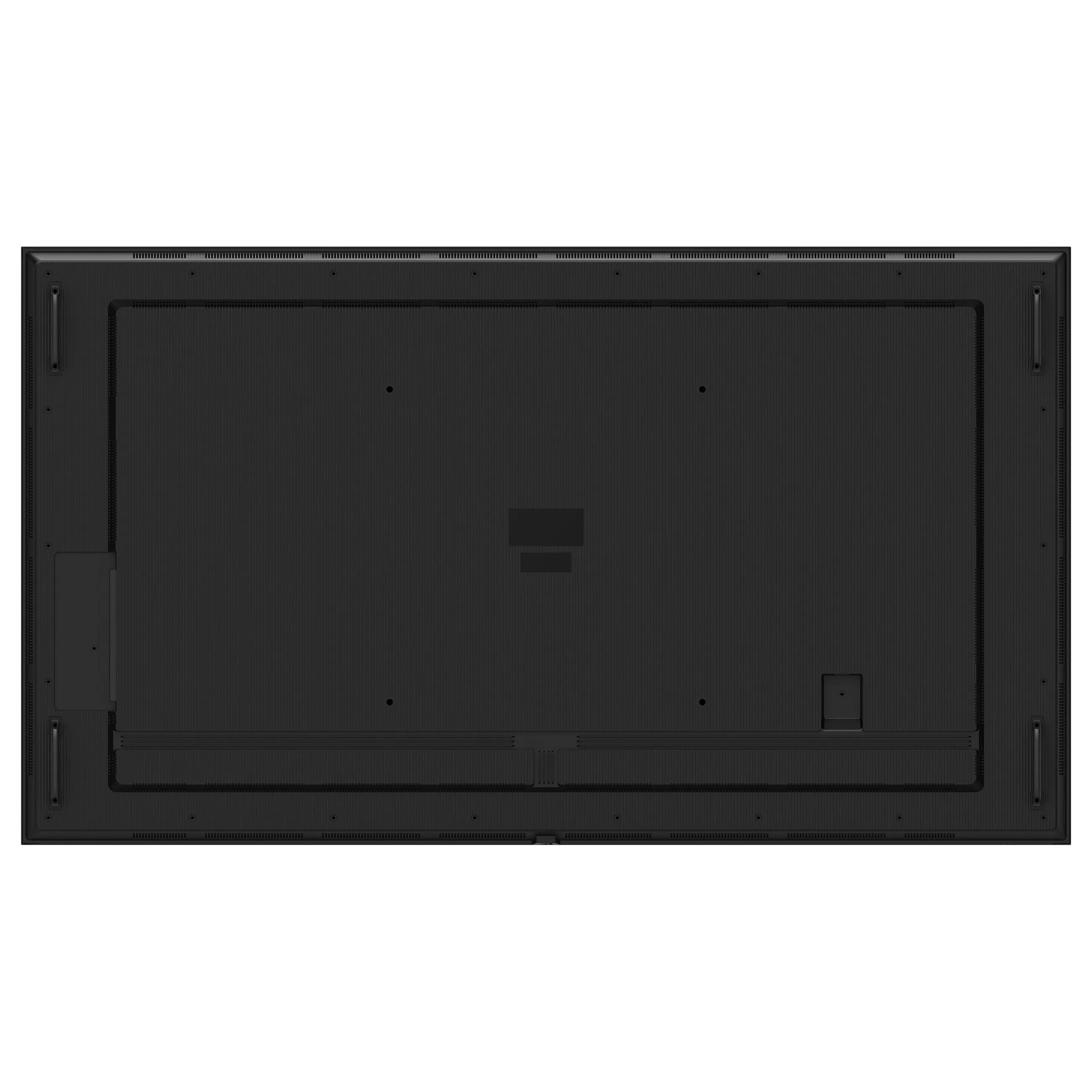

Panel mounting interface: 500 x 500 mm
Bezel width (bottom): 1.28 cm
Bezel width (side): 1.28 cm
Bezel width (top): 1.28 cm
Bezel colour: Black
Feature: Anti-glare screen
Performance
Purpose: Universal
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
Operating hours (hours/days): 24/7
Feature: HDCP
International Protection (IP) code: IP5X
HDCP version: 1.4/2.0
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 219 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 219 kWh
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Computer system
Feature: Computer system
Feature: Built-in processor
Processor manufacturer: MediaTek
Processor family: ARM Cortex
Processor model: MT9679
Processor architecture: ARM Cortex-A73
Internal memory: 4 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 32 GB
Operating system installed: Android
Operating system version: 14
Weight & dimensions
Display width: 1679 mm

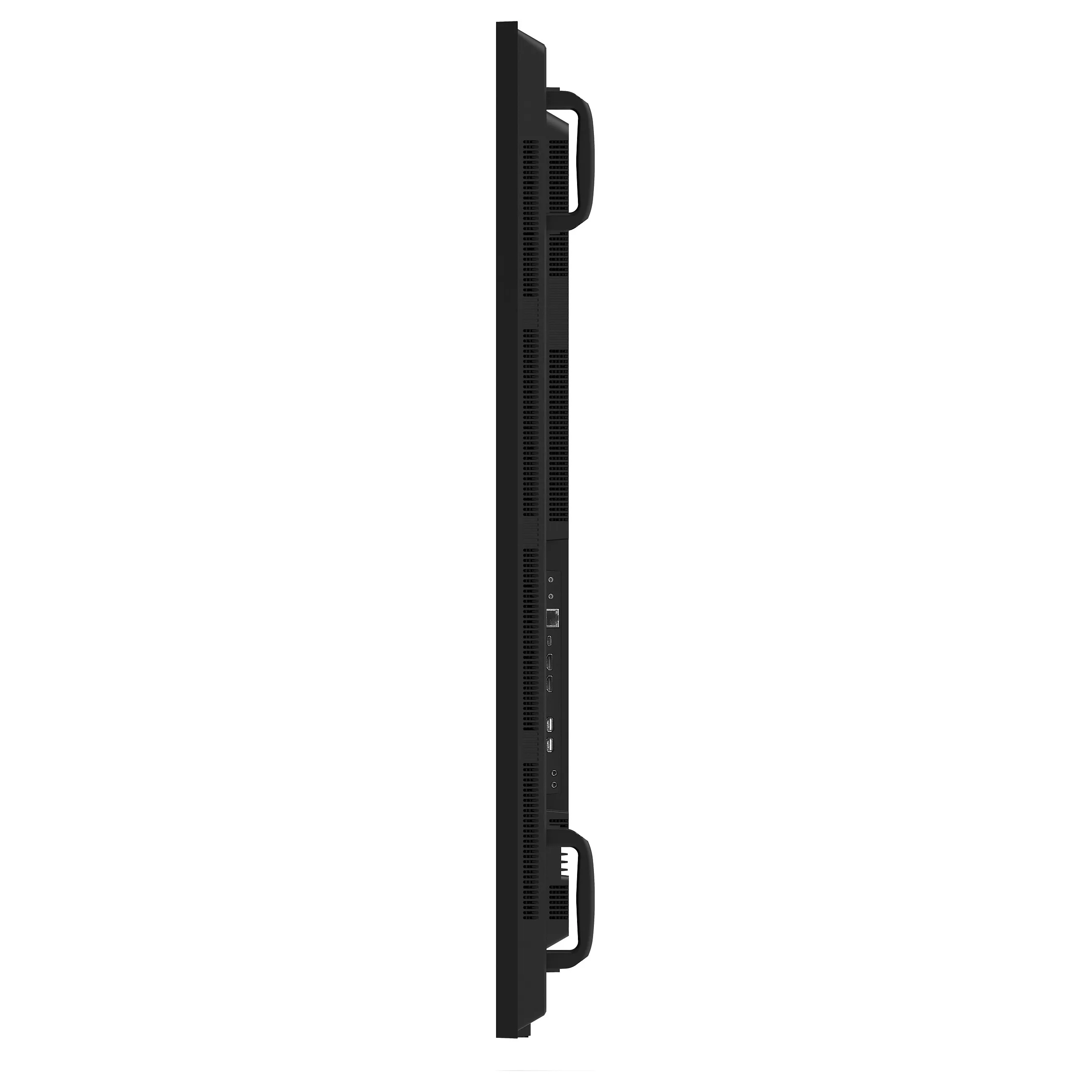

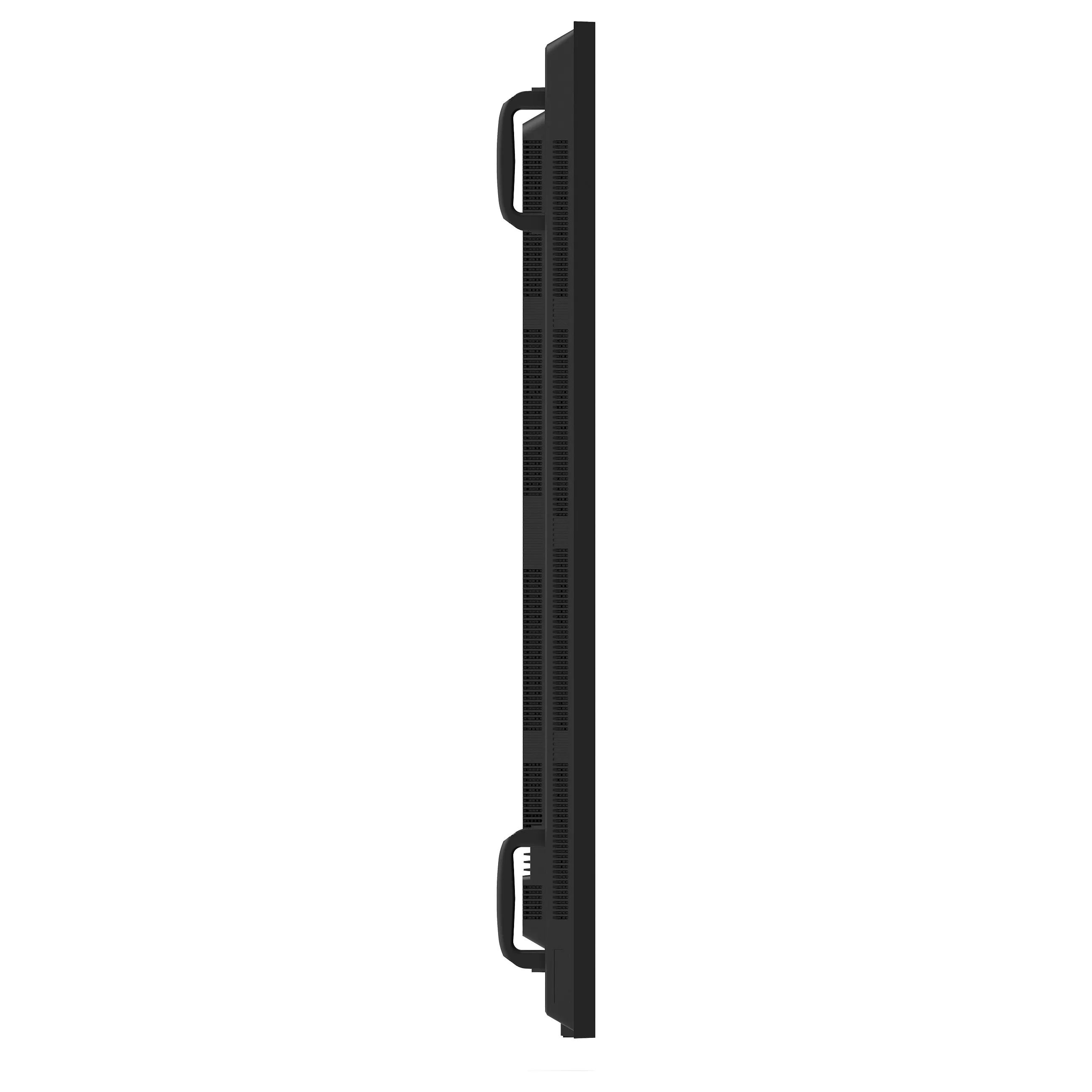

Display depth: 69 mm
Display height: 957.1 mm
Display weight: 28 kg
Width: 1679 mm
Depth: 69 mm
Height: 957.1 mm
Weight: 28 kg
Packaging data
Package width: 1840 mm
Package depth: 1112 mm
Package height: 177 mm
Package weight: 39.6 kg
Packaging content
Feature: Remote control included

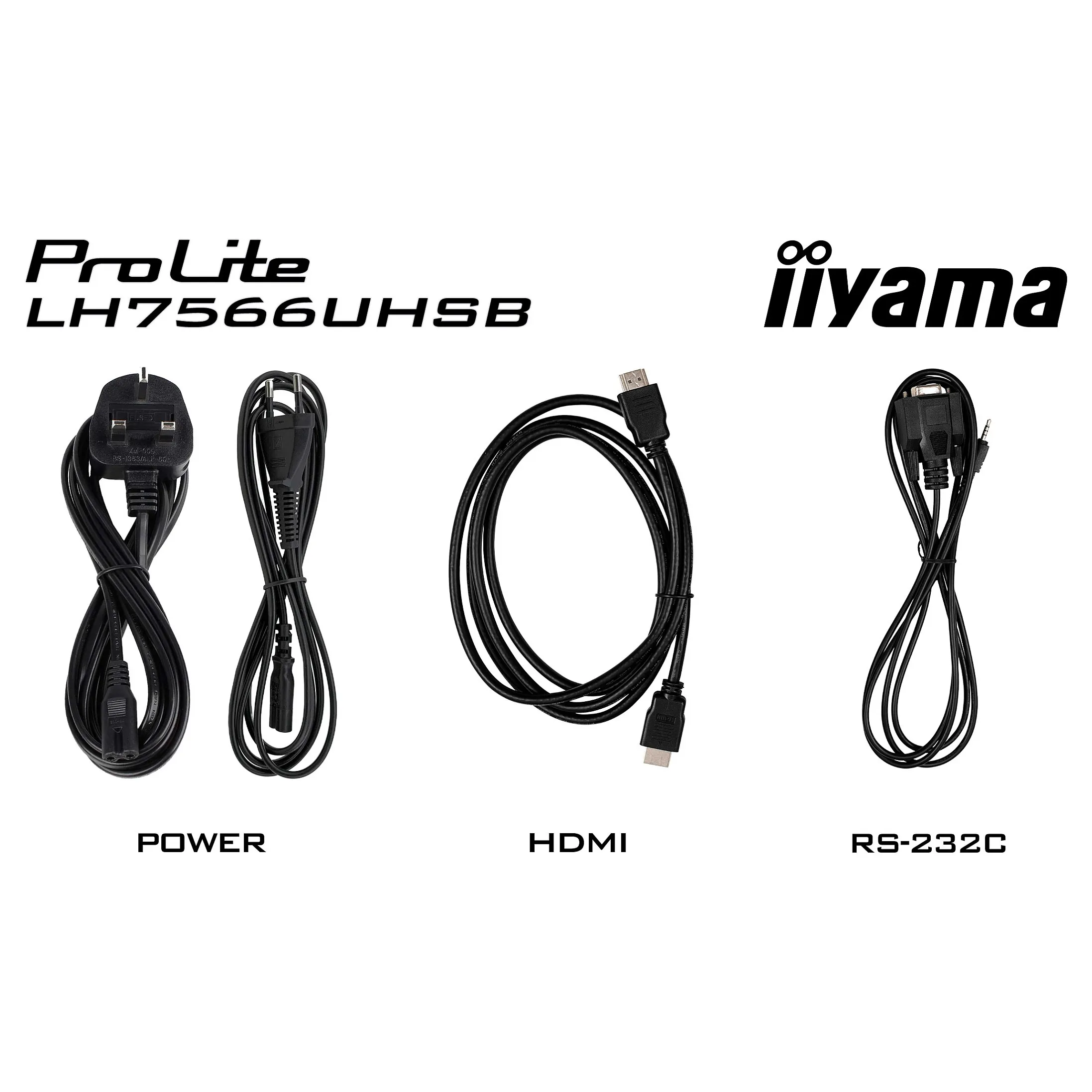

Cables included: AC, HDMI, RS-232
Feature: Mounting kit
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Logistics data
Products per pallet: 12 pc(s)
Network
Feature: Ethernet LAN
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 5 (802.11ac)
Features
Base material: Plastic
Technical details
Playback media: Y
Sustainability certificates: ErP
Pallet net height: 107.2 cm
Pallet net length: 111.2 cm
Pallet net width: 185 cm
Compliance certificates: CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
Feature: Quick start guide
Power supply type: Internal
Panel type: VA
Display diagonal: 190.5 cm (75″)
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 800 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 6.5 ms
Contrast ratio (typical): 5000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.429 x 0.429 mm
Active display area (W x H): 1650.24 x 928.26 mm
Display diagonal (metric): 189.5 cm
Horizontal scan range: 57 – 62 kHz
Native refresh rate: 60 Hz
Haze rate: 25%
Ports & interfaces
HDMI ports quantity: 2
HDMI version: 2.0
Feature: USB port
USB ports quantity: 2
USB version: 2.0
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 15 W
Feature: USB Type-C DisplayPort Alternate Mode
Ethernet LAN (RJ-45) ports: 1
Feature: RS-232C
Remote (IR) input: 1
Remote (IR) output: 1
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W
Design
Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Feature: VESA mounting
Panel mounting interface: 500 x 500 mm
Bezel width (bottom): 1.28 cm
Bezel width (side): 1.28 cm
Bezel width (top): 1.28 cm
Bezel colour: Black
Feature: Anti-glare screen
Performance
Purpose: Universal
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
Operating hours (hours/days): 24/7
Feature: HDCP
International Protection (IP) code: IP5X
HDCP version: 1.4/2.0
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 219 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 219 kWh
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Computer system
Feature: Computer system
Feature: Built-in processor
Processor manufacturer: MediaTek
Processor family: ARM Cortex
Processor model: MT9679
Processor architecture: ARM Cortex-A73
Internal memory: 4 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 32 GB
Operating system installed: Android
Operating system version: 14
Weight & dimensions
Display width: 1679 mm
Display depth: 69 mm
Display height: 957.1 mm
Display weight: 28 kg
Width: 1679 mm
Depth: 69 mm
Height: 957.1 mm
Weight: 28 kg
Packaging data
Package width: 1840 mm
Package depth: 1112 mm
Package height: 177 mm
Package weight: 39.6 kg
Packaging content
Feature: Remote control included
Cables included: AC, HDMI, RS-232
Feature: Mounting kit
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Logistics data
Products per pallet: 12 pc(s)
Network
Feature: Ethernet LAN
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 5 (802.11ac)
Features
Base material: Plastic
Technical details
Playback media: Y
Sustainability certificates: ErP
Pallet net height: 107.2 cm
Pallet net length: 111.2 cm
Pallet net width: 185 cm
Compliance certificates: CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
Feature: Quick start guide
Power supply type: Internal
