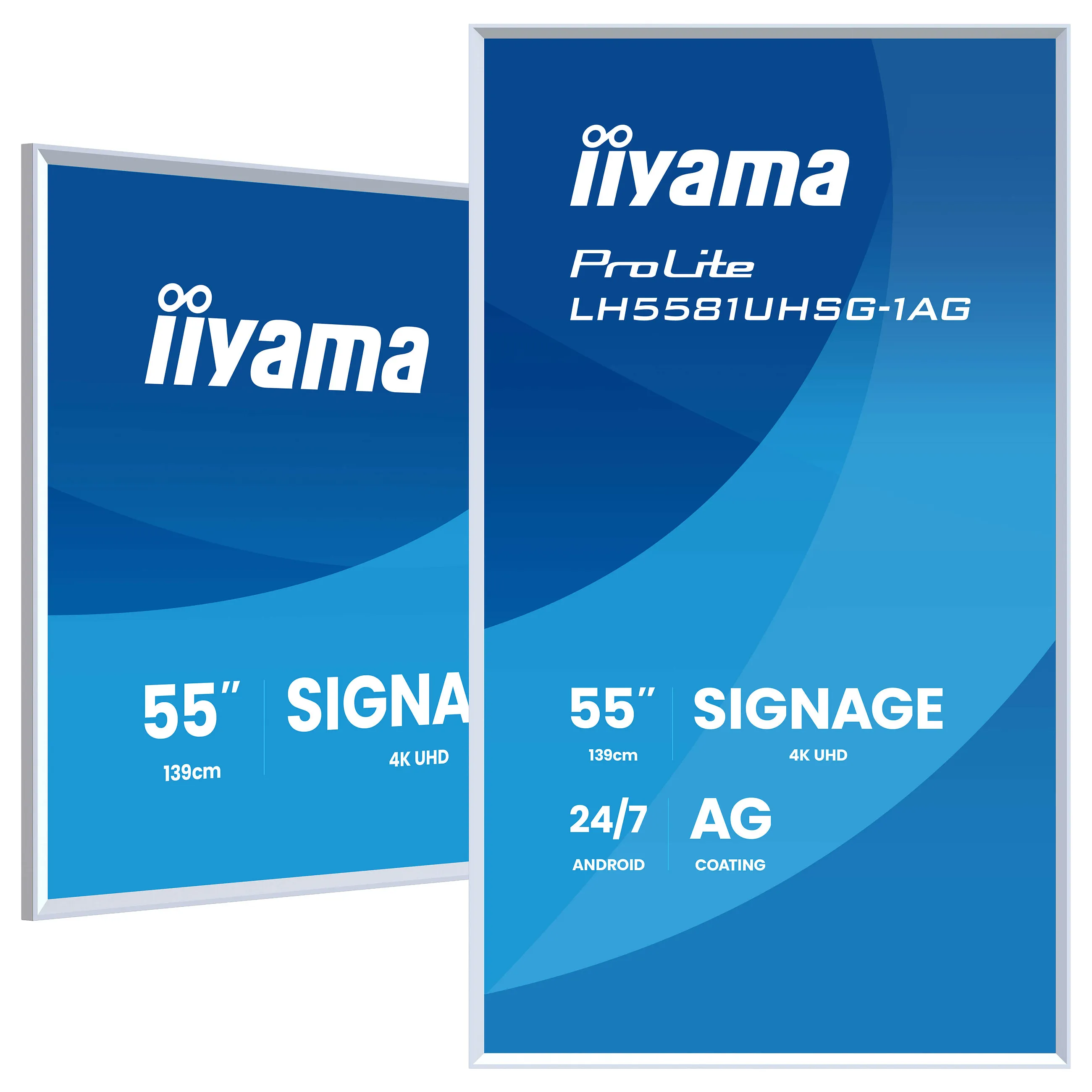

iiyama LH5581UHSG-1AG. Product design: Digital signage flat panel. Display diagonal: 138.7 cm (54.6"), Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: White

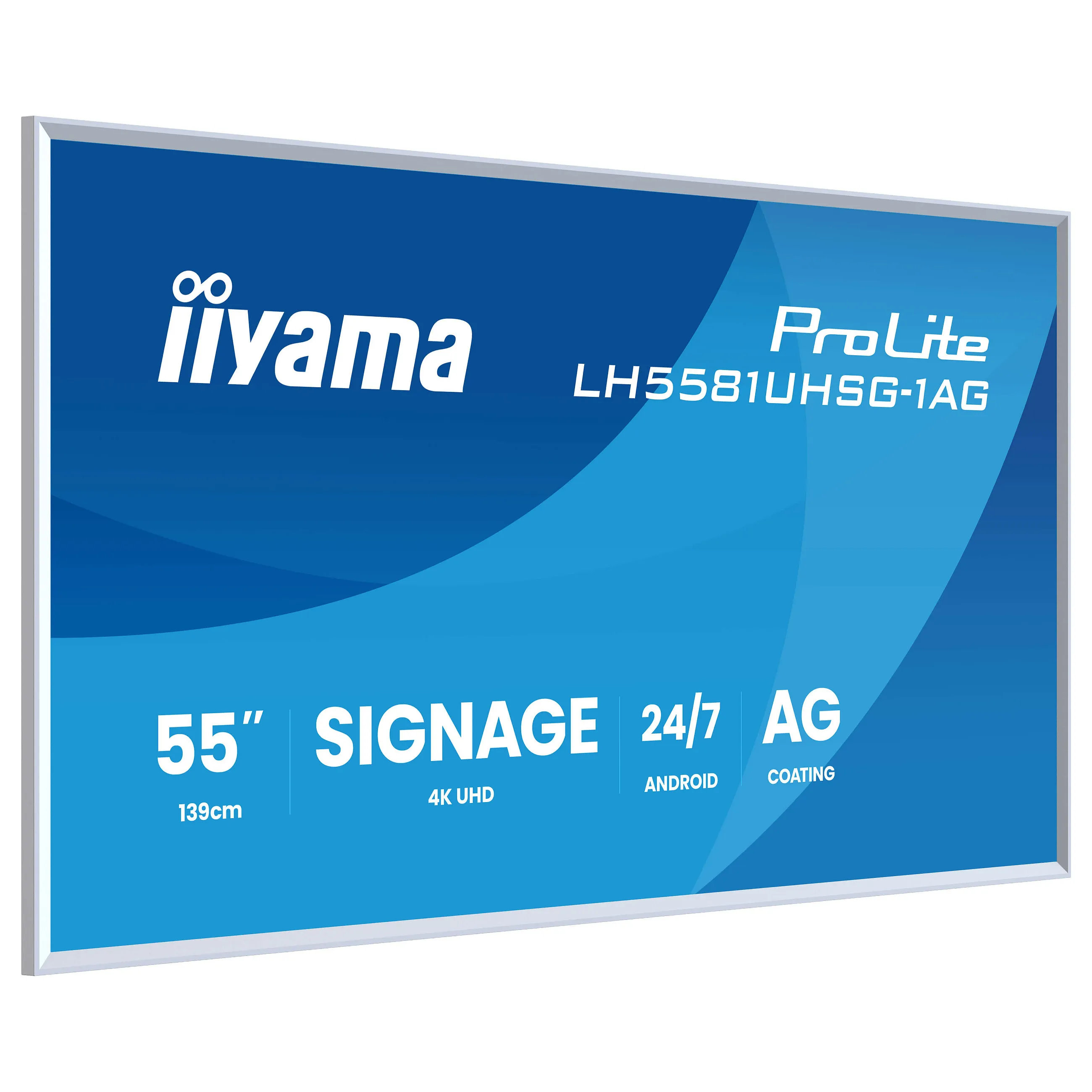

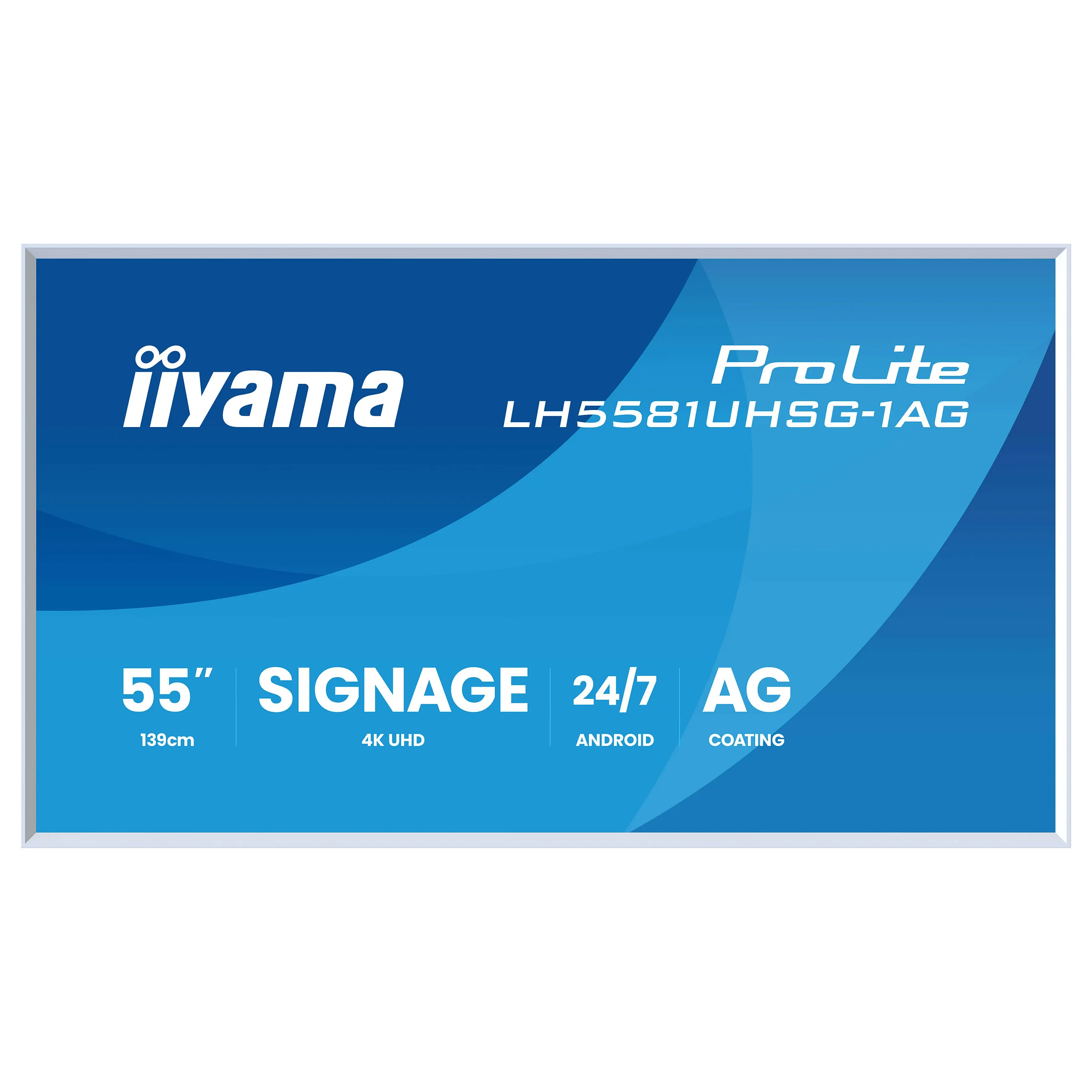

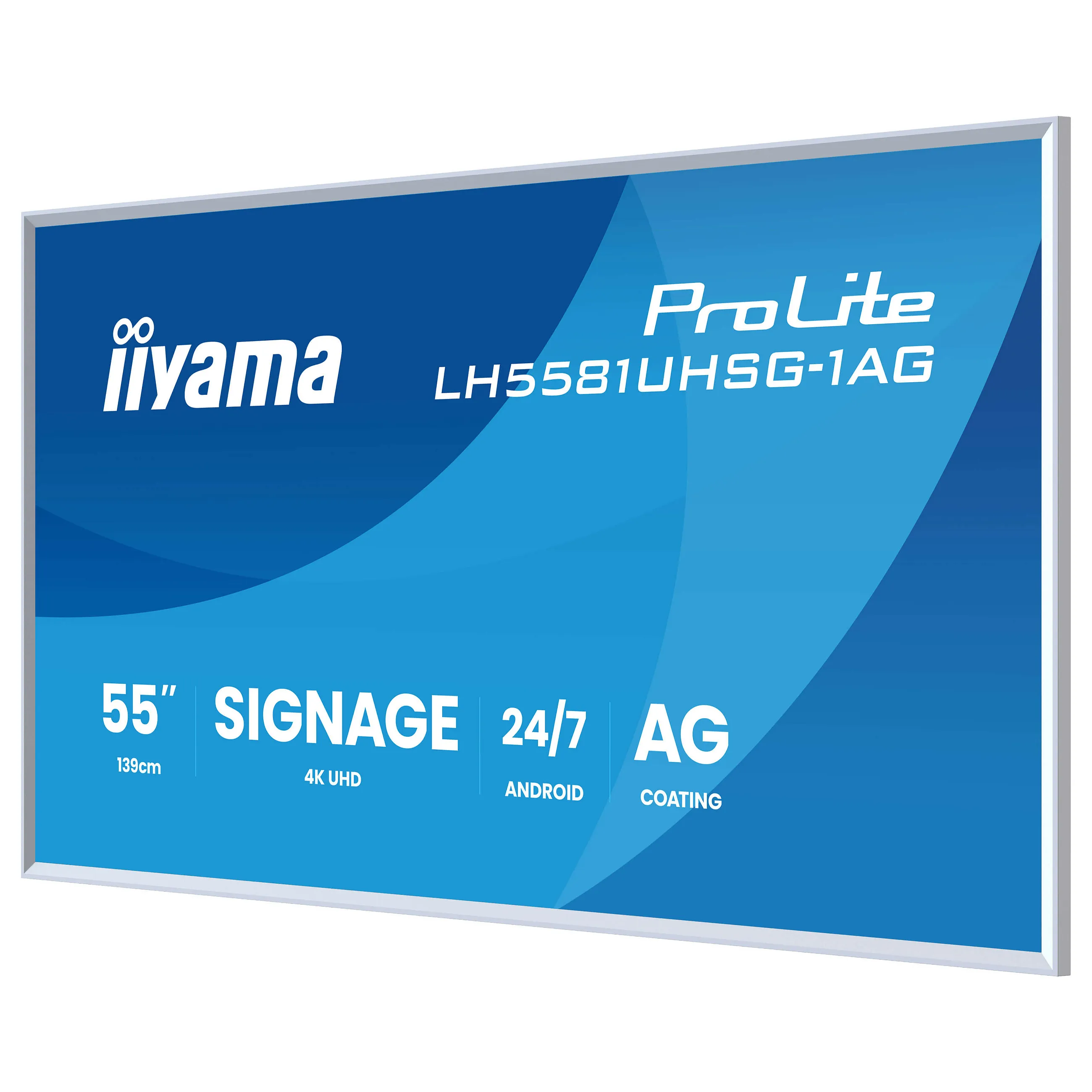

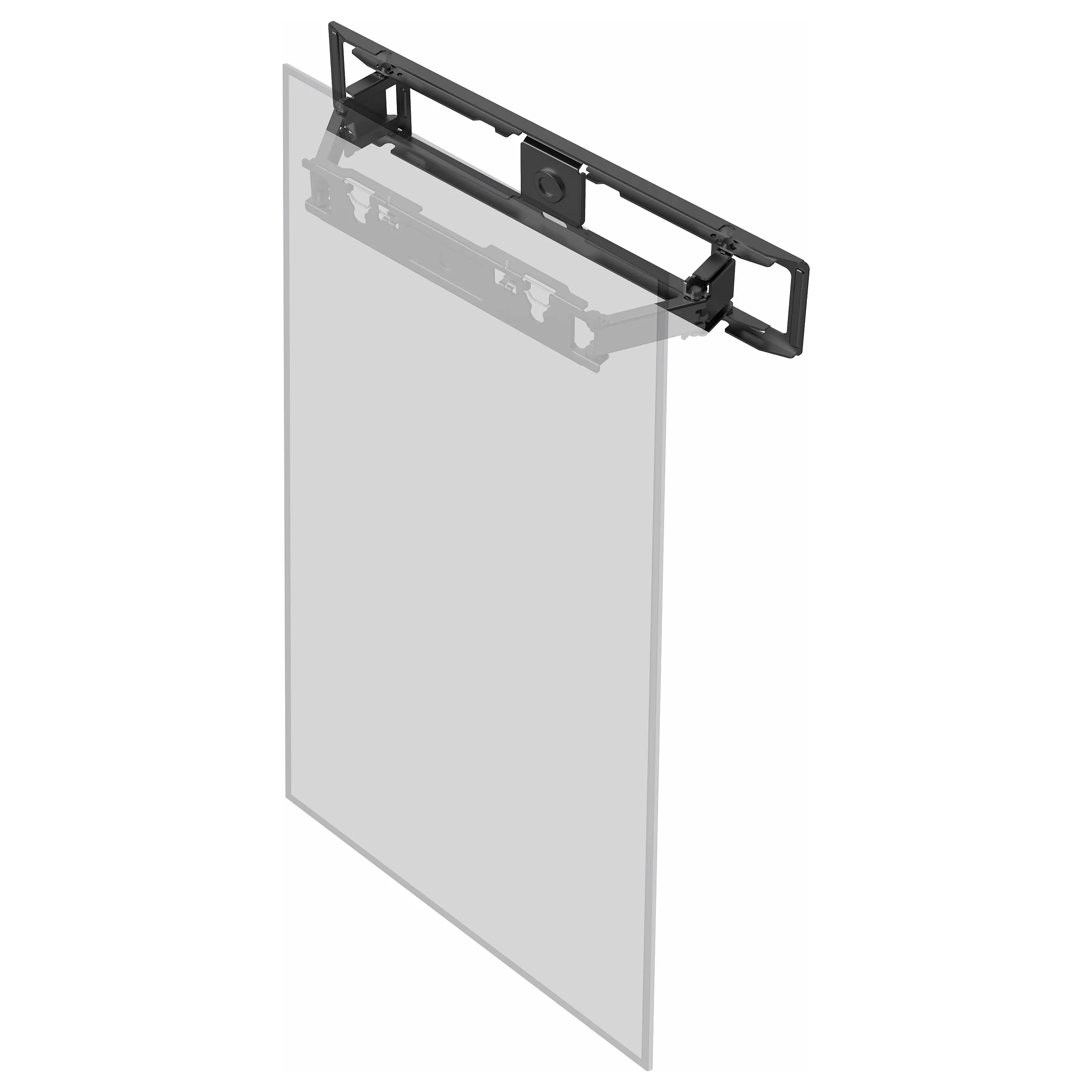

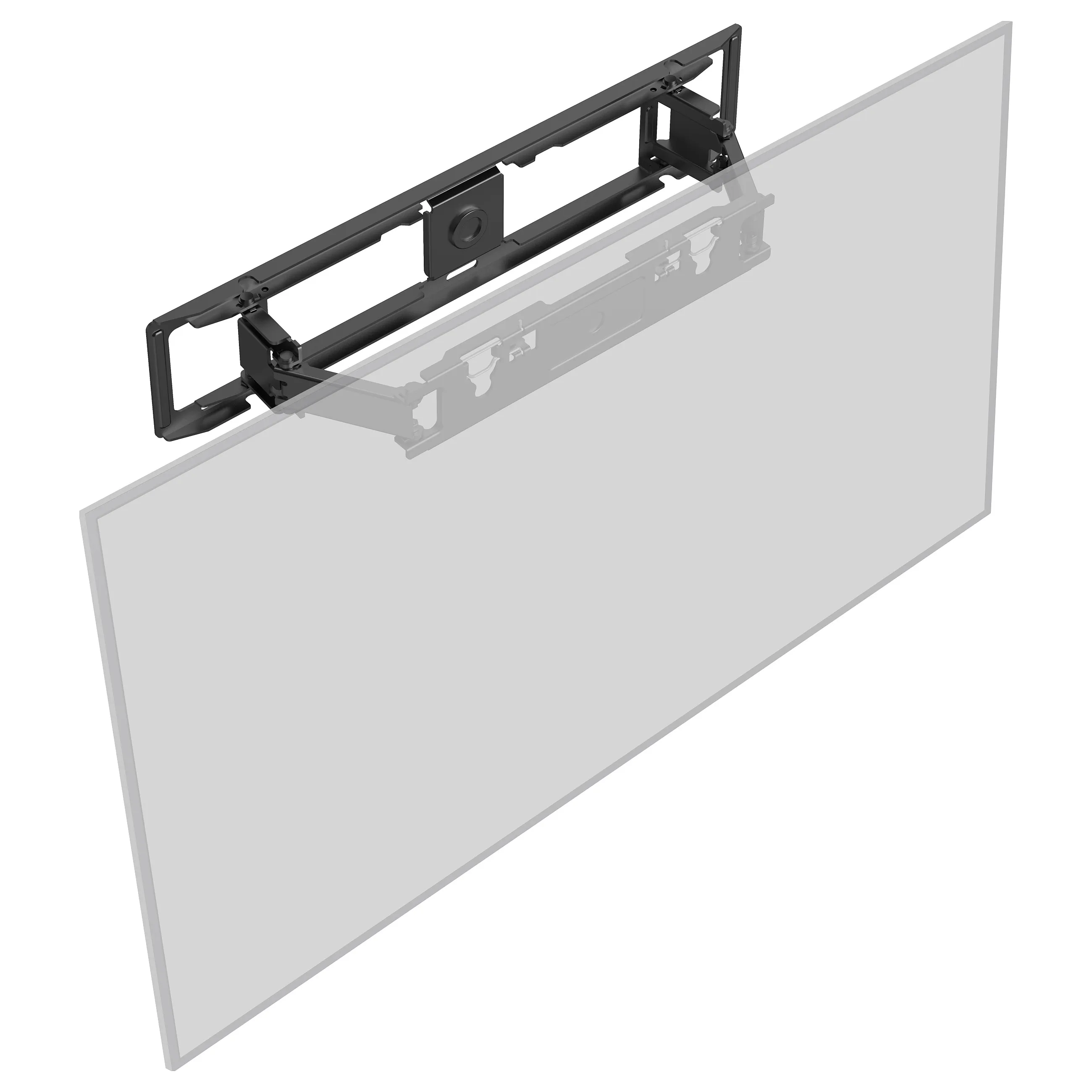

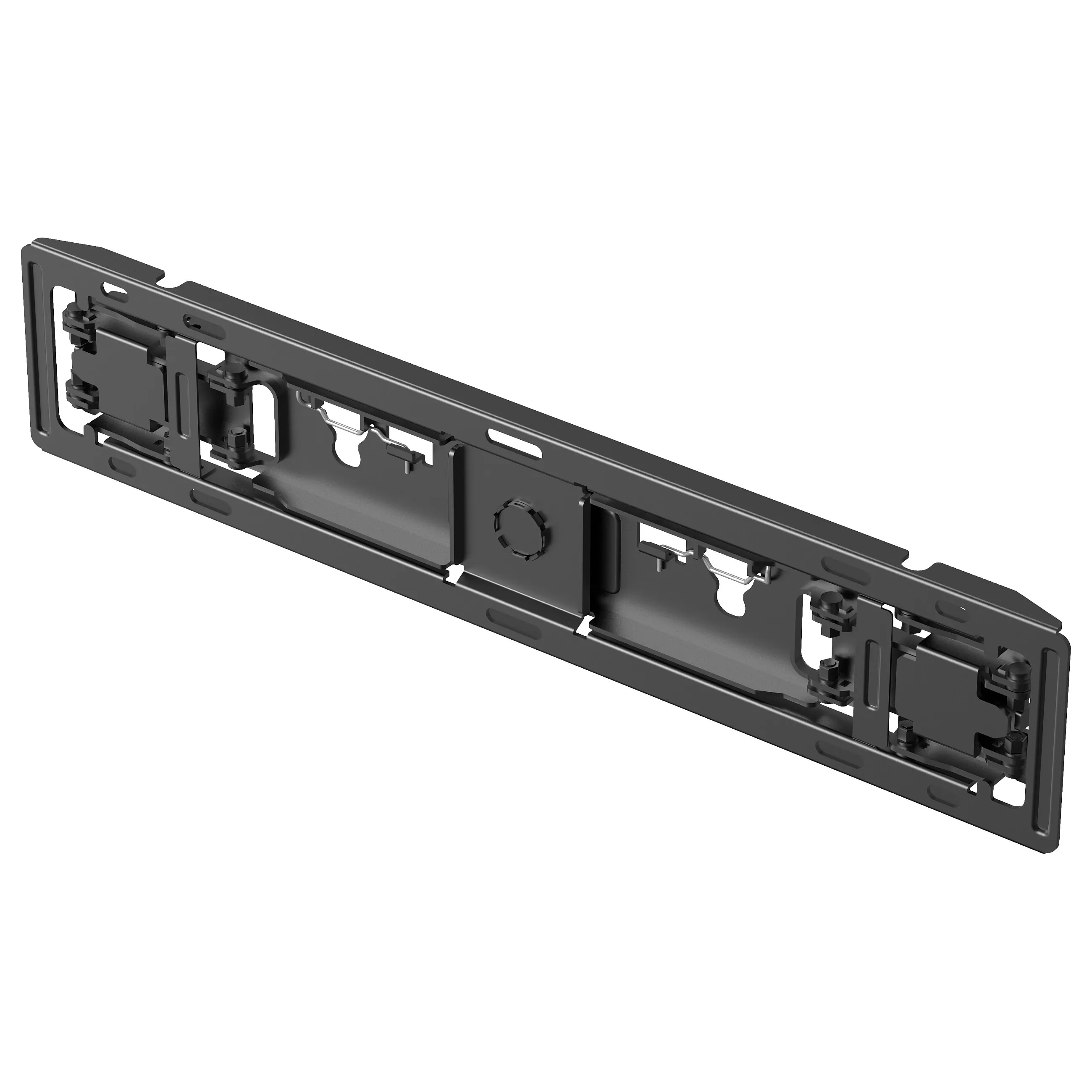

The ProLite LH5581UHSG-1AG is not just a digital signage display — it’s a statement piece for modern environments where design matters. This 55” 4K UHD screen combines cutting-edge performance with outstanding flexibility, making it the perfect fit for fashionable, artistic, and premium commercial spaces. What sets the LH5581UHSG-1AG apart is its innovative removable frame: magnetically attached and easy to customize with wraps or designs of your choice. Whether you want it to blend seamlessly into a stylish boutique, complement an art gallery, or add flair to a high-end lobby, this display adapts to your vision. Powered by Android 14 OS and equipped with iiSignage² (CMS), iiControl (DMS), and iiShare (Wireless Presentation), managing content is as smooth as its minimalist design suggests. With built-in WiFi, robust 24/7 operation, and exceptional connectivity options, the LH5581UHSG-1AG offers both form and function. Its anti-glare coating, slim profile, and versatile installation options with included wall mounting bracket, ensure that your message stands out — and your space stays elegant.
Display
Panel type: VA
Display diagonal: 138.7 cm (54.6″)
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Touchscreen: No
Native aspect ratio: 16:9
Response time: 6.5 ms
Contrast ratio (typical): 5000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.315 x 0.315 mm
Active display area (W x H): 1209.6 x 680.4 mm
Display diagonal (metric): 138.7 cm
Horizontal scan range: 28 – 160 kHz
Native refresh rate: 60 Hz
Ports & interfaces
HDMI ports quantity: 2
HDMI version: 2.0
DVI port: No
USB port: Yes
USB ports quantity: 2
USB version: 2.0
USB connector type: USB Type-C
USB Power Delivery (USB PD): Yes
USB Power Delivery up to: 15 W
USB Type-C DisplayPort Alternate Mode: Yes
Ethernet LAN (RJ-45) ports: 1
RS-232C: Yes
Remote (IR) input: 1
Remote (IR) output: 1
Audio
Built-in speaker(s): Yes
Number of built-in speakers: 2
RMS rated power: 20 W
Design
Product design: Digital signage flat panel
Placement supported: Indoor

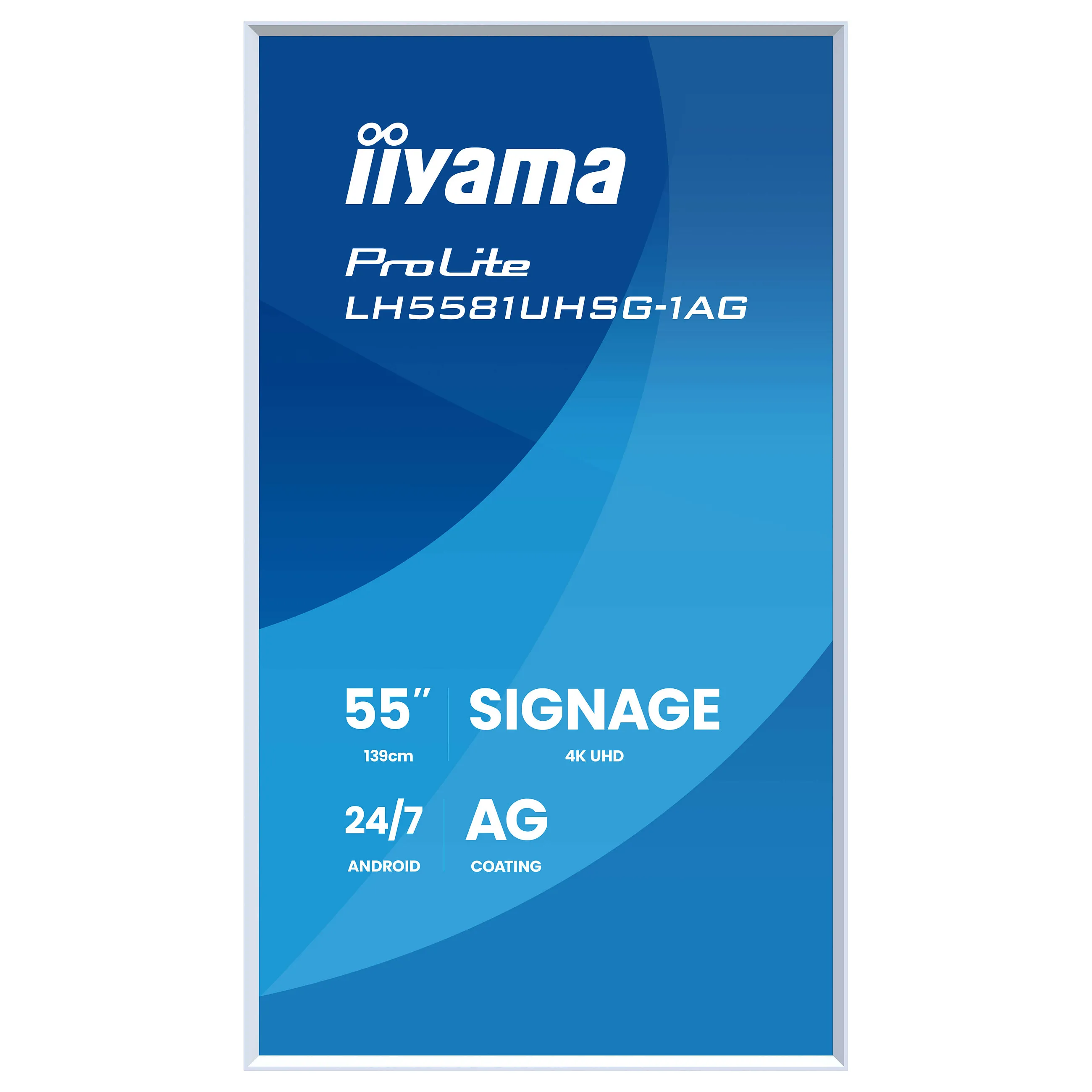

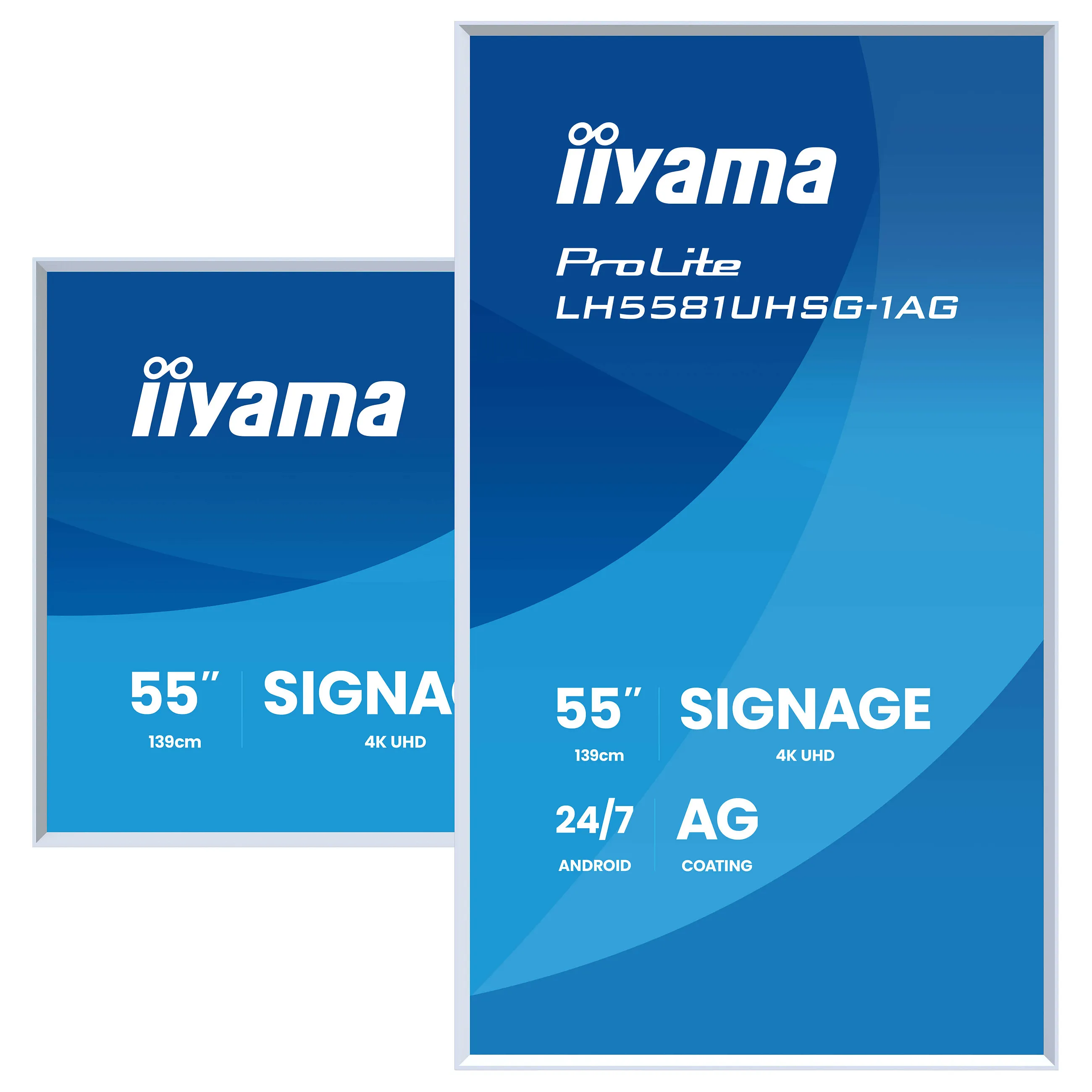

Orientation: Horizontal/Vertical
Product colour: White
Screen shape: Flat
VESA mounting: Yes
Panel mounting interface: 300 x 400 mm
Bezel width (bottom): 1.43 cm
Bezel width (side): 1.45 cm
Bezel width (top): 1.43 cm
Bezel colour: White
Anti-glare screen: Yes
Performance
Purpose: Universal
On Screen Display (OSD): Yes
Number of OSD languages: 15
On Screen Display (OSD) languages: Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
Operating hours (hours/days): 24/7
HDCP: Yes
HDCP version: 1.4/2.0
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 104 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 104 kWh
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Computer system
Built-in processor: Yes
Processor manufacturer: ARM
Processor architecture: ARM Cortex-A73
Processor cores: 4
Internal memory: 4 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 32 GB
Operating system installed: Android
Operating system version: 14
Weight & dimensions
Display width: 1248.4 mm

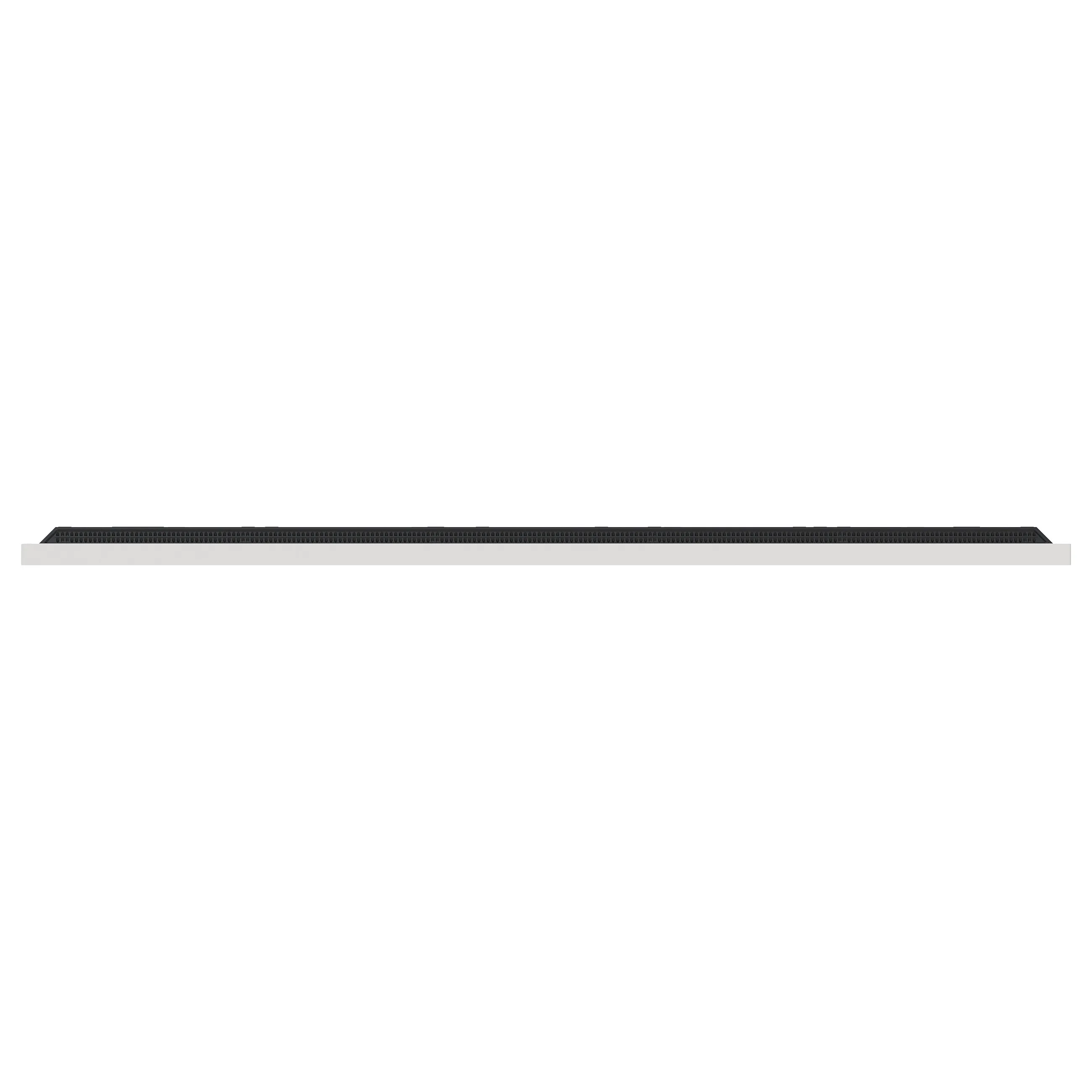

Display depth: 46 mm
Display height: 719.2 mm
Display weight: 18.4 kg
Width: 1248.4 mm
Depth: 46 mm
Height: 719.2 mm
Weight: 18.4 kg
Packaging data
Package width: 1400 mm
Package depth: 164 mm
Package height: 875 mm
Package weight: 23.2 kg
Packaging content
Remote control included: Yes
Batteries included: Yes

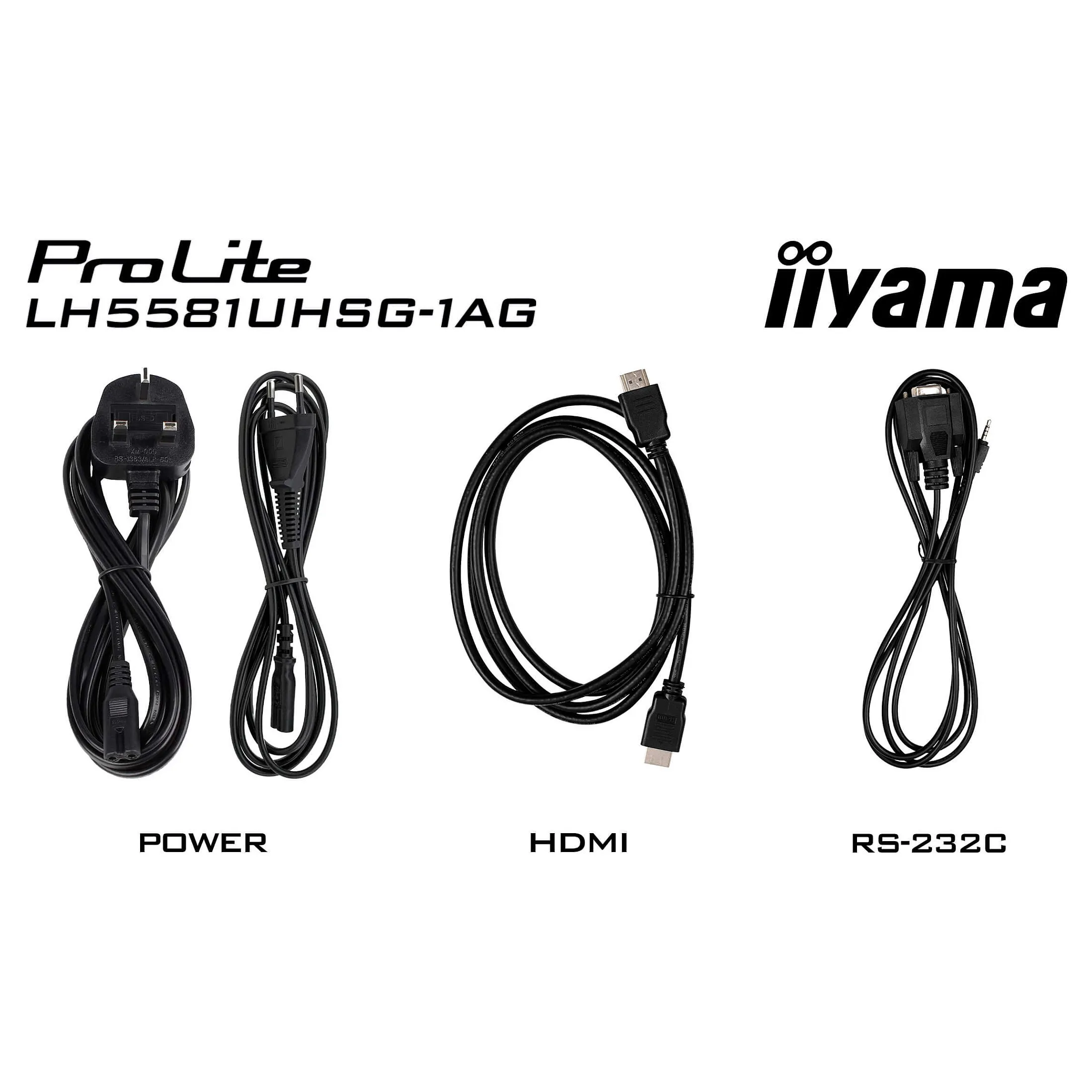

Cables included: AC, HDMI, RS-232

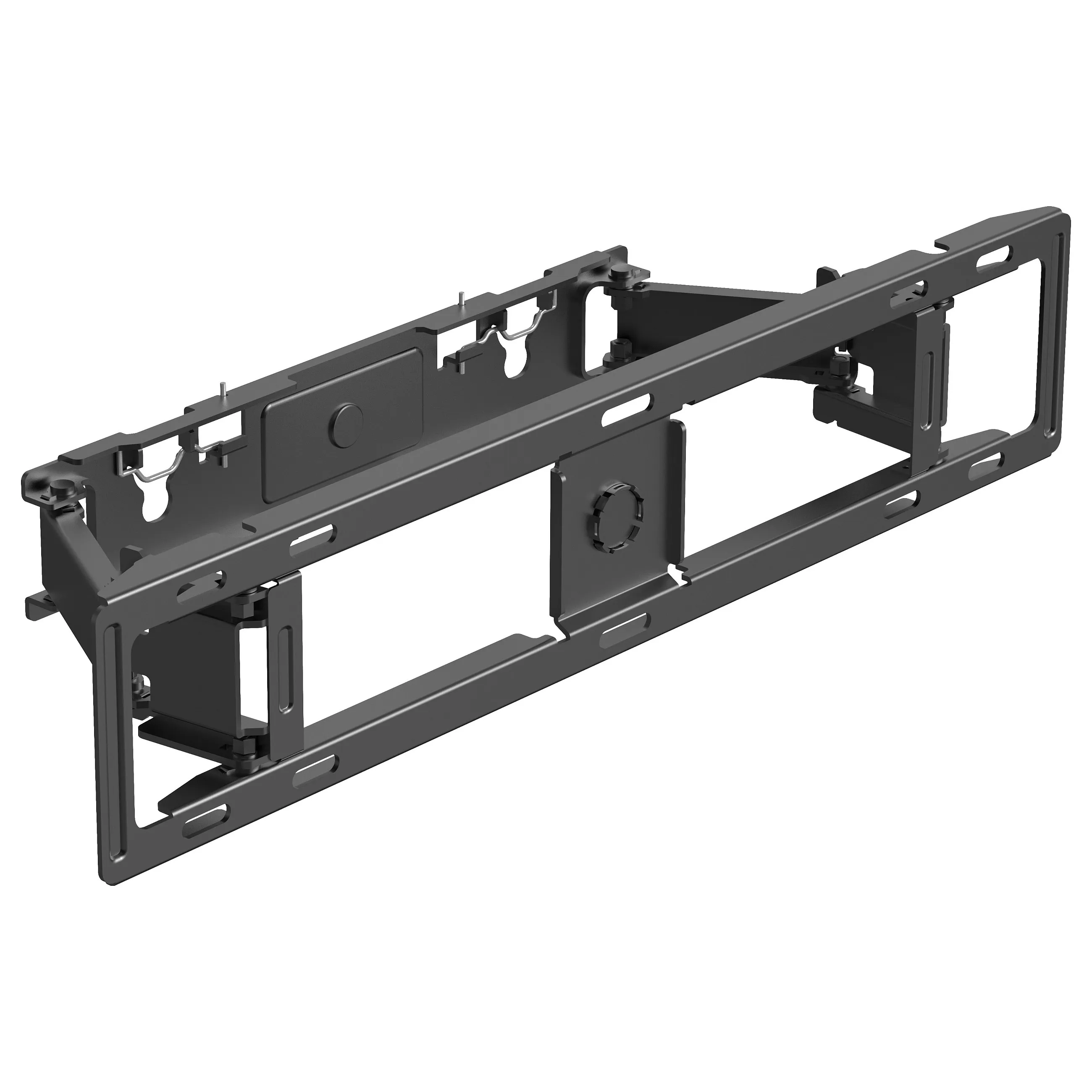

Mounting kit: Yes
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Certificates
Certification: CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH (UKCA, RoHS2.0, PFOS)
Network
Ethernet LAN: Yes
Wi-Fi: Yes
Wi-Fi standards: Wi-Fi 5 (802.11ac)
Technical details
Playback media: Y
User controls: network (status, Wifi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD setting (OSD timeout, OSD H-Position, OSD V-position, OSD transparency, information OSD), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, screen reset), device (power on status, RS232 routing, IR control, motorized stand, power saving, panel saving, monitor info, other), channel (boot on source, rename input channel, auto source switching, signal lost detection, HDMI version), system (language, system update, setting reset, factory reset, Android setting), admin (menu lock, meeting room, HDMI CEC, screen share, Miracast standby, log export)
Sustainability certificates: ErP
Compliance certificates: CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
Quick start guide: Yes
Power supply type: Internal
