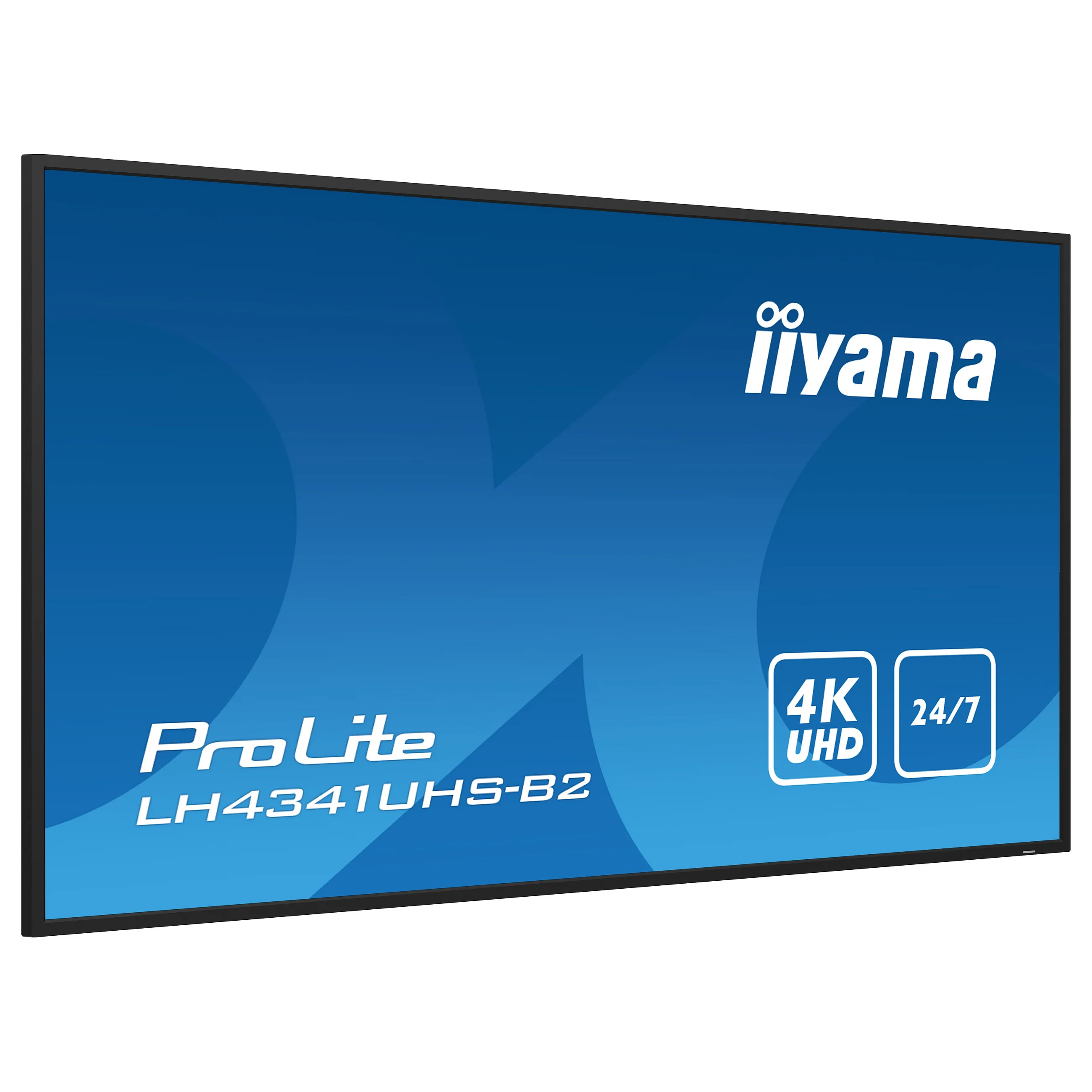

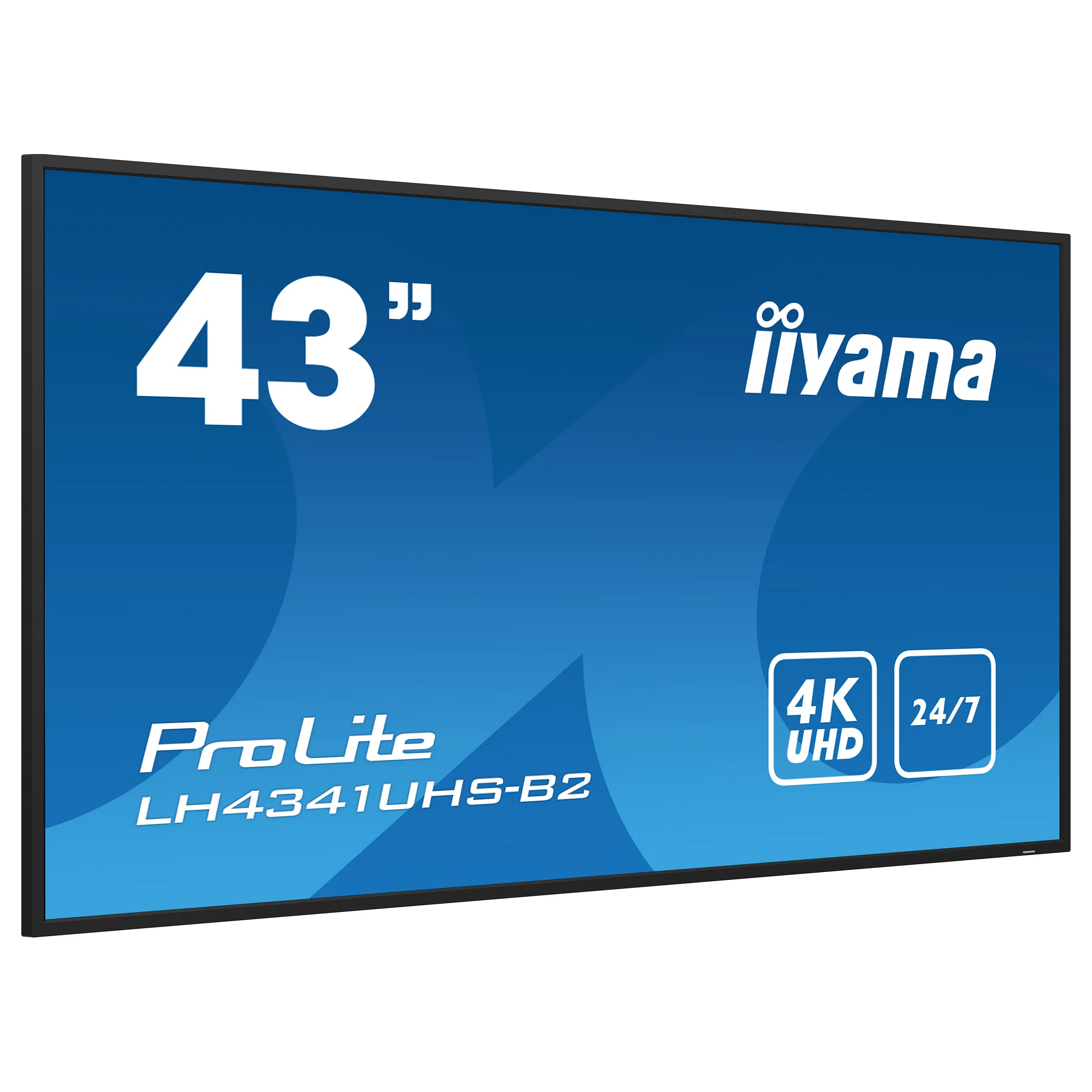

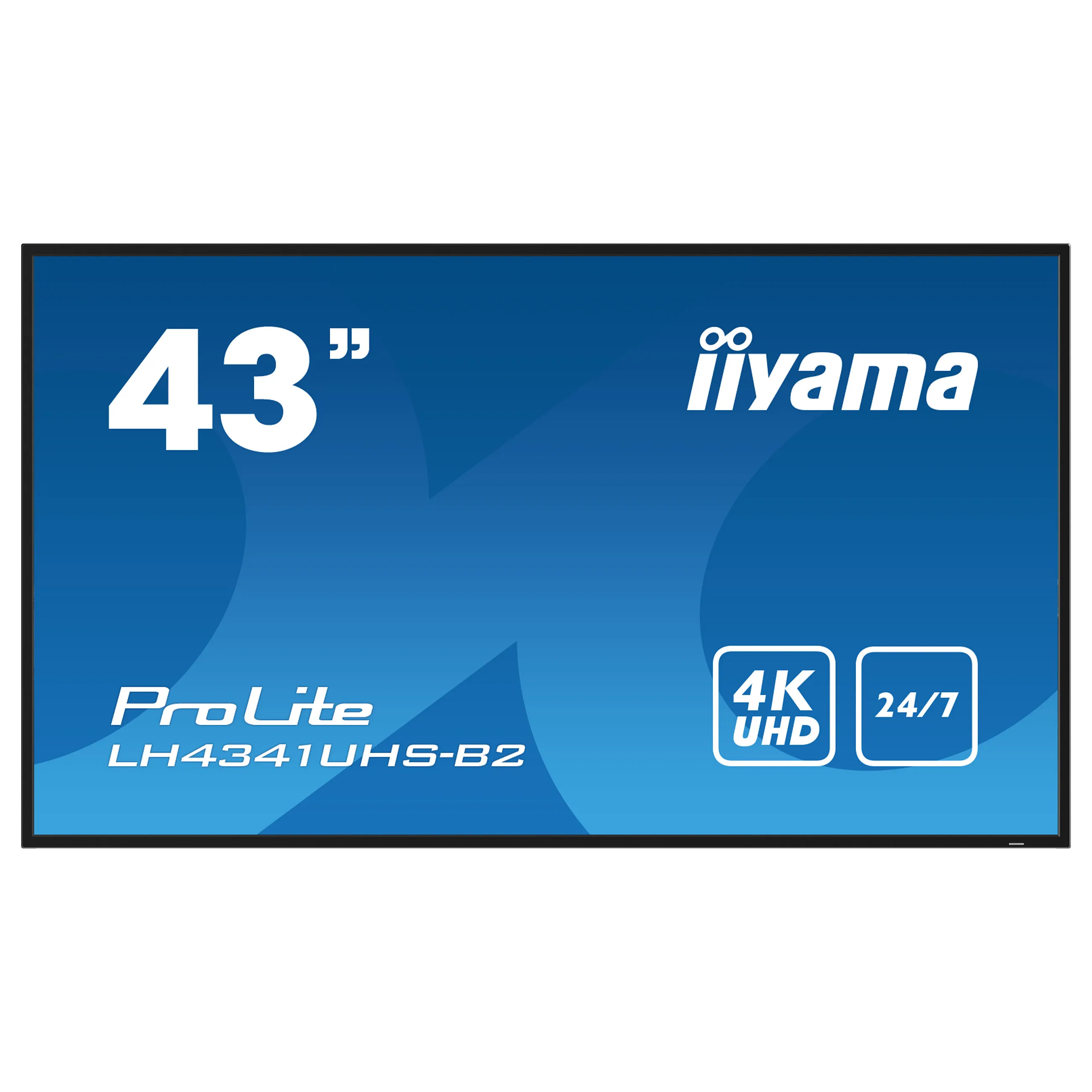

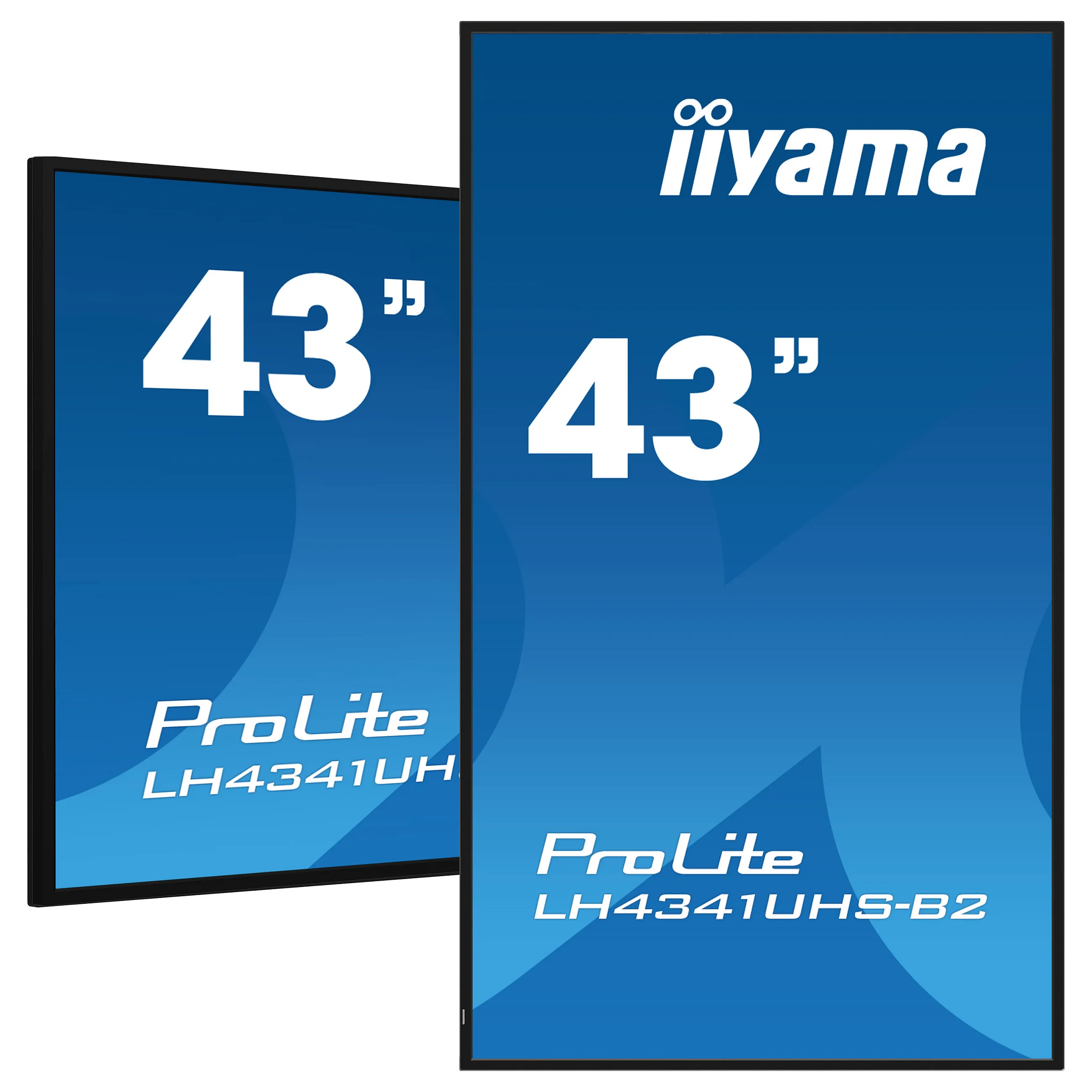

iiyama LH4341UHS-B2. Display diagonal: 108 cm (42.5"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Operating system installed: Android 8.0

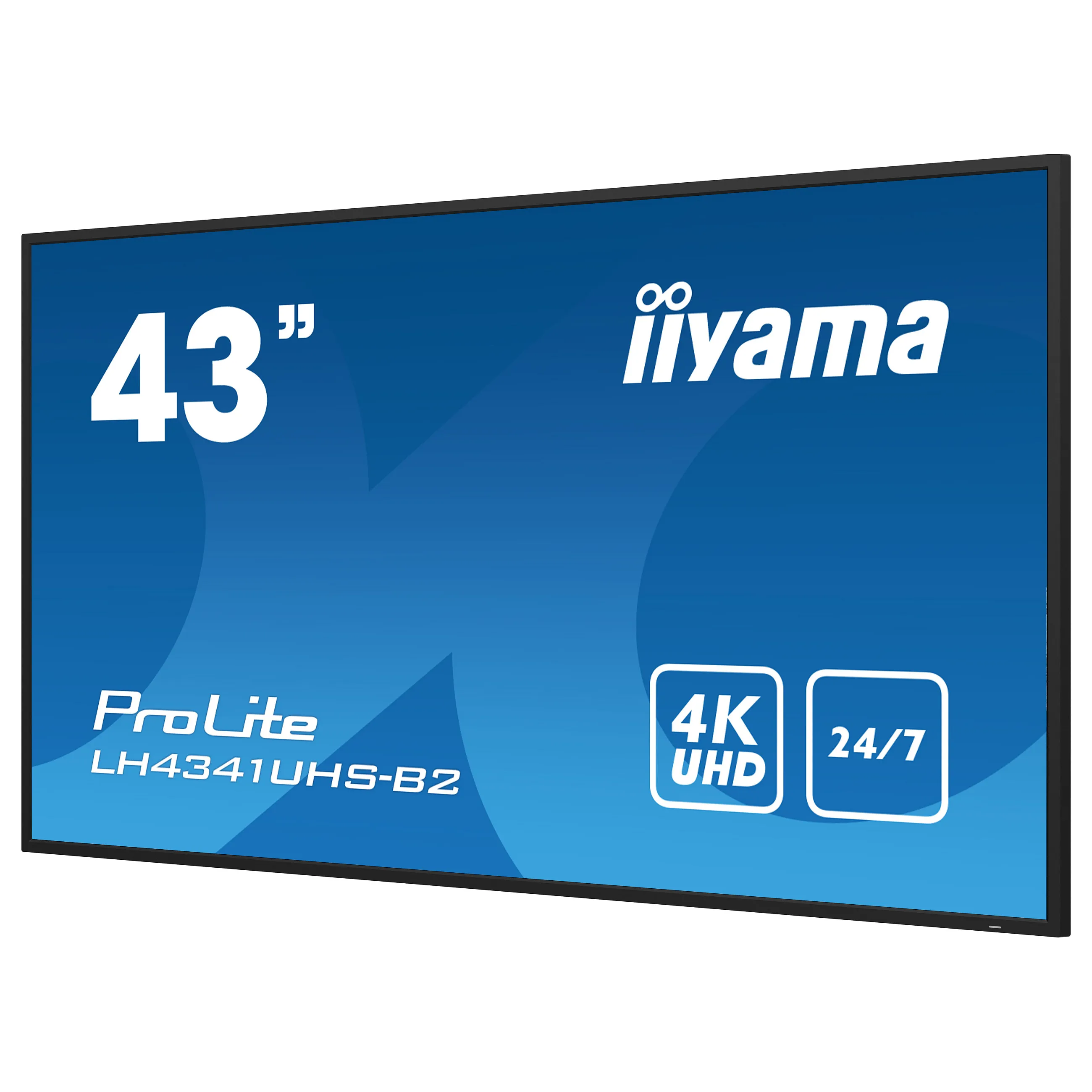

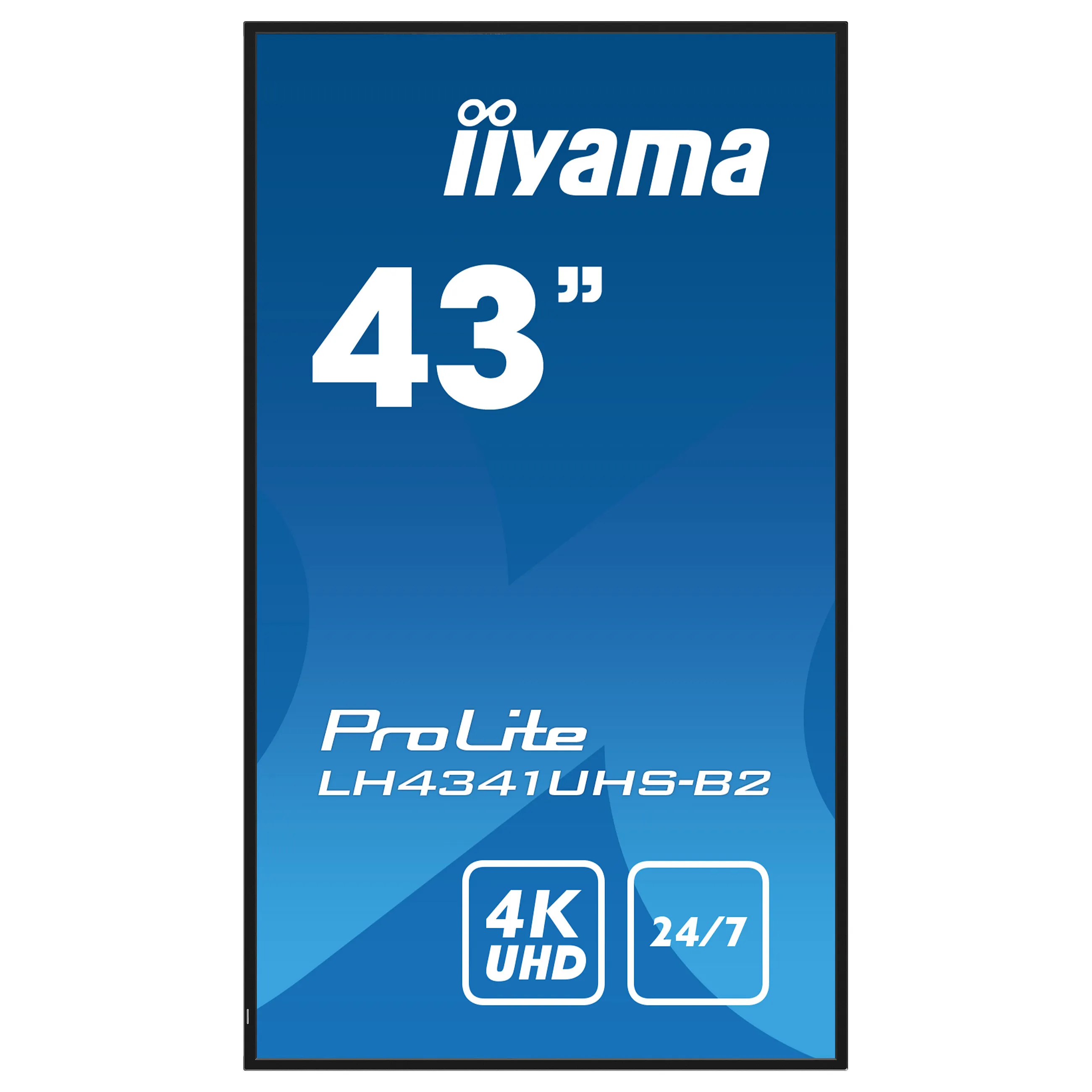

Set in a slim bezel, the iiyama LH4341UHS is a professional digital signage display offering 24/7 operating time in portrait and landscape orientation. This 500cd/m2 high brightness IPS panel with 4K UHD resolution (3840×2160) provides exceptional colour and image performance. With the built-in media player you can play your favourite music and show your most beautiful videos, photos and images directly on screen.
Display
Panel type: IPS
Display diagonal: 108 cm (42.5″)
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.245 x 0.245 mm
Active display area (W x H): 941.2 x 529.4 mm
Display diagonal (metric): 108 cm
Horizontal scan range: 30 – 80 kHz
Native refresh rate: 60 Hz
Haze rate: 1%

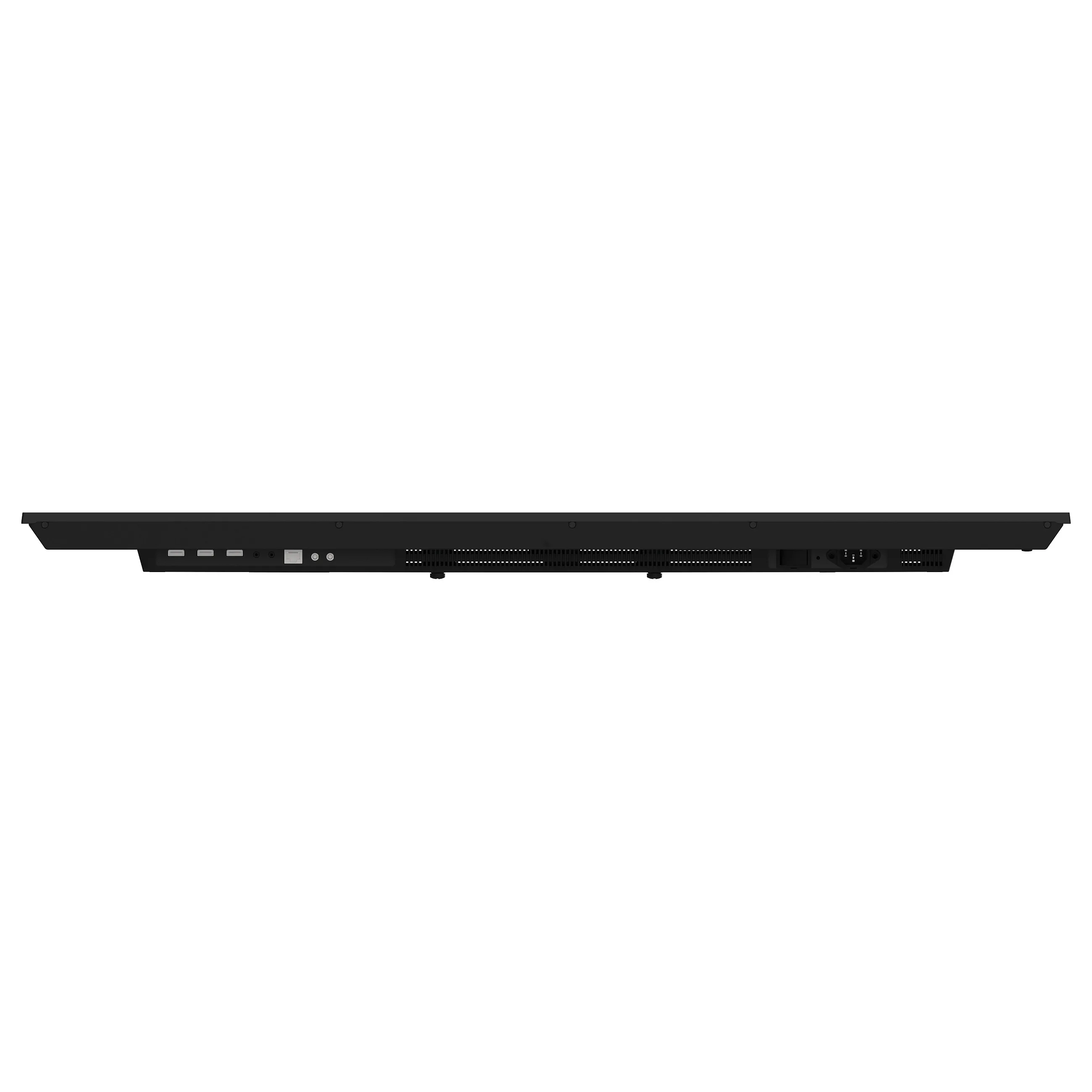

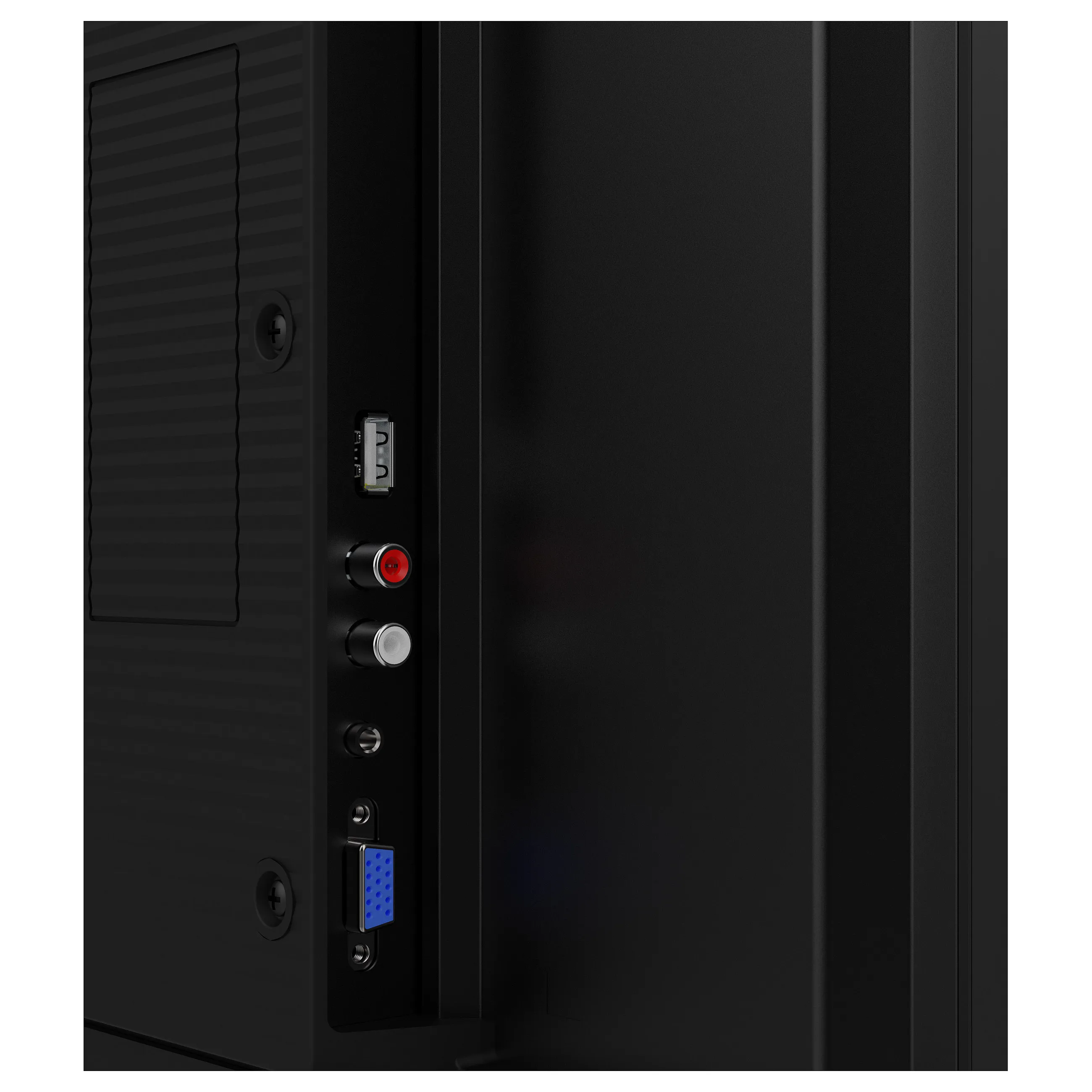

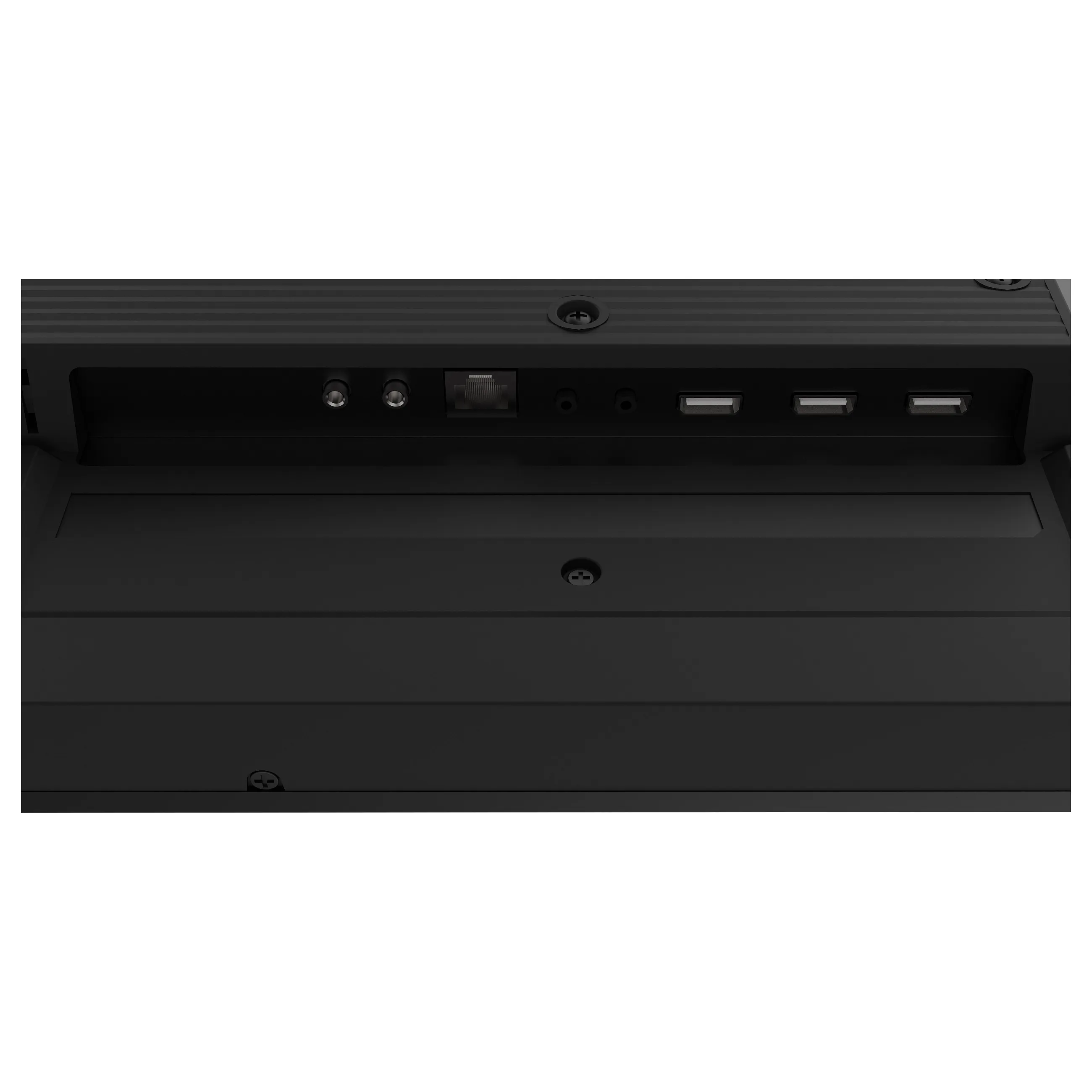

Ports & interfaces
HDMI ports quantity: 3
Feature: DVI port
Feature: USB port
USB ports quantity: 1
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN (RJ-45) ports: 1
Feature: PC Audio in
Feature: RS-232C
Remote (IR) input: 1
Remote (IR) output: 1
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W
Design
Placement supported: Indoor

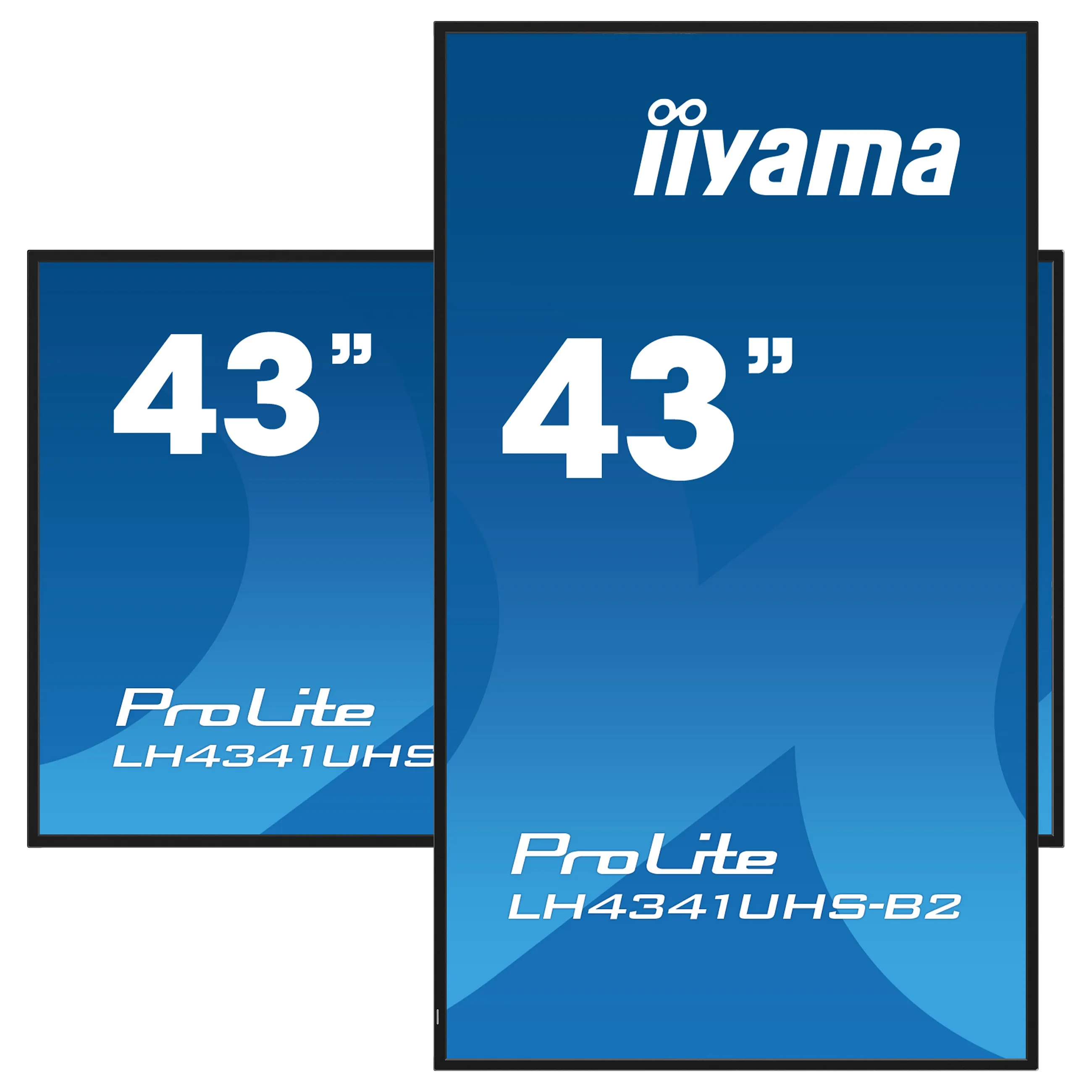

Orientation: Horizontal/Vertical

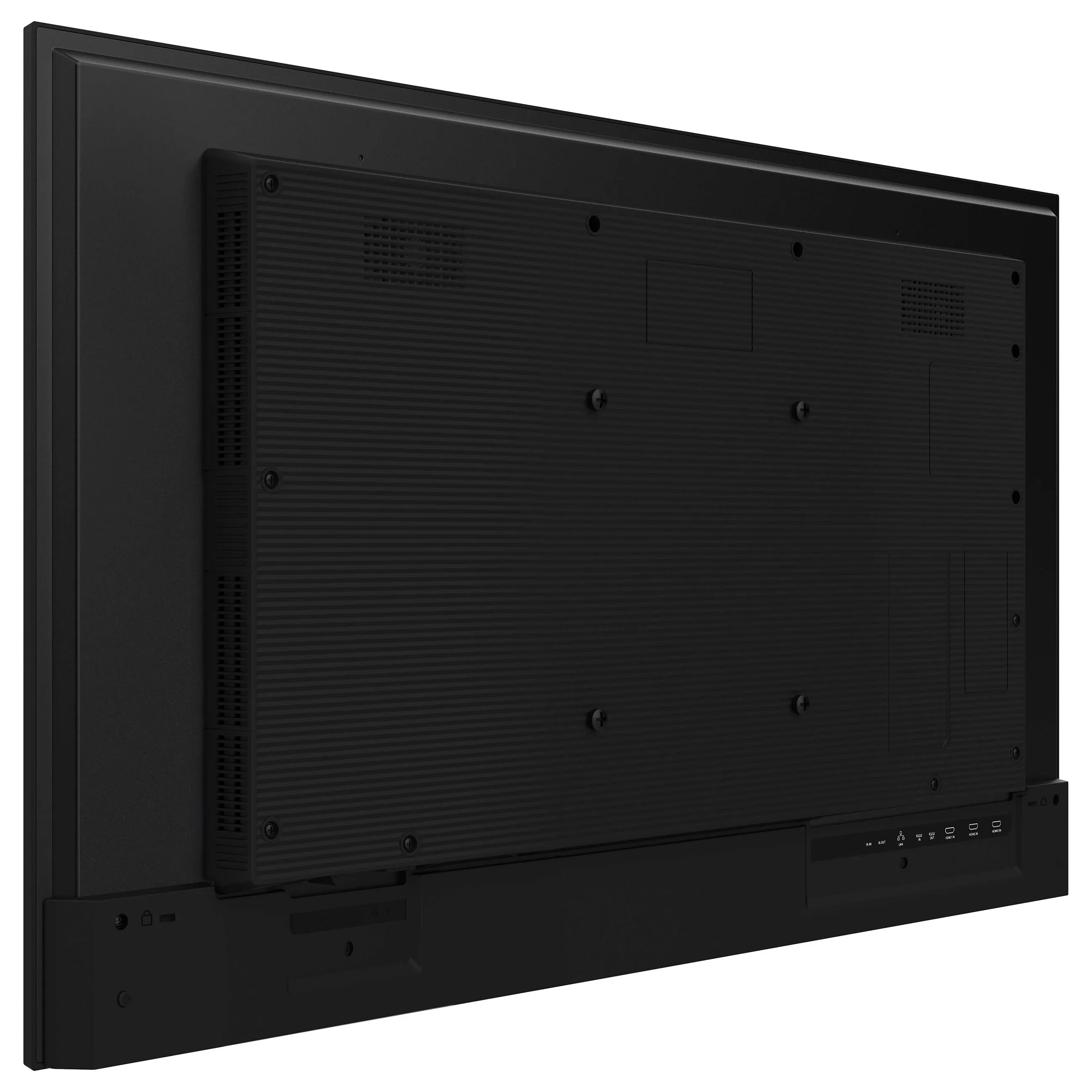

Feature: VESA mounting
Panel mounting interface: 200 x 200 mm
Bezel width (bottom): 1.4 cm
Bezel width (side): 1.35 cm
Bezel width (top): 1.4 cm
Bezel colour: Black
Performance
Purpose: Universal
Feature: On Screen Display (OSD)
Number of OSD languages: 11
On Screen Display (OSD) languages: German, English, Spanish, French, Italian, Japanese, Dutch, Russian
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 2.2
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 107 W
Power consumption (standby): 0.4 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 107 kWh
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Computer system
Feature: Computer system
Feature: Built-in processor
Processor model: V810
Internal memory: 2 GB
Internal storage capacity: 16 GB
Operating system installed: Android 8.0
Weight & dimensions
Display width: 968 mm
Display depth: 54 mm
Display height: 557.5 mm
Display weight: 8.9 kg
Width: 968 mm
Depth: 54 mm
Height: 557.5 mm
Weight: 8.9 kg
Packaging data
Package width: 1075 mm
Package depth: 127 mm
Package height: 683 mm
Packaging content
Feature: Remote control included
Feature: Batteries included

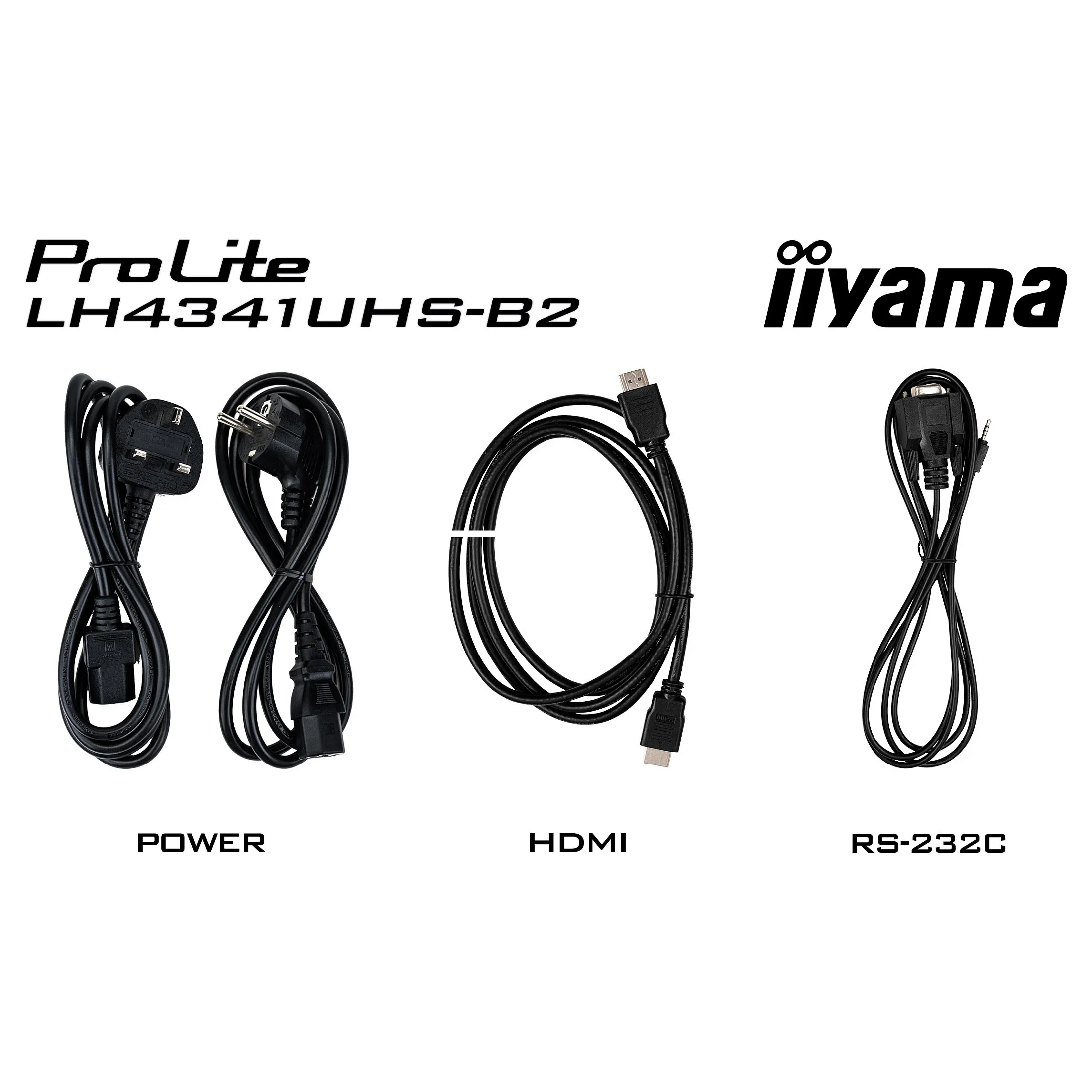

Cables included: AC, HDMI, RS-232
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Certificates
Certification: CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH
Logistics data
Harmonized System (HS) code: 85285210
Network
Feature: Ethernet LAN
Technical details
Feature: Audio in (mini jack)
Playback media: Y
Sustainability certificates: ErP
Compliance certificates: CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE
Other features
Feature: Quick start guide
Power supply type: Internal
Feature: Cable management
Housing material: Metal
Panel type: IPS
Display diagonal: 108 cm (42.5″)
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.245 x 0.245 mm
Active display area (W x H): 941.2 x 529.4 mm
Display diagonal (metric): 108 cm
Horizontal scan range: 30 – 80 kHz
Native refresh rate: 60 Hz
Haze rate: 1%
Ports & interfaces
HDMI ports quantity: 3
Feature: DVI port
Feature: USB port
USB ports quantity: 1
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN (RJ-45) ports: 1
Feature: PC Audio in
Feature: RS-232C
Remote (IR) input: 1
Remote (IR) output: 1
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W
Design
Placement supported: Indoor
Orientation: Horizontal/Vertical
Feature: VESA mounting
Panel mounting interface: 200 x 200 mm
Bezel width (bottom): 1.4 cm
Bezel width (side): 1.35 cm
Bezel width (top): 1.4 cm
Bezel colour: Black
Performance
Purpose: Universal
Feature: On Screen Display (OSD)
Number of OSD languages: 11
On Screen Display (OSD) languages: German, English, Spanish, French, Italian, Japanese, Dutch, Russian
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 2.2
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 107 W
Power consumption (standby): 0.4 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 107 kWh
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Computer system
Feature: Computer system
Feature: Built-in processor
Processor model: V810
Internal memory: 2 GB
Internal storage capacity: 16 GB
Operating system installed: Android 8.0
Weight & dimensions
Display width: 968 mm
Display depth: 54 mm
Display height: 557.5 mm
Display weight: 8.9 kg
Width: 968 mm
Depth: 54 mm
Height: 557.5 mm
Weight: 8.9 kg
Packaging data
Package width: 1075 mm
Package depth: 127 mm
Package height: 683 mm
Packaging content
Feature: Remote control included
Feature: Batteries included
Cables included: AC, HDMI, RS-232
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Certificates
Certification: CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH
Logistics data
Harmonized System (HS) code: 85285210
Network
Feature: Ethernet LAN
Technical details
Feature: Audio in (mini jack)
Playback media: Y
Sustainability certificates: ErP
Compliance certificates: CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE
Other features
Feature: Quick start guide
Power supply type: Internal
Feature: Cable management
Housing material: Metal
