iiyama LH10552UWS-B1AG. Product design: Kiosk design. Display diagonal: 2.66 m (104.6"), Display technology: LCD, Display resolution: 5120 x 2160 pixels, Display brightness: 500 cd/m², HD type: UltraWide 5K HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

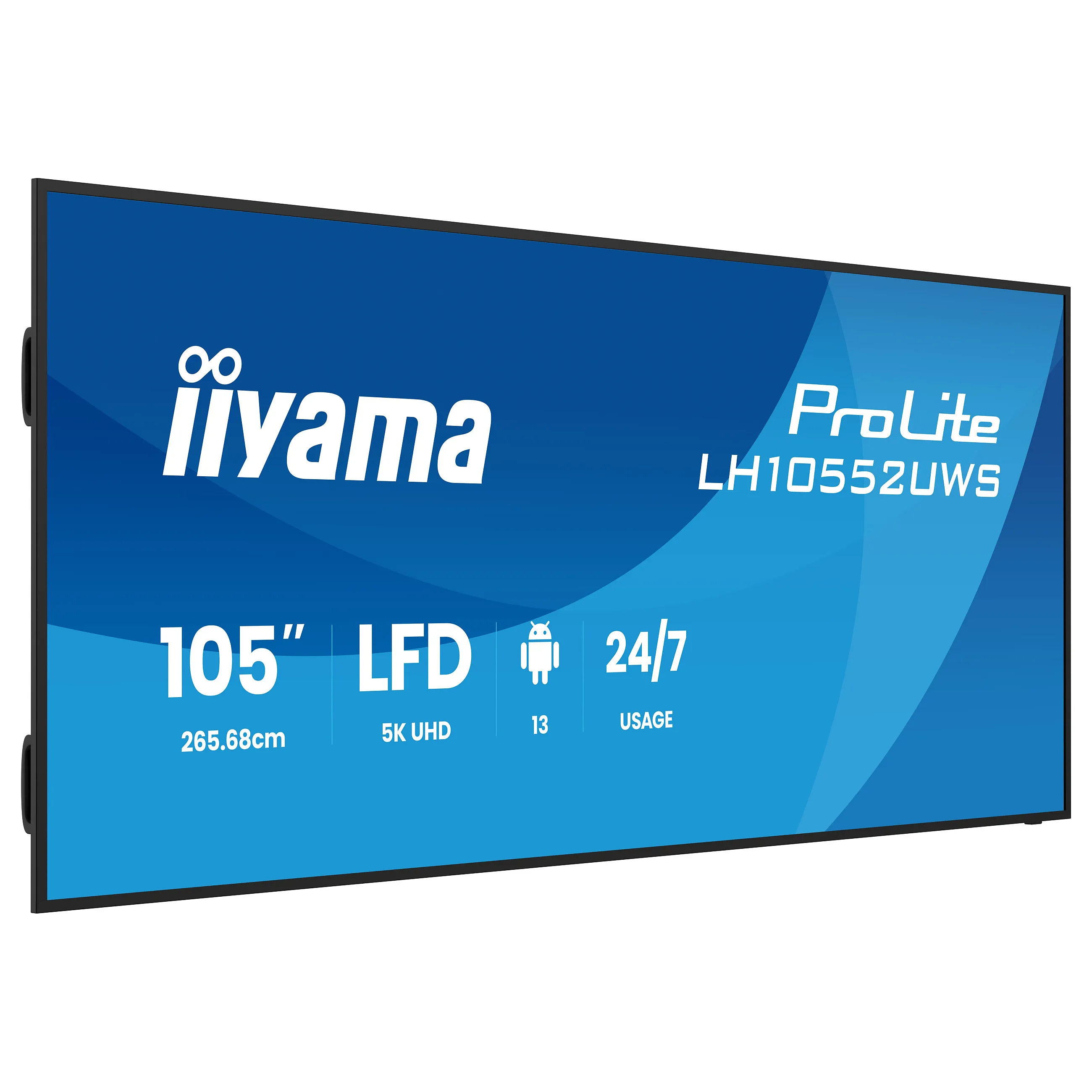

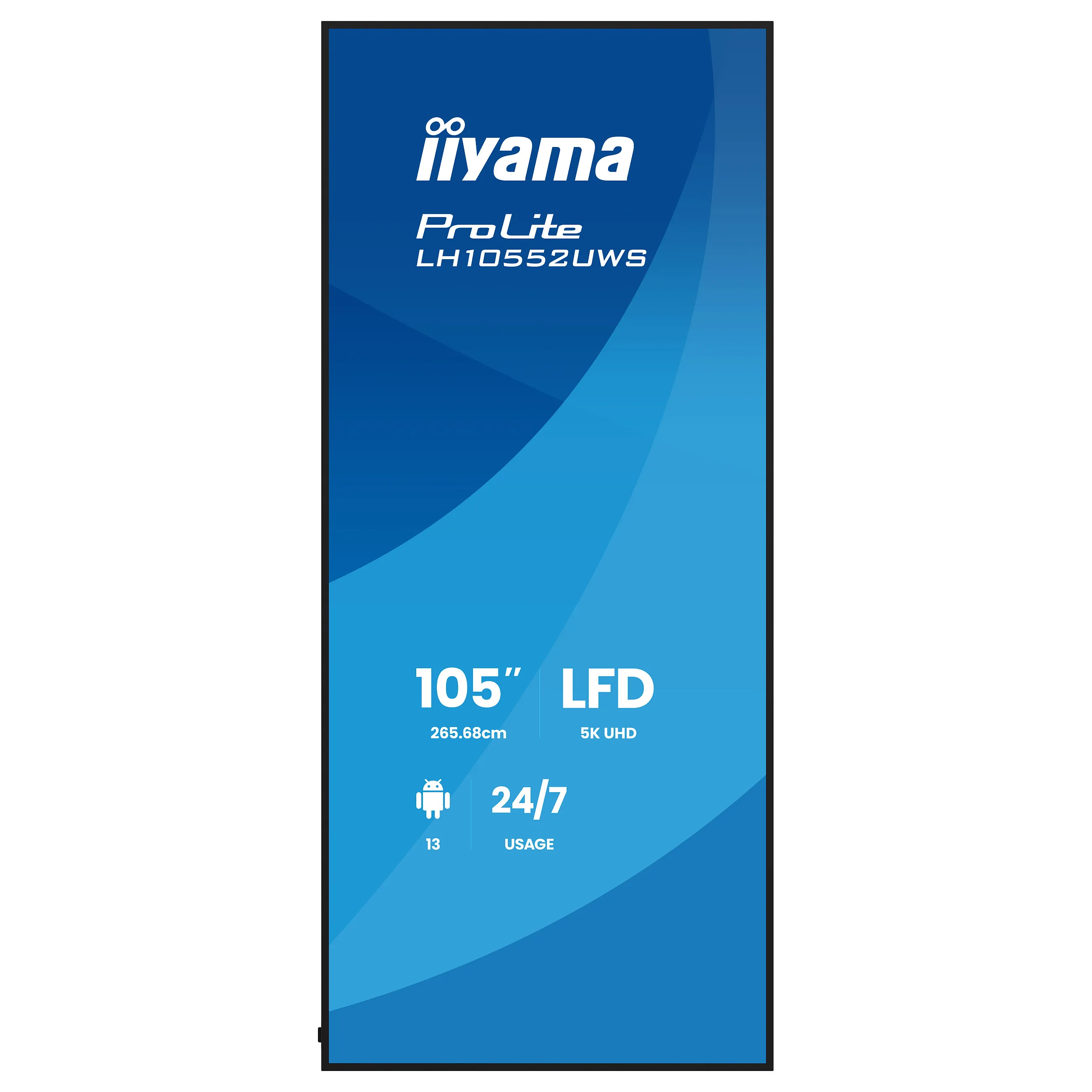

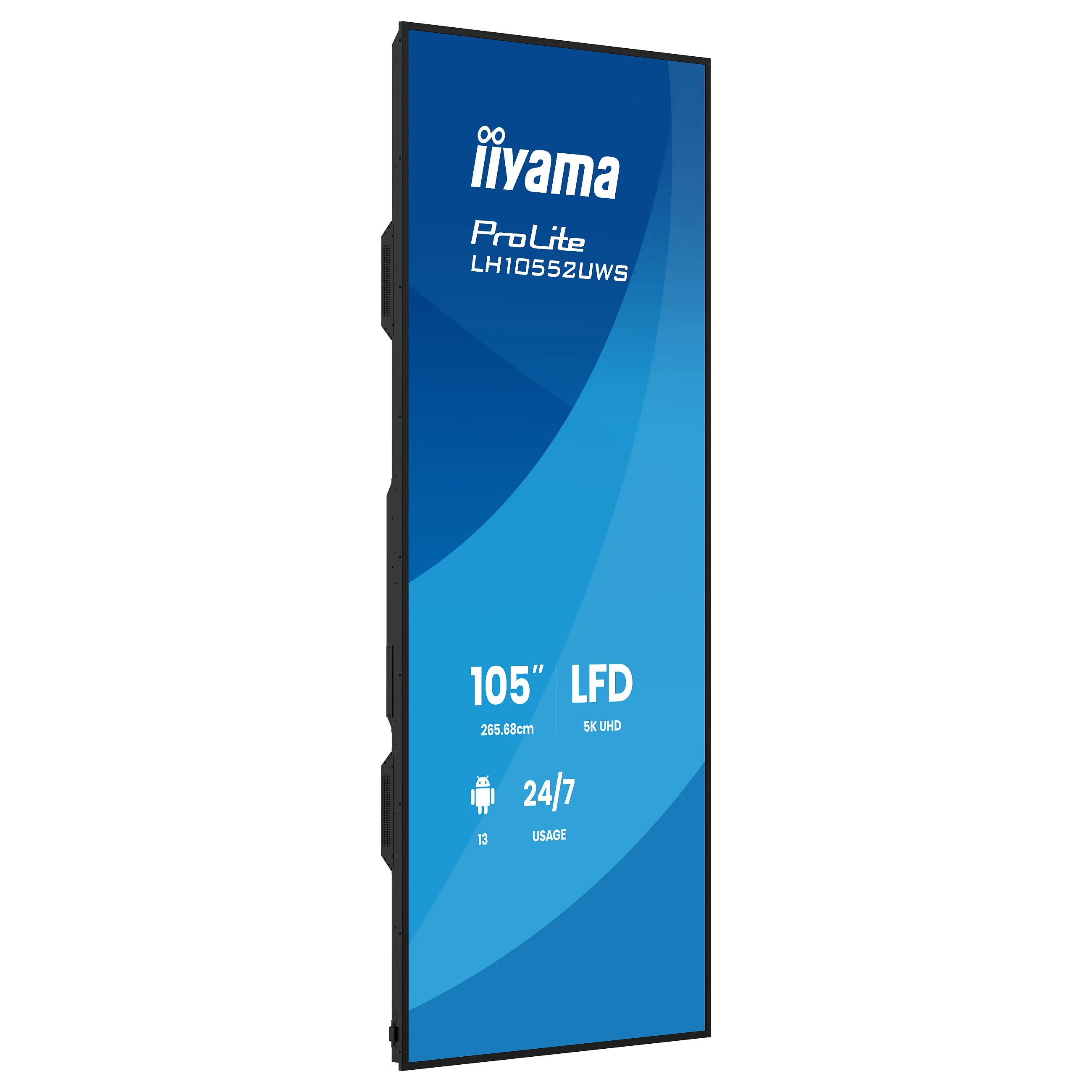

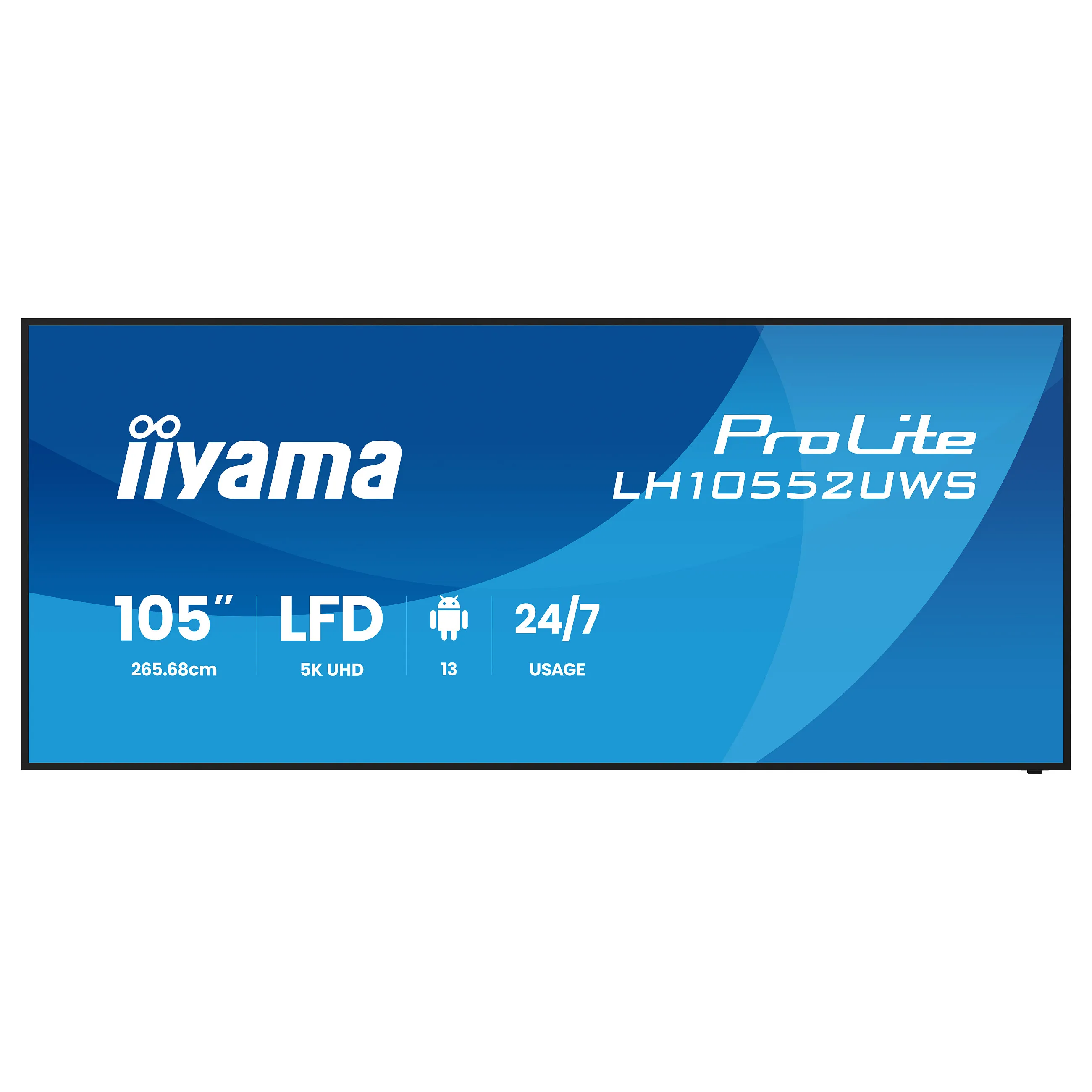

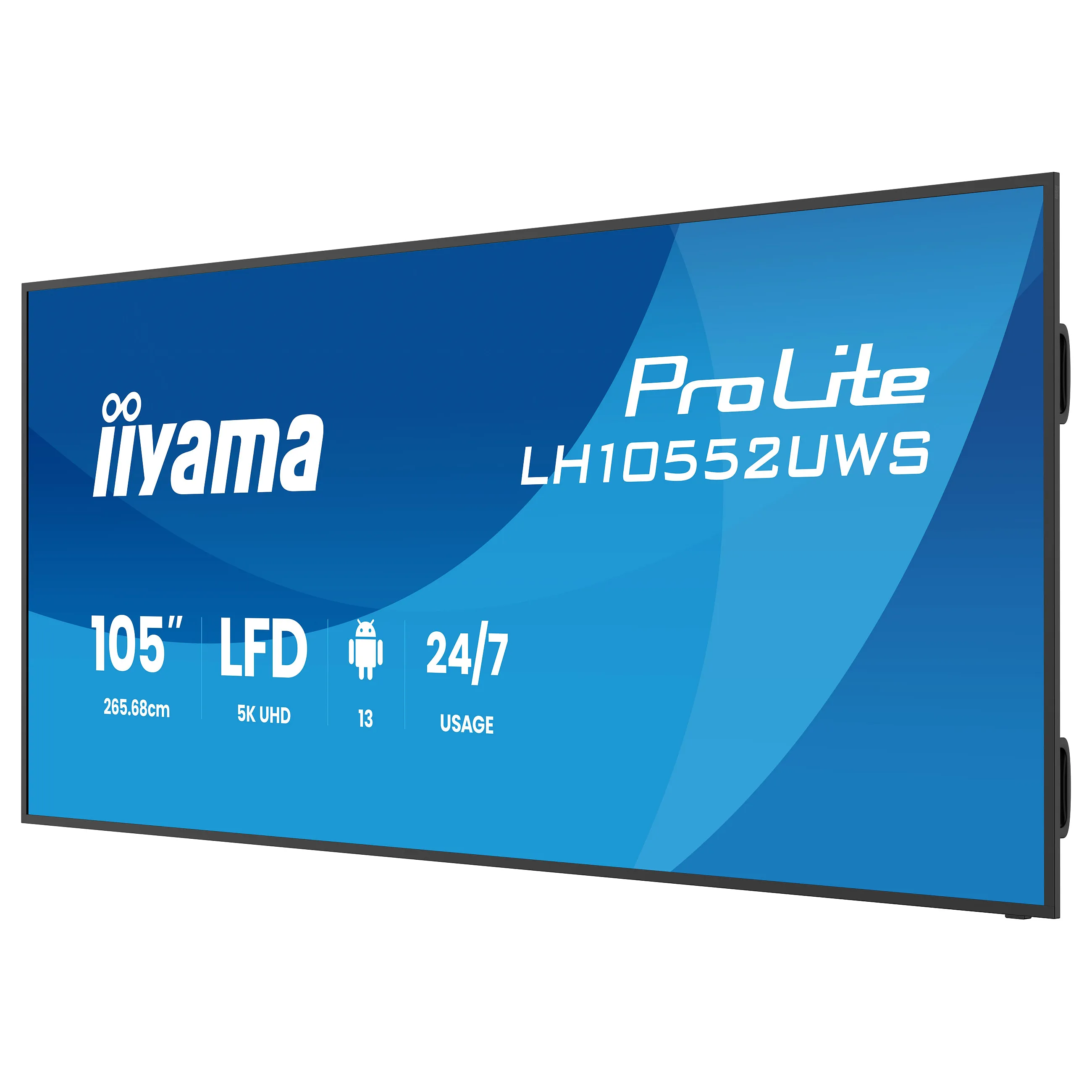

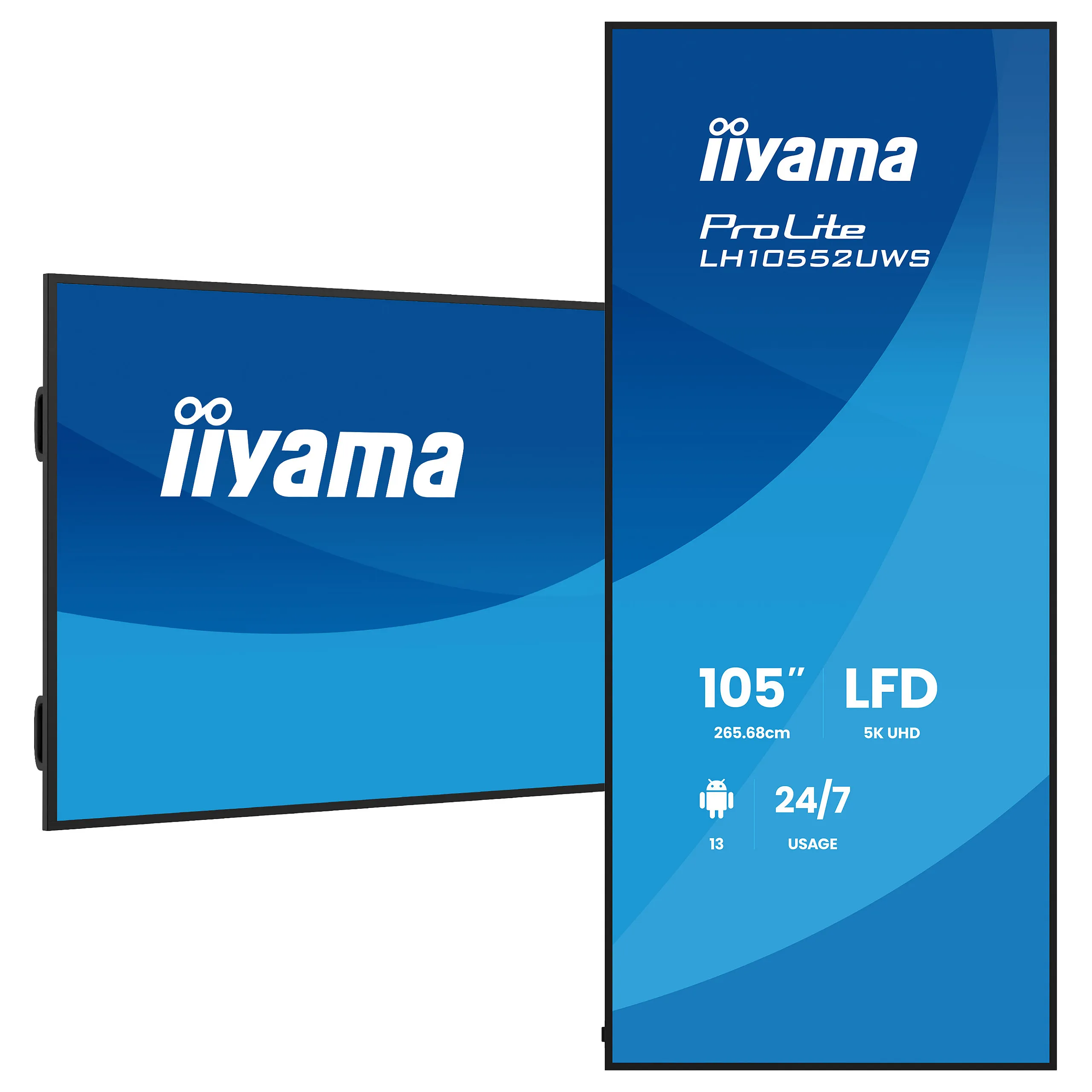

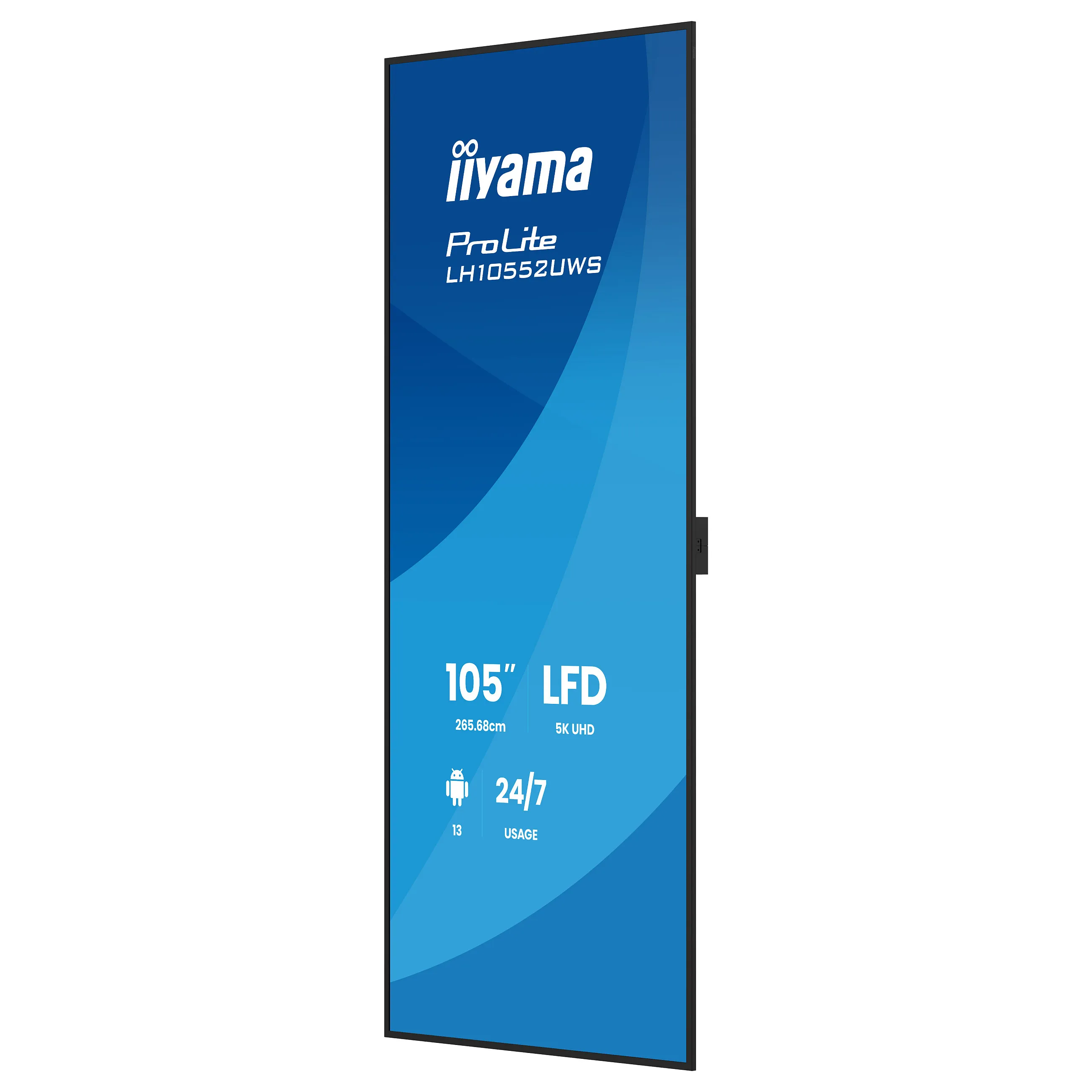

The ProLite LH10552UWS-B1AG delivers stunning 5K UltraWide resolution on a 105″ IPS panel, ideal for hybrid meetings, control rooms and immersive presentations. With USB-C connectivity, 100W power delivery, Android OS and integrated speakers with subwoofer, it offers a complete all-in-one solution for modern workspaces.
Display
Panel type: IPS
Display diagonal: 2.66 m (104.6″)
Display technology: LCD
Display resolution: 5120 x 2160 pixels
Display brightness: 500 cd/m²
HD type: UltraWide 5K HD
Native aspect ratio: 21:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Contrast ratio (dynamic): 5000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Active display area (W x H): 2449.92 x 1033.56 mm
Display diagonal (metric): 265.68 cm
Horizontal scan range: 30 – 135 kHz
Native refresh rate: 60 Hz
Haze rate: 25%

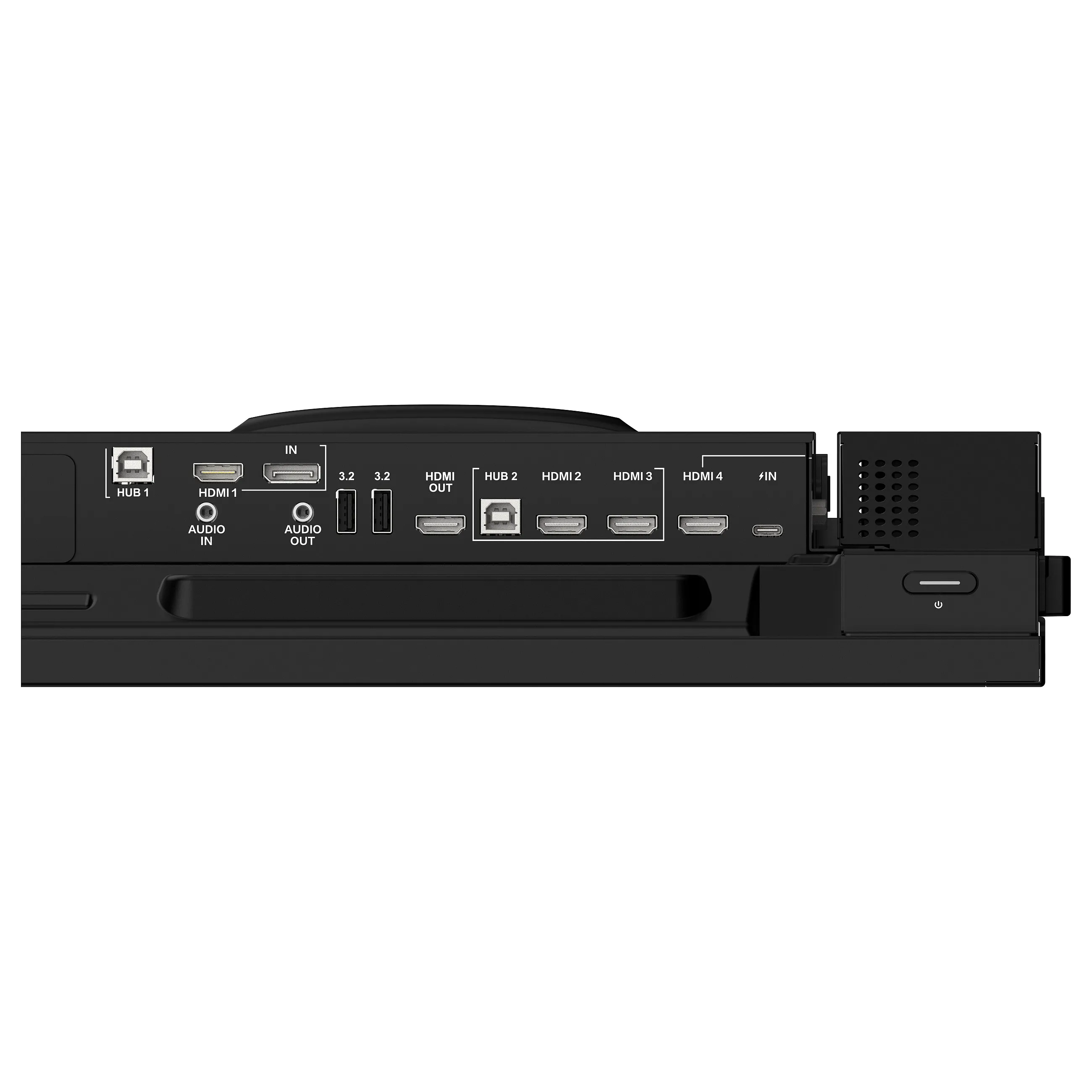

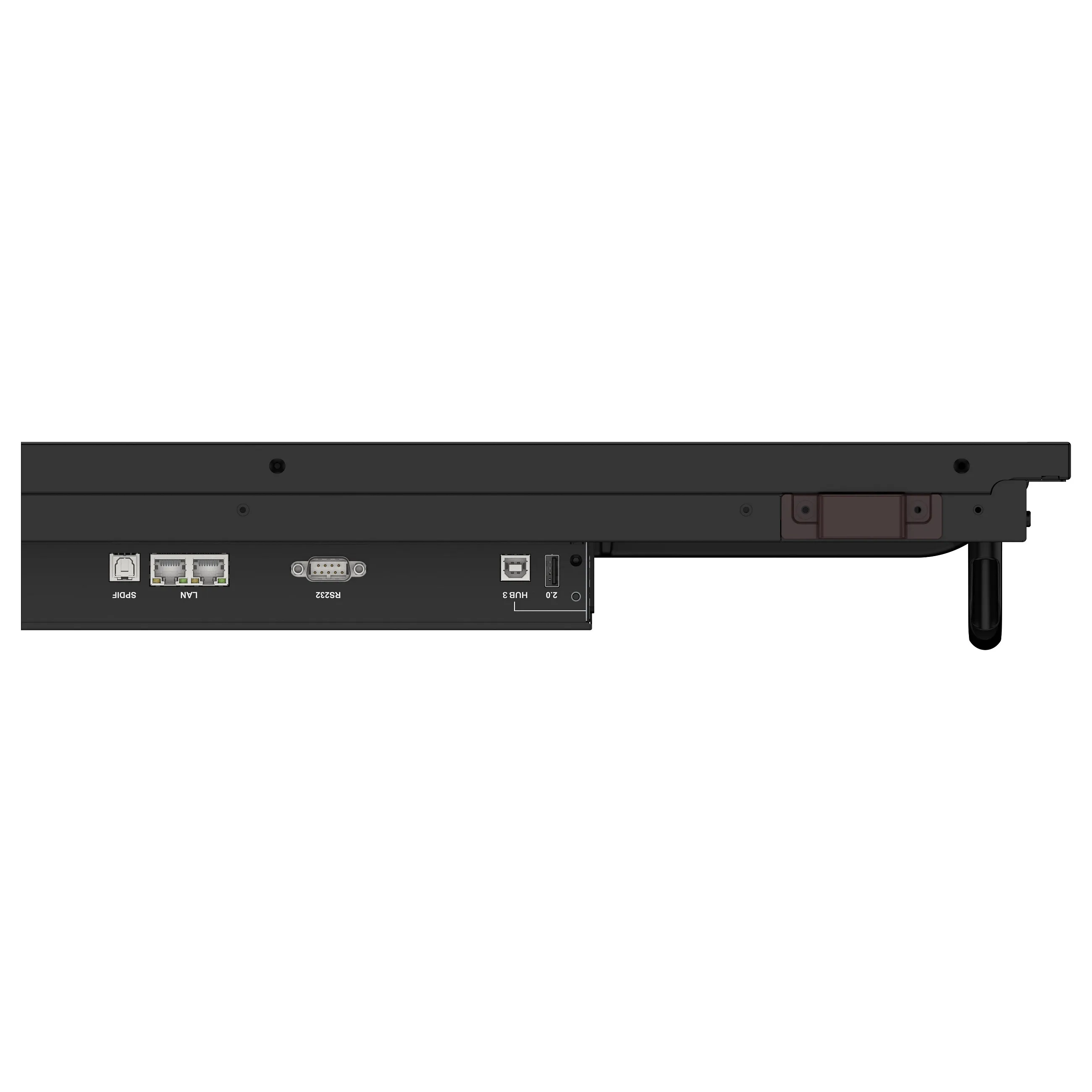

Ports & interfaces
HDMI ports quantity: 5
HDMI version: 2.0
HDMI input ports quantity: 1
HDMI output ports quantity: 1
DisplayPorts quantity: 1

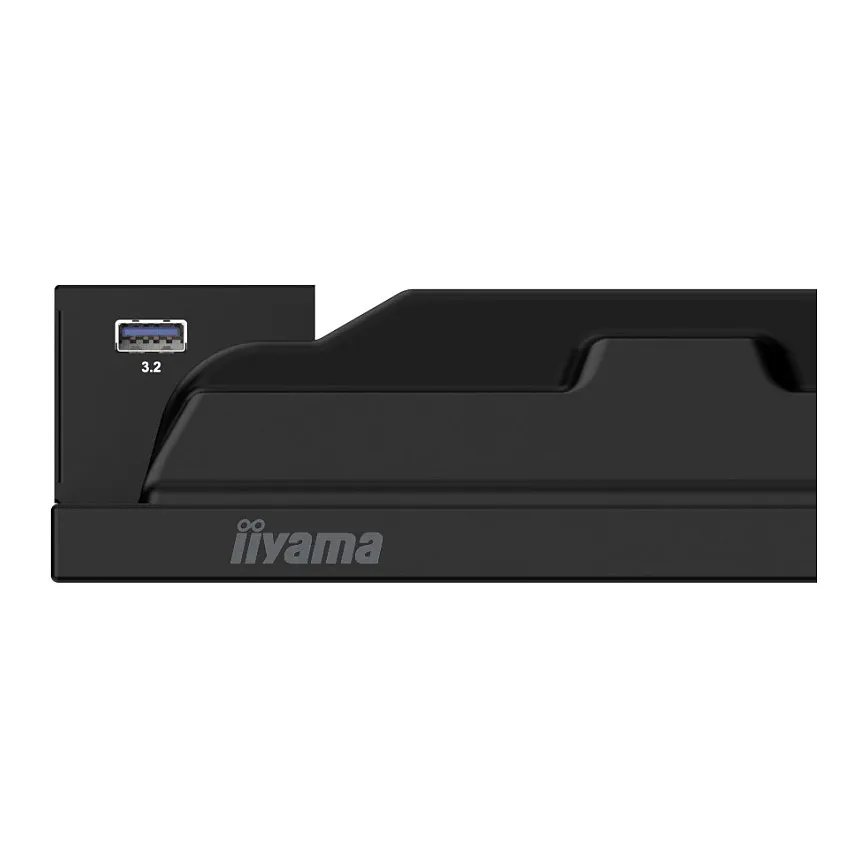

Feature: USB port
USB ports quantity: 3
USB version: 2.0
Ethernet LAN (RJ-45) ports: 2
Feature: RS-232C
Feature: OPS module slot
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W
Design
Product design: Kiosk design
Placement supported: Indoor

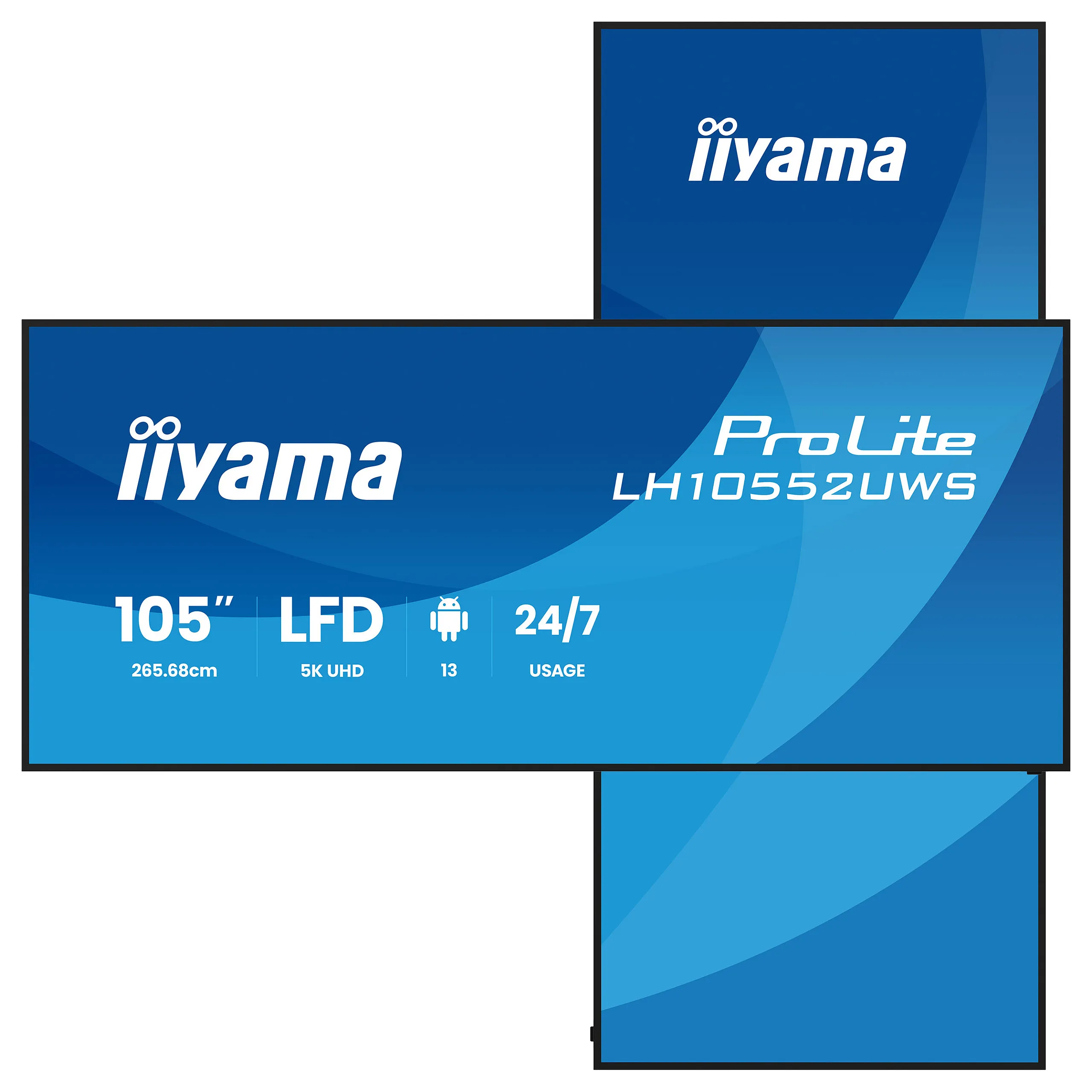

Orientation: Horizontal/Vertical
Product colour: Black

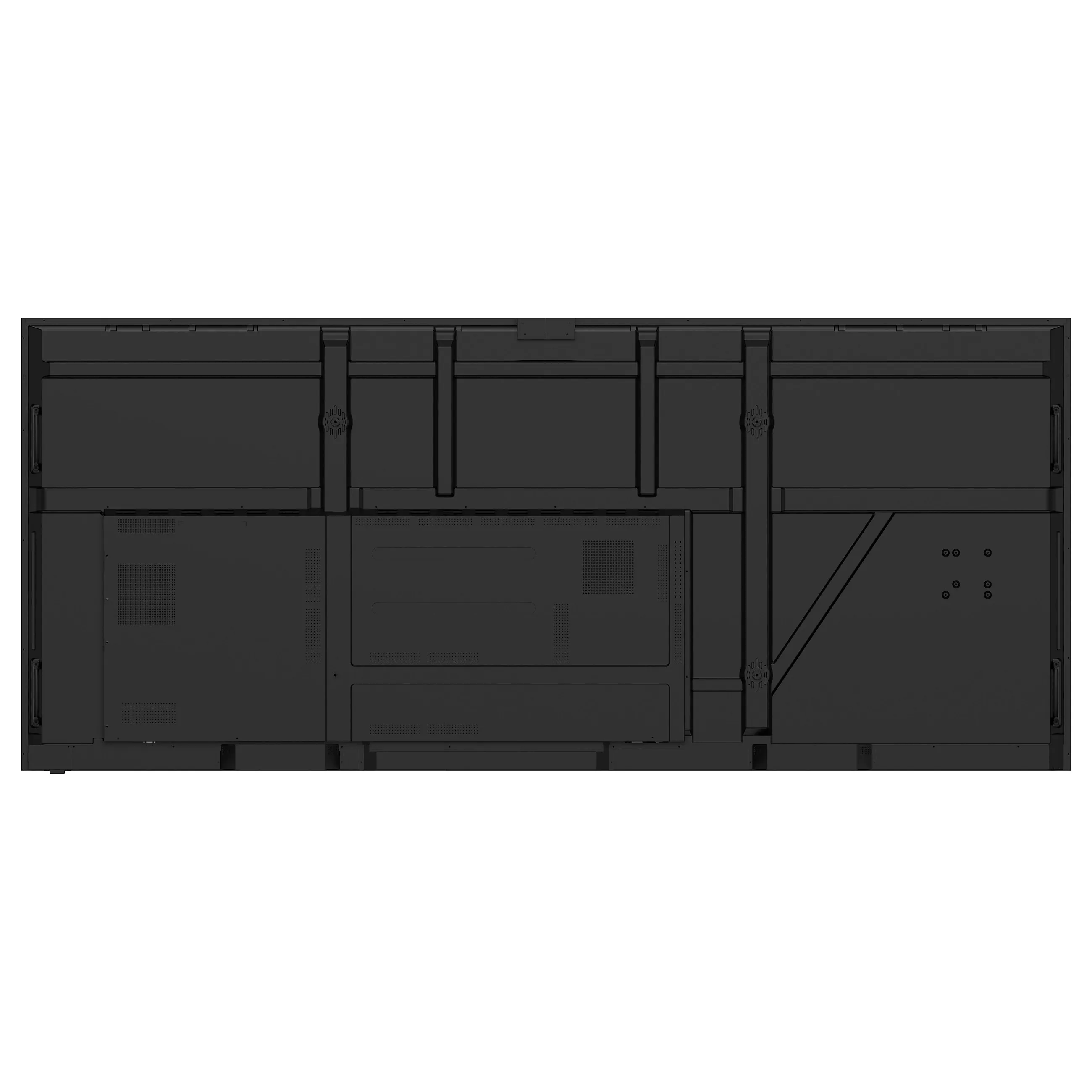

Feature: VESA mounting
Panel mounting interface: 1000 x 600 mm
Bezel width (bottom): 1.49 cm
Bezel width (side): 1.49 cm
Bezel width (top): 1.49 cm
Feature: Anti-glare screen
Performance
Purpose: Universal
Feature: On Screen Display (OSD)
Operating hours (hours/days): 24/7
Power
Power consumption (typical): 248 W
Power consumption (standby): 0.4 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Computer system
Feature: Built-in processor
Processor manufacturer: Rockchip
Processor family: ARM Rockchip
Processor model: RK3588
Internal memory: 8 GB
On-board graphics card model: ARM Mali-G610 MP4
Internal storage capacity: 128 GB
Operating system installed: Android
Operating system version: 13
Weight & dimensions
Display width: 2489.9 mm

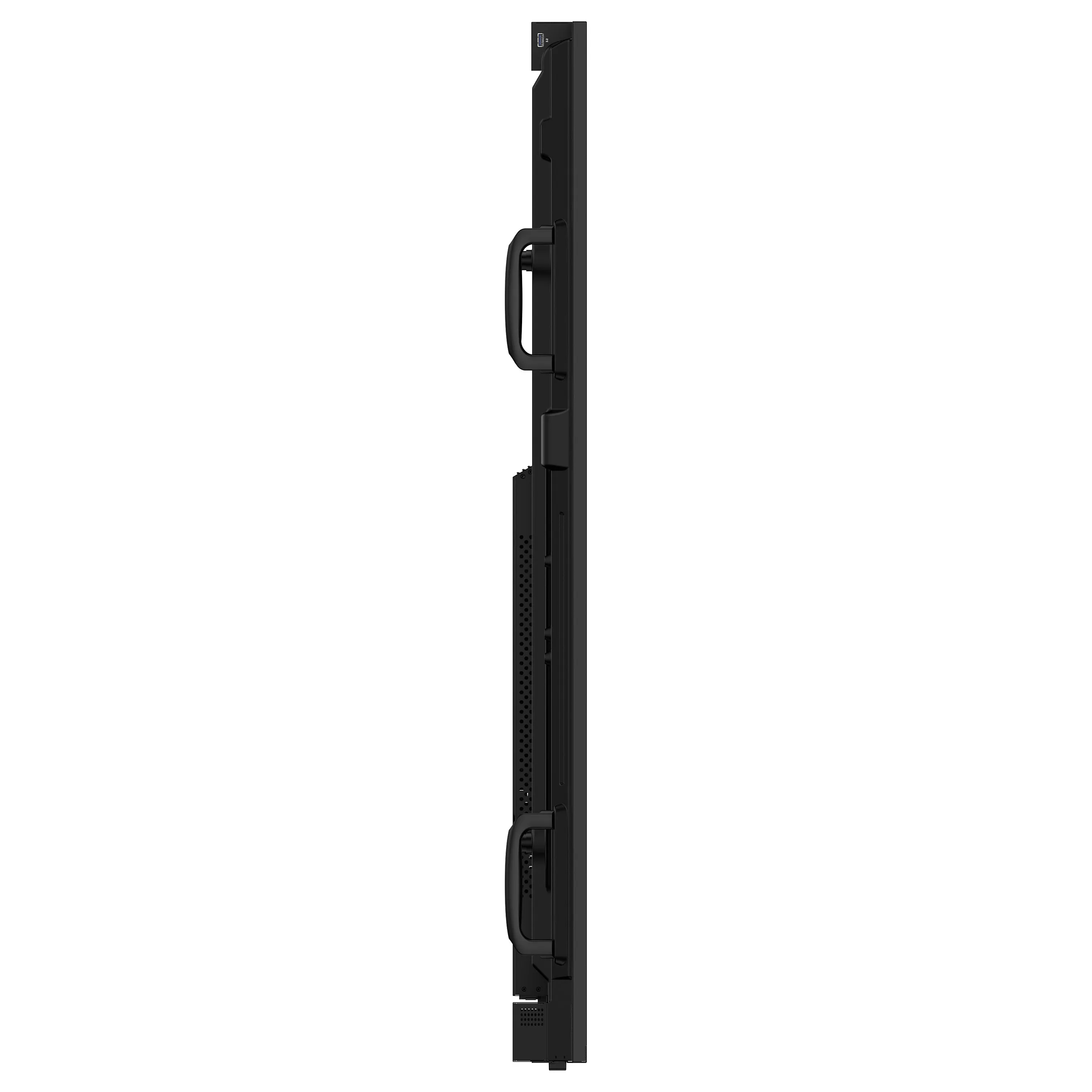

Display depth: 77 mm
Display height: 1081.4 mm
Display weight: 53.5 kg
Width: 2489.9 mm
Depth: 77 mm
Height: 1081.4 mm
Weight: 53.5 kg
Packaging data
Package width: 2668 mm
Package depth: 280 mm
Package height: 1233 mm
Package weight: 79.5 kg
Packaging content
Feature: Remote control included

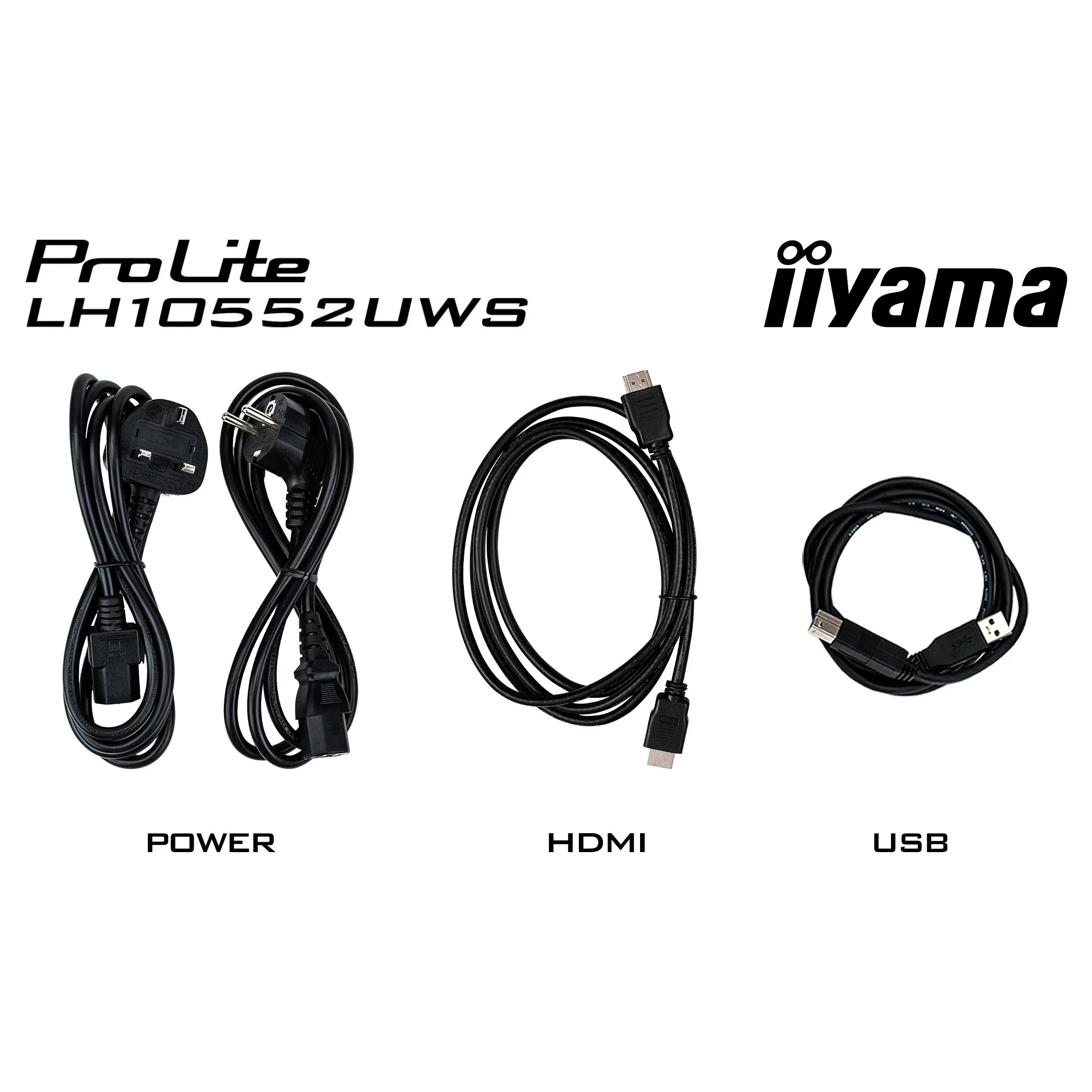

Cables included: AC, HDMI, DisplayPort, RS-232
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Logistics data
Products per pallet: 32 pc(s)
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Technical details
OPS slot: 1
Feature: Audio in (mini jack)
Sustainability certificates: ErP
Pallet net height: 114 cm
Pallet net length: 12.9 cm
Pallet net width: 2.38 m
Compliance certificates: CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
Feature: Quick start guide
Power supply type: Internal
