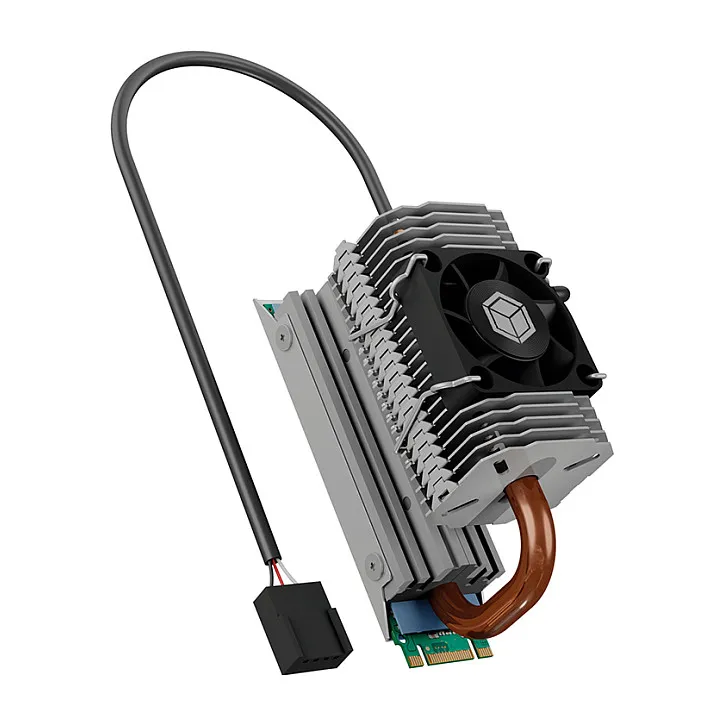

ICY BOX IB-M2HSF-705. Type: Heatsink/Radiator, Fan diameter: 3 cm, Number of speeds: 1, Rotational speed (max): 8500 RPM, Airflow: 4.87 m³/h. Voltage: 12 V. Width: 30 mm, Depth: 75 mm, Height: 50 mm. Product colour: Silver

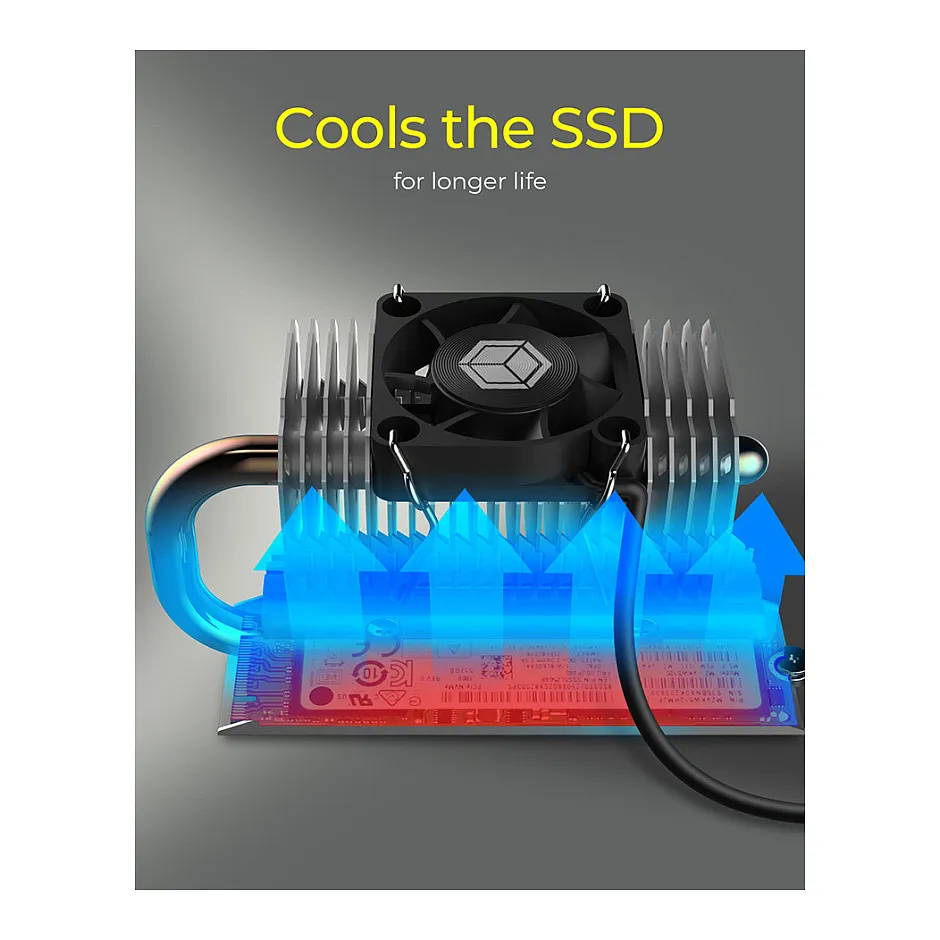

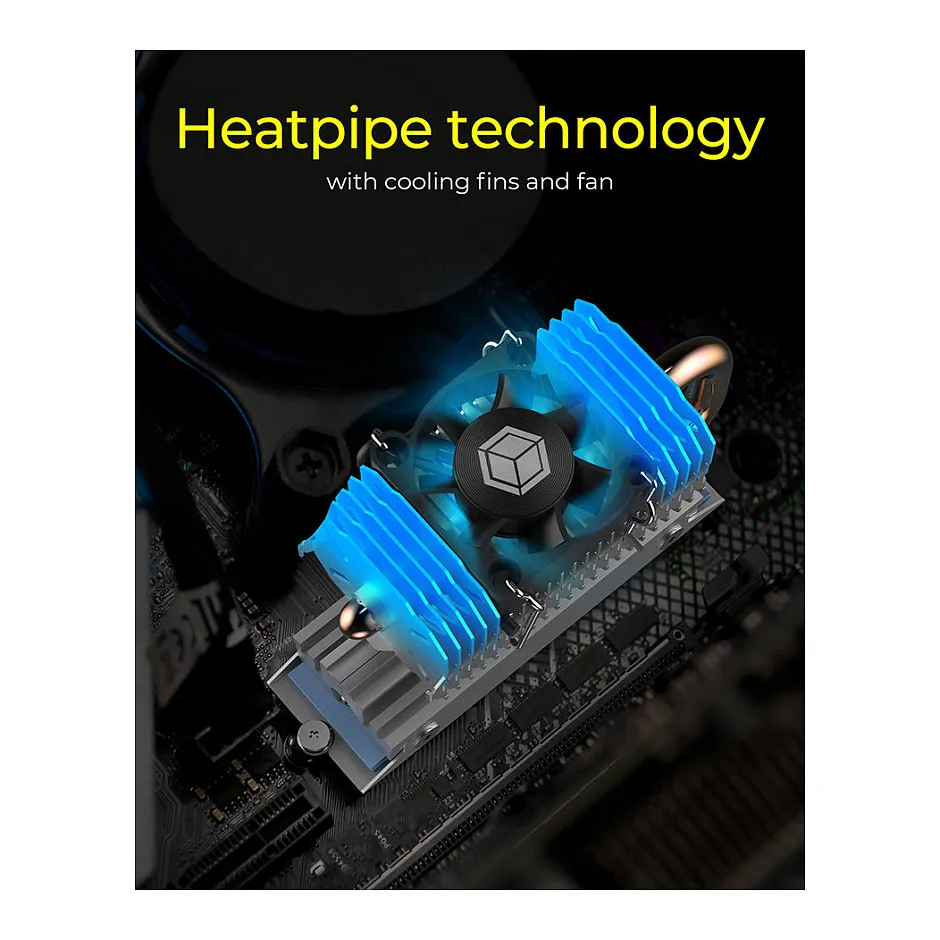

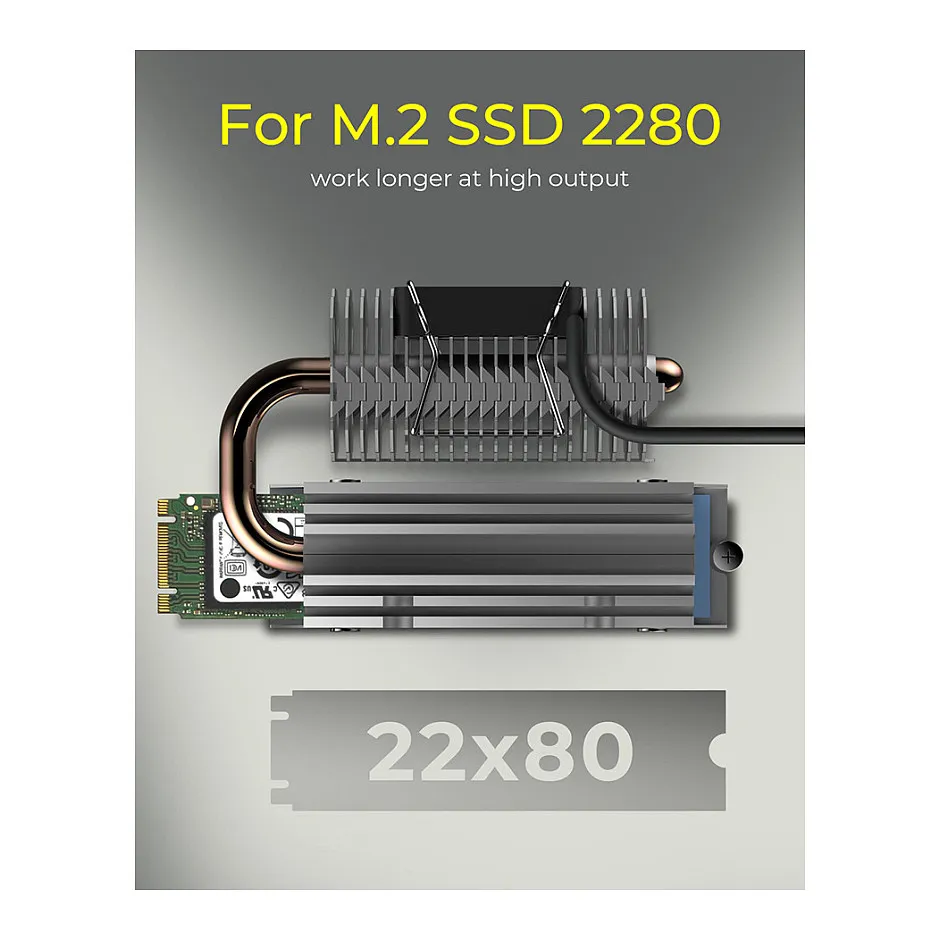

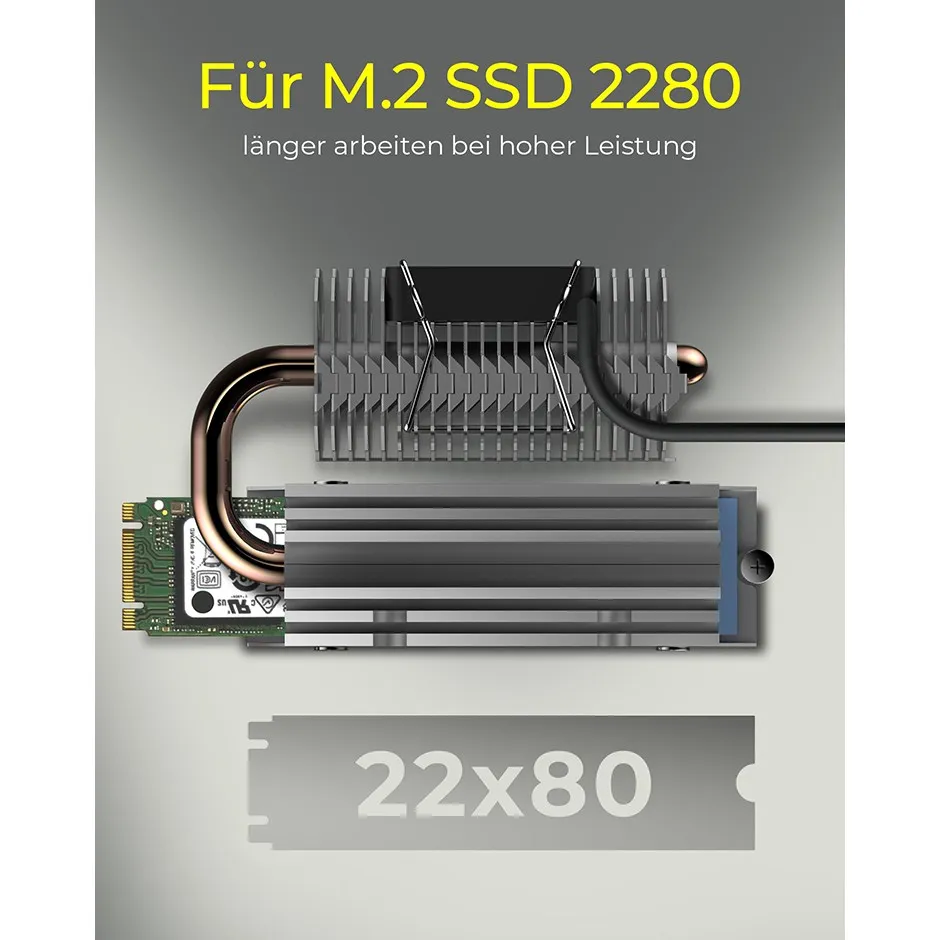

The swivelling ICY BOX® heatpipe cooler reduces the temperature of your M.2 SSD (form factor 2280) by up to 40%. Due to the excellent interaction of cooling fins and fan, a cooling capacity of 23 W TDP is achieved. Depending on SSD manufacturer, model and version, as well as load of the SSD.
Perfectly positioned

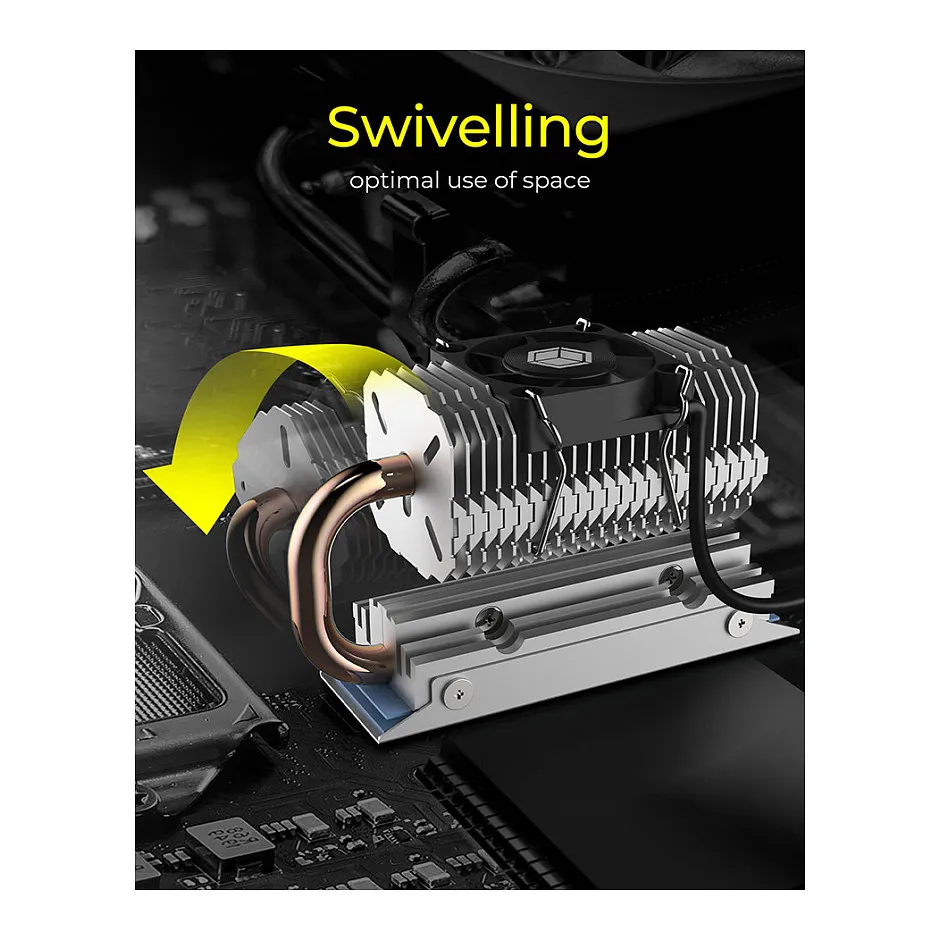

The possibility to swivel the ICY BOX® heatpipe cooler allows the airflow in the enclosure to be optimally directed. It can also be positioned flexibly, which creates additional space for graphics cards or PCIe expansion cards. This allows you to fit even more performance into small enclosures.
Silent fan

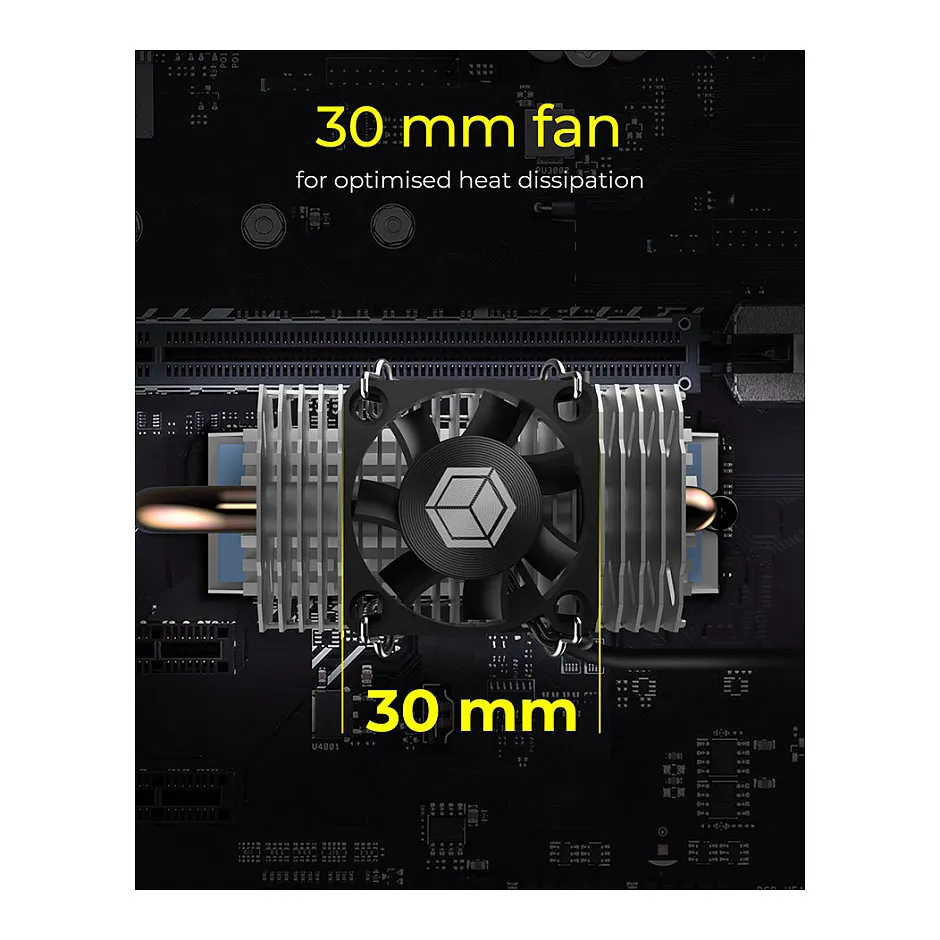

The 30 mm PVM fan has an output of 8500 rpm and a volume flow of approx. 4.9 m³/h. You can further optimise the fan settings for yourself via the BIOS. This makes it possible to achieve cooling that is perfectly matched to the system. The fan is pleasantly quiet even under high demands.
Suitable location: Solid-state drive
Type: Heatsink/Radiator
Fan diameter: 3 cm
Number of speeds: 1
Rotational speed (max): 8500 RPM
Maximum airflow: 2.87 cfm
Airflow: 4.87 m³/h
Quantity per pack: 1 pc(s)
Thermal conductivity: 1.5 W/m·K
Operating temperature (T-T): -20 – 180 °C
Design
Product colour: Silver
Material: Aluminium, Copper
Number of fans: 1 fan(s)
Number of fins: 22
Number of heat pipes: 1
Fan connector: 4-pin
Power
Voltage: 12 V
Rated current: 0.09 A
Thermal Design Power (TDP): 23 W
Weight & dimensions
Width: 30 mm
Depth: 75 mm
Height: 50 mm
Weight: 86 g
Fan dimensions (W x D x H): 30 x 30 x 7 mm
Heat pipes diameter: 6 mm
Fins thickness: 0.5 mm
Cable length: 0.5 m
Package width: 100 mm
Package depth: 200 mm
Package height: 40 mm
Package weight: 190 g
Packaging content
Feature: Screws included
Feature: Thermal pad included
Other features
Country of origin: China
Logistics data
Harmonized System (HS) code: 84145915
Master (outer) case width: 225 mm
Master (outer) case length: 440 mm
Master (outer) case height: 425 mm
Master (outer) case gross weight: 7.6 kg
Products per master (outer) case: 40 pc(s)
