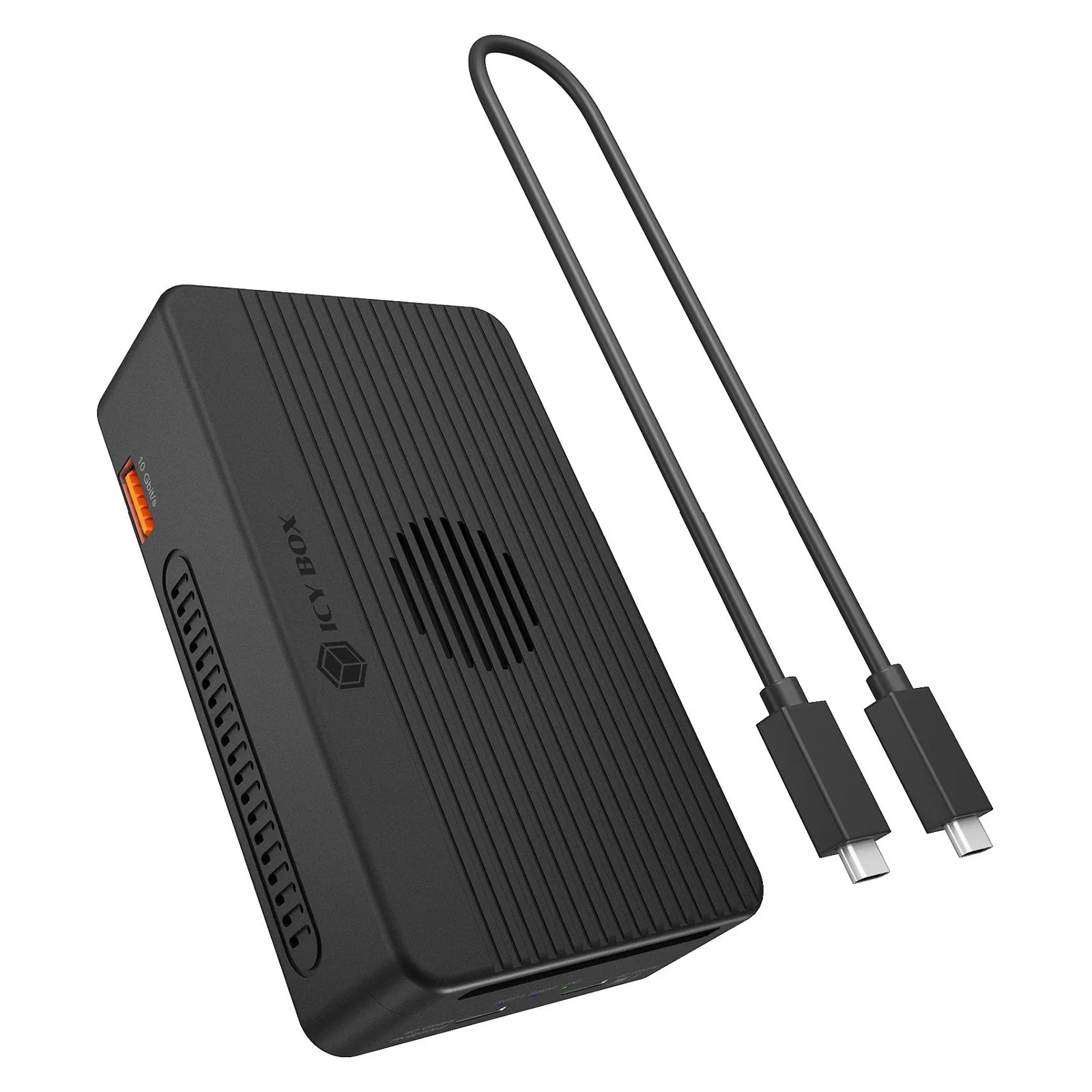

ICY BOX Heart RAID 2818 RAID & DockingStation for 2x M.2 NVMe SSD. Connectivity technology: Wired, Host interface: USB4, USB Power Delivery up to: 100 W. Product colour: Black, RAID type: Software, Supported storage drive types: SSD. Output voltage: 20 V, Output current: 5 A. Width: 110 mm, Depth: 54 mm, Height: 28 mm. Quantity per pack: 150 pc(s), Package width: 40 mm, Package depth: 210 mm

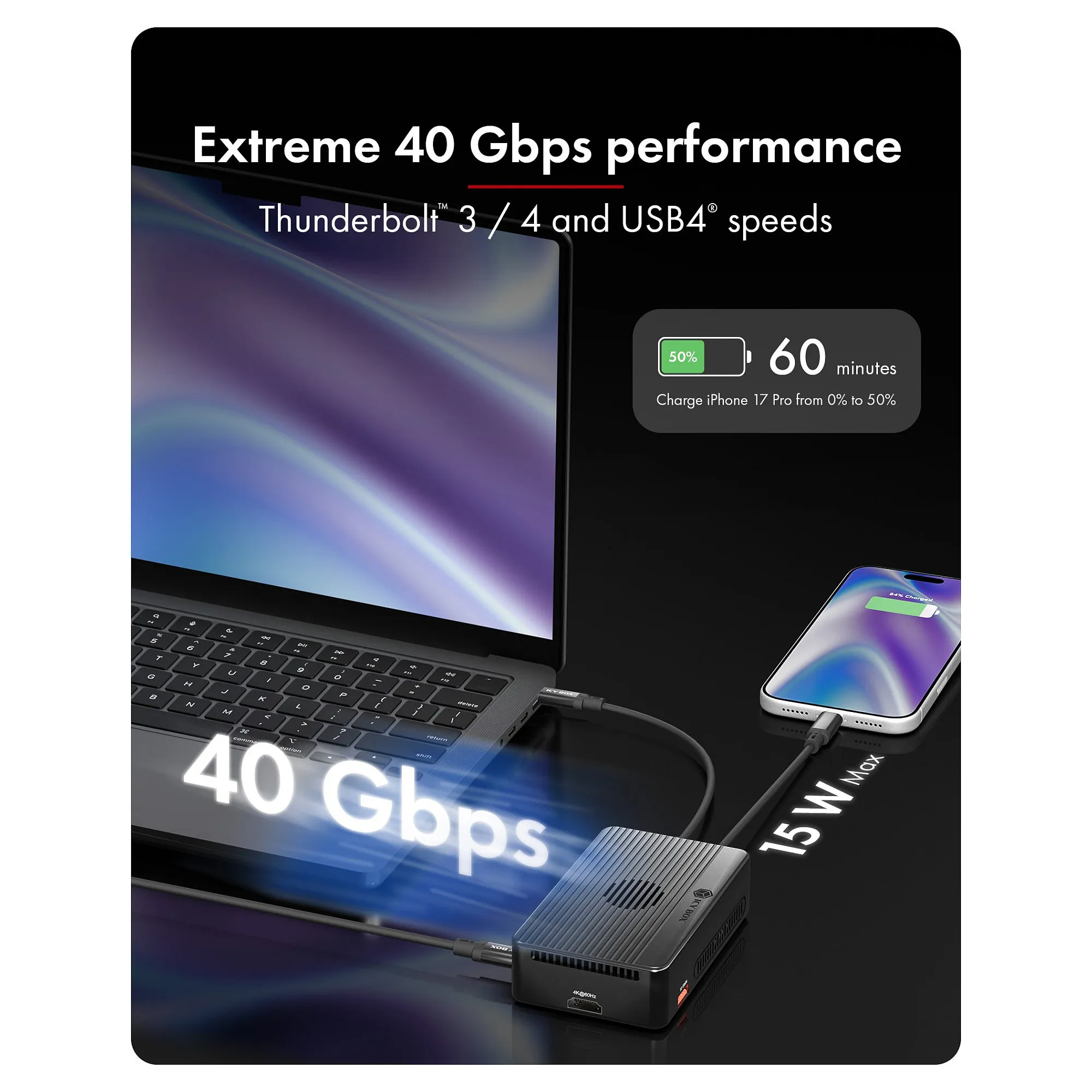

Heart RAID 2818 delivers the speed professionals expect from modern high performance storage. It connects via USB Type-C® and supports Thunderbolt™ 3 and USB4® with transfer rates up to 40 Gbps. This allows extremely fast data access for demanding workflows such as video editing, large backups, or high resolution projects. When used with compatible systems, it unlocks the full potential of NVMe SSD technology.

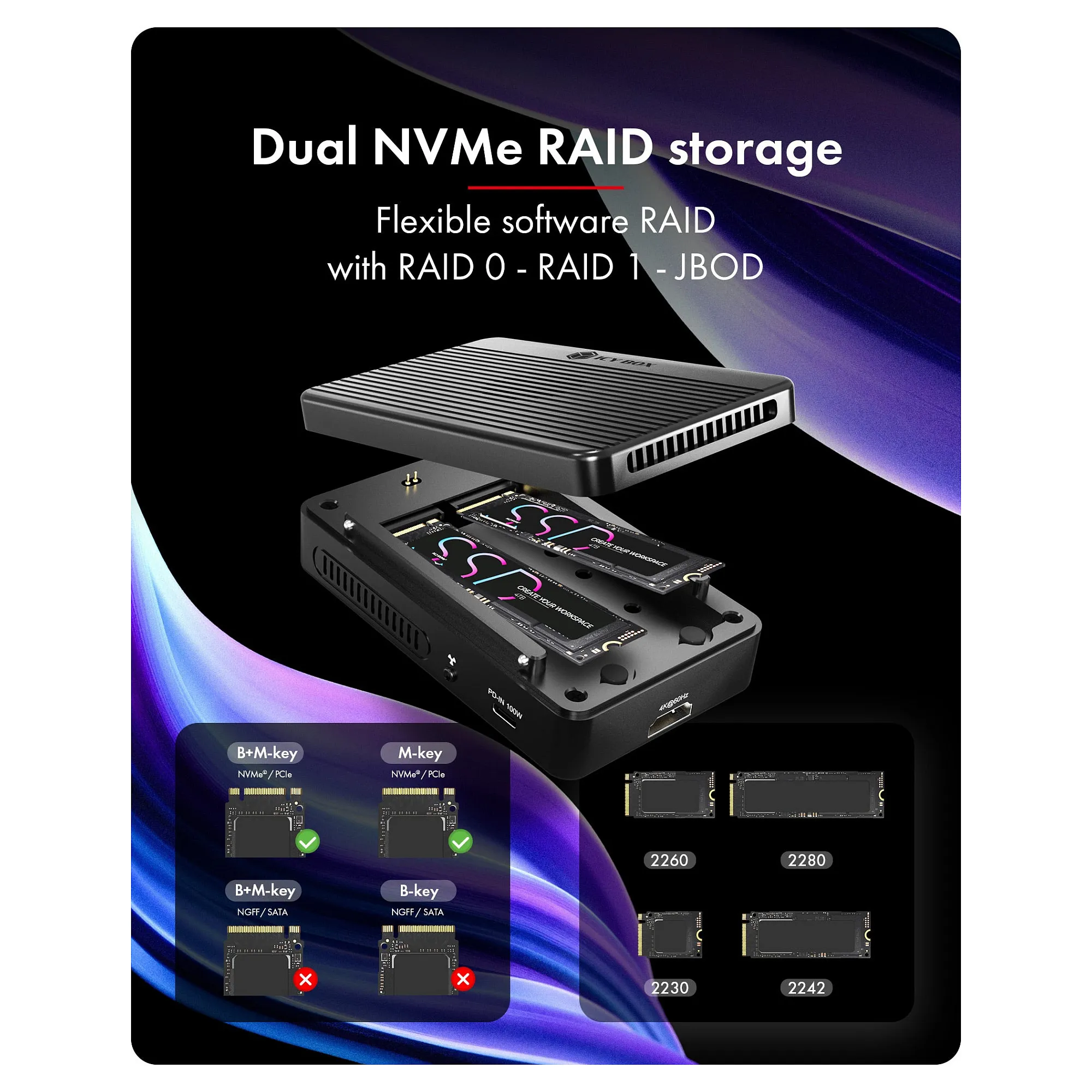

Dual M.2 NVMe with Software RAID
This powerhouse of an enclosure supports 2 M.2 NVMe M-Key SSDs in sizes up to 2280. With software RAID functionality, you can configure the drives for higher performance or data redundancy depending on your needs. This gives you flexibility between speed and security. It transforms 2 SSDs into one powerful storage solution.

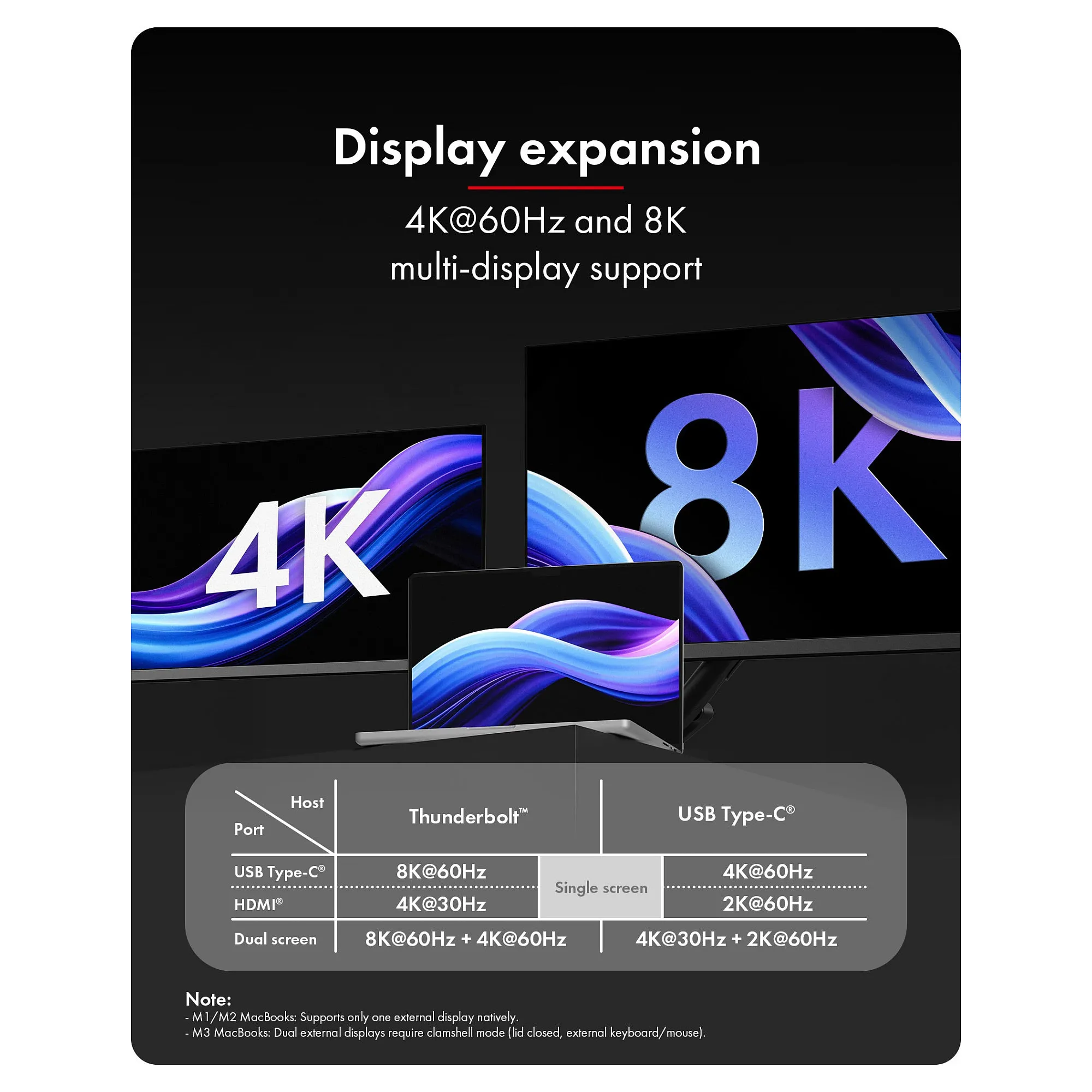

8K? 8K!
Beyond storage, Heart RAID 2818 also functions as a DockingStation. It supports video output up to 7680 x 4320 at 60 Hz via the USB Type-C® connection and up to 4096 x 2160 at 60 Hz through HDMI®. This allows you to expand your workspace with high resolution displays.

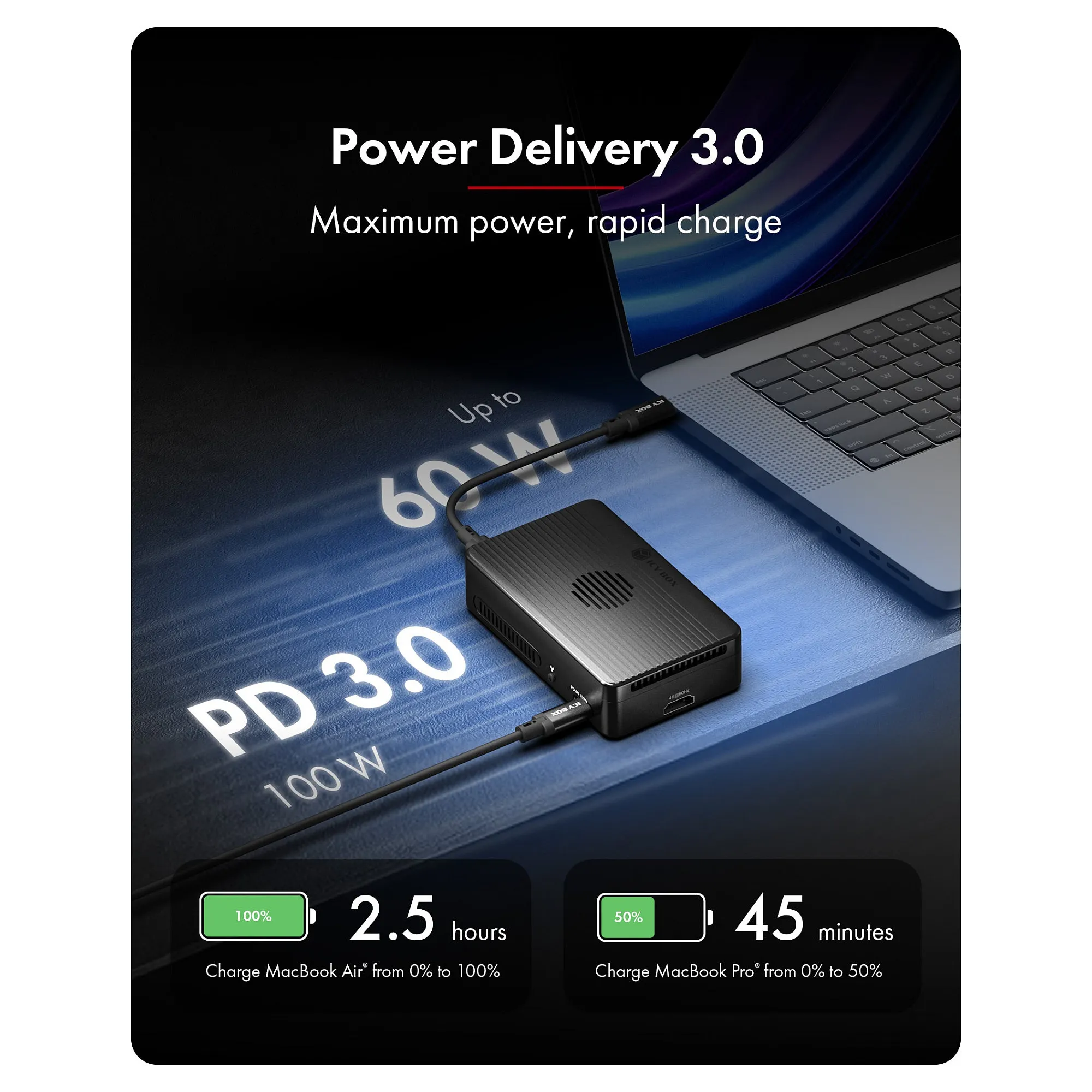

60 W Power Delivery
The host connection provides up to 60 W Power Delivery, allowing you to charge your notebook while connected. A separate USB Type-C® PD input supports up to 100 W power supply to ensure stable operation. This keeps your setup efficient and reduces the need for additional adapters.

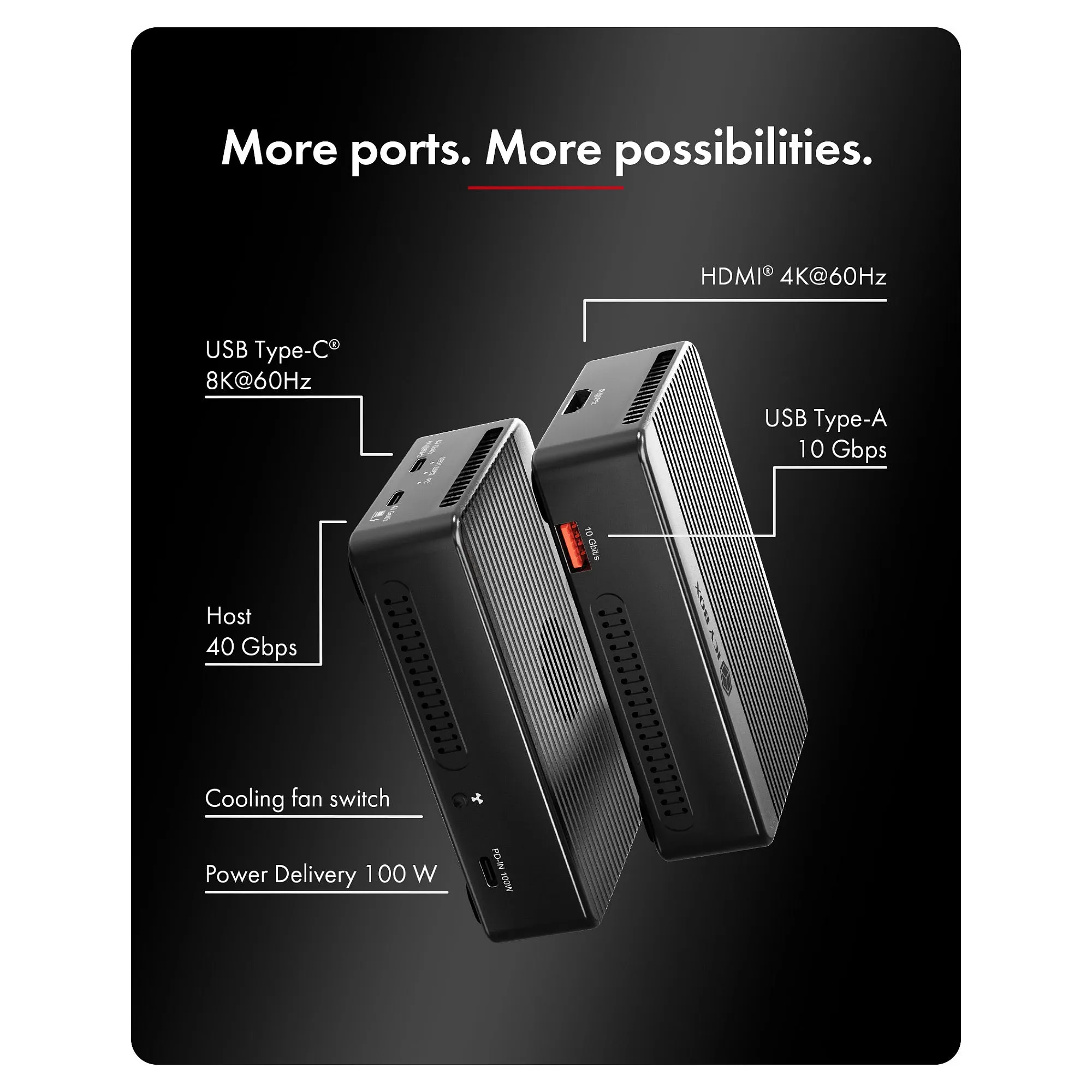

Stay connected
A USB 3.2 Gen 2 Type-A port with up to 10 Gbps transfer speed enables connecting additional devices. Instead of using multiple hubs, you gain expanded connectivity directly from the enclosure. It supports a more structured and capable desk setup.

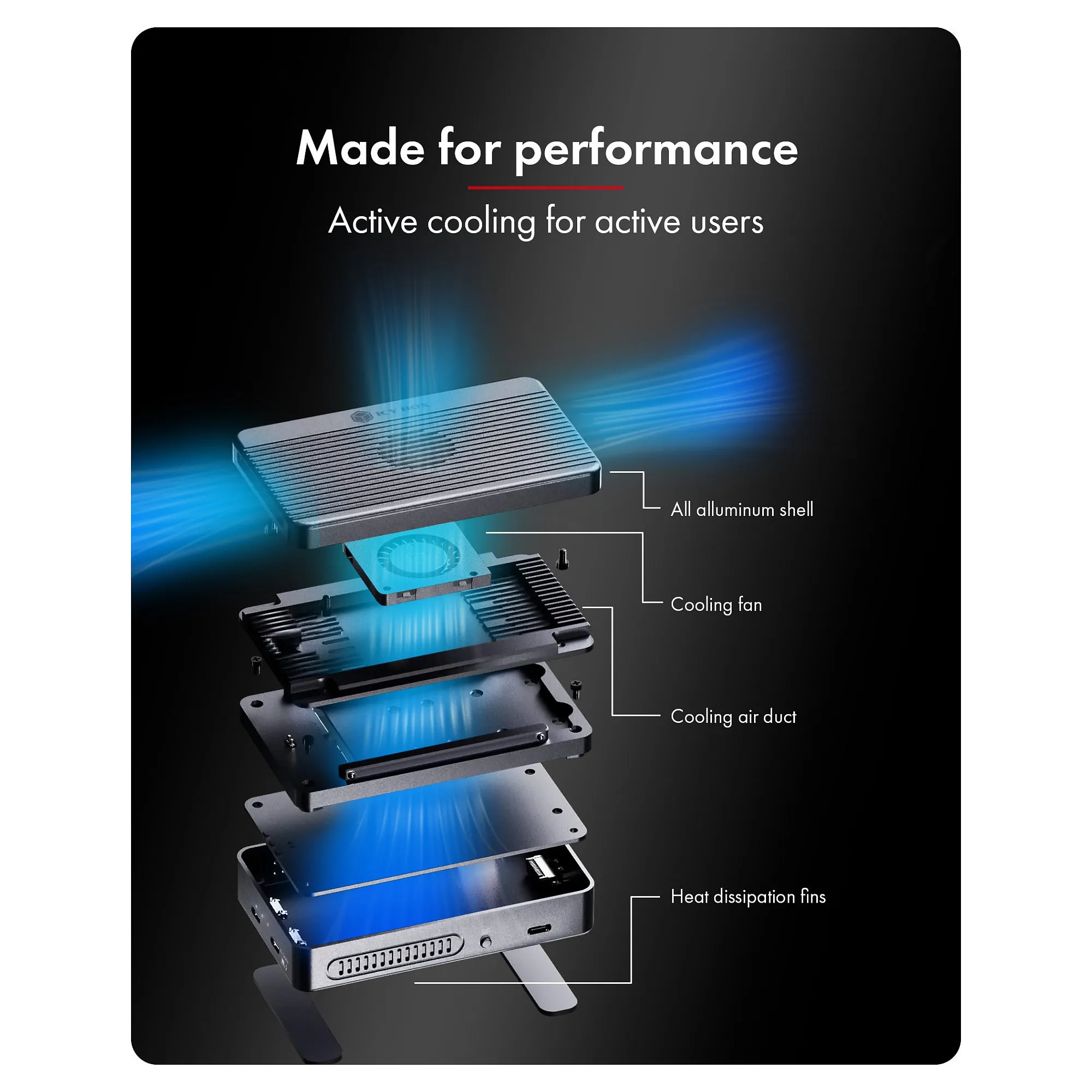

Keep it cool
With so much power at hand, things can get a little hot. A built in fan with a dedicated switch helps maintain optimal operating temperatures during heavy workloads. This supports consistent performance when transferring large amounts of data. LED indicators clearly show power and drive activity status.
Connectivity technology: Wired
Host interface: USB4
USB 2.0 Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB4 ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
HDMI ports quantity: 1
Feature: USB Type-C DisplayPort Alternate Mode
Performance
RAID type: Software
Number of storage drives supported: 2
Supported storage drive types: SSD
Maximum storage capacity: 32 TB
Feature: NVMe
Supported SSD sizes: M.2
Supported storage drive lengths: 30,42,60,80 mm
Data transfer rate: 40 Gbit/s
HD type: 8K Ultra HD
Maximum digital resolution: 7680 x 4320 pixels
Product colour: Black
LED indicators: Yes
Feature: Plug and Play
Housing material: Aluminium
Country of origin: China
Cooling
Feature: Built-in fan
Power
Output voltage: 20 V
Output current: 5 A
Software
Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Weight & dimensions
Width: 110 mm
Depth: 54 mm
Height: 28 mm
Weight: 242 g
Packaging data
Quantity per pack: 150 pc(s)
Package width: 40 mm
Package depth: 210 mm
Package weight: 680 g
Packaging content
Cables included: USB Type-C to USB Type-C
Feature: Manual
Logistics data
Products per master (outer) case: 10 pc(s)
Master (outer) case width: 235 mm
Master (outer) case length: 445 mm
Master (outer) case height: 195 mm
Master (outer) case gross weight: 7.16 kg
Other features
Chipset: JHL7440, CH224K, GSV2201E
