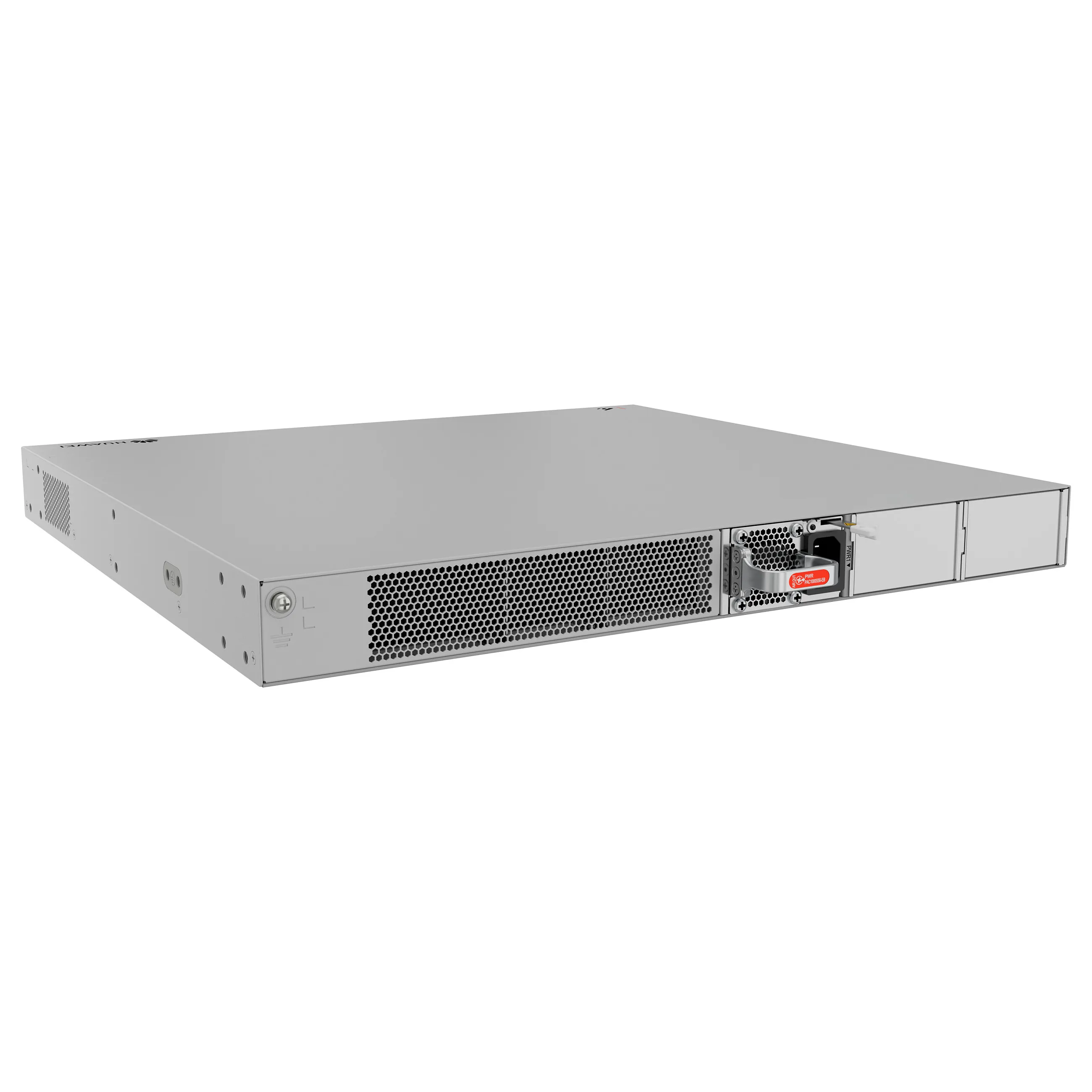

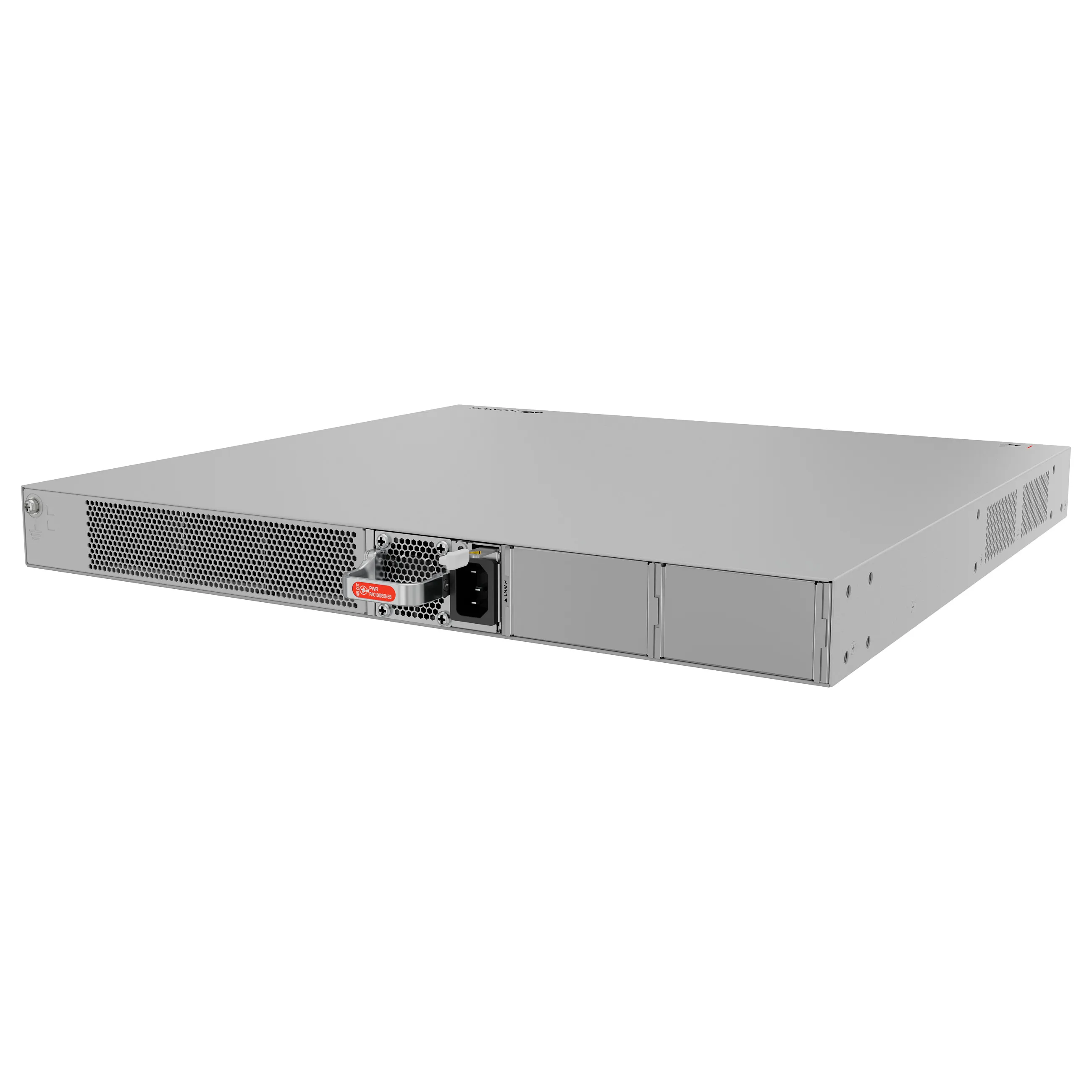

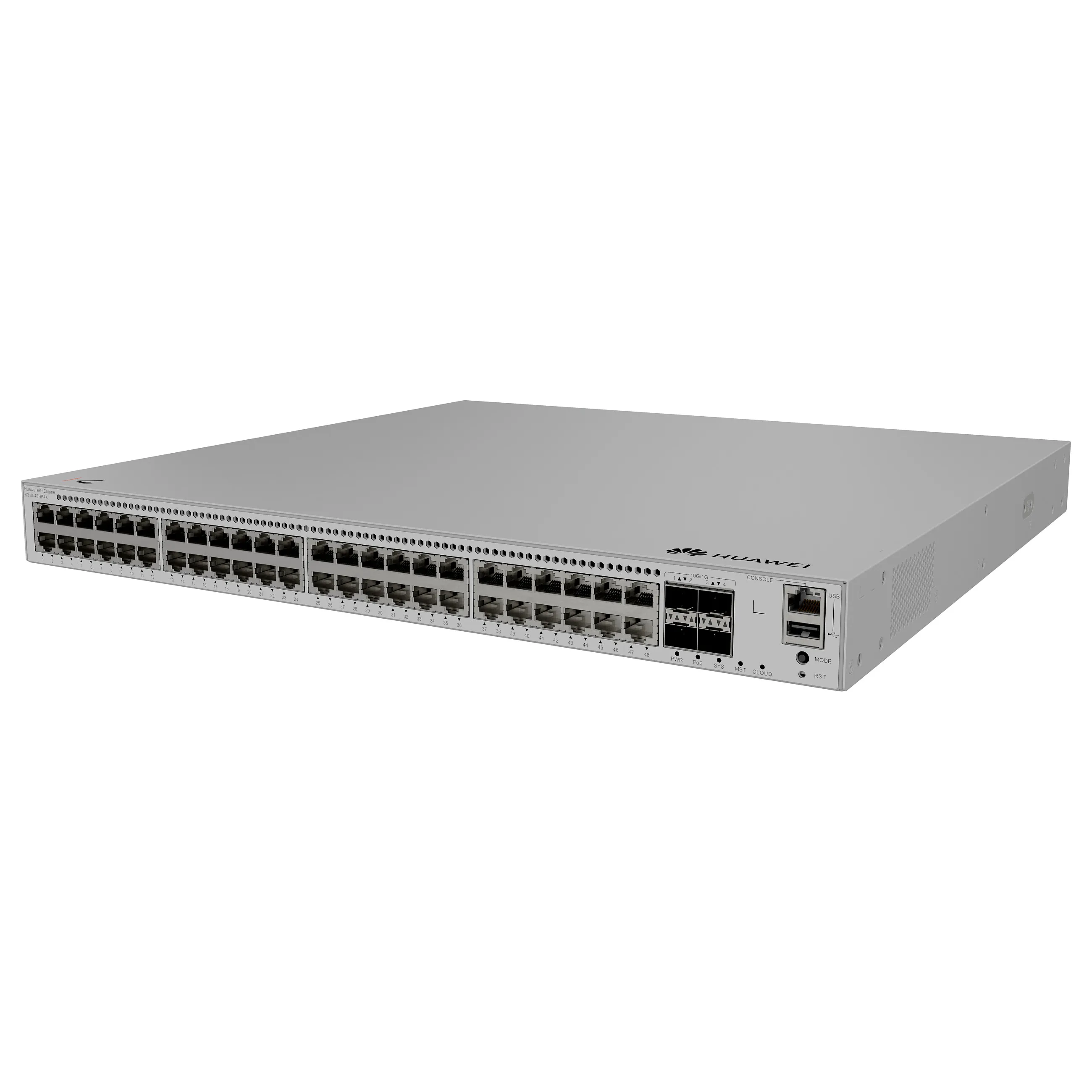

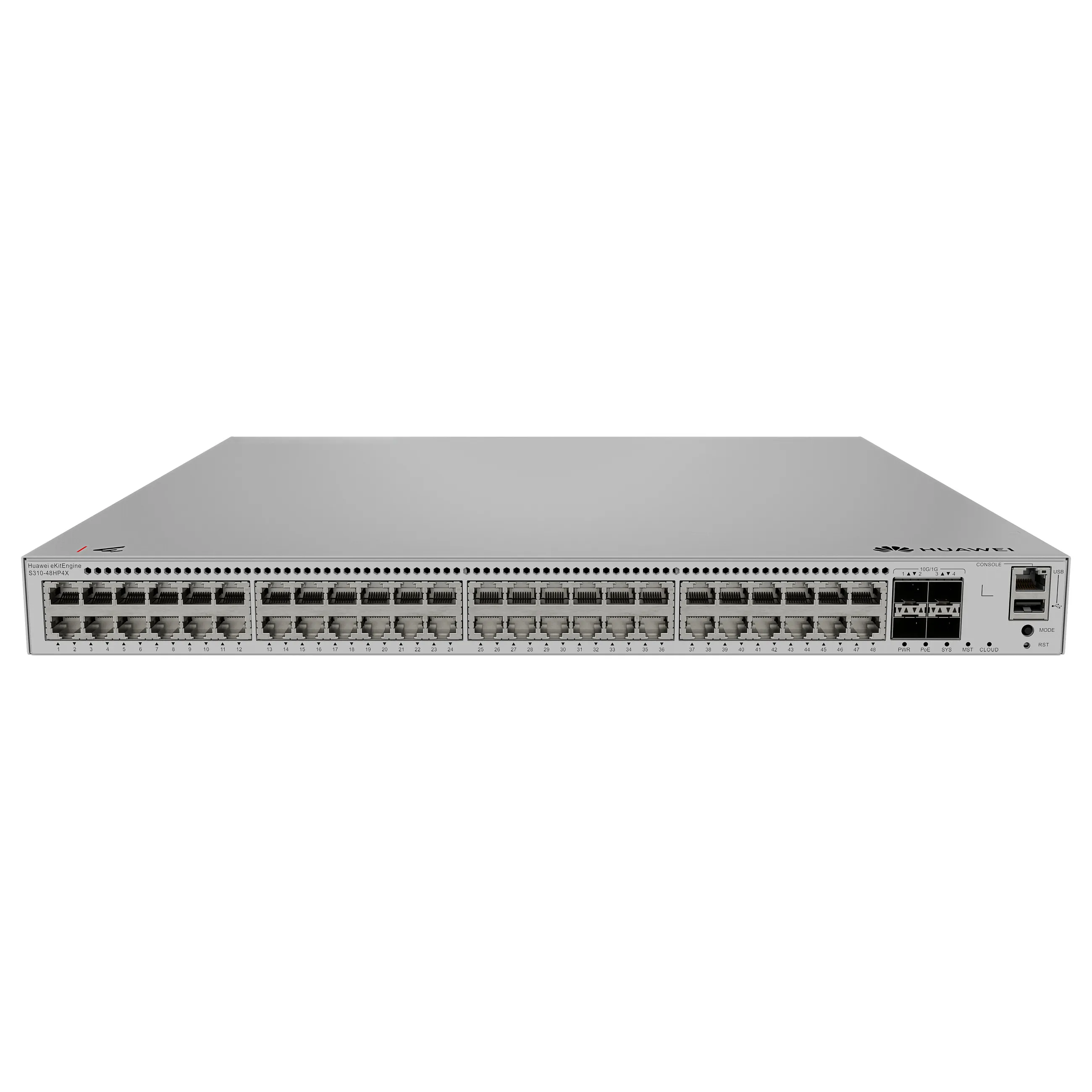

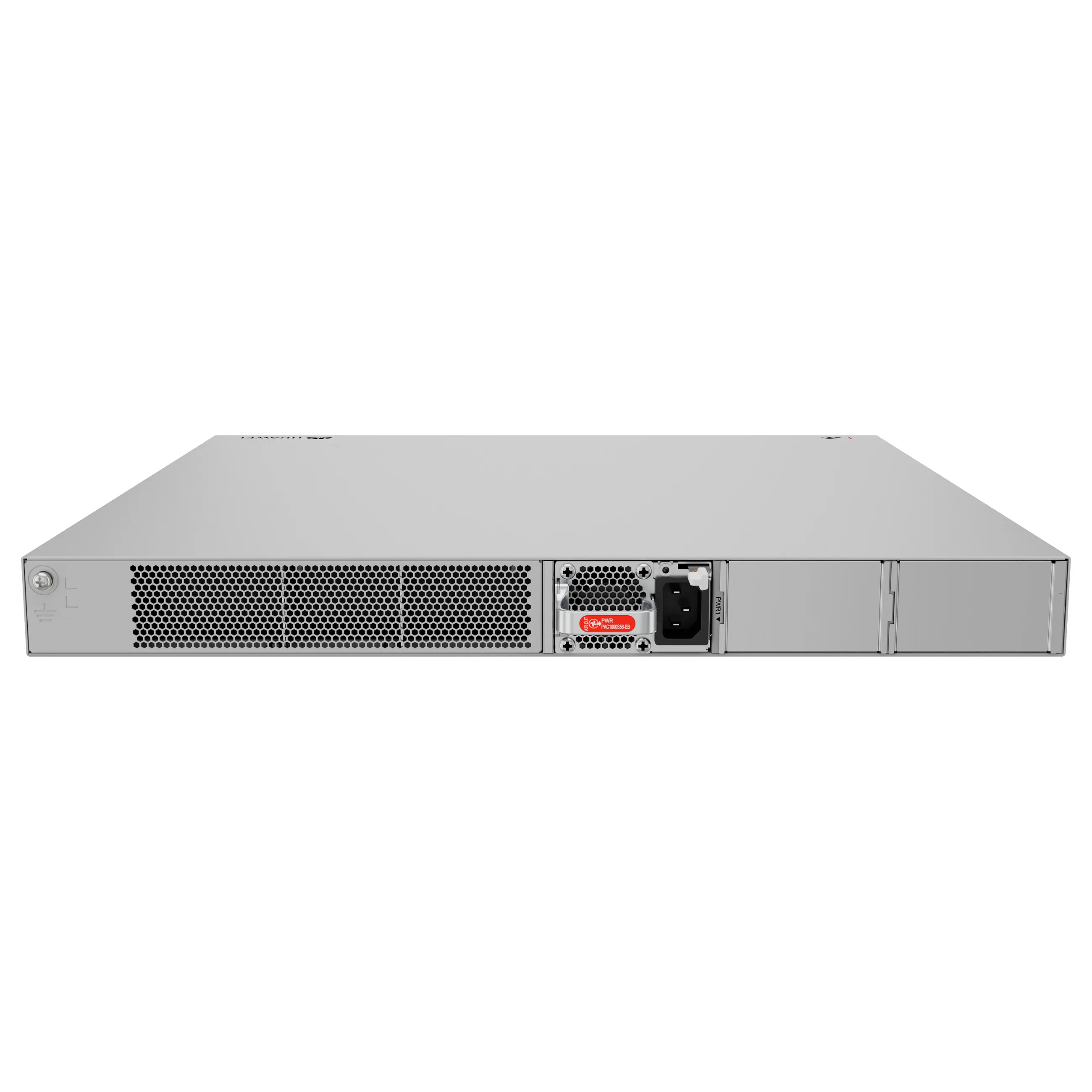

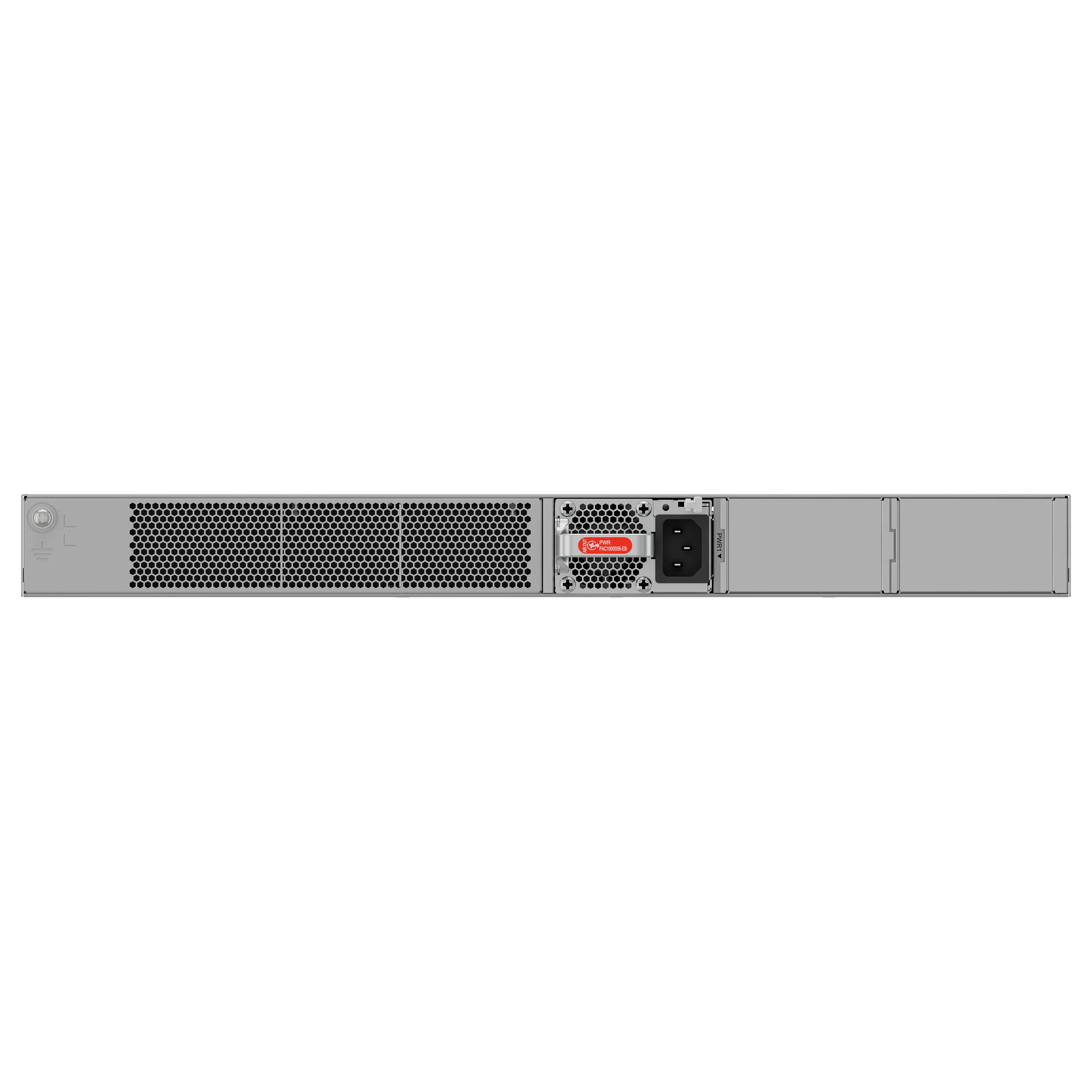

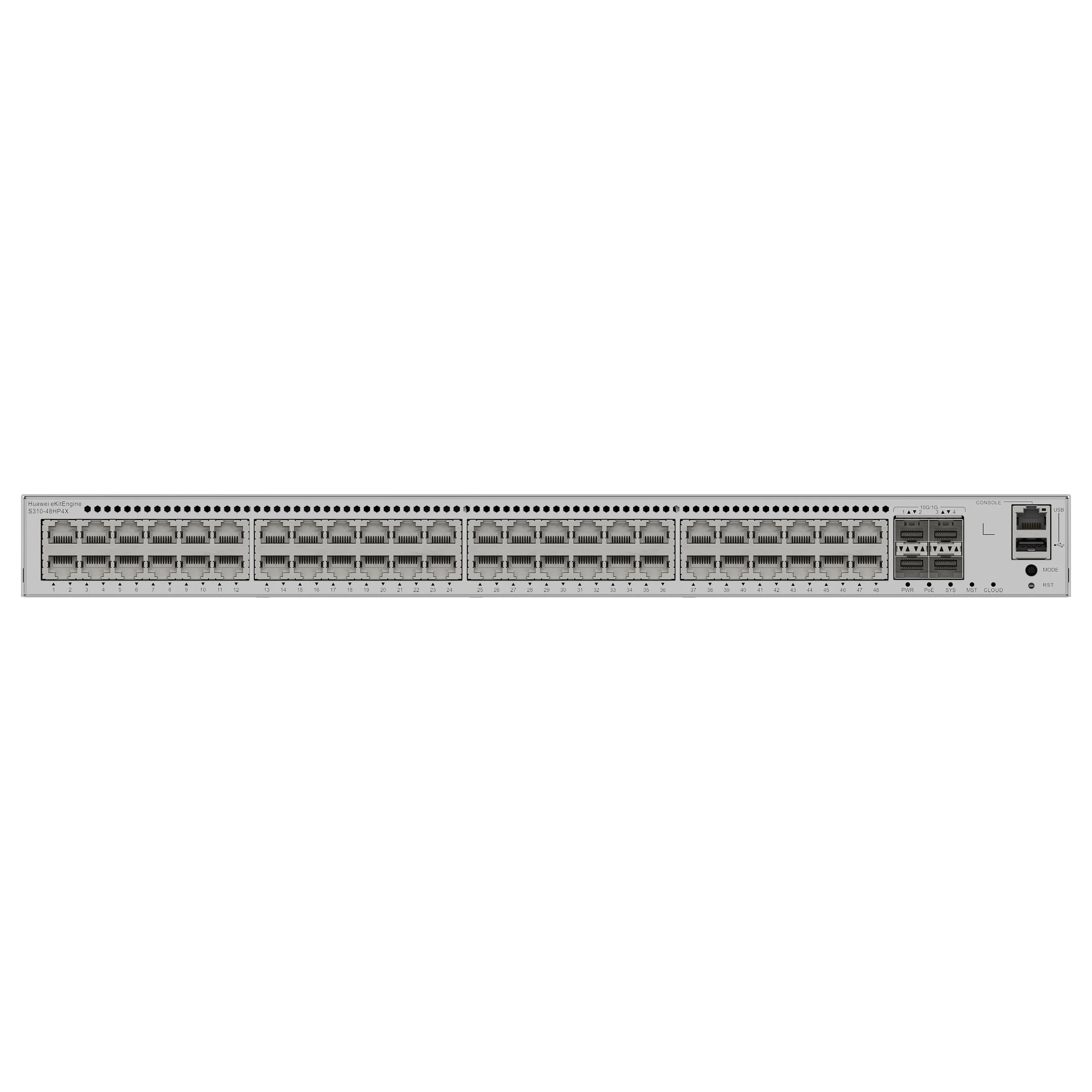

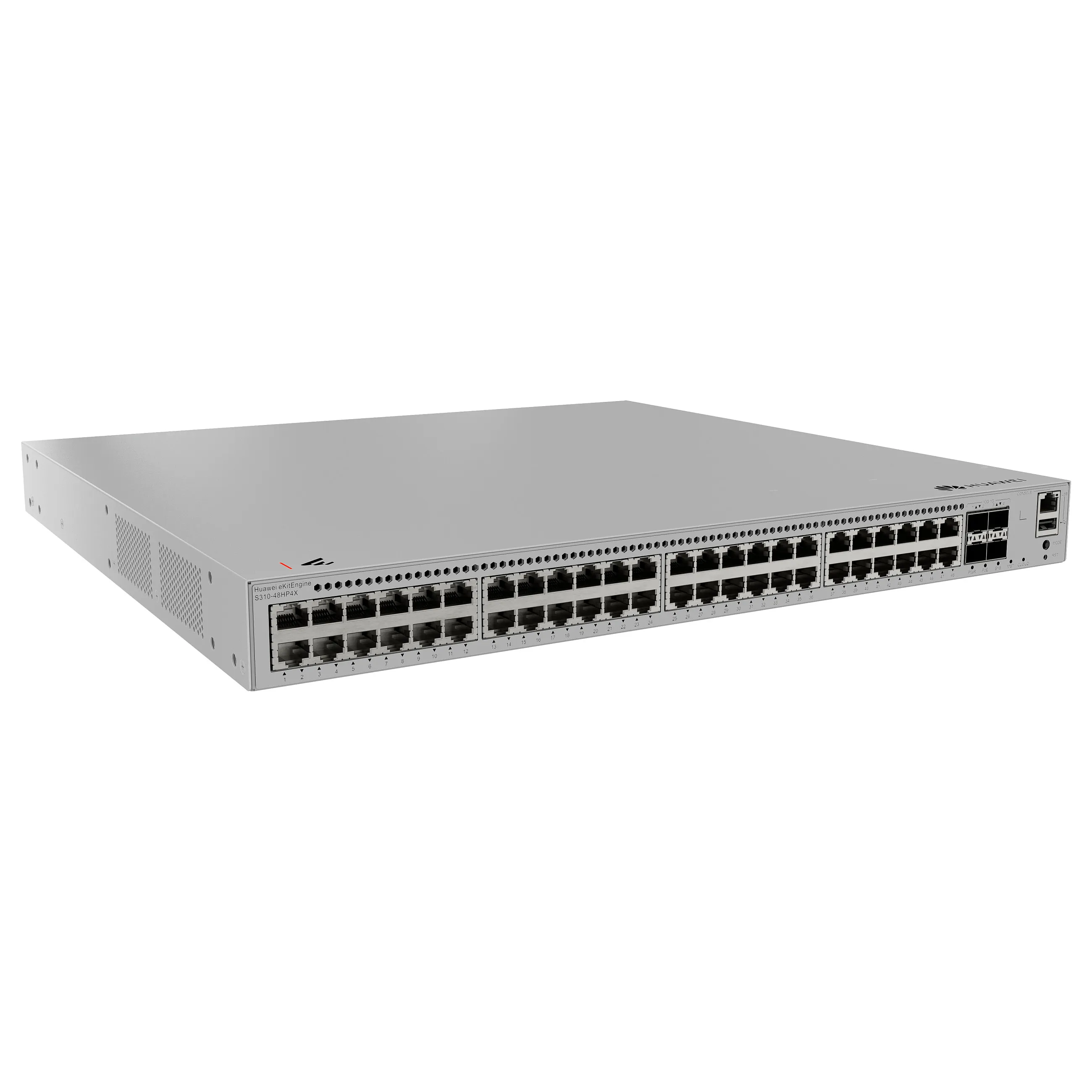

HUAWEI eKit eKitEngine S310-48HP4X

Management features
Feature: Cloud-managed
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4
Console port: RJ-45
Network
Feature: 10G support
Feature: IP routing
Design
Product colour: Grey
Housing material: Metal
Performance
Noise level: 67 dB
Mean time between failures (MTBF): 46.89 h
Power
Power source: AC
Feature: Power supply included
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (typical): 52.78 W
Power consumption (max): 74.66 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
Total Power over Ethernet (PoE) budget: 846 W
Operational conditions
Operating temperature (T-T): -5 – 50 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 5 – 95%
Operating altitude: 0 – 5000 m
Non-operating altitude: 0 – 5000 m
Heat dissipation: 180.09 BTU/h
Weight & dimensions
Width: 442 mm
Depth: 420 mm
Height: 43.6 mm
Weight: 5.83 kg
Packaging data
Package weight: 8.04 kg
