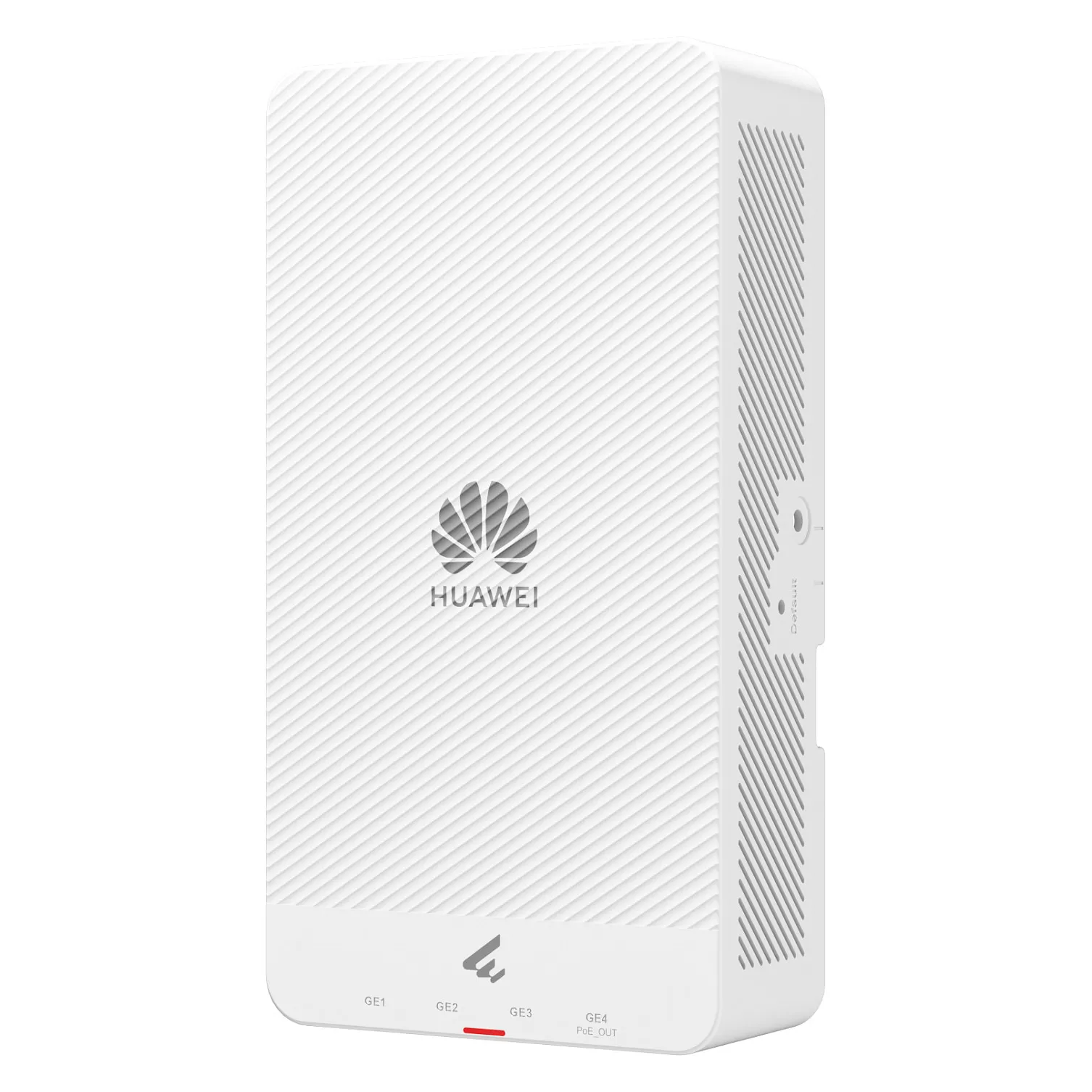

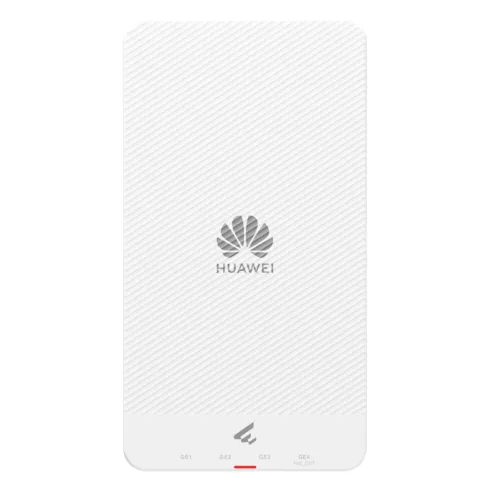

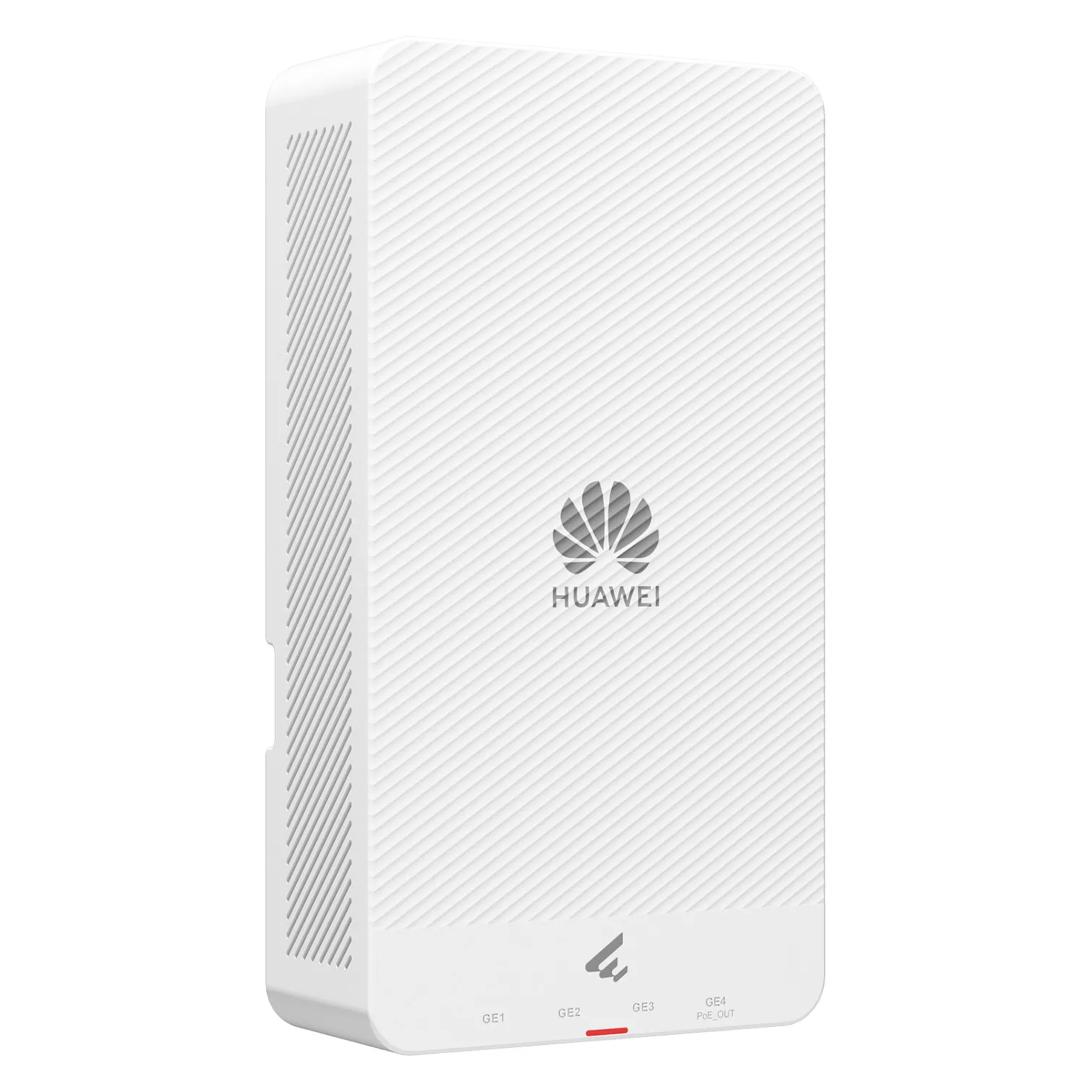

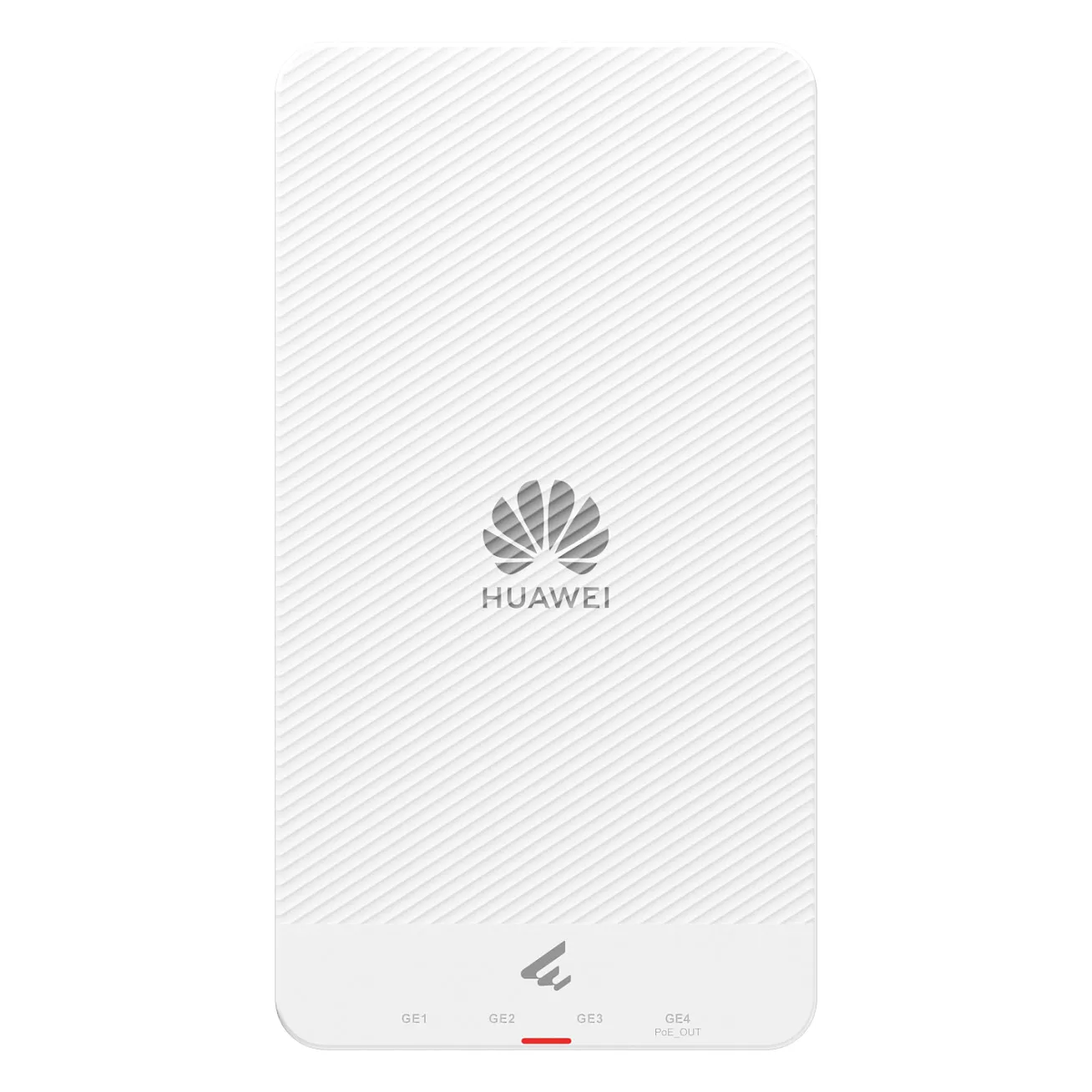

HUAWEI eKit AP266. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2975 Mbit/s. Security algorithms: SSH-2, WPA2-PSK, WPA3-SAE. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 9.4 W

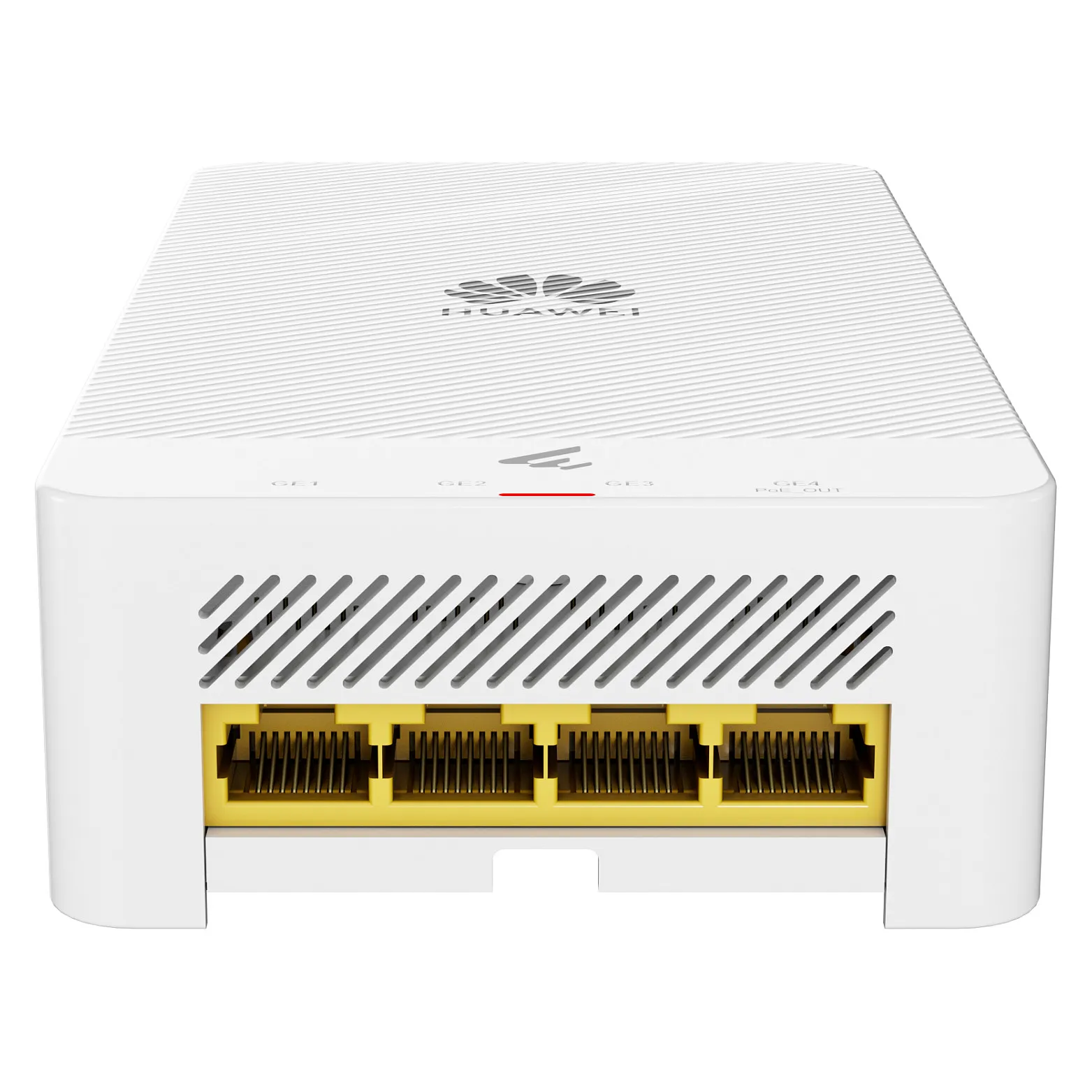

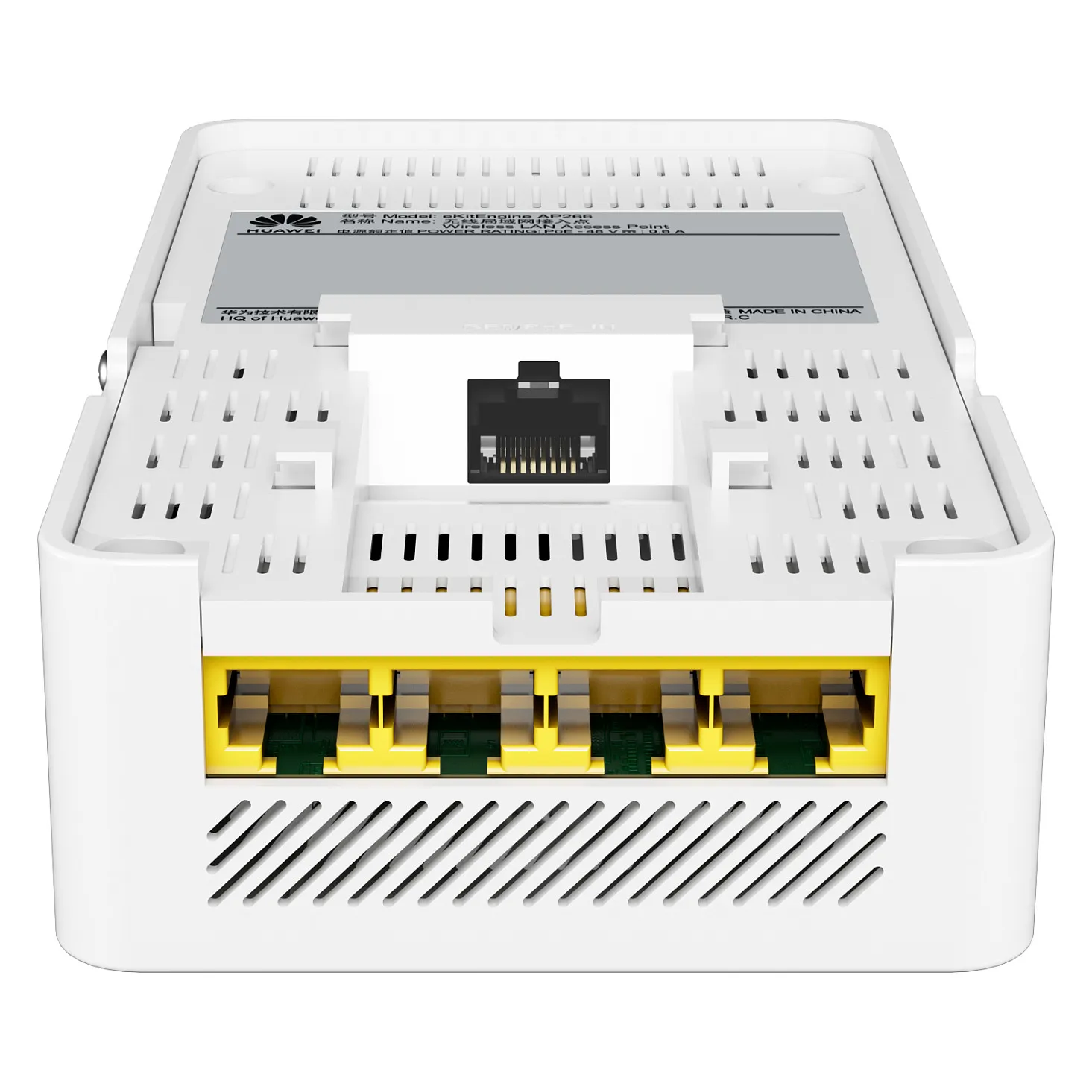

The AP provides one GE uplink port and four GE downlink ports (one supporting PoE OUT). It can be installed on a desk, wall, ceiling, or junction box, meeting connection requirements in multiple scenarios. The AP is small and easy to deploy, ideal for indoor coverage scenarios such as budget hotels, hospitals, commercial stores, and schools.
You can use the EasyWeb or wireless access controller (WAC) to locally deploy and manage APs, or use the HUAWEI eKit App & SNC platform to remotely manage and maintain APs. In this way, network projects can be handed over or managed together, simplifying network O&M.
Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 2975 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Frequency band: 2.4 – 5 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11v
Cabling technology: 10/100/1000Base-T(X)
Feature: MIMO
MIMO type: Multi User MIMO
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: Maximal-Ratio Combining (MRC)
Feature: Cyclic Delay Diversity (CDD)
Feature: Cyclic Shift Diversity (CSD)
Feature: Dynamic Frequency Selection (DFS)
Feature: BeamForming
Security
Security algorithms: SSH-2, WPA2-PSK, WPA3-SAE
Feature: DHCP snooping
Feature: Access Control List (ACL)
Protocols
Feature: DHCP server
Feature: DHCP client
Ports & interfaces
Ethernet LAN (RJ-45) ports: 5
Power
Feature: Power over Ethernet (PoE)
Power consumption (max): 9.4 W
Design
Placement: Ceiling, Pole, Wall
Product colour: White
Antenna
Antenna type: Internal
Performance
Feature: Built-in processor
Processor frequency: 1200 MHz
Flash memory: 256 MB
Internal memory: 256 MB
Weight & dimensions
Width: 86 mm
Depth: 38 mm
Height: 160 mm
Weight: 230 g
Packaging data
Package width: 108 mm
Package depth: 68 mm
Package height: 187 mm
Package weight: 420 g
Packaging content
Quantity per pack: 1 pc(s)
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Storage relative humidity (H-H): 5 – 95%
Operating altitude: -60 – 5000 m
