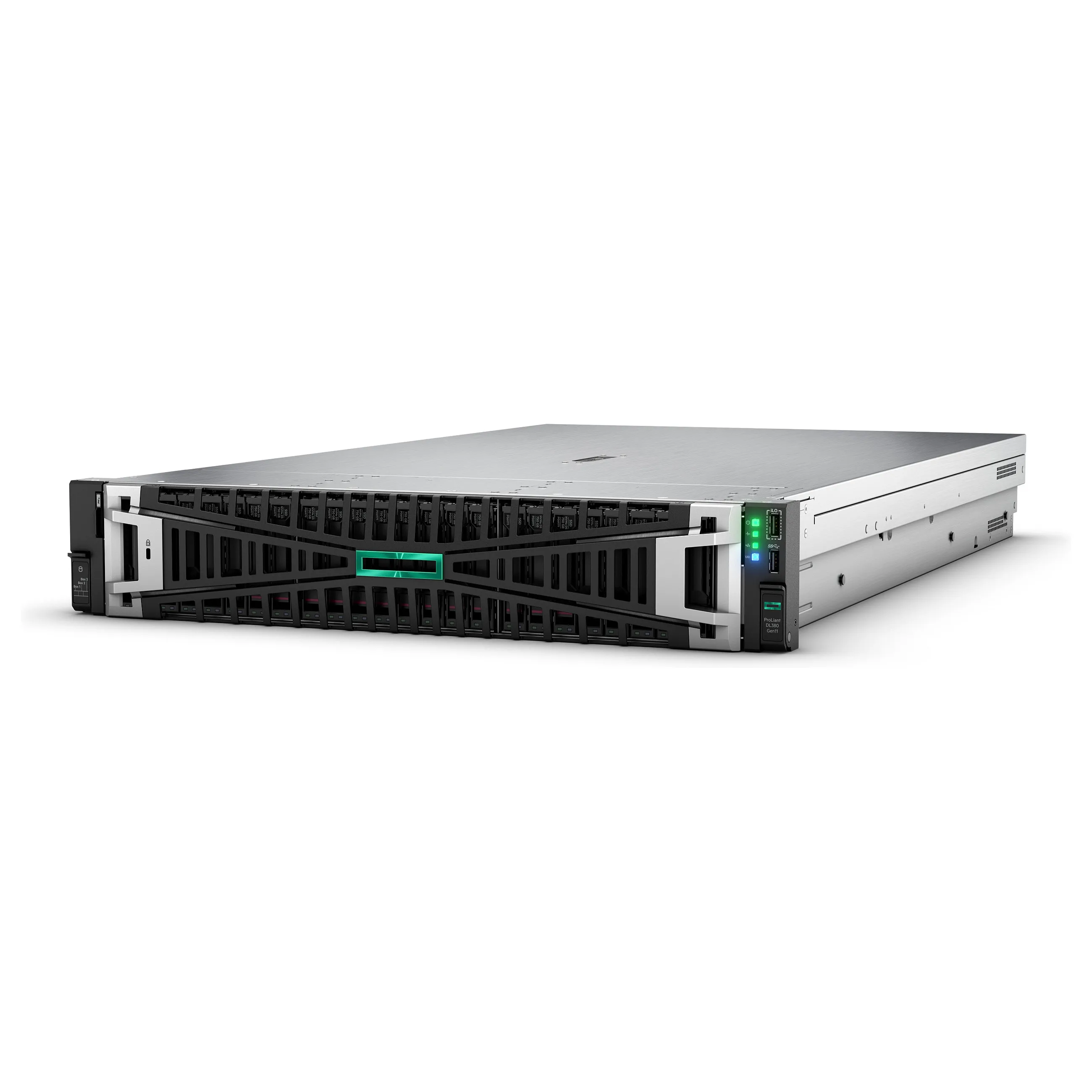

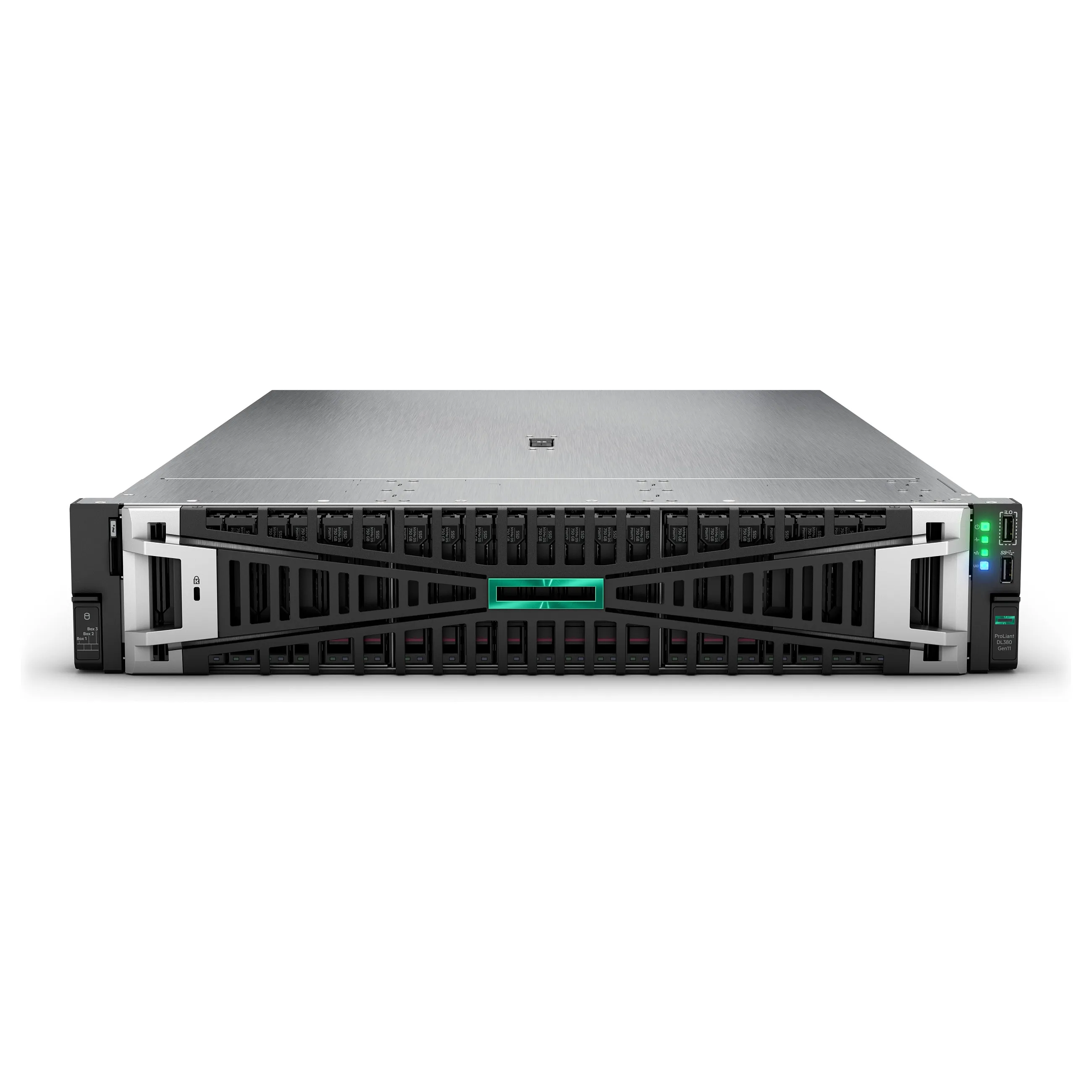

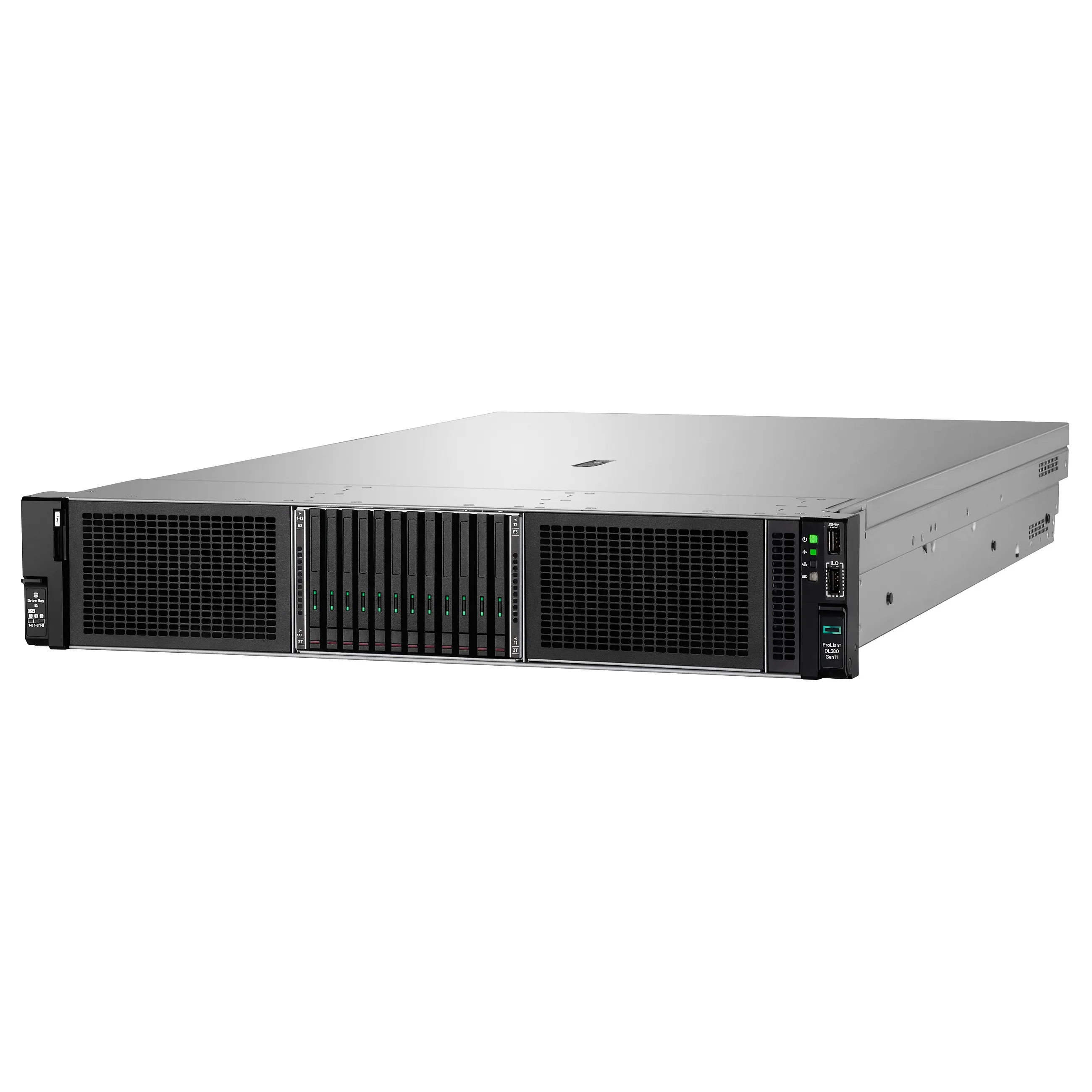

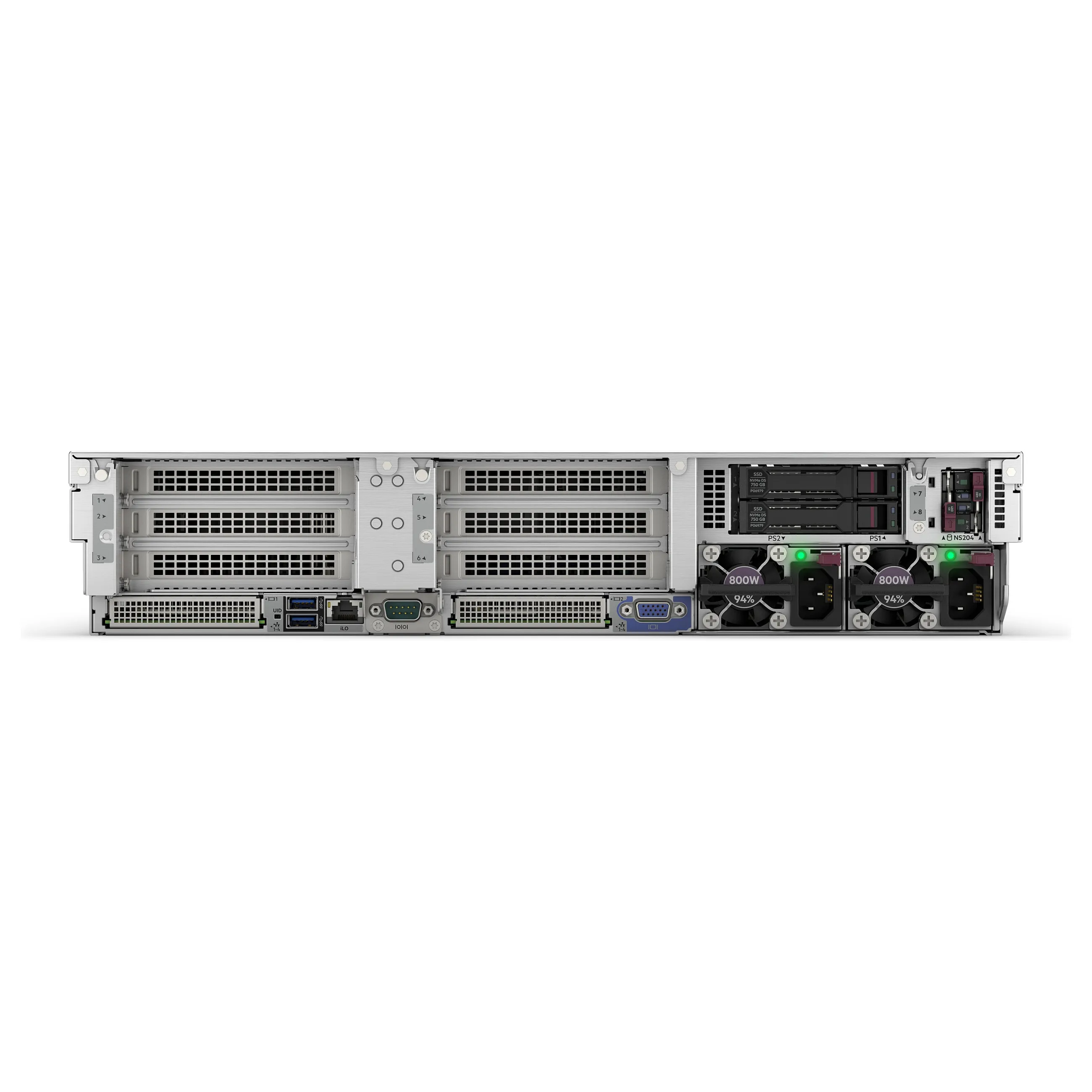

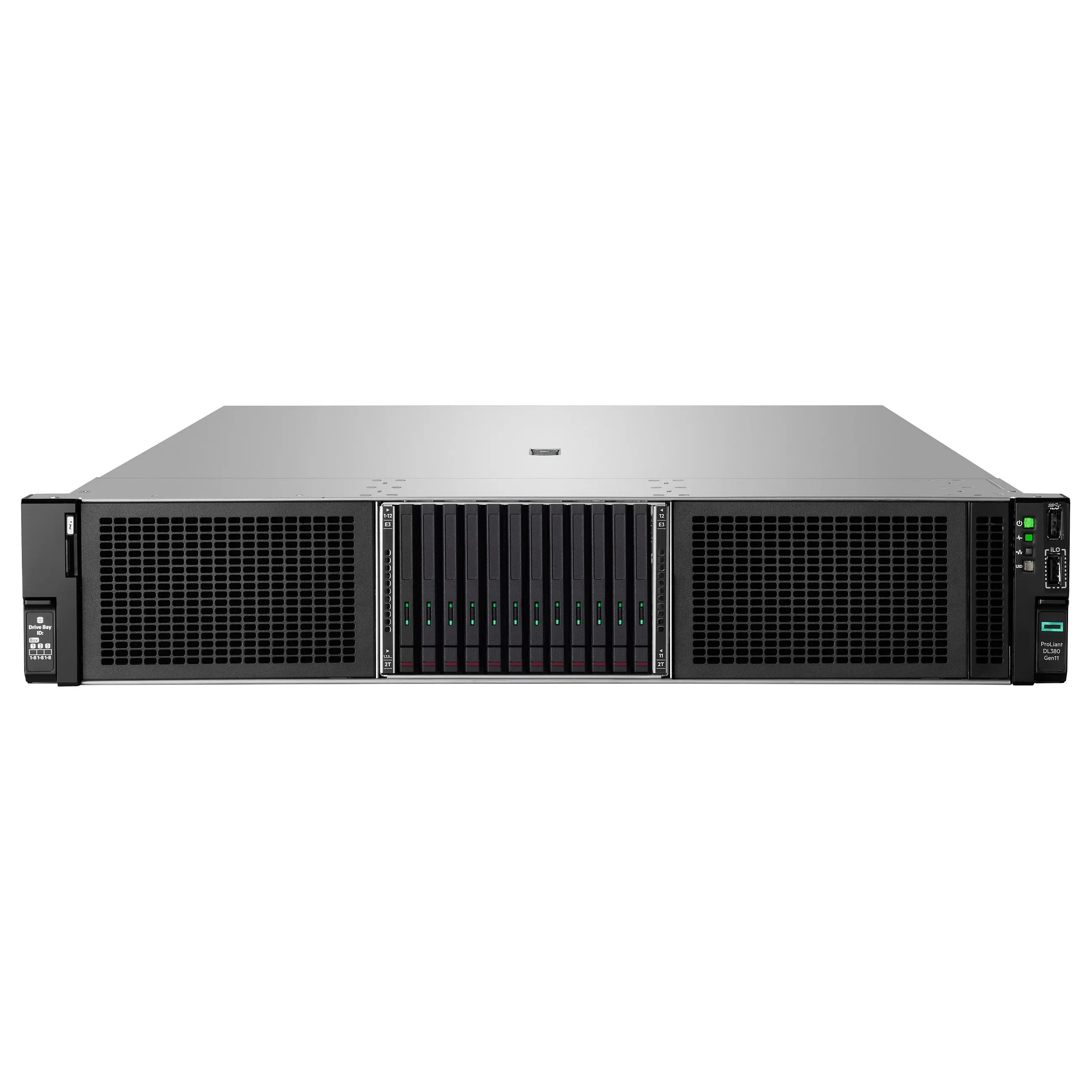

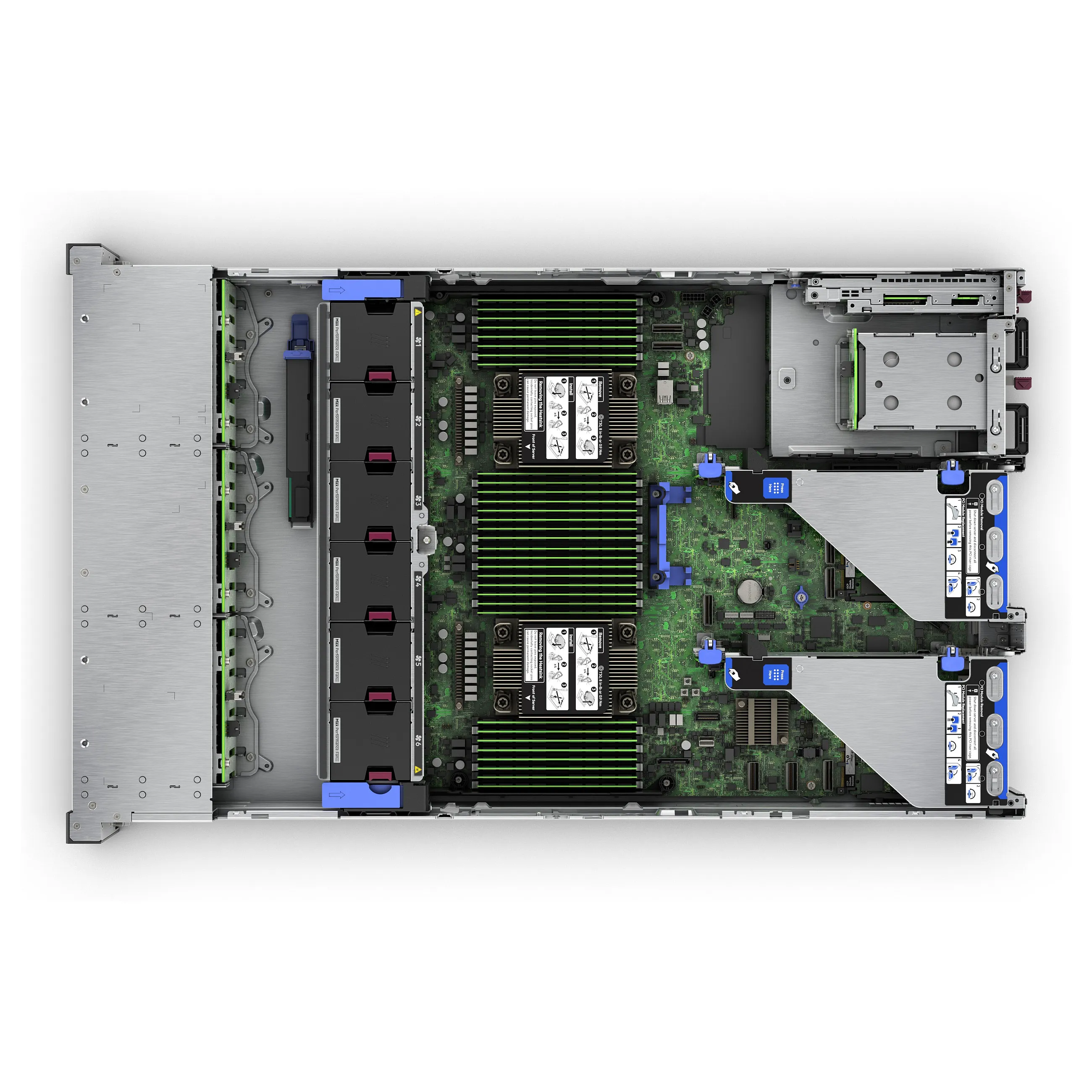

HPE ProLiant DL380 Gen11 4509Y 2.6GHz 8c 1P 2x32GB-R 8SFF MR408i-o 2x480GB SSD 2x1000W PS EU Server. Processor family: Intel Xeon Silver, Processor frequency: 2.6 GHz, Processor model: 4509Y. Internal memory: 64 GB, Internal memory type: DDR5-SDRAM, Memory layout (slots x size): 2 x 32 GB. Total storage capacity: 960 GB. Ethernet LAN. Power supply: 1000 W, Redundant power supply (RPS) support. Chassis type: Rack (2U)
What is new supporting point:
Includes the new HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly, from anywhere.
Supports hot-pluggable, high-availability RAID M.2 boot options.
Supports up to eight single-wide (SW) or three double-wide (DW) GPUs to accelerate graphic intense workloads.
Powered by the 4th and 5th Gen Intel Xeon Scalable Processors with next-generation technology that support up to 64 cores at 350W and 16 DIMMs for DDR5 memory at speeds up to 5600 MHz.
Support for up to 8 TB total DDR5 memory with 16 DIMM channels per processor delivers increased performance, lower power requirements, and High Bandwidth Memory (HBM) support.
Support for PCIe Gen5, resulting in improved bandwidth, advanced data transfer rates, and higher network speeds from the PCIe Gen5 serial expansion bus.
Processor manufacturer: Intel
Processor family: Intel Xeon Silver
Processor model: 4509Y
Processor frequency: 2.6 GHz
Processor cores: 8
Processor cache: 22.5 MB
Number of processors installed: 1
Processor cache type: L3
Memory
Internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory slots: 32x DIMM
Memory clock speed: 5600 MHz
Memory layout (slots x size): 2 x 32 GB
Storage
Total storage capacity: 960 GB
Number of HDDs installed: 2
Number of SSDs installed: 2
SSD capacity: 480 GB
SSD interface: SATA III
Feature: RAID support
Supported RAID controllers: HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller
Optical drive type: No
Network
LAN controller: Broadcom BCM5719
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports: 4
Expansion slots: Up to 8 PCIe Gen5, and 2 OCP 3.0, for detailed descriptions reference the QuickSpecs
Design
Chassis type: Rack (2U)
Performance
Management platform: HPE iLO Standard with intelligent provisioning (embedded), and HPE Compute Ops Management (optional subscription available)
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Power
Power supply type: 2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit
Feature: Redundant power supply (RPS) support
Power supply: 1000 W
Number of redundant power supplies installed: 2
Number of main power supplies: 2
Weight & dimensions
Width: 600 mm
Depth: 998 mm
Height: 273 mm
Weight: 41.3 kg
Other features
Standard fans: 4x Standard Fans
Dimensions (W x D x H) (imperial): 599.9 x 998 x 273.1 mm (23.6 x 39.3 x 10.8″)
Storage drive type: 2x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD
Security features: HPE TPM 2.0 standard on motherboard. Optional locking Bezel Kit, Intrusion Detection Kit. For full security features refer to the QuickSpecs.
Weight (imperial): 41.3 kg (91.1 lbs)
Number of processors supported: 1
