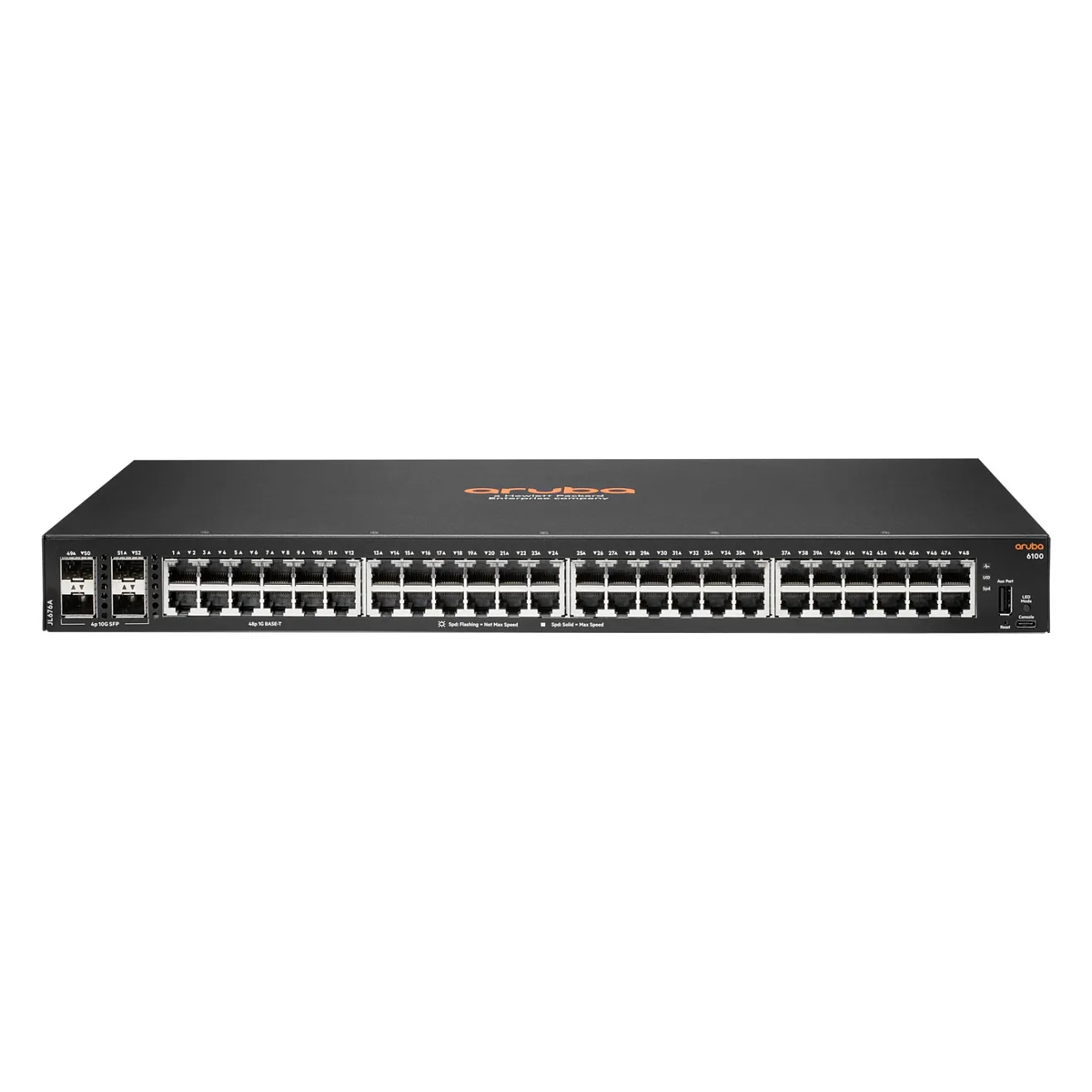

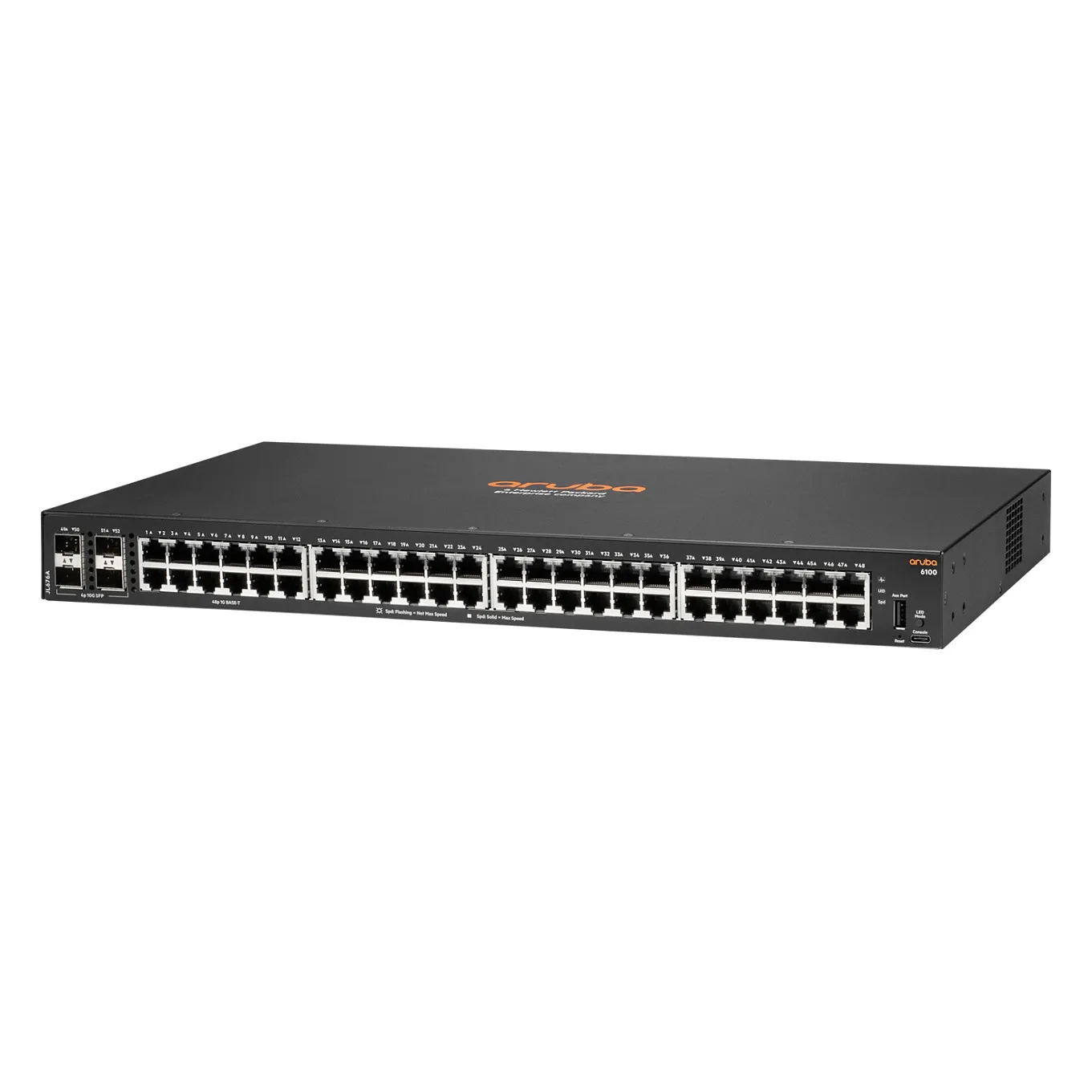

HPE Aruba Networking CX 6100 48G 4SFP+ Switch. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 8192 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE…. Rack mounting, Form factor: 1U
What is new supporting point:
It simplifies IT operations with next-gen Layer 2 switch series that provides entry-level, reliable, and convenient wired access connectivity
It has compact and fan-less 12-port PoE model for space-constrained deployments
The CX 6100 series provides right size with 12, 24, and 48-port 1U models with convenient built-in 1/10GbE uplinks and up to 740W of Class 4 PoE
The CX 6100 provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry-standard CLI
It offers scalability with a 6-member switch virtual switching framework (VSF) stacking
Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4
Network
Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x
Feature: 10G support
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Spanning tree protocol
Feature: VLAN support
Data transmission
Switching capacity: 176 Gbit/s
Throughput: 98.6 Mpps
MAC address table: 8192 entries
Latency (1 Gbps): 1.9 µs
Latency (10 Gbps): 1.8 µs
Feature: Jumbo frames support
Packet buffer memory: 12.38 MB
Security
DHCP features: DHCP client
Feature: Access Control List (ACL)
Multicast features
Feature: Multicast support
Design
Feature: Rack mounting
Feature: Stackable
Form factor: 1U
Product colour: Black
Airflow direction: Side-to-side airflow
Performance
Virtual stacking (units): 16
Feature: Built-in processor
Processor model: ARM Cortex-A9
Processor frequency: 1016 MHz
Memory type: DDR3-SDRAM
Internal memory: 4096 MB
Flash memory: 16 MB
Power
Power source: AC
Feature: Power supply included
AC input voltage: 200 – 240 V
AC input frequency: 50 – 60 Hz
Power consumption (max): 44.2 W
Power consumption note: Max. Power: 44.2W
Power supply note: Fixed power supply
Other features
Latency: 1 Gbps: 1.9 μSec , 10 Gbps: 1.8 μSec
Memory and processor: Dual Core ARM Cortex A9 @ 1016 Mhz 4 GB DDR3, maximum, depending on model 16 GB eMMC
I/O ports: 48 x 10/100/1000BASE-T ports 4 x 1G/10G SFP ports 1 x USB-C console port 1 x USB Type-A host port
Performance management: Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Weight (imperial): 3.42 kg (7.54 lbs)
Dimensions (W x D x H) (imperial): 43.9 x 442 x 247.4 mm (1.73 x 17.4 x 9.74″)
Fan: Fixed fans
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 15 – 95%
Storage relative humidity (H-H): 15 – 90%
Weight & dimensions
Width: 44 mm
Depth: 442 mm
Height: 247 mm
Weight: 3.4 kg
Logistics data
Harmonized System (HS) code: 85176990
