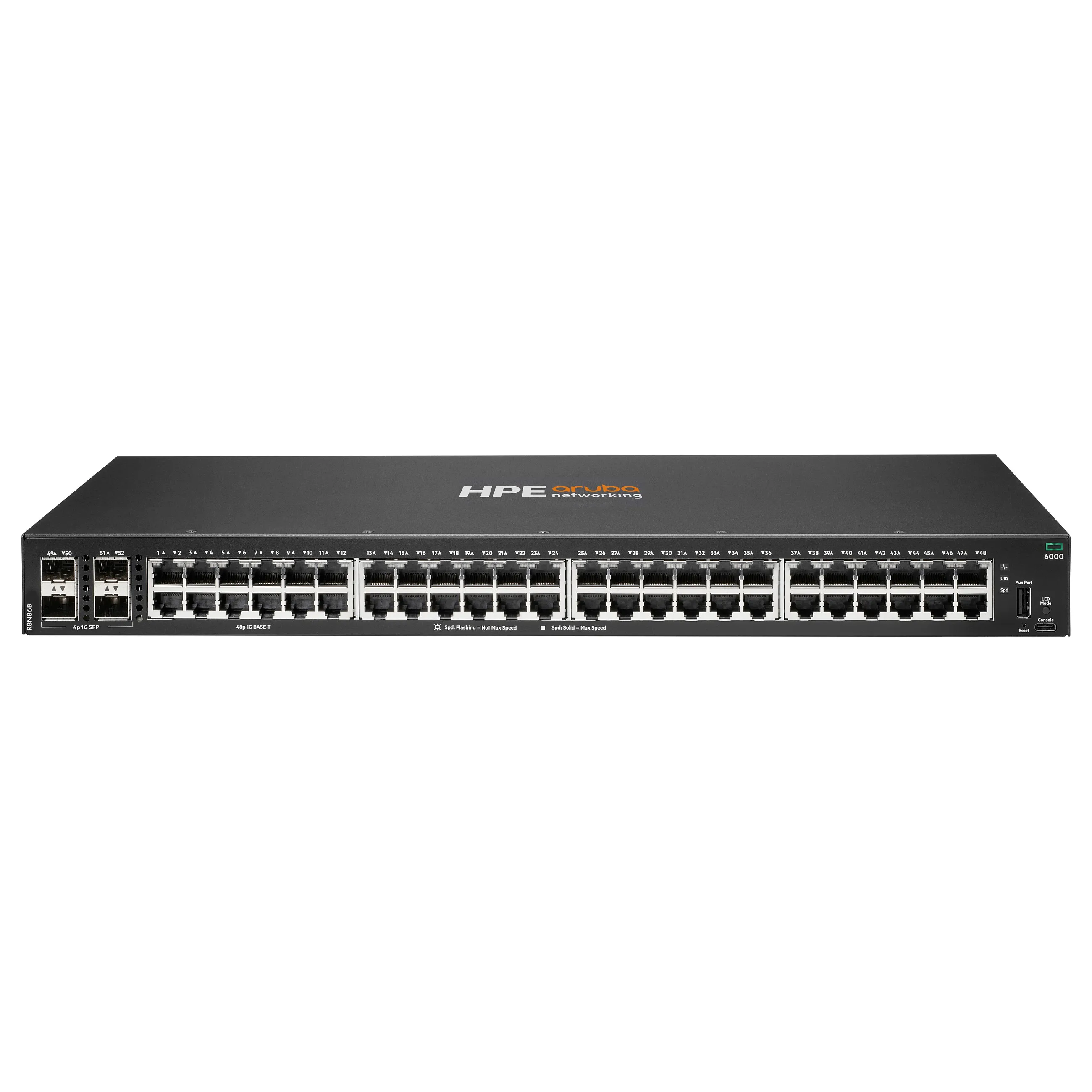

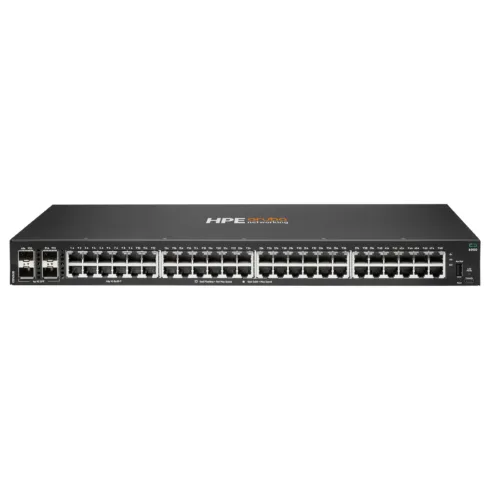

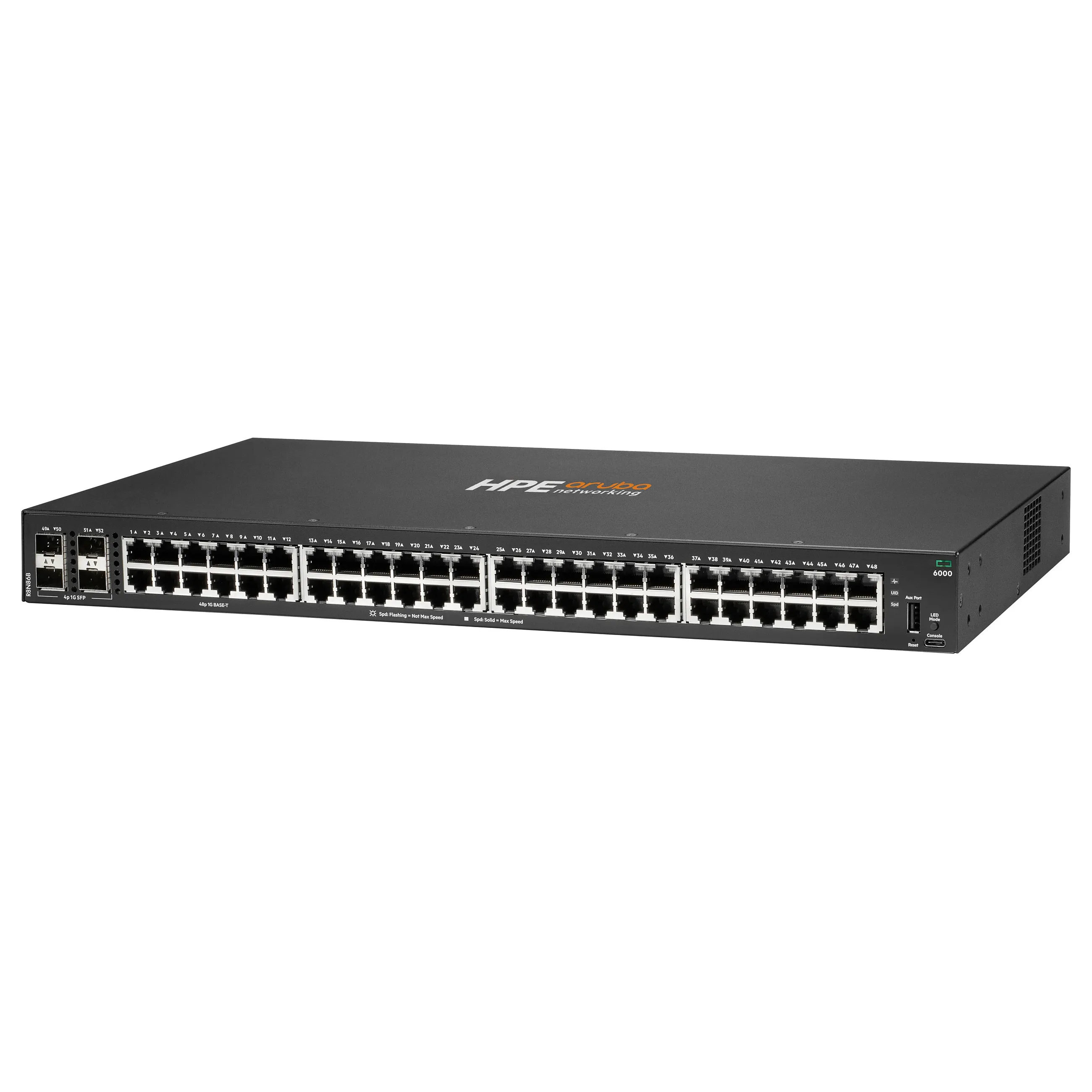

HPE Aruba Networking CX 6000 48p 10M/100M/1G 4p SFP 1G Switch. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 1, Console port: USB. MAC address table: 8192 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE…. Rack mounting, Form factor: 1U
What is new supporting point:
It simplifies IT operations with modern Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity
The CX 6000 series has convenient built-in 1GbE uplinks and up to 740W of Class 4 PoE for support of access points, client, and IoT devices
It has compact and fanless 8-port and 12-port models for space-constrained deployments
The CX 6000 provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI
Ready for software defined networking with REST APIs.
Switch type: Managed
Switch layer: L2/L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Feature: Configuring Location Settings (CLI)
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 4
Console port: USB
USB 2.0 ports quantity: 1
Network
Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1ab
Feature: Flow control support
Data transmission
Switching capacity: 104 Gbit/s
Throughput: 77.3 Mpps
MAC address table: 8192 entries
Latency (1 Gbps): 1.9 µs
Feature: Static route
Security
DHCP features: DHCP server, DHCP snooping, DHCP relay, DHCP client
Feature: Access Control List (ACL)
Multicast features
Feature: Multicast support
Design
Feature: Rack mounting
Form factor: 1U
Product colour: Black
Performance
Feature: Built-in processor
Processor manufacturer: ARM
Processor model: ARM Cortex-A9
Processor frequency: 1016 MHz
Memory type: DDR3-SDRAM
Internal memory: 4096 MB
Flash memory: 16000 MB
Power
Power source: AC
AC input voltage: 200 – 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 35.2 W
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 442.5 mm
Depth: 246.5 mm
Height: 43.9 mm
Weight: 2.98 kg
