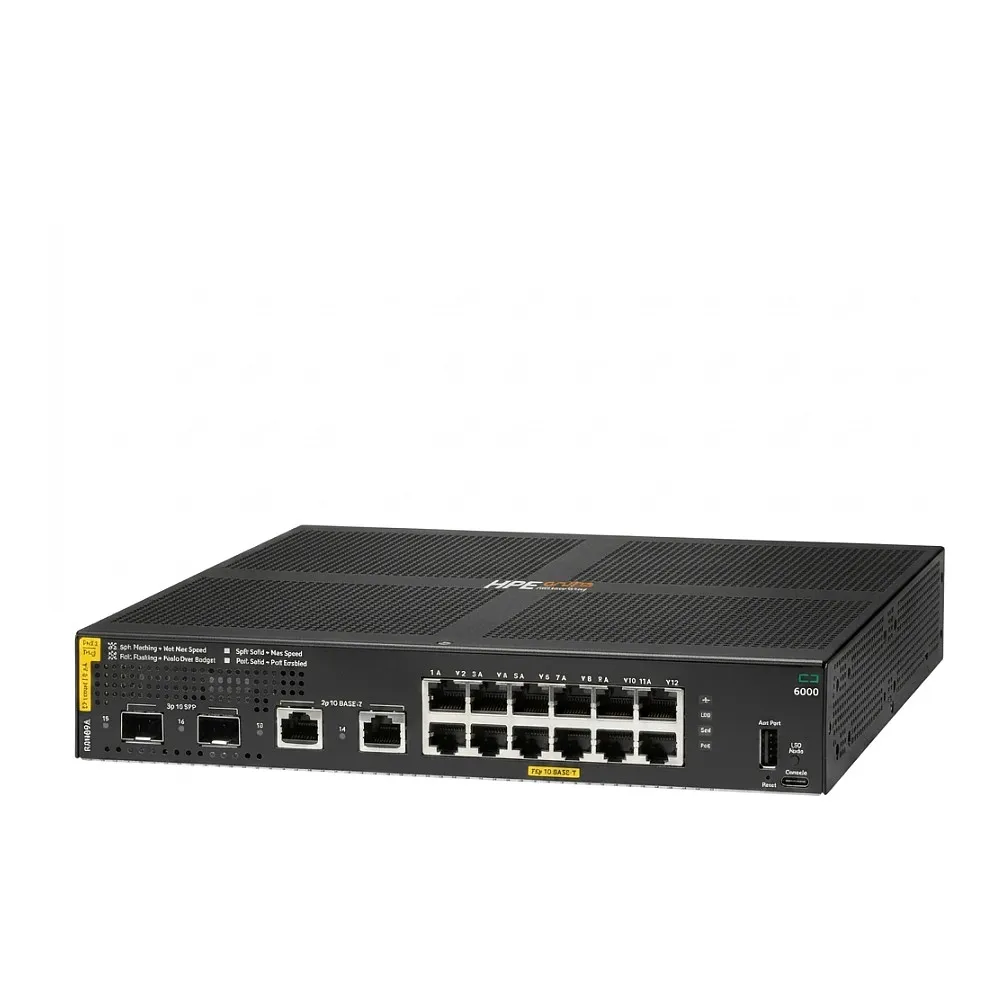

HPE Aruba Networking CX 6000 12p 10M/100M/1G Class4 PoE 2p SFP 1G 139W Switch. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 12, Console port: USB. MAC address table: 8192 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE…. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
What is new supporting point:
It simplifies IT operations with modern Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity
The CX 6000 series has convenient built-in 1GbE uplinks and up to 740W of Class 4 PoE for support of access points, client, and IoT devices
It has compact and fanless 8-port and 12-port models for space-constrained deployments
The CX 6000 provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI
Ready for software defined networking with REST APIs.
Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 12
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2
Console port: USB
Network
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: VLAN support
Data transmission
Switching capacity: 32 Gbit/s
Throughput: 23.8 Mpps
MAC address table: 8192 entries
Latency (1 Gbps): 2.3 µs
Feature: Static route
Packet buffer memory: 12.38 MB
Security
DHCP features: DHCP client
Feature: Access Control List (ACL)
Feature: IGMP snooping
Authentication: MAC-based authentication
Multicast features
Feature: Multicast support
Protocols
IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL)
IPv4 FIB entries: 256
IPv6 FIB entries: 128
Design
Feature: Rack mounting
Form factor: 1U
Performance
Feature: Built-in processor
Processor model: ARM Cortex-A9
Processor frequency: 1016 MHz
Memory type: DDR3-SDRAM
Internal memory: 4096 MB
Flash memory: 16384 MB
Power
Power source: AC
Feature: Power supply included
AC input voltage: 200 – 240 V
Power consumption note: Max. Power (w/o PoE): 19.7W Max. Power (w/ PoE): 165W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 139 W
Other features
Latency: 1 Gbps: 2.3 μSec
Memory and processor: CPU: Dual-core Arm Cortex-A9 @ 1016 MHz Memory: 4 GB DDR3 Flash: 16 GB eMMC
Performance management: Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 15 – 95%
Storage relative humidity (H-H): 15 – 90%
Weight & dimensions
Width: 44 mm
Depth: 254 mm
Height: 255 mm
Weight: 2.8 kg
Logistics data
Harmonized System (HS) code: 85176990
