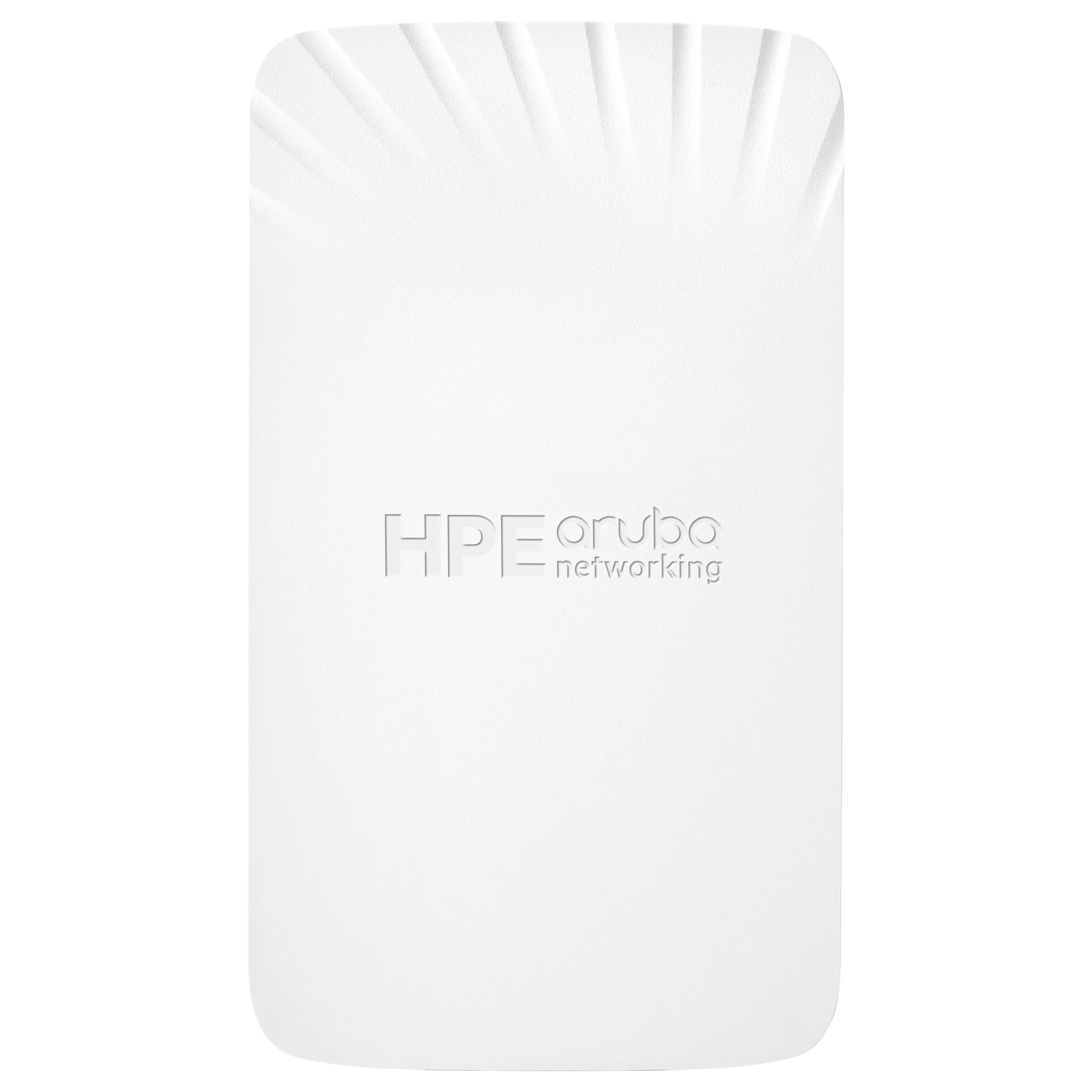

HPE Aruba Networking AP-503H (RW) Dual Radio 802.11ax 2×2 1+2 Ethernet Unified Hospitality AP. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1487 Mbit/s. Security algorithms: WPA2, WPA3. Ethernet LAN data rates: 1000,5000 Mbit/s. Power over Ethernet (PoE). Product colour: White
What is new supporting point:
Cost-effective Wi-Fi 6 hospitality access points provide up to 1.49 Gbps maximum combined data rate with a range of connectivity options for venues such as hotels, residence halls, and remote offices
The AP provides supports for OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security
You can customize deployment with optional desktop stand and models that offer choice of wired connectivity, USB, and PoE out support
The AP provides IoT-ready Bluetooth 5 and Zigbee support
Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent policies across the network, enhancing user and device security
Zero touch provisioning (ZTP) provides ease of implementation in branch offices and remote sites, without on-site technical expertise
Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 1487 Mbit/s
Maximum data transfer rate (2.4 GHz): 287 Mbit/s
Maximum data transfer rate (5 GHz): 1200 Mbit/s
Ethernet LAN data rates: 1000,5000 Mbit/s
Frequency band: 20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps
Networking standards: IEEE 802.11ax, IEEE 802.11mc
Feature: Bluetooth
Bluetooth version: 5.0
Feature: Auto MDI/MDI-X
Feature: MIMO
MIMO type: Multi User MIMO
Spread spectrum method: DSSS, OFDM, OFDMA
Modulation: 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Security
Security algorithms: WPA2, WPA3
Management features
Access point management: On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
USB connector type: Micro-USB B
Power
Feature: Power over Ethernet (PoE)
Power consumption (typical): 10 W
Design
Placement: Table, Wall
Product colour: White
Recommended usage: Indoor
Antenna
Antenna type: Internal
Antenna direction type: Semi-directional
Antenna features: Integrated antenna
Antennas quantity: 2
Antenna gain level (max): 5.6 dBi
Certificates
Compliance certificates: Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Weight & dimensions
Width: 86 mm
Depth: 47 mm
Height: 150 mm
Weight: 360 g
Other features
I/O ports: 1 x 10/100/1000BASE-T RJ-45 port, auto-sensing link speed and MDI/MDX 4 x 10/100/1000BASE-T (RJ-45) ports, auto-sensing link speed and MDI/MDX
Weight (imperial): 0.363 kg (0.8 lbs)
Operational conditions
Operating relative humidity (H-H): 5 – 93%
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Storage relative humidity (H-H): 5 – 93%
Logistics data
Harmonized System (HS) code: 85176990
