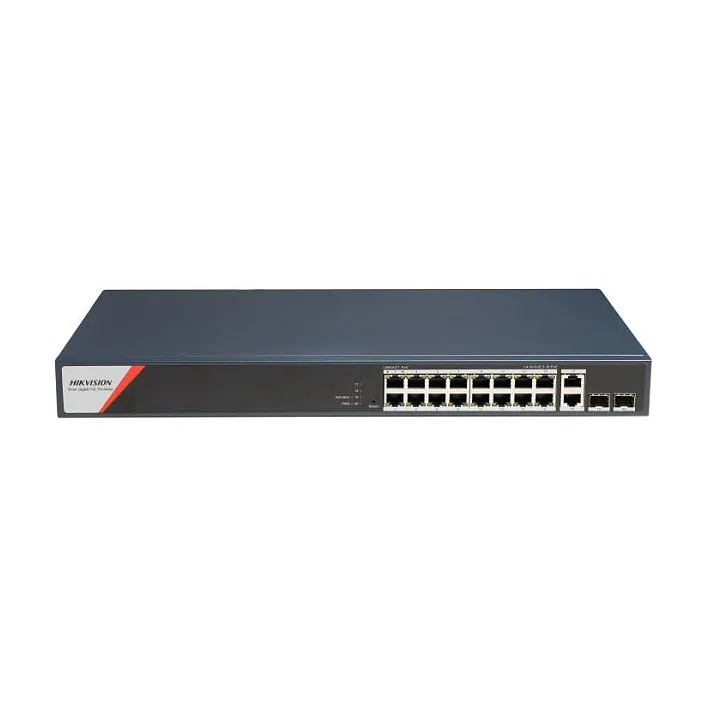

Hikvision 16 Port Gigabit Smart POE Switch. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 18. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting
Smart managed switches are developed by Hikvision, featuring easy management and maintenance. You can easily deploy, monitor and expand your security system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance.
Management features
Switch type: Managed
Feature: Quality of Service (QoS) support
Feature: Web-based management
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 18
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 18
Fiber ports quantity: 2
Fiber optic connector: SFP
Power connector: AC-in jack
Network
Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: Cable length detection
Feature: VLAN support
Number of VLANs: 4094
Data transmission
Switching capacity: 56 Gbit/s
Forwarding rate: 29.76 Mpps
MAC address table: 8000 entries
Packet buffer memory: 4.1 MB
Security
DHCP features: DHCP client, DHCP snooping
Feature: Access Control List (ACL)
Access Control List (ACL) rules: 128
Feature: Loop protection
Queue scheduling algorithms: SP, Weighted Round Robin (WRR)
Protocols
Feature: IP Source Guard (IPSG)
Design
Feature: Rack mounting
Housing material: Metal
Power
Power source: AC/PoE
AC input voltage: 100 – 240 V
Power consumption (max): 250 W
Feature: Surge protection
Surge protection voltage: 6 kV
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 16
Total Power over Ethernet (PoE) budget: 230 W
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -40 – 85 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 440 mm
Depth: 220.8 mm
Height: 44 mm
Weight: 2.73 kg
Packaging data
Package weight: 3.31 kg
Certificates
Compliance certificates: CB, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RCM, REACH, RoHS, WEEE
Switch type: Managed
Feature: Quality of Service (QoS) support
Feature: Web-based management
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 18
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 18
Fiber ports quantity: 2
Fiber optic connector: SFP
Power connector: AC-in jack
Network
Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: Cable length detection
Feature: VLAN support
Number of VLANs: 4094
Data transmission
Switching capacity: 56 Gbit/s
Forwarding rate: 29.76 Mpps
MAC address table: 8000 entries
Packet buffer memory: 4.1 MB
Security
DHCP features: DHCP client, DHCP snooping
Feature: Access Control List (ACL)
Access Control List (ACL) rules: 128
Feature: Loop protection
Queue scheduling algorithms: SP, Weighted Round Robin (WRR)
Protocols
Feature: IP Source Guard (IPSG)
Design
Feature: Rack mounting
Housing material: Metal
Power
Power source: AC/PoE
AC input voltage: 100 – 240 V
Power consumption (max): 250 W
Feature: Surge protection
Surge protection voltage: 6 kV
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 16
Total Power over Ethernet (PoE) budget: 230 W
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -40 – 85 °C
Operating relative humidity (H-H): 5 – 95%
Storage relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 440 mm
Depth: 220.8 mm
Height: 44 mm
Weight: 2.73 kg
Packaging data
Package weight: 3.31 kg
Certificates
Compliance certificates: CB, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RCM, REACH, RoHS, WEEE
