Green Cell UPS02. UPS topology: Line-Interactive, Output power capacity: 0.8 kVA, Output power: 480 W. AC outlet types: Type F, Power plug: Type F, AC outlets quantity: 2 AC outlet(s). Battery capacity: 9 Ah, Battery voltage: 12 V, Battery life (max): 5 year(s). Form factor: Tower, Product colour: Black, Display type: LCD. Width: 101 mm, Depth: 298 mm, Height: 142 mm
With attention to detail

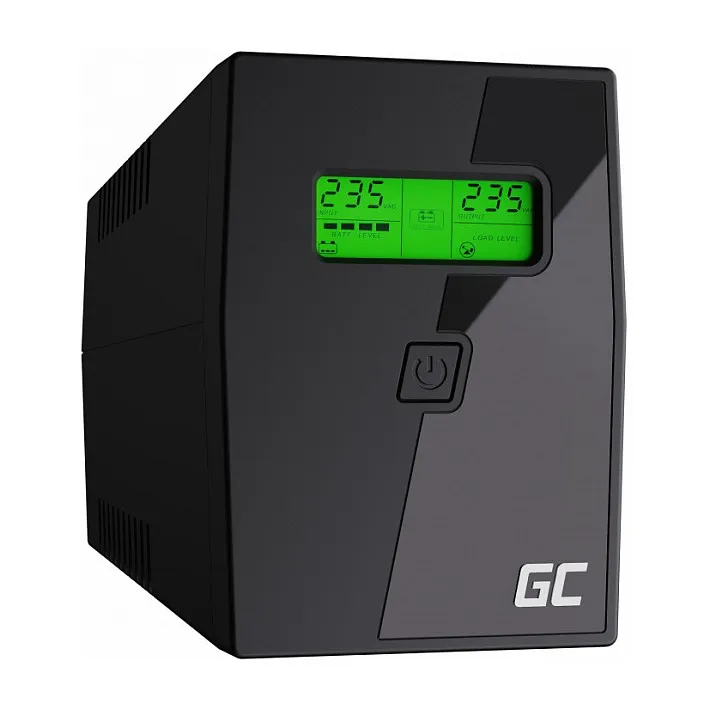

When designing our UPS’s, we took care of every aspect. By combining maximum functionality with unique design we created a device that will look great in every setting. What is more, to make using the UPS more comfortable we equipped it with an easy-to-read LCD display which will inform you about many parameters that are essential for the operation of the supply.
Type of UPS
Line interactive: UPS’s with line-interactive AVR topology are an improved version of offline power supply. They have been equipped with an automatic voltage stabiliser which protects not only against loss of supply voltage but also against line interference. These power supplies guarantee full security of all equipment connected to the UPS.
Power rating
This informs you how many and what sort of devices the UPS is able to supply with electricity. In order to meet users’ requirements, Green Cell UPS’s have been equipped with top quality AGM batteries which can have a lifetime of up to 5 years of operation and thereby ensure the best efficiency.
Switching time
It determines how quickly the UPS will respond to power outages. The lower its value, the better the UPS. Uninterruptible Power Supplies by Green Cell guarantee the lowest switching times, so they immediately respond to power outages, ensuring complete security and safety for your documents and devices.
Why a modified sine wave?
The use of a modified sinusoid ensures a simple UPS construction, thanks to which has less failure and its weight is very low. Choosing a modified sine wave, you do not have to worry about the work of connected devices!
Always under control
In order to make it possible to use of the functions of a Green Cell UPS, special dedicated software has been created to enable advanced management of the device. The application ensures simple and intuitive use without any problems. The program enables preview in real time and displays measurement data including input and output voltages, load frequency of the UPS, its temperature and battery capacity. You can setup automatic system shut-off, notifications and email warnings in the event of switching to batter operation. You can find out about these and other functions by downloading the software
UPS topology: Line-Interactive
Output power capacity: 0.8 kVA
Output power: 480 W
Waveform: Sine
Input operation voltage (min): 220 V
Input operation voltage (max): 240 V
Input frequency: 50/60 Hz
Output operation voltage (min): 230 V
Output operation voltage (max): 230 V
Output frequency: 50/60 Hz
Feature: Automatic Voltage Regulation (AVR)
Response time: 2 ms
Power protection features: Over voltage, Short circuit

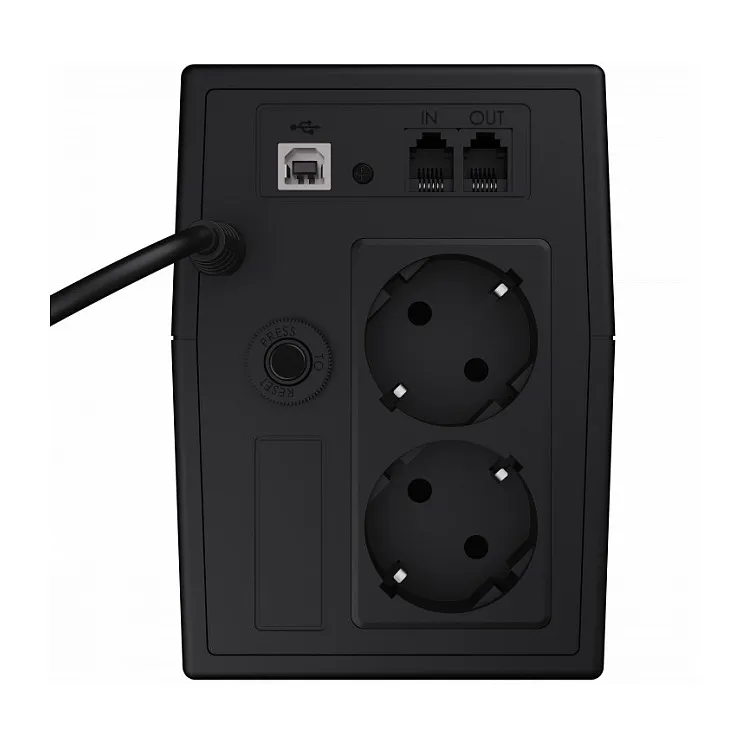

Ports & interfaces
AC outlet types: Type F
Power plug: Type F
AC outlets quantity: 2 AC outlet(s)
Feature: USB port
USB port type: USB Type-B
Modem (RJ-11) ports: 1
Ethernet LAN (RJ-45) ports: 1
Battery
Battery capacity: 9 Ah
Battery voltage: 12 V
Number of batteries supported: 1
Battery life (max): 5 year(s)
Design
Form factor: Tower
Product colour: Black
Display type: LCD
Weight & dimensions
Width: 101 mm
Depth: 298 mm
Height: 142 mm
Weight: 4.9 kg
