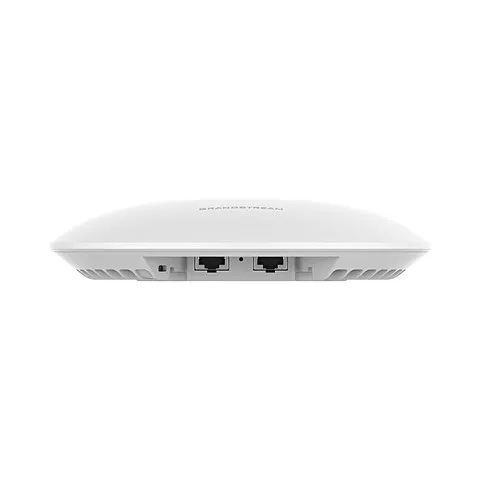

Grandstream Networks GWN7670. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2882 Mbit/s. Security algorithms: AES, SSID, TKIP, WEP, WPA, WPA2-PSK, WPA3. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 14.5 W
State-of-the-Art Wi-Fi 7 Connectivity
The GWN7670 is built on Wi-Fi 7, which provides faster speeds, lower latency, and increased capacity compared to previous Wi-Fi standards.
Ideal for Environments with Medium User Density
The GWN7670 provides speeds up to 3.6Gbps while supporting up to 256 clients per AP, making it ideal for environments with medium user density.
Twice as Fast as Wi-Fi 6
Wi-Fi 7 channels are twice the size of Wi-Fi 6 channels, allowing Grandstream’s Wi-Fi 7 APs to provide maximum speeds and capacity.
Easy and Free Management
Manage Grandstream Wi-Fi APs for free from the cloud (GDMS), software (GWN Manager), app (GDMS app), and the AP itself using its built-in controller.
GDMS Networking
GDMS Networking is an enterprise-grade, cloud management platform for Grandstream networking products.
GWN Manager
GWN Manager is an on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products.
Embedded Controller
Grandstream’s GWN networking products include an embedded controller software and is built-in to the product’s web user interface.
Wi-Fi CERTIFIED 7 enhances Wi-Fi performance in the 2.4 GHz and 5 GHz bands bringing cutting-edge capabilities to enable innovations that require high throughput, lower latency, and greater reliability across home, enterprise, and industrial environments.
Wi-Fi CERTIFIED 7 networks support advanced Wi-Fi performance for high bandwidth applications to ensure each connected device delivers the dependable experience users expect, even in dense environments like stadiums and large campuses.
GWN7670 Key Deployment Scenarios
The GWN7670 can be deployed in various scenarios including:
– Offices: Medium and large offices can utilize the GWN Series to create a mobile working environment for employees that doesn’t sacrifice on performance.
– Commerical Shops: Commercial stores can use the GWN Series to create Wi-Fi environments for both guests and staff.
– Education: Within demanding education environments, the GWN Series can help both staff and students exceed with a rapid wireless connection.
Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 2882 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Feature: Bluetooth
Bluetooth version: 5.3
Feature: MIMO
Feature: Quality of Service (QoS) support
Maximum indoor range: 175 m
Maximum Tx power (2.4 GHz): 26 dBmW
Maximum Tx power (5 GHz): 26 dBmW
Security
Security algorithms: AES, SSID, TKIP, WEP, WPA, WPA2-PSK, WPA3
Number of SSID supported: 32
Protocols
Supported network protocols: IPv4, IPv6
Management features
Feature: Cloud-managed
Power
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
Power consumption (max): 14.5 W
Design
Placement: Ceiling, Wall
Product colour: White
Housing material: Plastic
Cable lock slot type: Kensington
Feature: Reset button
LED indicators: Status
Antenna
Antenna type: Internal
Antennas quantity: 5
Antenna gain level (max): 3.5 dBi
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC), RCM
Weight & dimensions
Width: 185 mm
Depth: 185 mm
Height: 44.5 mm
Weight: 527 g
Packaging data
Package width: 228.5 mm
Package depth: 220 mm
Package height: 79 mm
Package weight: 877 g
Packaging content
Quantity per pack: 1 pc(s)
Feature: Mounting kit
Feature: Quick start guide
Operational conditions
Operating relative humidity (H-H): 10 – 90%
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -30 – 60 °C
