Grandstream Networks GWN7661E. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1201 Mbit/s. Security algorithms: WEP, WPA, WPA2, WPA2-PSK, WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 9 W
The GWN7661E is an in-wall AX3000 Wi-Fi 6 access point designed for offices, hotels, homes, apartments, and more. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones.
Features
Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 1201 Mbit/s
Maximum data transfer rate (2.4 GHz): 573.5 Mbit/s
Maximum data transfer rate (5 GHz): 2402 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: MIMO
Feature: VLAN support
Feature: Quality of Service (QoS) support
Maximum indoor range: 100 m
Security
Security algorithms: WEP, WPA, WPA2, WPA2-PSK, WPA3
Number of SSID supported: 32
Protocols
Supported network protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
Ports & interfaces

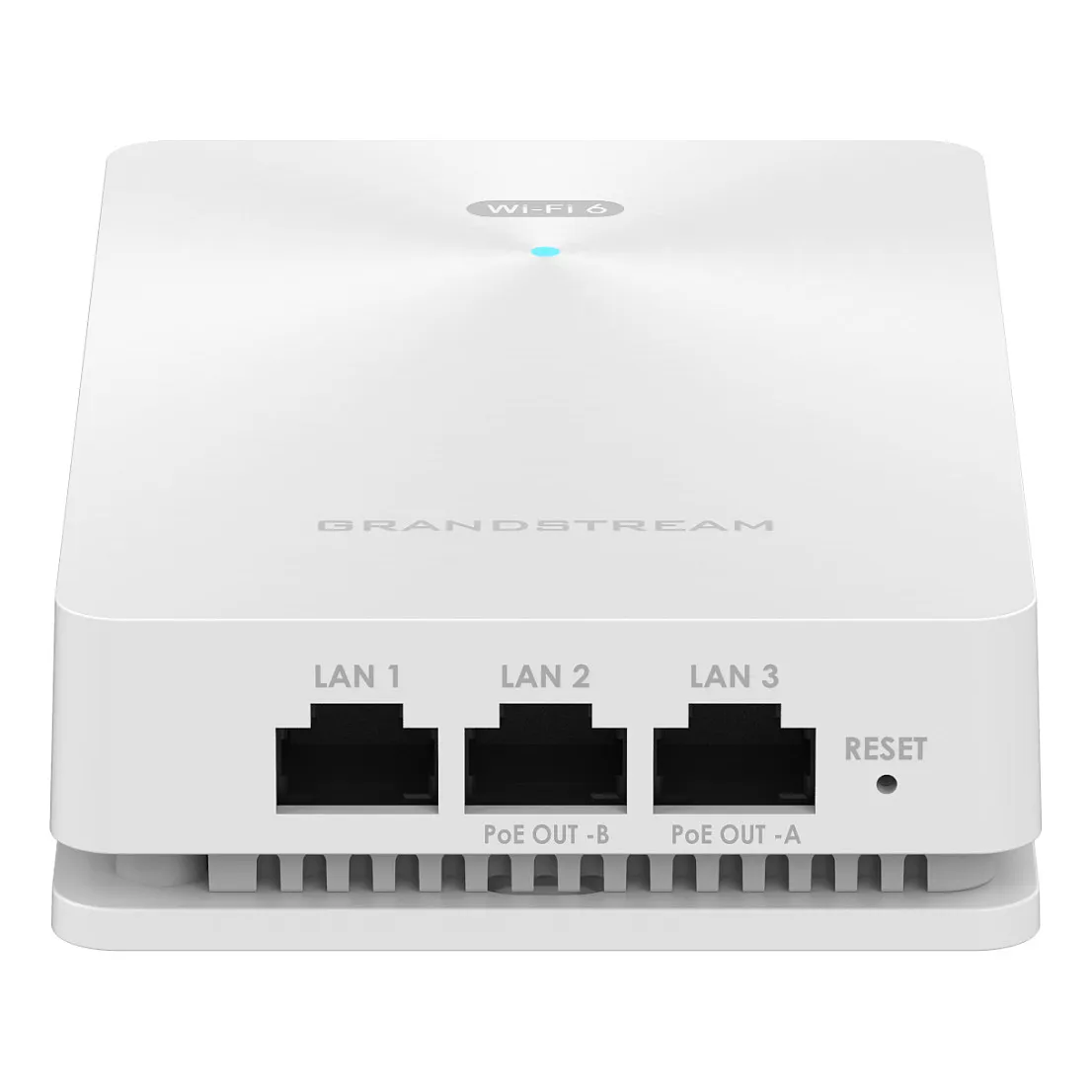

Ethernet LAN (RJ-45) ports: 3
Power
Feature: Power over Ethernet (PoE)
Power consumption (max): 9 W
Design
Placement: Wall
Product colour: White
LED indicators: Status
Antenna
Antenna type: Internal
Antenna gain level (max): 5 dBi
Certificates
Compliance certificates: CE, RCM, UKCA
Weight & dimensions
Width: 86 mm
Depth: 135 mm
Height: 38.5 mm
Weight: 241 g
Packaging data
Package width: 118.5 mm
Package depth: 176 mm
Package height: 65 mm
Package weight: 361 g
Packaging content
Quantity per pack: 1 pc(s)
Operational conditions
Operating relative humidity (H-H): 5 – 95%
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -30 – 60 °C
Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 1201 Mbit/s
Maximum data transfer rate (2.4 GHz): 573.5 Mbit/s
Maximum data transfer rate (5 GHz): 2402 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: MIMO
Feature: VLAN support
Feature: Quality of Service (QoS) support
Maximum indoor range: 100 m
Security
Security algorithms: WEP, WPA, WPA2, WPA2-PSK, WPA3
Number of SSID supported: 32
Protocols
Supported network protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
Ports & interfaces
Ethernet LAN (RJ-45) ports: 3
Power
Feature: Power over Ethernet (PoE)
Power consumption (max): 9 W
Design
Placement: Wall
Product colour: White
LED indicators: Status
Antenna
Antenna type: Internal
Antenna gain level (max): 5 dBi
Certificates
Compliance certificates: CE, RCM, UKCA
Weight & dimensions
Width: 86 mm
Depth: 135 mm
Height: 38.5 mm
Weight: 241 g
Packaging data
Package width: 118.5 mm
Package depth: 176 mm
Package height: 65 mm
Package weight: 361 g
Packaging content
Quantity per pack: 1 pc(s)
Operational conditions
Operating relative humidity (H-H): 5 – 95%
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -30 – 60 °C
