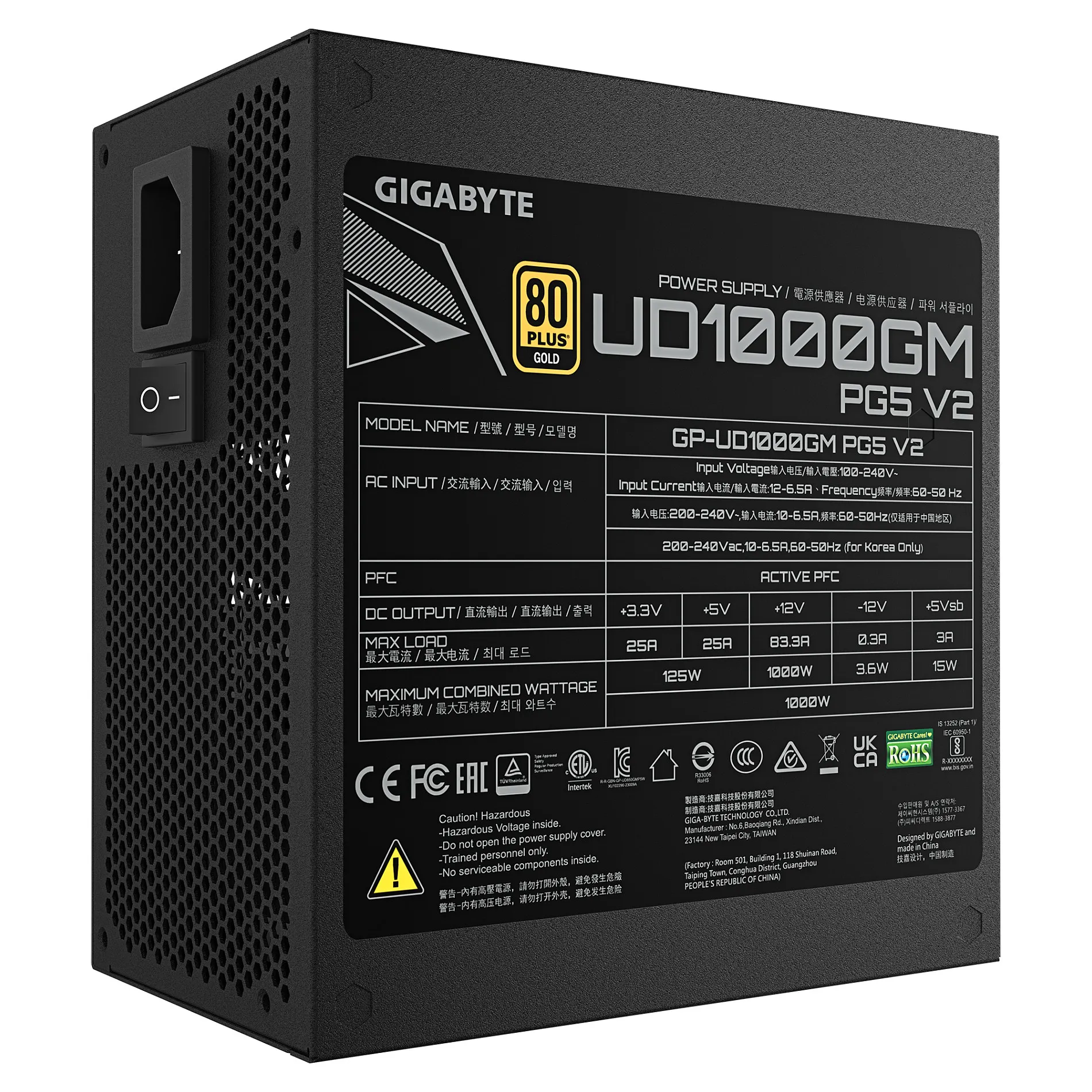

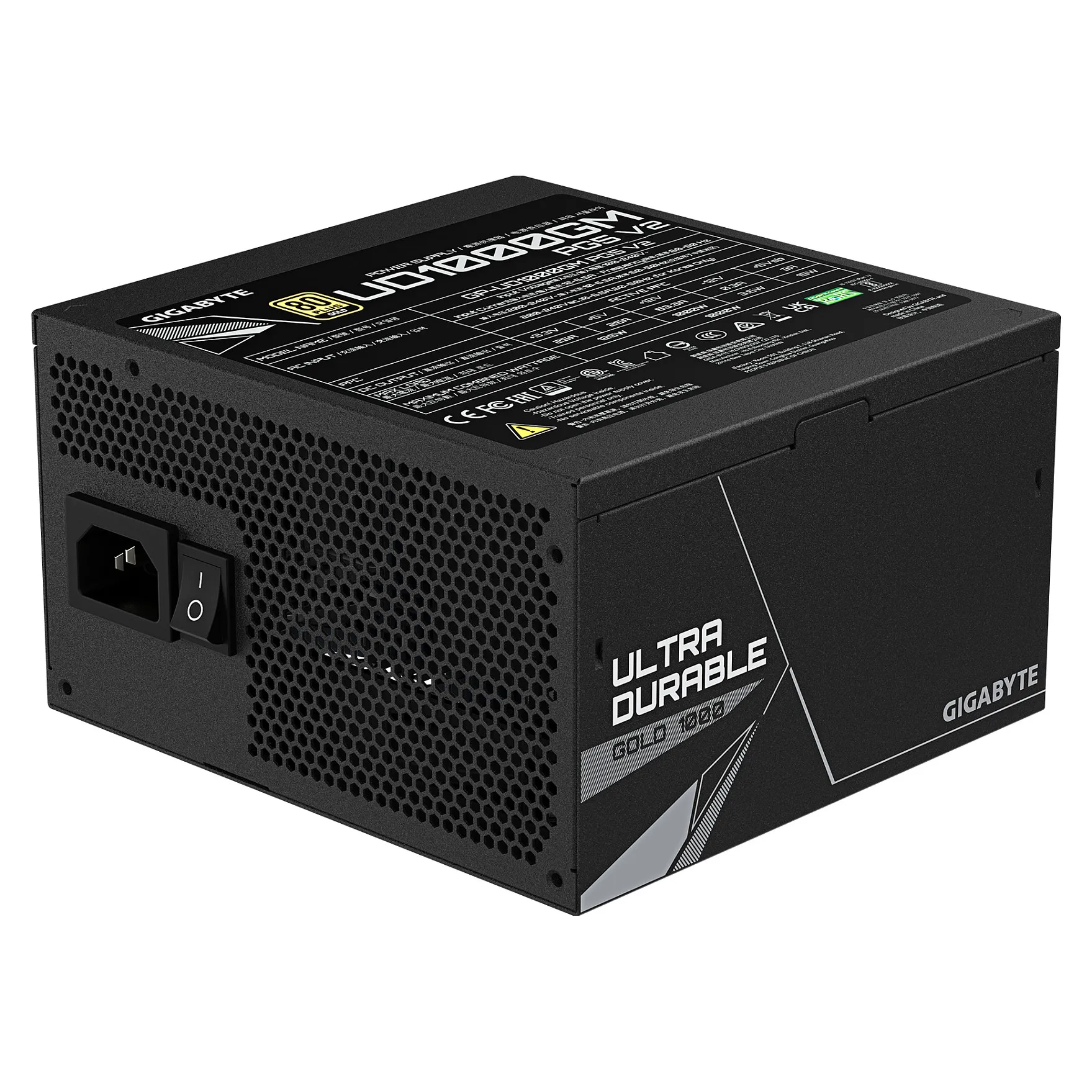

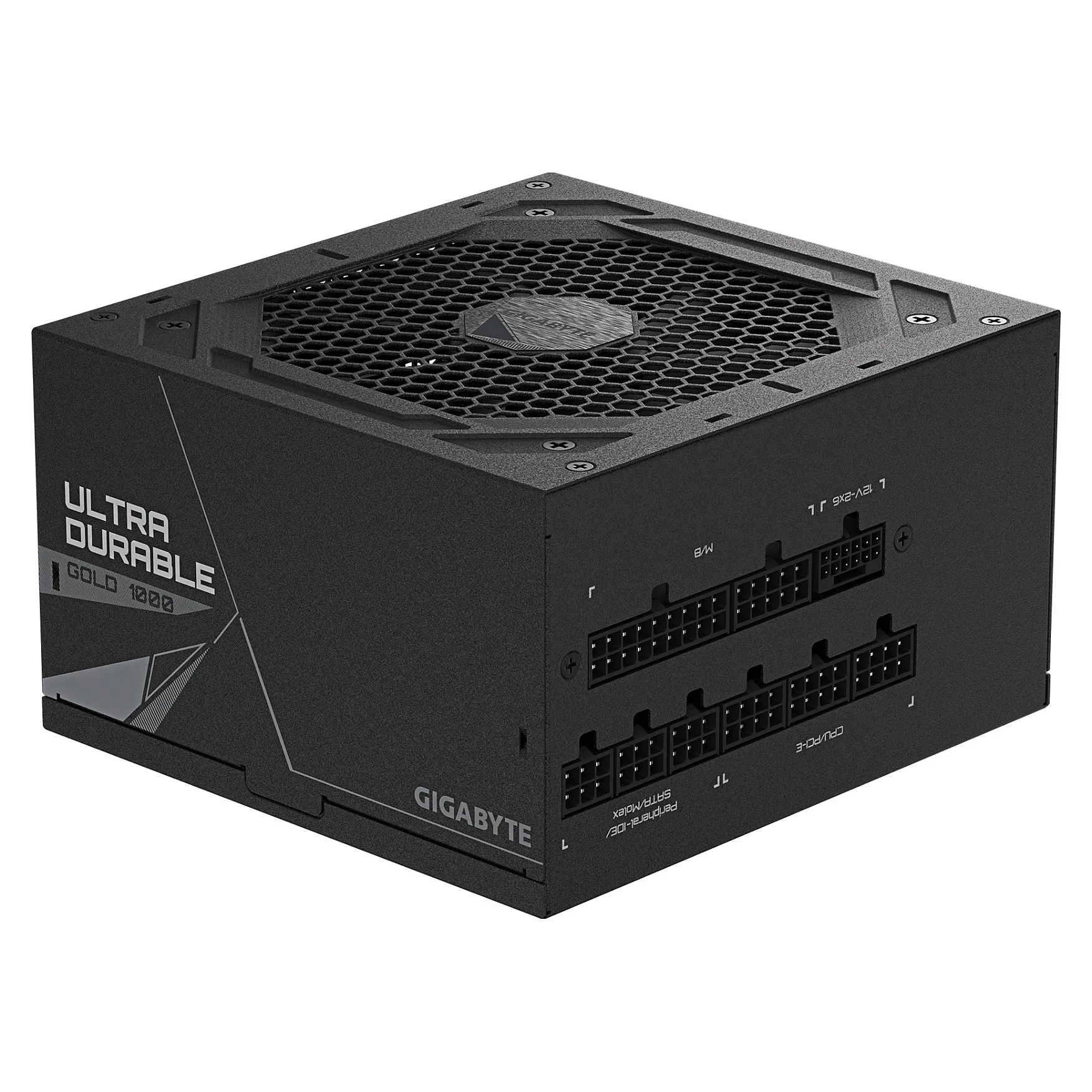

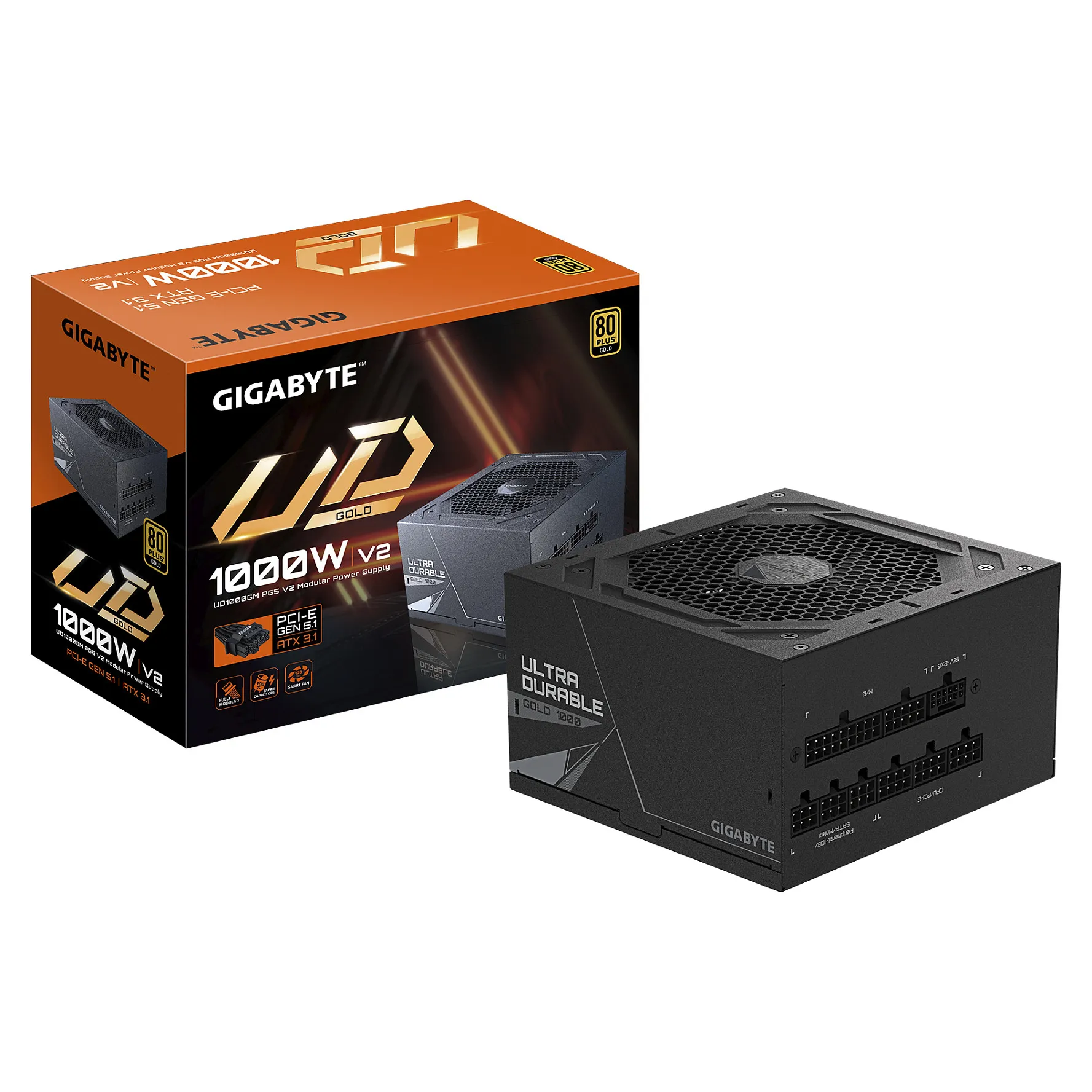

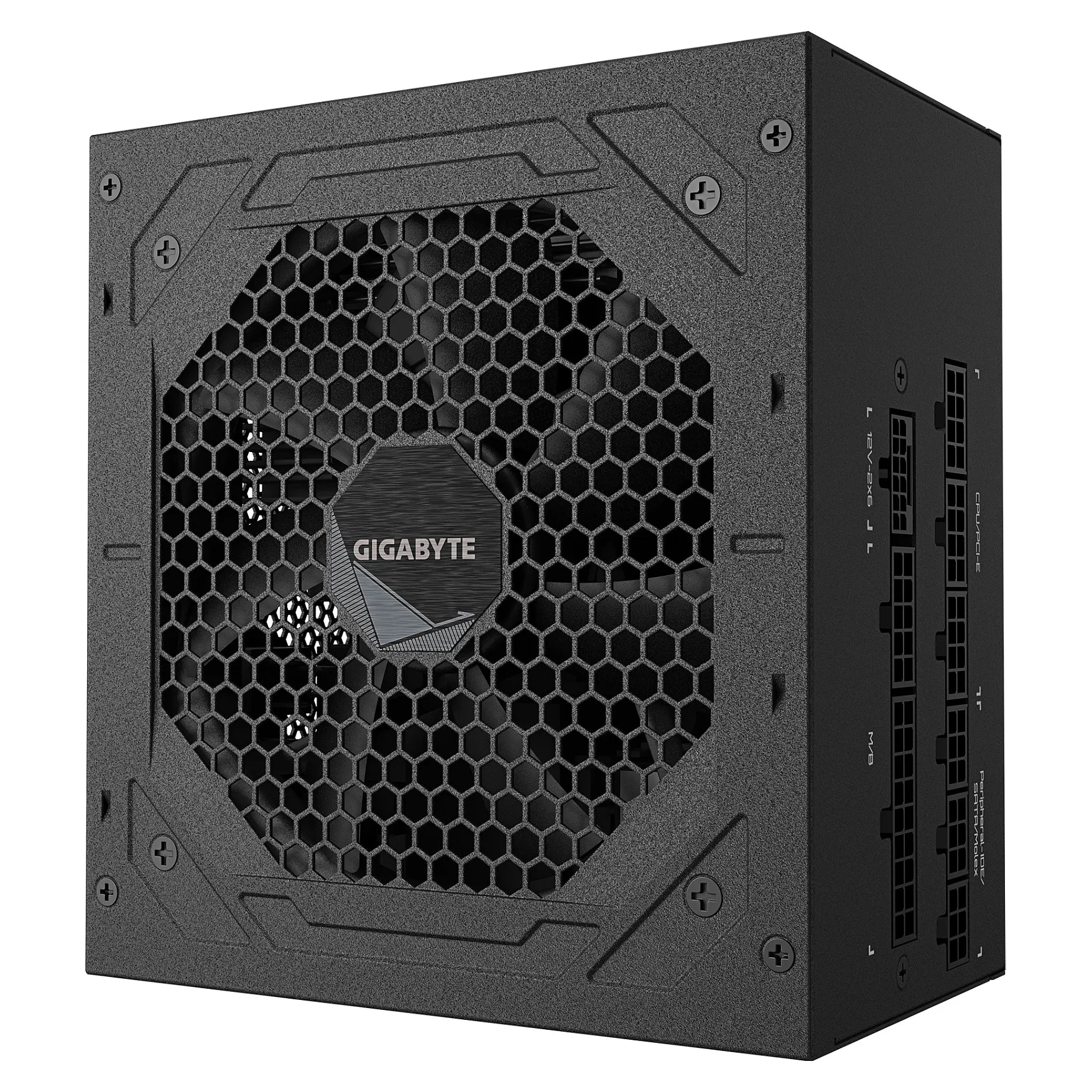

GIGABYTE UD1000GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 1000 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
Power
Total power: 1000 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 15 – 6.5 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 125 W
Combined power (+12V): 1000 W
Combined power (+5V): 125 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 25 A
Max output current (+12V): 83.3 A
Max output current (+5V): 25 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 16 ms
Efficiency: 90%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces

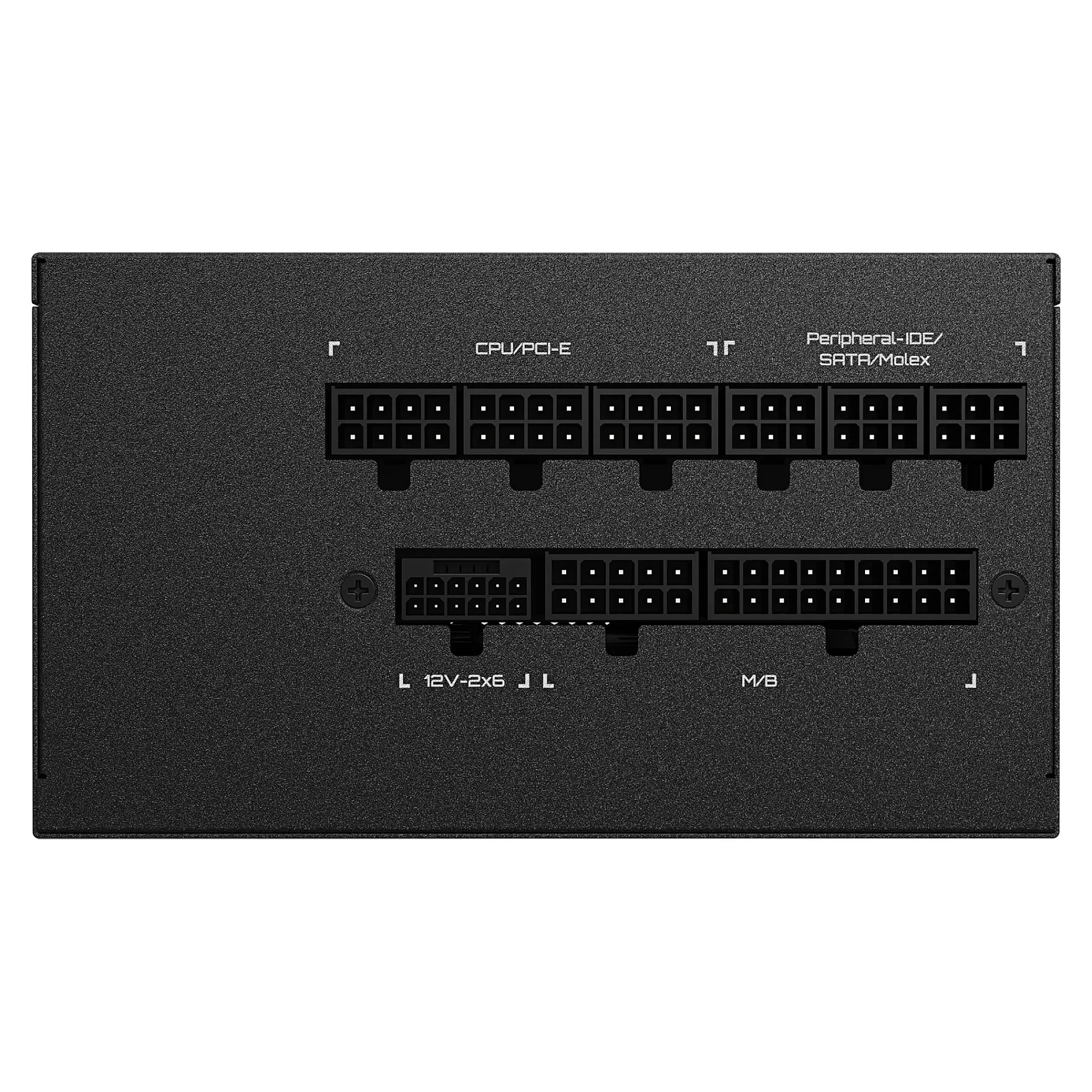

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 8
SATA power cable length: 150,600 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 120,150,500 mm
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (16-pin): 1
PCI Express power cable length: 70 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 60 cm
Floppy drive power connector: 1
Feature: PCI Express connector
Number of EPS connectors: 2
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: HYB
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active

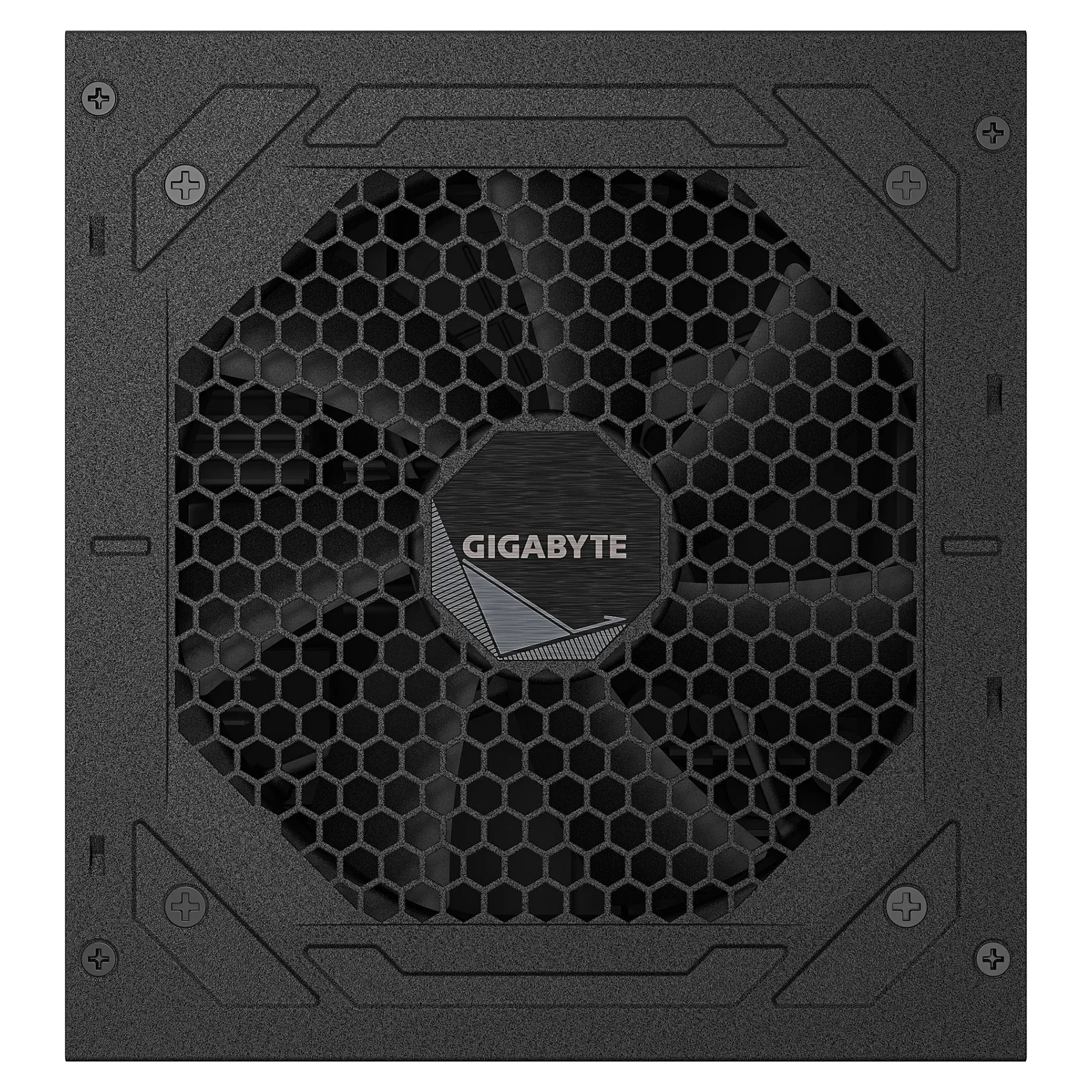

Fan diameter: 12 cm
Number of fans: 1 fan(s)
Feature: On/off switch
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 2.48 kg
Packaging data
Package width: 618 mm
Package depth: 269 mm
Package height: 211 mm
Package weight: 2.64 kg
Package type: Box
Logistics data
Warranty period: 10 year(s)
Total power: 1000 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 15 – 6.5 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 125 W
Combined power (+12V): 1000 W
Combined power (+5V): 125 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 25 A
Max output current (+12V): 83.3 A
Max output current (+5V): 25 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 16 ms
Efficiency: 90%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 8
SATA power cable length: 150,600 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 120,150,500 mm
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (16-pin): 1
PCI Express power cable length: 70 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 60 cm
Floppy drive power connector: 1
Feature: PCI Express connector
Number of EPS connectors: 2
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: HYB
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Feature: On/off switch
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 2.48 kg
Packaging data
Package width: 618 mm
Package depth: 269 mm
Package height: 211 mm
Package weight: 2.64 kg
Package type: Box
Logistics data
Warranty period: 10 year(s)
