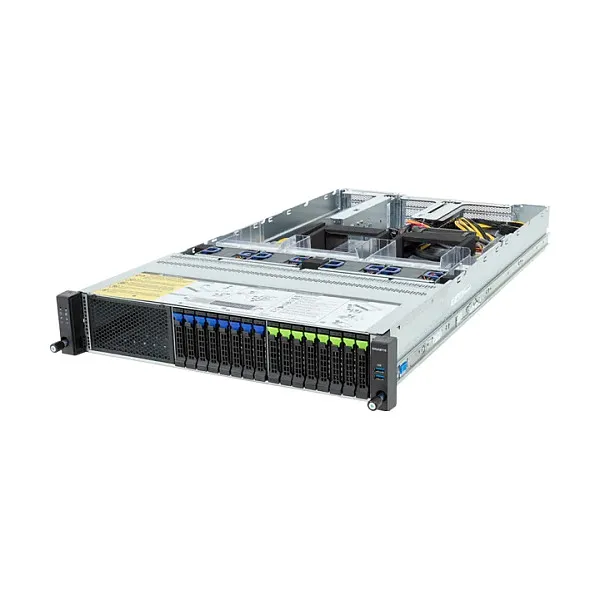

GIGABYTE R283-ZF1-AAL1. Processor socket: LGA 6096, Compatible processor series: AMD EPYC 9004. Supported memory types: DDR5-SDRAM, Memory channels: Dodeca-channel. Storage drive sizes supported: 2.5,M.2, Supported storage drive types: HDD & SSD, Supported storage drive interfaces: Serial ATA, Serial Attached SCSI (SAS). On-board graphics card model: Aspeed AST2600. Ethernet LAN data rates: 10,100,1000 Mbit/s, LAN controller: Intel® I350-AM2
Powering the Next Generation of Server Architecture and Energy Efficiency
The path to AMD’s 5nm ‘Zen 4’ architecture was paved with many successful generations of EPYC innovations and chiplet designs, and AMD EPYC 9004 Series processors continue this progression. Adding a host of new features to target a wide range of workloads, the new family of EPYC processors will deliver even better CPU performance and performance per watt, and do so on a platform with 2x the throughput of PCIe 4.0 lanes that also has support for 50% more memory channels. For this new platform, GIGABYTE has products ready to get the most out of EPYC-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.
The path to AMD’s 5nm ‘Zen 4’ architecture was paved with many successful generations of EPYC innovations and chiplet designs, and AMD EPYC 9004 Series processors continue this progression. Adding a host of new features to target a wide range of workloads, the new family of EPYC processors will deliver even better CPU performance and performance per watt, and do so on a platform with 2x the throughput of PCIe 4.0 lanes that also has support for 50% more memory channels. For this new platform, GIGABYTE has products ready to get the most out of EPYC-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.
Processor
Processor socket: LGA 6096
Number of processors supported: 2
Compatible processor series: AMD EPYC 9004
Memory
Number of DIMM slots: 24
Supported memory types: DDR5-SDRAM
Memory channels: Dodeca-channel
Storage
Number of storage drives supported: 18
Feature: Hot-swap HDD bays
Number of 2.5″ bays: 16
Storage drive sizes supported: 2.5,M.2
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: Serial ATA, Serial Attached SCSI (SAS)
Graphics
On-board graphics card model: Aspeed AST2600
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
LAN controller: Intel® I350-AM2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 2
Mini DisplayPorts quantity: 1
Expansion slots
PCI Express slots version: 4.0
Number of M.2 (M) slots: 2
Features
Feature: Trusted Platform Module (TPM)
Feature: Backplanes support
Design
Chassis type: Rack (2U)
Product colour: Black, Steel
LED indicators: HDD, LAN, Status
Power
Power supply: 2700 W
Number of main power supplies: 2
Feature: Redundant power supply (RPS) support
AC input voltage: 110 – 240 V
AC input frequency: 50/60 Hz
Input current: 12 – 16 A
DC output current (+12 V): 84 A
80 PLUS certification: 80 PLUS Titanium
Operational conditions
Operating temperature (T-T): 10 – 35 °C
Storage temperature (T-T): -40 – 60 °C
Operating relative humidity (H-H): 8 – 80%
Storage relative humidity (H-H): 20 – 95%
Weight & dimensions
Width: 438 mm
Depth: 815 mm
Height: 87.5 mm
Weight: 30.9 kg
Packaging data
Package width: 1082 mm
Package depth: 685 mm
Package height: 314 mm
Package weight: 35.9 kg
Processor socket: LGA 6096
Number of processors supported: 2
Compatible processor series: AMD EPYC 9004
Memory
Number of DIMM slots: 24
Supported memory types: DDR5-SDRAM
Memory channels: Dodeca-channel
Storage
Number of storage drives supported: 18
Feature: Hot-swap HDD bays
Number of 2.5″ bays: 16
Storage drive sizes supported: 2.5,M.2
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: Serial ATA, Serial Attached SCSI (SAS)
Graphics
On-board graphics card model: Aspeed AST2600
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
LAN controller: Intel® I350-AM2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 2
Mini DisplayPorts quantity: 1
Expansion slots
PCI Express slots version: 4.0
Number of M.2 (M) slots: 2
Features
Feature: Trusted Platform Module (TPM)
Feature: Backplanes support
Design
Chassis type: Rack (2U)
Product colour: Black, Steel
LED indicators: HDD, LAN, Status
Power
Power supply: 2700 W
Number of main power supplies: 2
Feature: Redundant power supply (RPS) support
AC input voltage: 110 – 240 V
AC input frequency: 50/60 Hz
Input current: 12 – 16 A
DC output current (+12 V): 84 A
80 PLUS certification: 80 PLUS Titanium
Operational conditions
Operating temperature (T-T): 10 – 35 °C
Storage temperature (T-T): -40 – 60 °C
Operating relative humidity (H-H): 8 – 80%
Storage relative humidity (H-H): 20 – 95%
Weight & dimensions
Width: 438 mm
Depth: 815 mm
Height: 87.5 mm
Weight: 30.9 kg
Packaging data
Package width: 1082 mm
Package depth: 685 mm
Package height: 314 mm
Package weight: 35.9 kg
