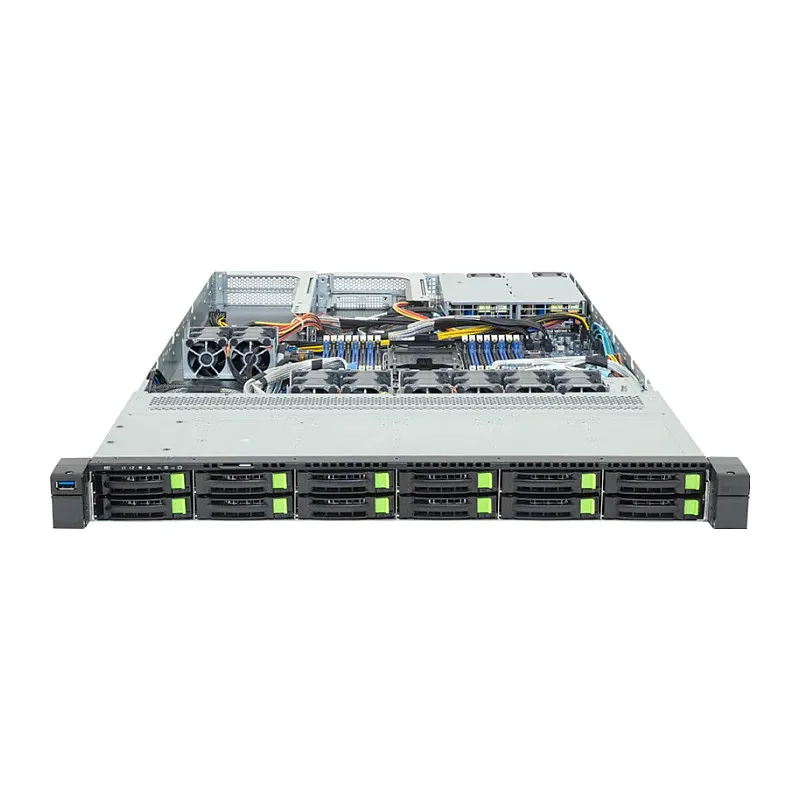

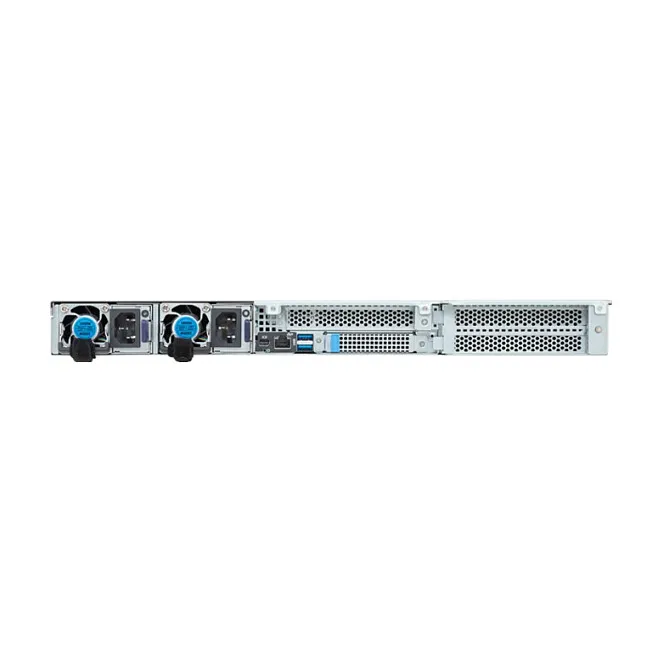

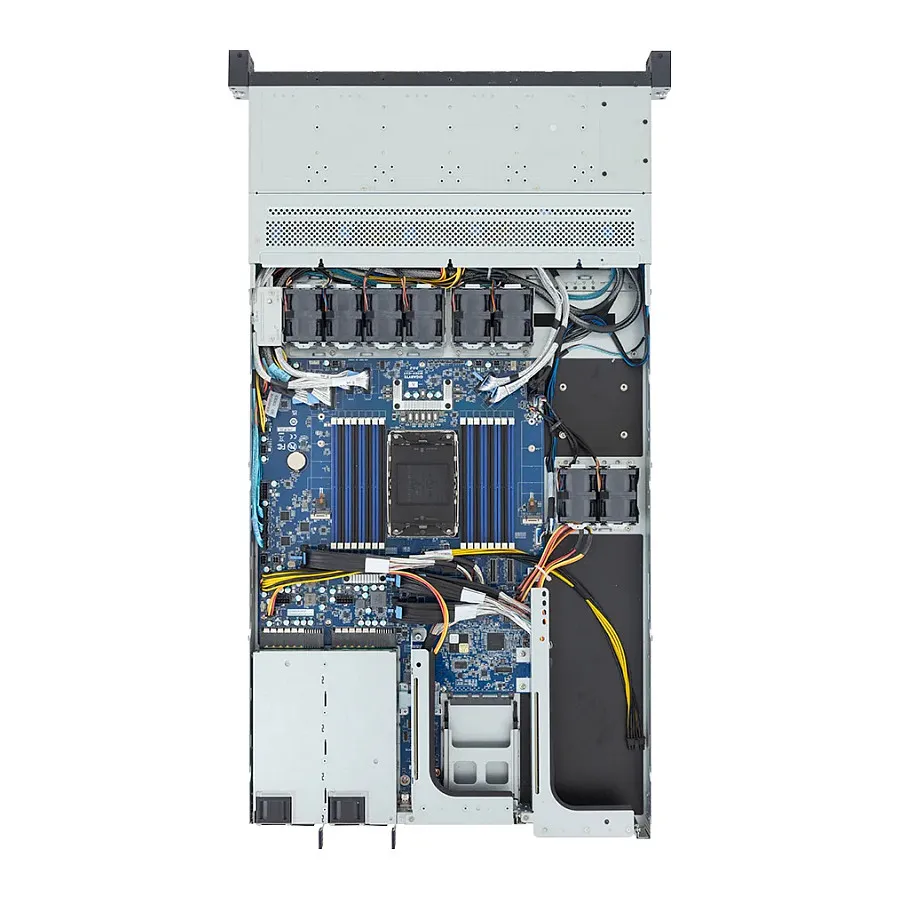

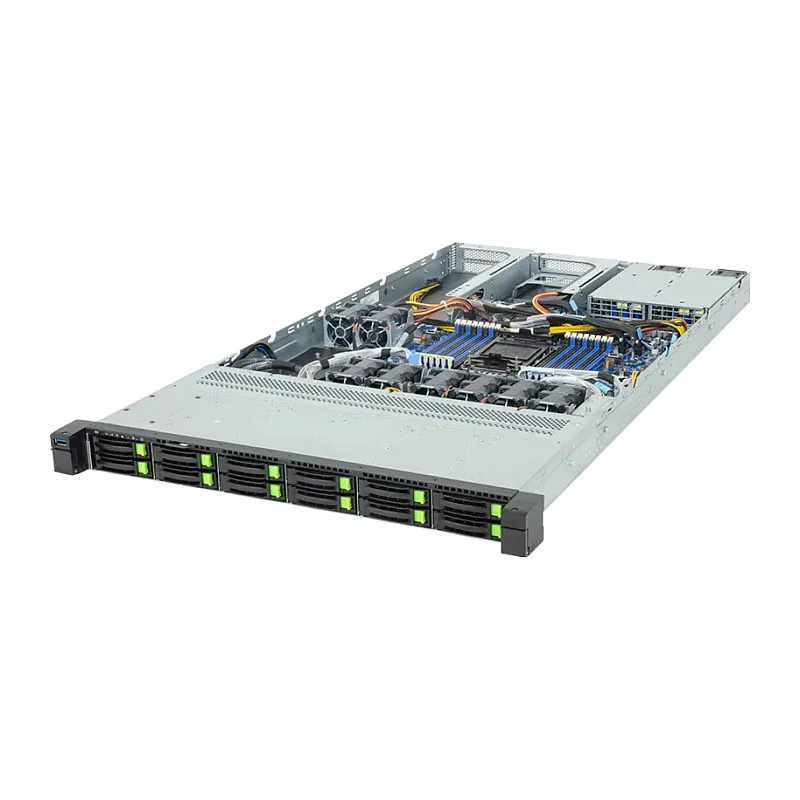

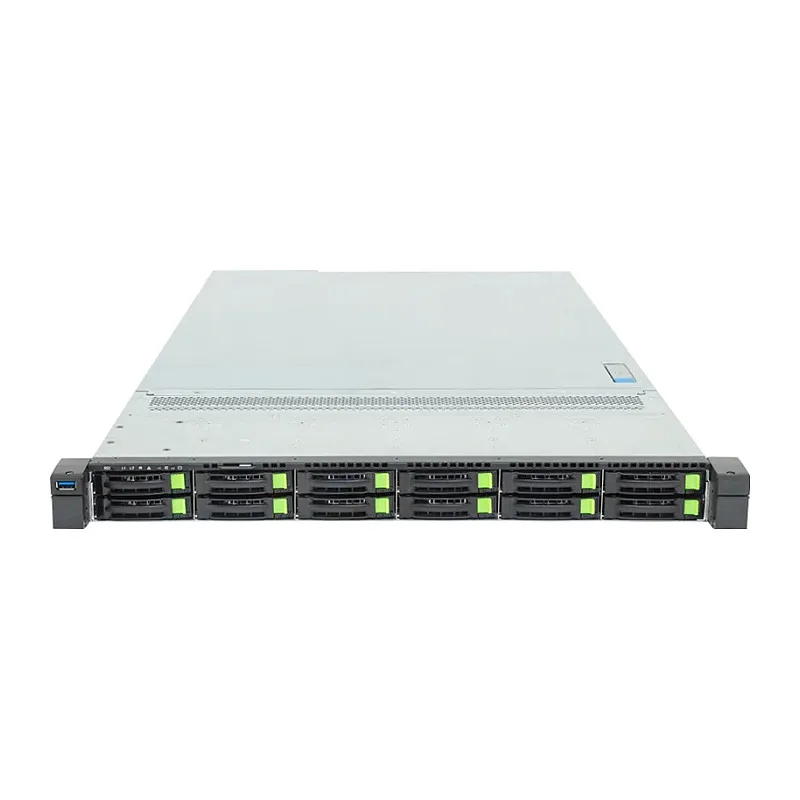

GIGABYTE R164-SG5-AAV1. Processor socket: LGA 4710, Compatible processor series: Intel® Xeon®. Supported memory types: GDDR5, Memory channels: Octa-channel. Storage drive sizes supported: 2.5", Supported storage drive types: HDD & SSD, Supported storage drive interfaces: Serial ATA, PCI Express 4.0. On-board graphics card model: Aspeed AST2600. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s
Boosting Individual Applications with On-Point Features
Intel® Xeon® 6 is a new generation of processors that has tailored its CPU lineup to target all uses cases such as Cloud Computing, AI, Analytics, and Edge & IOT. Whether it’s high compute density that is dependent on core count and power efficiency or AI/HPC applications that heavily rely on strong single-core performance, this new platform covers them all with its Performance cores (P-cores) and Efficient-cores (E-cores). Along with flexible I/O options, integrated accelerators, and support for CXL 2.0 devices, Intel Xeon 6 fulfills customer needs across the broadest range of data center workloads, segments, and deployment models.
Intel® Xeon® 6 is a new generation of processors that has tailored its CPU lineup to target all uses cases such as Cloud Computing, AI, Analytics, and Edge & IOT. Whether it’s high compute density that is dependent on core count and power efficiency or AI/HPC applications that heavily rely on strong single-core performance, this new platform covers them all with its Performance cores (P-cores) and Efficient-cores (E-cores). Along with flexible I/O options, integrated accelerators, and support for CXL 2.0 devices, Intel Xeon 6 fulfills customer needs across the broadest range of data center workloads, segments, and deployment models.
Processor
Processor socket: LGA 4710
Number of processors supported: 1
Compatible processor series: Intel® Xeon®
Memory
Number of DIMM slots: 16
Supported memory types: GDDR5
Memory channels: Octa-channel
Storage
Number of storage drives supported: 14
Feature: Hot-swap HDD bays
Number of 2.5″ bays: 12
Storage drive sizes supported: 2.5″
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: Serial ATA, PCI Express 4.0
SSD form factor: M.2
Graphics
On-board graphics card model: Aspeed AST2600
Network
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Ethernet LAN (RJ-45) ports: 1
Expansion slots
Number of M.2 (M) slots: 1
Features
Feature: Trusted Platform Module (TPM)
Design
Chassis type: Rack (1U)
Product colour: Black, Steel
LED indicators: LAN, HDD, Status
Feature: On/off switch
Feature: Reset button
Cooling type: Active
Feature: Heat sink included
Number of fans: 8 fan(s)
Fan diameter: 4 cm
Power
Power supply: 1600 W
Number of main power supplies: 2
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 12 – 10 A
80 PLUS certification: 80 PLUS Titanium
Operational conditions
Operating temperature (T-T): 10 – 35 °C
Storage temperature (T-T): -40 – 60 °C
Operating relative humidity (H-H): 8 – 80%
Storage relative humidity (H-H): 20 – 95%
Weight & dimensions
Width: 438 mm
Depth: 815 mm
Height: 43.5 mm
Weight: 13.5 kg
Packaging data
Packaging content: 1 x R164-SG5-AAV11 x CPU heatsink1 x Mini-DP to D-Sub cable1 x GPU power cable (16-pin, 550mm)2 x Carriers1 x 2-Section Rail kit
Package width: 1038 mm
Package depth: 588 mm
Package height: 238 mm
Package weight: 15.7 kg
Processor socket: LGA 4710
Number of processors supported: 1
Compatible processor series: Intel® Xeon®
Memory
Number of DIMM slots: 16
Supported memory types: GDDR5
Memory channels: Octa-channel
Storage
Number of storage drives supported: 14
Feature: Hot-swap HDD bays
Number of 2.5″ bays: 12
Storage drive sizes supported: 2.5″
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: Serial ATA, PCI Express 4.0
SSD form factor: M.2
Graphics
On-board graphics card model: Aspeed AST2600
Network
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Ethernet LAN (RJ-45) ports: 1
Expansion slots
Number of M.2 (M) slots: 1
Features
Feature: Trusted Platform Module (TPM)
Design
Chassis type: Rack (1U)
Product colour: Black, Steel
LED indicators: LAN, HDD, Status
Feature: On/off switch
Feature: Reset button
Cooling type: Active
Feature: Heat sink included
Number of fans: 8 fan(s)
Fan diameter: 4 cm
Power
Power supply: 1600 W
Number of main power supplies: 2
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 12 – 10 A
80 PLUS certification: 80 PLUS Titanium
Operational conditions
Operating temperature (T-T): 10 – 35 °C
Storage temperature (T-T): -40 – 60 °C
Operating relative humidity (H-H): 8 – 80%
Storage relative humidity (H-H): 20 – 95%
Weight & dimensions
Width: 438 mm
Depth: 815 mm
Height: 43.5 mm
Weight: 13.5 kg
Packaging data
Packaging content: 1 x R164-SG5-AAV11 x CPU heatsink1 x Mini-DP to D-Sub cable1 x GPU power cable (16-pin, 550mm)2 x Carriers1 x 2-Section Rail kit
Package width: 1038 mm
Package depth: 588 mm
Package height: 238 mm
Package weight: 15.7 kg
