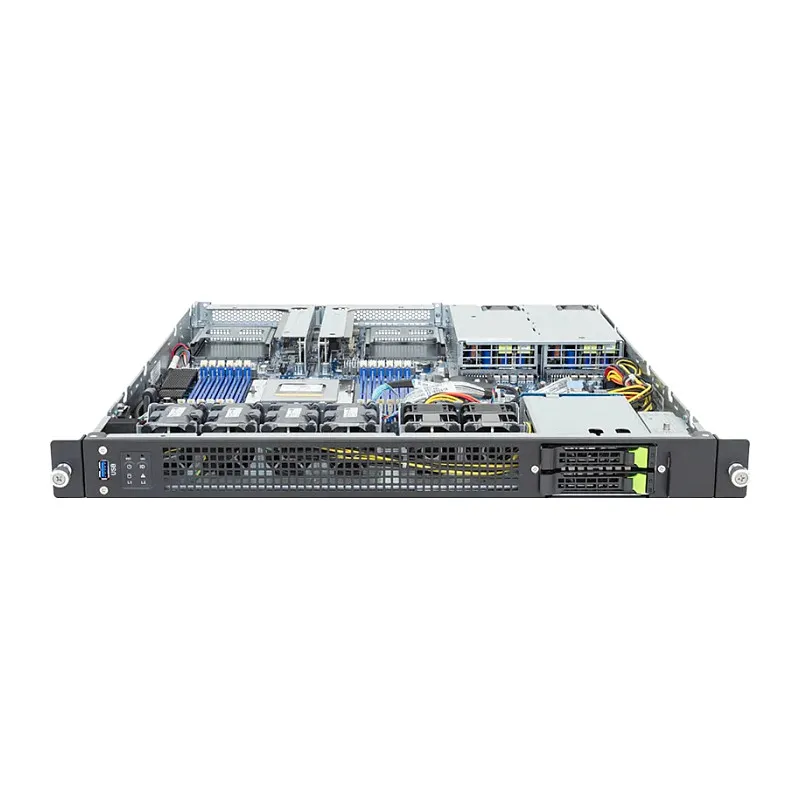

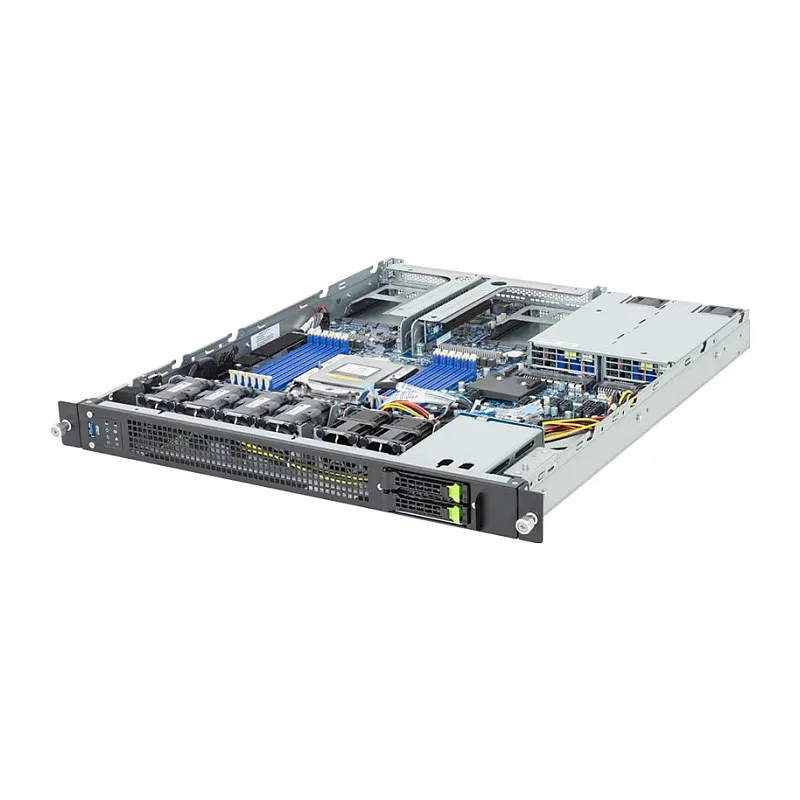

GIGABYTE E163-Z34-AAH1. Motherboard chipset: AMD SoC, Processor socket: Socket SP5, Compatible processor series: AMD EPYC 9004, AMD EPYC 9005. Supported memory types: DDR5-SDRAM, Memory channels: Dodeca-channel. Storage drive sizes supported: 2.5,M.2, Supported storage drive types: HDD & SSD, Supported storage drive interfaces: Serial ATA, PCI Express 3.0, Serial Attached SCSI (SAS)-4. On-board graphics card model: Aspeed AST2600. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, LAN controller: Intel® I210-AT
New AMD EPYC™ Family of Processors – Same Great SP5 Platform
The SP5 socket has reached its pinnacle form with 5th Generation AMD EPYC™ processors. The same successful platform that was shared by AMD EPYC™ 9004 & 8004 series processors is now the same one for AMD EPYC™ 9005 series processors. With up to 192 cores, increased frequencies and cache, this top tier performance platform targets general purpose, cloud native, and technical computing. Building on the advantages of the EPYC™ 9004 series, the new EPYC™ 9005 series adopts the 3nm process with AMD “Zen5” and “Zen5c” core architecture, excelling in both energy efficiency and cost optimization. GIGABYTE has already prepared for this new processor with new servers and updates to existing products for 4th Gen AMD EPYC™ processors.
The SP5 socket has reached its pinnacle form with 5th Generation AMD EPYC™ processors. The same successful platform that was shared by AMD EPYC™ 9004 & 8004 series processors is now the same one for AMD EPYC™ 9005 series processors. With up to 192 cores, increased frequencies and cache, this top tier performance platform targets general purpose, cloud native, and technical computing. Building on the advantages of the EPYC™ 9004 series, the new EPYC™ 9005 series adopts the 3nm process with AMD “Zen5” and “Zen5c” core architecture, excelling in both energy efficiency and cost optimization. GIGABYTE has already prepared for this new processor with new servers and updates to existing products for 4th Gen AMD EPYC™ processors.
Processor
Motherboard chipset: AMD SoC
Processor socket: Socket SP5
Number of processors supported: 1
Compatible processor series: AMD EPYC 9004, AMD EPYC 9005
Memory
Number of DIMM slots: 12
Supported memory types: DDR5-SDRAM
Memory channels: Dodeca-channel
Storage
Number of storage drives supported: 3
Feature: Hot-swap HDD bays
Number of 2.5″ bays: 2
Storage drive sizes supported: 2.5,M.2
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: Serial ATA, PCI Express 3.0, Serial Attached SCSI (SAS)-4
SSD form factor: M.2
Graphics
On-board graphics card model: Aspeed AST2600
Network
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
LAN controller: Intel® I210-AT
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Ethernet LAN (RJ-45) ports: 1
Mini DisplayPorts quantity: 1
Expansion slots
PCI Express x16 (Gen 5.x) slots: 2
Number of M.2 (M) slots: 1
Features
Feature: Trusted Platform Module (TPM)
Design
Chassis type: Rack (1U)
Product colour: Black, Steel
LED indicators: LAN, HDD, SSD, Status
Feature: On/off switch
Feature: Reset button
Cooling type: Active
Feature: Heat sink included
Number of fans: 6 fan(s)
Fan diameter: 4 cm
Power
Power supply: 1300 W
Number of main power supplies: 2
Feature: Redundant power supply (RPS) support
Number of redundant power supplies supported: 2
Number of redundant power supplies installed: 2
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 8 – 12 A
80 PLUS certification: 80 PLUS Titanium
Operational conditions
Operating temperature (T-T): 10 – 35 °C
Storage temperature (T-T): -40 – 60 °C
Operating relative humidity (H-H): 8 – 80%
Storage relative humidity (H-H): 20 – 95%
Weight & dimensions
Width: 438 mm
Depth: 520 mm
Height: 43.5 mm
Weight: 13.1 kg
Packaging data
Packaging content: 1 x E163-Z34-AAH1; 1 x CPU heatsink; 1 x Mini-DP to D-Sub cable
Package width: 787 mm
Package depth: 594 mm
Package height: 226 mm
Package weight: 15.1 kg
Motherboard chipset: AMD SoC
Processor socket: Socket SP5
Number of processors supported: 1
Compatible processor series: AMD EPYC 9004, AMD EPYC 9005
Memory
Number of DIMM slots: 12
Supported memory types: DDR5-SDRAM
Memory channels: Dodeca-channel
Storage
Number of storage drives supported: 3
Feature: Hot-swap HDD bays
Number of 2.5″ bays: 2
Storage drive sizes supported: 2.5,M.2
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: Serial ATA, PCI Express 3.0, Serial Attached SCSI (SAS)-4
SSD form factor: M.2
Graphics
On-board graphics card model: Aspeed AST2600
Network
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
LAN controller: Intel® I210-AT
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Ethernet LAN (RJ-45) ports: 1
Mini DisplayPorts quantity: 1
Expansion slots
PCI Express x16 (Gen 5.x) slots: 2
Number of M.2 (M) slots: 1
Features
Feature: Trusted Platform Module (TPM)
Design
Chassis type: Rack (1U)
Product colour: Black, Steel
LED indicators: LAN, HDD, SSD, Status
Feature: On/off switch
Feature: Reset button
Cooling type: Active
Feature: Heat sink included
Number of fans: 6 fan(s)
Fan diameter: 4 cm
Power
Power supply: 1300 W
Number of main power supplies: 2
Feature: Redundant power supply (RPS) support
Number of redundant power supplies supported: 2
Number of redundant power supplies installed: 2
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 8 – 12 A
80 PLUS certification: 80 PLUS Titanium
Operational conditions
Operating temperature (T-T): 10 – 35 °C
Storage temperature (T-T): -40 – 60 °C
Operating relative humidity (H-H): 8 – 80%
Storage relative humidity (H-H): 20 – 95%
Weight & dimensions
Width: 438 mm
Depth: 520 mm
Height: 43.5 mm
Weight: 13.1 kg
Packaging data
Packaging content: 1 x E163-Z34-AAH1; 1 x CPU heatsink; 1 x Mini-DP to D-Sub cable
Package width: 787 mm
Package depth: 594 mm
Package height: 226 mm
Package weight: 15.1 kg
