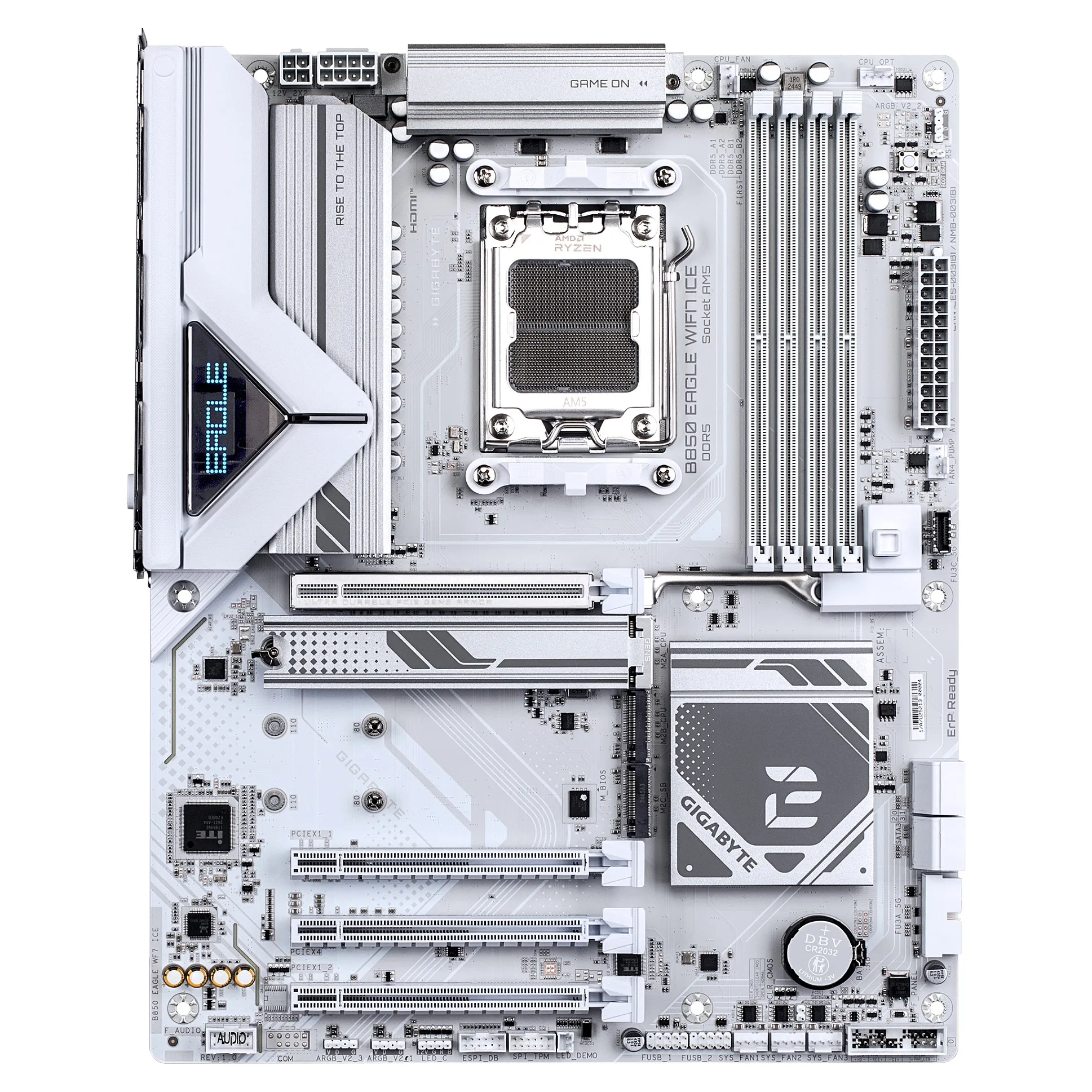

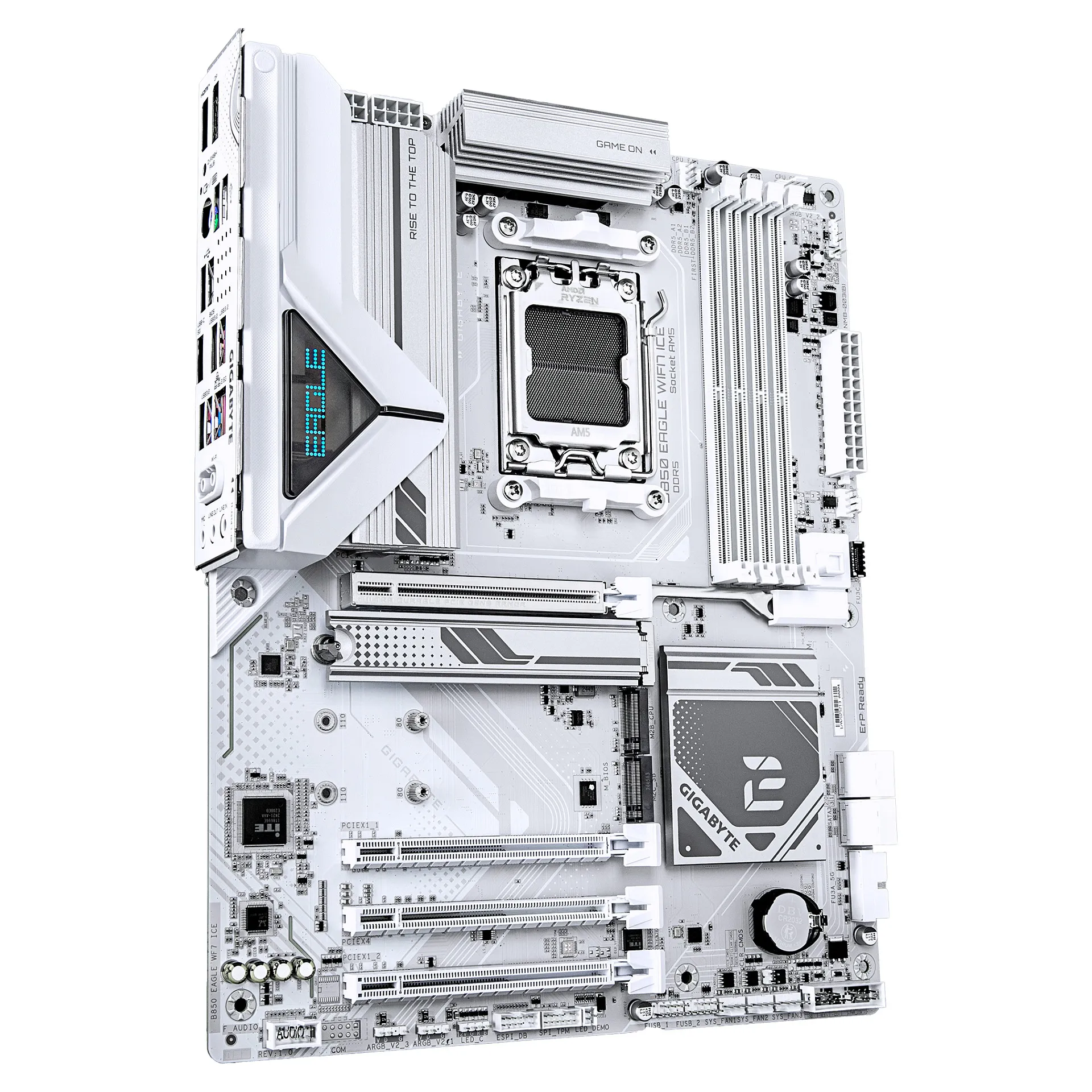

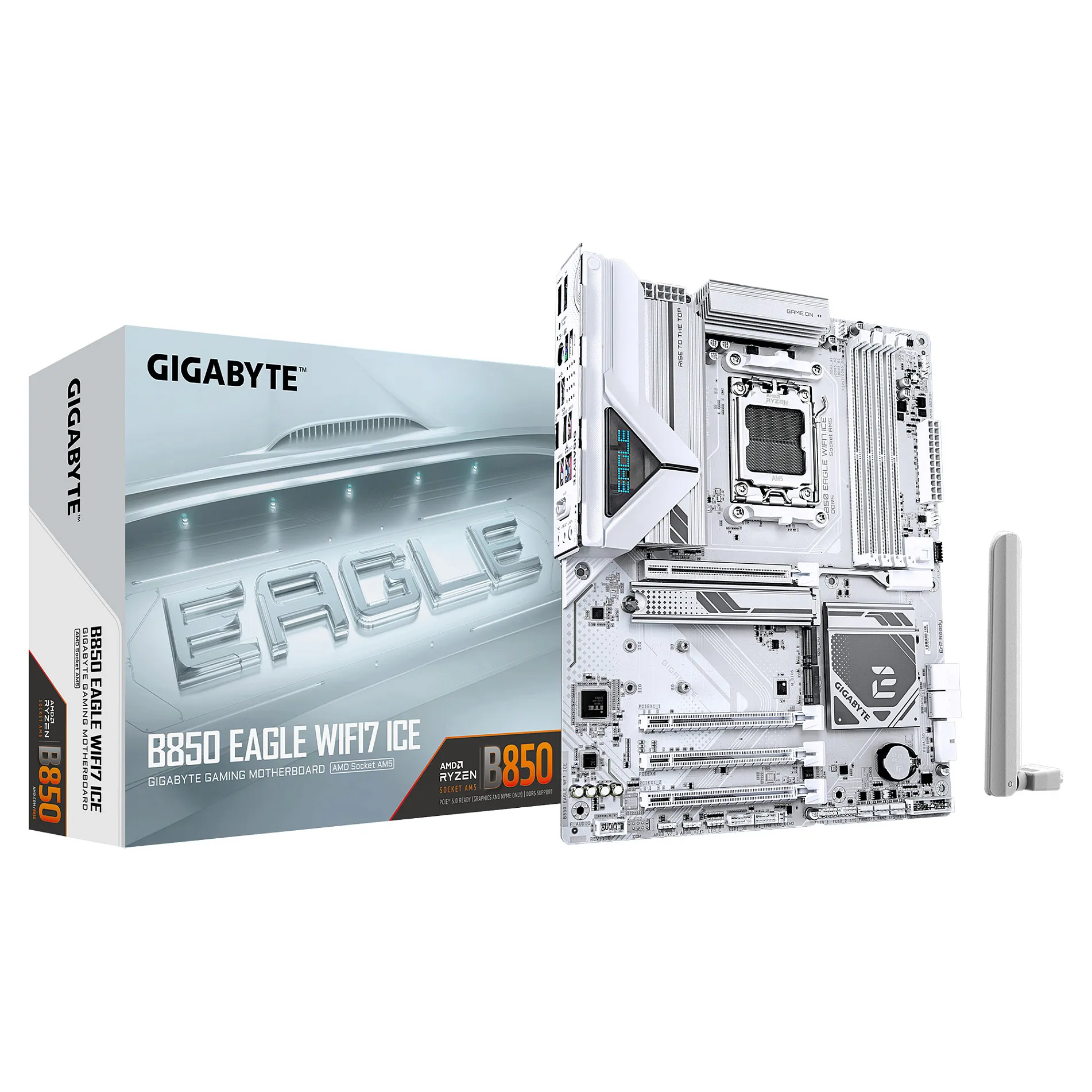

GIGABYTE B850 EAGLE WIFI7 ICE Motherboard. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Processor
Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets: Socket AM5
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Supported memory clock speed (max): 8200 MHz
Maximum internal memory: 256 GB
Feature: Unbuffered memory
Maximum internal memory per slot: 64 GB
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 7
Feature: RAID support
RAID levels: 0, 1, 10
Graphics
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2160 pixels
Feature: HDCP
DirectX version: 12.0
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of CPU fan connectors: 2
Number of chassis fan connectors: 4
Peripheral (Molex) power connectors (4-pin): 1
Feature: EPS power connector (8-pin)
Number of EPS power connectors (8-pin): 1
Feature: TPM connector
Feature: 12V power connector
Number of water pump connectors: 2
Feature: RGB LED pin header
Number of RGB LED pin headers: 4

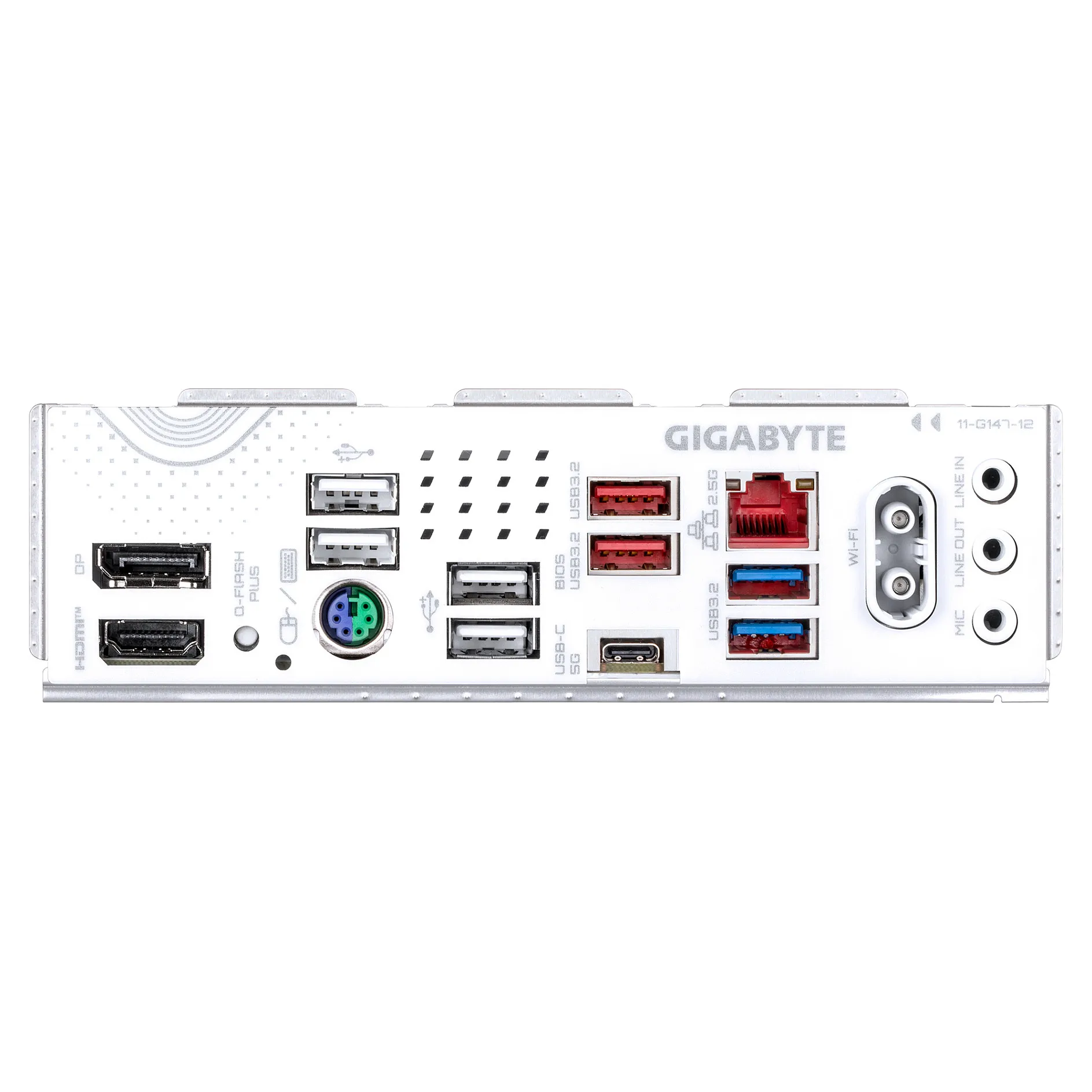

Rear panel I/O ports
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
HDMI version: 1.4
DisplayPorts quantity: 1
DisplayPort version: 1.4
Headphone outputs: 1
Feature: Line-in
Feature: Microphone in
WiFi-AP antenna jack: 2
Network
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN controller model: Realtek RTL8922AE
Feature: Bluetooth
Bluetooth version: 5.4
Features
Motherboard chipset: AMD B850
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Product colour: White
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Cooling type: Passive
Power source type: ATX
Windows operating systems supported: Windows 11 x64
Expansion slots
PCI Express x16 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 3
1st M.2 largest key size: 22110
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 22110
3rd M.2 highest PCI Express generation: 4.0
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 5.0
Feature: Clear CMOS jumper
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Logistics data
Products per shipping (inner) case: 1 pc(s)
Battery
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery capacity: 220 mAh
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Packaging data
Package width: 335 mm
Package depth: 270 mm
Package height: 80 mm
Package weight: 1.89 kg
Weight & dimensions
Width: 305 mm
Depth: 244 mm
Height: 35 mm
Packaging content
Feature: Batteries included
Feature: Antenna included
Feature: Screws included
Bundled software: Norton® Internet Security (OEM version)LAN bandwidth management software
Other features
Weight: 1.69 kg
Technical details
Warranty period: 3 year(s)
