GAMDIAS AURA GP550. Total power: 550 W, AC input voltage: 180 – 240 V, AC input frequency: 47 – 63 Hz. Motherboard power connector: 24-pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS White. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
The AURA GP550 is a non-modular power supply unit featuring high efficiency and a 120mm hydraulic bearing smart fan with automatic temperature control to achieve extremely stable performance.
HIGH EFFICIENCY
The AURA GP550 delivers watts at approximate 80% efficiency to reduce power waste and heat.
SMART VENTILATION
The power supply unit supports automatic fan speed optimization which adjusts the 120mm hydraulic bearing fan speed according to load.
HEAVY-DUTY PROTECTION
The power supply unit ensures stable output voltage and provides multiple protections against short circuits, overload, overheating, low voltage, etc.

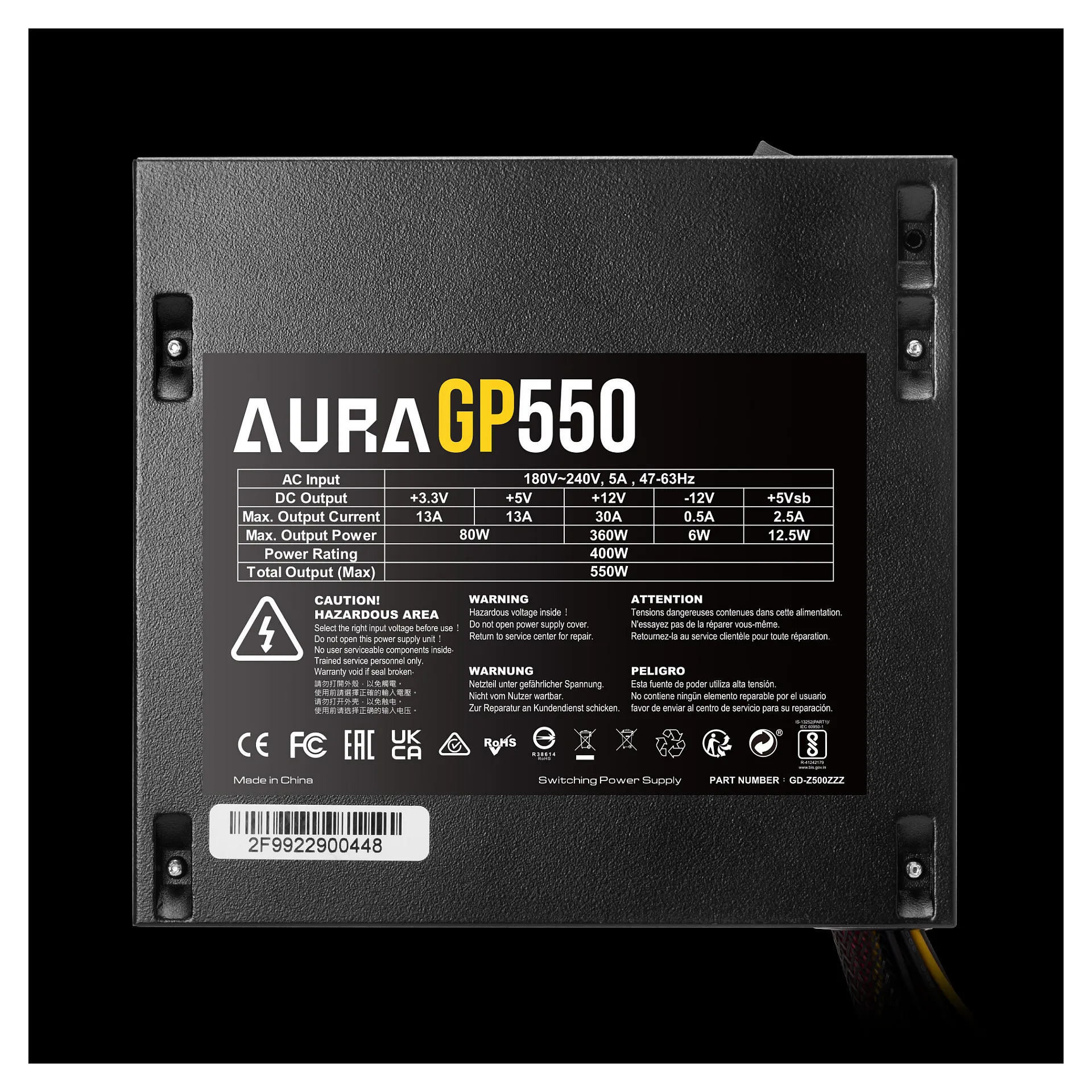

Total power: 550 W
AC input voltage: 180 – 240 V
AC input frequency: 47 – 63 Hz
Input current: 5 A
Maximum input current (@220V): 5 A
Combined power (+3.3V): 80 W
Combined power (+12V): 360 W
Combined power (+5V): 80 W
Combined power (-12V): 6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 13 A
Max output current (+12V): 30 A
Max output current (+5V): 13 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 2.5 A
Efficiency: 80%
Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 24-pin ATX
Number of SATA power connectors: 5
Peripheral (Molex) power connectors (4-pin): 2
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 2
Feature: CPU power connector (4+4 pin)
Feature: PCI Express connector
Performance
80 PLUS certification: 80 PLUS White
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.4
Bearing technology: Hydraulic
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
