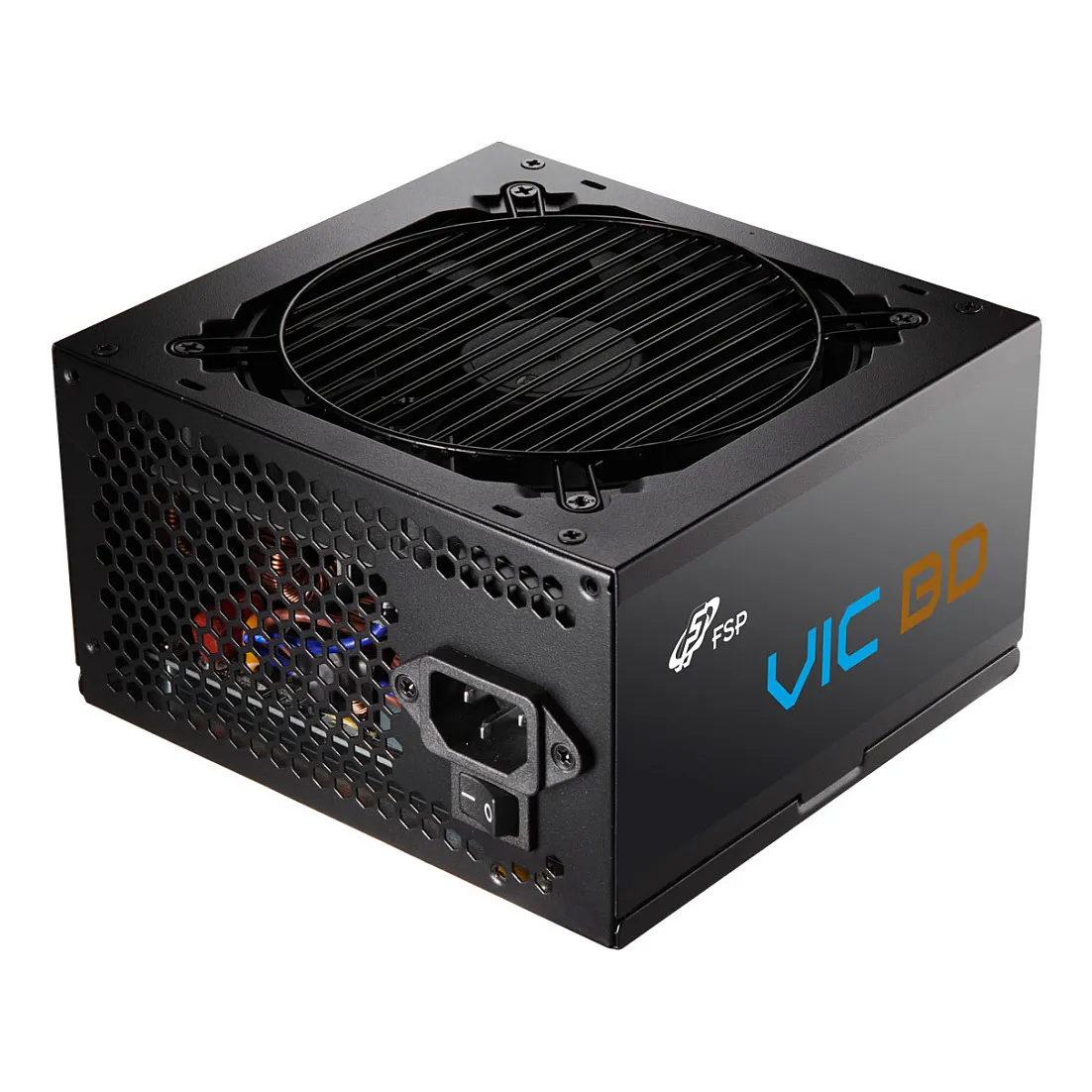

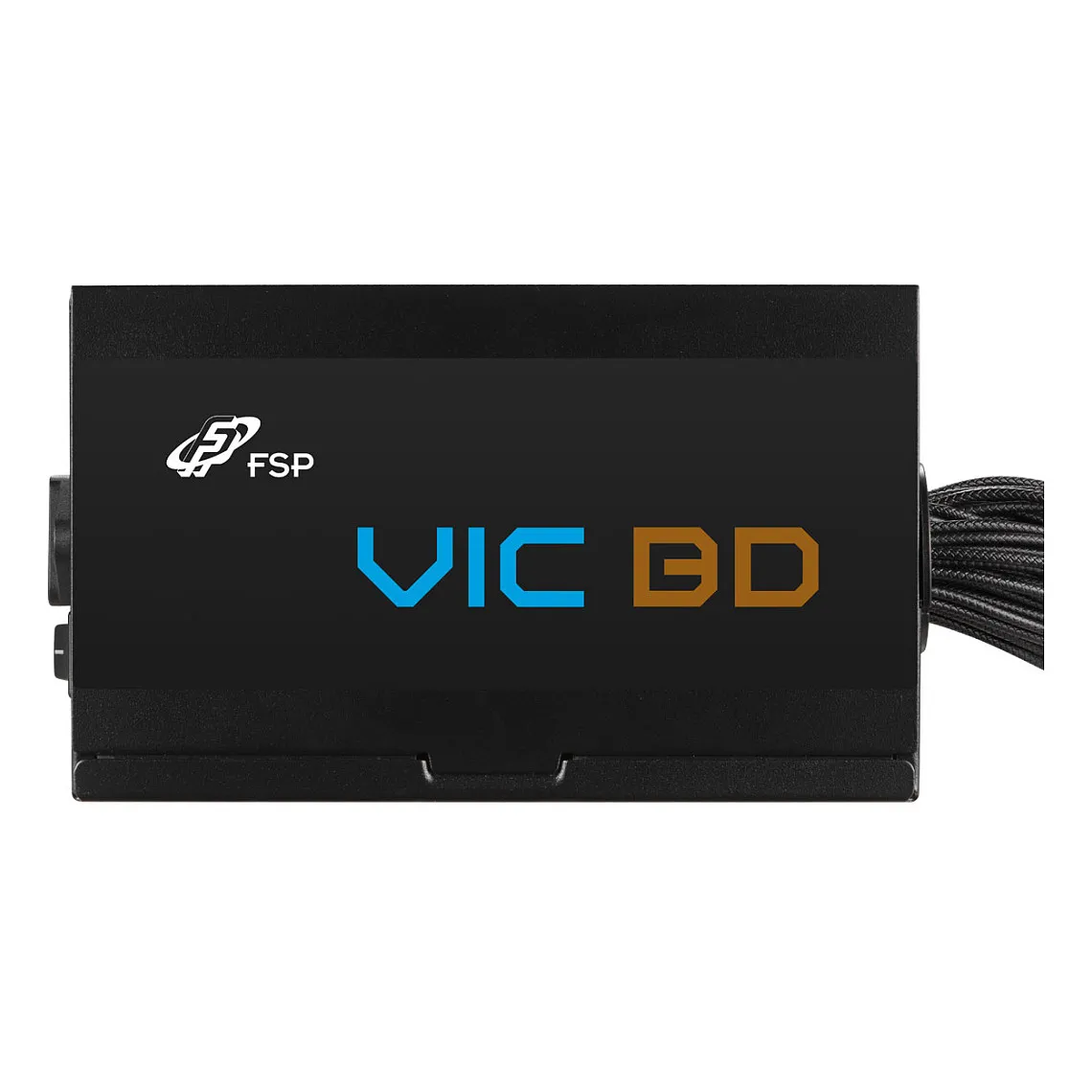

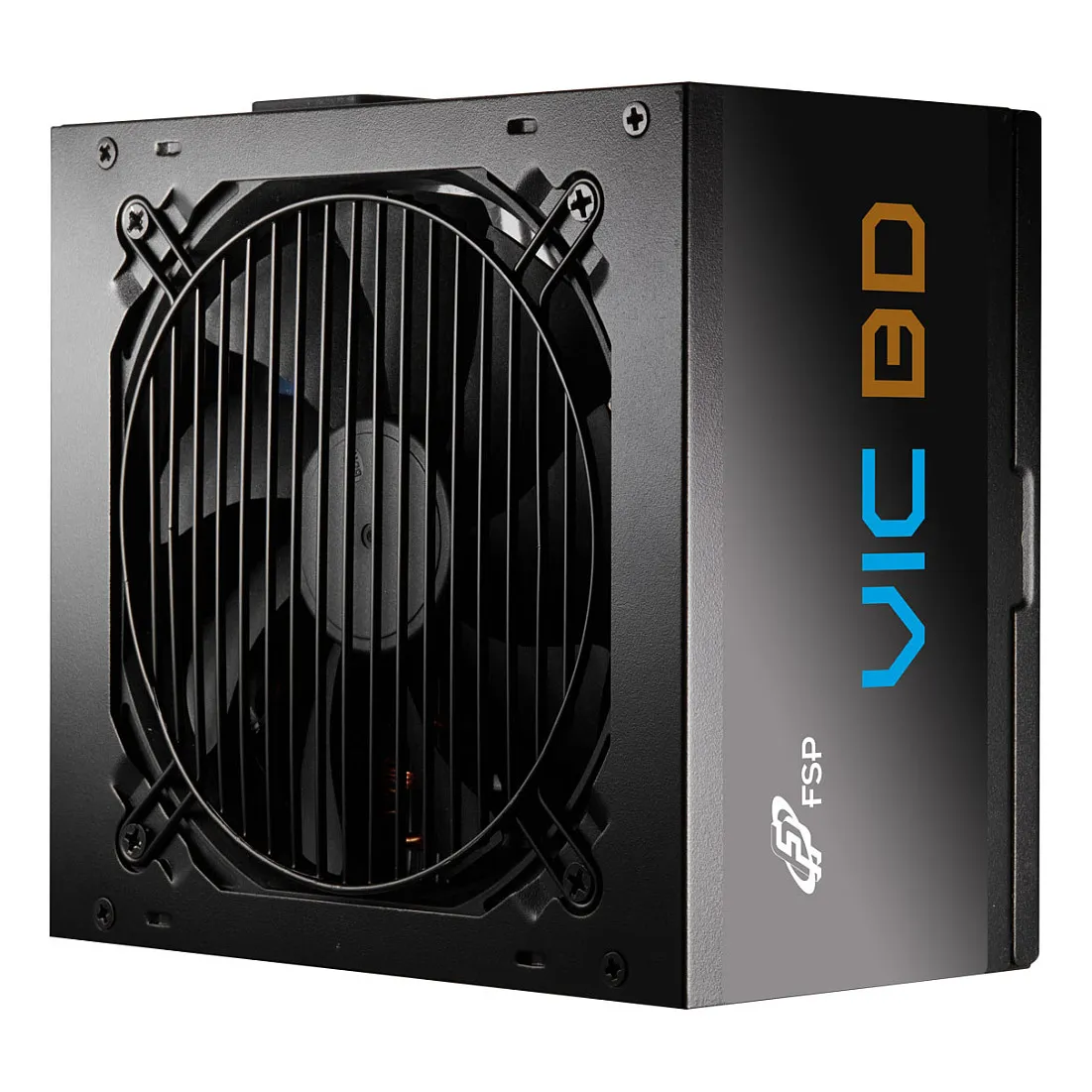

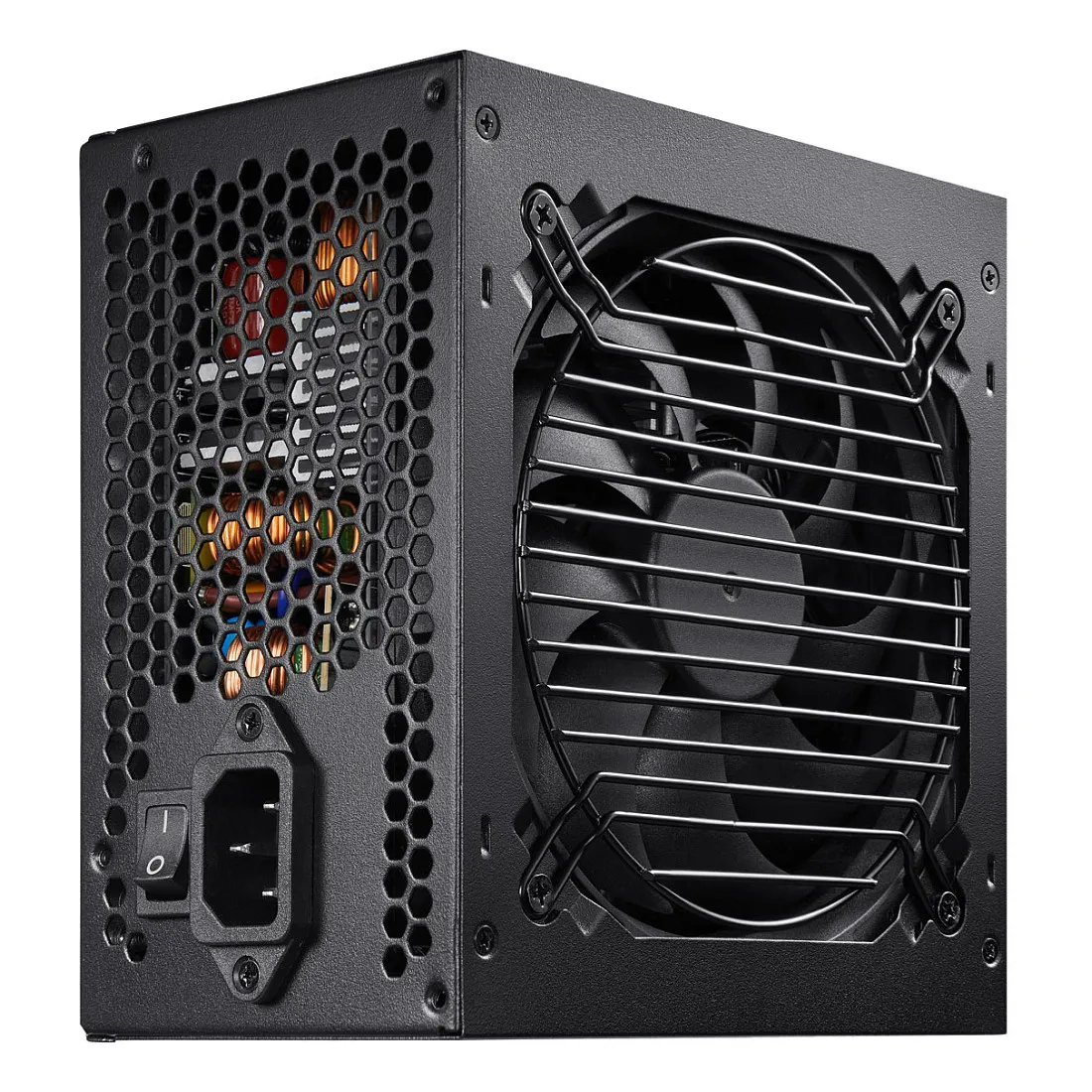

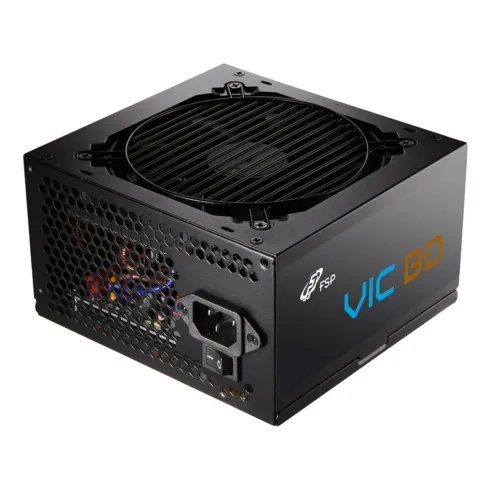

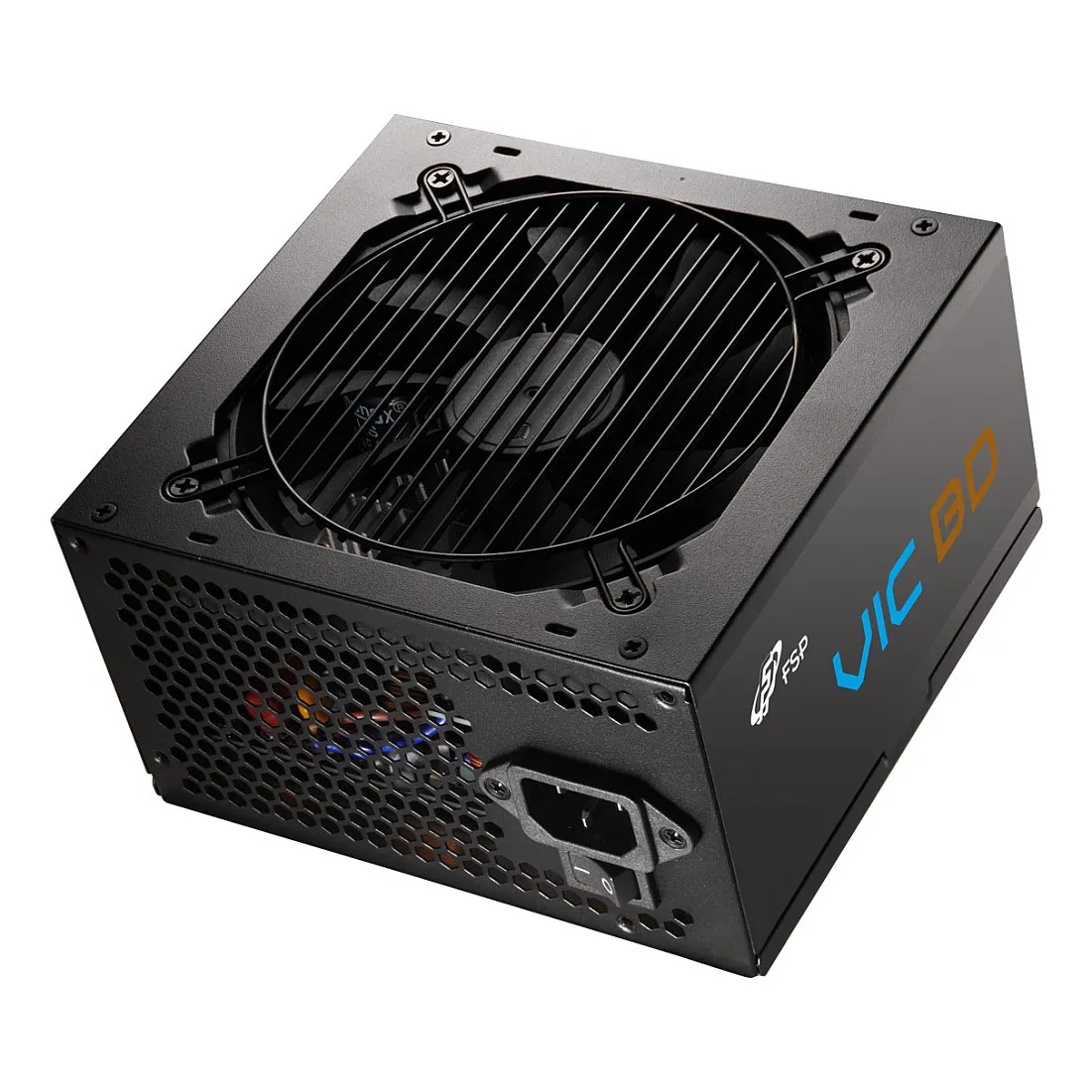

FSP VIC BD 650W Power supply unit ATX ATX3.1 Black. Total power: 650 W, AC input voltage: 220 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, SATA power cable length: 450,600,750,900 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Following the latest ATX 3.1 regulation, support up to 200% power excursion to ensure peak performance with future hardware upgrades.
Reliable Circuit Design for Steady Power
The +5V & 3.3V DC to DC circuit design enhances efficiency and stabilizes output voltage for consistent system performance.
High Efficiency in Bronze-certified
Certified by world-class organizations 80 PLUS® 230V EU Bronze certification for lower power loss, less heat, and quieter operation.
Power-Ready +12V Single Rail Design
Engineered for power-hungry Graphics cards, this design delivers robust power to handle even the most demanding overloading conditions, ensuring peak performance in every gaming session.
Durable 105℃ Bulk Capacitor
The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.

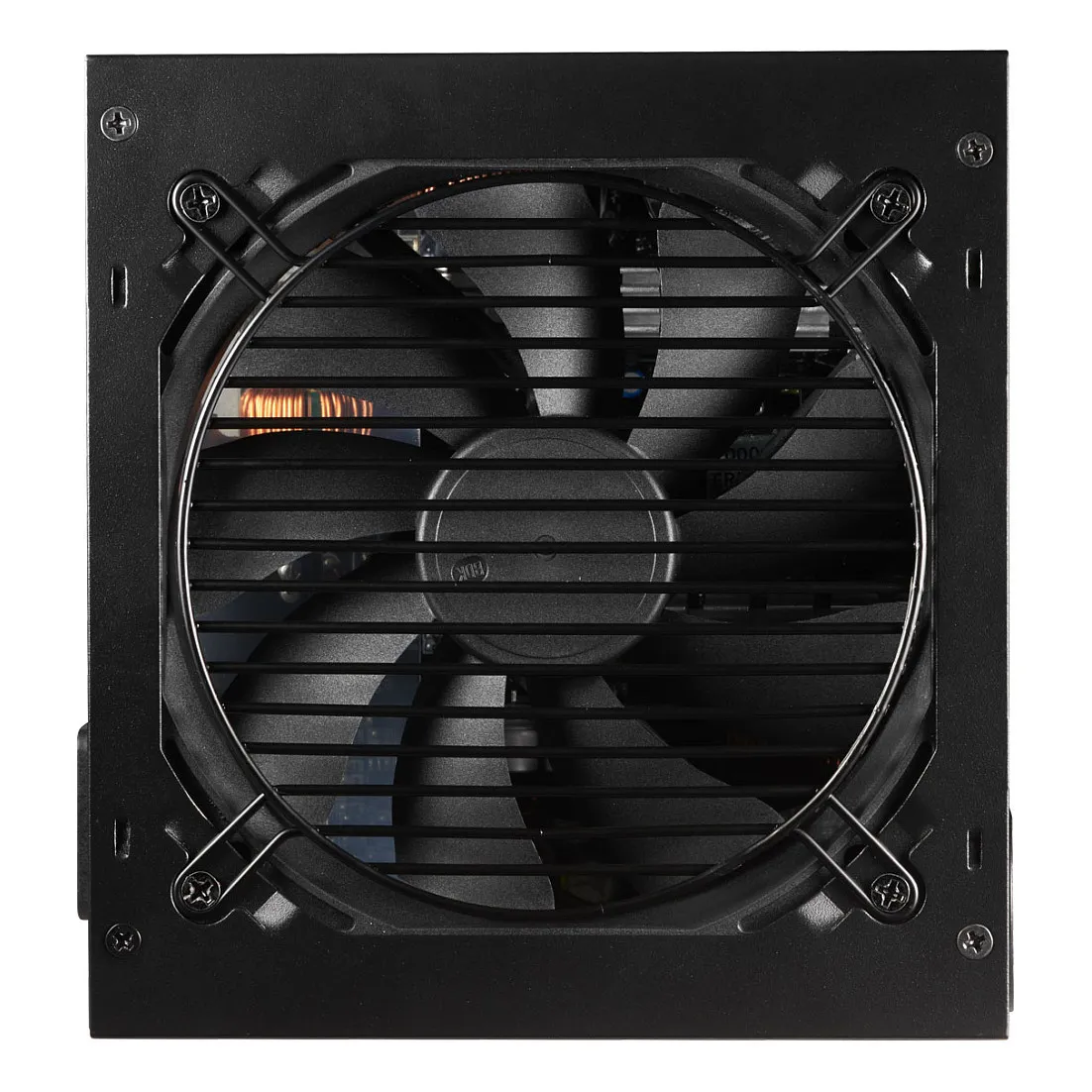

Quiet and Long-lasting HDB Fan
Built with optimized thermal solution and an advanced 120mm HDB fan for cooler components and quieter operation.
Compact PSU Size：140 x 150 x 86mm
140mm in length which is relatively shorter than industry standard, it’s ideal for compact PC or space-constraint environment without compromising on performance.
Thermal Resilience: Power You Can Depend On
The VIC BD power supply is engineered for reliable power delivery, even in temperatures up to 40°C. Count on stable performance for your everyday computing, ensuring system longevity without heat concerns.
*Performance data based on testing conducted at 25°C ambient temperature.
Premium, Black Embossed Cables
Featuring improved black, embossed cables that are soft and easy to bend, users can manage them more easily, saving time and creating more space for optimal cooling performance in your PC build.
Strong Power Supply for CPU Needs
This power supply is equipped with dual 8-pin PCIe power connectors, delivering ample 12V power to meet the demands of high-performance CPUs.
Complete Protection
Our comprehensive circuit shields your valuable components from harm.
Total power: 650 W
AC input voltage: 220 – 240 V
AC input frequency: 50/60 Hz
Input current: 6 – 3 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 80 W
Combined power (+12V): 649.2 W
Combined power (+5V): 80 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 16 A
Max output current (+12V): 54.1 A
Max output current (+5V): 16 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Efficiency: 88%
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 50 cm
Number of SATA power connectors: 5
SATA power cable length: 450,600,750,900 mm
Number of SATA power cables: 2
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 600,750,900 mm
PCI Express power connectors (6+2 pin): 2
Feature: CPU power connector (4+4 pin)
CPU power cable length: 80 cm
Feature: PCI Express connector
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92
Bearing technology: HDB
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Feature: On/off switch
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Technical details
Sustainability certificates: ErP
Logistics data
Warranty period: 3 year(s)
