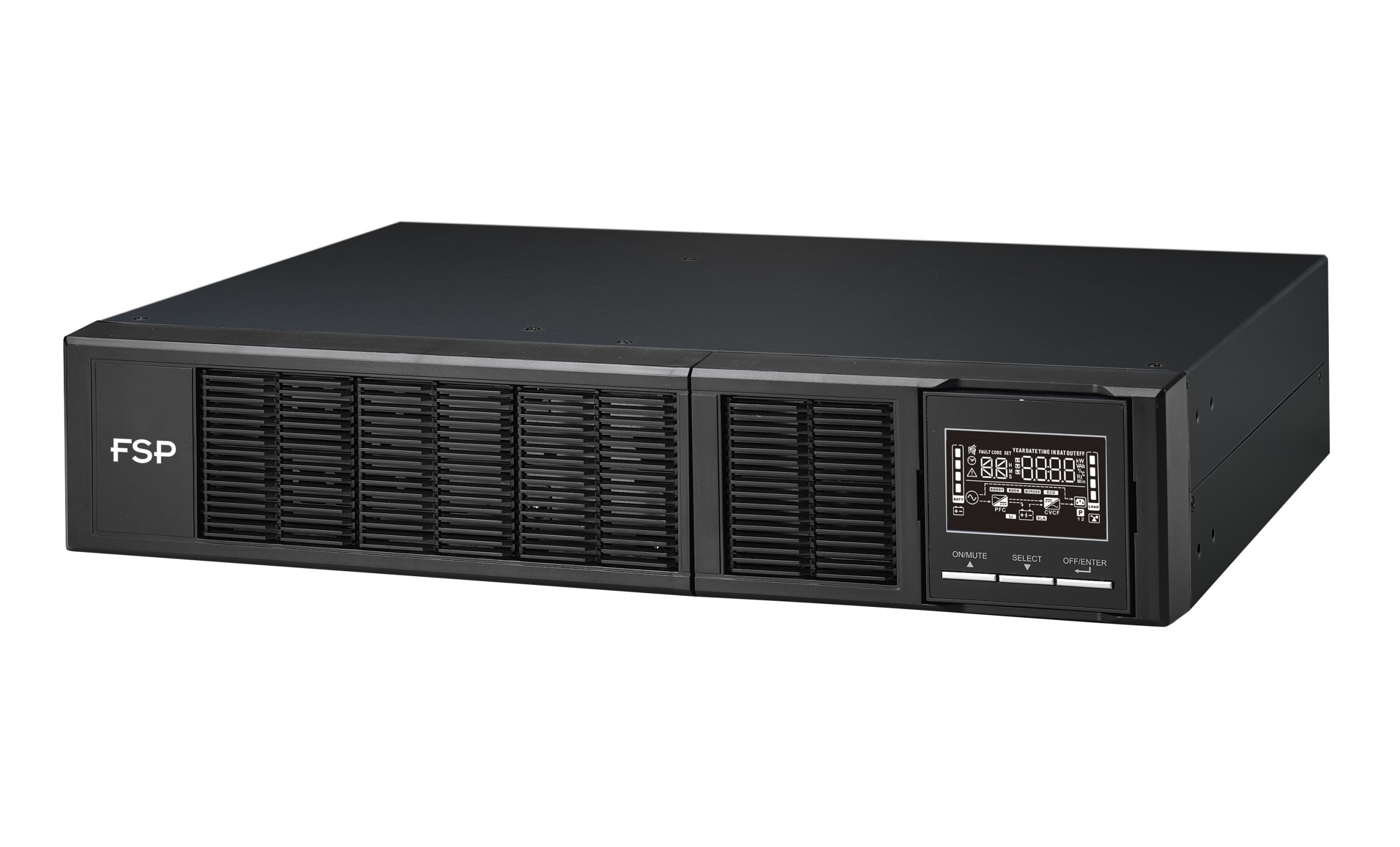

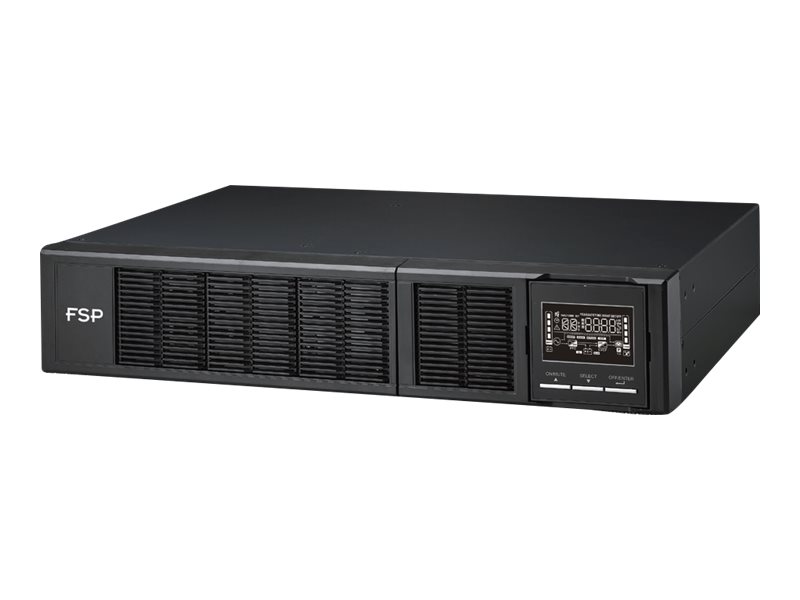

FSP Clippers RT 3K. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 3000 W. AC outlet types: C13 coupler, USB port type: USB Type-B, Serial interface type: RS-232. Battery capacity: 9 Ah, Battery voltage: 12 V, Typical backup time at full load: 33 min. Form factor: Rackmount/Tower, Product colour: Black, Cooling type: Active. Compliance certificates: CE, Certification: EMC EN62040-2 C2
FSP RT Clippers Series Clippers series is a premium featured online double conversion UPS with Rack/Tower design and high efficiency to reduce customer‘s total cost of ownership. The internal hot-swappable battery increases system reliability and reduces MTTR; the parallel function is designed for future equipment expansion. Its special firmware design can adapt to various applications like laser printers and ultrasound devices and supports long backup time with battery monitoring.
Features
UPS topology: Double-conversion (Online)
Output power capacity: 3 kVA
Output power: 3000 W
Waveform: Sine
Input operation voltage (min): 110 V
Input operation voltage (max): 300 V
Input frequency: 40/70 Hz
Output operation voltage (min): 208 V
Output operation voltage (max): 240 V
Output frequency: 46/64 Hz
Output voltage regulation: 1%
Response time: 4 ms
Number of input phases: 1
Power factor: 0.99
Crest factor: 3:1
Feature: Emergency Power Off (EPO)
Total Harmonic Distortion (THD) (linear load): 2%
Total Harmonic Distortion (THD) (non-linear load): 4%
Noise level: 50 dB
Feature: Surge protection
Feature: Audible alarm(s)
Audible alarm modes: Alarm when on battery, Fault, Overload alarm, Low battery alarm
Ports & interfaces
AC outlet types: C13 coupler
Feature: USB port
USB 2.0 ports quantity: 1
USB port type: USB Type-B
Feature: Serial interface
Serial interface type: RS-232
Feature: Emergency Power Off (EPO) connector
Battery
Battery capacity: 9 Ah
Battery voltage: 12 V
Number of battery cells: 6
Typical backup time at full load: 33 min
Battery recharge time: 3 h

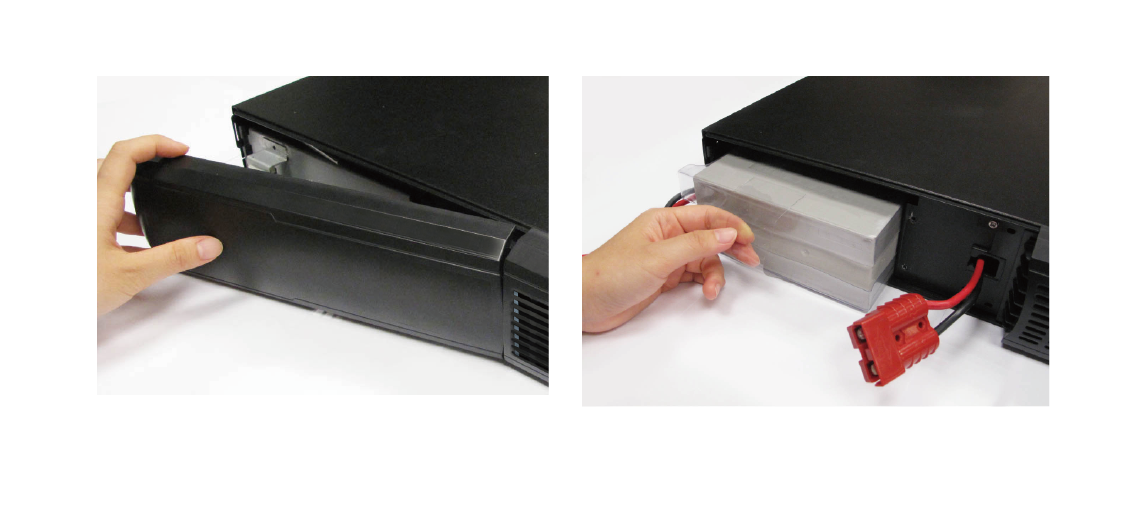

Feature: Hot-swap battery
Design
Form factor: Rackmount/Tower
Cooling type: Active
Feature: Built-in fan
Product colour: Black
Control type: Buttons
Display type: LCD
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 20 – 90%
Certificates
Compliance certificates: CE
Certification: EMC EN62040-2 C2
Sustainability
Feature: Sustainability compliance
Weight & dimensions
Width: 438 mm
Depth: 630 mm
Height: 88 mm
Weight: 27.5 kg
Logistics data
Harmonized System (HS) code: 85078000
Other features
Packaging content: UPS, user manual, software CD, C14-C13 cable, USB cable, tower stands, mounting ears & screws
UPS topology: Double-conversion (Online)
Output power capacity: 3 kVA
Output power: 3000 W
Waveform: Sine
Input operation voltage (min): 110 V
Input operation voltage (max): 300 V
Input frequency: 40/70 Hz
Output operation voltage (min): 208 V
Output operation voltage (max): 240 V
Output frequency: 46/64 Hz
Output voltage regulation: 1%
Response time: 4 ms
Number of input phases: 1
Power factor: 0.99
Crest factor: 3:1
Feature: Emergency Power Off (EPO)
Total Harmonic Distortion (THD) (linear load): 2%
Total Harmonic Distortion (THD) (non-linear load): 4%
Noise level: 50 dB
Feature: Surge protection
Feature: Audible alarm(s)
Audible alarm modes: Alarm when on battery, Fault, Overload alarm, Low battery alarm
Ports & interfaces
AC outlet types: C13 coupler
Feature: USB port
USB 2.0 ports quantity: 1
USB port type: USB Type-B
Feature: Serial interface
Serial interface type: RS-232
Feature: Emergency Power Off (EPO) connector
Battery
Battery capacity: 9 Ah
Battery voltage: 12 V
Number of battery cells: 6
Typical backup time at full load: 33 min
Battery recharge time: 3 h
Feature: Hot-swap battery
Design
Form factor: Rackmount/Tower
Cooling type: Active
Feature: Built-in fan
Product colour: Black
Control type: Buttons
Display type: LCD
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 20 – 90%
Certificates
Compliance certificates: CE
Certification: EMC EN62040-2 C2
Sustainability
Feature: Sustainability compliance
Weight & dimensions
Width: 438 mm
Depth: 630 mm
Height: 88 mm
Weight: 27.5 kg
Logistics data
Harmonized System (HS) code: 85078000
Other features
Packaging content: UPS, user manual, software CD, C14-C13 cable, USB cable, tower stands, mounting ears & screws
