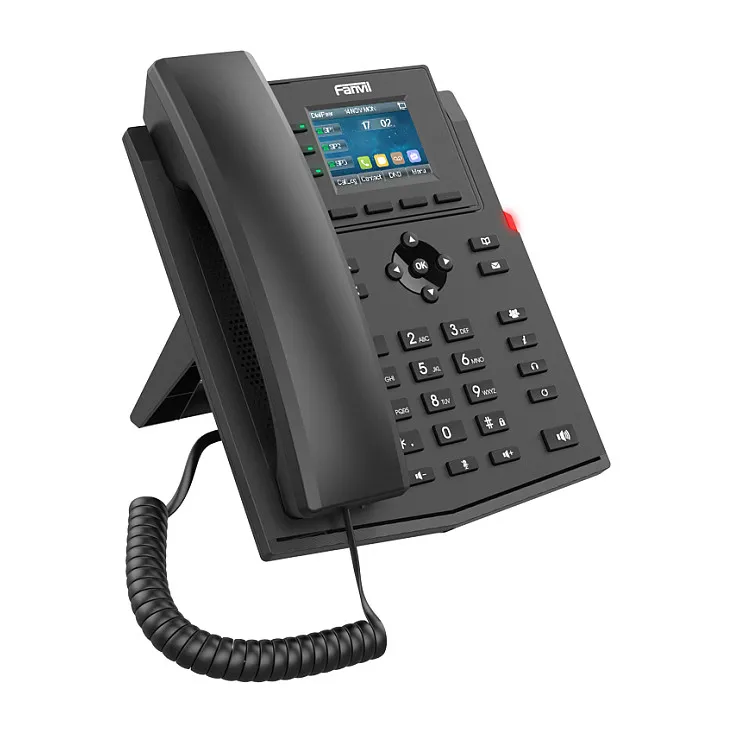

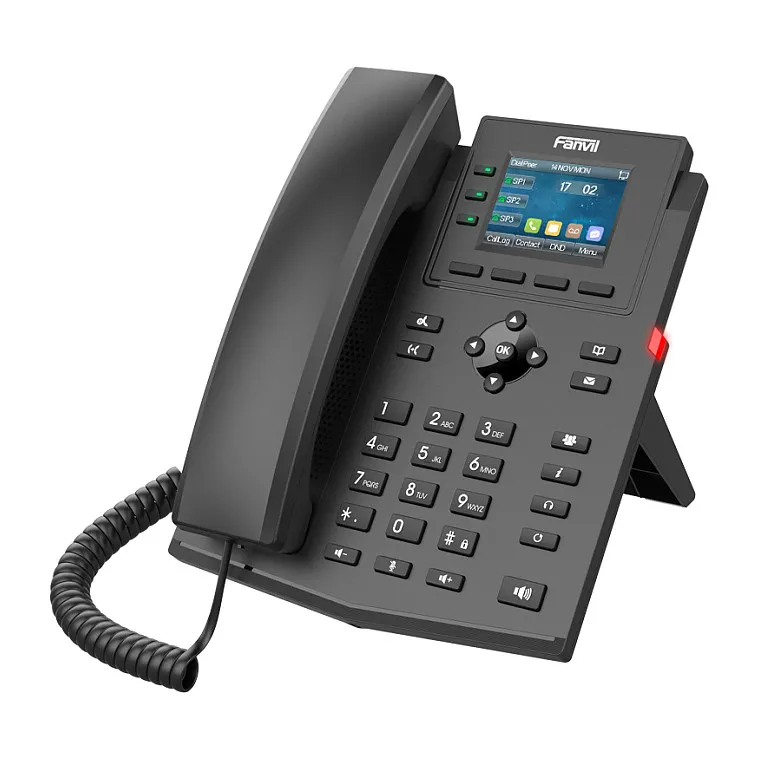

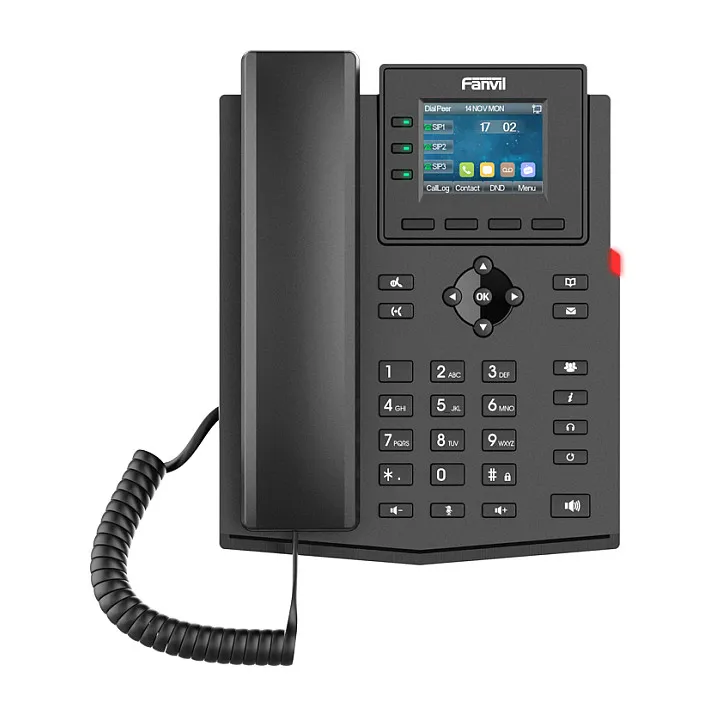

Fanvil X303-2. Product type: IP Phone, Product colour: Black, Handset type: Wired handset. Operating system installed: Linux. Lines quantity: 4 lines, Phonebook capacity: 1000 entries. Volume control: Buttons. Display: LCD, Display diagonal: 6.1 cm (2.4"), Display resolution: 320 x 240 pixels
Fanvil X303-2 Wire IP Phone is an upgraded version of the original IP phone, featuring a brand-new power and network supply method using a 2-wire connection. This allows for complete reuse of old wiring while offering high-definition voice, a 2.4-inch color display, support for 4 SIP accounts, 2-wire power and network supply, multi-party conferencing, and other rich features. Additionally, it supports external EHS wireless headsets and other expansion functions, making it suitable for various enterprise application scenarios and providing an excellent user experience.
Design
Product type: IP Phone
Handset type: Wired handset
Product colour: Black
Feature: Wall mountable
Mounting: Desk/Wall
Performance
Operating system installed: Linux
Phone features
Lines quantity: 4 lines
Call log entries: 600
Feature: Hot desking
Feature: Call waiting
Feature: Intercom
Feature: Call hold
Feature: Call forwarding
Feature: Caller ID
Phonebook capacity: 1000 entries
Feature: Conference call
Feature: Redialing
Feature: Do not disturb function
Feature: Call park
Feature: Call pick up
Feature: Anonymous call
Feature: Full duplex
Feature: Phonebook sharing
Feature: Call transfer
Feature: Message-waiting indicator (MWI)
Management features
Volume control: Buttons
Number of function keys: 9
Feature: Firmware upgradeable
Display
Display: LCD
Display diagonal: 6.1 cm (2.4″)
Display resolution: 320 x 240 pixels
Feature: Backlight display
Audio
Feature: Speakerphone
Number of microphones: 1
Feature: Microphone mute
Microphone frequency: 0 – 7000 Hz
Voice codecs: G.711a, G.711u, G.723.1, G.726, G.729ab, iLBC
Feature: Noise reduction
Feature: Echo cancellation
Feature: Voice activity detection
Feature: Adaptive jitter buffers
Feature: Automatic gain control
Feature: Comfort noise generation (CNG)
Feature: Packet loss concealment (PLC)
Network
Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Supported network protocols: SIP2.0 over UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, IPv6, LLDP, PPPoE, 802.1x, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069, AES128 & AES256
Feature: Quality of Service (QoS) support
Feature: DHCP client
Feature: Syslog
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
RJ-9 ports quantity: 2
Feature: DC-in jack
Power
Feature: Power over Ethernet (PoE)
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 10 – 95%
Weight & dimensions
Width: 203.6 mm
Depth: 169 mm
Height: 172.7 mm
Packaging content
Feature: Mounting kit
Feature: Analog line cable
Feature: Ethernet cable
Number of handles included: 1 pc(s)
Feature: Stand included
Product type: IP Phone
Handset type: Wired handset
Product colour: Black
Feature: Wall mountable
Mounting: Desk/Wall
Performance
Operating system installed: Linux
Phone features
Lines quantity: 4 lines
Call log entries: 600
Feature: Hot desking
Feature: Call waiting
Feature: Intercom
Feature: Call hold
Feature: Call forwarding
Feature: Caller ID
Phonebook capacity: 1000 entries
Feature: Conference call
Feature: Redialing
Feature: Do not disturb function
Feature: Call park
Feature: Call pick up
Feature: Anonymous call
Feature: Full duplex
Feature: Phonebook sharing
Feature: Call transfer
Feature: Message-waiting indicator (MWI)
Management features
Volume control: Buttons
Number of function keys: 9
Feature: Firmware upgradeable
Display
Display: LCD
Display diagonal: 6.1 cm (2.4″)
Display resolution: 320 x 240 pixels
Feature: Backlight display
Audio
Feature: Speakerphone
Number of microphones: 1
Feature: Microphone mute
Microphone frequency: 0 – 7000 Hz
Voice codecs: G.711a, G.711u, G.723.1, G.726, G.729ab, iLBC
Feature: Noise reduction
Feature: Echo cancellation
Feature: Voice activity detection
Feature: Adaptive jitter buffers
Feature: Automatic gain control
Feature: Comfort noise generation (CNG)
Feature: Packet loss concealment (PLC)
Network
Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Supported network protocols: SIP2.0 over UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, IPv6, LLDP, PPPoE, 802.1x, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069, AES128 & AES256
Feature: Quality of Service (QoS) support
Feature: DHCP client
Feature: Syslog
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
RJ-9 ports quantity: 2
Feature: DC-in jack
Power
Feature: Power over Ethernet (PoE)
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 10 – 95%
Weight & dimensions
Width: 203.6 mm
Depth: 169 mm
Height: 172.7 mm
Packaging content
Feature: Mounting kit
Feature: Analog line cable
Feature: Ethernet cable
Number of handles included: 1 pc(s)
Feature: Stand included
