Fanvil W712. Product colour: Black. Voice codecs: G.711a, G.711u, G.722, G.723, G.726-32, G.729A, G.729ab, iLBC, Compatible memory cards: MicroSD (TransFlash). Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3at. Security algorithms: HTTPS, SRTP. WAN connection: Ethernet (RJ-45)

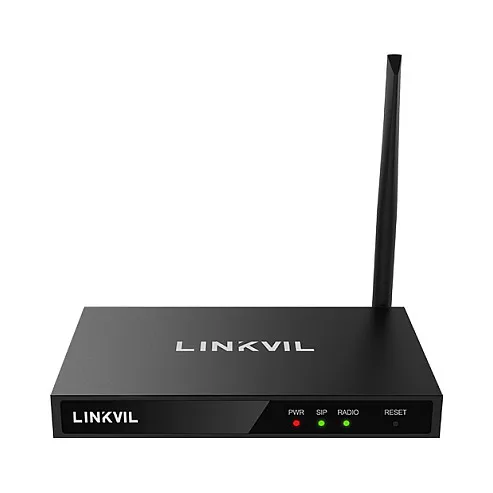

LINKVIL W712 is a RoIP gateway with built-in radio and SIP modules, which enables interconnection betweenanalog/digital two-way radios and SIP communication devices. Small, portable and powerful, W712 gatewayiscompatible with mainstream analog/DMR II digital two-way radios and easy to deploy and manage. W712 helps tobuildan interconnected communication system without changing the existing analog and digital communication systems. It issuitable for internal communication in different scenarios, such as community security, industrial parks, supermarkets, hospitality, campus security, etc.
Design
Product colour: Black
LED indicators: Yes
Features
Voice codecs: G.711a, G.711u, G.722, G.723, G.726-32, G.729A, G.729ab, iLBC
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Protocols
Feature: DHCP server
Network
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3at
Security
Security algorithms: HTTPS, SRTP
Ports & interfaces
USB 2.0 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
WAN connection: Ethernet (RJ-45)
Management features
Feature: Web-based management
Feature: Reset button
Power
Feature: Power over Ethernet (PoE)
DC input voltage: 12 V
Weight & dimensions
Width: 209 mm
Depth: 126 mm
Height: 26.3 mm
Packaging data
Package width: 424 mm
Package depth: 320 mm
Package height: 245 mm
Operational conditions
Operating temperature (T-T): -10 – 50 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 10 – 95%
Product colour: Black
LED indicators: Yes
Features
Voice codecs: G.711a, G.711u, G.722, G.723, G.726-32, G.729A, G.729ab, iLBC
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Protocols
Feature: DHCP server
Network
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3at
Security
Security algorithms: HTTPS, SRTP
Ports & interfaces
USB 2.0 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
WAN connection: Ethernet (RJ-45)
Management features
Feature: Web-based management
Feature: Reset button
Power
Feature: Power over Ethernet (PoE)
DC input voltage: 12 V
Weight & dimensions
Width: 209 mm
Depth: 126 mm
Height: 26.3 mm
Packaging data
Package width: 424 mm
Package depth: 320 mm
Package height: 245 mm
Operational conditions
Operating temperature (T-T): -10 – 50 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 10 – 95%
