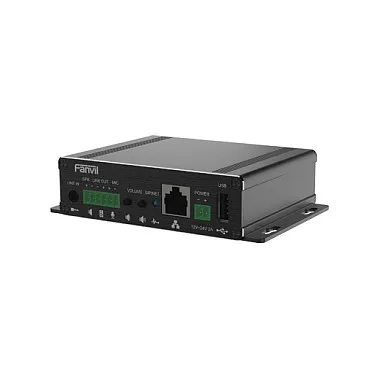

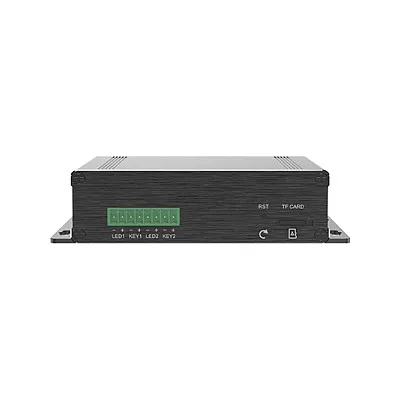

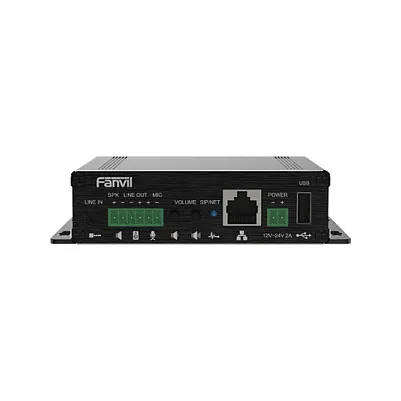

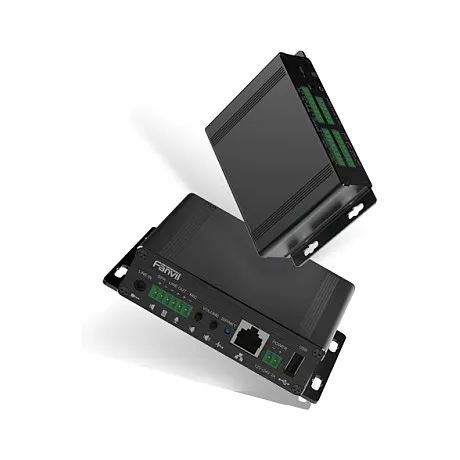

Fanvil PA3. Product colour: Black, Mounting type: Desktop/Wall mounting, LED indicators: Status. Supported protocols: SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP IPv6 PPPoE L2TP OpenVPN…. Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X), VPN support: L2TP / OpenVPN. Headphone connectivity: 3.5 mm, Microphone connectivity: 3.5 mm. Input voltage: 12 – 24 V, Input current: 2 A
Tiny Design for Limited Space
Small and stylish, Fanvil PA3 is suitable for the limited space in most of the application scenarios.
HD Audio for Public Broadcasting
With Wideband codec G.722 and Opus, Fanvil PA3
brings the users a crystal-clear telecom auditory
experience.
Perfect Choice for Secondary Development
Featuring rich interfaces, Fanvil can be developed into broadcasting devices, amplifiers,
and intercoms to meet the different requirements.
Achieve the Real-time and Fix-time Broadcasting
Connected to the USB or TF card max to 32G, Fanvil PA3 can be used to do the MP3
offline local broadcast as well as the online broadcast.
Video Linkage with IP Camera
Users can view the HD video image of the camera
on the IP phone through Fanvil PA3, for monitoring
the surrounding situation in real-time.
Product colour: Black
Mounting type: Desktop/Wall mounting
LED indicators: Status
Protocols
Feature: DHCP server
Feature: DHCP client
Supported protocols: SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLSRTP/RTCP/SRTPSTUNDHCPIPv6PPPoEL2TPOpenVPNSNTPFTP/TFTPHTTP/HTTPSTR-069
Network
Ethernet LAN data rates: 10,100 Mbit/s
Cabling technology: 10/100Base-T(X)
VPN support: L2TP / OpenVPN
Security
Feature: VLAN support
Ports & interfaces
USB 2.0 ports quantity: 1
Headphone connectivity: 3.5 mm
Microphone connectivity: 3.5 mm
Feature: SIM card slot
Ethernet LAN (RJ-45) ports: 1
Management features
Feature: Reset button
Power
Input voltage: 12 – 24 V
Input current: 2 A
Feature: Power over Ethernet (PoE)
Weight & dimensions
Width: 125 mm
Depth: 31 mm
Height: 84.2 mm
Packaging data
Package width: 147 mm
Package depth: 58 mm
Package height: 114 mm
Operational conditions
Operating temperature (T-T): -20 – 50 °C
Storage temperature (T-T): -30 – 60 °C
Operating relative humidity (H-H): 10 – 95%
