Fanvil i63. Megapixel (approx.): 2 MP, Maximum image resolution: 1920 x 1080 pixels, Supported video modes: 1080p. LED type: IR. Voice codecs: G.722. Product colour: Aluminium, International Protection (IP) code: IP67, IK code: IK07. Compatible memory cards: MicroSD (TransFlash), Maximum memory card size: 128 GB

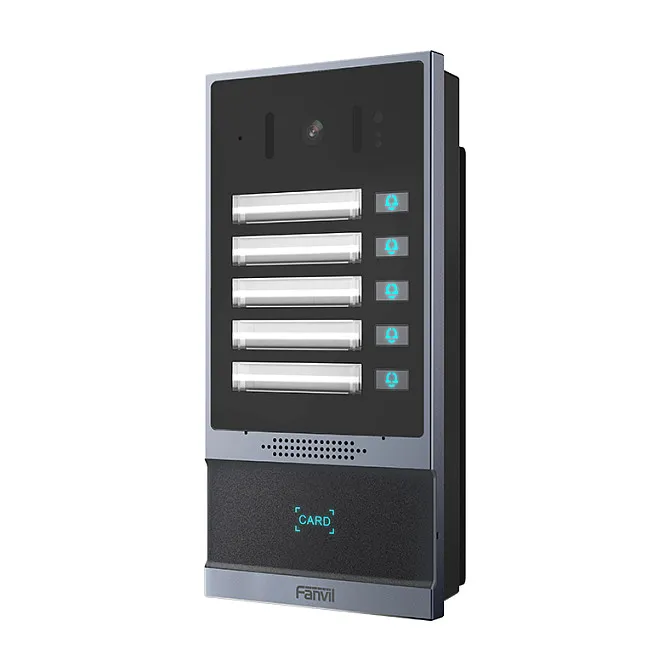

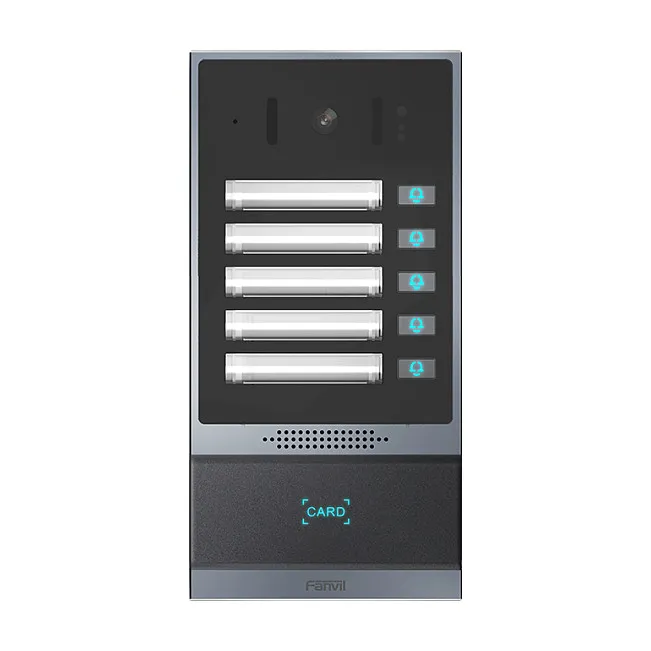

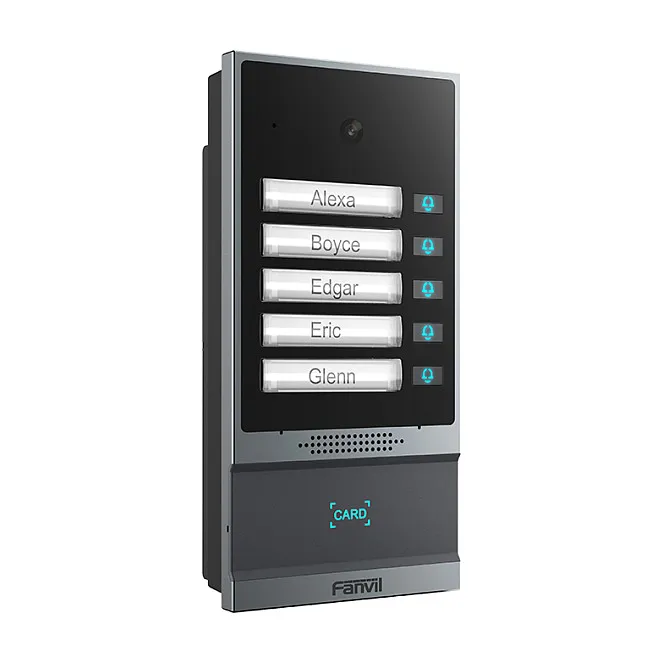

Based on SIP and ONVIF protocols, i63 is a video door phone that integrates powerful functionalities of access control, intercom, and security protection. Featuring an aluminum alloy design and 5 speed-dial buttons, i63 delivers a high-quality elegant appearance. With high protection level IP66 and IK07, it is waterproof, dustproof and anti-collision in most outdoor environments. i63 allows users to make audio/video calls via a speed-dial button and a 2 Mega-pixel camera and achieve access control by different modes. With rich input and output interfaces, i63 is easy to link with other security devices and customize into various solutions in apartments, commercial buildings, communities and industrial parks.
Technical details
Connectivity technology: Wired
Feature: Colour
Feature: Speakerphone
Feature: RFID reader
Feature: Motion detection function
Number of buttons: 5 buttons
Camera
Megapixel (approx.): 2 MP
Maximum image resolution: 1920 x 1080 pixels
Supported video modes: 1080p
Sensor type: CMOS
Optical sensor size: 30.5 / 9 mm (1.2 / 9″)
Viewing angle, horizontal: 120°
Viewing angle, vertical: 60°
Night vision
Feature: Night vision
LED type: IR
Audio
Voice codecs: G.722
Design
Product colour: Aluminium
International Protection (IP) code: IP67
IK code: IK07
Housing material: Aluminium
Control type: Buttons
Proper use: Outdoor
Storage
Feature: Memory card slot
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 128 GB
Network
Ethernet interface type: Fast Ethernet
Ethernet LAN (RJ-45) ports: 1
Feature: Power over Ethernet (PoE)
Management features
Feature: Web-based management
Feature: Syslog
Operational conditions
Operating temperature (T-T): -40 – 70 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 95%
Weight & dimensions
Width: 88 mm
Depth: 36.1 mm
Height: 177.4 mm
Packaging data
Feature: Outdoor unit included
Connectivity technology: Wired
Feature: Colour
Feature: Speakerphone
Feature: RFID reader
Feature: Motion detection function
Number of buttons: 5 buttons
Camera
Megapixel (approx.): 2 MP
Maximum image resolution: 1920 x 1080 pixels
Supported video modes: 1080p
Sensor type: CMOS
Optical sensor size: 30.5 / 9 mm (1.2 / 9″)
Viewing angle, horizontal: 120°
Viewing angle, vertical: 60°
Night vision
Feature: Night vision
LED type: IR
Audio
Voice codecs: G.722
Design
Product colour: Aluminium
International Protection (IP) code: IP67
IK code: IK07
Housing material: Aluminium
Control type: Buttons
Proper use: Outdoor
Storage
Feature: Memory card slot
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 128 GB
Network
Ethernet interface type: Fast Ethernet
Ethernet LAN (RJ-45) ports: 1
Feature: Power over Ethernet (PoE)
Management features
Feature: Web-based management
Feature: Syslog
Operational conditions
Operating temperature (T-T): -40 – 70 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 95%
Weight & dimensions
Width: 88 mm
Depth: 36.1 mm
Height: 177.4 mm
Packaging data
Feature: Outdoor unit included
