Fanvil I10SD. Megapixel (approx.): 2 MP, Supported video modes: 720p, 1080p, Sensor type: CMOS. Speaker power: 1 W, Voice codecs: G.711a, G.711u, G.723, G.726-32, G.729A, G.729B, G.729ab, iLBC. Product colour: Black, Silver, International Protection (IP) code: IP54, Housing material: Acrylonitrile butadiene styrene (ABS). Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s. AC adapter output voltage: 12 V, AC adapter output current: 1 A

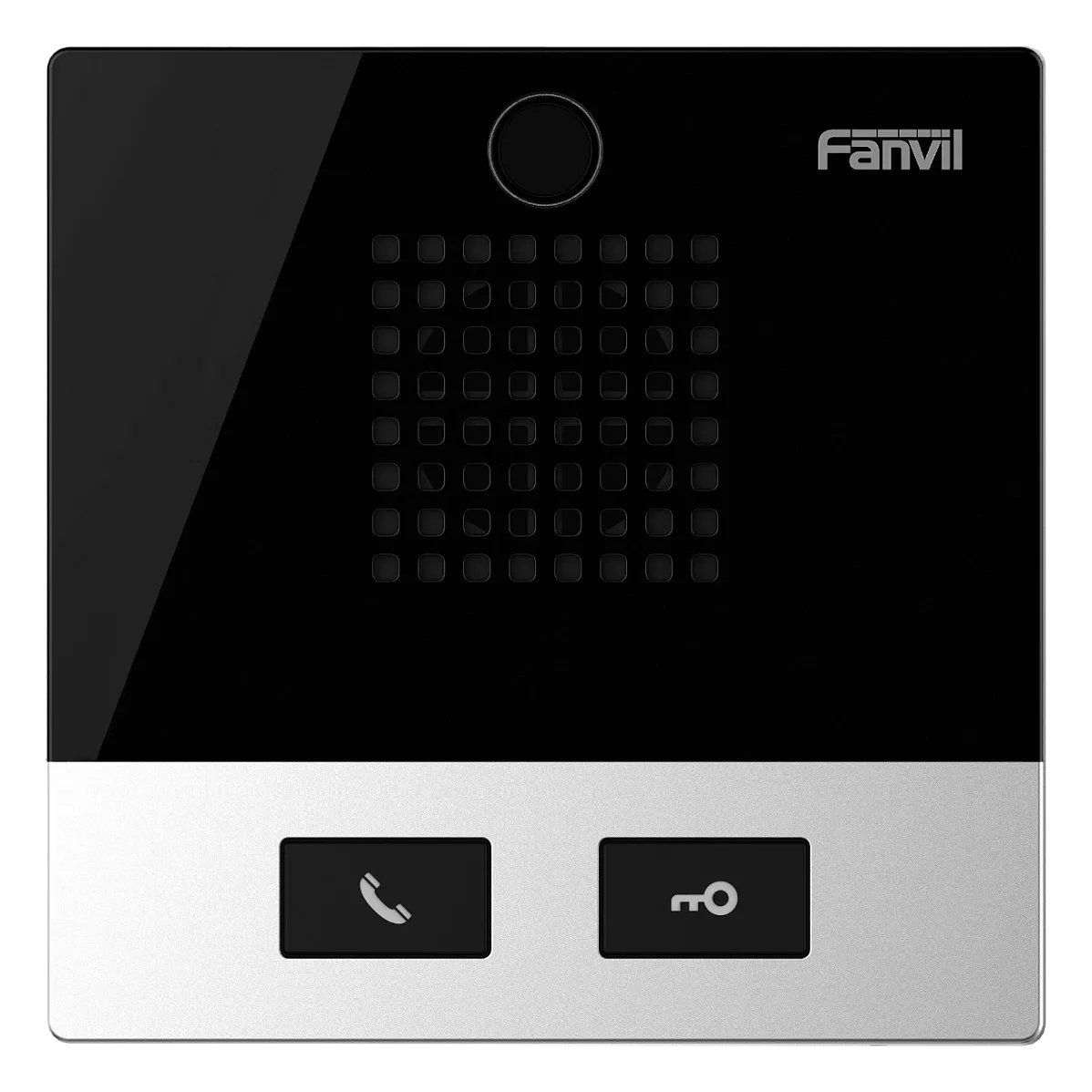

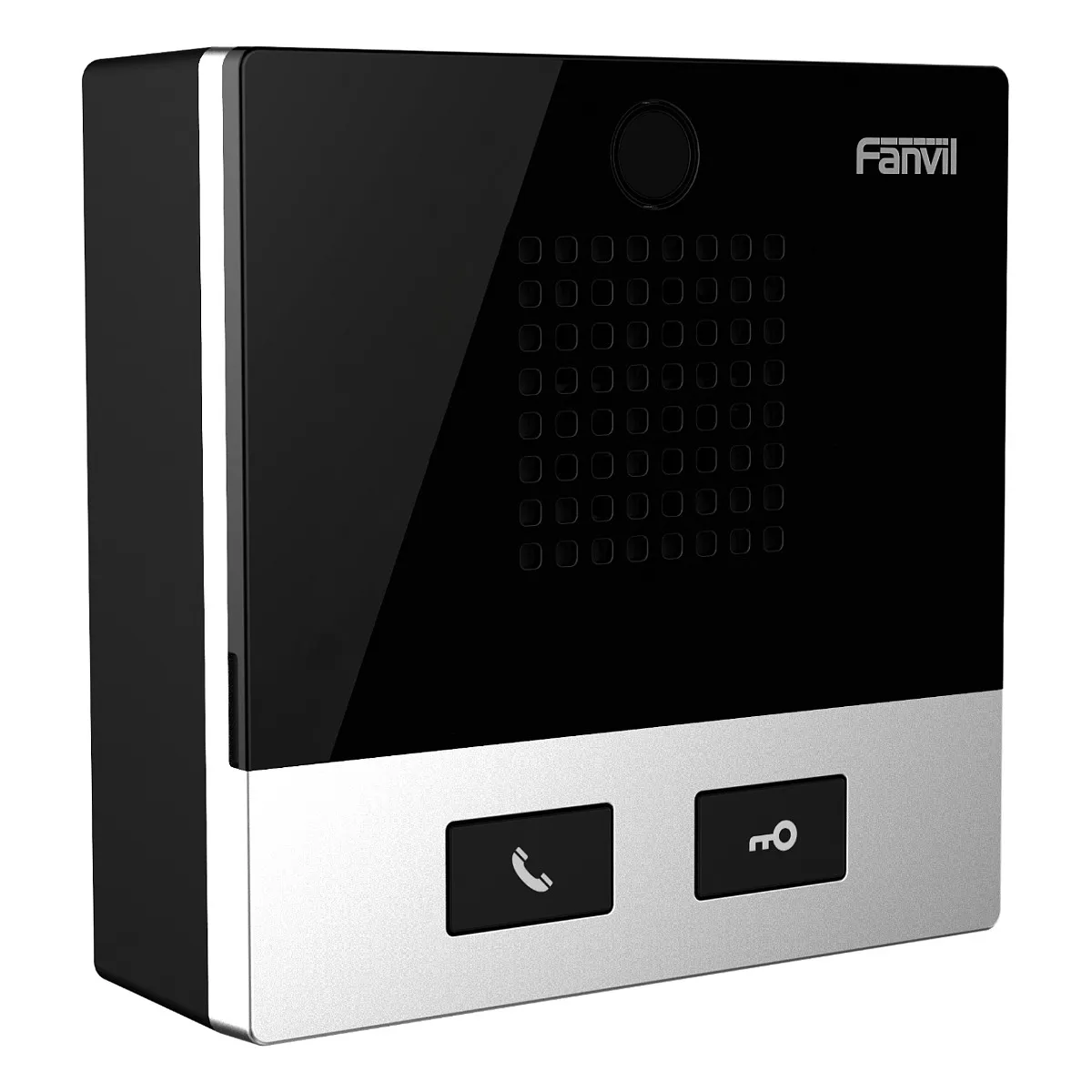

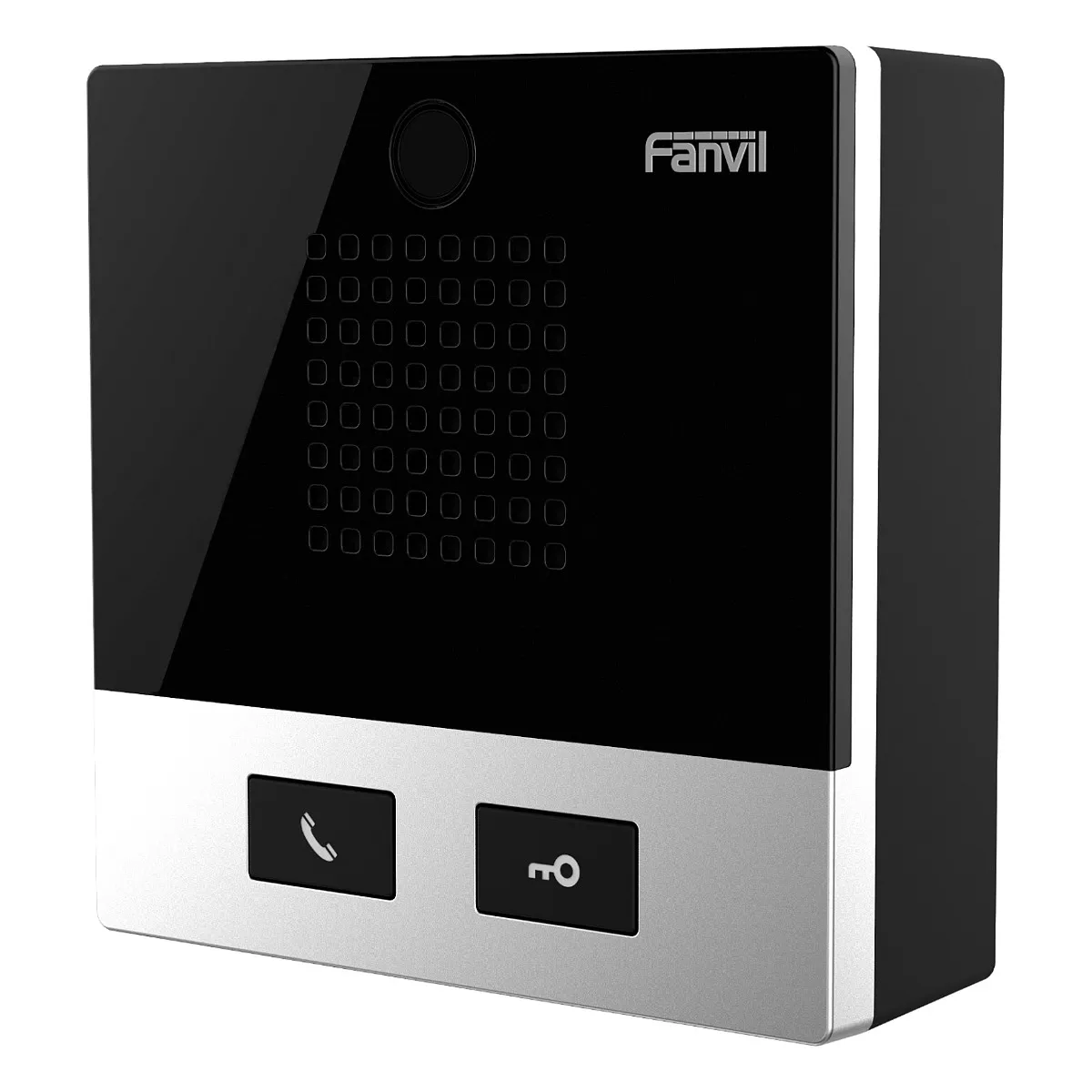

The i10S/i10SV/i10SD SIP mini intercom is designed for indoor scenes with IP54 waterproof and dustproof. Supports wall mounting installation. It combines security, audio/video intercom and broadcasting functionalities and offers the qualified communication solution for users.
Technical details
Connectivity technology: Wired
Feature: Colour
Feature: Speakerphone
Maximum number of cameras supported: 1
Feature: Echo cancellation
Feature: Wall mountable
Feature: Built-in microphone
Video codecs: H.264
Camera
Megapixel (approx.): 2 MP
Supported video modes: 720p, 1080p
Sensor type: CMOS
Optical sensor size: 25.4 / 5 mm (1 / 5″)
Minimum illumination: 40 lx
Viewing angle, horizontal: 63.3°
Viewing angle, vertical: 49.6°
Audio
Feature: Built-in speaker(s)
Number of speakers: 1
Speaker power: 1 W
Volume control: Yes
Voice codecs: G.711a, G.711u, G.723, G.726-32, G.729A, G.729B, G.729ab, iLBC
Design
Product colour: Black, Silver
International Protection (IP) code: IP54
Housing material: Acrylonitrile butadiene styrene (ABS)
Placement supported: Vertical
Network
Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Ethernet LAN (RJ-45) ports: 1
Feature: Power over Ethernet (PoE)
Management features
Feature: Web-based management
Feature: Static IP
Power
AC adapter output voltage: 12 V
AC adapter output current: 1 A
Operational conditions
Operating temperature (T-T): -20 – 50 °C
Storage temperature (T-T): -30 – 60 °C
Operating relative humidity (H-H): 10 – 95%
Weight & dimensions
Width: 88 mm
Depth: 88 mm
Height: 32 mm
