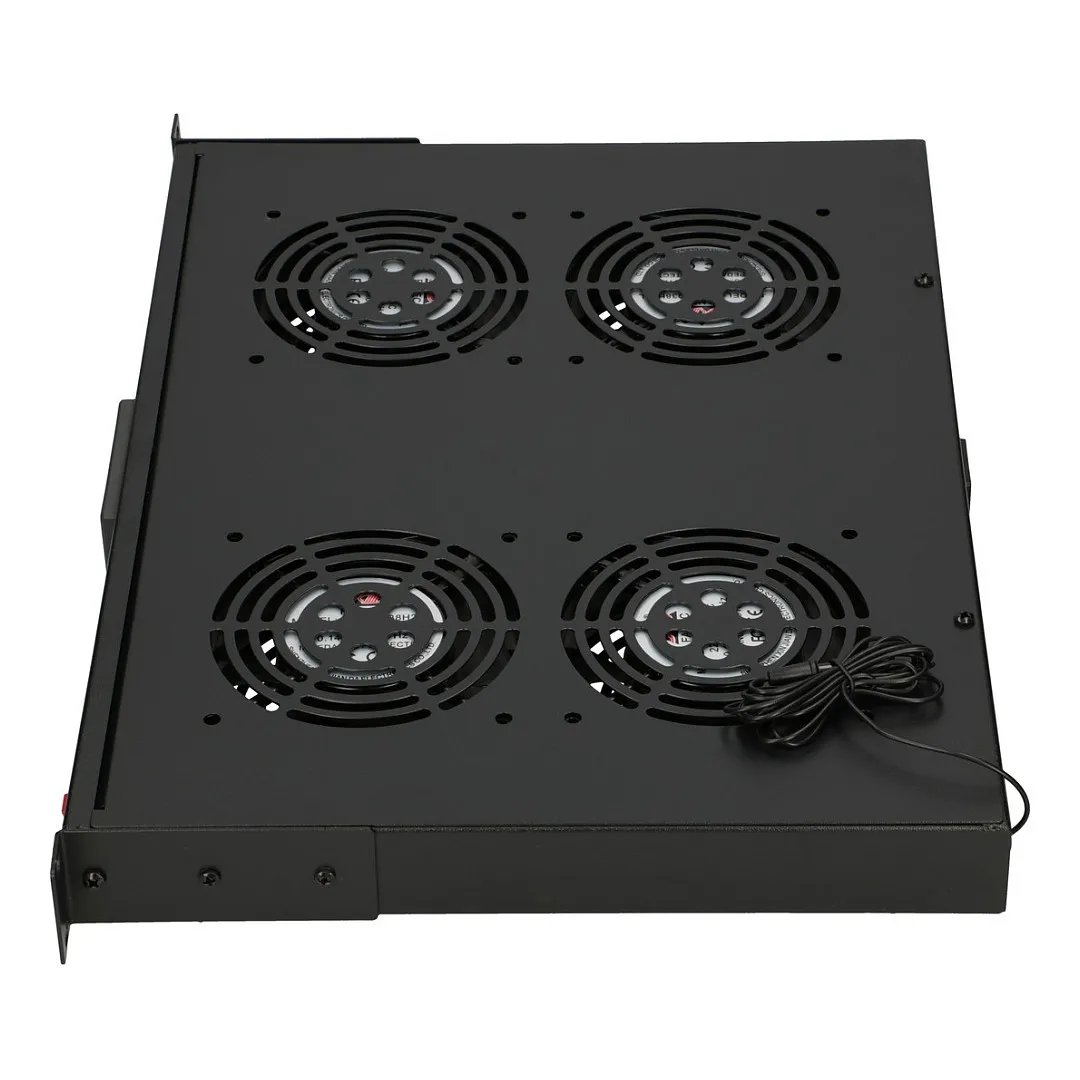

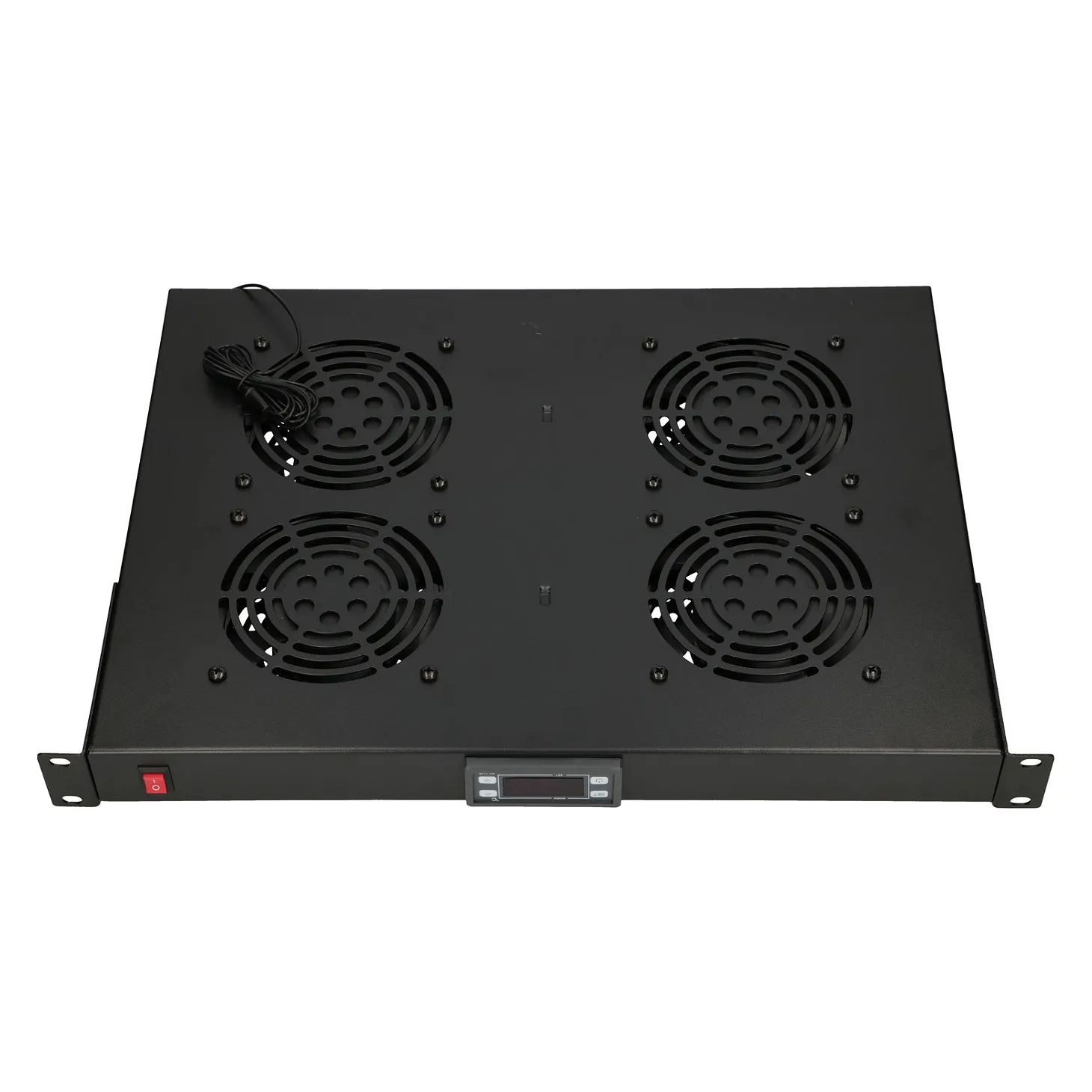

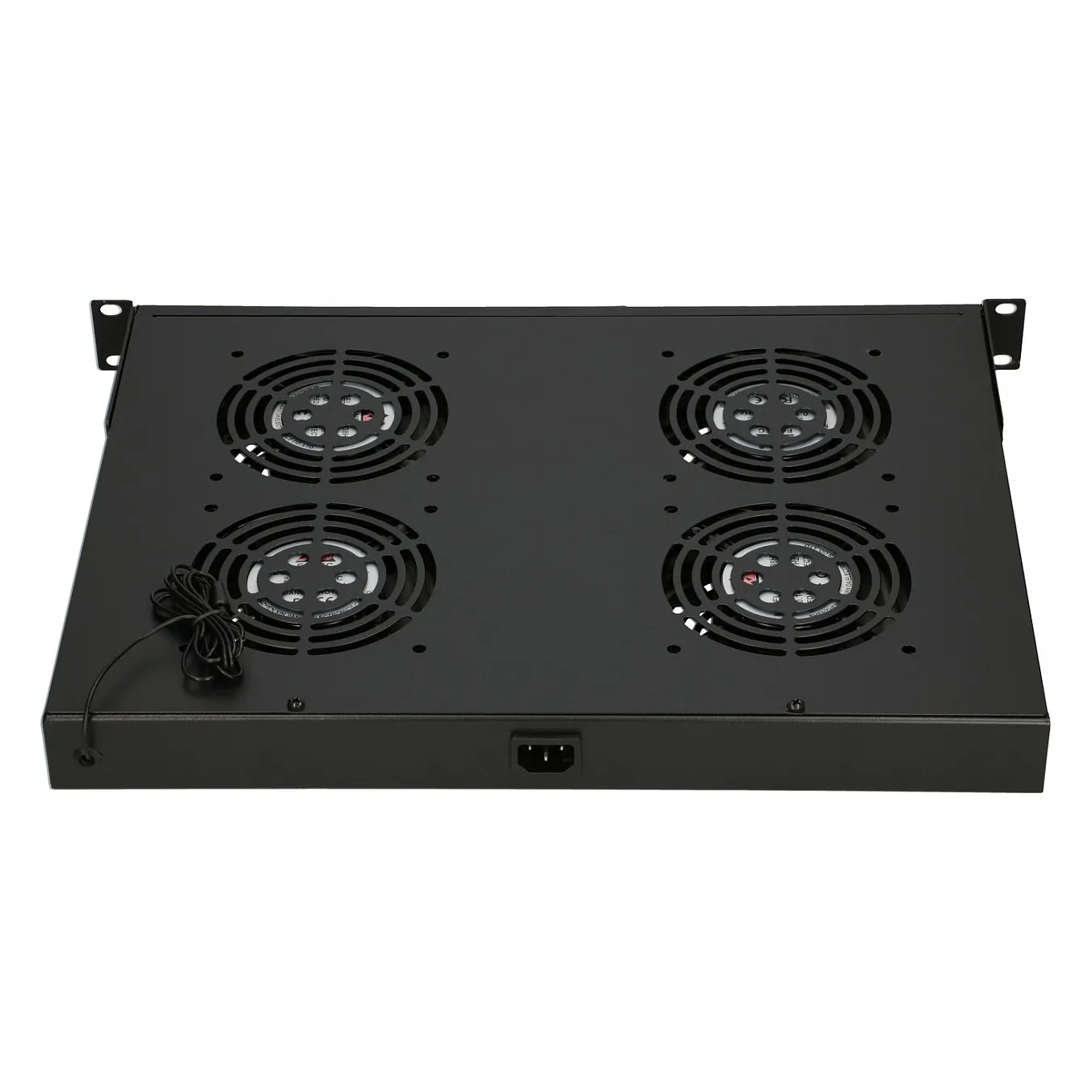

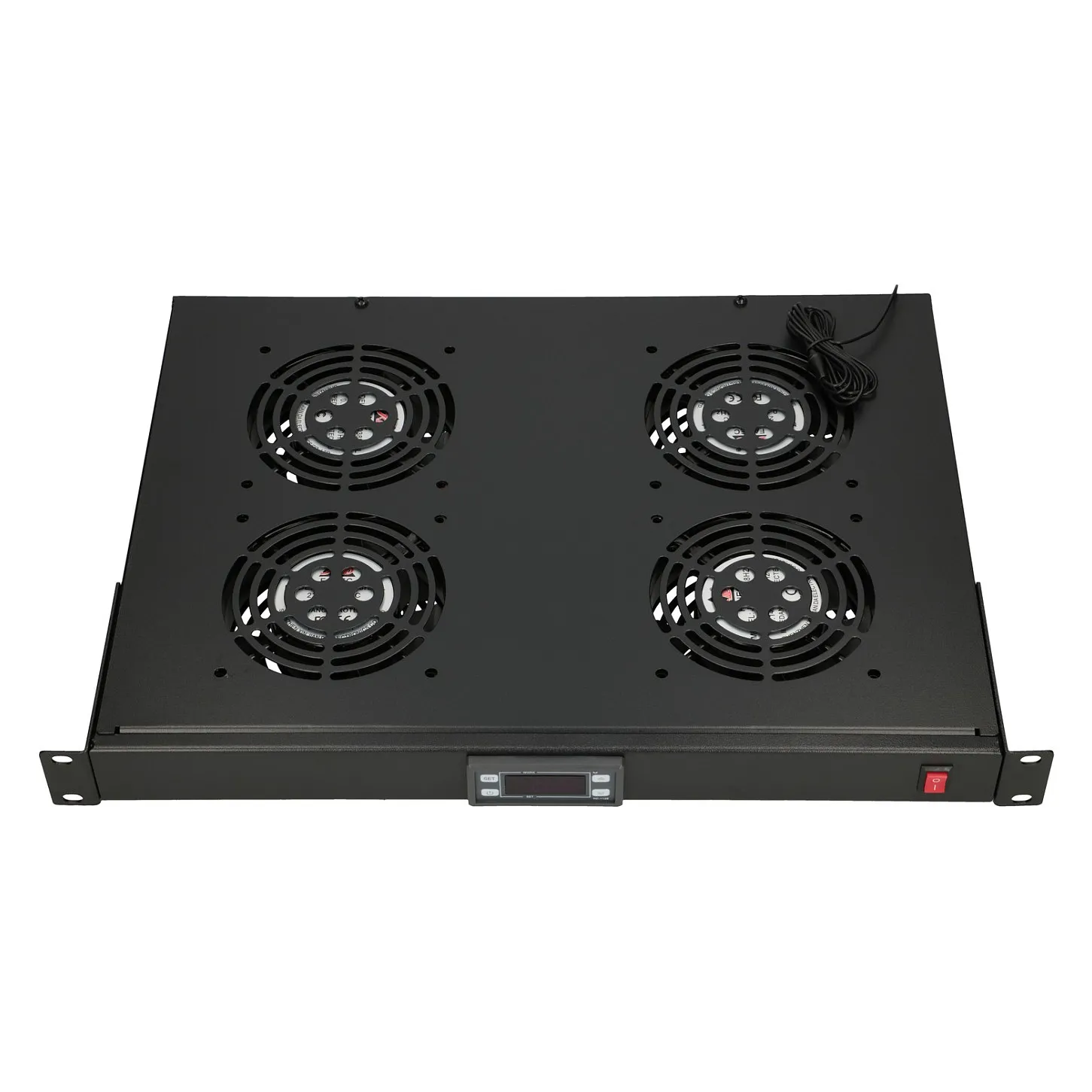

Extralink Fan panel 19", 4 fans, for rack cabinets, with thermostat. Type: Fan panel, Built-in fan, Number of fans: 4 fan(s). Power source: AC. Housing material: Metal, Product colour: Black. Quantity per pack: 5 pc(s). Weight: 4.8 kg
EXTRALINK COOLING PANEL WITH THERMOSTAT
Device from ExtraLink designed to be mounted in racks in rails. The panel with four fans forces the air circulation inside the rack between the devices. You can mount it both vertically and horizontally in almost any server room.
Power supply and thermostat in the panel
In addition to fans, the panel also has a thermostat fully adapted to be mounted on a DIN type rail. The panel’s AC 230 power supply is protected by a built-in fuse. The temperature can be adjusted between 0 and 60 degrees. The operation of the device is controlled by the thermostat, however, thanks to a button, it can be switched on and off manually.
Temperature levels
You can adjust the temperature in the panel. In it you have adjustable temperature thresholds for air circulation from – 40 to 50 degrees C. In addition, for a more complete view, you have a digital temp gauge.
Device from ExtraLink designed to be mounted in racks in rails. The panel with four fans forces the air circulation inside the rack between the devices. You can mount it both vertically and horizontally in almost any server room.
Power supply and thermostat in the panel
In addition to fans, the panel also has a thermostat fully adapted to be mounted on a DIN type rail. The panel’s AC 230 power supply is protected by a built-in fuse. The temperature can be adjusted between 0 and 60 degrees. The operation of the device is controlled by the thermostat, however, thanks to a button, it can be switched on and off manually.
Temperature levels
You can adjust the temperature in the panel. In it you have adjustable temperature thresholds for air circulation from – 40 to 50 degrees C. In addition, for a more complete view, you have a digital temp gauge.
Features
Type: Fan panel
Product colour: Black
Housing material: Metal
Feature: Built-in fan
Number of fans: 4 fan(s)
Rack capacity: 1U
Feature: On/off switch
Power
Power source: AC
Input voltage: 240 V
AC input frequency: 50 – 60 Hz
Weight & dimensions
Size (imperial): 48.3 cm (19″)
Weight: 4.8 kg
Packaging data
Quantity per pack: 5 pc(s)
Package width: 270 mm
Package depth: 510 mm
Package height: 330 mm
Package weight: 25 kg
Type: Fan panel
Product colour: Black
Housing material: Metal
Feature: Built-in fan
Number of fans: 4 fan(s)
Rack capacity: 1U
Feature: On/off switch
Power
Power source: AC
Input voltage: 240 V
AC input frequency: 50 – 60 Hz
Weight & dimensions
Size (imperial): 48.3 cm (19″)
Weight: 4.8 kg
Packaging data
Quantity per pack: 5 pc(s)
Package width: 270 mm
Package depth: 510 mm
Package height: 330 mm
Package weight: 25 kg
